Forum Discussion

hugo566788's avatar
hugo566788
Copper Contributor
Dec 13, 2023

install Visual Studio Professional intune

Hello,

I have tried to install visual studio professional 2022 in intune after executing the following steps: https://www.systemsmaven.com/post/deploying-visual-studio-with-microsoft-endpoint-manager-intune

When installing it from the company portal I get an installation error.

Detection rules:
C:\Program Files (x86)\Microsoft Visual Studio\Installer
File: vs_installer.exe and I have also tried devenv.exe

But after doing it it does not install. I tried to install it from the intune microsoft store but it says The selected app does not have a valid newer package version / This app is not supported in the preview version.

  • RickGroom's avatar
    RickGroom
    Copper Contributor

    hugo566788



    There appears to be several ways to deploy Visual Studio via Intune, found online. Unfortunately, the Visual Studio installation is not straightforward since it still requires an absolute reference path to the Configuration file. I'm sure Microsoft is aware of the issue since there are dozens for forums expressing this problem. While scripts are a great tool, I always prefer to keep my Intune application installations as clean and repurposable as possible. I opted for using the simple %CD% variable to identify the installation's current directory for install, remember to quote the path in case the expanded path contains spaces. Intune downloads the payload to an unpredictable location and the command simply returns its own current path for the Configuration file.



    Install Command: cmd.exe /c VisualStudioSetup.exe --config "%CD%\2022.vsconfig" --downloadThenInstall --quiet --wait

    Uninstall Command: "C:\Program Files (x86)\Microsoft Visual Studio\Installer\setup.exe" /uninstall /quiet

    Detection Rules*:

      Rule Type: File

      Path: C:\Program Files\Microsoft Visual Studio\2022

      File or Folder: Professional

      Detection Method: File or folder exists

    *You can be as specific as you'd like here. Above simply checks for a folder (which could be empty, so not a great determination if software is installed), however it was simple for us since our developers have multiple editions of Visual Studio installed in parallel. Others may want to detect the executable or even the executables version string.



    Best of Luck!

    • andrewbailey375's avatar
      andrewbailey375
      Copper Contributor

      RickGroom @hugo566788



      Hi Both, I feel i'm in a similar situation here.



      Did you ever get to a solution?



      I have also tried to deploy like suggested here: https://www.systemsmaven.com/post/deploying-visual-studio-with-microsoft-endpoint-manager-intune



      But keep getting failures.



      I don't understand how to now edit my setup to try and run it like ricks comment? my current install command is just install.cmd.



      How am i now going to make it "Install Command: cmd.exe /c VisualStudioSetup.exe --config "%CD%\2022.vsconfig" --downloadThenInstall --quiet --wait" ?



      Do I need to create a new install.intunewin file or can I use the one i created following the original thread?

      • RickGroom's avatar
        RickGroom
        Copper Contributor

        andrewbailey375

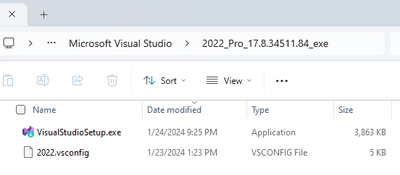

        When you package the IntuneWin, make sure the installer and configuration files are together. You can name them anything you want, as long as you call them by the same names in your install command.

        You can generate the configuration file using the Export Installation Configuration option of the Visual Studio Installer. This will allow you to customize the installation settings and components that will be installed. Import or export installation configurations | Microsoft Learn



        Here is mine to copy if you'd like, it includes all of the components requested from our developers. **It never did install the extensions, but I haven't had a chance to fix that yet.

        {
          "version": "1.0",
          "components": [
            "Microsoft.VisualStudio.Component.CoreEditor",
            "Microsoft.VisualStudio.Workload.CoreEditor",
            "Microsoft.Net.Component.4.8.SDK",
            "Microsoft.Net.Component.4.7.2.TargetingPack",
            "Microsoft.Net.ComponentGroup.DevelopmentPrerequisites",
            "Microsoft.VisualStudio.Component.TypeScript.TSServer",
            "Microsoft.VisualStudio.ComponentGroup.WebToolsExtensions",
            "Microsoft.VisualStudio.Component.JavaScript.TypeScript",
            "Microsoft.VisualStudio.Component.JavaScript.Diagnostics",
            "Microsoft.VisualStudio.Component.Roslyn.Compiler",
            "Microsoft.Component.MSBuild",
            "Microsoft.VisualStudio.Component.Roslyn.LanguageServices",
            "Microsoft.VisualStudio.Component.TextTemplating",
            "Component.Microsoft.VisualStudio.RazorExtension",
            "Microsoft.VisualStudio.Component.IISExpress",
            "Microsoft.VisualStudio.Component.NuGet",
            "Microsoft.VisualStudio.Component.MSODBC.SQL",
            "Microsoft.VisualStudio.Component.SQL.LocalDB.Runtime",
            "Microsoft.VisualStudio.Component.Common.Azure.Tools",
            "Microsoft.VisualStudio.Component.SQL.CLR",
            "Microsoft.VisualStudio.Component.MSSQL.CMDLnUtils",
            "Microsoft.Component.ClickOnce",
            "Microsoft.VisualStudio.Component.ManagedDesktop.Core",
            "Microsoft.VisualStudio.Component.SQL.SSDT",
            "Microsoft.VisualStudio.Component.SQL.DataSources",
            "Component.Microsoft.Web.LibraryManager",
            "Component.Microsoft.WebTools.BrowserLink.WebLivePreview",
            "Microsoft.VisualStudio.ComponentGroup.Web",
            "Microsoft.NetCore.Component.Runtime.8.0",
            "Microsoft.NetCore.Component.SDK",
            "Microsoft.VisualStudio.Component.FSharp",
            "Microsoft.ComponentGroup.ClickOnce.Publish",
            "Microsoft.NetCore.Component.DevelopmentTools",
            "Microsoft.VisualStudio.Component.FSharp.WebTemplates",
            "Microsoft.VisualStudio.Component.DockerTools",
            "Microsoft.NetCore.Component.Web",
            "Microsoft.VisualStudio.Component.WebDeploy",
            "Microsoft.VisualStudio.Component.AppInsights.Tools",
            "Microsoft.VisualStudio.Component.Web",
            "Microsoft.Net.Component.4.8.TargetingPack",
            "Microsoft.Net.ComponentGroup.4.8.DeveloperTools",
            "Microsoft.VisualStudio.Component.AspNet45",
            "Microsoft.VisualStudio.Component.AspNet",
            "Component.Microsoft.VisualStudio.Web.AzureFunctions",
            "Microsoft.VisualStudio.ComponentGroup.AzureFunctions",
            "Microsoft.VisualStudio.ComponentGroup.Web.CloudTools",
            "Microsoft.VisualStudio.Component.DiagnosticTools",
            "Microsoft.VisualStudio.Component.EntityFramework",
            "Microsoft.VisualStudio.Component.Debugger.JustInTime",
            "Component.Microsoft.VisualStudio.LiveShare.2022",
            "Microsoft.VisualStudio.Component.WslDebugging",
            "Microsoft.VisualStudio.Component.IntelliCode",
            "Component.GitHub.Copilot",
            "Microsoft.NetCore.Component.Runtime.6.0",
            "Microsoft.VisualStudio.Component.TeamsFx",
            "Microsoft.VisualStudio.ComponentGroup.AdditionalWebProjectTemplates",
            "microsoft.net.runtime.mono.tooling",
            "microsoft.net.sdk.emscripten",
            "wasm.tools",
            "Microsoft.Net.Component.4.8.1.SDK",
            "Microsoft.Net.Component.4.8.1.TargetingPack",
            "Microsoft.Net.ComponentGroup.4.8.1.DeveloperTools",
            "Microsoft.VisualStudio.Workload.NetWeb",
            "Microsoft.VisualStudio.Component.Azure.ClientLibs",
            "Microsoft.VisualStudio.ComponentGroup.Azure.Prerequisites",
            "Microsoft.Component.Azure.DataLake.Tools",
            "Microsoft.VisualStudio.Component.Azure.ResourceManager.Tools",
            "Microsoft.VisualStudio.ComponentGroup.Azure.ResourceManager.Tools",
            "Microsoft.VisualStudio.Component.Azure.AuthoringTools",
            "Microsoft.VisualStudio.Component.Azure.Waverton.BuildTools",
            "Microsoft.VisualStudio.Component.Azure.Compute.Emulator",
            "Microsoft.VisualStudio.Component.Azure.Waverton",
            "Microsoft.VisualStudio.ComponentGroup.Azure.CloudServices",
            "Microsoft.VisualStudio.Component.Azure.ServiceFabric.Tools",
            "Microsoft.VisualStudio.Component.Azure.Powershell",
            "Microsoft.VisualStudio.Workload.Azure",
            "Microsoft.VisualStudio.Workload.Data"
          ],
          "extensions": [
            "https://marketplace.visualstudio.com/items?itemName=ProBITools.MicrosoftReportProjectsforVisualStudio2022&ssr"
          ]
        }



        Sidenote: If you have Intune Suite licenses, Visual Studio 2022 Professional is prepackaged as a Microsoft managed Enterprise Catalog App. Microsoft Intune Enterprise Application Management | Microsoft Learn.
