Forum Discussion

Neon01's avatar
Neon01
Steel Contributor
Jul 26, 2019

Manual: How to set up IE Mode (Internet Explorer Integration) in Edge C (Updated)

So, since it took me almost a day to collect all necessary info and successfully set up IE Mode in Edge, I thought it may be helpful to post a step-by-step manual and some useful notes.    Prerequi...
webmaster@neba-online.com
Adrian_Guta's avatar
Adrian_Guta
Former Employee
Jul 29, 2019

Faye Jasman "Use the Enterprise Mode IE website list" is an Internet Explorer policy found in : Computer Configuration > Administrative Templates > Windows Components > Internet Explorer

Faye Jasman's avatar
Faye Jasman
Copper Contributor
Jul 29, 2019

Adrian_Guta I have that policy set, (pointing to a file on a network share), and still does not work.

  • Adrian_Guta's avatar
    Adrian_Guta
    Former Employee
    Jul 29, 2019

    Faye Jasman can you please share the following:



    1. Within Edge please share the output of: edge://version

    2. Within CMD run and share the output of: ver

    (should be something like Microsoft Windows [Version 10.0.18362.239])

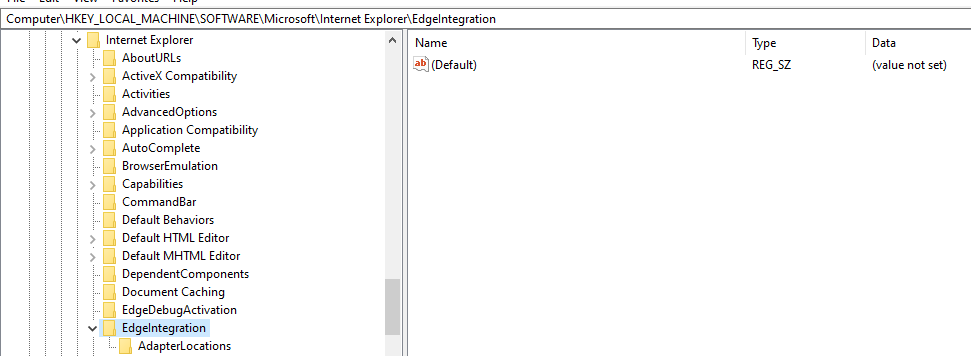

    3. From registry editor, can you please share a screenshot of the following registry key: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Internet Explorer\EdgeIntegration

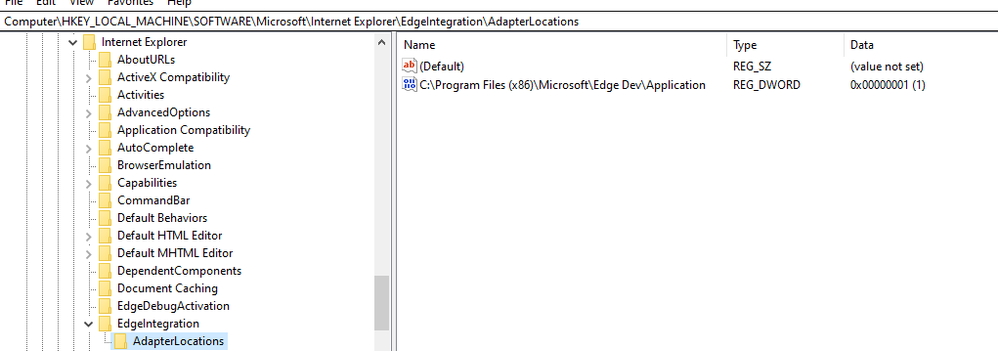

    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Internet Explorer\EdgeIntegration\AdapterLocations



    • Faye Jasman's avatar
      Faye Jasman
      Copper Contributor
      Jul 29, 2019

      Adrian_Guta


      Microsoft Edge 77.0.223.0 (Official build) dev (64-bit)
      Revision ee801616caba48e53943e22c9d93e84824a41a4a
      Operating system Windows 10 OS Version 1903 (Build 18362.175)
      JavaScript V8 7.7.215
      Flash 32.0.0.223 C:\Program Files (x86)\Microsoft\Edge Dev\Application\77.0.223.0\PepperFlash\pepflashplayer.dll
      User agent Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/77.0.3851.0 Safari/537.36 Edg/77.0.223.0
      Command-line "C:\Program Files (x86)\Microsoft\Edge Dev\Application\msedge.exe" --flag-switches-begin --internet-explorer-integration=iemode --flag-switches-end
      Executable path C:\Program Files (x86)\Microsoft\Edge Dev\Application\msedge.exe
      Profile path C:\Users\fjasman\AppData\Local\Microsoft\Edge Dev\User Data\Default
      Variations e48f3047-ca7d8d80
      530616f9-ca7d8d80
      7d846ba2-ca7d8d80
      fd711080-ca7d8d80
      cdb17416-ca7d8d80
      2ccd073f-ca7d8d80
      84364228-ca7d8d80
      5875917e-ca7d8d80
      840bcf71-ca7d8d80
      e6931c56-ca7d8d80
      5e585ed7-ca7d8d80
      59416d75-ca7d8d80



      Microsoft Windows [Version 10.0.18362.175]







      • Adrian_Guta's avatar
        Adrian_Guta
        Former Employee
        Jul 29, 2019

        Faye Jasman edited the following post to better adjust the answer:



        If you are missing the following registry key it means you do not have the correct updates.

        HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Internet Explorer\EdgeIntegration

        Supported (Dword) 1

        This key is written when you have the minimum required updates.

        Action plan:

        Please ensure you have the following updates:

        Windows 10, version 1903 with the latest cumulative updates (KB4503293 or higher) and security update KB4501375 or higher
