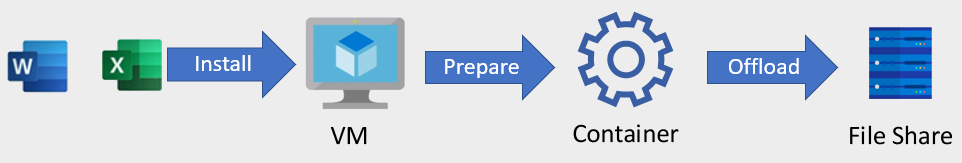

This article explains the process to take a VM with Office installed. Offload the Office folder to a network location and use the VM as a template for all other machines in the host pool. By offloading the Office install footprint folder the following benefits are achieved:

• Reduce requirements for C: disk size
• When snapshot and/or backup is performed those are smaller and from there cheaper to store
• Easier to update images using an automated pipeline
• One instance of office per host and potentially WVD deployment





Prerequisites



This covers the prerequisites for the manual process. Later we can automate.

• VM running Windows
• Copy of Office
• FSLogix



Install Office



RDP in the VM.

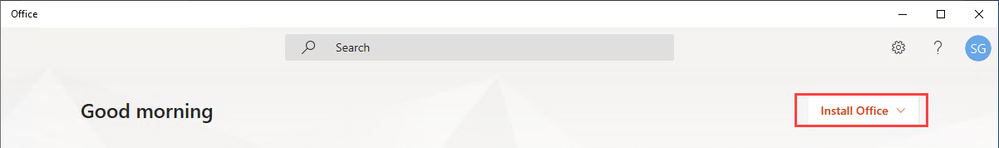

Install Office. Installation can be either manually or via an automated process. More information here.

During the installation apply proper licensing.



Note: WVD requires Share Computer Activation (SCA).



Once the installation is completed close Office.



Install FSLogix

Open a browser and navigate to http://aka.ms/fslogix_download.

This will trigger the download of the FSLogix agent.



Once the download is complete open the FSLogix zip file and from the x64\Releases install:

              FSLogixAppsSetup.exe

                             Check I agree to the license and terms and conditions

                             Click Install



              FSLogixAppsRuleEditorSetup.exe

                             Check I agree to the license and terms and conditions

                             Click Install

Open CMD as administrator run

sc queryex type=service state=all | find /i "ClickToRunSvc"

If service is found use following command to stop it

net stop ClickToRunSvc



Open CMD as administrator run to end Edge

taskkill /F /IM MicrosoftEdge.exe /T

taskkill /F /IM msedge.exe /T



Navigate to c:\Program Files\FSLogix\Apps

Create target VHD

frx moveto-vhd -filename <path to network share>\office.vhdx -src "C:\Program Files\Microsoft Office" -size-mbs 5000



Note: the outcome of this operation is the creation of a VHDX with the content of the C:\Program Files\Microsoft Office.

Create rules file

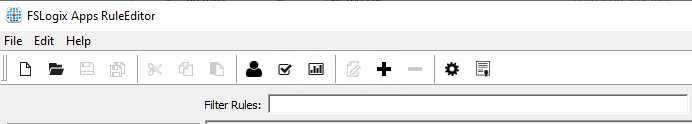

Start the rule editor (C:\Program Files\FSLogix\Apps\RuleEditor.exe).

Create a new Rule Set File by clicking File > New create and saving the ruleset to the local folder (e.g. C:\Users\ssa.GT090617\Documents\FSLogix Rule Sets).

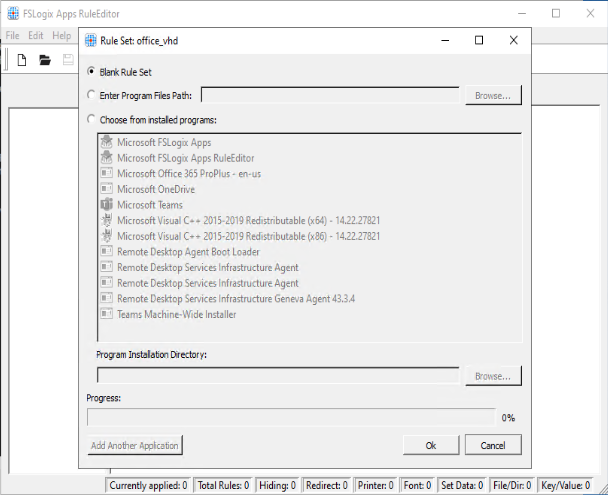

Select Blank Rule Set and press OK.

Click the + button. This will open the Add Rule dialog.

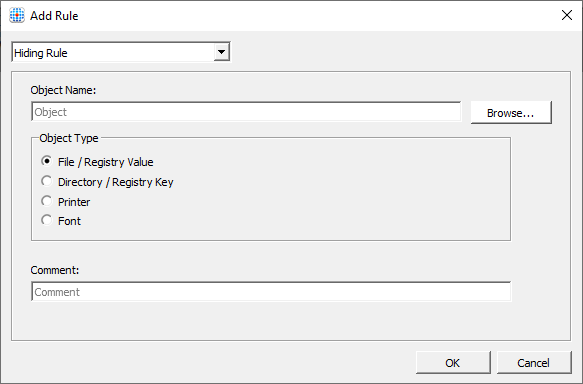

This will change the options in the Add Rule dialog.
From the drop-down select App Container (VHD) Rule.





For folder type C:\Program Files\Microsoft Office.
For Disk file select <path>\office.vhd from the Create target VHD section.
Click OK.





The .frx and .fxa are always saved in a working folder (e.g. C:\Users\<username>\Documents\FSLogix Rule Sets). Both files need to be moved to the Rules folder C:\Program Files\FSLogix\Apps\Rules become effective. This is by design.

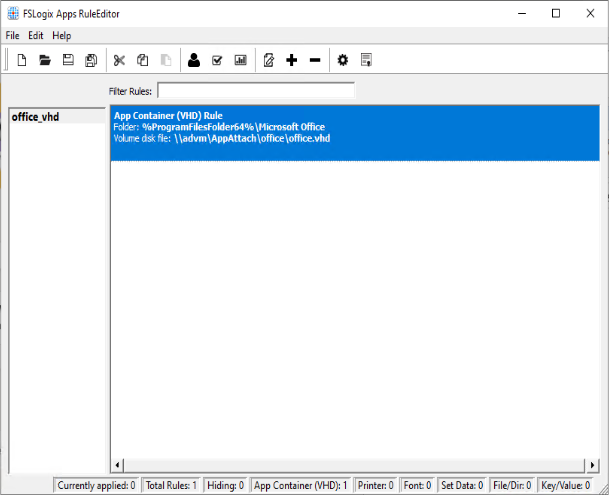

Click Apply Rules to System for the rules to take effect.
