Using KQL queries to dive into dynamic arrays Azure Log Analytics

I'm running this command to break out the dynamic arrays



IntuneAuditLogs
| where TimeGenerated > ago(7d)
| extend propertiesJson = todynamic(Properties)
| extend propertiesTargets = todynamic(propertiesJson.Targets)

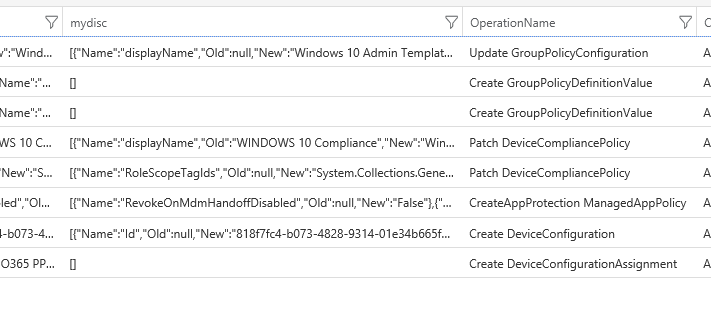

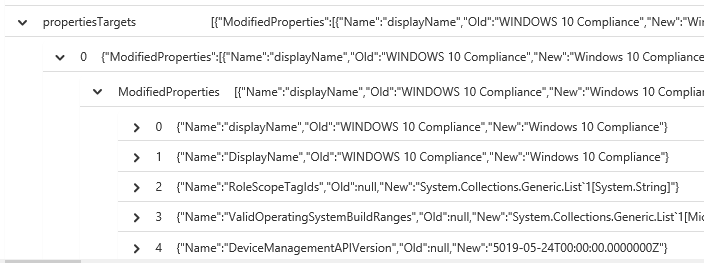

But I have these arrays that appear to have these index numbers and data within them is different between each data type:





How would I go about referencing each of these and their subsequent values?

4 Replies

  • CliveWatson's avatar
    CliveWatson
    Silver Contributor

    ChrisBlackburn



    If you know the Index number and field, then you can modify a query like this one to suit?

    SecurityAlert
    //| where DisplayName == "Detected suspicious DNS resolution"
    | extend entities = todynamic(Entities)
    | project AlertName ,
              TimeGenerated,
              Description = parse_json(entities[0].HostName) ,
              osFamily =parse_json(entities[1].OSFamily)

    • harishbenne's avatar
      harishbenne
      Copper Contributor

      CliveWatson, What if I have a scenario where multiple IPs and users are under entities field?

      What I am trying to do is get the IP addresses under one single variable and the list of user IDs under another one!



    • ChrisBlackburn's avatar
      ChrisBlackburn
      Copper Contributor

      CliveWatson extending the commands to expand out index 0



      IntuneAuditLogs
      | where TimeGenerated > ago(7d)
      | extend propertiesJson = todynamic(Properties)
      | extend propertiesTargets = todynamic(propertiesJson.Targets)
      | extend mydisc = todynamic(propertiesTargets[0].ModifiedProperties)



      What I've seen is as I continue to dig deeper into the properties, the ModifiedProperties field varies based on the specific operation, which makes it painful to determine the values I can consistently pull
