Azure landing Zone With Application GW and Azure Firewall

Hello Team,



I have some query regarding below landing zone .

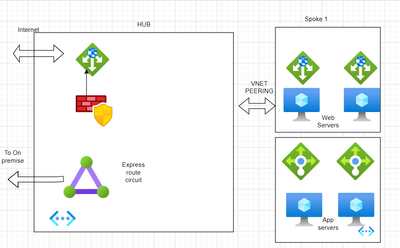

this is proposed landing Zone

We have application GW and Azure Firewall in Hub

We have Web servers /App servers/Data base servers in Spoke.





Questions are

Web server traffic to Internet -How it will identify Active Azure firewall ?

Any other best practices landing zone with respect to below diagram ?





3 Replies

  • Danish_imam's avatar
    Danish_imam
    Copper Contributor
    May 11, 2023

    Web server traffic to the Internet -How it will identify Active Azure firewall?

    Ganesh1903  adda route and give next hope is Firewall



  • Chandrasekhar_Arya's avatar
    Chandrasekhar_Arya
    Iron Contributor
    Apr 05, 2023
    If you just want for web traffic try using only Web application gateway only with WAF functionality. for my environment which hosts mostly webservers we used Web application gateway with WAF functionality and removed the firewall completely . Enable your WAF with OSWAP and bot protection
  • LukeJMadden's avatar
    LukeJMadden
    Brass Contributor
    Apr 04, 2023
    Hello Ganesh,

    In your proposed landing zone, if the web server traffic needs to go to the internet, it would be routed through the Azure Firewall in the hub. You can use Azure Firewall's network rules to allow outbound traffic from the web servers in the spoke to the internet via the Azure Firewall in the hub. In addition, you can use application rules to allow or deny specific traffic based on FQDN, IP address range, port, and protocol.

    As for best practices, it depends on your specific requirements and the services you are using. However, some general best practices for landing zones in Azure include:

    Using a hub-and-spoke topology to isolate critical services and resources from each other.

    Deploying infrastructure as code using tools such as Azure Resource Manager (ARM) templates or Terraform.

    Implementing security controls such as network security groups (NSGs), Azure Firewall, Azure DDoS Protection, and Azure Security Center.

    Using Azure Monitor and Azure Log Analytics to monitor and analyze resource health and performance.

    Implementing identity and access management (IAM) controls such as RBAC and Azure AD.

    I hope this helps! Let me know if you have any further questions.

    Cheers,

    Luke Madden
