Unable to Delete Azure Virtual Network

Question

I'm out of ideas, in my entire subscription, I have 1 x Resource Group, and 1 x Virtual Network (Classic).&nbsp;
&nbsp;
I'm trying to delete the VNET so I can delete the Resource Group, problem is I am receiving this error
"This virtual network is in use and cannot be deleted. If you recently deleted resources, it might take some time to update the virtual network".&nbsp;
&nbsp;
When I run Get-AzureRmResource the only entry I get is of the Virtual Network
&nbsp;
Name : GT-Lab-VNETResourceId : /subscriptions/aa5ce18d-aaef-47df-8a79-6640fe0f0693/resourceGroups/GT-Lab/providers/Microsoft.ClassicNetwork/virtualNetworks/GT-Lab-VNETResourceName : GT-Lab-VNETResourceType : Microsoft.ClassicNetwork/virtualNetworksResourceGroupName : GT-LabLocation : australiasoutheastSubscriptionId : aa5ce18d-aaef-47df-8a79-6640fe0f0693
&nbsp;
Get-AzureRmVirtualNetwork does not appear to list the VNET, possibly because it appears to be a classic resource.&nbsp;
&nbsp;
I checked, in the Azure ARM Portal, there is no Address&nbsp;Space or Subnet configured.&nbsp;
I"m not sure how else I can delete the VNET.&nbsp;

hannel hazeley · Answer

There might be some classic resource still tied to the VNet not visible in the new portal. You should be able to check the virtual network using PowerShell but the command you are using is not for classic resources.
Add-AzureAccount

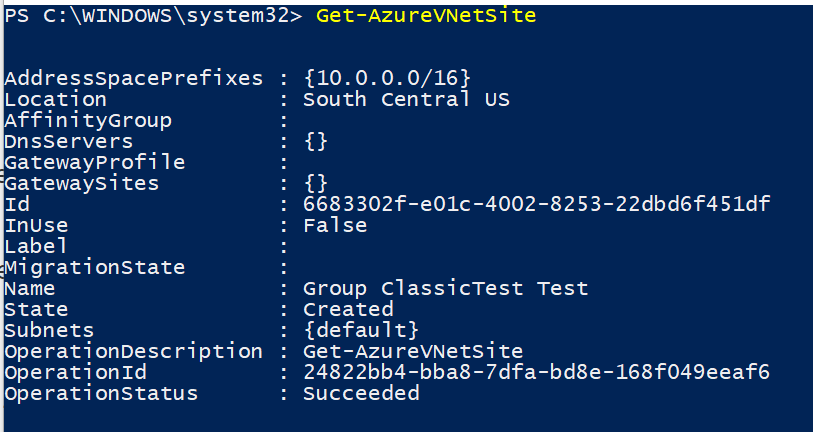

Get-AzureVNetSite
&nbsp;

gavin tan · Answer

You're right,&nbsp;
&nbsp;
AddressSpacePrefixes : {10.0.0.0/24}Location : Australia SoutheastAffinityGroup : DnsServers : {10.0.0.5}GatewayProfile : GatewaySites : {}Id : 3a659ee2-f4f8-4e4d-a448-b467ffa95ec8InUse : TrueLabel : MigrationState : Name : Group GT-Lab GT-Lab-VNETState : CreatedSubnets : {Default}OperationDescription : Get-AzureVNetSiteOperationId : 38c55e74-a3ec-7b20-b4aa-e5434b675edaOperationStatus : Succeeded
&nbsp;
How do I delete/remove this?

hannel hazeley · Answer

From you output it says VNet is in use and i see a DNS Server entry, not sure if thats the only thing using VNet.
&nbsp;
Did you have Azure AD Domain Service on&nbsp;that VNet?
Do you still have access to the legacy portal&nbsp;manage.windowsazure.com?
&nbsp;
If you have access you will need to clear up the VNet from there. If you don't have access you can try exporting the VNet configuration, removing the DNS configuration and then import configuration back.
&nbsp;
Get-AzureVNetConfig -ExportToFile "c:	emp\MyAzNets.netcfg"
Edit file to remove DNS, the update configuration
&nbsp;
Set-AzureVNetConfig&nbsp; -ConfigurationPath "c:	emp\MyAzNets.netcfg"
&nbsp;

gavin tan · Answer

As far as I am aware, every single thing has been deleted from the subscription leaving this VNET.&nbsp;
&nbsp;
I have done the network config export, removed the DNS, and that was successful however I am still prevented from deleting the VNET.&nbsp;
&nbsp;
&lt;?xml version="1.0" encoding="utf-8"?&gt;&lt;NetworkConfiguration xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://schemas.microsoft.com/ServiceHosting/2011/07/NetworkConfiguration"&gt; &lt;VirtualNetworkConfiguration&gt; &lt;Dns /&gt; &lt;VirtualNetworkSites&gt; &lt;VirtualNetworkSite name="Group GT-Lab GT-Lab-VNET" Location="Australia Southeast"&gt; &lt;AddressSpace&gt; &lt;AddressPrefix&gt;10.0.0.0/24&lt;/AddressPrefix&gt; &lt;/AddressSpace&gt; &lt;Subnets&gt; &lt;Subnet name="Default"&gt; &lt;AddressPrefix&gt;10.0.0.0/24&lt;/AddressPrefix&gt; &lt;/Subnet&gt; &lt;/Subnets&gt; &lt;/VirtualNetworkSite&gt; &lt;/VirtualNetworkSites&gt; &lt;/VirtualNetworkConfiguration&gt;&lt;/NetworkConfiguration&gt;
&nbsp;
I wished I still had access to the ASM Portal, right now I keep getting redirected to the ARM Portal.&nbsp;
&nbsp;
Remove-AzureVNetConfig : BadRequest : Cannot delete or modify virtual network while in use 'Group GT-Lab GT-Lab-VNET'.At line:1 char:1+ Remove-AzureVNetConfig+ ~~~~~~~~~~~~~~~~~~~~~~ + CategoryInfo : CloseError: (:) [Remove-AzureVNetConfig], ComputeCloudException + FullyQualifiedErrorId : Microsoft.WindowsAzure.Commands.ServiceManagement.IaaS.RemoveAzureVNetConfigCommand
&nbsp;
Worst thing is that I am unable to get support for this because its an MSDN Subcription.&nbsp;
&nbsp;

hannel hazeley · Answer

At this point it could be multiple things, below is an article that goes over a few things to check.
&nbsp;
https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-troubleshoot-cannot-delete-vnet
&nbsp;
Most times its the Azure AD Domain Service, people tend to forget about it because it is not really setup on the virtual network.
