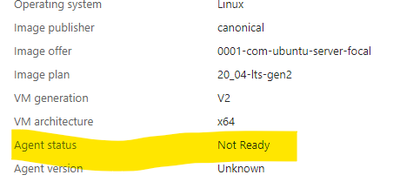

Linux Virtual Machine Agent Status "Not Ready"

The “Not Ready” status for the Linux VM Agent can occur for several reasons, commonly related to the agent process itself or underlying platform/network issues.

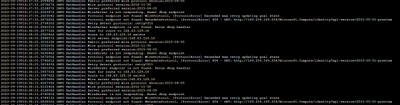

If a reboot resolves the issue, it’s a good idea to check the agent logs at the time the problem occurred. You can find these in:

/var/log/waagent.log
Look for any errors or service restarts during the outage period.

It’s important to note that SSH availability is not directly tied to the VM Agent — they are independent components. However, if both the VM Agent status is 'Not Ready' and SSH is failing at the same time, that typically points to a broader network issue, such as:

Loss of connectivity to the Azure WireServer,What is IP address 168.63.129.16? | Microsoft Learn which the agent depends on

Platform maintenance or underlying host networking issues

In such cases, confirm the VM can reach the WireServer at 168.63.129.16, which is critical for Azure management services.

You can check reachability using:

ping 168.63.129.16

If the issue recurs, inspect:

waagent.log for agent failures

/var/log/syslog or /var/log/messages for broader system issues

NSG/UDR settings that might block platform traffic

Let me know if you’d like help diagnosing based on logs.

If CPU spikes to 100% usage, certain processes may be preventing SSH access.

limit background processes or optimizing VM resources.

Also try to consider scaling the VM

Porter76

Please refer this:

Troubleshoot the Azure Linux Agent - Virtual Machines | Microsoft Learn

Porter76

Check Azure Monitor Agent: Ensure that the Azure Monitor Agent (formerly known as the Log Analytics Agent) is installed and running on the Linux VM. You can check its status by running the following command:

sudo systemctl status waagent

If it's not running, you may need to start it:

sudo systemctl start waagent

Check if there are any resource locks on the VM or Log Analytics Workspace that might be preventing the agent from functioning correctly.
