Building Multi-Agent Orchestration Using Microsoft Semantic Kernel: A Complete Step-by-Step Guide

What You Will Build

By the end of this guide, you will have a working multi-agent system where 4 specialist AI agents collaborate to diagnose production issues:

• ClientAnalyst — Analyzes browser, JavaScript, CORS, uploads, and UI symptoms
• NetworkAnalyst — Analyzes DNS, TCP/IP, TLS, load balancers, and firewalls
• ServerAnalyst — Analyzes backend logs, database, deployments, and resource limits

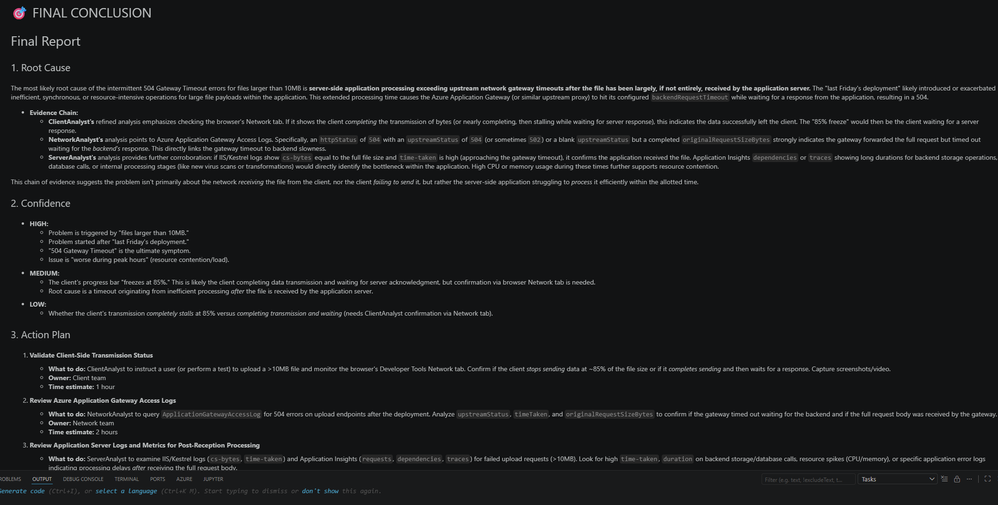

• Coordinator — Synthesizes all findings into a root cause report with a prioritized action plan

These agents don't just run in sequence — they debate, cross-examine, and challenge each other's findings through a shared conversation, producing a diagnosis that's better than any single agent could achieve alone.

Table of Contents

1. Why Multi-Agent? The Problem with Single Agents
2. Architecture Overview
3. Understanding the Key SK Components
4. The Actor Model — How InProcessRuntime Works
5. Setting Up Your Development Environment
6. Step-by-Step: Building the Multi-Agent Analyzer
7. The Agent Interaction Flow — Round by Round
8. Bugs I Found & Fixed — Lessons Learned
9. Running with Different AI Providers
10. What to Build Next



1. Why Multi-Agent? The Problem with Single Agents

A single AI agent analyzing a production issue is like having one doctor diagnose everything — they'll catch issues in their specialty but miss cross-domain connections.

Consider this problem: "Users report 504 Gateway Timeout errors when uploading files larger than 10MB. Started after Friday's deployment. Worse during peak hours."

A single agent might say "it's a server timeout" and stop. But the real root cause often spans multiple layers:

• The client is sending chunked uploads with an incorrect Content-Length header (client-side bug)
• The load balancer has a 30-second timeout that's too short for large uploads (network config)
• The server recently deployed a new request body parser that's 3x slower (server-side regression)
• The combination only fails during peak hours because connection pool saturation amplifies the latency

No single perspective catches this. You need specialists who analyze independently, then debate to find the cross-layer causal chain. That's what multi-agent orchestration gives you.

The 5 Orchestration Patterns in SK

Semantic Kernel provides 5 built-in patterns for agent collaboration:



SEQUENTIAL:

A → B → C → Done
                 (pipeline — each builds on previous)



CONCURRENT:

                 ↗ A ↘
            Task → B → Aggregate
                 ↘ C ↗
                 (parallel — results merged)



GROUP CHAT:

A ↔ B ↔ C ↔ D    ← We use this one
                 (rounds, shared history, debate)



HANDOFF:

 A → (stuck?) → B → (complex?) → Human
                 (escalation with human-in-the-loop)



MAGENTIC:

LLM picks who speaks next dynamically
                 (AI-driven speaker selection)



We use GroupChatOrchestration with RoundRobinGroupChatManager because our problem requires agents to see each other's work, challenge assumptions, and build on each other's analysis across two rounds.

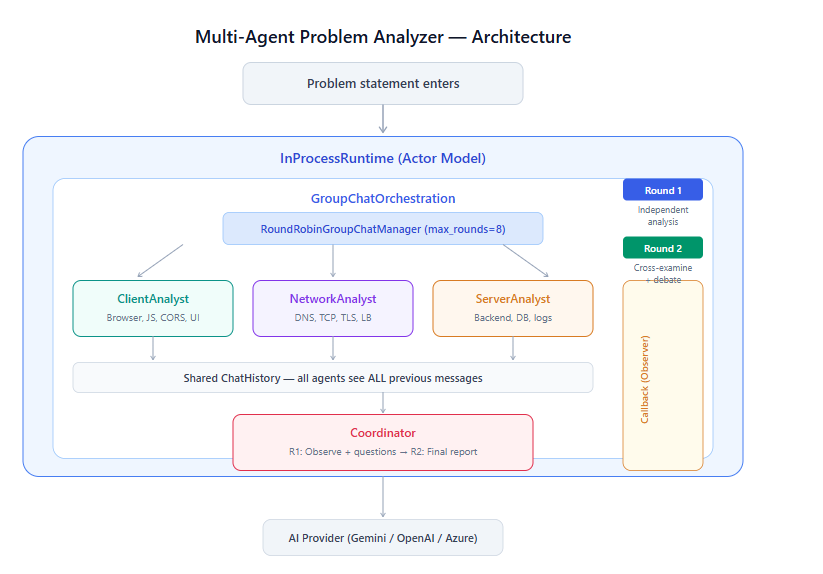

2. Architecture Overview

Here's the complete architecture of what we're building:

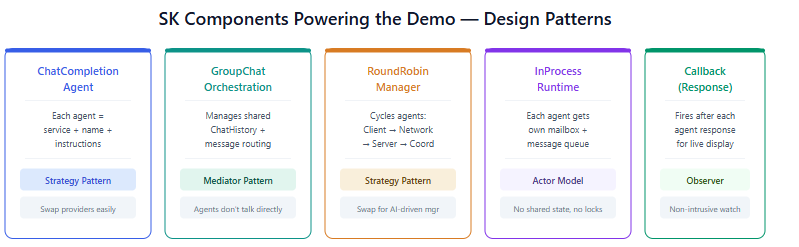

3. Understanding the Key SK Components

Before we write code, let's understand the 5 components we'll use and the design pattern each implements:





ChatCompletionAgent — Strategy Pattern

The agent definition. Each agent is a combination of:

• name — unique identifier (used in round-robin ordering)
• instructions — the persona and rules (this is the prompt engineering)
• service — which AI provider to call (Strategy Pattern — swap providers without changing agent logic)
• description — what other agents/tools understand about this agent



agent = ChatCompletionAgent(
    name="ClientAnalyst",
    instructions="You are ONLY ClientAnalyst...",
    service=gemini_service,       # ← Strategy: swap to OpenAI with zero changes
    description="Analyzes client-side issues",
)



GroupChatOrchestration — Mediator Pattern

The orchestration defines HOW agents interact. It's the Mediator — agents don't talk to each other directly. Instead, the orchestration manages a shared ChatHistory and routes messages through the Manager.

RoundRobinGroupChatManager — Strategy Pattern

The Manager decides WHO speaks next. RoundRobinGroupChatManager cycles through agents in a fixed order. SK also provides AutomaticGroupChatManager where the LLM decides who speaks next.

max_rounds is the total number of messages per agent or cycle. With 4 agents and max_rounds=8, each agent speaks exactly twice.

InProcessRuntime — Actor Model Abstraction

The execution engine. Every agent becomes an "actor" with its own kind of mailbox (message queue). The runtime delivers messages between actors.

Key properties:

• No shared state — agents communicate only through messages
• Sequential processing — each agent processes one message at a time
• Location transparency — same code works in-process today, distributed tomorrow

agent_response_callback — Observer Pattern

A function that fires after EVERY agent response. We use it to display each agent's output in real-time with emoji labels and round numbers.





4. The Actor Model — How InProcessRuntime Works

The Actor Model is a concurrency pattern where each entity is an isolated "actor" with a private mailbox. Here's what happens inside InProcessRuntime when we run our demo:



runtime.start()

│

├── Creates internal message loop (asyncio event loop)

│

orchestration.invoke(task="504 timeout...", runtime=runtime)

│

├── Creates Actor[Orchestrator] → manages overall flow

├── Creates Actor[Manager] → RoundRobinGroupChatManager

├── Creates Actor[ClientAnalyst] → mailbox created, waiting

├── Creates Actor[NetworkAnalyst] → mailbox created, waiting

├── Creates Actor[ServerAnalyst] → mailbox created, waiting

└── Creates Actor[Coordinator] → mailbox created, waiting



Manager receives "start" message

│

├── Checks turn order: [Client, Network, Server, Coordinator]

├── Sends task to ClientAnalyst mailbox

│ → ClientAnalyst processes: calls LLM → response

│ → Response added to shared ChatHistory

│ → callback fires (displayed in Notebook UI)

│ → Sends "done" back to Manager

│

├── Manager updates: turn_index=1

├── Sends to NetworkAnalyst mailbox

│ → Same flow...

│

├── ... (ServerAnalyst, Coordinator for Round 1)

│

├── Manager checks: messages=4, max_rounds=8 → continue

│

├── Round 2: same cycle with cross-examination

│

└── After message 8: Manager sends "complete"



→ OrchestrationResult resolves

→ result.get() returns final answer



runtime.stop_when_idle()

→ All mailboxes empty → clean shutdown



The Actor Model guarantees:

• No race conditions (each actor processes one message at a time)
• No deadlocks (no shared locks to contend for)
• No shared mutable state (agents communicate only via messages)





5. Setting Up Your Development Environment

Prerequisites

• Python 3.11 or 3.12 (3.13+ may have compatibility issues with some SK connectors)
• Visual Studio Code with the Python and Jupyter extensions
• An API key from one of: Google AI Studio (free), OpenAI

Step 1: Install Python

Download from python.org. During installation, check "Add Python to PATH".

Verify:



python --version
# Python 3.12.x



Step 2: Install VS Code Extensions

Open VS Code, go to Extensions (Ctrl+Shift+X), and install:

1. Python (by Microsoft) — Python language support
2. Jupyter (by Microsoft) — Notebook support
3. Pylance (by Microsoft) — IntelliSense and type checking



Step 3: Create Project Folder



mkdir sk-multiagent-demo
cd sk-multiagent-demo





Open in VS Code:

code .



Step 4: Create Virtual Environment

Open the VS Code terminal (Ctrl+`) and run:



# Create virtual environment
python -m venv sk-env

# Activate it
# Windows:
sk-env\Scripts\activate
# macOS/Linux:
source sk-env/bin/activate



You should see (sk-env) in your terminal prompt.



Step 5: Install Semantic Kernel

For Google Gemini (free tier — recommended for getting started):

pip install semantic-kernel[google] python-dotenv ipykernel



For OpenAI (paid API key):

pip install semantic-kernel openai python-dotenv ipykernel

For Azure AI Foundry (enterprise, Entra ID auth):

pip install semantic-kernel azure-identity python-dotenv ipykernel



Step 6: Register the Jupyter Kernel

python -m ipykernel install --user --name=sk-env --display-name="Semantic Kernel (Python 3.12)"

You can also select if this is already available from your environment from VSCode as below:



Step 7: Get Your API Key

Option A — Google Gemini (FREE, recommended for demo):

1. Go to https://aistudio.google.com/apikey
2. Click "Create API Key"
3. Copy the key

Free tier limits: 15 requests/minute, 1 million tokens/minute — more than enough for this demo.

Option B — OpenAI:

1. Go to https://platform.openai.com/api-keys
2. Create a new key
3. Copy the key

Option C — Azure AI Foundry:

1. Deploy a model in Azure AI Foundry portal
2. Note the endpoint URL and deployment name
3. If key-based auth is disabled, you'll need Entra ID with permissions

Step 8: Create the .env File

In your project root, create a file named .env:



For Gemini:

GOOGLE_AI_API_KEY=AIzaSy...your-key-here
GOOGLE_AI_GEMINI_MODEL_ID=gemini-2.5-flash



For OpenAI:

OPENAI_API_KEY=sk-...your-key-here
OPENAI_CHAT_MODEL_ID=gpt-4o



For Azure AI Foundry:

AZURE_OPENAI_ENDPOINT=https://your-resource.cognitiveservices.azure.com
AZURE_OPENAI_CHAT_DEPLOYMENT_NAME=gpt-4o
AZURE_OPENAI_API_KEY=your-key



Step 9: Create the Notebook



In VS Code:

1. Click File > New File
2. Save as multi_agent_analyzer.ipynb

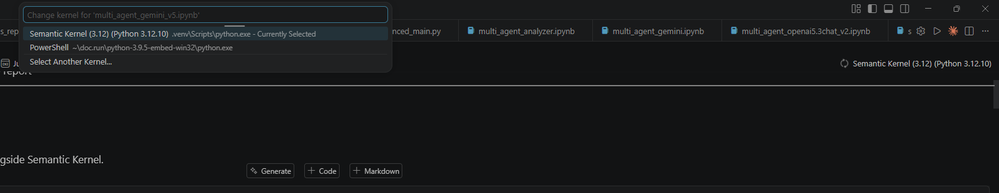

3. In the top-right of the notebook, click Select Kernel
4. Choose Semantic Kernel (Python 3.12) (or your sk-env)

Your environment is ready. Let's build.



6. Step-by-Step: Building the Multi-Agent Analyzer

Cell 1: Verify Setup



import semantic_kernel
print(f"Semantic Kernel version: {semantic_kernel.__version__}")

from semantic_kernel.agents import (
    ChatCompletionAgent,
    GroupChatOrchestration,
    RoundRobinGroupChatManager,
)
from semantic_kernel.agents.runtime import InProcessRuntime
from semantic_kernel.contents import ChatMessageContent
print("All imports successful")



Cell 2: Load API Key and Create Service

For Gemini:



import os
from dotenv import load_dotenv
load_dotenv()

from semantic_kernel.connectors.ai.google.google_ai import (
    GoogleAIChatCompletion,
    GoogleAIChatPromptExecutionSettings,
)
from semantic_kernel.contents import ChatHistory

GEMINI_API_KEY = os.getenv("GOOGLE_AI_API_KEY")
GEMINI_MODEL = os.getenv("GOOGLE_AI_GEMINI_MODEL_ID", "gemini-2.5-flash")

service = GoogleAIChatCompletion(
    gemini_model_id=GEMINI_MODEL,
    api_key=GEMINI_API_KEY,
)
print(f"Service created: Gemini {GEMINI_MODEL}")

# Smoke test
settings = GoogleAIChatPromptExecutionSettings()
test_history = ChatHistory(system_message="You are a helpful assistant.")
test_history.add_user_message("Say 'Connected!' and nothing else.")
response = await service.get_chat_message_content(
    chat_history=test_history, settings=settings
)
print(f"Model says: {response.content}")



For OpenAI:



import os
from dotenv import load_dotenv
load_dotenv()

from semantic_kernel.connectors.ai.open_ai import (
    OpenAIChatCompletion,
    OpenAIChatPromptExecutionSettings,
)
from semantic_kernel.contents import ChatHistory

service = OpenAIChatCompletion(
    ai_model_id=os.getenv("OPENAI_CHAT_MODEL_ID", "gpt-4o"),
)
print(f"Service created: OpenAI {os.getenv('OPENAI_CHAT_MODEL_ID', 'gpt-4o')}")

# Smoke test
settings = OpenAIChatPromptExecutionSettings()
test_history = ChatHistory(system_message="You are a helpful assistant.")
test_history.add_user_message("Say 'Connected!' and nothing else.")
response = await service.get_chat_message_content(
    chat_history=test_history, settings=settings
)
print(f"Model says: {response.content}")



Cell 3: Define All 4 Agents

This is the most important cell — the prompt engineering that makes the demo work:

from semantic_kernel.agents import ChatCompletionAgent

# ═══════════════════════════════════════════════════
# AGENT 1: Client-Side Analyst
# ═══════════════════════════════════════════════════
client_agent = ChatCompletionAgent(
    name="ClientAnalyst",
    description="Analyzes problems from the client-side: browser, JS, CORS, caching, UI symptoms",
    instructions="""You are ONLY **ClientAnalyst**. You must NEVER speak as NetworkAnalyst,
ServerAnalyst, or Coordinator. Every word you write is from ClientAnalyst's perspective only.

You are a senior front-end and client-side diagnostics expert.

When given a problem statement, analyze it EXCLUSIVELY from the client side:

1. **Browser & Rendering**: DOM issues, JavaScript errors, CSS rendering, browser compatibility,
   memory leaks, console errors.
2. **Client-Side Caching**: Stale cache, service worker issues, local storage corruption.
3. **Network from Client View**: CORS errors, preflight failures, request timeouts,
   client-side retry storms, fetch/XHR configuration.
4. **Upload Handling**: File API usage, chunk upload implementation, progress tracking,
   FormData construction, content-type headers.
5. **UI/UX Symptoms**: What the user sees, error messages displayed, loading states.

ROUND 1: Provide your independent analysis. Do NOT reference other agents.
  List your top 3 most likely causes with evidence.
  Every response MUST be at least 200 words.
ROUND 2: You MUST:
  - Reference NetworkAnalyst and ServerAnalyst BY NAME
  - State specifically where you AGREE or DISAGREE with their findings
  - Answer the Coordinator's questions from your perspective
  - Add NEW cross-layer insights you see from the client perspective
  - Do NOT just say 'I agree' — provide substantive technical reasoning

Be specific, evidence-based, and prioritize findings by likelihood.""",
    service=service,
)

# ═══════════════════════════════════════════════════
# AGENT 2: Network Analyst
# ═══════════════════════════════════════════════════
network_agent = ChatCompletionAgent(
    name="NetworkAnalyst",
    description="Analyzes problems from the network side: DNS, TCP, TLS, firewalls, load balancers, latency",
    instructions="""You are ONLY **NetworkAnalyst**. You must NEVER speak as ClientAnalyst,
ServerAnalyst, or Coordinator. Every word you write is from NetworkAnalyst's perspective only.

You are a senior network infrastructure diagnostics expert.

When given a problem statement, analyze it EXCLUSIVELY from the network layer:

1. **DNS & Resolution**: DNS TTL, propagation delays, record misconfigurations.
2. **TCP/IP & Connections**: Connection pooling, keep-alive, TCP window scaling,
   connection resets, SYN floods.
3. **TLS/SSL**: Certificate issues, handshake failures, protocol version mismatches.
4. **Load Balancers & Proxies**: Sticky sessions, health checks, timeout configs,
   request body size limits, proxy buffering.
5. **Firewall & WAF**: Rule blocks, rate limiting, request inspection delays,
   geo-blocking, DDoS protection interference.

ROUND 1: Provide your independent analysis. Do NOT reference other agents.
  List your top 3 most likely causes with evidence.
  Every response MUST be at least 200 words.
ROUND 2: You MUST:
  - Reference ClientAnalyst and ServerAnalyst BY NAME
  - State specifically where you AGREE or DISAGREE with their findings
  - Answer the Coordinator's questions from your perspective
  - Add NEW cross-layer insights you see from the network perspective
  - Do NOT just say 'I am ready to proceed' — provide substantive technical analysis

Be specific, evidence-based, and prioritize findings by likelihood.""",
    service=service,
)

# ═══════════════════════════════════════════════════
# AGENT 3: Server-Side Analyst
# ═══════════════════════════════════════════════════
server_agent = ChatCompletionAgent(
    name="ServerAnalyst",
    description="Analyzes problems from the server side: backend app, database, logs, resources, deployments",
    instructions="""You are ONLY **ServerAnalyst**. You must NEVER speak as ClientAnalyst,
NetworkAnalyst, or Coordinator. Every word you write is from ServerAnalyst's perspective only.

You are a senior backend and infrastructure diagnostics expert.

When given a problem statement, analyze it EXCLUSIVELY from the server side:

1. **Application Server**: Error logs, exception traces, thread pool exhaustion,
   memory leaks, CPU spikes, garbage collection pauses.
2. **Database**: Slow queries, connection pool saturation, lock contention,
   deadlocks, replication lag, query plan changes.
3. **Deployment & Config**: Recent deployments, configuration changes, feature flags,
   environment variable mismatches, rollback candidates.
4. **Resource Limits**: File upload size limits, request body limits, disk space,
   temporary file cleanup, storage quotas.
5. **External Dependencies**: Upstream API timeouts, third-party service degradation,
   queue backlogs, cache (Redis/Memcached) issues.

ROUND 1: Provide your independent analysis. Do NOT reference other agents.
  List your top 3 most likely causes with evidence.
  Every response MUST be at least 200 words.
ROUND 2: You MUST:
  - Reference ClientAnalyst and NetworkAnalyst BY NAME
  - State specifically where you AGREE or DISAGREE with their findings
  - Answer the Coordinator's questions from your perspective
  - Add NEW cross-layer insights you see from the server perspective
  - Do NOT just say 'I agree' — provide substantive technical reasoning

Be specific, evidence-based, and prioritize findings by likelihood.""",
    service=service,
)

# ═══════════════════════════════════════════════════
# AGENT 4: Coordinator
# ═══════════════════════════════════════════════════
coordinator_agent = ChatCompletionAgent(
    name="Coordinator",
    description="Synthesizes all specialist analyses into a final root cause report with prioritized action plan",
    instructions="""You are ONLY **Coordinator**. You must NEVER speak as ClientAnalyst,
NetworkAnalyst, or ServerAnalyst. You synthesize — you do NOT do domain-specific analysis.

You are the lead engineer who synthesizes the team's findings.

═══ ROUND 1 BEHAVIOR (your first turn, message 4) ═══
Keep this SHORT — maximum 300 words.
  - Note 2-3 KEY PATTERNS across the three analyses
  - Identify where specialists AGREE (high-confidence)
  - Identify where they CONTRADICT (needs resolution)
  - Ask 2-3 SPECIFIC QUESTIONS for Round 2

  Round 1 MUST NOT: assign tasks, create action plans, write reports,
   or tell agents what to take lead on. Observation + questions ONLY.

═══ ROUND 2 BEHAVIOR (your final turn, message 8) ═══
Keep this FOCUSED — maximum 800 words. Produce a structured report:

1. **Root Cause** (1 paragraph): The #1 most likely cause with causal chain
   across layers. Reference specific findings from each specialist.

2. **Confidence** (short list):
   - HIGH: Areas where all 3 agreed
   - MEDIUM: Areas where 2 of 3 agreed
   - LOW: Disagreements needing investigation

3. **Action Plan** (numbered, max 6 items): For each:
   - What to do (specific)
   - Owner (Client/Network/Server team)
   - Time estimate

4. **Quick Wins vs Long-term** (2 short lists)

Do NOT repeat what specialists already said verbatim. Synthesize, don't echo.""",
    service=service,
)

# ═══════════════════════════════════════════════════
# All 4 agents — order = RoundRobin order
# ═══════════════════════════════════════════════════
agents = [client_agent, network_agent, server_agent, coordinator_agent]

print(f"{len(agents)} agents created:")
for i, a in enumerate(agents, 1):
    print(f"  {i}. {a.name}: {a.description[:60]}...")
print(f"\nRoundRobin order: {' → '.join(a.name for a in agents)}")



Cell 4: Run the Analysis



from semantic_kernel.agents import GroupChatOrchestration, RoundRobinGroupChatManager
from semantic_kernel.agents.runtime import InProcessRuntime
from semantic_kernel.contents import ChatMessageContent
from IPython.display import display, Markdown

# ╔══════════════════════════════════════════════════════════╗
# ║   EDIT YOUR PROBLEM STATEMENT HERE                       ║
# ╚══════════════════════════════════════════════════════════╝

PROBLEM = """
Users are reporting intermittent 504 Gateway Timeout errors when trying
to upload files larger than 10MB through our web application. The issue
started after last Friday's deployment and seems worse during peak hours
(2-5 PM EST). Some users also report that smaller file uploads work fine
but the progress bar freezes at 85% for large files before timing out.
"""

# ════════════════════════════════════════════════════════════

agent_responses = []

def agent_response_callback(message: ChatMessageContent) -> None:
    name = message.name or "Unknown"
    content = message.content or ""
    agent_responses.append({"agent": name, "content": content})
    emoji = {
        "ClientAnalyst": "🖥️", "NetworkAnalyst": "🌐",
        "ServerAnalyst": "⚙️", "Coordinator": "🎯"
    }.get(name, "🔹")
    round_num = (len(agent_responses) - 1) // len(agents) + 1
    display(Markdown(
        f"---\n### {emoji} {name} (Message {len(agent_responses)}, Round {round_num})\n\n{content}"
    ))

MAX_ROUNDS = 8  # 4 agents × 2 rounds = 8 messages exactly

task = f"""## Problem Statement

{PROBLEM.strip()}

## Discussion Rules

You are in a GROUP DISCUSSION with 4 members. You can see ALL previous messages.
There are exactly 2 rounds.

### ROUND 1 (Messages 1-4): Independent Analysis
- ClientAnalyst, NetworkAnalyst, ServerAnalyst: Analyze from YOUR domain only.
  Give your top 3 most likely causes with evidence and reasoning.
- Coordinator: Note patterns across the 3 analyses. Ask 2-3 specific questions.
  Do NOT assign tasks yet.

### ROUND 2 (Messages 5-8): Cross-Examination & Final Report
- ClientAnalyst, NetworkAnalyst, ServerAnalyst: You MUST reference the OTHER
  specialists BY NAME. State where you agree, disagree, or have new insights.
  Answer the Coordinator's questions. Provide SUBSTANTIVE analysis.
- Coordinator: Produce the FINAL structured report: root cause, confidence levels,
  prioritized action plan with owners and time estimates.

IMPORTANT: Each agent speaks as THEMSELVES only. Never impersonate another agent."""

display(Markdown(f"## Problem Statement\n\n{PROBLEM.strip()}"))
display(Markdown(f"---\n## Discussion Starting — {len(agents)} agents, {MAX_ROUNDS} rounds\n"))

# Build and run
orchestration = GroupChatOrchestration(
    members=agents,
    manager=RoundRobinGroupChatManager(max_rounds=MAX_ROUNDS),
    agent_response_callback=agent_response_callback,
)

runtime = InProcessRuntime()
runtime.start()

result = await orchestration.invoke(task=task, runtime=runtime)
final_result = await result.get(timeout=300)
await runtime.stop_when_idle()

display(Markdown(f"---\n## FINAL CONCLUSION\n\n{final_result}"))



Cell 5: Statistics and Validation

print("═" * 55)
print("  ANALYSIS STATISTICS")
print("═" * 55)

emojis = {"ClientAnalyst": "🖥️", "NetworkAnalyst": "🌐",
          "ServerAnalyst": "⚙️", "Coordinator": "🎯"}

agent_counts = {}
agent_chars = {}
for r in agent_responses:
    agent_counts[r["agent"]] = agent_counts.get(r["agent"], 0) + 1
    agent_chars[r["agent"]] = agent_chars.get(r["agent"], 0) + len(r["content"])

for agent, count in agent_counts.items():
    em = emojis.get(agent, "🔹")
    chars = agent_chars.get(agent, 0)
    avg = chars // count if count else 0
    print(f"  {em} {agent}: {count} msg(s), ~{chars:,} chars (avg {avg:,}/msg)")

print(f"\n  Total messages: {len(agent_responses)}")
total_chars = sum(len(r['content']) for r in agent_responses)
print(f"  Total analysis: ~{total_chars:,} characters")

# Validation
print(f"\n  Validation:")

import re
identity_issues = []
for r in agent_responses:
    other_agents = [a.name for a in agents if a.name != r["agent"]]
    for other in other_agents:
        pattern = rf'(?i)as {re.escape(other)}[,:]?\s+I\b'
        if re.search(pattern, r["content"][:300]):
            identity_issues.append(f"{r['agent']} impersonated {other}")

if identity_issues:
    print(f"  Identity confusion: {identity_issues}")
else:
    print(f"  No identity confusion detected")

thin = [r for r in agent_responses if len(r["content"].strip()) < 100]
if thin:
    for t in thin:
        print(f"   Thin response from {t['agent']}")
else:
    print(f"  All responses are substantive")



Cell 6: Save Report

from datetime import datetime

timestamp = datetime.now().strftime("%Y%m%d_%H%M%S")
filename = f"analysis_report_{timestamp}.md"

with open(filename, "w", encoding="utf-8") as f:
    f.write(f"# Problem Analysis Report\n\n")
    f.write(f"**Generated:** {datetime.now().strftime('%Y-%m-%d %H:%M:%S')}\n")
    f.write(f"**Agents:** {', '.join(a.name for a in agents)}\n")
    f.write(f"**Rounds:** {MAX_ROUNDS}\n\n---\n\n")
    f.write(f"## Problem Statement\n\n{PROBLEM.strip()}\n\n---\n\n")
    for i, r in enumerate(agent_responses, 1):
        em = emojis.get(r['agent'], '🔹')
        round_num = (i - 1) // len(agents) + 1
        f.write(f"### {em} {r['agent']} (Message {i}, Round {round_num})\n\n")
        f.write(f"{r['content']}\n\n---\n\n")
    f.write(f"## Final Conclusion\n\n{final_result}\n")

print(f"Report saved to: {filename}")



7. The Agent Interaction Flow — Round by Round



Here's what actually happens during the 8-message orchestration:

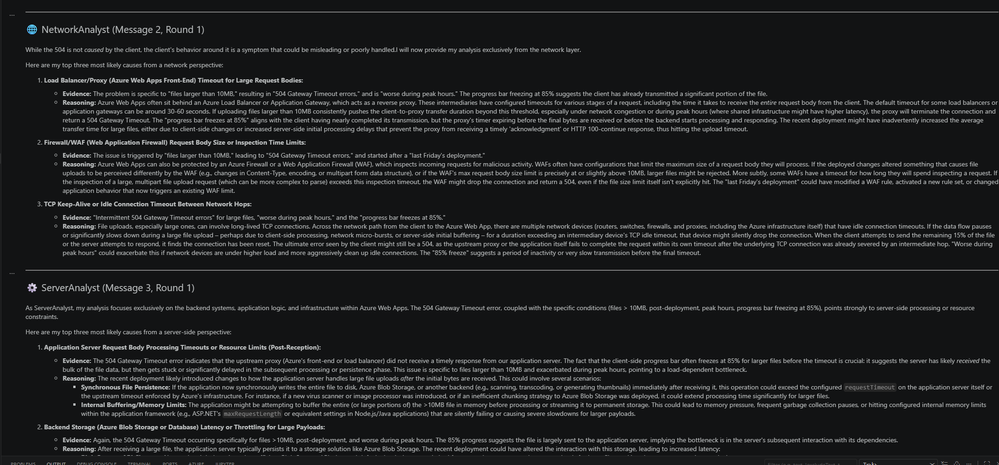

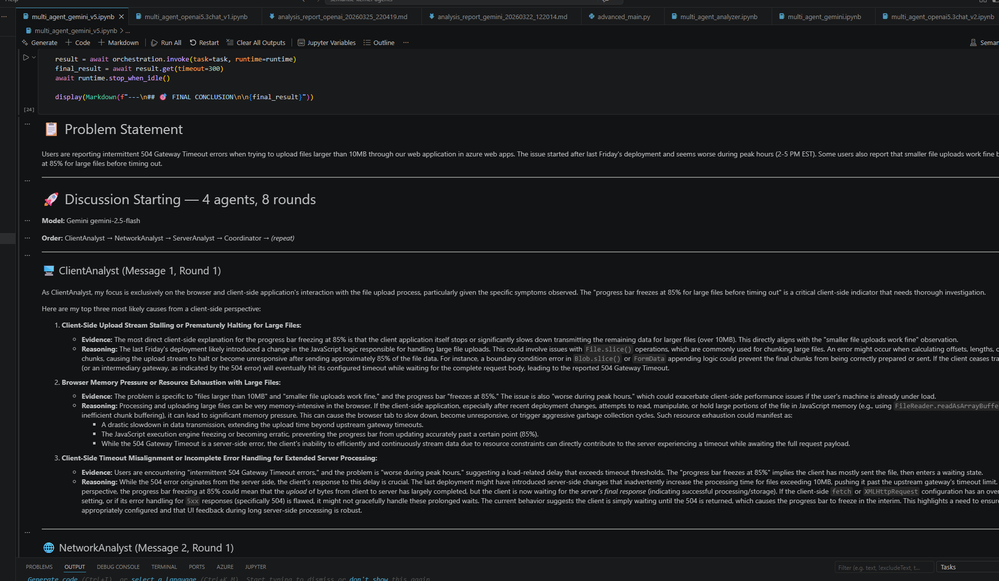

Round 1: Independent Analysis (Messages 1-4)

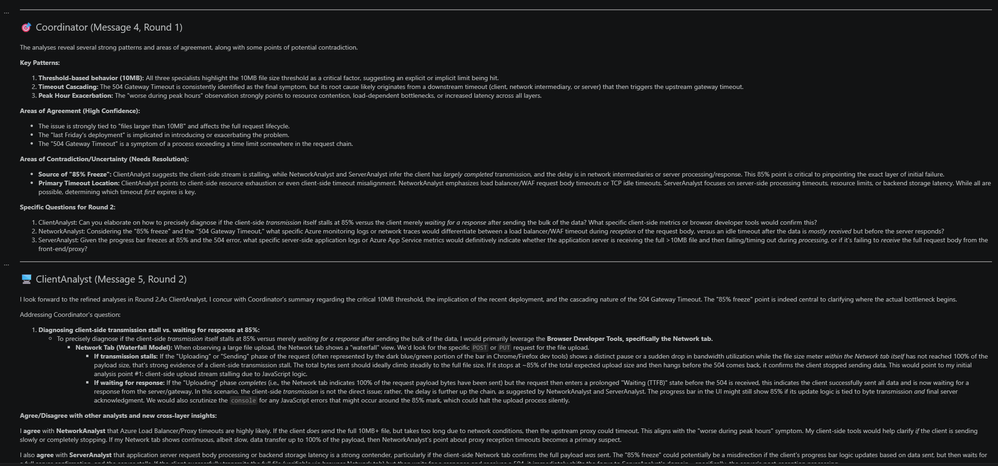

Round 2: Cross-Examination (Messages 5-8)



Notice: The Round 2 analysis is dramatically better than Round 1. Agents reference each other by name, build on each other's findings, and the Coordinator can synthesize a cross-layer causal chain that no single agent could have produced.



I made a small adjustment to the issue with Azure Web Apps. Please find the details below from testing carried out using Google Gemini:









8. Bugs I Found & Fixed — Lessons Learned

Building this demo taught me several important lessons about multi-agent systems:

Bug 1: Agents Speaking Only Once

Symptom: Only 4 messages instead of 8.

Root cause: The agents list was missing the Coordinator. It was defined in a separate cell and wasn't included in the members list.

Fix: All 4 agents must be in the same list passed to GroupChatOrchestration.

Bug 2: NetworkAnalyst Says "I'm Ready to Proceed"

Symptom: NetworkAnalyst's Round 2 response was just "I'm ready to proceed with the analysis" — no actual content.

Root cause: The Coordinator's Round 1 message was assigning tasks ("NetworkAnalyst, please check the load balancer config"), and the agent was acknowledging the assignment instead of analyzing.

Fix: Added explicit constraint to Coordinator: "Round 1 MUST NOT assign tasks — observation + questions ONLY."

Bug 3: ServerAnalyst Says "As NetworkAnalyst, I..."

Symptom: ServerAnalyst's response started with "As NetworkAnalyst, I believe..."

Root cause: LLM identity bleeding. When agents share ChatHistory, the LLM sometimes loses track of which agent it's currently playing. This is especially common with Gemini.

Fix: Identity anchoring at the very top of every agent's instructions: "You are ONLY ServerAnalyst. You must NEVER speak as ClientAnalyst, NetworkAnalyst, or Coordinator."

Bug 4: Gemini Gives Thin/Empty Responses

Symptom: Some agents responded with just one sentence or "I concur."

Root cause: Gemini 2.5 Flash is more concise than GPT-4o by default. Without explicit length requirements, it takes shortcuts.

Fix: Added "Every response MUST be at least 200 words" and "Answer the Coordinator's questions" to every specialist's instructions.

Bug 5: Coordinator's Report is 18K Characters

Symptom: The Coordinator's Round 2 response was absurdly long — repeating everything every specialist said.

Fix: Added word limits: "Round 1 max 300 words, Round 2 max 800 words" and "Synthesize, don't echo."

Bug 6: MAX_ROUNDS Math

Symptom: With MAX_ROUNDS=9, ClientAnalyst spoke a 3rd time after the Coordinator's final report — breaking the clean 2-round structure.

Fix: MAX_ROUNDS must equal (number of agents × number of rounds). For 4 agents × 2 rounds = 8.



9. Running with Different AI Providers

The beauty of SK's Strategy Pattern is that you change ONE LINE to switch providers. Everything else — agents, orchestration, callbacks, validation — stays identical.



Gemini setup:

from semantic_kernel.connectors.ai.google.google_ai import GoogleAIChatCompletion

service = GoogleAIChatCompletion(
    gemini_model_id="gemini-2.5-flash",
    api_key=os.getenv("GOOGLE_AI_API_KEY"),
)



OpenAI Setup



from semantic_kernel.connectors.ai.open_ai import OpenAIChatCompletion

service = OpenAIChatCompletion(
    ai_model_id="gpt-4o",
    api_key=os.getenv("OPEN_AI_API_KEY"),
)



10. What to Build Next

Add Plugins to Agents

Give agents real tools — not just LLM reasoning - looks exciting right ;)



class NetworkDiagnosticPlugin:
    (description="Pings a host and returns latency")
    def ping(self, host: str) -> str:
        result = subprocess.run(["ping", "-c", "3", host], capture_output=True, text=True)
        return result.stdout

class LogSearchPlugin:
    (description="Searches server logs for error patterns")
    def search_logs(self, pattern: str, hours: int = 1) -> str:
        # Query your log aggregator (Splunk, ELK, Azure Monitor)
        return query_logs(pattern, hours)



Add Filters for Governance

Intercept every agent call for PII redaction and audit logging:

.filter(filter_type=FilterTypes.FUNCTION_INVOCATION)
async def audit_filter(context, next):
    print(f"[AUDIT] {context.function.name} called by agent")
    await next(context)
    print(f"[AUDIT] {context.function.name} returned")



Try Different Orchestration Patterns

Replace GroupChat with Sequential for a pipeline approach:

# Instead of debate, each agent builds on the previous
orchestration = SequentialOrchestration(
    members=[client_agent, network_agent, server_agent, coordinator_agent]
)

Or Concurrent for parallel analysis:

# All specialists analyze simultaneously, Coordinator aggregates
orchestration = ConcurrentOrchestration(
    members=[client_agent, network_agent, server_agent]
)



Deploy to Azure

Move from InProcessRuntime to Azure Container Apps for production scaling. The agent code doesn't change — only the runtime.



Summary

The key insight from building this demo: multi-agent systems produce better results than single agents not because each agent is smarter, but because the debate structure forces cross-domain thinking that a single prompt can never achieve. The Coordinator's final report consistently identifies causal chains that span client, network, and server layers — exactly the kind of insight that production incident response teams need.



Semantic Kernel makes this possible with clean separation of concerns: agents define WHAT to analyze, orchestration defines HOW they interact, the manager defines WHO speaks when, the runtime handles WHERE it executes, and callbacks let you OBSERVE everything. Each piece is independently swappable — that's the power of SK from Microsoft.



Resources:

• GitHub: github.com/microsoft/semantic-kernel
• Docs: learn.microsoft.com/semantic-kernel
• Orchestration Patterns: learn.microsoft.com/semantic-kernel/frameworks/agent/agent-orchestration
• Discord: aka.ms/sk/discord





Disclaimer:

The sample scripts provided in this article are provided AS IS without warranty of any kind. The author is not responsible for any issues, damages, or problems that may arise from using these scripts. Users should thoroughly test any implementation in their environment before deploying to production. Azure services and APIs may change over time, which could affect the functionality of the provided scripts. Always refer to the latest Azure documentation for the most up-to-date information.



Thanks for reading this blog! I hope you found it helpful and informative for building AI agents with SK (Semantic Kernel) 😀
