Azure VMWare (AVS) Cost Optimization Using Azure Migrate Tool

What is AVS?

Azure VMware Solution provides private clouds that contain VMware vSphere clusters built from dedicated bare-metal Azure infrastructure. Azure VMware Solution is available in Azure Commercial and Azure Government. The minimum initial deployment is three hosts, with the option to add more hosts, up to a maximum of 16 hosts per cluster. All provisioned private clouds have VMware vCenter Server, VMware vSAN, VMware vSphere, and VMware NSX. As a result, you can migrate workloads from your on-premises environments, deploy new virtual machines (VMs), and consume Azure services from your private clouds.

Learn More: https://learn.microsoft.com/en-us/azure/azure-vmware/introduction

What is Azure Migrate Tool?

Azure Migrate is a comprehensive service designed to help you plan and execute your migration to Azure. It provides a unified platform to discover, assess, and migrate your on-premises resources, including servers, databases, web apps, and virtual desktops, to Azure. The tool offers features like dependency analysis, cost estimation, and readiness assessments to ensure a smooth and efficient migration process.

Learn More: https://learn.microsoft.com/en-us/azure/migrate/migrate-services-overview

How Azure Migrate can be used to Discover and Assess AVS?

Azure Migrate enables the discovery and assessment of Azure VMware Solution (AVS) environments by collecting inventory and performance data from on-premises VMware environments, either through direct integration with vCenter (via Appliance) or by importing data from tools like RVTools. Using Azure Migrate, organizations can analyze the compatibility of their VMware workloads for migration to AVS, assess costs, and evaluate performance requirements. The process involves creating an Azure Migrate project, discovering VMware VMs, and generating assessments that provide insights into resource utilization, right-sizing recommendations, and estimated costs in AVS. This streamlined approach helps plan and execute migrations effectively while ensuring workloads are optimized for the target AVS environment.

Note: We will be narrating the RVtools Import method in this article.

What Is RVTools?

RVTools is a lightweight, free utility designed for VMware administrators to collect, analyze, and export detailed inventory and performance data from VMware vSphere environments. Developed by Rob de Veij, RVTools connects to vCenter or ESXi hosts using VMware's vSphere Management SDK to retrieve comprehensive information about the virtual infrastructure.

Key Features of RVTools:

• Inventory Management:
• Provides detailed information about virtual machines (VMs), hosts, clusters, datastores, networks, and snapshots.
• Includes details like VM names, operating systems, IP addresses, resource allocations (CPU, memory, storage), and more.
• Performance Insights:
• Offers visibility into resource utilization, including CPU and memory usage, disk space, and VM states (e.g., powered on/off).
• Snapshot Analysis:
• Identifies unused or orphaned snapshots, helping to optimize storage and reduce overhead.
• Export to Excel:
• Allows users to export all collected data into an Excel spreadsheet (.xlsx) for analysis, reporting, and integration with tools like Azure Migrate.
• Health Checks:
• Identifies configuration issues, such as disconnected hosts, orphaned VMs, or outdated VMware Tools versions.
• User-Friendly Interface:
• Displays information in tabular form across multiple tabs, making it easy to navigate and analyze specific components of the VMware environment.

Hand-on LAB



Disclaimer: The data used for this LAB has no relationship with real world scenarios. This sample data is self-created by the author and purely for understanding the concept.

To discover and assess your Azure VMware Solution (AVS) environment using an RVTools extract report in the Azure Migrate tool, follow these steps:

Prerequisites

1. RVTools Setup:
   • Download and install RVTools from the Official Website
   • Ensure connectivity to your vCenter server.
   • Extract the data by running RVTools and saving the output as an Excel (.xlsx) file
2. Permissions:
   • You need at least the Contributor role on the Azure Migrate project.
   • Ensure that you have appropriate permissions in your vCenter environment to collect inventory and performance data.
3. File Requirements:
   • The RVTools file must be saved in .xlsx format without renaming or modifying the tabs or column headers.

Note:

Sample Sheet: Please check the attachment included with this article. Note that this is not the complete format; some tabs and columns have been removed for simplicity. During the actual discovery and assessment process, please do not modify the tabs or columns.

Procedure

Step 1: Export Data from RVTools

1. Follow the steps provided in official website to get RVTools Extract

Sample Sheet: Please check the attachment included with this article. Note that this is not the complete format; some tabs and columns have been removed for simplicity. During the actual discovery and assessment process, please do not modify the tabs or columns.



Step 2: Discover

• Log in to the Azure portal.
• Navigate to Azure Migrate and select your project or create new project.



• Under Migration goals, select Servers, databases and web apps.
• On Azure Migrate | Servers, databases and web apps page, under Assessment tools, select Discover and then select Using import.

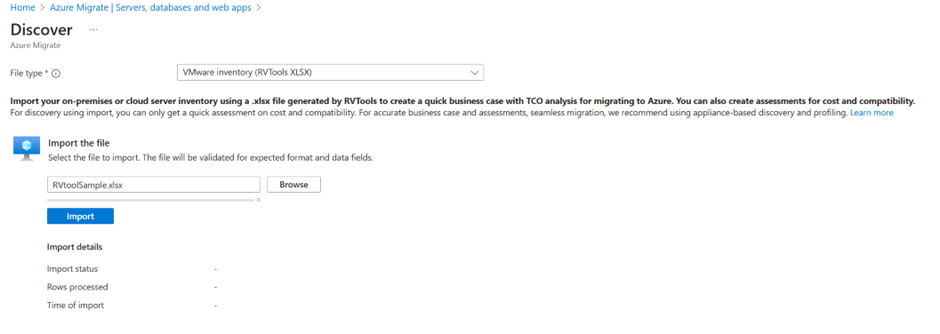

• In Discover page, in File type, select VMware inventory (RVTools XLSX).
• In the Step 1: Import the file section, select the RVTools XLSX file and then select Import.



Wait for some time to Import

Once import completed check for Error Messages if any and rectify those and re upload, otherwise wait 10-15 minutes to reflect imported VMs in the discovery.

Post discovery

Reference Link: https://learn.microsoft.com/en-us/azure/migrate/vmware/tutorial-import-vmware-using-rvtools-xlsx?context=%2Fazure%2Fmigrate%2Fcontext%2Fvmware-context

Step 3: Assess

• After the upload is complete, navigate to the Servers tab.
• Click on Assess -->Azure VMware Solution to assess the discovered machines.



• Edit assessment settings based on your requirements and Save
  • Target region: Select the Azure region for the migration.
  • Node Type: Specify the Azure VMware Solution series (e.g., AV36, AV36P).
  • Pricing model: Select pay-as-you-go or reserved instance pricing.
  • Discount: Specify any available discounts.

Note: We will be explaining all the parameters in optimize session. As of now just review and leave parameters as it is.

• In Assess Servers, select Next.
• In Select servers to assess > Assessment name > specify a name for the assessment.
• In Select or create a group > select Create New and specify a group name.

• Select the appliance and select the servers you want to add to the group. Then select Next.
• In Review + create assessment, review the assessment details, and select Create Assessment to create the group and run the assessment.

Step 4: Review the Assessment

View an assessment

• In Windows, Linux and SQL Server > Azure Migrate: Discovery and assessment, select the number next to Azure VMware Solution.
• In Assessments, select an assessment to open it. As an example (estimations and costs, for example, only):
• Review the assessment summary. You can select Sizing assumptions to understand the assumptions that went in node sizing and resource utilization calculations. You can also edit the assessment properties or recalculate the assessment.



Step 5: Optimize

We have received a report without any optimization in our previous steps. Now we can follow below steps to optimize the cost and node count even further

High level steps:

1. Find limiting factor
2. Find which component in settings are mapped for optimization depending on limiting factor
3. Try to adjust the mapped component according to Scenario and Comfort

Find Limiting factor:

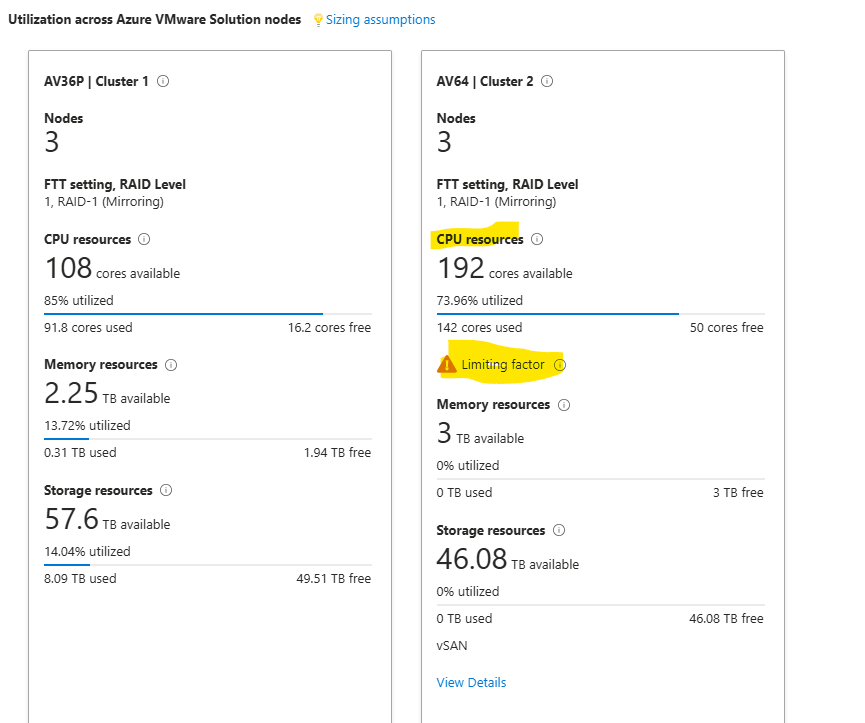

First understand which component (CPU, memory and storage) is deciding your ESXI Node count. This will be highlighted in the report

The limiting factor shown in assessments could be CPU or memory or storage resources based on the utilization on nodes. It is the resource, which is limiting or determining the number of hosts/nodes required to accommodate the resources. For example, in an assessment if it was found that after migrating 8 VMware VMs to Azure VMware Solution, 50% of CPU resources will be utilized, 14% of memory is utilized and 18% of storage will be utilized on the 3 Av36 nodes and thus CPU is the limiting factor.

Find which option in the setting can be used to optimize:

This is depending on the limiting factor.

For eg: If Limiting factor is CPU, which means you have high CPU requirement and CPU oversubscription can be used to optimize ESXI Node. Likewise, if storage is the limiting factor editing FTT, RAID or introducing External storage like ANF will help you to reduce Node count. Even reducing one node count will create a huge impact in dollar value.



Let's understand how over commitment or over subscription works with simple example.



Let's suppose I have two VMs with below specification

We have EXSI Node which has below capacity:

vCPU 10

Memory 500 GB

storage 1024 GB

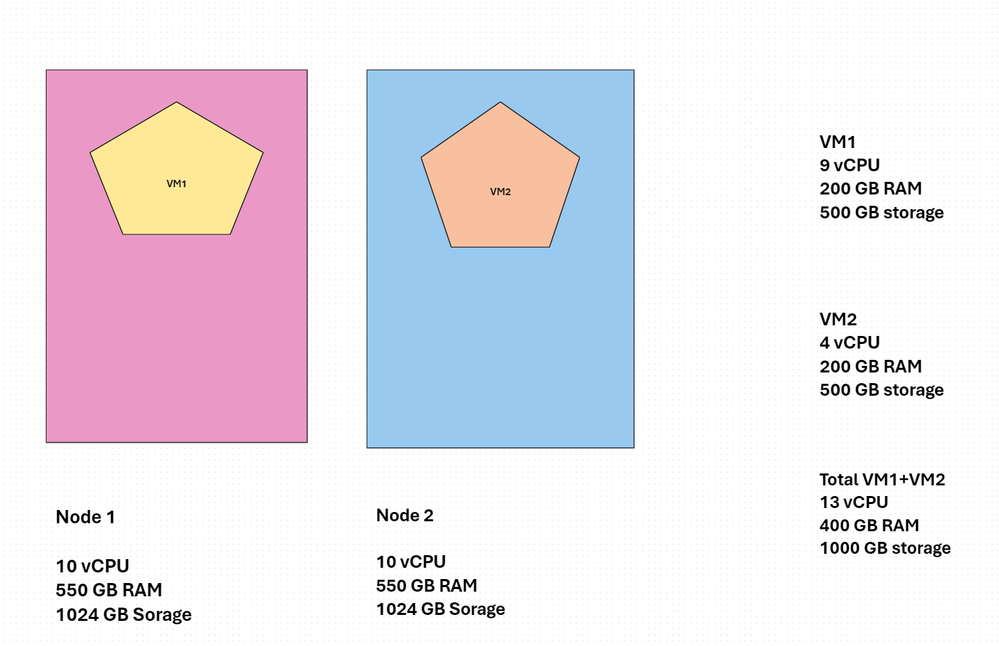

Now without optimization I need two ESXI node to accommodate 13 vCPU of total requirement. But let's suppose VM1 and VM2 doesn't consume entire capacity all the time. The total capacity usage at a time will not go beyond 10. then I can accommodate both VM in same ESXI node, Hence I can reduce my node count and cost. Which means it is possible to share resources among both VMs.



Without optimization



With optimization

Parameters effecting Sizing and Pricing

CPU Oversubscription

Specifies the ratio of number of virtual cores tied to one physical core in the Azure VMware Solution node. The default value in the calculations is 4 vCPU:1 physical core in Azure VMware Solution. API users can set this value as an integer. Note that vCPU Oversubscription > 4:1 may impact workloads depending on their CPU usage.

Memory overcommit factor

Specifies the ratio of memory overcommit on the cluster. A value of 1 represents 100% memory use, 0.5, for example is 50%, and 2 would be using 200% of available memory. You can only add values from 0.5 to 10 up to one decimal place.

Deduplication and compression factor

Specifies the anticipated deduplication and compression factor for your workloads. Actual value can be obtained from on-premises vSAN or storage configurations. These vary by workload. A value of 3 would mean 3x so for 300GB disk only 100GB storage would be used. A value of 1 would mean no deduplication or compression. You can only add values from 1 to 10 up to one decimal place.

FTT :

How many device failure can be tolerated for a VM

RAID :

RAID stands for Redundant Arrays of Independent Disks

Explains how data should be stored for redundancy

Mirroring : Data will be duplicated as it is to another disk

E.g.: To protect a 100 GB VM object by using RAID-1 (Mirroring) with an FTT of 1, you consume 200 GB.

Erasure Coding :

Erasure coding divides data into chunks and calculates parity information (redundant data) across multiple storage devices. This allows data reconstruction even if some chunks are lost, similar to RAID, but typically more space-efficient

E.g.: to protect a 100 GB VM object by using RAID-5 (Erasure Coding) with an FTT of 1, you consume 133.33 GB.



Comfort Factor:



Azure Migrate considers a buffer (comfort factor) during assessment. This buffer is applied on top of server utilization data for VMs (CPU, memory and disk). The comfort factor accounts for issues such as seasonal usage, short performance history, and likely increases in future usage. For example, a 10-core VM with 20% utilization normally results in a 2-core VM. However, with a comfort factor of 2.0x, the result is a 4-core VM instead.



AVS SKU Sizes





Optimization Result



In this example we got to know that CPU is my limiting factor hence I have adjusted CPU over subscription value from 4:1 to 8:1



• Reduced node count from 6 (3 AV36P+3 AV64) to 5 AV36P
• Reduced Cost by 31%





Note: Over-provisioning or over-committing can put your VMs at risk. However, in Azure Cloud, you can create alarms to warn you of unexpected demand increases and add new ESXi nodes on demand. This is the beauty of the cloud: if your resources are under-provisioned, you can scale up or down at any time. Running your resources in an optimized environment not only saves your budget but also allows you to allocate funds for more innovative ideas.
