Test Automation and EasyRepro: 03 - Extending the EasyRepro Framework

Hi Team,

I am trying to Extend the LoginDetails and WebClient but i am getting the following error.

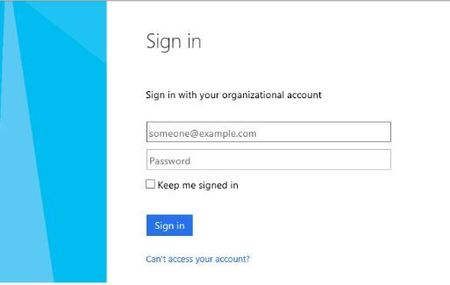

Please find the below screenshot.
ErrorMessage: " System.MissingMethodException : Method not found: 'Boolean Microsoft.Dynamics365.UIAutomation.Browser.SeleniumExtensions.IsVisible(OpenQA.Selenium.IWebDriver, OpenQA.Selenium.By)'."

Any idea what could be the problem.

LoginDetails page Extension class code.

using System;
using System.Collections.Generic;
using System.Text;
using System.Linq;
using System.Threading;
using System.Security;
using Microsoft.Dynamics365.UIAutomation.Browser;
using Microsoft.Dynamics365.UIAutomation.Api;
using OpenQA.Selenium;
using OpenQA.Selenium.Support.Extensions;
using OpenQA.Selenium.Support.Events;
using System.Diagnostics;

namespace LD.Mellodirect.Integration.QA.CRMUIDataMapping.Pages
{
public class LoginPage : LoginDialog
{
public string[] OnlineDomains { get; set; }
//public InteractiveBrowser browser;
public LoginPage(InteractiveBrowser browser) : base(browser)
{
this.OnlineDomains = Constants.Xrm.XrmDomains;
//this.browser = browser;
}

public BrowserCommandResult<LoginResult> DirectCRMLogin(Uri uri, SecureString userName, SecureString passWord)
{
return base.Execute(GetBrowserOptions("Login"), this.D365Login, uri, userName, passWord, default(Action<LoginRedirectEventArgs>));
}

private LoginResult D365Login(IWebDriver driver, Uri uri, SecureString username, SecureString password,Action<LoginRedirectEventArgs> redirection)
{
bool online = !(this.OnlineDomains != null && !this.OnlineDomains.Any(d => uri.Host.EndsWith(d)));
driver.Navigate().GoToUrl(uri);
bool redirect = false;
if (online)
{
if (driver.IsVisible(By.Id("use_another_account_link")))
driver.ClickWhenAvailable(By.Id("use_another_account_link"));
driver.WaitUntilAvailable(By.XPath(Elements.Xpath[Reference.Login.UserId]),
$"The Office 365 sign in page did not return the expected result and the user '{username}' could not be signed in.");

driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.UserId])).SendKeys(username.ToUnsecureString());
driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.UserId])).SendKeys(Keys.Tab);
driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.UserId])).SendKeys(Keys.Enter);

Thread.Sleep(1000);

if (driver.IsVisible(By.Id("aadTitle")))
{
driver.FindElement(By.Id("aadTitle")).Click(true);
}

Thread.Sleep(1000);
if (redirection != null)
{
Thread.Sleep(3000);
VerifyDefaultPageLoaded(username, password, driver);
redirect = true;
}
else
{
driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.LoginPassword])).SendKeys(password.ToUnsecureString());
driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.LoginPassword])).SendKeys(Keys.Tab);
driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.LoginPassword])).Submit();

Thread.Sleep(2000);

if (driver.IsVisible(By.XPath(Elements.Xpath[Reference.Login.StaySignedIn])))
{
driver.ClickWhenAvailable(By.XPath(Elements.Xpath[Reference.Login.StaySignedIn]));

if (driver.HasElement(By.XPath(Elements.Xpath[Reference.Login.StaySignedIn])))
driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.StaySignedIn])).Submit();
}

driver.WaitUntilVisible(By.XPath("//div[contains(@data-id,'topBar') or contains(@id,'crmTopBar')]")
, new TimeSpan(0, 0, 60),
e =>
{
driver.WaitForPageToLoad();
}
);
}
}
return redirect ? LoginResult.Redirect : LoginResult.Success;
}

public void VerifyDefaultPageLoaded(SecureString userName,SecureString password,IWebDriver driver)
{
var d = driver;
d.FindElement(By.Id("passwordInput")).SendKeys(password.ToUnsecureString());
d.ClickWhenAvailable(By.Id("submitButton"), new TimeSpan(0,0,30));
d.WaitUntilVisible(By.XPath("//div[contains(@data-id,'topBar') or contains(@id,'crmTopBar')]")
, new TimeSpan(0,0,60),
e =>
{
d.WaitForPageToLoad();
},
f => { throw new Exception("Login page failed."); }
);
}

internal BrowserCommandOptions GetBrowserOptions(string commandName)
{
BrowserCommandOptions options = new BrowserCommandOptions(Constants.DefaultTraceSource,
commandName,
0,
0,
null,
true,
typeof(NoSuchElementException), typeof(StaleElementReferenceException));
return options;
}

}
}

WebClient Extension Code:

using System;
using System.Collections.Generic;
using System.Text;
using System.Security;
using System.Web;
using Microsoft.Dynamics365.UIAutomation.Browser;
using Microsoft.Dynamics365.UIAutomation.Api.UCI;
using OpenQA.Selenium;
using Microsoft.Dynamics365.UIAutomation.Api.UCI.DTO;
using OpenQA.Selenium.Interactions;
using System.Linq;
using System.Threading;
using System.Diagnostics;
using OtpNet;

namespace LD.Mellodirect.Integration.QA.CRMUIDataMapping.Pages
{
public class LoginClient : WebClient
{
public LoginClient(BrowserOptions options):base(options)
{
base.Browser = new InteractiveBrowser(options);
base.OnlineDomains = Constants.Xrm.XrmDomains;
base.ClientSessionId = Guid.NewGuid();
}

internal BrowserCommandOptions GetOptions(string commandName)
{
return new BrowserCommandOptions(Constants.DefaultTraceSource,
commandName,
Constants.DefaultRetryAttempts,
Constants.DefaultRetryDelay,
null,
true,
typeof(NoSuchElementException), typeof(StaleElementReferenceException));
}

private bool EnterUserName(IWebDriver driver,SecureString username)
{
var input = driver.WaitUntilAvailable(By.XPath(Elements.Xpath[Reference.Login.UserId]), new TimeSpan(0, 0, 30));
if (input == null)
return false;

input.SendKeys(username.ToUnsecureString());
input.SendKeys(Keys.Enter);
return true;
}

private static void EnterPassword(IWebDriver driver, SecureString password)
{
var input = driver.FindElement(By.XPath(Elements.Xpath[Reference.Login.LoginPassword]));
input.SendKeys(password.ToUnsecureString());
input.Submit();
}

internal bool WaitForMainPage(TimeSpan timeout, string errorMessage)
=> WaitForMainPage(timeout, null, (driver) => throw new InvalidOperationException(errorMessage));

internal bool WaitForMainPage(TimeSpan? timeout = null, Action<IWebDriver> successCallback = null, Action<IWebDriver> failureCallback = null)
{
IWebDriver driver = Browser.Driver;
TimeSpan waittimeout = timeout ?? Constants.DefaultTimeout;
successCallback = successCallback ?? (
_=>
{
bool isUCI = driver.HasElement(By.XPath(Elements.Xpath[Reference.Login.CrmUCIMainPage]));
if (isUCI)
driver.WaitForTransaction();
});
var xpathToMainPage = By.XPath(Elements.Xpath[Reference.Login.CrmMainPage]);
var element = driver.WaitUntilAvailable(xpathToMainPage, waittimeout, successCallback, failureCallback);
return element != null;

}

private static bool ClickStaySignedIn(IWebDriver driver)
{
var xpath = By.XPath(Elements.Xpath[Reference.Login.StaySignedIn]);
IWebElement element = null;

if(driver.IsVisible(xpath))
{
element = driver.FindElement(xpath);
element.Click();
}
return element != null;
}

private static string GenerateOneTimeCode(SecureString mfaSecretKey)
{
string key = mfaSecretKey?.ToUnsecureString();
byte[] base32Bytes = Base32Encoding.ToBytes(key);

var totp = new Totp(base32Bytes);
var result = totp.ComputeTotp();
return result;
}

private static void SwitchToMainFrame(IWebDriver driver)
{
driver.WaitForPageToLoad();
driver.SwitchTo().Frame(0);
driver.WaitForPageToLoad();
}

private static void SwitchToDefaultContent(IWebDriver driver)
{
SwitchToMainFrame(driver);

driver.SwitchTo().DefaultContent();
}

private static IWebElement GetOtcInput(IWebDriver driver)
=> driver.WaitUntilAvailable(By.XPath(Elements.Xpath[Reference.Login.OneTimeCode]), TimeSpan.FromSeconds(2));

private void SetInputValue(IWebDriver driver,IWebElement input,string value,TimeSpan? thinktime = null)
{
input.Clear();
input.Click();
input.SendKeys(Keys.Control + "a");
input.SendKeys(Keys.Control + "a");
input.SendKeys(Keys.Backspace);
input.SendKeys(value);

var getvalue = input.GetAttribute("value");
if (!getvalue.Equals(value))
throw new InvalidOperationException($"Timeout after 10 seconds. Expected: {value}. Actual: {input.GetAttribute("value")}");
}

private bool EnterOneTimeCode(IWebDriver driver,SecureString mfaSecretKey)
{
try
{
IWebElement input = GetOtcInput(driver);
if (input == null)
return true;
if (mfaSecretKey == null)
throw new InvalidOperationException("The application is wait for the OTC but your MFA-SecretKey is not set. Please check your configuration.");
var oneTimeCode = GenerateOneTimeCode(mfaSecretKey);
SetInputValue(driver, input, oneTimeCode, TimeSpan.FromSeconds(1.0));
input.Submit();
return true;
}
catch (Exception e)
{
var message = $"An Error occur entering OTC. Exception: {e.Message}";
Trace.TraceInformation(message);
throw new InvalidOperationException(message, e);
}
}

private bool IsUserAlreadyLogged() => WaitForMainPage(TimeSpan.FromSeconds(10.0));

public BrowserCommandResult<LoginResult> D365Login(Uri orgUri, SecureString username, SecureString password, SecureString mfaSecretKey = null, Action<LoginRedirectEventArgs> redirectAction = null)
{
return Execute(GetOptions("Login"), D365Login, orgUri, username, password, mfaSecretKey, redirectAction);
}

private LoginResult D365Login(IWebDriver driver,Uri uri,SecureString username,SecureString password,SecureString mfaSecretKey = null,Action<LoginRedirectEventArgs> redirectAction = null)
{
bool online = !(OnlineDomains != null && !OnlineDomains.Any(d => uri.Host.EndsWith(d)));
driver.Navigate().GoToUrl(uri);

if (!online)
return LoginResult.Success;
var idAnotherAccount = By.Id("use_another_account_link");
if(driver.IsVisible(idAnotherAccount))
driver.FindElement(idAnotherAccount).Click();

bool waitingForOtc = false;
bool success = EnterUserName(driver, username);
if(!success)
{
var isUserAlreadyLogged = IsUserAlreadyLogged();
if (isUserAlreadyLogged)
{
SwitchToDefaultContent(driver);
return LoginResult.Success;
}

base.Browser.ThinkTime(1000);

if (!waitingForOtc)
throw new Exception($"Login page failed. {Reference.Login.UserId} not found.");
}

if(!waitingForOtc)
{
var idAadTitle = By.Id("aadTile");
if (driver.IsVisible(idAadTitle))
driver.FindElement(idAadTitle).Click();

base.Browser.ThinkTime(1000);

if(redirectAction != null)
{
base.Browser.ThinkTime(3000);
//redirectAction.Invoke(new base.ADFSLoginAction({ username,password,driver}));
return LoginResult.Redirect;
}

EnterPassword(driver, password);
//base.Browser.ThinkTime(1000);
success = ClickStaySignedIn(driver) || IsUserAlreadyLogged();
}

int attempts = 0;
bool entered = false;
if(mfaSecretKey != null)
{
do
{
entered = EnterOneTimeCode(driver, mfaSecretKey);
success = ClickStaySignedIn(driver) || IsUserAlreadyLogged();
attempts++;
}
while (!success && attempts <= Constants.DefaultRetryAttempts);
}

if (entered && !success)
{
throw new InvalidOperationException("Somthing went wrong entering the OTC. Please check the MFA-SecretKey in configuration.");
}

return success ? LoginResult.Success : LoginResult.Failure;
}
}
}
Thanks & Regards,

G.V.Sunil
