Does SharePoint 2019 still need the SMTP Service?

mikeleemsft's avatar
mikeleemsft
Icon for Microsoft rankMicrosoft
Dec 31, 2018

Summary

Now that SharePoint 2019 public preview has been released, the official deprecated / removed list has been published. After reading this you may have noticed that "Incoming email automatic mode" has been removed from the product.



Incoming email automatic mode

As announced by the Windows Server team, Microsoft is deprecating the IIS 6 Management compatibility features in Internet Information Services (IIS). The automatic mode of the SharePoint incoming email feature relies on IIS 6 APIs to manage the IIS SMTP service. Because no alternative APIs exist to manage the IIS SMTP service, we are removing support for automatic mode in the incoming email feature of SharePoint Server 2019 Public Preview. Customers using incoming email are recommended to use advanced mode instead, which allows you to manually manage the IIS SMTP service and drop folder.



Also, you may have seen my blog detailing the changes in SharePoint 2019 stating that the SMTP Authentication is now supported and we longer need a local SMTP server to support anonymous authentication.



Lastly, the SMTP Service has been added to the deprecation list since Windows 2012 server.



SMTP

SMTP and the associated management tools are deprecated. Though the functionality is still available in Windows Server 2012, you should begin using System.Net.Smtp. With this API, you will not be able to insert a message into a file for pickup; instead configure Web applications to connect on port 25 to another server using SMTP.





So, what does this all mean?

SharePoint no longer "requires" a local SMTP service. SharePoint can still utilize the service to process incoming e-mail from the drop folder. However, it's not really "required".

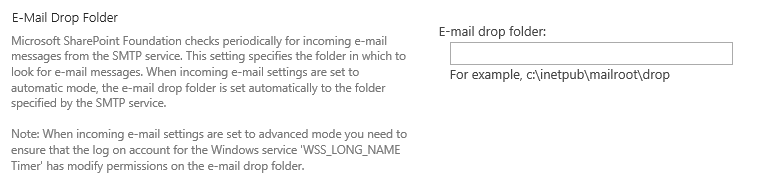

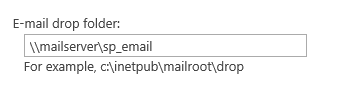

Incoming e-mail with advanced mode gives you a simple input "E-mail drop folder".



Example:



When configuring advanced mode, Admin's must enter the drop folder location manually. Since the SharePoint Farm Service Account (the account running the timer service) only needs access to e-mail from a drop location, it can be local or remote file path that contains the incoming e-mail destined for the SharePoint Farm.



Example:



Wrapping it all up

When the time comes, and the SMTP service is removed from Windows, customers will need a method to route e-mail destined for Sharepoint to a Windows folder to process incoming e-mail. However, customers that still have an on-premises Exchange Server, a "Foreign Connector" can be used to route mail destined for SharePoint to a drop folder. Otherwise, a 3rd party solution may be required.





Let's See the "Foreign Connector" solution in action!



1. Create a new connector in Exchange and specify correct address space to match the SharePoint Farm configuration.



Example:

New-ForeignConnector -Name "SharePoint Email" -AddressSpaces "SMTP:sp2019.net" -SourceTransportServers "exch-server"



New-ForeignConnector

https://docs.microsoft.com/en-us/powershell/module/exchange/mail-flow/new-foreignconnector?view=exchange-ps



2. Set the new connector to the desired drop location.



Example:

Set-ForeignConnector "SharePoint Email" -DropDirectory "C:\Program Files\Microsoft\Exchange Server\V15\SharePoint"



Set-ForeignConnector

https://docs.microsoft.com/en-us/powershell/module/exchange/mail-flow/set-foreignconnector?view=exchange-ps

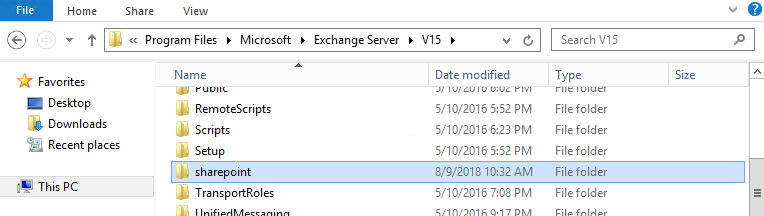

3. Create the folder in the specified location.

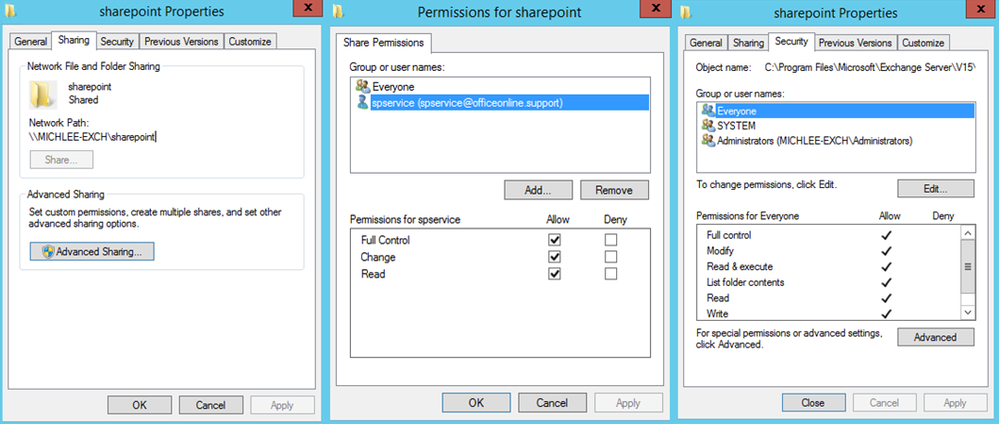

4. Share the folder and edit the permissions to ensure that Exchange and the SharePoint Timer Service Account has full permissions.



Note: I gave "everyone" full control at the folder level, but the SharePoint Service account full control at the sharing level.

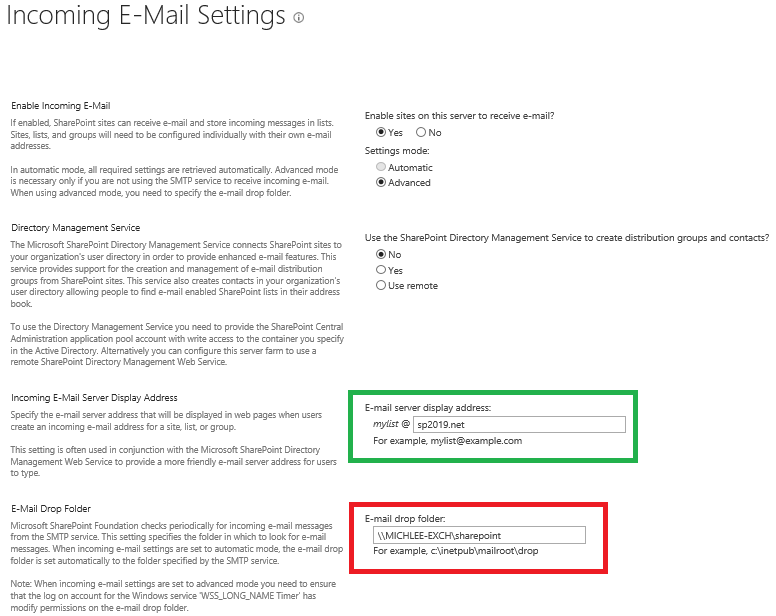

5. Now configure SharePoint to use the correct address space and drop location.

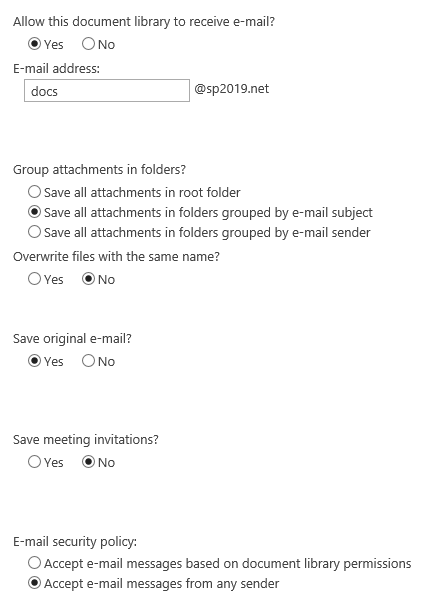

6. Configure a document library to receive mail.





7. Now test it by sending a message from Outlook.

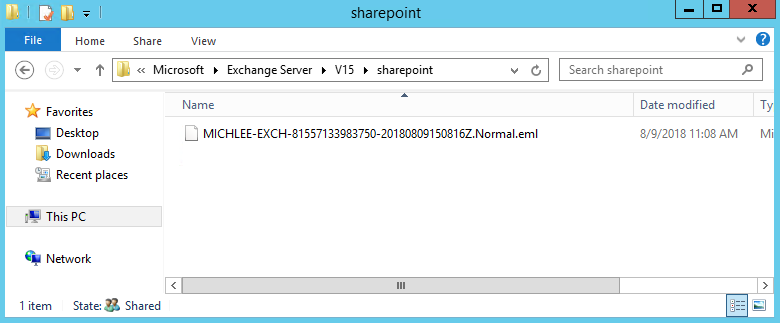

8. The e-mail should be delivered to the drop location, where SharePoint will process it when the incoming e-mail timer job is executed.

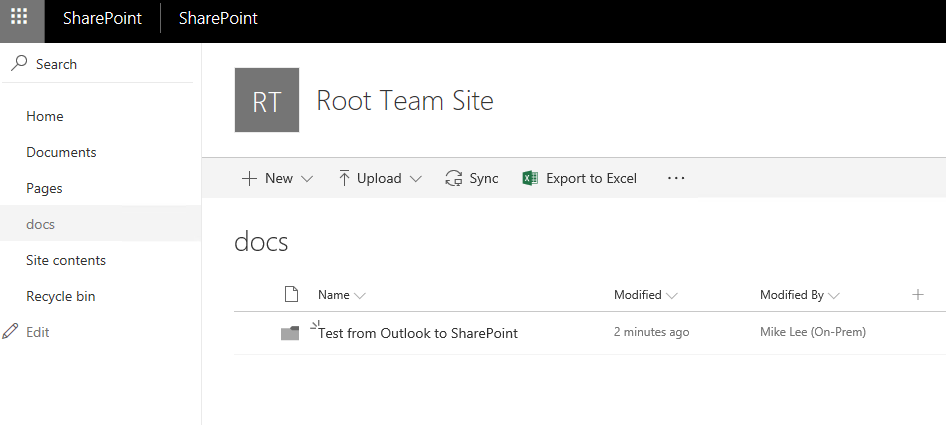

9. Success! The message was processed and delivered to the SharePoint Library



Let's Recap

  • SharePoint 2019 will only support "Advanced Mode" to configure incoming e-mail.
  • SMTP Service is deprecated but still currently included with the latest version of Windows Server.

    Note: When products are deprecated, they can be removed at any time. So be ready.

  • SharePoint does not require a local SMTP Server, only a drop location to process incoming email.
  • An on-prem Exchange Server can utilize a "Foreign Connector" to route e-mail per address space to a drop location.
  • Setting this up in a lab was a lot of fun. If you don't agree try it 🙂 .
Updated Dec 31, 2018
Version 2.0
  • wroot's avatar
    wroot
    Silver Contributor

    That's fine for SP, but we are currently using SMTP service based on IIS 6 on Windows Server 2012 to relay emails from 15+ various internal systems to Office 365 mailboxes. I wonder what approach MS recommends for such scenarios once SMTP won't be available.

  • MSh2019's avatar
    MSh2019
    Copper Contributor

    Thanks for this. But we have a problem in that after configuring SharePoint 2019 for incoming email using the Advanced mode, which by the way is the only way as the settings for automatic mode do not appear on the "Incoming Email Settings" page, we are able to see Incoming email settings for libraries but not for lists. So we don't understand why we do not have incoming email for lists. Can you please assist on that?

  • Techresolve's avatar
    Techresolve
    Copper Contributor

    Hi Mike,

    while using dropdirectory in exchange foreign connector it uses UNC path which can be a security risk considering it needs everyone permission on drop directory path and UNC has its vulnerabilities with SMB protocol. Do you have any updates for this?

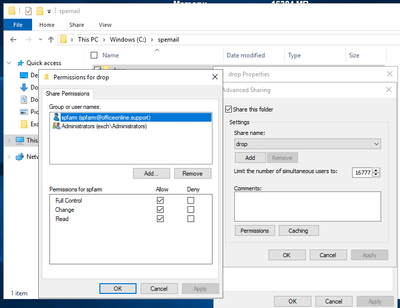

  • Techresolve   Only the account running the timer service needs full control of the drop folder. Also, you can specify any drive location as the drop folder, it does not have to be inside the "Exchange Server" folder.
