Enhancing SQL Server Transactional Replication Initialization Performance

1. Introduction

 Initializing SQL Server Transactional Replication with default settings can be significantly slow when working with large table migrations. One of the parameters we have in enhancing replication efficiency is the MaxBCPThreads. This setting controls the number of parallel bulk copy operations during the creation and application of snapshots. Without tuning, the process can become slow and resource-heavy, leading to delays and bottlenecks.



Increasing MaxBCPThreads allows SQL Server to perform multiple tasks concurrently, optimizing hardware utilization and greatly reducing the time needed to synchronize data between the publisher and subscribers. In some cases, tuning this parameter has cut initialization time by up to 75%. This isn’t just about speed but it’s also about efficient resource management. Leveraging multiple threads helps distribute the workload effectively, ensuring optimal CPU and memory usage while avoiding bottlenecks caused by single-threaded operations.



By default, the Snapshot Agent and Distribution Agent use a single thread to apply snapshot generated with the concurrent (default) snapshot option. For larger datasets, this can severely impact performance. This step-by-step guide will assist you on how to configure the Snapshot Agent and Distribution Agent in native mode to enable parallel processing with MaxBCPThreads, allowing you to unlock the full potential of your replication setup.



Transform your replication process today and make initialization faster, smarter, and more efficient!



Note: Native mode locks the published tables during snapshot initiation, which can impact the availability of the data during this period.



2. Prerequisites

Please refer to the article Configure Transactional Replication to setup Transactional replication. This article focuses on configuring the MaxBCPThreads parameter, assuming you already have transactional replication set up.

When the Snapshot Agent runs, it generates multiple BCP out files using single or multiple threads based on the MaxBCPThreads setting. After the Snapshot Agent completes generating the BCP files, the Distribution Agent initiates the Bulk Insert operation by spinning up the number of threads configured in the MaxBCPThreads parameter.

3. Step by step guide

1. Login to the Publisher server using SQL Server Management Studio (SSMS).
2. Image of the replication setup in concurrent mode with default MaxBCPThread.

3. To validate sync_method publication property, you may use the below TSQL (step 1 below) to get the configuration details or, you can use GUI (step 2 below) to script out publication (which also provides all the configuration details).
   1. TSQL

      SELECT publication, sync_method, CASE sync_method WHEN 0 THEN 'Native (produces native-mode bulk copy output of all tables)' WHEN 1 THEN 'Character (produces a character-mode bulk copy output of all tables)' WHEN 3 THEN 'Concurrent (produces native-mode bulk copy output of all tables but does not lock the table during the snapshot)' WHEN 4 THEN 'Concurrent_c (produces a character-mode bulk copy output of all tables but does not lock the table during the snapshot)' ELSE 'Unknown Sync Method' END AS sync_method_desc FROM distribution..MSpublications;

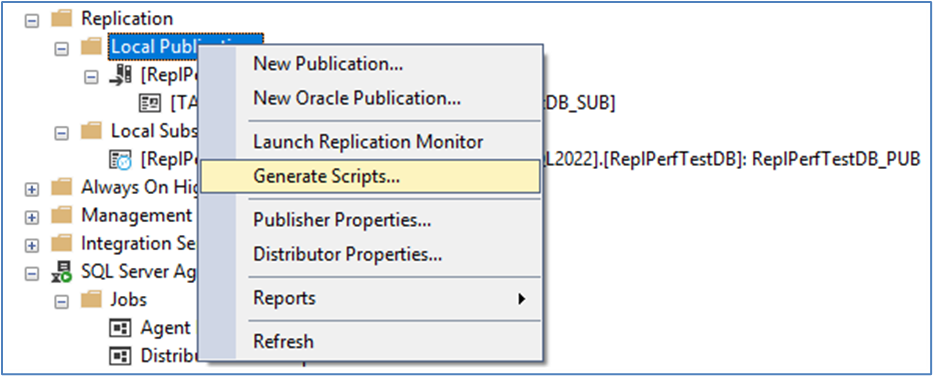

   2. Script publication: Right click on the Local Publication folder and select Generate Scripts or, please use below TSQL to confirm.

       Leave the default options and select Open in new query window from Generate Scripts drop         down.

       In the generated script search for the parameter @sync_method. You will see the value is set         to concurrent.

4. Now create a custom profile for Snapshot and/or distribution agent with custom MaxBCPThreads.

5. Right click on Replication folder and launch Replication Monitor.

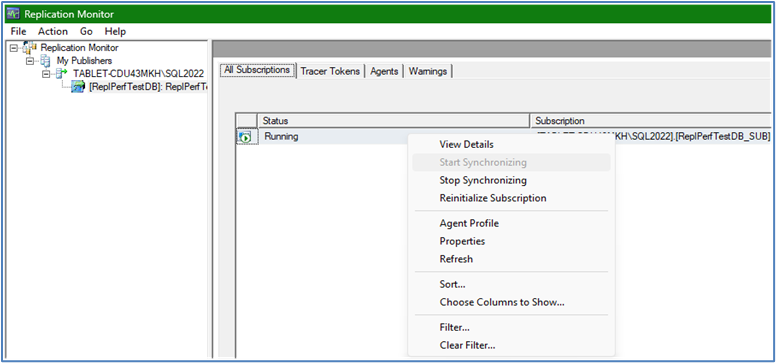

6. From the replication monitor, right click on the subscription, open Agent profile and click on New.

7. Leave the default option selected and click OK.

8. Name the profile and change the value of MaxBcpThreads to the number of parallel threads you want for Distribution agent (12 in example below).

9. You should now see the custom profile in the list. Check the new profile (CustomerMaxBCPThreads) and click OK. The distribution agent will now use this custom profile for bulk insert.

Note:

• Existing distribution agent will not pickup the new profile unless the agent service is restarted.
• Creating the profile would affect all the Agents at the instance level.
• An alternative to this is to modify the specified agent parameter in the job property.


10. To configure the same for Snapshot agent, click on Agents tab in the Replication monitor. Right click on Snapshot agent and go to Agent Profile.

11. Click on New to create a custom profile and click OK.

12. Give a name to the profile and change the value of MaxBcpThreads value to a desired value for Snapshot agent.

13. You should now see the custom profile in the list. Check the new profile (CustomMaxBCPThreads10) and click OK. The snapshot agent will now use this custom profile for snapshot generation.

14. Stop the Log reader job from the SQL Agent jobs.

15. Run below query in SSMS

USE <PublisherDatabase> GO sp_changepublication @publication = 'PublicationName, @property = 'sync_method', @force_invalidate_snapshot =1, @force_reinit_subscription =1, @value = 'native'; GO



16. Now repeat the steps 3 from above and you should see the value of @sync_method has changed to ‘native’.

17. In the Replication monitor, go to Agents tab, right click on Snapshot agent and select start agent. This will generate a new Snapshot.

18. In the Replication monitor, go to All Subscriptions tab, right click on subscription and select start synchronization. This will start the distribution agent.

19. Click on View details to confirm the profile (CustomMaxBcpThreads) used by the distribution agent.

20. In SSMS, you can confirm Bulk inserts are running in parallel from Activity Monitor Activity Monitor (screenshot below)
