By: Janusz Gal – Sr Product Manager | Microsoft Intune



Microsoft Intune Advanced Analytics empowers IT admins and enterprise users to gain deep insights into device health, user experience, and organizational trends. Building on the foundation of Microsoft Endpoint analytics, Advanced Analytics offers enhanced device timeline reporting, flexible query options, anomaly detection, battery health monitoring, and resource performance tracking.



IT admins can use Advanced Analytics to proactively manage their user devices, by turning raw telemetry into actionable insights, and optimizing IT support processes with near real time device information.



In this blog post, we’ll review the capabilities provided by Advanced Analytics with example scenarios for how they can be used.



Getting started

Getting started with Advanced Analytics is easy! Once your license is in place and Endpoint analytics is enabled, Advanced Analytics features will become available in your tenant. For more details on the licensing requirements, review the following: What is Microsoft Intune Advanced Analytics.



For those who haven’t enabled Endpoint analytics, now is the time. In the Intune admin center, navigate to Reports > Endpoint analytics. Select All cloud-managed devices in the dropdown (or a subset) and select Start to enable Endpoint analytics for your tenant.

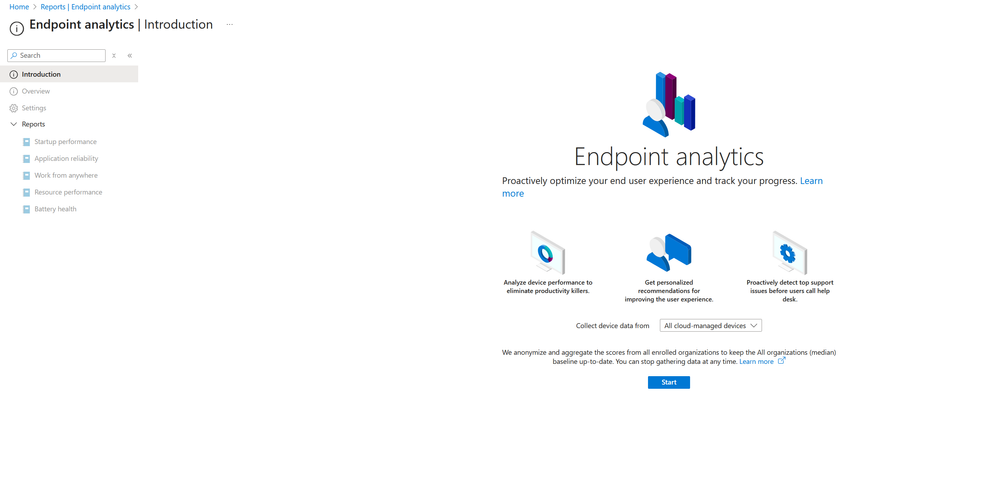

Figure 1 Endpoint analytics introduction pane in the Microsoft Intune admin center (Reports > Endpoint analytics).

Some capabilities may take up to 48 hours for data to populate for Advanced Analytics analysis, such as anomaly detection, battery health monitoring, and inventory data shown in Device Query for multiple devices. Review Planning Advanced Analytics for a full list of prerequisites, a planning checklist, FAQ and more.



Let’s take a look at the new capabilities available when you enable Advanced Analytics in Microsoft Intune.



Custom device scopes

Think of a subset of the organization you’d like to better understand and compare to the rest of the tenant. Possible examples include executive devices, maybe a specific country or region with a different budget, or even Microsoft Entra hybrid joined and cloud-native devices. With custom device scopes you can recalculate the whole set of Endpoint analytics reports based on scope tags and get the comparisons you need to make informed decisions.



Let’s consider a scenario where a subset of the organization has Microsoft Entra hybrid joined Windows devices with decades of group policy being applied and you want to make the business case to invest the time in reviewing and building new policy in Intune. You can create a scope tag, for this example we’ll name it “Hybrid joined devices”, that you apply to hybrid joined devices, and then add that to the device scopes capability within Endpoint analytics. The manage device scopes setting can be accessed by selecting on the device scope selector on any filterable Endpoint analytics pane:

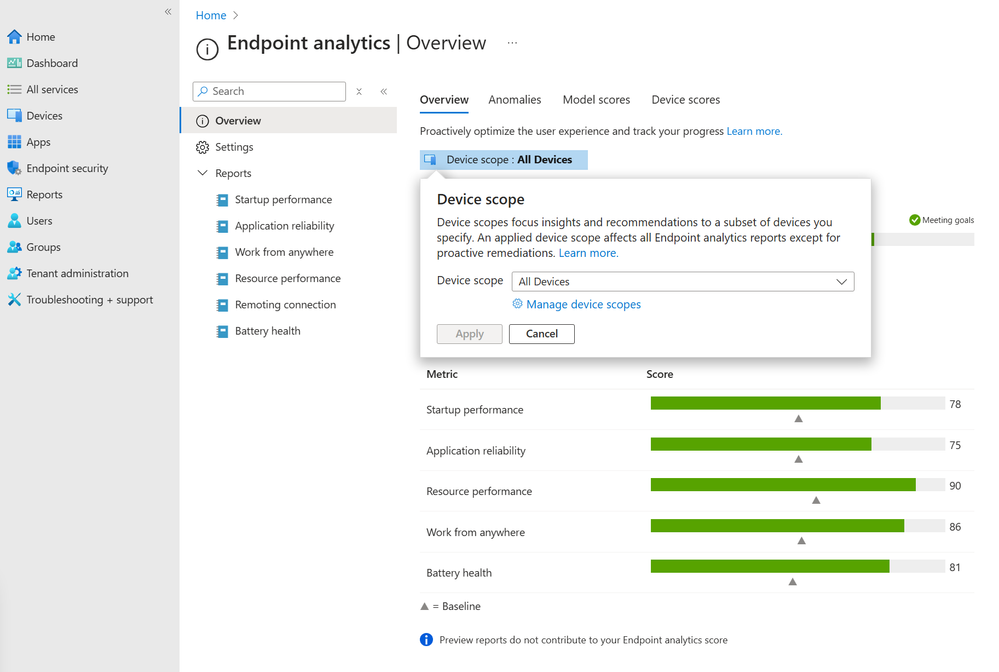

Figure 2. Endpoint analytics device scope selection (Reports > Endpoint analytics > Overview).

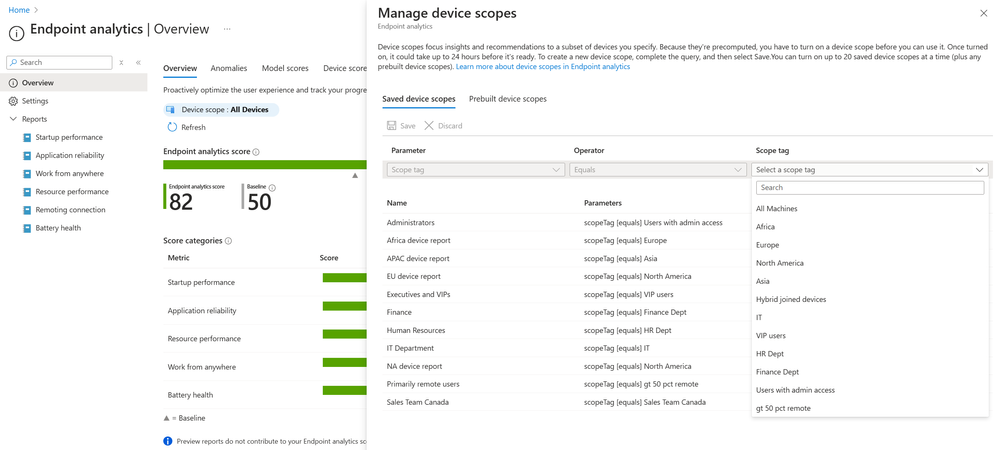

Figure 3. Manage device scopes pane for selecting and creating new device scopes (Reports > Endpoint analytics > Overview > Device scope > Manage device scopes).

Under Endpoint analytics reports, navigate to the Startup performance report which showcases Core boot time and Core sign-in time. By default, this report is scoped to All Devices but is filterable using any tag including the one you just created: “Hybrid joined devices”.

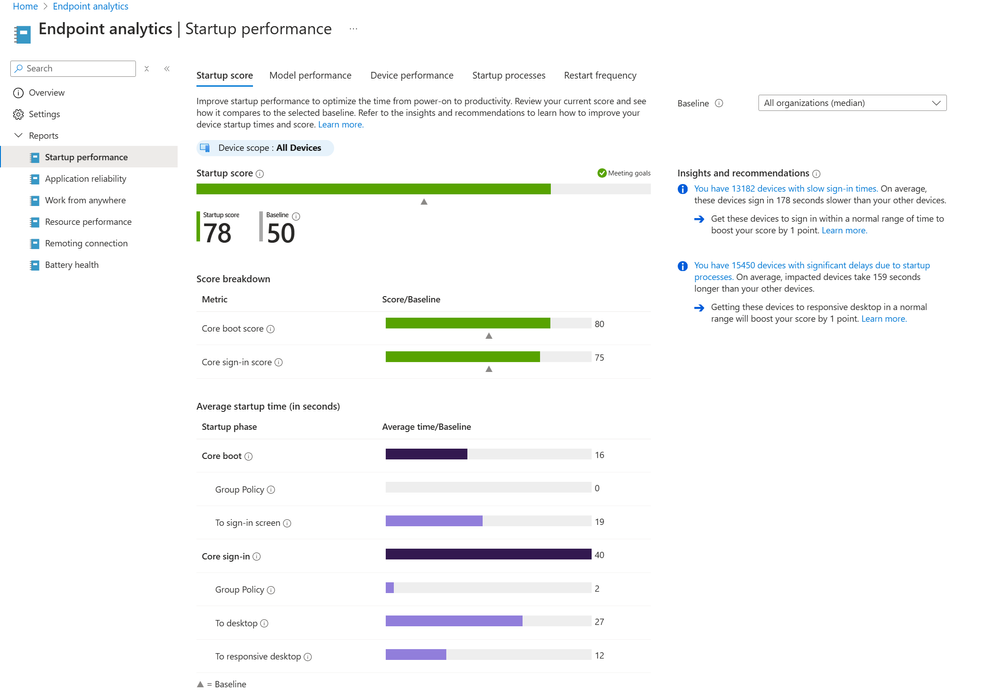

Figure 4. Startup performance report (Reports > Endpoint analytics > Startup performance).

While results will differ for each organization, in the tenant shown here when you set the scope to “Hybrid joined devices”, you’ll see that Group Policy contributes 8 seconds to your Core-sign in time, and overall devices report 9 seconds slower boot times and 30 second slower sign-ins:

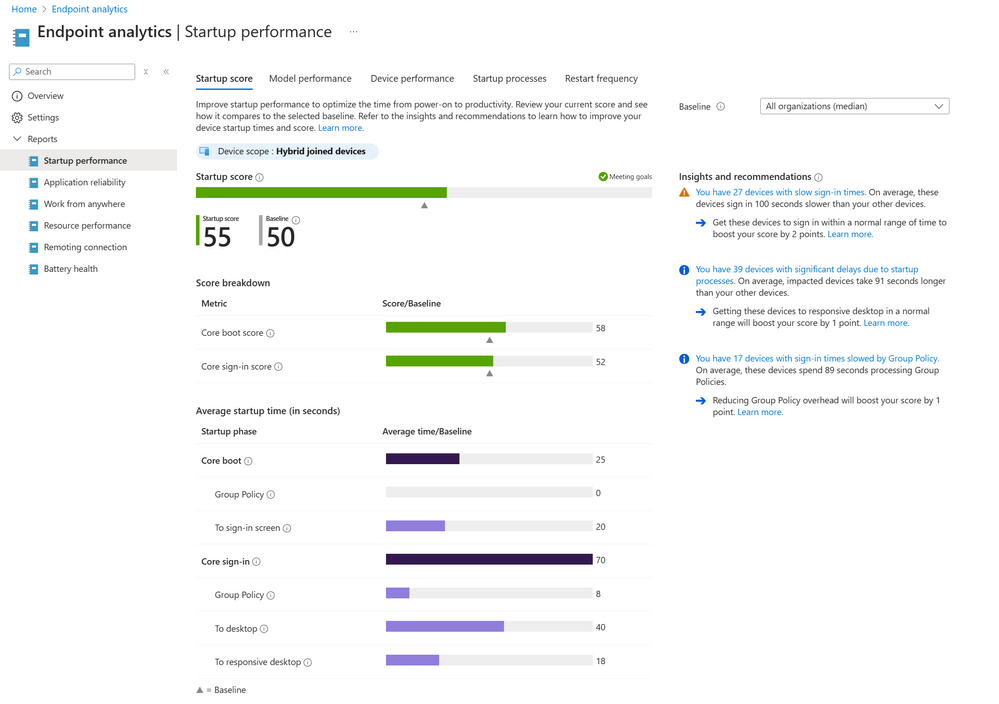

Figure 5. Startup performance report, recalculated with Device scope.

Just like that, you know that users are losing time on each reboot. Depending on how large the fleet is for your organization, that could be a significant amount and  worth what it would take to modernize and plan to implement new policies.



Of course, you can also use a custom device scope across the rest of the Endpoint analytics reports such as application reliability and work from anywhere. And with Advanced Analytics you also get two additional reports that can be sliced with device scopes – Resource performance and Battery health.



Resource performance

The resource performance report provides an analysis and score of CPU, memory, and storage metrics over time to identify underperforming devices. Let’s take the same scenario from before – reviewing the hybrid joined devices in your organization.



If you have existing hybrid joined devices that are expecting a future device refresh, would it make sense to schedule that sooner because of their performance?



When you review the resource performance score, you see how All devices are performing based on their CPU and RAM spike time scores – effectively, how often they are hitting their resource limits.

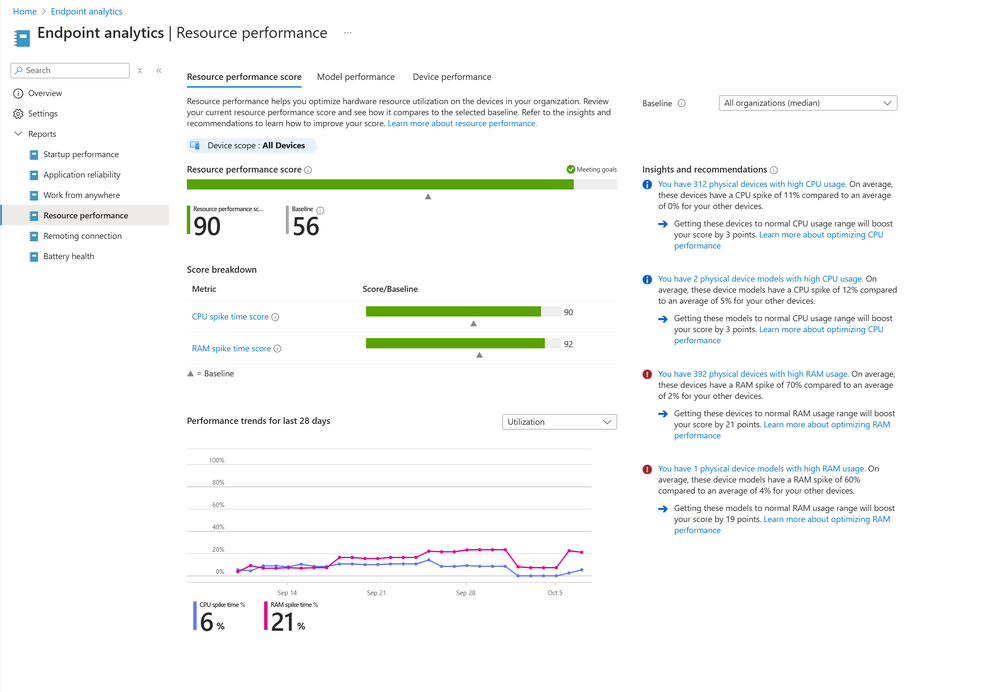

Figure 6. Endpoint analytics resource performance report (Reports > Endpoint analytics > Resource performance).

In Endpoint analytics, higher scores indicate that devices are providing better user experiences. For example, in the Resource performance report, a higher score indicates that devices are seeing less CPU spikes.

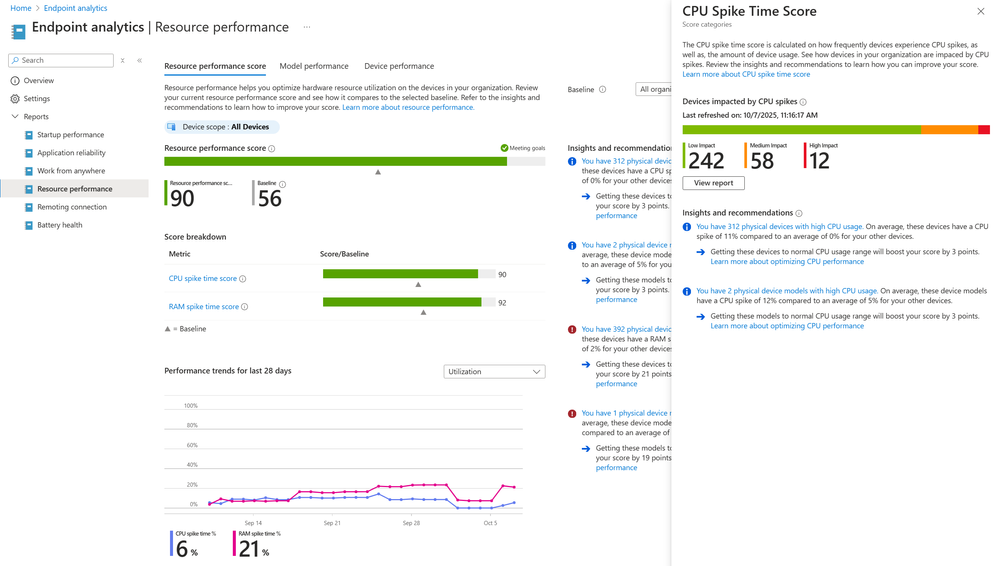

Figure 7. CPU spike time score details pane (Reports > Endpoint analytics > Resource performance > CPU spike time score).

You can view performance by specific models or devices using the navigation tabs at the top of the report. Periodically reviewing these results is helpful to ensure your devices are performing well within their ownership or refresh cycles. Better yet, you can use Baselines, which capture a snapshot of the scores for your tenant and allow you to track progress over time:

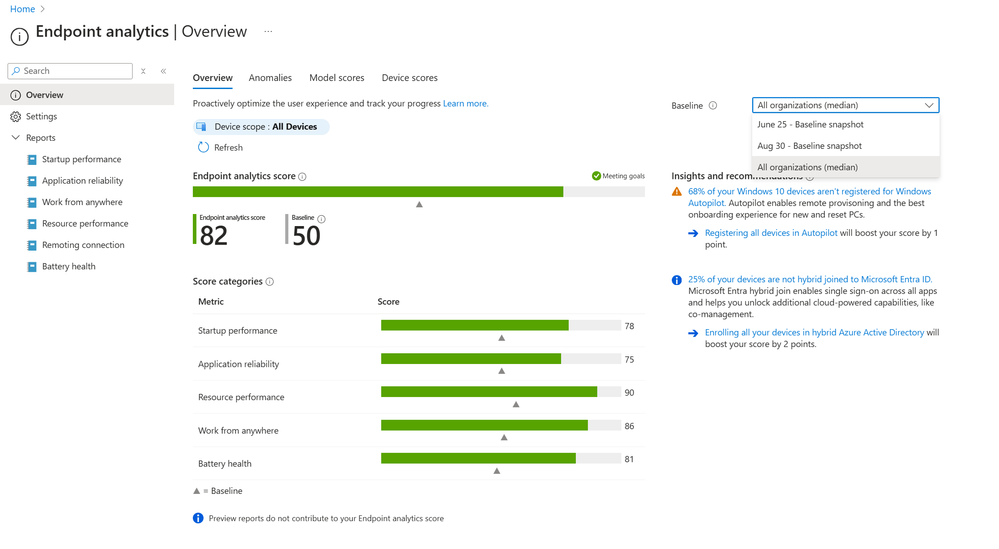

Figure 8. Baselines selection (Reports > Endpoint Analytics > Overview > Baseline).

You could, for example, directly see how the overall baseline scores improve a few months after a hardware refresh by checking a previous baseline against the current scores. This can help further justify hardware spending by showing quantifiable improvements to the user experience.



For this example, since you know the hybrid joined devices are older than your cloud-native ones, you can reuse your custom device scope here to filter the resource performance report and compare the scores:

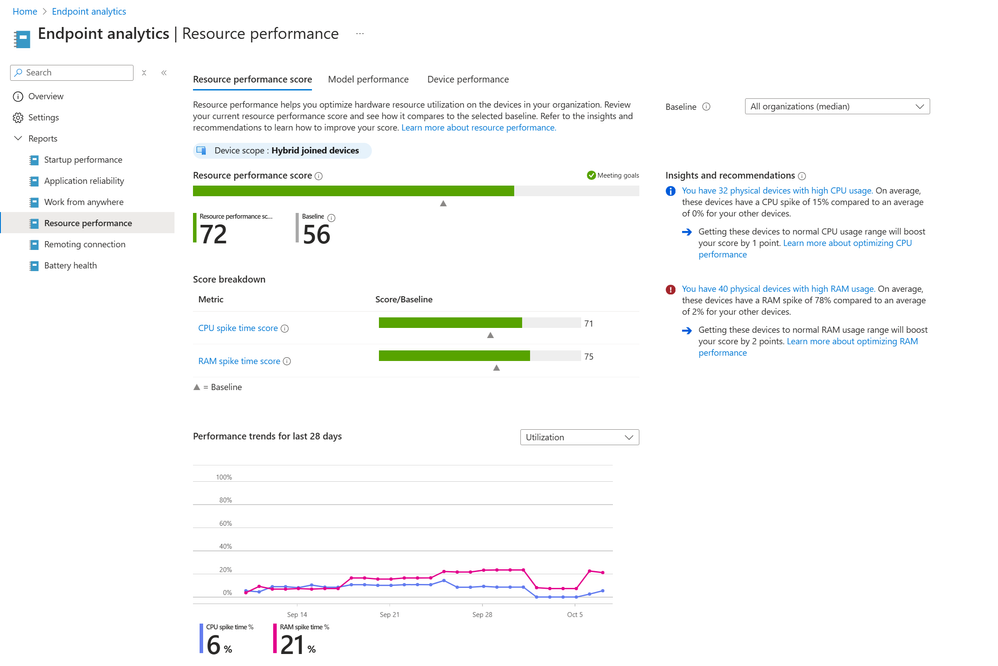

Figure 9. Resource performance report recalculated via Device scope (Reports > Endpoint Analytics > Resource performance > Device scope set).

Now you can also easily identify that your hybrid joined devices are performing worse than average, as they have a significantly lower resource performance score than All devices.



Battery health monitoring

Advanced Analytics also gives us access to the Battery health report which details capacity and runtime scores across the organization.

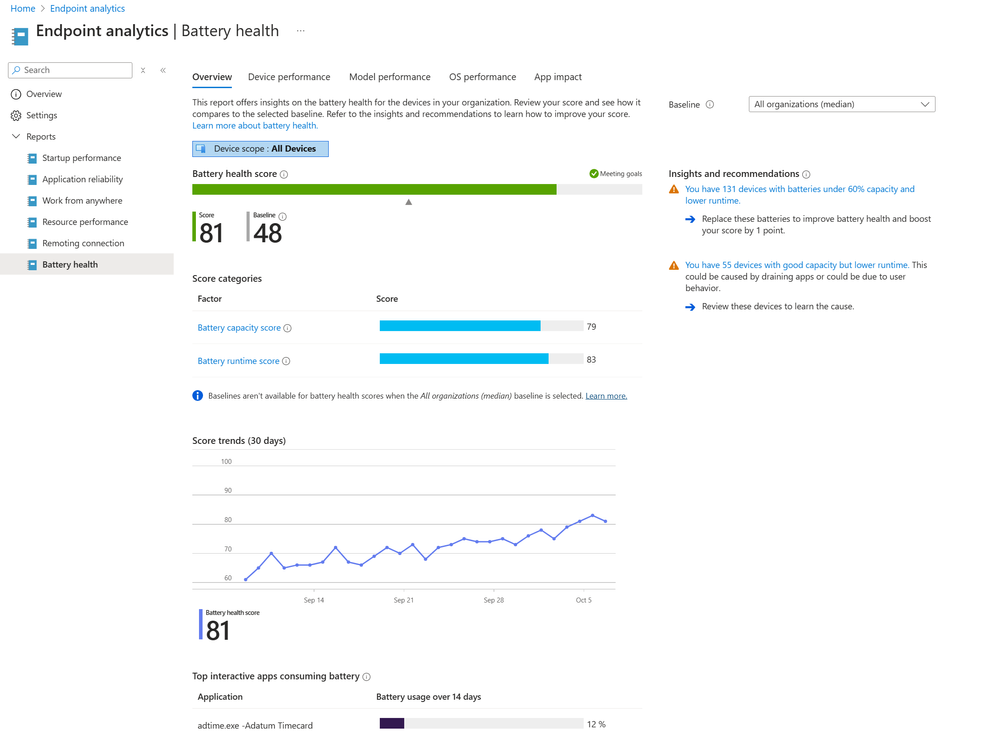

Figure 10. Battery health report (Reports > Endpoint Analytics > Battery health).

The top level report shows a battery capacity score and a battery runtime score, both of which provide a flyout with granular details on how devices are performing:

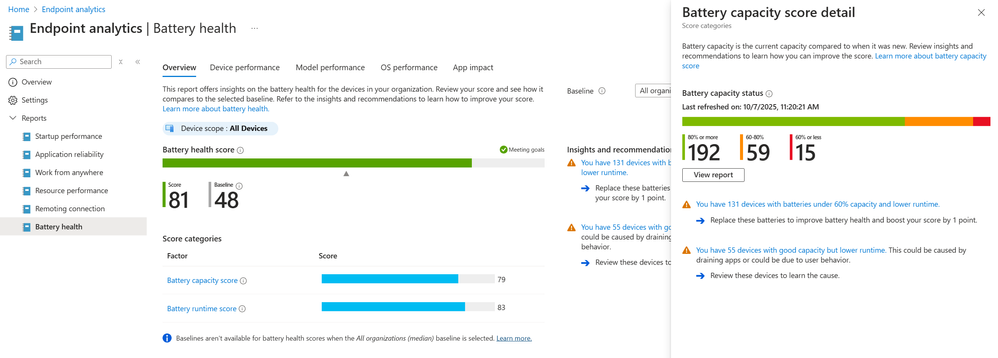

Figure 11. Battery capacity score detail (Reports > Endpoint Analytics > Battery health > Battery capacity score).

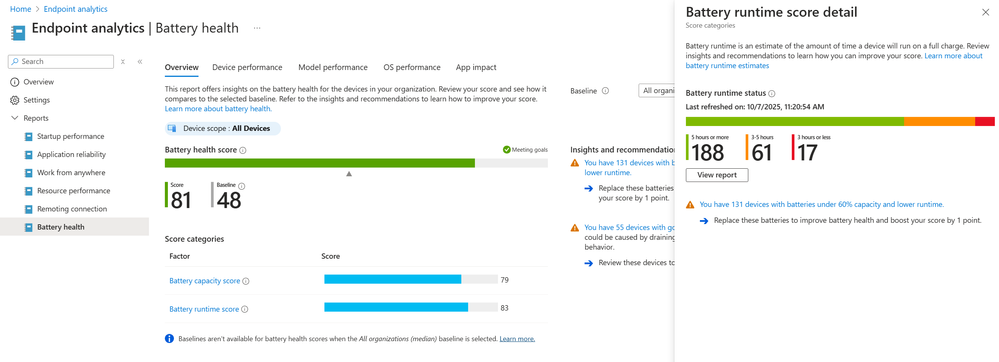

Figure 12. Battery runtime score detail (Reports > Endpoint Analytics > Battery health > Battery runtime score).

Using these reports, you can easily identify devices that need a battery replacement, such as older devices or laptops that have been plugged in for years. These are great candidates to replace sooner – as ever-changing home or office work locations shift, you can improve user confidence in their devices by ensuring a fully charged battery lasts for hours.



On the flipside – you can use the Battery health report to assess whether existing devices can have their lifespan extended. Maybe they are five years old but the batteries are still reporting more than 5 hours of runtime on a charge and greater than 80% health. For example, in the hybrid joined device scenario, you were looking for budget to refresh those devices sooner – if you can find existing devices with healthy batteries, you could also check their resource performance results and decide to keep them an extra few years if they are performing well.



Device query for multiple devices

Suppose you have used the previous capabilities – custom device scopes, resource performance reporting, and battery health reporting – to determine a group of devices within your organization that you want to perform some action on. As mentioned before, this could be extending their lifespan, planning a refresh, or investing in a tooling migration.



If you need additional details from devices before making that decision you can use Device query for multiple devices. Device query for multiple devices provides insights about the entire fleet of devices using previously collected inventory data. And since it leverages the flexible and powerful Kusto Query Language (KQL), you can mix and match inventory attributes to get the list of devices that meet your requirements.



For Windows devices, before you can use Device query for multiple devices you’ll need to create a Properties Catalog policy. Add the properties you would like to collect and assign the profile to the intended devices. All available properties are automatically collected for Android Enterprise, iOS, iPadOS, and macOS devices, so no extra configuration is needed.

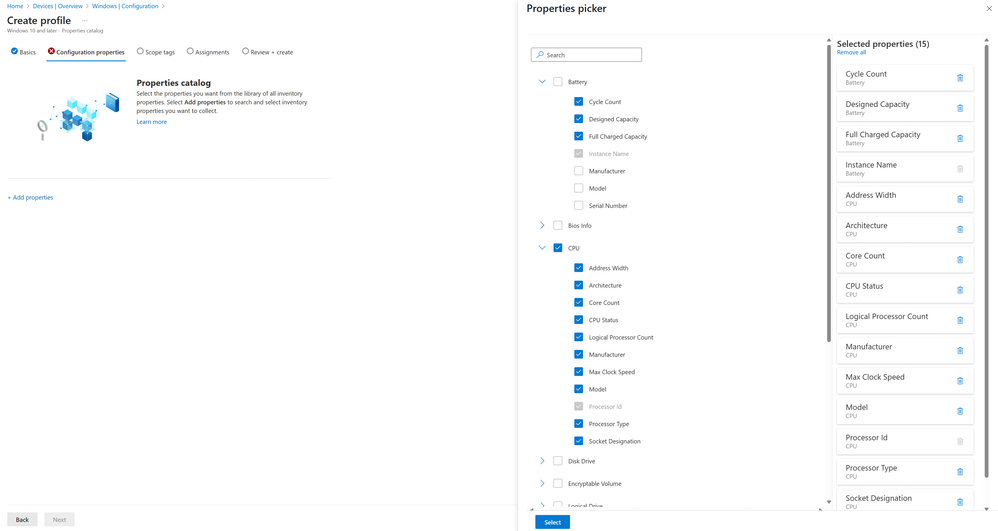

Figure 13. Configure and deploy a Properties Catalog profile.

You can view collected inventory information for a single device under the Device inventory pane. After a device syncs with Intune, it can take up to 24 hours for initial harvesting of inventory data.



Once you have the inventory information collected across the fleet, navigate to Devices > Device query to start querying.



Figure 14. Device query for multiple devices (Devices > Device query).

Expanding on the scenarios from before, consider a requirement to replace devices with high battery cycle counts. With Device query for multiple devices, you could join battery and CPU data, and better target planned replacements:

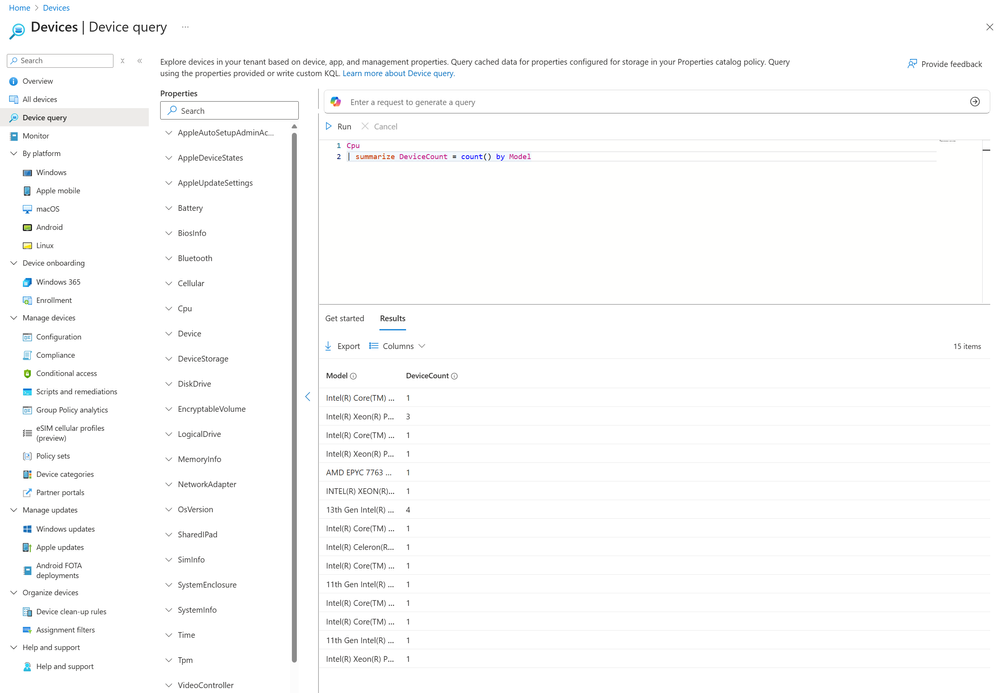

Figure 15. Running a query (Devices > Device Query).

Of course, you can use any of the inventory categories to find applicable devices including storage space, TPM details, enrollment information, and so on. For organizations with Security Copilot licensed and enabled, you can leverage Query with Copilot to generate the KQL queries for you using natural language:

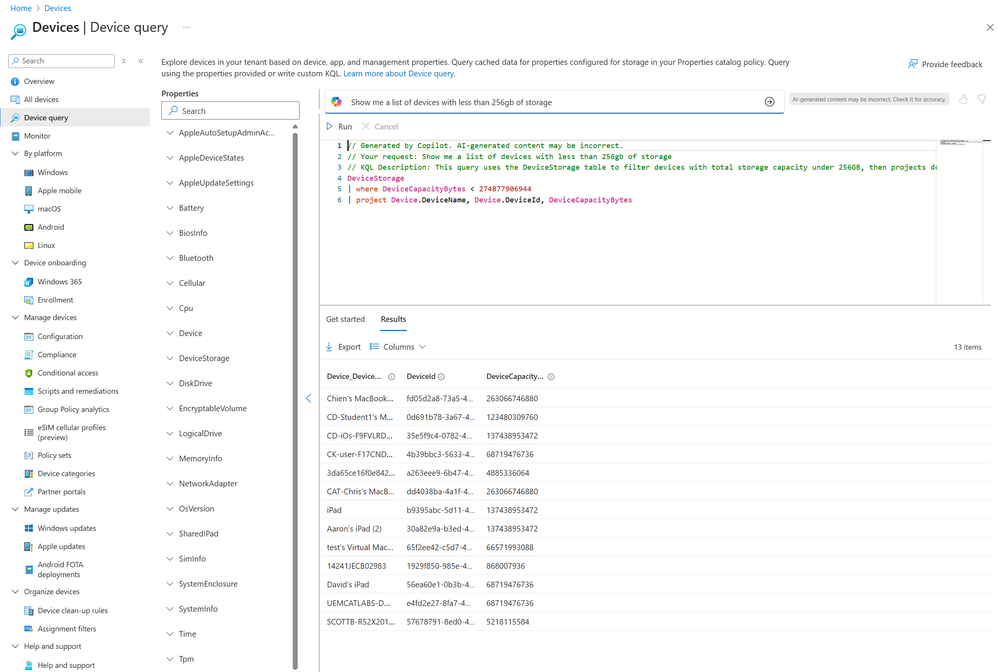

Figure 16. Copilot query generation (Devices > Device query > Query with Copilot).

Once you have the results, you can export to a .csv to use elsewhere like sharing to the team handling procurement and hardware lifecycle management.

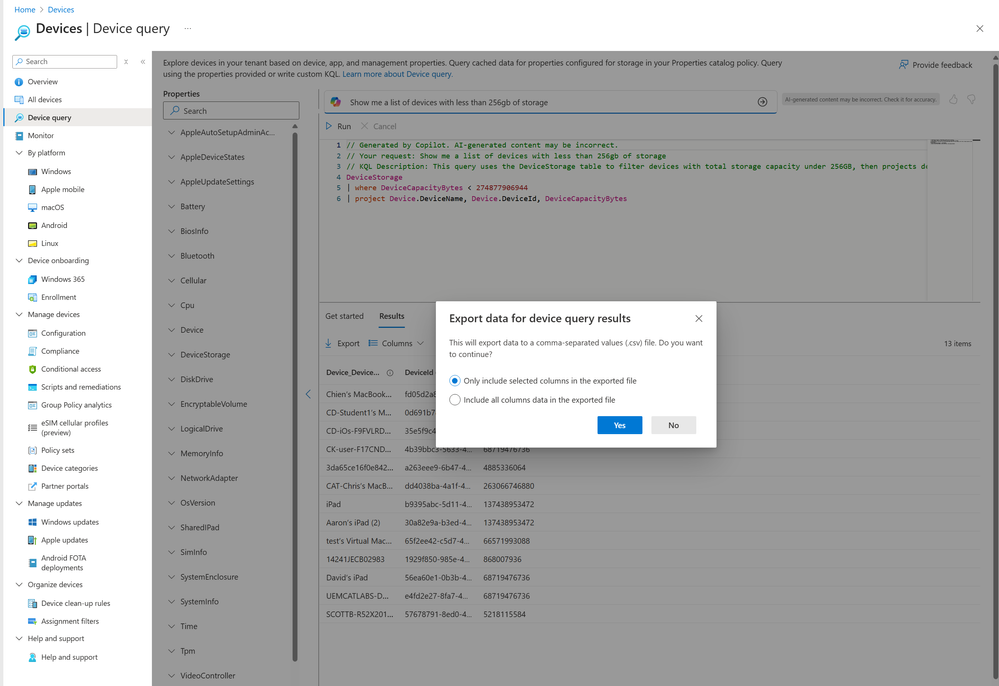

Figure 17. Export device query results (Devices > Device Query > Run query > Export).

Now that you have your list of devices, what if you need even more detailed information?



Granular details from enhanced device timeline and Device query

With the results from Figure 15, you were able to find a device with high battery cycles and a relatively old processor. At first glance this is a great candidate for replacement.



With Advanced Analytics, you can explore further by navigating to Devices > Windows  select a device and leverage the enhanced device timeline and Device query capabilities.



The enhanced device timeline shows a 30-day history of events that occurred on a specific device including details on app crashes, unresponsive apps, device boots, device logons, and anomaly detected events:

Figure 18. Device timeline pane showing multiple app crashes over the past two days (Devices > Windows > select device > User experience > Device timeline).



From here, you have a much better and direct understanding of how a user’s device is performing. If a user frequently sees unresponsive apps, you are now reasonably confident that you’ve found a device worthy of further troubleshooting or replacement.



Device query for a single device, on the other hand, let’s you investigate even further and query the device for real-time data such as Windows Event Log Events, Registry configuration, or Bios details. For the full list of properties refer to Intune data platform schema.

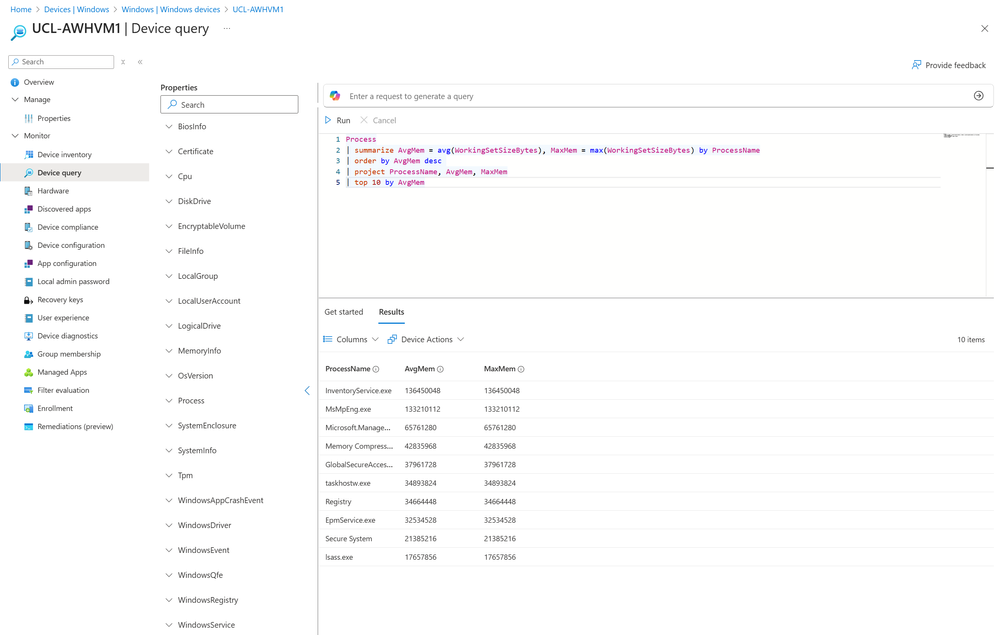

Figure 19. Device query for a single device, returning process details (Devices > Windows > select device > Device query).

With Device query and the enhanced device timeline, you can get all of the granular information needed to make informed decisions about a device.



Find additional scenarios with anomaly detection

Don’t have a specific goal or unsure of what needs to be resolved? Want to proactively address issues before users start reporting them? Use the Anomalies tab to identify deviations from normal behavior across your environment, such as a spike in application crashes.

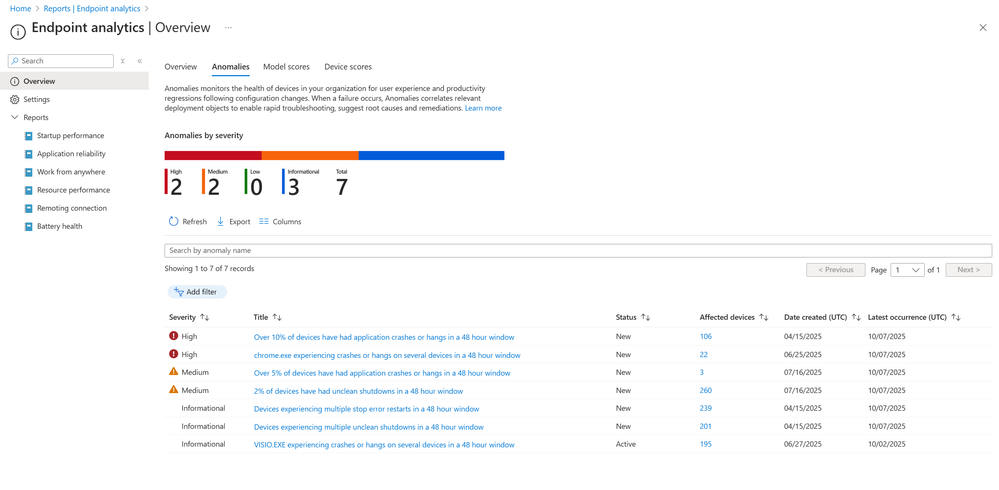

Figure 20. Anomalies tab showing multiple high severity detections (Reports > Endpoint Analytics > Overview > Anomalies).

With the other capabilities provided by Advanced Analytics, you can investigate anomalies in several ways. To start, each anomaly provides a list of affected devices. By clicking through each of these devices, you can use Device query or the enhanced device timeline to get detailed information needed to troubleshoot properly.

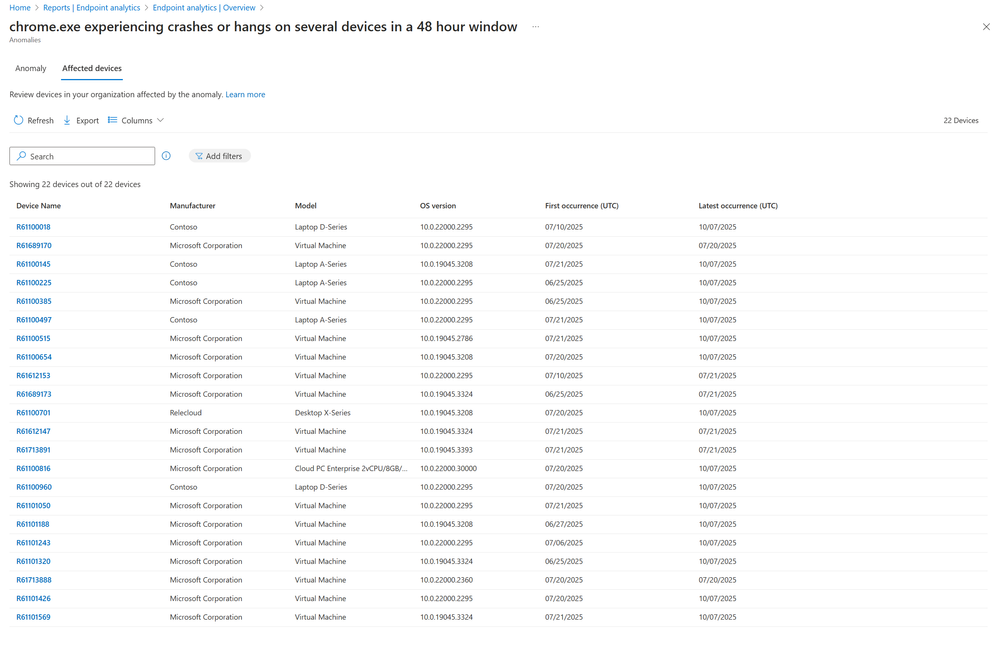

Figure 21. Anomaly detection report detailing affected devices (Reports > Endpoint Analytics > Overview > Anomalies > select affected devices).

Medium and high severity anomalies include device correlation groups based on one or more shared attributes such as app version, driver update, OS version, and device model.

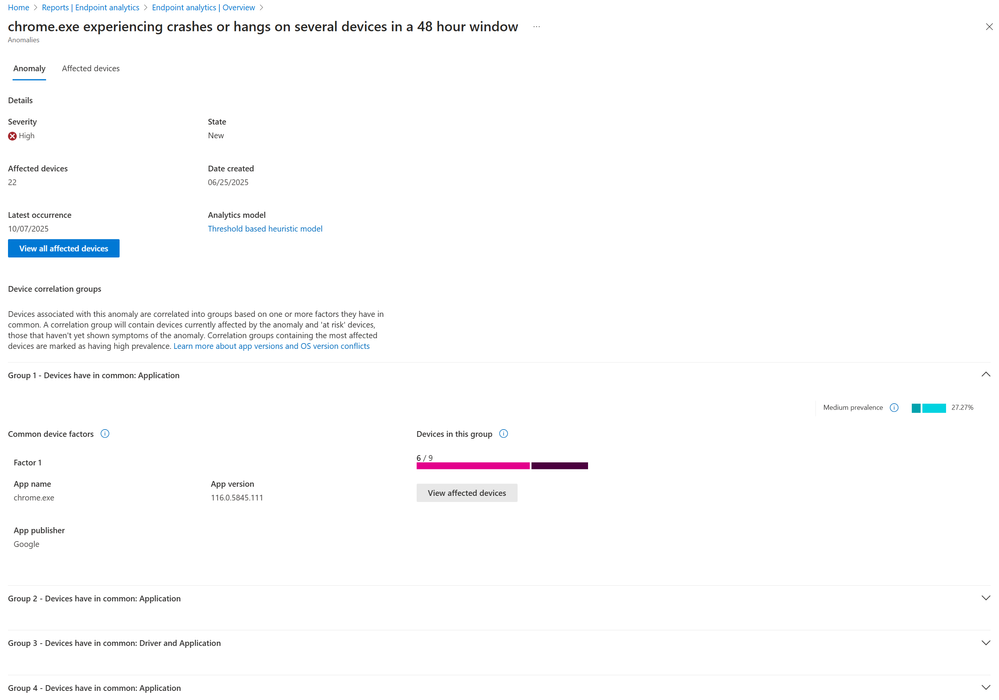

Figure 22. Anomaly detection report detailing behavior and impact (Reports > Endpoint Analytics > Overview > Anomalies > select anomaly title).

To investigate further, you could create a new custom device scope to recalculate the Endpoint analytics reports for affected devices, use the Resource performance report, or even the Battery health report if that is seemingly causing issues.

While a common approach for organizations is an internal initiative that drives an investigation into analytics reports, anomaly detection is certainly a great starting point as well for improving user experience.



What’s next

Advanced Analytics is continuing to evolve with new capabilities to give you the insights you need on the user device experience. Stay tuned for further blog posts around additional Advanced Analytics and Intune reporting capabilities.



If you have any questions or want to share how you’re using Advanced Analytics in Intune, leave a comment below or reach out to us on X @IntuneSuppTeam or @MSIntune!
