Deploy and run a Azure OpenAI/ChatGPT application on AKS via Bicep

paolosalvatori's avatar
paolosalvatori
Icon for Microsoft rankMicrosoft
May 30, 2023

This article shows how to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of a ChatGPT model. A chatbot is an application that simulates human-like conversations with users via chat. Its key task is to answer user questions with instant messages. Azure Kubernetes Service(AKS) cluster communicates with Azure OpenAI Service via an Azure Private Endpoint. The chatbot application simulates the original Magic 8 Ball plastic sphere, made to look like an oversized eight ball used for fortune-telling or seeking advice.



You can find the code of the chatbot and Bicep modules to deploy the environment in this GitHub repository. For a Terraform version of the article and companion sample, see How to deploy and run an Azure OpenAI ChatGPT application on AKS via Terraform.



AI applications perform tasks such as summarizing articles, writing stories, and engaging in long conversations with chatbots. This is made possible by large language models (LLMs) like OpenAI ChatGPT, which are deep learning algorithms capable of recognizing, summarizing, translating, predicting, and generating text and other content. LLMs leverage the knowledge acquired from extensive datasets, enabling them to perform tasks beyond teaching AI human languages. These models have succeeded in diverse domains, including understanding proteins, writing software code, and more. Apart from their applications in natural language processing, such as translation, chatbots, and AI assistants, large language models are also extensively employed in healthcare, software development, and various other fields.

For more information on Azure OpenAI Service and Large Language Models (LLMs), see the following articles:





Prerequisites

You can run az --version to verify the above versions.

To install the aks-preview extension, run the following command:



az extension add --name aks-preview



Run the following command to update to the latest version of the extension released:



az extension update --name aks-preview



Architecture

This sample provides a set of Bicep modules to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of the ChatGPT model. Azure Kubernetes Service(AKS) cluster communicates with Azure OpenAI Service via an Azure Private Endpoint. The following diagram shows the architecture and network topology deployed by the sample:



 

Bicep modules are parametric, so you can choose any network plugin:





The Bicep modules also allow installing the following extensions and add-ons for Azure Kubernetes Service(AKS):

In addition, this sample shows how to deploy an Azure Kubernetes Service cluster with the following features:





In a production environment, we strongly recommend deploying a private AKS cluster with Uptime SLA. For more information, see private AKS cluster with a Public DNS address. Alternatively, you can deploy a public AKS cluster and secure access to the API server using authorized IP address ranges.

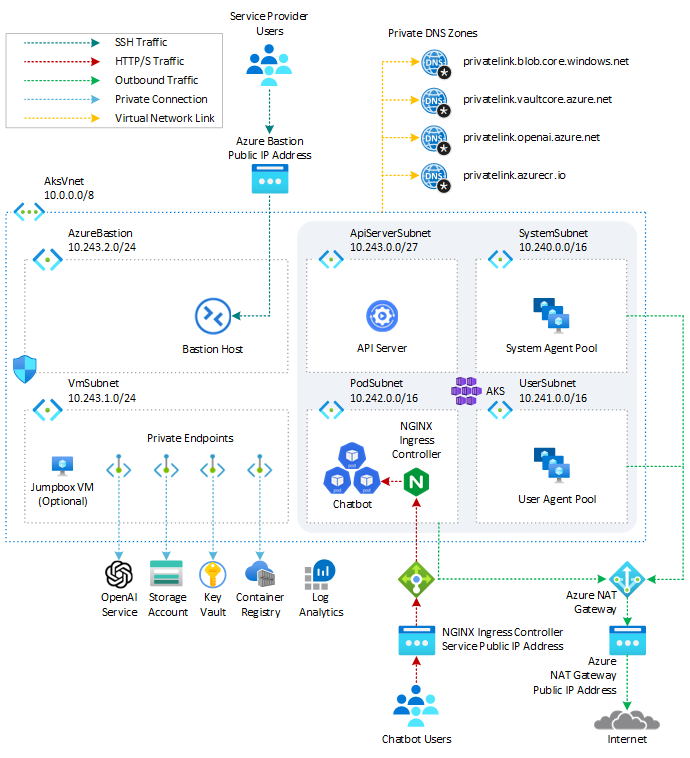

The Bicep modules deploy the following Azure resources:



NOTE
You can find the architecture.vsdx file used for the diagram under the visio folder.



What is Bicep?

Bicep is a domain-specific language (DSL) that uses a declarative syntax to deploy Azure resources. It provides concise syntax, reliable type safety, and support for code reuse. Bicep offers the best authoring experience for your infrastructure-as-code solutions in Azure.



What is Azure OpenAI Service?

The Azure OpenAI Service is a platform offered by Microsoft Azure that provides cognitive services powered by OpenAI models. One of the models available through this service is the ChatGPT model, designed for interactive conversational tasks. It allows developers to integrate natural language understanding and generation capabilities into their applications.

Azure OpenAI Service provides REST API access to OpenAI's powerful language models, including the GPT-3, Codex and Embeddings model series. In addition, the new GPT-4 and ChatGPT model series have now reached general availability. These models can be easily adapted to your specific task, including but not limited to content generation, summarization, semantic search, and natural language to code translation. Users can access the service through REST APIs, Python SDK, or our web-based interface in the Azure OpenAI Studio.

The Chat Completion API, part of the Azure OpenAI Service, provides a dedicated interface for interacting with the ChatGPT and GPT-4 models. This API is currently in preview and is the preferred method for accessing these models. The GPT-4 models can only be accessed through this API.

GPT-3, GPT-3.5, and GPT-4 models from OpenAI are prompt-based. With prompt-based models, the user interacts with the model by entering a text prompt, to which the model responds with a text completion. This completion is the model’s continuation of the input text. While these models are extremely powerful, their behavior is also very sensitive to the prompt. This makes prompt construction a critical skill to develop. For more information, see Introduction to prompt engineering.

Prompt construction can be complex. In practice, the prompt acts to configure the model weights to complete the desired task, but it's more of an art than a science, often requiring experience and intuition to craft a successful prompt. The goal of this article is to help get you started with this learning process. It attempts to capture general concepts and patterns that apply to all GPT models. However, it's essential to understand that each model behaves differently, so the learnings may not apply equally to all models.

Prompt engineering refers to creating instructions called prompts for Large Language Models (LLMs), such as OpenAI’s ChatGPT. With the immense potential of LLMs to solve a wide range of tasks, leveraging prompt engineering can empower us to save significant time and facilitate the development of impressive applications. It holds the key to unleashing the full capabilities of these huge models, transforming how we interact and benefit from them. For more information, see Prompt engineering techniques.



Deploy the Bicep modules

You can deploy the Bicep modules in the bicep folder using the deploy.sh Bash script in the same folder. Specify a value for the following parameters in the deploy.sh script and main.parameters.json parameters file before deploying the Bicep modules.



  • prefix: specifies a prefix for all the Azure resources.
  • authenticationType: specifies the type of authentication when accessing the Virtual Machine. sshPublicKey is the recommended value. Allowed values: sshPublicKey and password.
  • vmAdminUsername: specifies the name of the administrator account of the virtual machine.
  • vmAdminPasswordOrKey: specifies the SSH Key or password for the virtual machine.
  • aksClusterSshPublicKey: specifies the SSH Key or password for AKS cluster agent nodes.
  • aadProfileAdminGroupObjectIDs: when deploying an AKS cluster with Azure AD and Azure RBAC integration, this array parameter contains the list of Azure AD group object IDs that will have the admin role of the cluster.
  • keyVaultObjectIds: Specifies the object ID of the service principals to configure in Key Vault access policies.



We suggest reading sensitive configuration data such as passwords or SSH keys from a pre-existing Azure Key Vault resource. For more information, see Use Azure Key Vault to pass secure parameter value during Bicep deployment.



OpenAI Bicep Module

The following table contains the code from the openAi.bicep Bicep module used to deploy the Azure OpenAI Service.



// Parameters
@description('Specifies the name of the Azure OpenAI resource.')
param name string = 'aks-${uniqueString(resourceGroup().id)}'

@description('Specifies the resource model definition representing SKU.')
param sku object = {
  name: 'S0'
}

@description('Specifies the identity of the OpenAI resource.')
param identity object = {
  type: 'SystemAssigned'
}

@description('Specifies the location.')
param location string = resourceGroup().location

@description('Specifies the resource tags.')
param tags object

@description('Specifies an optional subdomain name used for token-based authentication.')
param customSubDomainName string = ''

@description('Specifies whether or not public endpoint access is allowed for this account..')
@allowed([
  'Enabled'
  'Disabled'
])
param publicNetworkAccess string = 'Enabled'

@description('Specifies the OpenAI deployments to create.')
param deployments array = [
  {
    name: 'text-embedding-ada-002'
    version: '2'
    raiPolicyName: ''
    capacity: 1
    scaleType: 'Standard'
  }
  {
    name: 'gpt-35-turbo'
    version: '0301'
    raiPolicyName: ''
    capacity: 1
    scaleType: 'Standard'
  }
  {
    name: 'text-davinci-003'
    version: '1'
    raiPolicyName: ''
    capacity: 1
    scaleType: 'Standard'
  }
]

@description('Specifies the workspace id of the Log Analytics used to monitor the Application Gateway.')
param workspaceId string

// Variables
var diagnosticSettingsName = 'diagnosticSettings'
var openAiLogCategories = [
  'Audit'
  'RequestResponse'
  'Trace'
]
var openAiMetricCategories = [
  'AllMetrics'
]
var openAiLogs = [for category in openAiLogCategories: {
  category: category
  enabled: true
}]
var openAiMetrics = [for category in openAiMetricCategories: {
  category: category
  enabled: true
}]

// Resources
resource openAi 'Microsoft.CognitiveServices/accounts@2022-12-01' = {
  name: name
  location: location
  sku: sku
  kind: 'OpenAI'
  identity: identity
  tags: tags
  properties: {
    customSubDomainName: customSubDomainName
    publicNetworkAccess: publicNetworkAccess
  }
}

resource model 'Microsoft.CognitiveServices/accounts/deployments@2022-12-01' =
                                                                    [for deployment in deployments: {
  name: deployment.name
  parent: openAi
  properties: {
    model: {
      format: 'OpenAI'
      name: deployment.name
      version: deployment.version
    }
    raiPolicyName: deployment.raiPolicyName
    scaleSettings: {
      capacity: deployment.capacity
      scaleType: deployment.scaleType
    }
  }
}]

resource openAiDiagnosticSettings 'Microsoft.Insights/diagnosticSettings@2021-05-01-preview' = {
  name: diagnosticSettingsName
  scope: openAi
  properties: {
    workspaceId: workspaceId
    logs: openAiLogs
    metrics: openAiMetrics
  }
}

// Outputs
output id string = openAi.id
output name string = openAi.name



Azure Cognitive Services use custom subdomain names for each resource created through the Azure portal, Azure Cloud Shell, Azure CLI, Bicep, Azure Resource Manager (ARM), or Terraform. Unlike regional endpoints, common for all customers in a specific Azure region, custom subdomain names are unique to the resource. Custom subdomain names are required to enable authentication features like Azure Active Directory (Azure AD). We need to specify a custom subdomain for our Azure OpenAI Service, as our chatbot application will use an Azure AD security token to access it. By default, the main.bicep module sets the value of the customSubDomainName parameter to the lowercase name of the Azure OpenAI resource. For more information on custom subdomains, see Custom subdomain names for Cognitive Services.



This bicep module allows you to pass an array containing the definition of one or more model deployments in the deployments parameter. For more information on model deployments, see Create a resource and deploy a model using Azure OpenAI



AKS Cluster Bicep module

The aksCluster.bicep Bicep module is used to deploy the Azure Kubernetes Service(AKS) cluster. In particular, the following code snippet creates the user-defined managed identity used by the chatbot to acquire a security token from Azure Active Directory via Azure AD workload identity. When the boolean openAiEnabled parameter is true, the Bicep code performs the following steps:



  • Creates a new user-defined managed identity.
  • Assign the new managed identity to the Cognitive Services User role with the resource group as a scope.
  • Federate the managed identity with the service account used by the chatbot. The following information are necessary to create the federated identity credentials:
    • The Kubernetes service account name.
    • The Kubernetes namespace that will host the chatbot application.
    • The URL of the OpenID Connect (OIDC) token issuer endpoint for Azure AD workload identity



For more information, see the following resources:





...
@description('Specifies the name of the user-defined managed identity used by the application that uses Azure AD workload identity to authenticate against Azure OpenAI.')
param workloadManagedIdentityName string

@description('Specifies whether creating the Azure OpenAi resource or not.')
param openAiEnabled bool = false
...
//  This user-defined managed identity used by the workload to connect to the Azure OpenAI resource with a security token issued by Azure Active Directory
resource workloadManagedIdentity 'Microsoft.ManagedIdentity/userAssignedIdentities@2023-01-31' = if (openAiEnabled) {
  name: workloadManagedIdentityName
  location: location
  tags: tags
}

// Assign the Cognitive Services User role to the user-defined managed identity used by workloads
resource cognitiveServicesUserRoleAssignment 'Microsoft.Authorization/roleAssignments@2022-04-01' = if (openAiEnabled) {
  name:  guid(workloadManagedIdentity.id, cognitiveServicesUserRoleDefinitionId)
  scope: resourceGroup()
  properties: {
    roleDefinitionId: cognitiveServicesUserRoleDefinitionId
    principalId: workloadManagedIdentity.properties.principalId
    principalType: 'ServicePrincipal'
  }
}

// Create federated identity for the user-defined managed identity used by the workload
resource federatedIdentityCredentials 'Microsoft.ManagedIdentity/userAssignedIdentities/federatedIdentityCredentials@2023-01-31' = {
  name: letterCaseType == 'UpperCamelCase' ? '${toUpper(first(namespace))}${toLower(substring(namespace, 1, length(namespace) - 1))}FederatedIdentity' : letterCaseType == 'CamelCase' ? '${toLower(namespace)}FederatedIdentity' : '${toLower(namespace)}-federated-identity'
  parent: workloadManagedIdentity
  properties: {
    issuer: aksCluster.properties.oidcIssuerProfile.issuerURL
    subject: 'system:serviceaccount:${namespace}:${serviceAccountName}'
    audiences: [
      'api://AzureADTokenExchange'
    ]
  }
}
...
// Output
output id string = aksCluster.id
output name string = aksCluster.name
output issuerUrl string = aksCluster.properties.oidcIssuerProfile.issuerURL
output workloadManagedIdentityClientId string = workloadManagedIdentity.properties.clientId



Validate the deployment

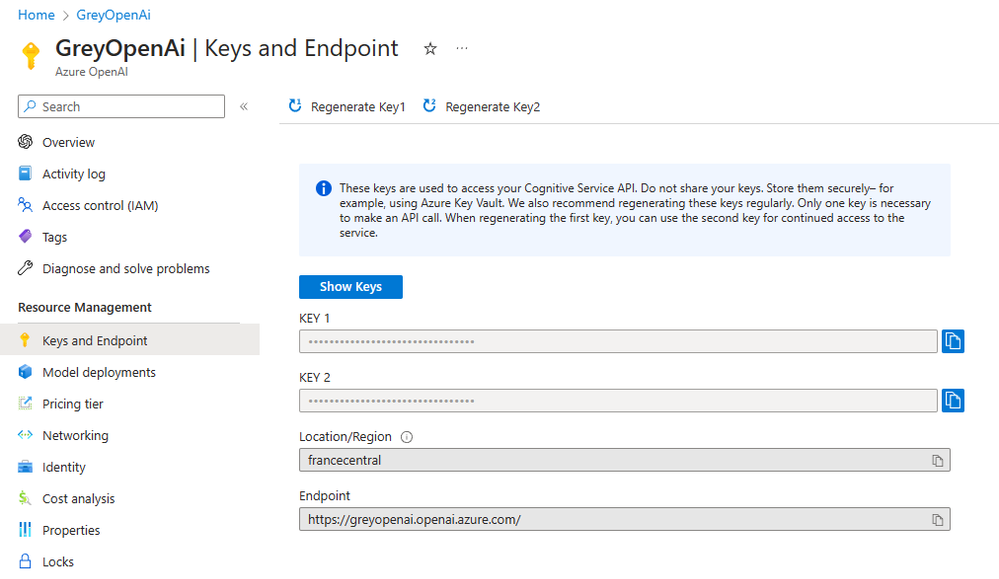

Open the Azure Portal, and navigate to the resource group. Open the Azure Open AI Service resource, navigate to Keys and Endpoint, and check that the endpoint contains a custom subdomain rather than the regional Cognitive Services endpoint.



 

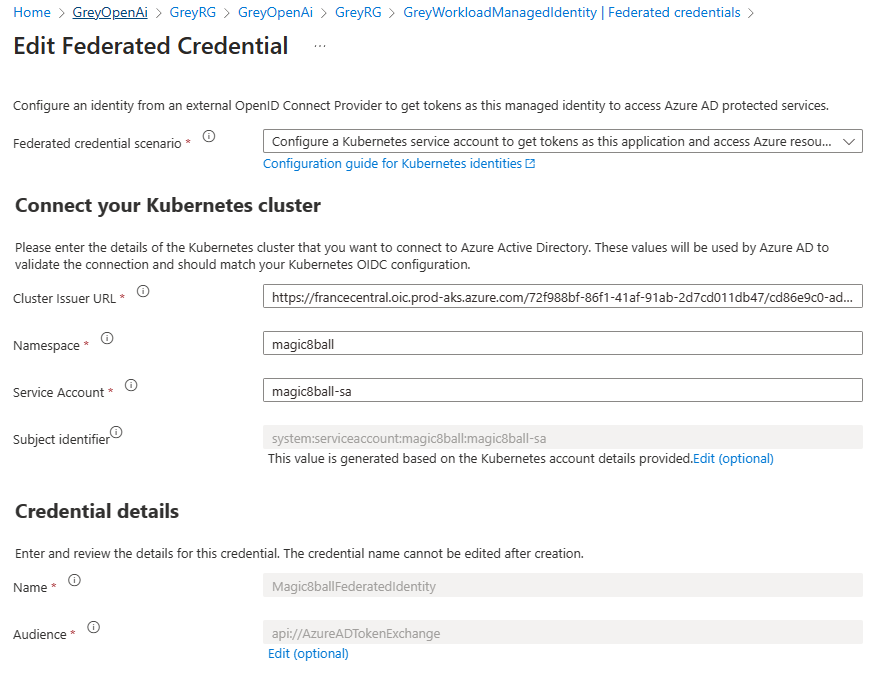

Open to the <Prefix>WorkloadManagedIdentity managed identity, navigate to the Federated credentials, and verify that the federated identity credentials for the magic8ball-sa service account were created correctly, as shown in the following picture.





Use Azure AD workload identity with Azure Kubernetes Service (AKS)

Workloads deployed on an Azure Kubernetes Services (AKS) cluster require Azure Active Directory (Azure AD) application credentials or managed identities to access Azure AD-protected resources, such as Azure Key Vault and Microsoft Graph. Azure AD workload identity integrates with the capabilities native to Kubernetes to federate with external identity providers.

Azure AD workload identity uses Service Account Token Volume Projection to enable pods to use a Kubernetes service account. When enabled, the AKS OIDC Issuer issues a service account security token to a workload, and OIDC federation enables the application to access Azure resources securely with Azure AD based on annotated service accounts.

Azure AD workload identity works well with the Azure Identity client libraries and the Microsoft Authentication Library (MSAL) collection if you use a registered application instead of a managed identity. Your workload can use any of these libraries to authenticate and access Azure cloud resources seamlessly. For more information, see the following resources:





Azure Identity client libraries

In the Azure Identity client libraries, you can choose one of the following approaches:



  • Use DefaultAzureCredential, which will attempt to use the WorkloadIdentityCredential.
  • Create a ChainedTokenCredential instance that includes WorkloadIdentityCredential.
  • Use WorkloadIdentityCredential directly.
  •

The following table provides the minimum package version required for each language's client library.



Language Library Minimum Version Example
.NET Azure.Identity 1.9.0 Link
Go azidentity 1.3.0 Link
Java azure-identity 1.9.0 Link
JavaScript @azure/identity 3.2.0 Link
Python azure-identity 1.13.0 Link



Microsoft Authentication Library (MSAL)

The following client libraries are the minimum version required



Language Library Image Example Has Windows
.NET microsoft-authentication-library-for-dotnet ghcr.io/azure/azure-workload-identity/msal-net Link Yes
Go microsoft-authentication-library-for-go ghcr.io/azure/azure-workload-identity/msal-go Link Yes
Java microsoft-authentication-library-for-java ghcr.io/azure/azure-workload-identity/msal-java Link No
JavaScript microsoft-authentication-library-for-js ghcr.io/azure/azure-workload-identity/msal-node Link No
Python microsoft-authentication-library-for-python ghcr.io/azure/azure-workload-identity/msal-python Link No



Deployment Script

The sample makes use of a Deployment Script to run the install-nginx-via-helm-and-create-sa.sh Bash script that creates the namespace and service account for the sample application and installs the following packages to the AKS cluster via Helm. For more information on deployment scripts, see Use deployment scripts in Bicep.





This sample uses the NGINX Ingress Controller to expose the chatbot to the public internet. Companion Bicep modules allow deploying an Azure Application Gateway and Application Gateway Ingress Controller just by setting the value of the applicationGatewayEnabled to true. So you can easily modify this sample to expose the chatbot to the public internet using the Application Gateway Ingress Controller instead of the NGINX Ingress Controller.



# Install kubectl
az aks install-cli --only-show-errors

# Get AKS credentials
az aks get-credentials \
  --admin \
  --name $clusterName \
  --resource-group $resourceGroupName \
  --subscription $subscriptionId \
  --only-show-errors

# Check if the cluster is private or not
private=$(az aks show --name $clusterName \
  --resource-group $resourceGroupName \
  --subscription $subscriptionId \
  --query apiServerAccessProfile.enablePrivateCluster \
  --output tsv)

# Install Helm
curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 -o get_helm.sh -s
chmod 700 get_helm.sh
./get_helm.sh &>/dev/null

# Add Helm repos
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm repo add jetstack https://charts.jetstack.io

# Update Helm repos
helm repo update

if [[ $private == 'true' ]]; then
  # Log whether the cluster is public or private
  echo "$clusterName AKS cluster is public"

  # Install Prometheus
  command="helm install prometheus prometheus-community/kube-prometheus-stack \
  --create-namespace \
  --namespace prometheus \
  --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \
  --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false"

  az aks command invoke \
    --name $clusterName \
    --resource-group $resourceGroupName \
    --subscription $subscriptionId \
    --command "$command"

  # Install NGINX ingress controller using the internal load balancer
  command="helm install nginx-ingress ingress-nginx/ingress-nginx \
    --create-namespace \
    --namespace ingress-basic \
    --set controller.replicaCount=3 \
    --set controller.nodeSelector.\"kubernetes\.io/os\"=linux \
    --set defaultBackend.nodeSelector.\"kubernetes\.io/os\"=linux \
    --set controller.metrics.enabled=true \
    --set controller.metrics.serviceMonitor.enabled=true \
    --set controller.metrics.serviceMonitor.additionalLabels.release=\"prometheus\" \
    --set controller.service.annotations.\"service\.beta\.kubernetes\.io/azure-load-balancer-health-probe-request-path\"=/healthz"

  az aks command invoke \
    --name $clusterName \
    --resource-group $resourceGroupName \
    --subscription $subscriptionId \
    --command "$command"

  # Install certificate manager
  command="helm install cert-manager jetstack/cert-manager \
    --create-namespace \
    --namespace cert-manager \
    --set installCRDs=true \
    --set nodeSelector.\"kubernetes\.io/os\"=linux"

  az aks command invoke \
    --name $clusterName \
    --resource-group $resourceGroupName \
    --subscription $subscriptionId \
    --command "$command"

  # Create cluster issuer
  command="cat <<EOF | kubectl apply -f -
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-nginx
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    email: $email
    privateKeySecretRef:
      name: letsencrypt
    solvers:
    - http01:
        ingress:
          class: nginx
          podTemplate:
            spec:
              nodeSelector:
                "kubernetes.io/os": linux
EOF"

  az aks command invoke \
    --name $clusterName \
    --resource-group $resourceGroupName \
    --subscription $subscriptionId \
    --command "$command"

  # Create workload namespace
  command="kubectl create namespace $namespace"

  az aks command invoke \
    --name $clusterName \
    --resource-group $resourceGroupName \
    --subscription $subscriptionId \
    --command "$command"

  # Create service account
  command="cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    azure.workload.identity/client-id: $workloadManagedIdentityClientId
    azure.workload.identity/tenant-id: $tenantId
  labels:
    azure.workload.identity/use: "true"
  name: $serviceAccountName
  namespace: $namespace
EOF"

  az aks command invoke \
    --name $clusterName \
    --resource-group $resourceGroupName \
    --subscription $subscriptionId \
    --command "$command"

else
  # Log whether the cluster is public or private
  echo "$clusterName AKS cluster is private"

  # Install Prometheus
  helm install prometheus prometheus-community/kube-prometheus-stack \
    --create-namespace \
    --namespace prometheus \
    --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \
    --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false

  # Install NGINX ingress controller using the internal load balancer
  helm install nginx-ingress ingress-nginx/ingress-nginx \
    --create-namespace \
    --namespace ingress-basic \
    --set controller.replicaCount=3 \
    --set controller.nodeSelector."kubernetes\.io/os"=linux \
    --set defaultBackend.nodeSelector."kubernetes\.io/os"=linux \
    --set controller.metrics.enabled=true \
    --set controller.metrics.serviceMonitor.enabled=true \
    --set controller.metrics.serviceMonitor.additionalLabels.release="prometheus" \
    --set controller.service.annotations."service\.beta\.kubernetes\.io/azure-load-balancer-health-probe-request-path"=/healthz

  helm install $nginxReleaseName $nginxRepoName/$nginxChartName \
    --create-namespace \
    --namespace $nginxNamespace

  # Install certificate manager
  helm install cert-manager jetstack/cert-manager \
    --create-namespace \
    --namespace cert-manager \
    --set installCRDs=true \
    --set nodeSelector."kubernetes\.io/os"=linux

  # Create cluster issuer
  cat <<EOF | kubectl apply -f -
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-nginx
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    email: $email
    privateKeySecretRef:
      name: letsencrypt
    solvers:
    - http01:
        ingress:
          class: nginx
          podTemplate:
            spec:
              nodeSelector:
                "kubernetes.io/os": linux
EOF

  # Create workload namespace
  kubectl create namespace $namespace

  # Create service account
  cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    azure.workload.identity/client-id: $workloadManagedIdentityClientId
    azure.workload.identity/tenant-id: $tenantId
  labels:
    azure.workload.identity/use: "true"
  name: $serviceAccountName
  namespace: $namespace
EOF

fi

# Create output as JSON file
echo '{}' |
  jq --arg x $namespace '.namespace=$x' |
  jq --arg x $serviceAccountName '.serviceAccountName=$x' |
  jq --arg x 'prometheus' '.prometheus=$x' |
  jq --arg x 'cert-manager' '.certManager=$x' |
  jq --arg x 'ingress-basic' '.nginxIngressController=$x' >$AZ_SCRIPTS_OUTPUT_PATH



The install-nginx-via-helm-and-create-sa.sh Bash script can run on a public AKS cluster or on a private AKS cluster using the az aks command invoke. For more information, see Use command invoke to access a private Azure Kubernetes Service (AKS) cluster.

The install-nginx-via-helm-and-create-sa.sh Bash script returns the following outputs to the deployment script:



  • Namespace hosting the chatbot sample. You can change the default magic8ball namespace by assigning a different value to the namespace parameter of the main.bicep module.
  • Service account name
  • Prometheus namespace
  • Cert-manager namespace
  • NGINX ingress controller namespace

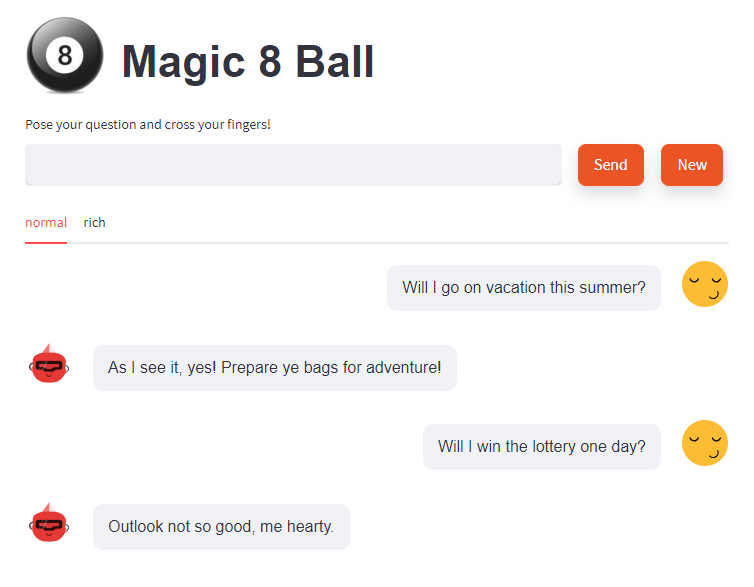

Chatbot Application

The chatbot is a Python application inspired by the sample code in the It’s Time To Create A Private ChatGPT For Yourself Today article.

The application is contained in a single file called app.py. The application makes use of the following libraries:



  • OpenAPI: The OpenAI Python library provides convenient access to the OpenAI API from applications written in Python. It includes a pre-defined set of classes for API resources that initialize themselves dynamically from API responses, making it compatible with a wide range of versions of the OpenAI API. You can find usage examples for the OpenAI Python library in our API reference and the OpenAI Cookbook.
  • Azure Identity: The Azure Identity library provides Azure Active Directory (Azure AD) token authentication support across the Azure SDK. It provides a set of TokenCredential implementations, which can be used to construct Azure SDK clients that support Azure AD token authentication.
  • Streamlit: Streamlit is an open-source Python library that makes it easy to create and share beautiful, custom web apps for machine learning and data science. You can build and deploy powerful data apps in just a few minutes. For more information, see Streamlit documentation.
  • Streamlit-chat: a Streamlit component that provides a configurable user interface for chatbot applications.
  • Dotenv: Python-dotenv reads key-value pairs from a .env file and can set them as environment variables. It helps in the development of applications following the 12-factor principles.

The requirements.txt file under the scripts folder contains the list of packages used by the app.py application that you can restore using the following command:



pip install -r requirements.txt --upgrade



The following table contains the code of the app.py chatbot:



# Import packages
import os
import sys
import time
import openai
import logging
import streamlit as st
from streamlit_chat import message
from azure.identity import DefaultAzureCredential
from dotenv import load_dotenv
from dotenv import dotenv_values

# Load environment variables from .env file
if os.path.exists(".env"):
  load_dotenv(override=True)
  config = dotenv_values(".env")

# Read environment variables
assistan_profile = """
You are the infamous Magic 8 Ball. You need to randomly reply to any question with one of the following answers:

- It is certain.
- It is decidedly so.
- Without a doubt.
- Yes definitely.
- You may rely on it.
- As I see it, yes.
- Most likely.
- Outlook good.
- Yes.
- Signs point to yes.
- Reply hazy, try again.
- Ask again later.
- Better not tell you now.
- Cannot predict now.
- Concentrate and ask again.
- Don't count on it.
- My reply is no.
- My sources say no.
- Outlook not so good.
- Very doubtful.

Add a short comment in a pirate style at the end! Follow your heart and be creative!
For mor information, see https://en.wikipedia.org/wiki/Magic_8_Ball
"""
title = os.environ.get("TITLE", "Magic 8 Ball")
text_input_label = os.environ.get("TEXT_INPUT_LABEL", "Pose your question and cross your fingers!")
image_file_name = os.environ.get("IMAGE_FILE_NAME", "magic8ball.png")
image_width = int(os.environ.get("IMAGE_WIDTH", 80))
temperature = float(os.environ.get("TEMPERATURE", 0.9))
system = os.environ.get("SYSTEM", assistan_profile)
api_base = os.getenv("AZURE_OPENAI_BASE")
api_key = os.getenv("AZURE_OPENAI_KEY")
api_type = os.environ.get("AZURE_OPENAI_TYPE", "azure")
api_version = os.environ.get("AZURE_OPENAI_VERSION", "2023-05-15")
engine = os.getenv("AZURE_OPENAI_DEPLOYMENT")
model = os.getenv("AZURE_OPENAI_MODEL")

# Configure OpenAI
openai.api_type = api_type
openai.api_version = api_version
openai.api_base = api_base

# Set default Azure credential
default_credential = DefaultAzureCredential() if openai.api_type == "azure_ad" else None

# Configure a logger
logging.basicConfig(stream = sys.stdout,
                    format = '[%(asctime)s] {%(filename)s:%(lineno)d} %(levelname)s - %(message)s',
                    level = logging.INFO)
logger = logging.getLogger(__name__)

# Log variables
logger.info(f"title: {title}")
logger.info(f"text_input_label: {text_input_label}")
logger.info(f"image_file_name: {image_file_name}")
logger.info(f"image_width: {image_width}")
logger.info(f"temperature: {temperature}")
logger.info(f"system: {system}")
logger.info(f"api_base: {api_base}")
logger.info(f"api_key: {api_key}")
logger.info(f"api_type: {api_type}")
logger.info(f"api_version: {api_version}")
logger.info(f"engine: {engine}")
logger.info(f"model: {model}")

# Authenticate to Azure OpenAI
if openai.api_type == "azure":
  openai.api_key = api_key
elif openai.api_type == "azure_ad":
  openai_token = default_credential.get_token("https://cognitiveservices.azure.com/.default")
  openai.api_key = openai_token.token
  if 'openai_token' not in st.session_state:
    st.session_state['openai_token'] = openai_token
else:
  logger.error("Invalid API type. Please set the AZURE_OPENAI_TYPE environment variable to azure or azure_ad.")
  raise ValueError("Invalid API type. Please set the AZURE_OPENAI_TYPE environment variable to azure or azure_ad.")

# Customize Streamlit UI using CSS
st.markdown("""
<style>

div.stButton > button:first-child {
    background-color: #eb5424;
    color: white;
    font-size: 20px;
    font-weight: bold;
    border-radius: 0.5rem;
    padding: 0.5rem 1rem;
    border: none;
    box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);
    width: 300 px;
    height: 42px;
    transition: all 0.2s ease-in-out;
}

div.stButton > button:first-child:hover {
    transform: translateY(-3px);
    box-shadow: 0 1rem 2rem rgba(0,0,0,0.15);
}

div.stButton > button:first-child:active {
    transform: translateY(-1px);
    box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);
}

div.stButton > button:focus:not(:focus-visible) {
    color: #FFFFFF;
}

@media only screen and (min-width: 768px) {
  /* For desktop: */
  div {
      font-family: 'Roboto', sans-serif;
  }

  div.stButton > button:first-child {
      background-color: #eb5424;
      color: white;
      font-size: 20px;
      font-weight: bold;
      border-radius: 0.5rem;
      padding: 0.5rem 1rem;
      border: none;
      box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);
      width: 300 px;
      height: 42px;
      transition: all 0.2s ease-in-out;
      position: relative;
      bottom: -32px;
      right: 0px;
  }

  div.stButton > button:first-child:hover {
      transform: translateY(-3px);
      box-shadow: 0 1rem 2rem rgba(0,0,0,0.15);
  }

  div.stButton > button:first-child:active {
      transform: translateY(-1px);
      box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);
  }

  div.stButton > button:focus:not(:focus-visible) {
      color: #FFFFFF;
  }

  input {
      border-radius: 0.5rem;
      padding: 0.5rem 1rem;
      border: none;
      box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);
      transition: all 0.2s ease-in-out;
      height: 40px;
  }
}
</style>
""", unsafe_allow_html=True)

# Initialize Streamlit session state
if 'prompts' not in st.session_state:
  st.session_state['prompts'] = [{"role": "system", "content": system}]

if 'generated' not in st.session_state:
  st.session_state['generated'] = []

if 'past' not in st.session_state:
  st.session_state['past'] = []

# Refresh the OpenAI security token every 45 minutes
def refresh_openai_token():
  if st.session_state['openai_token'].expires_on < int(time.time()) - 45 * 60:
      st.session_state['openai_token'] = default_credential.get_token("https://cognitiveservices.azure.com/.default")
      openai.api_key = st.session_state['openai_token'].token

# Send user prompt to Azure OpenAI
def generate_response(prompt):
  try:
    st.session_state['prompts'].append({"role": "user", "content": prompt})

    if openai.api_type == "azure_ad":
      refresh_openai_token()

    completion = openai.ChatCompletion.create(
      engine = engine,
      model = model,
      messages = st.session_state['prompts'],
      temperature = temperature,
    )

    message = completion.choices[0].message.content
    return message
  except Exception as e:
    logging.exception(f"Exception in generate_response: {e}")

# Reset Streamlit session state to start a new chat from scratch
def new_click():
  st.session_state['prompts'] = [{"role": "system", "content": system}]
  st.session_state['past'] = []
  st.session_state['generated'] = []
  st.session_state['user'] = ""

# Handle on_change event for user input
def user_change():
  # Avoid handling the event twice when clicking the Send button
  chat_input = st.session_state['user']
  st.session_state['user'] = ""
  if (chat_input == '' or
      (len(st.session_state['past']) > 0 and chat_input == st.session_state['past'][-1])):
    return

  # Generate response invoking Azure OpenAI LLM
  if chat_input !=  '':
    output = generate_response(chat_input)

    # store the output
    st.session_state['past'].append(chat_input)
    st.session_state['generated'].append(output)
    st.session_state['prompts'].append({"role": "assistant", "content": output})

# Create a 2-column layout. Note: Streamlit columns do not properly render on mobile devices.
# For more information, see https://github.com/streamlit/streamlit/issues/5003
col1, col2 = st.columns([1, 7])

# Display the robot image
with col1:
  st.image(image = os.path.join("images", image_file_name), width = image_width)

# Display the title
with col2:
  st.title(title)

# Create a 3-column layout. Note: Streamlit columns do not properly render on mobile devices.
# For more information, see https://github.com/streamlit/streamlit/issues/5003
col3, col4, col5 = st.columns([7, 1, 1])

# Create text input in column 1
with col3:
  user_input = st.text_input(text_input_label, key = "user", on_change = user_change)

# Create send button in column 2
with col4:
  st.button(label = "Send")

# Create new button in column 3
with col5:
  st.button(label = "New", on_click = new_click)

# Display the chat history in two separate tabs
# - normal: display the chat history as a list of messages using the streamlit_chat message() function
# - rich: display the chat history as a list of messages using the Streamlit markdown() function
if st.session_state['generated']:
  tab1, tab2 = st.tabs(["normal", "rich"])
  with tab1:
    for i in range(len(st.session_state['generated']) - 1, -1, -1):
      message(st.session_state['past'][i], is_user = True, key = str(i) + '_user', avatar_style = "fun-emoji", seed = "Nala")
      message(st.session_state['generated'][i], key = str(i), avatar_style = "bottts", seed = "Fluffy")
  with tab2:
    for i in range(len(st.session_state['generated']) - 1, -1, -1):
      st.markdown(st.session_state['past'][i])
      st.markdown(st.session_state['generated'][i])



The application uses an internal cascading style sheet (CSS) inside an st.markdown element to add a unique style to the Streamlit chatbot for mobile and desktop devices. For more information on how to tweak the user interface of a Streamlit application, see 3 Tips to Customize your Streamlit App.



streamlit run app.py



Working with the ChatGPT and GPT-4 models

The generate_response function creates and sends the prompt to the Chat Completion API of the ChatGPT model.



def generate_response(prompt):
  try:
    st.session_state['prompts'].append({"role": "user", "content": prompt})

    if openai.api_type == "azure_ad":
      refresh_openai_token()

    completion = openai.ChatCompletion.create(
      engine = engine,
      model = model,
      messages = st.session_state['prompts'],
      temperature = temperature,
    )

    message = completion.choices[0].message.content
    return message
  except Exception as e:
    logging.exception(f"Exception in generate_response: {e}")



OpenAI trained the ChatGPT and GPT-4 models to accept input formatted as a conversation. The messages parameter takes an array of dictionaries with a conversation organized by role or message: system, user, and assistant. The format of a basic Chat Completion is as follows:



{"role": "system", "content": "Provide some context and/or instructions to the model"},
{"role": "user", "content": "The users messages goes here"},
{"role": "assistant", "content": "The response message goes here."}



The system role, also known as the system message, is included at the beginning of the array. This message provides the initial instructions for the model. You can provide various information in the system role, including:



  • A brief description of the assistant
  • Personality traits of the assistant
  • Instructions or rules you would like the assistant to follow
  • Data or information needed for the model, such as relevant questions from an FAQ
  • You can customize the system role for your use case or include basic instructions.



The system role or message is optional, but it's recommended to at least include a basic one to get the best results. The user role or message represents an input or inquiry from the user, while the assistant message corresponds to the response generated by the GPT API. This dialog exchange aims to simulate a human-like conversation, where the user message initiates the interaction and the assistant message provides a relevant and informative answer. This context helps the chat model generate a more appropriate response later on. The last user message refers to the prompt currently requested. For more information, see Learn how to work with the ChatGPT and GPT-4 models.



Application Configuration

Make sure to provide a value for the following environment variables when testing the app.py Python app locally, for example in Visual Studio Code. You can eventually define environment variables in a .env file in the same folder as the app.py file.



  • AZURE_OPENAI_TYPE: specify azure if you want to let the application use the API key to authenticate against OpenAI. In this case, make sure to provide the Key in the AZURE_OPENAI_KEY environment variable. If you want to authenticate using an Azure AD security token, you need to specify azure_ad as a value. In this case, don't need to provide any value in the AZURE_OPENAI_KEY environment variable.
  • AZURE_OPENAI_BASE: the URL of your Azure OpenAI resource. If you use the API key to authenticate against OpenAI, you can specify the regional endpoint of your Azure OpenAI Service (e.g., https://eastus.api.cognitive.microsoft.com/). If you instead plan to use Azure AD security tokens for authentication, you need to deploy your Azure OpenAI Service with a subdomain and specify the resource-specific endpoint url (e.g., https://myopenai.openai.azure.com/).
  • AZURE_OPENAI_KEY: the key of your Azure OpenAI resource.
  • AZURE_OPENAI_DEPLOYMENT: the name of the ChatGPT deployment used by your Azure OpenAI resource, for example gpt-35-turbo.
  • AZURE_OPENAI_MODEL: the name of the ChatGPT model used by your Azure OpenAI resource, for example gpt-35-turbo.
  • TITLE: the title of the Streamlit app.
  • TEMPERATURE: the temperature used by the OpenAI API to generate the response.
  • SYSTEM: give the model instructions about how it should behave and any context it should reference when generating a response. Used to describe the assistant's personality.



When deploying the application to Azure Kubernetes Service (AKS), these values are provided in a Kubernetes ConfigMap. For more information, see the next section.



OpenAI Library

To use the openai library with Microsoft Azure endpoints, you need to set the api_type, api_base and api_version in addition to the api_key. The api_type must be set to 'azure' and the others correspond to the properties of your endpoint. In addition, the deployment name must be passed as the engine parameter. To use OpenAI Key to authenticate to your Azure endpoint, you need to set the api_type to azure and pass the OpenAI Key to api_key.



import openai
openai.api_type = "azure"
openai.api_key = "..."
openai.api_base = "https://example-endpoint.openai.azure.com"
openai.api_version = "2023-05-15"

# create a chat completion
chat_completion = openai.ChatCompletion.create(deployment_id="gpt-3.5-turbo", model="gpt-3.5-turbo", messages=[{"role": "user", "content": "Hello world"}])

# print the completion
print(completion.choices[0].message.content)



For a detailed example of how to use fine-tuning and other operations using Azure endpoints, please check out the following Jupyter notebooks:





To use Microsoft Active Directory to authenticate to your Azure endpoint, you need to set the api_type to azure_ad and pass the acquired credential token to api_key. The rest of the parameters must be set as specified in the previous section.



from azure.identity import DefaultAzureCredential
import openai

# Request credential
default_credential = DefaultAzureCredential()
token = default_credential.get_token("https://cognitiveservices.azure.com/.default")

# Setup parameters
openai.api_type = "azure_ad"
openai.api_key = token.token
openai.api_base = "https://example-endpoint.openai.azure.com/"
openai.api_version = "2023-05-15"

# ...



You can use two different authentication methods in the magic8ball chatbot application:



  • API key: set the AZURE_OPENAI_TYPE environment variable to azure and the AZURE_OPENAI_KEY environment variable to the key of your Azure OpenAI resource. You can use the regional endpoint, such as https://eastus.api.cognitive.microsoft.com/, in the AZURE_OPENAI_BASE environment variable, to connect to the Azure OpenAI resource.
  • Azure Active Directory: set the AZURE_OPENAI_TYPE environment variable to azure_ad and use a service principal or managed identity with the DefaultAzureCredential object to acquire a security token from Azure Active Directory. For more information on the DefaultAzureCredential in Python, see Authenticate Python apps to Azure services by using the Azure SDK for Python. Make sure to assign the Cognitive Services User role to the service principal or managed identity used to authenticate to your Azure OpenAI Service. For more information, see How to configure Azure OpenAI Service with managed identities. If you want to use Azure AD integrated security, you need to create a custom subdomain for your Azure OpenAI resource and use the specific endpoint containing the custom domain, such as https://myopenai.openai.azure.com/ where myopenai is the custom subdomain. If you specify the regional endpoint, you get an error like the following: Subdomain does not map to a resource. Hence, pass the custom domain endpoint in the AZURE_OPENAI_BASE environment variable. In this case, you also need to refresh the security token periodically.



Build the container image

You can build the container image using the 01-build-docker-image.sh in the scripts folder.



Dockerfile



# app/Dockerfile

# # Stage 1 - Install build dependencies

# A Dockerfile must start with a FROM instruction which sets the base image for the container.
# The Python images come in many flavors, each designed for a specific use case.
# The python:3.11-slim image is a good base image for most applications.
# It is a minimal image built on top of Debian Linux and includes only the necessary packages to run Python.
# The slim image is a good choice because it is small and contains only the packages needed to run Python.
# For more information, see:
# * https://hub.docker.com/_/python
# * https://docs.streamlit.io/knowledge-base/tutorials/deploy/docker
FROM python:3.11-slim AS builder

# The WORKDIR instruction sets the working directory for any RUN, CMD, ENTRYPOINT, COPY and ADD instructions that follow it in the Dockerfile.
# If the WORKDIR doesn’t exist, it will be created even if it’s not used in any subsequent Dockerfile instruction.
# For more information, see: https://docs.docker.com/engine/reference/builder/#workdir
WORKDIR /app

# Set environment variables.
# The ENV instruction sets the environment variable <key> to the value <value>.
# This value will be in the environment of all “descendant” Dockerfile commands and can be replaced inline in many as well.
# For more information, see: https://docs.docker.com/engine/reference/builder/#env
ENV PYTHONDONTWRITEBYTECODE 1
ENV PYTHONUNBUFFERED 1

# Install git so that we can clone the app code from a remote repo using the RUN instruction.
# The RUN comand has 2 forms:
# * RUN <command> (shell form, the command is run in a shell, which by default is /bin/sh -c on Linux or cmd /S /C on Windows)
# * RUN ["executable", "param1", "param2"] (exec form)
# The RUN instruction will execute any commands in a new layer on top of the current image and commit the results.
# The resulting committed image will be used for the next step in the Dockerfile.
# For more information, see: https://docs.docker.com/engine/reference/builder/#run
RUN apt-get update && apt-get install -y \
    build-essential \
    curl \
    software-properties-common \
    git \
    && rm -rf /var/lib/apt/lists/*

# Create a virtualenv to keep dependencies together
RUN python -m venv /opt/venv
ENV PATH="/opt/venv/bin:$PATH"

# Clone the requirements.txt which contains dependencies to WORKDIR
# COPY has two forms:
# * COPY <src> <dest> (this copies the files from the local machine to the container's own filesystem)
# * COPY ["<src>",... "<dest>"] (this form is required for paths containing whitespace)
# For more information, see: https://docs.docker.com/engine/reference/builder/#copy
COPY requirements.txt .

# Install the Python dependencies
RUN pip install --no-cache-dir --no-deps -r requirements.txt

# Stage 2 - Copy only necessary files to the runner stage

# The FROM instruction initializes a new build stage for the application
FROM python:3.11-slim

# Sets the working directory to /app
WORKDIR /app

# Copy the virtual environment from the builder stage
COPY --from=builder /opt/venv /opt/venv

# Set environment variables
ENV PATH="/opt/venv/bin:$PATH"

# Clone the app.py containing the application code
COPY app.py .

# Copy the images folder to WORKDIR
# The ADD instruction copies new files, directories or remote file URLs from <src> and adds them to the filesystem of the image at the path <dest>.
# For more information, see: https://docs.docker.com/engine/reference/builder/#add
ADD images ./images

# The EXPOSE instruction informs Docker that the container listens on the specified network ports at runtime.
# For more information, see: https://docs.docker.com/engine/reference/builder/#expose
EXPOSE 8501

# The HEALTHCHECK instruction has two forms:
# * HEALTHCHECK [OPTIONS] CMD command (check container health by running a command inside the container)
# * HEALTHCHECK NONE (disable any healthcheck inherited from the base image)
# The HEALTHCHECK instruction tells Docker how to test a container to check that it is still working.
# This can detect cases such as a web server that is stuck in an infinite loop and unable to handle new connections,
# even though the server process is still running. For more information, see: https://docs.docker.com/engine/reference/builder/#healthcheck
HEALTHCHECK CMD curl --fail http://localhost:8501/_stcore/health

# The ENTRYPOINT instruction has two forms:
# * ENTRYPOINT ["executable", "param1", "param2"] (exec form, preferred)
# * ENTRYPOINT command param1 param2 (shell form)
# The ENTRYPOINT instruction allows you to configure a container that will run as an executable.
# For more information, see: https://docs.docker.com/engine/reference/builder/#entrypoint
ENTRYPOINT ["streamlit", "run", "app.py", "--server.port=8501", "--server.address=0.0.0.0"]



01-build-docker-image.sh



#!/bin/bash

# Variables
source ./00-variables.sh

# Build the docker image
docker build -t $imageName:$tag -f Dockerfile .



Before running any script, make sure to customize the value of the variables inside the 00-variables.sh file. This file is embedded in all the scripts and contains the following variables:



# Variables
acrName="CoralAcr"
acrResourceGrougName="CoralRG"
location="FranceCentral"
attachAcr=false
imageName="magic8ball"
tag="v2"
containerName="magic8ball"
image="$acrName.azurecr.io/$imageName:$tag"
imagePullPolicy="IfNotPresent" # Always, Never, IfNotPresent
managedIdentityName="OpenAiManagedIdentity"
federatedIdentityName="Magic8BallFederatedIdentity"

# Azure Subscription and Tenant
subscriptionId=$(az account show --query id --output tsv)
subscriptionName=$(az account show --query name --output tsv)
tenantId=$(az account show --query tenantId --output tsv)

# Parameters
title="Magic 8 Ball"
label="Pose your question and cross your fingers!"
temperature="0.9"
imageWidth="80"

# OpenAI
openAiName="CoralOpenAi "
openAiResourceGroupName="CoralRG"
openAiType="azure_ad"
openAiBase="https://coralopenai.openai.azure.com/"
openAiModel="gpt-35-turbo"
openAiDeployment="gpt-35-turbo"

# Nginx Ingress Controller
nginxNamespace="ingress-basic"
nginxRepoName="ingress-nginx"
nginxRepoUrl="https://kubernetes.github.io/ingress-nginx"
nginxChartName="ingress-nginx"
nginxReleaseName="nginx-ingress"
nginxReplicaCount=3

# Certificate Manager
cmNamespace="cert-manager"
cmRepoName="jetstack"
cmRepoUrl="https://charts.jetstack.io"
cmChartName="cert-manager"
cmReleaseName="cert-manager"

# Cluster Issuer
email="paolos@microsoft.com"
clusterIssuerName="letsencrypt-nginx"
clusterIssuerTemplate="cluster-issuer.yml"

# AKS Cluster
aksClusterName="CoralAks"
aksResourceGroupName="CoralRG"

# Sample Application
namespace="magic8ball"
serviceAccountName="magic8ball-sa"
deploymentTemplate="deployment.yml"
serviceTemplate="service.yml"
configMapTemplate="configMap.yml"
secretTemplate="secret.yml"

# Ingress and DNS
ingressTemplate="ingress.yml"
ingressName="magic8ball-ingress"
dnsZoneName="babosbird.com"
dnsZoneResourceGroupName="DnsResourceGroup"
subdomain="magic8ball"
host="$subdomain.$dnsZoneName"



Upload Docker container image to Azure Container Registry (ACR)

You can push the Docker container image to Azure Container Registry (ACR) using the 03-push-docker-image.sh script in the scripts folder.



#!/bin/bash

# Variables
source ./00-variables.sh

# Login to ACR
az acr login --name $acrName

# Retrieve ACR login server. Each container image needs to be tagged with the loginServer name of the registry.
loginServer=$(az acr show --name $acrName --query loginServer --output tsv)

# Tag the local image with the loginServer of ACR
docker tag ${imageName,,}:$tag $loginServer/${imageName,,}:$tag

# Push latest container image to ACR
docker push $loginServer/${imageName,,}:$tag



Deployment Scripts

If you deployed the Azure infrastructure using the Bicep modules provided with this sample, you only need to deploy the application using the following scripts and YAML templates in the scripts folder.



  • 09-deploy-app.sh
  • 10-create-ingress.sh
  • 11-configure-dns.sh
  • configMap.yml
  • deployment.yml
  • ingress.yml
  • service.yml



If you instead want to deploy the application in your AKS cluster, you can use the following scripts to configure your environment.



04-create-nginx-ingress-controller.sh

The script installs the NGINX Ingress Controller using Helm.



#!/bin/bash

# Variables
source ./00-variables.sh

# Use Helm to deploy an NGINX ingress controller
result=$(helm list -n $nginxNamespace | grep $nginxReleaseName | awk '{print $1}')

if [[ -n $result ]]; then
  echo "[$nginxReleaseName] ingress controller already exists in the [$nginxNamespace] namespace"
else
  # Check if the ingress-nginx repository is not already added
  result=$(helm repo list | grep $nginxRepoName | awk '{print $1}')

  if [[ -n $result ]]; then
    echo "[$nginxRepoName] Helm repo already exists"
  else
    # Add the ingress-nginx repository
    echo "Adding [$nginxRepoName] Helm repo..."
    helm repo add $nginxRepoName $nginxRepoUrl
  fi

  # Update your local Helm chart repository cache
  echo 'Updating Helm repos...'
  helm repo update

  # Deploy NGINX ingress controller
  echo "Deploying [$nginxReleaseName] NGINX ingress controller to the [$nginxNamespace] namespace..."
  helm install $nginxReleaseName $nginxRepoName/$nginxChartName \
    --create-namespace \
    --namespace $nginxNamespace \
    --set controller.config.enable-modsecurity=true \
    --set controller.config.enable-owasp-modsecurity-crs=true \
    --set controller.config.modsecurity-snippet=\
'SecRuleEngine On
SecRequestBodyAccess On
SecAuditLog /dev/stdout
SecAuditLogFormat JSON
SecAuditEngine RelevantOnly
SecRule REMOTE_ADDR "@ipMatch 127.0.0.1" "id:87,phase:1,pass,nolog,ctl:ruleEngine=Off"' \
    --set controller.metrics.enabled=true \
    --set controller.metrics.serviceMonitor.enabled=true \
    --set controller.metrics.serviceMonitor.additionalLabels.release="prometheus" \
    --set controller.nodeSelector."kubernetes\.io/os"=linux \
    --set controller.replicaCount=$replicaCount \
    --set defaultBackend.nodeSelector."kubernetes\.io/os"=linux \
    --set controller.service.annotations."service\.beta\.kubernetes\.io/azure-load-balancer-health-probe-request-path"=/healthz
fi



05-install-cert-manager.sh
This script installs the cert-manager using Helm.



#/bin/bash

# Variables
source ./00-variables.sh

# Check if the ingress-nginx repository is not already added
result=$(helm repo list | grep $cmRepoName | awk '{print $1}')

if [[ -n $result ]]; then
  echo "[$cmRepoName] Helm repo already exists"
else
  # Add the Jetstack Helm repository
  echo "Adding [$cmRepoName] Helm repo..."
  helm repo add $cmRepoName $cmRepoUrl
fi

# Update your local Helm chart repository cache
echo 'Updating Helm repos...'
helm repo update

# Install cert-manager Helm chart
result=$(helm list -n $cmNamespace | grep $cmReleaseName | awk '{print $1}')

if [[ -n $result ]]; then
  echo "[$cmReleaseName] cert-manager already exists in the $cmNamespace namespace"
else
  # Install the cert-manager Helm chart
  echo "Deploying [$cmReleaseName] cert-manager to the $cmNamespace namespace..."
  helm install $cmReleaseName $cmRepoName/$cmChartName \
    --create-namespace \
    --namespace $cmNamespace \
    --set installCRDs=true \
    --set nodeSelector."kubernetes\.io/os"=linux
fi



06-create-cluster-issuer.sh

 This script creates a cluster issuer for the NGINX Ingress Controller based on the Let's Encrypt ACME certificate issuer.



#/bin/bash

# Variables
source ./00-variables.sh

# Check if the cluster issuer already exists
result=$(kubectl get ClusterIssuer -o json | jq -r '.items[].metadata.name | select(. == "'$clusterIssuerName'")')

if [[ -n $result ]]; then
  echo "[$clusterIssuerName] cluster issuer already exists"
  exit
else
  # Create the cluster issuer
  echo "[$clusterIssuerName] cluster issuer does not exist"
  echo "Creating [$clusterIssuerName] cluster issuer..."
  cat $clusterIssuerTemplate |
    yq "(.spec.acme.email)|="\""$email"\" |
    kubectl apply -f -
fi



07-create-workload-managed-identity.sh

This script creates the managed identity used by the magic8ballchatbot and assigns it the Cognitive Services User role on the Azure OpenAI Service.



#!/bin/bash

# Variables
source ./00-variables.sh

# Check if the user-assigned managed identity already exists
echo "Checking if [$managedIdentityName] user-assigned managed identity actually exists in the [$aksResourceGroupName] resource group..."

az identity show \
  --name $managedIdentityName \
  --resource-group $aksResourceGroupName &>/dev/null

if [[ $? != 0 ]]; then
  echo "No [$managedIdentityName] user-assigned managed identity actually exists in the [$aksResourceGroupName] resource group"
  echo "Creating [$managedIdentityName] user-assigned managed identity in the [$aksResourceGroupName] resource group..."

  # Create the user-assigned managed identity
  az identity create \
    --name $managedIdentityName \
    --resource-group $aksResourceGroupName \
    --location $location \
    --subscription $subscriptionId 1>/dev/null

  if [[ $? == 0 ]]; then
    echo "[$managedIdentityName] user-assigned managed identity successfully created in the [$aksResourceGroupName] resource group"
  else
    echo "Failed to create [$managedIdentityName] user-assigned managed identity in the [$aksResourceGroupName] resource group"
    exit
  fi
else
  echo "[$managedIdentityName] user-assigned managed identity already exists in the [$aksResourceGroupName] resource group"
fi

# Retrieve the clientId of the user-assigned managed identity
echo "Retrieving clientId for [$managedIdentityName] managed identity..."
clientId=$(az identity show \
  --name $managedIdentityName \
  --resource-group $aksResourceGroupName \
  --query clientId \
  --output tsv)

if [[ -n $clientId ]]; then
  echo "[$clientId] clientId  for the [$managedIdentityName] managed identity successfully retrieved"
else
  echo "Failed to retrieve clientId for the [$managedIdentityName] managed identity"
  exit
fi

# Retrieve the principalId of the user-assigned managed identity
echo "Retrieving principalId for [$managedIdentityName] managed identity..."
principalId=$(az identity show \
  --name $managedIdentityName \
  --resource-group $aksResourceGroupName \
  --query principalId \
  --output tsv)

if [[ -n $principalId ]]; then
  echo "[$principalId] principalId  for the [$managedIdentityName] managed identity successfully retrieved"
else
  echo "Failed to retrieve principalId for the [$managedIdentityName] managed identity"
  exit
fi

# Get the resource id of the Azure OpenAI resource
openAiId=$(az cognitiveservices account show \
  --name $openAiName \
  --resource-group $openAiResourceGroupName \
  --query id \
  --output tsv)

if [[ -n $openAiId ]]; then
  echo "Resource id for the [$openAiName] Azure OpenAI resource successfully retrieved"
else
  echo "Failed to the resource id for the [$openAiName] Azure OpenAI resource"
  exit -1
fi

# Assign the Cognitive Services User role on the Azure OpenAI resource to the managed identity
role="Cognitive Services User"
echo "Checking if the [$managedIdentityName] managed identity has been assigned to [$role] role with [$openAiName] Azure OpenAI resource as a scope..."
current=$(az role assignment list \
  --assignee $principalId \
  --scope $openAiId \
  --query "[?roleDefinitionName=='$role'].roleDefinitionName" \
  --output tsv 2>/dev/null)

if [[ $current == $role ]]; then
  echo "[$managedIdentityName] managed identity is already assigned to the ["$current"] role with [$openAiName] Azure OpenAI resource as a scope"
else
  echo "[$managedIdentityName] managed identity is not assigned to the [$role] role with [$openAiName] Azure OpenAI resource as a scope"
  echo "Assigning the [$role] role to the [$managedIdentityName] managed identity with [$openAiName] Azure OpenAI resource as a scope..."

  az role assignment create \
    --assignee $principalId \
    --role "$role" \
    --scope $openAiId 1>/dev/null

  if [[ $? == 0 ]]; then
    echo "[$managedIdentityName] managed identity successfully assigned to the [$role] role with [$openAiName] Azure OpenAI resource as a scope"
  else
    echo "Failed to assign the [$managedIdentityName] managed identity to the [$role] role with [$openAiName] Azure OpenAI resource as a scope"
    exit
  fi
fi



08-create-service-account.sh

This script creates the namespace and service account for the magic8ball chatbot and federate the service account with the user-defined managed identity created in the previous step.



#!/bin/bash

# Variables for the user-assigned managed identity
source ./00-variables.sh

# Check if the namespace already exists
result=$(kubectl get namespace -o 'jsonpath={.items[?(@.metadata.name=="'$namespace'")].metadata.name'})

if [[ -n $result ]]; then
  echo "[$namespace] namespace already exists"
else
  # Create the namespace for your ingress resources
  echo "[$namespace] namespace does not exist"
  echo "Creating [$namespace] namespace..."
  kubectl create namespace $namespace
fi

# Check if the service account already exists
result=$(kubectl get sa -n $namespace -o 'jsonpath={.items[?(@.metadata.name=="'$serviceAccountName'")].metadata.name'})

if [[ -n $result ]]; then
  echo "[$serviceAccountName] service account already exists"
else
  # Retrieve the resource id of the user-assigned managed identity
  echo "Retrieving clientId for [$managedIdentityName] managed identity..."
  managedIdentityClientId=$(az identity show \
    --name $managedIdentityName \
    --resource-group $aksResourceGroupName \
    --query clientId \
    --output tsv)

  if [[ -n $managedIdentityClientId ]]; then
    echo "[$managedIdentityClientId] clientId  for the [$managedIdentityName] managed identity successfully retrieved"
  else
    echo "Failed to retrieve clientId for the [$managedIdentityName] managed identity"
    exit
  fi

  # Create the service account
  echo "[$serviceAccountName] service account does not exist"
  echo "Creating [$serviceAccountName] service account..."
  cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    azure.workload.identity/client-id: $managedIdentityClientId
    azure.workload.identity/tenant-id: $tenantId
  labels:
    azure.workload.identity/use: "true"
  name: $serviceAccountName
  namespace: $namespace
EOF
fi

# Show service account YAML manifest
echo "Service Account YAML manifest"
echo "-----------------------------"
kubectl get sa $serviceAccountName -n $namespace -o yaml

# Check if the federated identity credential already exists
echo "Checking if [$federatedIdentityName] federated identity credential actually exists in the [$aksResourceGroupName] resource group..."

az identity federated-credential show \
  --name $federatedIdentityName \
  --resource-group $aksResourceGroupName \
  --identity-name $managedIdentityName &>/dev/null

if [[ $? != 0 ]]; then
  echo "No [$federatedIdentityName] federated identity credential actually exists in the [$aksResourceGroupName] resource group"

  # Get the OIDC Issuer URL
  aksOidcIssuerUrl="$(az aks show \
    --only-show-errors \
    --name $aksClusterName \
    --resource-group $aksResourceGroupName \
    --query oidcIssuerProfile.issuerUrl \
    --output tsv)"

  # Show OIDC Issuer URL
  if [[ -n $aksOidcIssuerUrl ]]; then
    echo "The OIDC Issuer URL of the $aksClusterName cluster is $aksOidcIssuerUrl"
  fi

  echo "Creating [$federatedIdentityName] federated identity credential in the [$aksResourceGroupName] resource group..."

  # Establish the federated identity credential between the managed identity, the service account issuer, and the subject.
  az identity federated-credential create \
    --name $federatedIdentityName \
    --identity-name $managedIdentityName \
    --resource-group $aksResourceGroupName \
    --issuer $aksOidcIssuerUrl \
    --subject system:serviceaccount:$namespace:$serviceAccountName

  if [[ $? == 0 ]]; then
    echo "[$federatedIdentityName] federated identity credential successfully created in the [$aksResourceGroupName] resource group"
  else
    echo "Failed to create [$federatedIdentityName] federated identity credential in the [$aksResourceGroupName] resource group"
    exit
  fi
else
  echo "[$federatedIdentityName] federated identity credential already exists in the [$aksResourceGroupName] resource group"
fi



09-deploy-app.sh

This script creates the Kubernetes config map, deployment, and service used by the magic8ball chatbot.



#!/bin/bash

# Variables
source ./00-variables.sh

# Attach ACR to AKS cluster
if [[ $attachAcr == true ]]; then
  echo "Attaching ACR $acrName to AKS cluster $aksClusterName..."
  az aks update \
    --name $aksClusterName \
    --resource-group $aksResourceGroupName \
    --attach-acr $acrName
fi

# Check if namespace exists in the cluster
result=$(kubectl get namespace -o jsonpath="{.items[?(@.metadata.name=='$namespace')].metadata.name}")

if [[ -n $result ]]; then
  echo "$namespace namespace already exists in the cluster"
else
  echo "$namespace namespace does not exist in the cluster"
  echo "creating $namespace namespace in the cluster..."
  kubectl create namespace $namespace
fi

# Create config map
cat $configMapTemplate |
    yq "(.data.TITLE)|="\""$title"\" |
    yq "(.data.LABEL)|="\""$label"\" |
    yq "(.data.TEMPERATURE)|="\""$temperature"\" |
    yq "(.data.IMAGE_WIDTH)|="\""$imageWidth"\" |
    yq "(.data.AZURE_OPENAI_TYPE)|="\""$openAiType"\" |
    yq "(.data.AZURE_OPENAI_BASE)|="\""$openAiBase"\" |
    yq "(.data.AZURE_OPENAI_MODEL)|="\""$openAiModel"\" |
    yq "(.data.AZURE_OPENAI_DEPLOYMENT)|="\""$openAiDeployment"\" |
    kubectl apply -n $namespace -f -

# Create deployment
cat $deploymentTemplate |
    yq "(.spec.template.spec.containers[0].image)|="\""$image"\" |
    yq "(.spec.template.spec.containers[0].imagePullPolicy)|="\""$imagePullPolicy"\" |
    yq "(.spec.template.spec.serviceAccountName)|="\""$serviceAccountName"\" |
    kubectl apply -n $namespace -f -

# Create deployment
kubectl apply -f $serviceTemplate -n $namespace



10-create-ingress.sh

This script creates the ingress object to expose the service via the NGINX Ingress Controller.



#/bin/bash

# Variables
source ./00-variables.sh

# Create the ingress
echo "[$ingressName] ingress does not exist"
echo "Creating [$ingressName] ingress..."
cat $ingressTemplate |
  yq "(.spec.tls[0].hosts[0])|="\""$host"\" |
  yq "(.spec.rules[0].host)|="\""$host"\" |
  kubectl apply -n $namespace -f -



11-configure-dns.sh

This script creates an A record in the Azure DNS Zone to expose the application via a given subdomain (e.g., https://magic8ball.example.com).



# Variables
source ./00-variables.sh

# Retrieve the public IP address from the ingress
echo "Retrieving the external IP address from the [$ingressName] ingress..."
publicIpAddress=$(kubectl get ingress $ingressName -n $namespace -o jsonpath='{.status.loadBalancer.ingress[0].ip}')

if [ -n $publicIpAddress ]; then
  echo "[$publicIpAddress] external IP address of the application gateway ingress controller successfully retrieved from the [$ingressName] ingress"
else
  echo "Failed to retrieve the external IP address of the application gateway ingress controller from the [$ingressName] ingress"
  exit
fi

# Check if an A record for todolist subdomain exists in the DNS Zone
echo "Retrieving the A record for the [$subdomain] subdomain from the [$dnsZoneName] DNS zone..."
ipv4Address=$(az network dns record-set a list \
  --zone-name $dnsZoneName \
  --resource-group $dnsZoneResourceGroupName \
  --query "[?name=='$subdomain'].arecords[].ipv4Address" \
  --output tsv)

if [[ -n $ipv4Address ]]; then
  echo "An A record already exists in [$dnsZoneName] DNS zone for the [$subdomain] subdomain with [$ipv4Address] IP address"

  if [[ $ipv4Address == $publicIpAddress ]]; then
    echo "The [$ipv4Address] ip address of the existing A record is equal to the ip address of the [$ingressName] ingress"
    echo "No additional step is required"
    exit
  else
    echo "The [$ipv4Address] ip address of the existing A record is different than the ip address of the [$ingressName] ingress"
  fi

  # Retrieving name of the record set relative to the zone
  echo "Retrieving the name of the record set relative to the [$dnsZoneName] zone..."

  recordSetName=$(az network dns record-set a list \
    --zone-name $dnsZoneName \
    --resource-group $dnsZoneResourceGroupName \
    --query "[?name=='$subdomain'].name" \
    --output name 2>/dev/null)

  if [[ -n $recordSetName ]]; then
    "[$recordSetName] record set name successfully retrieved"
  else
    "Failed to retrieve the name of the record set relative to the [$dnsZoneName] zone"
    exit
  fi

  # Remove the a record
  echo "Removing the A record from the record set relative to the [$dnsZoneName] zone..."

  az network dns record-set a remove-record \
    --ipv4-address $ipv4Address \
    --record-set-name $recordSetName \
    --zone-name $dnsZoneName \
    --resource-group $dnsZoneResourceGroupName

  if [[ $? == 0 ]]; then
    echo "[$ipv4Address] ip address successfully removed from the [$recordSetName] record set"
  else
    echo "Failed to remove the [$ipv4Address] ip address from the [$recordSetName] record set"
    exit
  fi
fi

# Create the a record
echo "Creating an A record in [$dnsZoneName] DNS zone for the [$subdomain] subdomain with [$publicIpAddress] IP address..."
az network dns record-set a add-record \
  --zone-name $dnsZoneName \
  --resource-group $dnsZoneResourceGroupName \
  --record-set-name $subdomain \
  --ipv4-address $publicIpAddress 1>/dev/null

if [[ $? == 0 ]]; then
  echo "A record for the [$subdomain] subdomain with [$publicIpAddress] IP address successfully created in [$dnsZoneName] DNS zone"
else
  echo "Failed to create an A record for the $subdomain subdomain with [$publicIpAddress] IP address in [$dnsZoneName] DNS zone"
fi



The scripts used to deploy the YAML template use the yq tool to customize the manifests with the value of the variables defined in the 00-variables.sh file. This tool is a lightweight and portable command-line YAML, JSON and XML processor that uses jq like syntax but works with YAML files as well as json, xml, properties, csv and tsv. It doesn't yet support everything jq does - but it does support the most common operations and functions, and more is being added continuously.



YAML manifests

Below, you can read the YAML manifests used to deploy the magic8ball chatbot to AKS.



configmap.yml

The configmap.yml defines a value for the environment variables passed to the application container. The config map does not define any environment variable for the OpenAI key as the container.



apiVersion: v1
kind: ConfigMap
metadata:
  name: magic8ball-configmap
data:
  TITLE: "Magic 8 Ball"
  LABEL: "Pose your question and cross your fingers!"
  TEMPERATURE: "0.9"
  IMAGE_WIDTH: "80"
  AZURE_OPENAI_TYPE: azure_ad
  AZURE_OPENAI_BASE: https://baboopenai.openai.azure.com/
  AZURE_OPENAI_KEY: ""
  AZURE_OPENAI_MODEL: gpt-35-turbo
  AZURE_OPENAI_DEPLOYMENT: magic8ballGPT



These are the parameters defined by the configmap:



  • AZURE_OPENAI_TYPE: specify azure if you want to let the application use the API key to authenticate against OpenAI. In this case, make sure to provide the Key in the AZURE_OPENAI_KEY environment variable. If you want to authenticate using an Azure AD security token, you need to specify azure_ad as a value. In this case, don't need to provide any value in the AZURE_OPENAI_KEY environment variable.
  • AZURE_OPENAI_BASE: the URL of your Azure OpenAI resource. If you use the API key to authenticate against OpenAI, you can specify the regional endpoint of your Azure OpenAI Service (e.g., https://eastus.api.cognitive.microsoft.com/). If you instead plan to use Azure AD security tokens for authentication, you need to deploy your Azure OpenAI Service with a subdomain and specify the resource-specific endpoint url (e.g., https://myopenai.openai.azure.com/).
  • AZURE_OPENAI_KEY: the key of your Azure OpenAI resource. If you set AZURE_OPENAI_TYPE to azure_ad you can leave this parameter empty.
  • AZURE_OPENAI_DEPLOYMENT: the name of the ChatGPT deployment used by your Azure OpenAI resource, for example gpt-35-turbo.
  • AZURE_OPENAI_MODEL: the name of the ChatGPT model used by your Azure OpenAI resource, for example gpt-35-turbo.
  • TITLE: the title of the Streamlit app.
  • TEMPERATURE: the temperature used by the OpenAI API to generate the response.
  • SYSTEM: give the model instructions about how it should behave and any context it should reference when generating a response. Used to describe the assistant's personality.



deployment.yml
Thedeployment.ymlmanifest is used create a Kubernetesdeploymentthat defines the application pods to create azure.workload.identity/use label is required in the pod template spec. Only pods with this label will be mutated by the azure-workload-identity mutating admission webhook to inject the Azure specific environment variables and the projected service account token volume.



apiVersion: apps/v1
kind: Deployment
metadata:
  name: magic8ball
  labels:
    app: magic8ball
spec:
  replicas: 3
  selector:
    matchLabels:
      app: magic8ball
      azure.workload.identity/use: "true"
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
  minReadySeconds: 5
  template:
    metadata:
      labels:
        app: magic8ball
        azure.workload.identity/use: "true"
        prometheus.io/scrape: "true"
    spec:
      serviceAccountName: magic8ball-sa
      topologySpreadConstraints:
      - maxSkew: 1
        topologyKey: topology.kubernetes.io/zone
        whenUnsatisfiable: DoNotSchedule
        labelSelector:
          matchLabels:
            app: magic8ball
      - maxSkew: 1
        topologyKey: kubernetes.io/hostname
        whenUnsatisfiable: DoNotSchedule
        labelSelector:
          matchLabels:
            app: magic8ball
      nodeSelector:
        "kubernetes.io/os": linux
      containers:
      - name: magic8ball
        image: paolosalvatori.azurecr.io/magic8ball:v1
        imagePullPolicy: Always
        resources:
          requests:
            memory: "128Mi"
            cpu: "250m"
          limits:
            memory: "256Mi"
            cpu: "500m"
        ports:
        - containerPort: 8501
        livenessProbe:
          httpGet:
            path: /
            port: 8501
          failureThreshold: 1
          initialDelaySeconds: 60
          periodSeconds: 30
          timeoutSeconds: 5
        readinessProbe:
          httpGet:
            path: /
            port: 8501
          failureThreshold: 1
          initialDelaySeconds: 60
          periodSeconds: 30
          timeoutSeconds: 5
        startupProbe:
          httpGet:
            path: /
            port: 8501
          failureThreshold: 1
          initialDelaySeconds: 60
          periodSeconds: 30
          timeoutSeconds: 5
        env:
        - name: TITLE
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: TITLE
        - name: IMAGE_WIDTH
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: IMAGE_WIDTH
        - name: LABEL
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: LABEL
        - name: TEMPERATURE
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: TEMPERATURE
        - name: AZURE_OPENAI_TYPE
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: AZURE_OPENAI_TYPE
        - name: AZURE_OPENAI_BASE
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: AZURE_OPENAI_BASE
        - name: AZURE_OPENAI_KEY
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: AZURE_OPENAI_KEY
        - name: AZURE_OPENAI_MODEL
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: AZURE_OPENAI_MODEL
        - name: AZURE_OPENAI_DEPLOYMENT
          valueFrom:
            configMapKeyRef:
                name: magic8ball-configmap
                key: AZURE_OPENAI_DEPLOYMENT



service.yml

The application is exposed using a ClusterIP Kubernetes service.



apiVersion: v1
kind: Service
metadata:
  name: magic8ball
  labels:
    app: magic8ball
spec:
  type: ClusterIP
  ports:
  - protocol: TCP
    port: 8501
  selector:
    app: magic8ball



ingress.yml

The ingress.yml manifest defines a Kubernetes ingress object used to expose the service via the NGINX Ingress Controller.



apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: magic8ball-ingress
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-nginx
    cert-manager.io/acme-challenge-type: http01
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "360"
    nginx.ingress.kubernetes.io/proxy-send-timeout: "360"
    nginx.ingress.kubernetes.io/proxy-read-timeout: "360"
    nginx.ingress.kubernetes.io/proxy-next-upstream-timeout: "360"
    nginx.ingress.kubernetes.io/configuration-snippet: |
      more_set_headers "X-Frame-Options: SAMEORIGIN";
spec:
  ingressClassName: nginx
  tls:
  - hosts:
    - magic8ball.babosbird.com
    secretName: tls-secret
  rules:
  - host: magic8ball.babosbird.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: magic8ball
            port:
              number: 8501



The ingress object defines the following annotations:





Review deployed resources

Use the Azure portal, Azure CLI, or Azure PowerShell to list the deployed resources in the resource group.



Azure CLI



az resource list --resource-group <resource-group-name>



PowerShell



Get-AzResource -ResourceGroupName <resource-group-name>





Clean up resources

When you no longer need the resources you created, delete the resource group. This will remove all the Azure resources.



Azure CLI



az group delete --name <resource-group-name>



PowerShell



Remove-AzResourceGroup -Name <resource-group-name>





Updated Jun 08, 2023
Version 5.0
App
Cloud Native Apps
Infra
ISVs
saas

2 Comments

Sort By
"}},"componentScriptGroups({\"componentId\":\"custom.widget.MicrosoftFooter\"})":{"__typename":"ComponentScriptGroups","scriptGroups":{"__typename":"ComponentScriptGroupsDefinition","afterInteractive":{"__typename":"PageScriptGroupDefinition","group":"AFTER_INTERACTIVE","scriptIds":[]},"lazyOnLoad":{"__typename":"PageScriptGroupDefinition","group":"LAZY_ON_LOAD","scriptIds":[]}},"componentScripts":[]},"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/community/NavbarDropdownToggle\"]})":[{"__ref":"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/users/UserAvatar\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/ranks/UserRankLabel\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/tags/TagView/TagViewChip\"]})":[{"__ref":"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/users/UserRegistrationDate\"]})":[{"__ref":"CachedAsset:text:en_US-components/users/UserRegistrationDate-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/nodes/NodeAvatar\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/nodes/NodeAvatar-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/nodes/NodeDescription\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/nodes/NodeDescription-1745505307000"}],"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"components/messages/MessageListMenu\"]})":[{"__ref":"CachedAsset:text:en_US-components/messages/MessageListMenu-1745505307000"}],"message({\"id\":\"message:3843200\"})":{"__ref":"BlogReplyMessage:message:3843200"},"message({\"id\":\"message:3843192\"})":{"__ref":"BlogReplyMessage:message:3843192"},"cachedText({\"lastModified\":\"1745505307000\",\"locale\":\"en-US\",\"namespaces\":[\"shared/client/components/nodes/NodeIcon\"]})":[{"__ref":"CachedAsset:text:en_US-shared/client/components/nodes/NodeIcon-1745505307000"}]},"Theme:customTheme1":{"__typename":"Theme","id":"customTheme1"},"User:user:-1":{"__typename":"User","id":"user:-1","uid":-1,"login":"Deleted","email":"","avatar":null,"rank":null,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":"ANONYMOUS","registrationTime":null,"confirmEmailStatus":false,"registrationAccessLevel":"VIEW","ssoRegistrationFields":[]},"ssoId":null,"profileSettings":{"__typename":"ProfileSettings","dateDisplayStyle":{"__typename":"InheritableStringSettingWithPossibleValues","key":"layout.friendly_dates_enabled","value":"false","localValue":"true","possibleValues":["true","false"]},"dateDisplayFormat":{"__typename":"InheritableStringSetting","key":"layout.format_pattern_date","value":"MMM dd yyyy","localValue":"MM-dd-yyyy"},"language":{"__typename":"InheritableStringSettingWithPossibleValues","key":"profile.language","value":"en-US","localValue":null,"possibleValues":["en-US","es-ES"]},"repliesSortOrder":{"__typename":"InheritableStringSettingWithPossibleValues","key":"config.user_replies_sort_order","value":"DEFAULT","localValue":"DEFAULT","possibleValues":["DEFAULT","LIKES","PUBLISH_TIME","REVERSE_PUBLISH_TIME"]}},"deleted":false},"CachedAsset:pages-1746563246387":{"__typename":"CachedAsset","id":"pages-1746563246387","value":[{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"BlogViewAllPostsPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId/all-posts/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"CasePortalPage","type":"CASE_PORTAL","urlPath":"/caseportal","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"CreateGroupHubPage","type":"GROUP_HUB","urlPath":"/groups/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"CaseViewPage","type":"CASE_DETAILS","urlPath":"/case/:caseId/:caseNumber","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"InboxPage","type":"COMMUNITY","urlPath":"/inbox","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"HelpFAQPage","type":"COMMUNITY","urlPath":"/help","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"IdeaMessagePage","type":"IDEA_POST","urlPath":"/idea/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"IdeaViewAllIdeasPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/all-ideas/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"LoginPage","type":"USER","urlPath":"/signin","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"BlogPostPage","type":"BLOG","urlPath":"/category/:categoryId/blogs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"UserBlogPermissions.Page","type":"COMMUNITY","urlPath":"/c/user-blog-permissions/page","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ThemeEditorPage","type":"COMMUNITY","urlPath":"/designer/themes","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TkbViewAllArticlesPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId/all-articles/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1730819800000,"localOverride":null,"page":{"id":"AllEvents","type":"CUSTOM","urlPath":"/Events","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"OccasionEditPage","type":"EVENT","urlPath":"/event/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"OAuthAuthorizationAllowPage","type":"USER","urlPath":"/auth/authorize/allow","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"PageEditorPage","type":"COMMUNITY","urlPath":"/designer/pages","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"PostPage","type":"COMMUNITY","urlPath":"/category/:categoryId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ForumBoardPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TkbBoardPage","type":"TKB","urlPath":"/category/:categoryId/kb/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"EventPostPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"UserBadgesPage","type":"COMMUNITY","urlPath":"/users/:login/:userId/badges","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"GroupHubMembershipAction","type":"GROUP_HUB","urlPath":"/membership/join/:nodeId/:membershipType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"MaintenancePage","type":"COMMUNITY","urlPath":"/maintenance","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"IdeaReplyPage","type":"IDEA_REPLY","urlPath":"/idea/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"UserSettingsPage","type":"USER","urlPath":"/mysettings/:userSettingsTab","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"GroupHubsPage","type":"GROUP_HUB","urlPath":"/groups","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ForumPostPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"OccasionRsvpActionPage","type":"OCCASION","urlPath":"/event/:boardId/:messageSubject/:messageId/rsvp/:responseType","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"VerifyUserEmailPage","type":"USER","urlPath":"/verifyemail/:userId/:verifyEmailToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"AllOccasionsPage","type":"OCCASION","urlPath":"/category/:categoryId/events/:boardId/all-events/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"EventBoardPage","type":"EVENT","urlPath":"/category/:categoryId/events/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TkbReplyPage","type":"TKB_REPLY","urlPath":"/kb/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"IdeaBoardPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"CommunityGuideLinesPage","type":"COMMUNITY","urlPath":"/communityguidelines","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"CaseCreatePage","type":"SALESFORCE_CASE_CREATION","urlPath":"/caseportal/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TkbEditPage","type":"TKB","urlPath":"/kb/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ForgotPasswordPage","type":"USER","urlPath":"/forgotpassword","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"IdeaEditPage","type":"IDEA","urlPath":"/idea/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TagPage","type":"COMMUNITY","urlPath":"/tag/:tagName","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"BlogBoardPage","type":"BLOG","urlPath":"/category/:categoryId/blog/:boardId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"OccasionMessagePage","type":"OCCASION_TOPIC","urlPath":"/event/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ManageContentPage","type":"COMMUNITY","urlPath":"/managecontent","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ClosedMembershipNodeNonMembersPage","type":"GROUP_HUB","urlPath":"/closedgroup/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"CommunityPage","type":"COMMUNITY","urlPath":"/","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ForumMessagePage","type":"FORUM_TOPIC","urlPath":"/discussions/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"IdeaPostPage","type":"IDEA","urlPath":"/category/:categoryId/ideas/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1730819800000,"localOverride":null,"page":{"id":"CommunityHub.Page","type":"CUSTOM","urlPath":"/Directory","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"BlogMessagePage","type":"BLOG_ARTICLE","urlPath":"/blog/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"RegistrationPage","type":"USER","urlPath":"/register","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"EditGroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ForumEditPage","type":"FORUM","urlPath":"/discussions/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ResetPasswordPage","type":"USER","urlPath":"/resetpassword/:userId/:resetPasswordToken","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1730819800000,"localOverride":null,"page":{"id":"AllBlogs.Page","type":"CUSTOM","urlPath":"/blogs","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TkbMessagePage","type":"TKB_ARTICLE","urlPath":"/kb/:boardId/:messageSubject/:messageId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"BlogEditPage","type":"BLOG","urlPath":"/blog/:boardId/:messageSubject/:messageId/edit","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ManageUsersPage","type":"USER","urlPath":"/users/manage/:tab?/:manageUsersTab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ForumReplyPage","type":"FORUM_REPLY","urlPath":"/discussions/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"PrivacyPolicyPage","type":"COMMUNITY","urlPath":"/privacypolicy","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"NotificationPage","type":"COMMUNITY","urlPath":"/notifications","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"UserPage","type":"USER","urlPath":"/users/:login/:userId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"HealthCheckPage","type":"COMMUNITY","urlPath":"/health","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"OccasionReplyPage","type":"OCCASION_REPLY","urlPath":"/event/:boardId/:messageSubject/:messageId/comments/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ManageMembersPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/manage/:tab?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"SearchResultsPage","type":"COMMUNITY","urlPath":"/search","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"BlogReplyPage","type":"BLOG_REPLY","urlPath":"/blog/:boardId/:messageSubject/:messageId/replies/:replyId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"GroupHubPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TermsOfServicePage","type":"COMMUNITY","urlPath":"/termsofservice","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"CategoryPage","type":"CATEGORY","urlPath":"/category/:categoryId","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"ForumViewAllTopicsPage","type":"FORUM","urlPath":"/category/:categoryId/discussions/:boardId/all-topics/(/:after|/:before)?","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"TkbPostPage","type":"TKB","urlPath":"/category/:categoryId/kbs/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"},{"lastUpdatedTime":1746563246387,"localOverride":null,"page":{"id":"GroupHubPostPage","type":"GROUP_HUB","urlPath":"/group/:groupHubId/:boardId/create","__typename":"PageDescriptor"},"__typename":"PageResource"}],"localOverride":false},"CachedAsset:text:en_US-components/context/AppContext/AppContextProvider-0":{"__typename":"CachedAsset","id":"text:en_US-components/context/AppContext/AppContextProvider-0","value":{"noCommunity":"Cannot find community","noUser":"Cannot find current user","noNode":"Cannot find node with id {nodeId}","noMessage":"Cannot find message with id {messageId}","userBanned":"We're sorry, but you have been banned from using this site.","userBannedReason":"You have been banned for the following reason: {reason}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-0":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-0","value":{"title":"Loading..."},"localOverride":false},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/cmstNC05WEo0blc\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/cmstNC05WEo0blc","height":512,"width":512,"mimeType":"image/png"},"Rank:rank:4":{"__typename":"Rank","id":"rank:4","position":6,"name":"Microsoft","color":"333333","icon":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/cmstNC05WEo0blc\"}"},"rankStyle":"OUTLINE"},"User:user:988334":{"__typename":"User","id":"user:988334","uid":988334,"login":"paolosalvatori","deleted":false,"avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/dS05ODgzMzQtMzg1MjYyaTE4QTU5MkIyQUVCMkM0MDE"},"rank":{"__ref":"Rank:rank:4"},"email":"","messagesCount":67,"biography":null,"topicsCount":30,"kudosReceivedCount":160,"kudosGivenCount":29,"kudosWeight":1,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2021-03-05T07:56:49.951-08:00","confirmEmailStatus":null},"followersCount":null,"solutionsCount":0,"entityType":"USER","eventPath":"community:gxcuf89792/user:988334"},"Category:category:FastTrack":{"__typename":"Category","id":"category:FastTrack","entityType":"CATEGORY","displayId":"FastTrack","nodeType":"category","depth":3,"title":"Microsoft FastTrack","shortTitle":"Microsoft FastTrack","parent":{"__ref":"Category:category:products-services"}},"Category:category:top":{"__typename":"Category","id":"category:top","entityType":"CATEGORY","displayId":"top","nodeType":"category","depth":0,"title":"Top","shortTitle":"Top"},"Category:category:communities":{"__typename":"Category","id":"category:communities","entityType":"CATEGORY","displayId":"communities","nodeType":"category","depth":1,"parent":{"__ref":"Category:category:top"},"title":"Communities","shortTitle":"Communities"},"Category:category:products-services":{"__typename":"Category","id":"category:products-services","entityType":"CATEGORY","displayId":"products-services","nodeType":"category","depth":2,"parent":{"__ref":"Category:category:communities"},"title":"Products","shortTitle":"Products"},"Blog:board:FastTrackforAzureBlog":{"__typename":"Blog","id":"board:FastTrackforAzureBlog","entityType":"BLOG","displayId":"FastTrackforAzureBlog","nodeType":"board","depth":4,"conversationStyle":"BLOG","repliesProperties":{"__typename":"RepliesProperties","sortOrder":"REVERSE_PUBLISH_TIME","repliesFormat":"threaded"},"tagProperties":{"__typename":"TagNodeProperties","tagsEnabled":{"__typename":"PolicyResult","failureReason":null}},"requireTags":true,"tagType":"PRESET_ONLY","description":"","title":"FastTrack for Azure","shortTitle":"FastTrack for Azure","parent":{"__ref":"Category:category:FastTrack"},"ancestors":{"__typename":"CoreNodeConnection","edges":[{"__typename":"CoreNodeEdge","node":{"__ref":"Community:community:gxcuf89792"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:communities"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:products-services"}},{"__typename":"CoreNodeEdge","node":{"__ref":"Category:category:FastTrack"}}]},"userContext":{"__typename":"NodeUserContext","canAddAttachments":false,"canUpdateNode":false,"canPostMessages":false,"isSubscribed":false},"theme":{"__ref":"Theme:customTheme1"},"boardPolicies":{"__typename":"BoardPolicies","canViewSpamDashBoard":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.access_spam_quarantine.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.access_spam_quarantine.allowed.accessDenied","args":[]}},"canArchiveMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.content_archivals.enable_content_archival_settings.accessDenied","key":"error.lithium.policies.content_archivals.enable_content_archival_settings.accessDenied","args":[]}},"canPublishArticleOnCreate":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","key":"error.lithium.policies.forums.policy_can_publish_on_create_workflow_action.accessDenied","args":[]}}},"eventPath":"category:FastTrack/category:products-services/category:communities/community:gxcuf89792board:FastTrackforAzureBlog/"},"BlogTopicMessage:message:3834619":{"__typename":"BlogTopicMessage","uid":3834619,"subject":"Deploy and run a Azure OpenAI/ChatGPT application on AKS via Bicep","id":"message:3834619","revisionNum":5,"repliesCount":2,"author":{"__ref":"User:user:988334"},"depth":0,"hasGivenKudo":false,"board":{"__ref":"Blog:board:FastTrackforAzureBlog"},"conversation":{"__ref":"Conversation:conversation:3834619"},"messagePolicies":{"__typename":"MessagePolicies","canPublishArticleOnEdit":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.forums.policy_can_publish_on_edit_workflow_action.accessDenied","key":"error.lithium.policies.forums.policy_can_publish_on_edit_workflow_action.accessDenied","args":[]}},"canModerateSpamMessage":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","key":"error.lithium.policies.feature.moderation_spam.action.moderate_entity.allowed.accessDenied","args":[]}}},"contentWorkflow":{"__typename":"ContentWorkflow","state":"PUBLISH","scheduledPublishTime":null,"scheduledTimezone":null,"userContext":{"__typename":"MessageWorkflowContext","canSubmitForReview":null,"canEdit":false,"canRecall":null,"canSubmitForPublication":null,"canReturnToAuthor":null,"canPublish":null,"canReturnToReview":null,"canSchedule":false},"shortScheduledTimezone":null},"readOnly":false,"editFrozen":false,"moderationData":{"__ref":"ModerationData:moderation_data:3834619"},"teaser":"

This article shows how to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service via Bicep and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of a ChatGPT model.

\n

\n

 

\n

 

","body":"

This article shows how to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of a ChatGPT model. A chatbot is an application that simulates human-like conversations with users via chat. Its key task is to answer user questions with instant messages. Azure Kubernetes Service(AKS) cluster communicates with Azure OpenAI Service via an Azure Private Endpoint. The chatbot application simulates the original Magic 8 Ball plastic sphere, made to look like an oversized eight ball used for fortune-telling or seeking advice.

\n



\n

You can find the code of the chatbot and Bicep modules to deploy the environment in this GitHub repository. For a Terraform version of the article and companion sample, see How to deploy and run an Azure OpenAI ChatGPT application on AKS via Terraform.

\n

\n

AI applications perform tasks such as summarizing articles, writing stories, and engaging in long conversations with chatbots. This is made possible by large language models (LLMs) like OpenAI ChatGPT, which are deep learning algorithms capable of recognizing, summarizing, translating, predicting, and generating text and other content. LLMs leverage the knowledge acquired from extensive datasets, enabling them to perform tasks beyond teaching AI human languages. These models have succeeded in diverse domains, including understanding proteins, writing software code, and more. Apart from their applications in natural language processing, such as translation, chatbots, and AI assistants, large language models are also extensively employed in healthcare, software development, and various other fields.

\n

For more information on Azure OpenAI Service and Large Language Models (LLMs), see the following articles:

\n



\n\n



\n

Prerequisites

\n\n

You can run az --version to verify the above versions.

\n

To install the aks-preview extension, run the following command:

\n



\n
az extension add --name aks-preview
\n



\n

Run the following command to update to the latest version of the extension released:

\n



\n
az extension update --name aks-preview
\n



\n

Architecture

\n

This sample provides a set of Bicep modules to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of the ChatGPT model. Azure Kubernetes Service(AKS) cluster communicates with Azure OpenAI Service via an Azure Private Endpoint. The following diagram shows the architecture and network topology deployed by the sample:

\n

\n

\n

 

\n

Bicep modules are parametric, so you can choose any network plugin:

\n



\n\n



\n

The Bicep modules also allow installing the following extensions and add-ons for Azure Kubernetes Service(AKS):

\n

In addition, this sample shows how to deploy an Azure Kubernetes Service cluster with the following features:

\n



\n\n



\n

In a production environment, we strongly recommend deploying a private AKS cluster with Uptime SLA. For more information, see private AKS cluster with a Public DNS address. Alternatively, you can deploy a public AKS cluster and secure access to the API server using authorized IP address ranges.

\n

The Bicep modules deploy the following Azure resources:

\n



\n\n
\n

NOTE
You can find the architecture.vsdx file used for the diagram under the visio folder.

\n
\n



\n

What is Bicep?

\n

Bicep is a domain-specific language (DSL) that uses a declarative syntax to deploy Azure resources. It provides concise syntax, reliable type safety, and support for code reuse. Bicep offers the best authoring experience for your infrastructure-as-code solutions in Azure.

\n



\n

What is Azure OpenAI Service?

\n

The Azure OpenAI Service is a platform offered by Microsoft Azure that provides cognitive services powered by OpenAI models. One of the models available through this service is the ChatGPT model, designed for interactive conversational tasks. It allows developers to integrate natural language understanding and generation capabilities into their applications.

\n

Azure OpenAI Service provides REST API access to OpenAI's powerful language models, including the GPT-3, Codex and Embeddings model series. In addition, the new GPT-4 and ChatGPT model series have now reached general availability. These models can be easily adapted to your specific task, including but not limited to content generation, summarization, semantic search, and natural language to code translation. Users can access the service through REST APIs, Python SDK, or our web-based interface in the Azure OpenAI Studio.

\n

The Chat Completion API, part of the Azure OpenAI Service, provides a dedicated interface for interacting with the ChatGPT and GPT-4 models. This API is currently in preview and is the preferred method for accessing these models. The GPT-4 models can only be accessed through this API.

\n

GPT-3, GPT-3.5, and GPT-4 models from OpenAI are prompt-based. With prompt-based models, the user interacts with the model by entering a text prompt, to which the model responds with a text completion. This completion is the model’s continuation of the input text. While these models are extremely powerful, their behavior is also very sensitive to the prompt. This makes prompt construction a critical skill to develop. For more information, see Introduction to prompt engineering.

\n

Prompt construction can be complex. In practice, the prompt acts to configure the model weights to complete the desired task, but it's more of an art than a science, often requiring experience and intuition to craft a successful prompt. The goal of this article is to help get you started with this learning process. It attempts to capture general concepts and patterns that apply to all GPT models. However, it's essential to understand that each model behaves differently, so the learnings may not apply equally to all models.

\n

Prompt engineering refers to creating instructions called prompts for Large Language Models (LLMs), such as OpenAI’s ChatGPT. With the immense potential of LLMs to solve a wide range of tasks, leveraging prompt engineering can empower us to save significant time and facilitate the development of impressive applications. It holds the key to unleashing the full capabilities of these huge models, transforming how we interact and benefit from them. For more information, see Prompt engineering techniques.

\n



\n

Deploy the Bicep modules

\n

You can deploy the Bicep modules in the bicep folder using the deploy.sh Bash script in the same folder. Specify a value for the following parameters in the deploy.sh script and main.parameters.json parameters file before deploying the Bicep modules.

\n



\n\n



\n

We suggest reading sensitive configuration data such as passwords or SSH keys from a pre-existing Azure Key Vault resource. For more information, see Use Azure Key Vault to pass secure parameter value during Bicep deployment.

\n



\n

OpenAI Bicep Module

\n

The following table contains the code from the openAi.bicep Bicep module used to deploy the Azure OpenAI Service.

\n



\n
// Parameters\n@description('Specifies the name of the Azure OpenAI resource.')\nparam name string = 'aks-${uniqueString(resourceGroup().id)}'\n\n@description('Specifies the resource model definition representing SKU.')\nparam sku object = {\n  name: 'S0'\n}\n\n@description('Specifies the identity of the OpenAI resource.')\nparam identity object = {\n  type: 'SystemAssigned'\n}\n\n@description('Specifies the location.')\nparam location string = resourceGroup().location\n\n@description('Specifies the resource tags.')\nparam tags object\n\n@description('Specifies an optional subdomain name used for token-based authentication.')\nparam customSubDomainName string = ''\n\n@description('Specifies whether or not public endpoint access is allowed for this account..')\n@allowed([\n  'Enabled'\n  'Disabled'\n])\nparam publicNetworkAccess string = 'Enabled'\n\n@description('Specifies the OpenAI deployments to create.')\nparam deployments array = [\n  {\n    name: 'text-embedding-ada-002'\n    version: '2'\n    raiPolicyName: ''\n    capacity: 1\n    scaleType: 'Standard'\n  }\n  {\n    name: 'gpt-35-turbo'\n    version: '0301'\n    raiPolicyName: ''\n    capacity: 1\n    scaleType: 'Standard'\n  }\n  {\n    name: 'text-davinci-003'\n    version: '1'\n    raiPolicyName: ''\n    capacity: 1\n    scaleType: 'Standard'\n  }\n]\n\n@description('Specifies the workspace id of the Log Analytics used to monitor the Application Gateway.')\nparam workspaceId string\n\n// Variables\nvar diagnosticSettingsName = 'diagnosticSettings'\nvar openAiLogCategories = [\n  'Audit'\n  'RequestResponse'\n  'Trace'\n]\nvar openAiMetricCategories = [\n  'AllMetrics'\n]\nvar openAiLogs = [for category in openAiLogCategories: {\n  category: category\n  enabled: true\n}]\nvar openAiMetrics = [for category in openAiMetricCategories: {\n  category: category\n  enabled: true\n}]\n\n// Resources\nresource openAi 'Microsoft.CognitiveServices/accounts@2022-12-01' = {\n  name: name\n  location: location\n  sku: sku\n  kind: 'OpenAI'\n  identity: identity\n  tags: tags\n  properties: {\n    customSubDomainName: customSubDomainName\n    publicNetworkAccess: publicNetworkAccess\n  }\n}\n\nresource model 'Microsoft.CognitiveServices/accounts/deployments@2022-12-01' = \n                                                                    [for deployment in deployments: {\n  name: deployment.name\n  parent: openAi\n  properties: {\n    model: {\n      format: 'OpenAI'\n      name: deployment.name\n      version: deployment.version\n    }\n    raiPolicyName: deployment.raiPolicyName\n    scaleSettings: {\n      capacity: deployment.capacity\n      scaleType: deployment.scaleType\n    }\n  }\n}]\n\nresource openAiDiagnosticSettings 'Microsoft.Insights/diagnosticSettings@2021-05-01-preview' = {\n  name: diagnosticSettingsName\n  scope: openAi\n  properties: {\n    workspaceId: workspaceId\n    logs: openAiLogs\n    metrics: openAiMetrics\n  }\n}\n\n// Outputs\noutput id string = openAi.id\noutput name string = openAi.name
\n



\n

Azure Cognitive Services use custom subdomain names for each resource created through the Azure portal, Azure Cloud Shell, Azure CLI, Bicep, Azure Resource Manager (ARM), or Terraform. Unlike regional endpoints, common for all customers in a specific Azure region, custom subdomain names are unique to the resource. Custom subdomain names are required to enable authentication features like Azure Active Directory (Azure AD). We need to specify a custom subdomain for our Azure OpenAI Service, as our chatbot application will use an Azure AD security token to access it. By default, the main.bicep module sets the value of the customSubDomainName parameter to the lowercase name of the Azure OpenAI resource. For more information on custom subdomains, see Custom subdomain names for Cognitive Services.

\n



\n

This bicep module allows you to pass an array containing the definition of one or more model deployments in the deployments parameter. For more information on model deployments, see Create a resource and deploy a model using Azure OpenAI

\n



\n

AKS Cluster Bicep module

\n

The aksCluster.bicep Bicep module is used to deploy the Azure Kubernetes Service(AKS) cluster. In particular, the following code snippet creates the user-defined managed identity used by the chatbot to acquire a security token from Azure Active Directory via Azure AD workload identity. When the boolean openAiEnabled parameter is true, the Bicep code performs the following steps:

\n



\n\n



\n

For more information, see the following resources:

\n



\n\n



\n
...\n@description('Specifies the name of the user-defined managed identity used by the application that uses Azure AD workload identity to authenticate against Azure OpenAI.')\nparam workloadManagedIdentityName string\n\n@description('Specifies whether creating the Azure OpenAi resource or not.')\nparam openAiEnabled bool = false\n...\n//  This user-defined managed identity used by the workload to connect to the Azure OpenAI resource with a security token issued by Azure Active Directory\nresource workloadManagedIdentity 'Microsoft.ManagedIdentity/userAssignedIdentities@2023-01-31' = if (openAiEnabled) {\n  name: workloadManagedIdentityName\n  location: location\n  tags: tags\n}\n\n// Assign the Cognitive Services User role to the user-defined managed identity used by workloads\nresource cognitiveServicesUserRoleAssignment 'Microsoft.Authorization/roleAssignments@2022-04-01' = if (openAiEnabled) {\n  name:  guid(workloadManagedIdentity.id, cognitiveServicesUserRoleDefinitionId)\n  scope: resourceGroup()\n  properties: {\n    roleDefinitionId: cognitiveServicesUserRoleDefinitionId\n    principalId: workloadManagedIdentity.properties.principalId\n    principalType: 'ServicePrincipal'\n  }\n}\n\n// Create federated identity for the user-defined managed identity used by the workload\nresource federatedIdentityCredentials 'Microsoft.ManagedIdentity/userAssignedIdentities/federatedIdentityCredentials@2023-01-31' = {\n  name: letterCaseType == 'UpperCamelCase' ? '${toUpper(first(namespace))}${toLower(substring(namespace, 1, length(namespace) - 1))}FederatedIdentity' : letterCaseType == 'CamelCase' ? '${toLower(namespace)}FederatedIdentity' : '${toLower(namespace)}-federated-identity'\n  parent: workloadManagedIdentity\n  properties: {\n    issuer: aksCluster.properties.oidcIssuerProfile.issuerURL\n    subject: 'system:serviceaccount:${namespace}:${serviceAccountName}'\n    audiences: [\n      'api://AzureADTokenExchange'\n    ]\n  }\n}\n...\n// Output\noutput id string = aksCluster.id\noutput name string = aksCluster.name\noutput issuerUrl string = aksCluster.properties.oidcIssuerProfile.issuerURL\noutput workloadManagedIdentityClientId string = workloadManagedIdentity.properties.clientId
\n



\n

Validate the deployment

\n

Open the Azure Portal, and navigate to the resource group. Open the Azure Open AI Service resource, navigate to Keys and Endpoint, and check that the endpoint contains a custom subdomain rather than the regional Cognitive Services endpoint.

\n

\n

\n

 

\n



\n

Open to the <Prefix>WorkloadManagedIdentity managed identity, navigate to the Federated credentials, and verify that the federated identity credentials for the magic8ball-sa service account were created correctly, as shown in the following picture.

\n

\n

\n



\n

Use Azure AD workload identity with Azure Kubernetes Service (AKS)

\n

Workloads deployed on an Azure Kubernetes Services (AKS) cluster require Azure Active Directory (Azure AD) application credentials or managed identities to access Azure AD-protected resources, such as Azure Key Vault and Microsoft Graph. Azure AD workload identity integrates with the capabilities native to Kubernetes to federate with external identity providers.

\n

Azure AD workload identity uses Service Account Token Volume Projection to enable pods to use a Kubernetes service account. When enabled, the AKS OIDC Issuer issues a service account security token to a workload, and OIDC federation enables the application to access Azure resources securely with Azure AD based on annotated service accounts.

\n

Azure AD workload identity works well with the Azure Identity client libraries and the Microsoft Authentication Library (MSAL) collection if you use a registered application instead of a managed identity. Your workload can use any of these libraries to authenticate and access Azure cloud resources seamlessly. For more information, see the following resources:

\n



\n\n



\n

Azure Identity client libraries

\n

In the Azure Identity client libraries, you can choose one of the following approaches:

\n



\n\n

The following table provides the minimum package version required for each language's client library.

\n



\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
LanguageLibraryMinimum VersionExample
.NETAzure.Identity1.9.0Link
Goazidentity1.3.0Link
Javaazure-identity1.9.0Link
JavaScript@azure/identity3.2.0Link
Pythonazure-identity1.13.0Link
\n



\n

Microsoft Authentication Library (MSAL)

\n

The following client libraries are the minimum version required

\n



\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
LanguageLibraryImageExampleHas Windows
.NETmicrosoft-authentication-library-for-dotnetghcr.io/azure/azure-workload-identity/msal-netLinkYes
Gomicrosoft-authentication-library-for-goghcr.io/azure/azure-workload-identity/msal-goLinkYes
Javamicrosoft-authentication-library-for-javaghcr.io/azure/azure-workload-identity/msal-javaLinkNo
JavaScriptmicrosoft-authentication-library-for-jsghcr.io/azure/azure-workload-identity/msal-nodeLinkNo
Pythonmicrosoft-authentication-library-for-pythonghcr.io/azure/azure-workload-identity/msal-pythonLinkNo
\n



\n

Deployment Script

\n

The sample makes use of a Deployment Script to run the install-nginx-via-helm-and-create-sa.sh Bash script that creates the namespace and service account for the sample application and installs the following packages to the AKS cluster via Helm. For more information on deployment scripts, see Use deployment scripts in Bicep.

\n



\n\n



\n

This sample uses the NGINX Ingress Controller to expose the chatbot to the public internet. Companion Bicep modules allow deploying an Azure Application Gateway and Application Gateway Ingress Controller just by setting the value of the applicationGatewayEnabled to true. So you can easily modify this sample to expose the chatbot to the public internet using the Application Gateway Ingress Controller instead of the NGINX Ingress Controller.

\n



\n
# Install kubectl\naz aks install-cli --only-show-errors\n\n# Get AKS credentials\naz aks get-credentials \\\n  --admin \\\n  --name $clusterName \\\n  --resource-group $resourceGroupName \\\n  --subscription $subscriptionId \\\n  --only-show-errors\n\n# Check if the cluster is private or not\nprivate=$(az aks show --name $clusterName \\\n  --resource-group $resourceGroupName \\\n  --subscription $subscriptionId \\\n  --query apiServerAccessProfile.enablePrivateCluster \\\n  --output tsv)\n\n# Install Helm\ncurl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 -o get_helm.sh -s\nchmod 700 get_helm.sh\n./get_helm.sh &>/dev/null\n\n# Add Helm repos\nhelm repo add prometheus-community https://prometheus-community.github.io/helm-charts\nhelm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx\nhelm repo add jetstack https://charts.jetstack.io\n\n# Update Helm repos\nhelm repo update\n\nif [[ $private == 'true' ]]; then\n  # Log whether the cluster is public or private\n  echo \"$clusterName AKS cluster is public\"\n\n  # Install Prometheus\n  command=\"helm install prometheus prometheus-community/kube-prometheus-stack \\\n  --create-namespace \\\n  --namespace prometheus \\\n  --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \\\n  --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false\"\n\n  az aks command invoke \\\n    --name $clusterName \\\n    --resource-group $resourceGroupName \\\n    --subscription $subscriptionId \\\n    --command \"$command\"\n\n  # Install NGINX ingress controller using the internal load balancer\n  command=\"helm install nginx-ingress ingress-nginx/ingress-nginx \\\n    --create-namespace \\\n    --namespace ingress-basic \\\n    --set controller.replicaCount=3 \\\n    --set controller.nodeSelector.\\\"kubernetes\\.io/os\\\"=linux \\\n    --set defaultBackend.nodeSelector.\\\"kubernetes\\.io/os\\\"=linux \\\n    --set controller.metrics.enabled=true \\\n    --set controller.metrics.serviceMonitor.enabled=true \\\n    --set controller.metrics.serviceMonitor.additionalLabels.release=\\\"prometheus\\\" \\\n    --set controller.service.annotations.\\\"service\\.beta\\.kubernetes\\.io/azure-load-balancer-health-probe-request-path\\\"=/healthz\"\n\n  az aks command invoke \\\n    --name $clusterName \\\n    --resource-group $resourceGroupName \\\n    --subscription $subscriptionId \\\n    --command \"$command\"\n\n  # Install certificate manager\n  command=\"helm install cert-manager jetstack/cert-manager \\\n    --create-namespace \\\n    --namespace cert-manager \\\n    --set installCRDs=true \\\n    --set nodeSelector.\\\"kubernetes\\.io/os\\\"=linux\"\n\n  az aks command invoke \\\n    --name $clusterName \\\n    --resource-group $resourceGroupName \\\n    --subscription $subscriptionId \\\n    --command \"$command\"\n\n  # Create cluster issuer\n  command=\"cat <<EOF | kubectl apply -f -\napiVersion: cert-manager.io/v1\nkind: ClusterIssuer\nmetadata:\n  name: letsencrypt-nginx\nspec:\n  acme:\n    server: https://acme-v02.api.letsencrypt.org/directory\n    email: $email\n    privateKeySecretRef:\n      name: letsencrypt\n    solvers:\n    - http01:\n        ingress:\n          class: nginx\n          podTemplate:\n            spec:\n              nodeSelector:\n                \"kubernetes.io/os\": linux\nEOF\"\n\n  az aks command invoke \\\n    --name $clusterName \\\n    --resource-group $resourceGroupName \\\n    --subscription $subscriptionId \\\n    --command \"$command\"\n\n  # Create workload namespace\n  command=\"kubectl create namespace $namespace\"\n\n  az aks command invoke \\\n    --name $clusterName \\\n    --resource-group $resourceGroupName \\\n    --subscription $subscriptionId \\\n    --command \"$command\"\n\n  # Create service account\n  command=\"cat <<EOF | kubectl apply -f -\napiVersion: v1\nkind: ServiceAccount\nmetadata:\n  annotations:\n    azure.workload.identity/client-id: $workloadManagedIdentityClientId\n    azure.workload.identity/tenant-id: $tenantId\n  labels:\n    azure.workload.identity/use: \"true\"\n  name: $serviceAccountName\n  namespace: $namespace\nEOF\"\n\n  az aks command invoke \\\n    --name $clusterName \\\n    --resource-group $resourceGroupName \\\n    --subscription $subscriptionId \\\n    --command \"$command\"\n\nelse\n  # Log whether the cluster is public or private\n  echo \"$clusterName AKS cluster is private\"\n\n  # Install Prometheus\n  helm install prometheus prometheus-community/kube-prometheus-stack \\\n    --create-namespace \\\n    --namespace prometheus \\\n    --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \\\n    --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false\n\n  # Install NGINX ingress controller using the internal load balancer\n  helm install nginx-ingress ingress-nginx/ingress-nginx \\\n    --create-namespace \\\n    --namespace ingress-basic \\\n    --set controller.replicaCount=3 \\\n    --set controller.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n    --set defaultBackend.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n    --set controller.metrics.enabled=true \\\n    --set controller.metrics.serviceMonitor.enabled=true \\\n    --set controller.metrics.serviceMonitor.additionalLabels.release=\"prometheus\" \\\n    --set controller.service.annotations.\"service\\.beta\\.kubernetes\\.io/azure-load-balancer-health-probe-request-path\"=/healthz\n\n  helm install $nginxReleaseName $nginxRepoName/$nginxChartName \\\n    --create-namespace \\\n    --namespace $nginxNamespace\n\n  # Install certificate manager\n  helm install cert-manager jetstack/cert-manager \\\n    --create-namespace \\\n    --namespace cert-manager \\\n    --set installCRDs=true \\\n    --set nodeSelector.\"kubernetes\\.io/os\"=linux\n\n  # Create cluster issuer\n  cat <<EOF | kubectl apply -f -\napiVersion: cert-manager.io/v1\nkind: ClusterIssuer\nmetadata:\n  name: letsencrypt-nginx\nspec:\n  acme:\n    server: https://acme-v02.api.letsencrypt.org/directory\n    email: $email\n    privateKeySecretRef:\n      name: letsencrypt\n    solvers:\n    - http01:\n        ingress:\n          class: nginx\n          podTemplate:\n            spec:\n              nodeSelector:\n                \"kubernetes.io/os\": linux\nEOF\n\n  # Create workload namespace\n  kubectl create namespace $namespace\n\n  # Create service account\n  cat <<EOF | kubectl apply -f -\napiVersion: v1\nkind: ServiceAccount\nmetadata:\n  annotations:\n    azure.workload.identity/client-id: $workloadManagedIdentityClientId\n    azure.workload.identity/tenant-id: $tenantId\n  labels:\n    azure.workload.identity/use: \"true\"\n  name: $serviceAccountName\n  namespace: $namespace\nEOF\n\nfi\n\n# Create output as JSON file\necho '{}' |\n  jq --arg x $namespace '.namespace=$x' |\n  jq --arg x $serviceAccountName '.serviceAccountName=$x' |\n  jq --arg x 'prometheus' '.prometheus=$x' |\n  jq --arg x 'cert-manager' '.certManager=$x' |\n  jq --arg x 'ingress-basic' '.nginxIngressController=$x' >$AZ_SCRIPTS_OUTPUT_PATH
\n



\n

The install-nginx-via-helm-and-create-sa.sh Bash script can run on a public AKS cluster or on a private AKS cluster using the az aks command invoke. For more information, see Use command invoke to access a private Azure Kubernetes Service (AKS) cluster.

\n

The install-nginx-via-helm-and-create-sa.sh Bash script returns the following outputs to the deployment script:

\n



\n\n



\n

Chatbot Application

\n

The chatbot is a Python application inspired by the sample code in the It’s Time To Create A Private ChatGPT For Yourself Today article.

\n

\n

The application is contained in a single file called app.py. The application makes use of the following libraries:

\n



\n\n

The requirements.txt file under the scripts folder contains the list of packages used by the app.py application that you can restore using the following command:

\n



\n
pip install -r requirements.txt --upgrade
\n



\n

The following table contains the code of the app.py chatbot:

\n



\n
# Import packages\nimport os\nimport sys\nimport time\nimport openai\nimport logging\nimport streamlit as st\nfrom streamlit_chat import message\nfrom azure.identity import DefaultAzureCredential\nfrom dotenv import load_dotenv\nfrom dotenv import dotenv_values\n\n# Load environment variables from .env file\nif os.path.exists(\".env\"):\n  load_dotenv(override=True)\n  config = dotenv_values(\".env\")\n\n# Read environment variables\nassistan_profile = \"\"\"\nYou are the infamous Magic 8 Ball. You need to randomly reply to any question with one of the following answers:\n\n- It is certain.\n- It is decidedly so.\n- Without a doubt.\n- Yes definitely.\n- You may rely on it.\n- As I see it, yes.\n- Most likely.\n- Outlook good.\n- Yes.\n- Signs point to yes.\n- Reply hazy, try again.\n- Ask again later.\n- Better not tell you now.\n- Cannot predict now.\n- Concentrate and ask again.\n- Don't count on it.\n- My reply is no.\n- My sources say no.\n- Outlook not so good.\n- Very doubtful.\n\nAdd a short comment in a pirate style at the end! Follow your heart and be creative! \nFor mor information, see https://en.wikipedia.org/wiki/Magic_8_Ball\n\"\"\"\ntitle = os.environ.get(\"TITLE\", \"Magic 8 Ball\")\ntext_input_label = os.environ.get(\"TEXT_INPUT_LABEL\", \"Pose your question and cross your fingers!\")\nimage_file_name = os.environ.get(\"IMAGE_FILE_NAME\", \"magic8ball.png\")\nimage_width = int(os.environ.get(\"IMAGE_WIDTH\", 80))\ntemperature = float(os.environ.get(\"TEMPERATURE\", 0.9))\nsystem = os.environ.get(\"SYSTEM\", assistan_profile)\napi_base = os.getenv(\"AZURE_OPENAI_BASE\")\napi_key = os.getenv(\"AZURE_OPENAI_KEY\")\napi_type = os.environ.get(\"AZURE_OPENAI_TYPE\", \"azure\")\napi_version = os.environ.get(\"AZURE_OPENAI_VERSION\", \"2023-05-15\")\nengine = os.getenv(\"AZURE_OPENAI_DEPLOYMENT\")\nmodel = os.getenv(\"AZURE_OPENAI_MODEL\")\n\n# Configure OpenAI\nopenai.api_type = api_type\nopenai.api_version = api_version\nopenai.api_base = api_base \n\n# Set default Azure credential\ndefault_credential = DefaultAzureCredential() if openai.api_type == \"azure_ad\" else None\n\n# Configure a logger\nlogging.basicConfig(stream = sys.stdout, \n                    format = '[%(asctime)s] {%(filename)s:%(lineno)d} %(levelname)s - %(message)s',\n                    level = logging.INFO)\nlogger = logging.getLogger(__name__)\n\n# Log variables\nlogger.info(f\"title: {title}\")\nlogger.info(f\"text_input_label: {text_input_label}\")\nlogger.info(f\"image_file_name: {image_file_name}\")\nlogger.info(f\"image_width: {image_width}\")\nlogger.info(f\"temperature: {temperature}\")\nlogger.info(f\"system: {system}\")\nlogger.info(f\"api_base: {api_base}\")\nlogger.info(f\"api_key: {api_key}\")\nlogger.info(f\"api_type: {api_type}\")\nlogger.info(f\"api_version: {api_version}\")\nlogger.info(f\"engine: {engine}\")\nlogger.info(f\"model: {model}\")\n\n# Authenticate to Azure OpenAI\nif openai.api_type == \"azure\":\n  openai.api_key = api_key\nelif openai.api_type == \"azure_ad\":\n  openai_token = default_credential.get_token(\"https://cognitiveservices.azure.com/.default\")\n  openai.api_key = openai_token.token\n  if 'openai_token' not in st.session_state:\n    st.session_state['openai_token'] = openai_token\nelse:\n  logger.error(\"Invalid API type. Please set the AZURE_OPENAI_TYPE environment variable to azure or azure_ad.\")\n  raise ValueError(\"Invalid API type. Please set the AZURE_OPENAI_TYPE environment variable to azure or azure_ad.\")\n\n# Customize Streamlit UI using CSS\nst.markdown(\"\"\"\n<style>\n\ndiv.stButton > button:first-child {\n    background-color: #eb5424;\n    color: white;\n    font-size: 20px;\n    font-weight: bold;\n    border-radius: 0.5rem;\n    padding: 0.5rem 1rem;\n    border: none;\n    box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n    width: 300 px;\n    height: 42px;\n    transition: all 0.2s ease-in-out;\n} \n\ndiv.stButton > button:first-child:hover {\n    transform: translateY(-3px);\n    box-shadow: 0 1rem 2rem rgba(0,0,0,0.15);\n}\n\ndiv.stButton > button:first-child:active {\n    transform: translateY(-1px);\n    box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n}\n\ndiv.stButton > button:focus:not(:focus-visible) {\n    color: #FFFFFF;\n}\n\n@media only screen and (min-width: 768px) {\n  /* For desktop: */\n  div {\n      font-family: 'Roboto', sans-serif;\n  }\n\n  div.stButton > button:first-child {\n      background-color: #eb5424;\n      color: white;\n      font-size: 20px;\n      font-weight: bold;\n      border-radius: 0.5rem;\n      padding: 0.5rem 1rem;\n      border: none;\n      box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n      width: 300 px;\n      height: 42px;\n      transition: all 0.2s ease-in-out;\n      position: relative;\n      bottom: -32px;\n      right: 0px;\n  } \n\n  div.stButton > button:first-child:hover {\n      transform: translateY(-3px);\n      box-shadow: 0 1rem 2rem rgba(0,0,0,0.15);\n  }\n\n  div.stButton > button:first-child:active {\n      transform: translateY(-1px);\n      box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n  }\n\n  div.stButton > button:focus:not(:focus-visible) {\n      color: #FFFFFF;\n  }\n\n  input {\n      border-radius: 0.5rem;\n      padding: 0.5rem 1rem;\n      border: none;\n      box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n      transition: all 0.2s ease-in-out;\n      height: 40px;\n  }\n}\n</style>\n\"\"\", unsafe_allow_html=True)\n\n# Initialize Streamlit session state\nif 'prompts' not in st.session_state:\n  st.session_state['prompts'] = [{\"role\": \"system\", \"content\": system}]\n\nif 'generated' not in st.session_state:\n  st.session_state['generated'] = []\n\nif 'past' not in st.session_state:\n  st.session_state['past'] = []\n\n# Refresh the OpenAI security token every 45 minutes\ndef refresh_openai_token():\n  if st.session_state['openai_token'].expires_on < int(time.time()) - 45 * 60:\n      st.session_state['openai_token'] = default_credential.get_token(\"https://cognitiveservices.azure.com/.default\")\n      openai.api_key = st.session_state['openai_token'].token\n\n# Send user prompt to Azure OpenAI \ndef generate_response(prompt):\n  try:\n    st.session_state['prompts'].append({\"role\": \"user\", \"content\": prompt})\n\n    if openai.api_type == \"azure_ad\":\n      refresh_openai_token()\n\n    completion = openai.ChatCompletion.create(\n      engine = engine,\n      model = model,\n      messages = st.session_state['prompts'],\n      temperature = temperature,\n    )\n    \n    message = completion.choices[0].message.content\n    return message\n  except Exception as e:\n    logging.exception(f\"Exception in generate_response: {e}\")\n\n# Reset Streamlit session state to start a new chat from scratch\ndef new_click():\n  st.session_state['prompts'] = [{\"role\": \"system\", \"content\": system}]\n  st.session_state['past'] = []\n  st.session_state['generated'] = []\n  st.session_state['user'] = \"\"\n\n# Handle on_change event for user input\ndef user_change():\n  # Avoid handling the event twice when clicking the Send button\n  chat_input = st.session_state['user']\n  st.session_state['user'] = \"\"\n  if (chat_input == '' or\n      (len(st.session_state['past']) > 0 and chat_input == st.session_state['past'][-1])):\n    return\n  \n  # Generate response invoking Azure OpenAI LLM\n  if chat_input !=  '':\n    output = generate_response(chat_input)\n    \n    # store the output\n    st.session_state['past'].append(chat_input)\n    st.session_state['generated'].append(output)\n    st.session_state['prompts'].append({\"role\": \"assistant\", \"content\": output})\n\n# Create a 2-column layout. Note: Streamlit columns do not properly render on mobile devices.\n# For more information, see https://github.com/streamlit/streamlit/issues/5003\ncol1, col2 = st.columns([1, 7])\n\n# Display the robot image\nwith col1:\n  st.image(image = os.path.join(\"images\", image_file_name), width = image_width)\n\n# Display the title\nwith col2:\n  st.title(title)\n\n# Create a 3-column layout. Note: Streamlit columns do not properly render on mobile devices.\n# For more information, see https://github.com/streamlit/streamlit/issues/5003\ncol3, col4, col5 = st.columns([7, 1, 1])\n\n# Create text input in column 1\nwith col3:\n  user_input = st.text_input(text_input_label, key = \"user\", on_change = user_change)\n\n# Create send button in column 2\nwith col4:\n  st.button(label = \"Send\")\n\n# Create new button in column 3\nwith col5:\n  st.button(label = \"New\", on_click = new_click)\n\n# Display the chat history in two separate tabs\n# - normal: display the chat history as a list of messages using the streamlit_chat message() function \n# - rich: display the chat history as a list of messages using the Streamlit markdown() function\nif st.session_state['generated']:\n  tab1, tab2 = st.tabs([\"normal\", \"rich\"])\n  with tab1:\n    for i in range(len(st.session_state['generated']) - 1, -1, -1):\n      message(st.session_state['past'][i], is_user = True, key = str(i) + '_user', avatar_style = \"fun-emoji\", seed = \"Nala\")\n      message(st.session_state['generated'][i], key = str(i), avatar_style = \"bottts\", seed = \"Fluffy\")\n  with tab2:\n    for i in range(len(st.session_state['generated']) - 1, -1, -1):\n      st.markdown(st.session_state['past'][i])\n      st.markdown(st.session_state['generated'][i])
\n



\n

The application uses an internal cascading style sheet (CSS) inside an st.markdown element to add a unique style to the Streamlit chatbot for mobile and desktop devices. For more information on how to tweak the user interface of a Streamlit application, see 3 Tips to Customize your Streamlit App.

\n



\n
streamlit run app.py
\n



\n

Working with the ChatGPT and GPT-4 models

\n

The generate_response function creates and sends the prompt to the Chat Completion API of the ChatGPT model.

\n



\n
def generate_response(prompt):\n  try:\n    st.session_state['prompts'].append({\"role\": \"user\", \"content\": prompt})\n\n    if openai.api_type == \"azure_ad\":\n      refresh_openai_token()\n\n    completion = openai.ChatCompletion.create(\n      engine = engine,\n      model = model,\n      messages = st.session_state['prompts'],\n      temperature = temperature,\n    )\n    \n    message = completion.choices[0].message.content\n    return message\n  except Exception as e:\n    logging.exception(f\"Exception in generate_response: {e}\")
\n



\n

OpenAI trained the ChatGPT and GPT-4 models to accept input formatted as a conversation. The messages parameter takes an array of dictionaries with a conversation organized by role or message: system, user, and assistant. The format of a basic Chat Completion is as follows:

\n



\n
{\"role\": \"system\", \"content\": \"Provide some context and/or instructions to the model\"},\n{\"role\": \"user\", \"content\": \"The users messages goes here\"},\n{\"role\": \"assistant\", \"content\": \"The response message goes here.\"}
\n



\n

The system role, also known as the system message, is included at the beginning of the array. This message provides the initial instructions for the model. You can provide various information in the system role, including:

\n



\n\n



\n

The system role or message is optional, but it's recommended to at least include a basic one to get the best results. The user role or message represents an input or inquiry from the user, while the assistant message corresponds to the response generated by the GPT API. This dialog exchange aims to simulate a human-like conversation, where the user message initiates the interaction and the assistant message provides a relevant and informative answer. This context helps the chat model generate a more appropriate response later on. The last user message refers to the prompt currently requested. For more information, see Learn how to work with the ChatGPT and GPT-4 models.

\n



\n

Application Configuration

\n

Make sure to provide a value for the following environment variables when testing the app.py Python app locally, for example in Visual Studio Code. You can eventually define environment variables in a .env file in the same folder as the app.py file.

\n



\n\n



\n

When deploying the application to Azure Kubernetes Service (AKS), these values are provided in a Kubernetes ConfigMap. For more information, see the next section.

\n



\n

OpenAI Library

\n

To use the openai library with Microsoft Azure endpoints, you need to set the api_type, api_base and api_version in addition to the api_key. The api_type must be set to 'azure' and the others correspond to the properties of your endpoint. In addition, the deployment name must be passed as the engine parameter. To use OpenAI Key to authenticate to your Azure endpoint, you need to set the api_type to azure and pass the OpenAI Key to api_key.

\n



\n
import openai\nopenai.api_type = \"azure\"\nopenai.api_key = \"...\"\nopenai.api_base = \"https://example-endpoint.openai.azure.com\"\nopenai.api_version = \"2023-05-15\"\n\n# create a chat completion\nchat_completion = openai.ChatCompletion.create(deployment_id=\"gpt-3.5-turbo\", model=\"gpt-3.5-turbo\", messages=[{\"role\": \"user\", \"content\": \"Hello world\"}])\n\n# print the completion\nprint(completion.choices[0].message.content)
\n



\n

For a detailed example of how to use fine-tuning and other operations using Azure endpoints, please check out the following Jupyter notebooks:

\n



\n\n



\n

To use Microsoft Active Directory to authenticate to your Azure endpoint, you need to set the api_type to azure_ad and pass the acquired credential token to api_key. The rest of the parameters must be set as specified in the previous section.

\n



\n
from azure.identity import DefaultAzureCredential\nimport openai\n\n# Request credential\ndefault_credential = DefaultAzureCredential()\ntoken = default_credential.get_token(\"https://cognitiveservices.azure.com/.default\")\n\n# Setup parameters\nopenai.api_type = \"azure_ad\"\nopenai.api_key = token.token\nopenai.api_base = \"https://example-endpoint.openai.azure.com/\"\nopenai.api_version = \"2023-05-15\"\n\n# ...
\n



\n

You can use two different authentication methods in the magic8ball chatbot application:

\n



\n\n



\n

Build the container image

\n

You can build the container image using the 01-build-docker-image.sh in the scripts folder.

\n



\n

Dockerfile

\n



\n
# app/Dockerfile\n\n# # Stage 1 - Install build dependencies\n\n# A Dockerfile must start with a FROM instruction which sets the base image for the container.\n# The Python images come in many flavors, each designed for a specific use case.\n# The python:3.11-slim image is a good base image for most applications.\n# It is a minimal image built on top of Debian Linux and includes only the necessary packages to run Python.\n# The slim image is a good choice because it is small and contains only the packages needed to run Python.\n# For more information, see: \n# * https://hub.docker.com/_/python \n# * https://docs.streamlit.io/knowledge-base/tutorials/deploy/docker\nFROM python:3.11-slim AS builder\n\n# The WORKDIR instruction sets the working directory for any RUN, CMD, ENTRYPOINT, COPY and ADD instructions that follow it in the Dockerfile.\n# If the WORKDIR doesn’t exist, it will be created even if it’s not used in any subsequent Dockerfile instruction.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#workdir\nWORKDIR /app\n\n# Set environment variables. \n# The ENV instruction sets the environment variable <key> to the value <value>.\n# This value will be in the environment of all “descendant” Dockerfile commands and can be replaced inline in many as well.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#env\nENV PYTHONDONTWRITEBYTECODE 1\nENV PYTHONUNBUFFERED 1\n\n# Install git so that we can clone the app code from a remote repo using the RUN instruction.\n# The RUN comand has 2 forms:\n# * RUN <command> (shell form, the command is run in a shell, which by default is /bin/sh -c on Linux or cmd /S /C on Windows)\n# * RUN [\"executable\", \"param1\", \"param2\"] (exec form)\n# The RUN instruction will execute any commands in a new layer on top of the current image and commit the results. \n# The resulting committed image will be used for the next step in the Dockerfile.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#run\nRUN apt-get update && apt-get install -y \\\n    build-essential \\\n    curl \\\n    software-properties-common \\\n    git \\\n    && rm -rf /var/lib/apt/lists/*\n\n# Create a virtualenv to keep dependencies together\nRUN python -m venv /opt/venv\nENV PATH=\"/opt/venv/bin:$PATH\"\n\n# Clone the requirements.txt which contains dependencies to WORKDIR\n# COPY has two forms:\n# * COPY <src> <dest> (this copies the files from the local machine to the container's own filesystem)\n# * COPY [\"<src>\",... \"<dest>\"] (this form is required for paths containing whitespace)\n# For more information, see: https://docs.docker.com/engine/reference/builder/#copy\nCOPY requirements.txt .\n\n# Install the Python dependencies\nRUN pip install --no-cache-dir --no-deps -r requirements.txt\n\n# Stage 2 - Copy only necessary files to the runner stage\n\n# The FROM instruction initializes a new build stage for the application\nFROM python:3.11-slim\n\n# Sets the working directory to /app\nWORKDIR /app\n\n# Copy the virtual environment from the builder stage\nCOPY --from=builder /opt/venv /opt/venv\n\n# Set environment variables\nENV PATH=\"/opt/venv/bin:$PATH\"\n\n# Clone the app.py containing the application code\nCOPY app.py .\n\n# Copy the images folder to WORKDIR\n# The ADD instruction copies new files, directories or remote file URLs from <src> and adds them to the filesystem of the image at the path <dest>.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#add\nADD images ./images\n\n# The EXPOSE instruction informs Docker that the container listens on the specified network ports at runtime.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#expose\nEXPOSE 8501\n\n# The HEALTHCHECK instruction has two forms:\n# * HEALTHCHECK [OPTIONS] CMD command (check container health by running a command inside the container)\n# * HEALTHCHECK NONE (disable any healthcheck inherited from the base image)\n# The HEALTHCHECK instruction tells Docker how to test a container to check that it is still working. \n# This can detect cases such as a web server that is stuck in an infinite loop and unable to handle new connections, \n# even though the server process is still running. For more information, see: https://docs.docker.com/engine/reference/builder/#healthcheck\nHEALTHCHECK CMD curl --fail http://localhost:8501/_stcore/health\n\n# The ENTRYPOINT instruction has two forms:\n# * ENTRYPOINT [\"executable\", \"param1\", \"param2\"] (exec form, preferred)\n# * ENTRYPOINT command param1 param2 (shell form)\n# The ENTRYPOINT instruction allows you to configure a container that will run as an executable.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#entrypoint\nENTRYPOINT [\"streamlit\", \"run\", \"app.py\", \"--server.port=8501\", \"--server.address=0.0.0.0\"]
\n



\n

01-build-docker-image.sh

\n



\n
#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Build the docker image\ndocker build -t $imageName:$tag -f Dockerfile .
\n



\n

Before running any script, make sure to customize the value of the variables inside the 00-variables.sh file. This file is embedded in all the scripts and contains the following variables:

\n



\n
# Variables\nacrName=\"CoralAcr\"\nacrResourceGrougName=\"CoralRG\"\nlocation=\"FranceCentral\"\nattachAcr=false\nimageName=\"magic8ball\"\ntag=\"v2\"\ncontainerName=\"magic8ball\"\nimage=\"$acrName.azurecr.io/$imageName:$tag\"\nimagePullPolicy=\"IfNotPresent\" # Always, Never, IfNotPresent\nmanagedIdentityName=\"OpenAiManagedIdentity\"\nfederatedIdentityName=\"Magic8BallFederatedIdentity\"\n\n# Azure Subscription and Tenant\nsubscriptionId=$(az account show --query id --output tsv)\nsubscriptionName=$(az account show --query name --output tsv)\ntenantId=$(az account show --query tenantId --output tsv)\n\n# Parameters\ntitle=\"Magic 8 Ball\"\nlabel=\"Pose your question and cross your fingers!\"\ntemperature=\"0.9\"\nimageWidth=\"80\"\n\n# OpenAI\nopenAiName=\"CoralOpenAi \"\nopenAiResourceGroupName=\"CoralRG\"\nopenAiType=\"azure_ad\"\nopenAiBase=\"https://coralopenai.openai.azure.com/\"\nopenAiModel=\"gpt-35-turbo\"\nopenAiDeployment=\"gpt-35-turbo\"\n\n# Nginx Ingress Controller\nnginxNamespace=\"ingress-basic\"\nnginxRepoName=\"ingress-nginx\"\nnginxRepoUrl=\"https://kubernetes.github.io/ingress-nginx\"\nnginxChartName=\"ingress-nginx\"\nnginxReleaseName=\"nginx-ingress\"\nnginxReplicaCount=3\n\n# Certificate Manager\ncmNamespace=\"cert-manager\"\ncmRepoName=\"jetstack\"\ncmRepoUrl=\"https://charts.jetstack.io\"\ncmChartName=\"cert-manager\"\ncmReleaseName=\"cert-manager\"\n\n# Cluster Issuer\nemail=\"paolos@microsoft.com\"\nclusterIssuerName=\"letsencrypt-nginx\"\nclusterIssuerTemplate=\"cluster-issuer.yml\"\n\n# AKS Cluster\naksClusterName=\"CoralAks\"\naksResourceGroupName=\"CoralRG\"\n\n# Sample Application\nnamespace=\"magic8ball\"\nserviceAccountName=\"magic8ball-sa\"\ndeploymentTemplate=\"deployment.yml\"\nserviceTemplate=\"service.yml\"\nconfigMapTemplate=\"configMap.yml\"\nsecretTemplate=\"secret.yml\"\n\n# Ingress and DNS\ningressTemplate=\"ingress.yml\"\ningressName=\"magic8ball-ingress\"\ndnsZoneName=\"babosbird.com\"\ndnsZoneResourceGroupName=\"DnsResourceGroup\"\nsubdomain=\"magic8ball\"\nhost=\"$subdomain.$dnsZoneName\"
\n



\n

Upload Docker container image to Azure Container Registry (ACR)

\n

You can push the Docker container image to Azure Container Registry (ACR) using the 03-push-docker-image.sh script in the scripts folder.

\n



\n
#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Login to ACR\naz acr login --name $acrName \n\n# Retrieve ACR login server. Each container image needs to be tagged with the loginServer name of the registry. \nloginServer=$(az acr show --name $acrName --query loginServer --output tsv)\n\n# Tag the local image with the loginServer of ACR\ndocker tag ${imageName,,}:$tag $loginServer/${imageName,,}:$tag\n\n# Push latest container image to ACR\ndocker push $loginServer/${imageName,,}:$tag
\n



\n

Deployment Scripts

\n

If you deployed the Azure infrastructure using the Bicep modules provided with this sample, you only need to deploy the application using the following scripts and YAML templates in the scripts folder.

\n



\n\n



\n

If you instead want to deploy the application in your AKS cluster, you can use the following scripts to configure your environment.

\n



\n

04-create-nginx-ingress-controller.sh

\n

The script installs the NGINX Ingress Controller using Helm.

\n



\n
#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Use Helm to deploy an NGINX ingress controller\nresult=$(helm list -n $nginxNamespace | grep $nginxReleaseName | awk '{print $1}')\n\nif [[ -n $result ]]; then\n  echo \"[$nginxReleaseName] ingress controller already exists in the [$nginxNamespace] namespace\"\nelse\n  # Check if the ingress-nginx repository is not already added\n  result=$(helm repo list | grep $nginxRepoName | awk '{print $1}')\n\n  if [[ -n $result ]]; then\n    echo \"[$nginxRepoName] Helm repo already exists\"\n  else\n    # Add the ingress-nginx repository\n    echo \"Adding [$nginxRepoName] Helm repo...\"\n    helm repo add $nginxRepoName $nginxRepoUrl\n  fi\n\n  # Update your local Helm chart repository cache\n  echo 'Updating Helm repos...'\n  helm repo update\n\n  # Deploy NGINX ingress controller\n  echo \"Deploying [$nginxReleaseName] NGINX ingress controller to the [$nginxNamespace] namespace...\"\n  helm install $nginxReleaseName $nginxRepoName/$nginxChartName \\\n    --create-namespace \\\n    --namespace $nginxNamespace \\\n    --set controller.config.enable-modsecurity=true \\\n    --set controller.config.enable-owasp-modsecurity-crs=true \\\n    --set controller.config.modsecurity-snippet=\\\n'SecRuleEngine On\nSecRequestBodyAccess On\nSecAuditLog /dev/stdout\nSecAuditLogFormat JSON\nSecAuditEngine RelevantOnly\nSecRule REMOTE_ADDR \"@ipMatch 127.0.0.1\" \"id:87,phase:1,pass,nolog,ctl:ruleEngine=Off\"' \\\n    --set controller.metrics.enabled=true \\\n    --set controller.metrics.serviceMonitor.enabled=true \\\n    --set controller.metrics.serviceMonitor.additionalLabels.release=\"prometheus\" \\\n    --set controller.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n    --set controller.replicaCount=$replicaCount \\\n    --set defaultBackend.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n    --set controller.service.annotations.\"service\\.beta\\.kubernetes\\.io/azure-load-balancer-health-probe-request-path\"=/healthz\nfi
\n



\n

05-install-cert-manager.sh
This script installs the cert-manager using Helm.

\n



\n
#/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Check if the ingress-nginx repository is not already added\nresult=$(helm repo list | grep $cmRepoName | awk '{print $1}')\n\nif [[ -n $result ]]; then\n  echo \"[$cmRepoName] Helm repo already exists\"\nelse\n  # Add the Jetstack Helm repository\n  echo \"Adding [$cmRepoName] Helm repo...\"\n  helm repo add $cmRepoName $cmRepoUrl\nfi\n\n# Update your local Helm chart repository cache\necho 'Updating Helm repos...'\nhelm repo update\n\n# Install cert-manager Helm chart\nresult=$(helm list -n $cmNamespace | grep $cmReleaseName | awk '{print $1}')\n\nif [[ -n $result ]]; then\n  echo \"[$cmReleaseName] cert-manager already exists in the $cmNamespace namespace\"\nelse\n  # Install the cert-manager Helm chart\n  echo \"Deploying [$cmReleaseName] cert-manager to the $cmNamespace namespace...\"\n  helm install $cmReleaseName $cmRepoName/$cmChartName \\\n    --create-namespace \\\n    --namespace $cmNamespace \\\n    --set installCRDs=true \\\n    --set nodeSelector.\"kubernetes\\.io/os\"=linux\nfi
\n



\n

06-create-cluster-issuer.sh

\n

 This script creates a cluster issuer for the NGINX Ingress Controller based on the Let's Encrypt ACME certificate issuer.

\n



\n
#/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Check if the cluster issuer already exists\nresult=$(kubectl get ClusterIssuer -o json | jq -r '.items[].metadata.name | select(. == \"'$clusterIssuerName'\")')\n\nif [[ -n $result ]]; then\n  echo \"[$clusterIssuerName] cluster issuer already exists\"\n  exit\nelse\n  # Create the cluster issuer\n  echo \"[$clusterIssuerName] cluster issuer does not exist\"\n  echo \"Creating [$clusterIssuerName] cluster issuer...\"\n  cat $clusterIssuerTemplate |\n    yq \"(.spec.acme.email)|=\"\\\"\"$email\"\\\" |\n    kubectl apply -f -\nfi
\n



\n

07-create-workload-managed-identity.sh

\n

This script creates the managed identity used by the magic8ballchatbot and assigns it the Cognitive Services User role on the Azure OpenAI Service.

\n



\n
#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Check if the user-assigned managed identity already exists\necho \"Checking if [$managedIdentityName] user-assigned managed identity actually exists in the [$aksResourceGroupName] resource group...\"\n\naz identity show \\\n  --name $managedIdentityName \\\n  --resource-group $aksResourceGroupName &>/dev/null\n\nif [[ $? != 0 ]]; then\n  echo \"No [$managedIdentityName] user-assigned managed identity actually exists in the [$aksResourceGroupName] resource group\"\n  echo \"Creating [$managedIdentityName] user-assigned managed identity in the [$aksResourceGroupName] resource group...\"\n\n  # Create the user-assigned managed identity\n  az identity create \\\n    --name $managedIdentityName \\\n    --resource-group $aksResourceGroupName \\\n    --location $location \\\n    --subscription $subscriptionId 1>/dev/null\n\n  if [[ $? == 0 ]]; then\n    echo \"[$managedIdentityName] user-assigned managed identity successfully created in the [$aksResourceGroupName] resource group\"\n  else\n    echo \"Failed to create [$managedIdentityName] user-assigned managed identity in the [$aksResourceGroupName] resource group\"\n    exit\n  fi\nelse\n  echo \"[$managedIdentityName] user-assigned managed identity already exists in the [$aksResourceGroupName] resource group\"\nfi\n\n# Retrieve the clientId of the user-assigned managed identity\necho \"Retrieving clientId for [$managedIdentityName] managed identity...\"\nclientId=$(az identity show \\\n  --name $managedIdentityName \\\n  --resource-group $aksResourceGroupName \\\n  --query clientId \\\n  --output tsv)\n\nif [[ -n $clientId ]]; then\n  echo \"[$clientId] clientId  for the [$managedIdentityName] managed identity successfully retrieved\"\nelse\n  echo \"Failed to retrieve clientId for the [$managedIdentityName] managed identity\"\n  exit\nfi\n\n# Retrieve the principalId of the user-assigned managed identity\necho \"Retrieving principalId for [$managedIdentityName] managed identity...\"\nprincipalId=$(az identity show \\\n  --name $managedIdentityName \\\n  --resource-group $aksResourceGroupName \\\n  --query principalId \\\n  --output tsv)\n\nif [[ -n $principalId ]]; then\n  echo \"[$principalId] principalId  for the [$managedIdentityName] managed identity successfully retrieved\"\nelse\n  echo \"Failed to retrieve principalId for the [$managedIdentityName] managed identity\"\n  exit\nfi\n\n# Get the resource id of the Azure OpenAI resource\nopenAiId=$(az cognitiveservices account show \\\n  --name $openAiName \\\n  --resource-group $openAiResourceGroupName \\\n  --query id \\\n  --output tsv)\n\nif [[ -n $openAiId ]]; then\n  echo \"Resource id for the [$openAiName] Azure OpenAI resource successfully retrieved\"\nelse\n  echo \"Failed to the resource id for the [$openAiName] Azure OpenAI resource\"\n  exit -1\nfi\n\n# Assign the Cognitive Services User role on the Azure OpenAI resource to the managed identity\nrole=\"Cognitive Services User\"\necho \"Checking if the [$managedIdentityName] managed identity has been assigned to [$role] role with [$openAiName] Azure OpenAI resource as a scope...\"\ncurrent=$(az role assignment list \\\n  --assignee $principalId \\\n  --scope $openAiId \\\n  --query \"[?roleDefinitionName=='$role'].roleDefinitionName\" \\\n  --output tsv 2>/dev/null)\n\nif [[ $current == $role ]]; then\n  echo \"[$managedIdentityName] managed identity is already assigned to the [\"$current\"] role with [$openAiName] Azure OpenAI resource as a scope\"\nelse\n  echo \"[$managedIdentityName] managed identity is not assigned to the [$role] role with [$openAiName] Azure OpenAI resource as a scope\"\n  echo \"Assigning the [$role] role to the [$managedIdentityName] managed identity with [$openAiName] Azure OpenAI resource as a scope...\"\n\n  az role assignment create \\\n    --assignee $principalId \\\n    --role \"$role\" \\\n    --scope $openAiId 1>/dev/null\n\n  if [[ $? == 0 ]]; then\n    echo \"[$managedIdentityName] managed identity successfully assigned to the [$role] role with [$openAiName] Azure OpenAI resource as a scope\"\n  else\n    echo \"Failed to assign the [$managedIdentityName] managed identity to the [$role] role with [$openAiName] Azure OpenAI resource as a scope\"\n    exit\n  fi\nfi
\n



\n

08-create-service-account.sh

\n

This script creates the namespace and service account for the magic8ball chatbot and federate the service account with the user-defined managed identity created in the previous step.

\n



\n
#!/bin/bash\n\n# Variables for the user-assigned managed identity\nsource ./00-variables.sh\n\n# Check if the namespace already exists\nresult=$(kubectl get namespace -o 'jsonpath={.items[?(@.metadata.name==\"'$namespace'\")].metadata.name'})\n\nif [[ -n $result ]]; then\n  echo \"[$namespace] namespace already exists\"\nelse\n  # Create the namespace for your ingress resources\n  echo \"[$namespace] namespace does not exist\"\n  echo \"Creating [$namespace] namespace...\"\n  kubectl create namespace $namespace\nfi\n\n# Check if the service account already exists\nresult=$(kubectl get sa -n $namespace -o 'jsonpath={.items[?(@.metadata.name==\"'$serviceAccountName'\")].metadata.name'})\n\nif [[ -n $result ]]; then\n  echo \"[$serviceAccountName] service account already exists\"\nelse\n  # Retrieve the resource id of the user-assigned managed identity\n  echo \"Retrieving clientId for [$managedIdentityName] managed identity...\"\n  managedIdentityClientId=$(az identity show \\\n    --name $managedIdentityName \\\n    --resource-group $aksResourceGroupName \\\n    --query clientId \\\n    --output tsv)\n\n  if [[ -n $managedIdentityClientId ]]; then\n    echo \"[$managedIdentityClientId] clientId  for the [$managedIdentityName] managed identity successfully retrieved\"\n  else\n    echo \"Failed to retrieve clientId for the [$managedIdentityName] managed identity\"\n    exit\n  fi\n\n  # Create the service account\n  echo \"[$serviceAccountName] service account does not exist\"\n  echo \"Creating [$serviceAccountName] service account...\"\n  cat <<EOF | kubectl apply -f -\napiVersion: v1\nkind: ServiceAccount\nmetadata:\n  annotations:\n    azure.workload.identity/client-id: $managedIdentityClientId\n    azure.workload.identity/tenant-id: $tenantId\n  labels:\n    azure.workload.identity/use: \"true\"\n  name: $serviceAccountName\n  namespace: $namespace\nEOF\nfi\n\n# Show service account YAML manifest\necho \"Service Account YAML manifest\"\necho \"-----------------------------\"\nkubectl get sa $serviceAccountName -n $namespace -o yaml\n\n# Check if the federated identity credential already exists\necho \"Checking if [$federatedIdentityName] federated identity credential actually exists in the [$aksResourceGroupName] resource group...\"\n\naz identity federated-credential show \\\n  --name $federatedIdentityName \\\n  --resource-group $aksResourceGroupName \\\n  --identity-name $managedIdentityName &>/dev/null\n\nif [[ $? != 0 ]]; then\n  echo \"No [$federatedIdentityName] federated identity credential actually exists in the [$aksResourceGroupName] resource group\"\n\n  # Get the OIDC Issuer URL\n  aksOidcIssuerUrl=\"$(az aks show \\\n    --only-show-errors \\\n    --name $aksClusterName \\\n    --resource-group $aksResourceGroupName \\\n    --query oidcIssuerProfile.issuerUrl \\\n    --output tsv)\"\n\n  # Show OIDC Issuer URL\n  if [[ -n $aksOidcIssuerUrl ]]; then\n    echo \"The OIDC Issuer URL of the $aksClusterName cluster is $aksOidcIssuerUrl\"\n  fi\n\n  echo \"Creating [$federatedIdentityName] federated identity credential in the [$aksResourceGroupName] resource group...\"\n\n  # Establish the federated identity credential between the managed identity, the service account issuer, and the subject.\n  az identity federated-credential create \\\n    --name $federatedIdentityName \\\n    --identity-name $managedIdentityName \\\n    --resource-group $aksResourceGroupName \\\n    --issuer $aksOidcIssuerUrl \\\n    --subject system:serviceaccount:$namespace:$serviceAccountName\n\n  if [[ $? == 0 ]]; then\n    echo \"[$federatedIdentityName] federated identity credential successfully created in the [$aksResourceGroupName] resource group\"\n  else\n    echo \"Failed to create [$federatedIdentityName] federated identity credential in the [$aksResourceGroupName] resource group\"\n    exit\n  fi\nelse\n  echo \"[$federatedIdentityName] federated identity credential already exists in the [$aksResourceGroupName] resource group\"\nfi
\n



\n

09-deploy-app.sh

\n

This script creates the Kubernetes config map, deployment, and service used by the magic8ball chatbot.

\n



\n
#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Attach ACR to AKS cluster\nif [[ $attachAcr == true ]]; then\n  echo \"Attaching ACR $acrName to AKS cluster $aksClusterName...\"\n  az aks update \\\n    --name $aksClusterName \\\n    --resource-group $aksResourceGroupName \\\n    --attach-acr $acrName\nfi\n\n# Check if namespace exists in the cluster\nresult=$(kubectl get namespace -o jsonpath=\"{.items[?(@.metadata.name=='$namespace')].metadata.name}\")\n\nif [[ -n $result ]]; then\n  echo \"$namespace namespace already exists in the cluster\"\nelse\n  echo \"$namespace namespace does not exist in the cluster\"\n  echo \"creating $namespace namespace in the cluster...\"\n  kubectl create namespace $namespace\nfi\n\n# Create config map\ncat $configMapTemplate |\n    yq \"(.data.TITLE)|=\"\\\"\"$title\"\\\" |\n    yq \"(.data.LABEL)|=\"\\\"\"$label\"\\\" |\n    yq \"(.data.TEMPERATURE)|=\"\\\"\"$temperature\"\\\" |\n    yq \"(.data.IMAGE_WIDTH)|=\"\\\"\"$imageWidth\"\\\" |\n    yq \"(.data.AZURE_OPENAI_TYPE)|=\"\\\"\"$openAiType\"\\\" |\n    yq \"(.data.AZURE_OPENAI_BASE)|=\"\\\"\"$openAiBase\"\\\" |\n    yq \"(.data.AZURE_OPENAI_MODEL)|=\"\\\"\"$openAiModel\"\\\" |\n    yq \"(.data.AZURE_OPENAI_DEPLOYMENT)|=\"\\\"\"$openAiDeployment\"\\\" |\n    kubectl apply -n $namespace -f -\n\n# Create deployment\ncat $deploymentTemplate |\n    yq \"(.spec.template.spec.containers[0].image)|=\"\\\"\"$image\"\\\" |\n    yq \"(.spec.template.spec.containers[0].imagePullPolicy)|=\"\\\"\"$imagePullPolicy\"\\\" |\n    yq \"(.spec.template.spec.serviceAccountName)|=\"\\\"\"$serviceAccountName\"\\\" |\n    kubectl apply -n $namespace -f -\n\n# Create deployment\nkubectl apply -f $serviceTemplate -n $namespace
\n



\n

10-create-ingress.sh

\n

This script creates the ingress object to expose the service via the NGINX Ingress Controller.

\n



\n
#/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Create the ingress\necho \"[$ingressName] ingress does not exist\"\necho \"Creating [$ingressName] ingress...\"\ncat $ingressTemplate |\n  yq \"(.spec.tls[0].hosts[0])|=\"\\\"\"$host\"\\\" |\n  yq \"(.spec.rules[0].host)|=\"\\\"\"$host\"\\\" |\n  kubectl apply -n $namespace -f -
\n



\n

11-configure-dns.sh

\n

This script creates an A record in the Azure DNS Zone to expose the application via a given subdomain (e.g., https://magic8ball.example.com).

\n



\n
# Variables\nsource ./00-variables.sh\n\n# Retrieve the public IP address from the ingress\necho \"Retrieving the external IP address from the [$ingressName] ingress...\"\npublicIpAddress=$(kubectl get ingress $ingressName -n $namespace -o jsonpath='{.status.loadBalancer.ingress[0].ip}')\n\nif [ -n $publicIpAddress ]; then\n  echo \"[$publicIpAddress] external IP address of the application gateway ingress controller successfully retrieved from the [$ingressName] ingress\"\nelse\n  echo \"Failed to retrieve the external IP address of the application gateway ingress controller from the [$ingressName] ingress\"\n  exit\nfi\n\n# Check if an A record for todolist subdomain exists in the DNS Zone\necho \"Retrieving the A record for the [$subdomain] subdomain from the [$dnsZoneName] DNS zone...\"\nipv4Address=$(az network dns record-set a list \\\n  --zone-name $dnsZoneName \\\n  --resource-group $dnsZoneResourceGroupName \\\n  --query \"[?name=='$subdomain'].arecords[].ipv4Address\" \\\n  --output tsv)\n\nif [[ -n $ipv4Address ]]; then\n  echo \"An A record already exists in [$dnsZoneName] DNS zone for the [$subdomain] subdomain with [$ipv4Address] IP address\"\n\n  if [[ $ipv4Address == $publicIpAddress ]]; then\n    echo \"The [$ipv4Address] ip address of the existing A record is equal to the ip address of the [$ingressName] ingress\"\n    echo \"No additional step is required\"\n    exit\n  else\n    echo \"The [$ipv4Address] ip address of the existing A record is different than the ip address of the [$ingressName] ingress\"\n  fi\n\n  # Retrieving name of the record set relative to the zone\n  echo \"Retrieving the name of the record set relative to the [$dnsZoneName] zone...\"\n\n  recordSetName=$(az network dns record-set a list \\\n    --zone-name $dnsZoneName \\\n    --resource-group $dnsZoneResourceGroupName \\\n    --query \"[?name=='$subdomain'].name\" \\\n    --output name 2>/dev/null)\n\n  if [[ -n $recordSetName ]]; then\n    \"[$recordSetName] record set name successfully retrieved\"\n  else\n    \"Failed to retrieve the name of the record set relative to the [$dnsZoneName] zone\"\n    exit\n  fi\n\n  # Remove the a record\n  echo \"Removing the A record from the record set relative to the [$dnsZoneName] zone...\"\n\n  az network dns record-set a remove-record \\\n    --ipv4-address $ipv4Address \\\n    --record-set-name $recordSetName \\\n    --zone-name $dnsZoneName \\\n    --resource-group $dnsZoneResourceGroupName\n\n  if [[ $? == 0 ]]; then\n    echo \"[$ipv4Address] ip address successfully removed from the [$recordSetName] record set\"\n  else\n    echo \"Failed to remove the [$ipv4Address] ip address from the [$recordSetName] record set\"\n    exit\n  fi\nfi\n\n# Create the a record\necho \"Creating an A record in [$dnsZoneName] DNS zone for the [$subdomain] subdomain with [$publicIpAddress] IP address...\"\naz network dns record-set a add-record \\\n  --zone-name $dnsZoneName \\\n  --resource-group $dnsZoneResourceGroupName \\\n  --record-set-name $subdomain \\\n  --ipv4-address $publicIpAddress 1>/dev/null\n\nif [[ $? == 0 ]]; then\n  echo \"A record for the [$subdomain] subdomain with [$publicIpAddress] IP address successfully created in [$dnsZoneName] DNS zone\"\nelse\n  echo \"Failed to create an A record for the $subdomain subdomain with [$publicIpAddress] IP address in [$dnsZoneName] DNS zone\"\nfi
\n



\n

The scripts used to deploy the YAML template use the yq tool to customize the manifests with the value of the variables defined in the 00-variables.sh file. This tool is a lightweight and portable command-line YAML, JSON and XML processor that uses jq like syntax but works with YAML files as well as json, xml, properties, csv and tsv. It doesn't yet support everything jq does - but it does support the most common operations and functions, and more is being added continuously.

\n



\n

YAML manifests

\n

Below, you can read the YAML manifests used to deploy the magic8ball chatbot to AKS.

\n



\n

configmap.yml

\n

The configmap.yml defines a value for the environment variables passed to the application container. The config map does not define any environment variable for the OpenAI key as the container.

\n



\n
apiVersion: v1\nkind: ConfigMap\nmetadata:\n  name: magic8ball-configmap\ndata:\n  TITLE: \"Magic 8 Ball\"\n  LABEL: \"Pose your question and cross your fingers!\"\n  TEMPERATURE: \"0.9\"\n  IMAGE_WIDTH: \"80\"\n  AZURE_OPENAI_TYPE: azure_ad\n  AZURE_OPENAI_BASE: https://baboopenai.openai.azure.com/\n  AZURE_OPENAI_KEY: \"\"\n  AZURE_OPENAI_MODEL: gpt-35-turbo\n  AZURE_OPENAI_DEPLOYMENT: magic8ballGPT
\n



\n

These are the parameters defined by the configmap:

\n



\n\n



\n

deployment.yml
Thedeployment.ymlmanifest is used create a Kubernetesdeploymentthat defines the application pods to create azure.workload.identity/use label is required in the pod template spec. Only pods with this label will be mutated by the azure-workload-identity mutating admission webhook to inject the Azure specific environment variables and the projected service account token volume.

\n



\n
apiVersion: apps/v1\nkind: Deployment\nmetadata:\n  name: magic8ball\n  labels:\n    app: magic8ball\nspec:\n  replicas: 3\n  selector:\n    matchLabels:\n      app: magic8ball\n      azure.workload.identity/use: \"true\"\n  strategy:\n    rollingUpdate:\n      maxSurge: 1\n      maxUnavailable: 1\n  minReadySeconds: 5\n  template:\n    metadata:\n      labels:\n        app: magic8ball\n        azure.workload.identity/use: \"true\"\n        prometheus.io/scrape: \"true\"\n    spec:\n      serviceAccountName: magic8ball-sa\n      topologySpreadConstraints:\n      - maxSkew: 1\n        topologyKey: topology.kubernetes.io/zone\n        whenUnsatisfiable: DoNotSchedule\n        labelSelector:\n          matchLabels:\n            app: magic8ball\n      - maxSkew: 1\n        topologyKey: kubernetes.io/hostname\n        whenUnsatisfiable: DoNotSchedule\n        labelSelector:\n          matchLabels:\n            app: magic8ball\n      nodeSelector:\n        \"kubernetes.io/os\": linux\n      containers:\n      - name: magic8ball\n        image: paolosalvatori.azurecr.io/magic8ball:v1\n        imagePullPolicy: Always\n        resources:\n          requests:\n            memory: \"128Mi\"\n            cpu: \"250m\"\n          limits:\n            memory: \"256Mi\"\n            cpu: \"500m\"\n        ports:\n        - containerPort: 8501\n        livenessProbe:\n          httpGet:\n            path: /\n            port: 8501\n          failureThreshold: 1\n          initialDelaySeconds: 60\n          periodSeconds: 30\n          timeoutSeconds: 5\n        readinessProbe:\n          httpGet:\n            path: /\n            port: 8501\n          failureThreshold: 1\n          initialDelaySeconds: 60\n          periodSeconds: 30\n          timeoutSeconds: 5\n        startupProbe:\n          httpGet:\n            path: /\n            port: 8501\n          failureThreshold: 1\n          initialDelaySeconds: 60\n          periodSeconds: 30\n          timeoutSeconds: 5\n        env:\n        - name: TITLE\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: TITLE\n        - name: IMAGE_WIDTH\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: IMAGE_WIDTH\n        - name: LABEL\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: LABEL\n        - name: TEMPERATURE\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: TEMPERATURE\n        - name: AZURE_OPENAI_TYPE\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: AZURE_OPENAI_TYPE\n        - name: AZURE_OPENAI_BASE\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: AZURE_OPENAI_BASE\n        - name: AZURE_OPENAI_KEY\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: AZURE_OPENAI_KEY\n        - name: AZURE_OPENAI_MODEL\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: AZURE_OPENAI_MODEL\n        - name: AZURE_OPENAI_DEPLOYMENT\n          valueFrom:\n            configMapKeyRef:\n                name: magic8ball-configmap\n                key: AZURE_OPENAI_DEPLOYMENT
\n



\n

service.yml

\n

The application is exposed using a ClusterIP Kubernetes service.

\n



\n
apiVersion: v1\nkind: Service\nmetadata:\n  name: magic8ball\n  labels:\n    app: magic8ball\nspec:\n  type: ClusterIP\n  ports:\n  - protocol: TCP\n    port: 8501\n  selector:\n    app: magic8ball
\n



\n

ingress.yml

\n

The ingress.yml manifest defines a Kubernetes ingress object used to expose the service via the NGINX Ingress Controller.

\n



\n
apiVersion: networking.k8s.io/v1\nkind: Ingress\nmetadata:\n  name: magic8ball-ingress\n  annotations:\n    cert-manager.io/cluster-issuer: letsencrypt-nginx\n    cert-manager.io/acme-challenge-type: http01 \n    nginx.ingress.kubernetes.io/proxy-connect-timeout: \"360\"\n    nginx.ingress.kubernetes.io/proxy-send-timeout: \"360\"\n    nginx.ingress.kubernetes.io/proxy-read-timeout: \"360\"\n    nginx.ingress.kubernetes.io/proxy-next-upstream-timeout: \"360\"\n    nginx.ingress.kubernetes.io/configuration-snippet: |\n      more_set_headers \"X-Frame-Options: SAMEORIGIN\";\nspec:\n  ingressClassName: nginx\n  tls:\n  - hosts:\n    - magic8ball.babosbird.com\n    secretName: tls-secret\n  rules:\n  - host: magic8ball.babosbird.com\n    http:\n      paths:\n      - path: /\n        pathType: Prefix\n        backend:\n          service:\n            name: magic8ball\n            port:\n              number: 8501
\n



\n

The ingress object defines the following annotations:

\n



\n\n



\n

Review deployed resources

\n

Use the Azure portal, Azure CLI, or Azure PowerShell to list the deployed resources in the resource group.

\n



\n

Azure CLI

\n



\n
az resource list --resource-group <resource-group-name>
\n



\n

PowerShell

\n



\n
Get-AzResource -ResourceGroupName <resource-group-name>
\n



\n



\n

Clean up resources

\n

When you no longer need the resources you created, delete the resource group. This will remove all the Azure resources.

\n



\n

Azure CLI

\n



\n
az group delete --name <resource-group-name>
\n



\n

PowerShell

\n



\n
Remove-AzResourceGroup -Name <resource-group-name>
\n



\n



","body@stringLength":"143226","rawBody":"

This article shows how to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of a ChatGPT model. A chatbot is an application that simulates human-like conversations with users via chat. Its key task is to answer user questions with instant messages. Azure Kubernetes Service(AKS) cluster communicates with Azure OpenAI Service via an Azure Private Endpoint. The chatbot application simulates the original Magic 8 Ball plastic sphere, made to look like an oversized eight ball used for fortune-telling or seeking advice.

\n



\n

You can find the code of the chatbot and Bicep modules to deploy the environment in this GitHub repository. For a Terraform version of the article and companion sample, see How to deploy and run an Azure OpenAI ChatGPT application on AKS via Terraform.

\n

\n

AI applications perform tasks such as summarizing articles, writing stories, and engaging in long conversations with chatbots. This is made possible by large language models (LLMs) like OpenAI ChatGPT, which are deep learning algorithms capable of recognizing, summarizing, translating, predicting, and generating text and other content. LLMs leverage the knowledge acquired from extensive datasets, enabling them to perform tasks beyond teaching AI human languages. These models have succeeded in diverse domains, including understanding proteins, writing software code, and more. Apart from their applications in natural language processing, such as translation, chatbots, and AI assistants, large language models are also extensively employed in healthcare, software development, and various other fields.

\n

For more information on Azure OpenAI Service and Large Language Models (LLMs), see the following articles:

\n



\n\n



\n

Prerequisites

\n\n

You can run az --version to verify the above versions.

\n

To install the aks-preview extension, run the following command:

\n



\naz extension add --name aks-preview\n



\n

Run the following command to update to the latest version of the extension released:

\n



\naz extension update --name aks-preview\n



\n

Architecture

\n

This sample provides a set of Bicep modules to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of the ChatGPT model. Azure Kubernetes Service(AKS) cluster communicates with Azure OpenAI Service via an Azure Private Endpoint. The following diagram shows the architecture and network topology deployed by the sample:

\n

\n

\n

 

\n

Bicep modules are parametric, so you can choose any network plugin:

\n



\n\n



\n

The Bicep modules also allow installing the following extensions and add-ons for Azure Kubernetes Service(AKS):

\n

In addition, this sample shows how to deploy an Azure Kubernetes Service cluster with the following features:

\n



\n\n



\n

In a production environment, we strongly recommend deploying a private AKS cluster with Uptime SLA. For more information, see private AKS cluster with a Public DNS address. Alternatively, you can deploy a public AKS cluster and secure access to the API server using authorized IP address ranges.

\n

The Bicep modules deploy the following Azure resources:

\n



\n\n
\n

NOTE
You can find the architecture.vsdx file used for the diagram under the visio folder.

\n
\n



\n

What is Bicep?

\n

Bicep is a domain-specific language (DSL) that uses a declarative syntax to deploy Azure resources. It provides concise syntax, reliable type safety, and support for code reuse. Bicep offers the best authoring experience for your infrastructure-as-code solutions in Azure.

\n



\n

What is Azure OpenAI Service?

\n

The Azure OpenAI Service is a platform offered by Microsoft Azure that provides cognitive services powered by OpenAI models. One of the models available through this service is the ChatGPT model, designed for interactive conversational tasks. It allows developers to integrate natural language understanding and generation capabilities into their applications.

\n

Azure OpenAI Service provides REST API access to OpenAI's powerful language models, including the GPT-3, Codex and Embeddings model series. In addition, the new GPT-4 and ChatGPT model series have now reached general availability. These models can be easily adapted to your specific task, including but not limited to content generation, summarization, semantic search, and natural language to code translation. Users can access the service through REST APIs, Python SDK, or our web-based interface in the Azure OpenAI Studio.

\n

The Chat Completion API, part of the Azure OpenAI Service, provides a dedicated interface for interacting with the ChatGPT and GPT-4 models. This API is currently in preview and is the preferred method for accessing these models. The GPT-4 models can only be accessed through this API.

\n

GPT-3, GPT-3.5, and GPT-4 models from OpenAI are prompt-based. With prompt-based models, the user interacts with the model by entering a text prompt, to which the model responds with a text completion. This completion is the model’s continuation of the input text. While these models are extremely powerful, their behavior is also very sensitive to the prompt. This makes prompt construction a critical skill to develop. For more information, see Introduction to prompt engineering.

\n

Prompt construction can be complex. In practice, the prompt acts to configure the model weights to complete the desired task, but it's more of an art than a science, often requiring experience and intuition to craft a successful prompt. The goal of this article is to help get you started with this learning process. It attempts to capture general concepts and patterns that apply to all GPT models. However, it's essential to understand that each model behaves differently, so the learnings may not apply equally to all models.

\n

Prompt engineering refers to creating instructions called prompts for Large Language Models (LLMs), such as OpenAI’s ChatGPT. With the immense potential of LLMs to solve a wide range of tasks, leveraging prompt engineering can empower us to save significant time and facilitate the development of impressive applications. It holds the key to unleashing the full capabilities of these huge models, transforming how we interact and benefit from them. For more information, see Prompt engineering techniques.

\n



\n

Deploy the Bicep modules

\n

You can deploy the Bicep modules in the bicep folder using the deploy.sh Bash script in the same folder. Specify a value for the following parameters in the deploy.sh script and main.parameters.json parameters file before deploying the Bicep modules.

\n



\n\n



\n

We suggest reading sensitive configuration data such as passwords or SSH keys from a pre-existing Azure Key Vault resource. For more information, see Use Azure Key Vault to pass secure parameter value during Bicep deployment.

\n



\n

OpenAI Bicep Module

\n

The following table contains the code from the openAi.bicep Bicep module used to deploy the Azure OpenAI Service.

\n



\n// Parameters\n@description('Specifies the name of the Azure OpenAI resource.')\nparam name string = 'aks-${uniqueString(resourceGroup().id)}'\n\n@description('Specifies the resource model definition representing SKU.')\nparam sku object = {\n name: 'S0'\n}\n\n@description('Specifies the identity of the OpenAI resource.')\nparam identity object = {\n type: 'SystemAssigned'\n}\n\n@description('Specifies the location.')\nparam location string = resourceGroup().location\n\n@description('Specifies the resource tags.')\nparam tags object\n\n@description('Specifies an optional subdomain name used for token-based authentication.')\nparam customSubDomainName string = ''\n\n@description('Specifies whether or not public endpoint access is allowed for this account..')\n@allowed([\n 'Enabled'\n 'Disabled'\n])\nparam publicNetworkAccess string = 'Enabled'\n\n@description('Specifies the OpenAI deployments to create.')\nparam deployments array = [\n {\n name: 'text-embedding-ada-002'\n version: '2'\n raiPolicyName: ''\n capacity: 1\n scaleType: 'Standard'\n }\n {\n name: 'gpt-35-turbo'\n version: '0301'\n raiPolicyName: ''\n capacity: 1\n scaleType: 'Standard'\n }\n {\n name: 'text-davinci-003'\n version: '1'\n raiPolicyName: ''\n capacity: 1\n scaleType: 'Standard'\n }\n]\n\n@description('Specifies the workspace id of the Log Analytics used to monitor the Application Gateway.')\nparam workspaceId string\n\n// Variables\nvar diagnosticSettingsName = 'diagnosticSettings'\nvar openAiLogCategories = [\n 'Audit'\n 'RequestResponse'\n 'Trace'\n]\nvar openAiMetricCategories = [\n 'AllMetrics'\n]\nvar openAiLogs = [for category in openAiLogCategories: {\n category: category\n enabled: true\n}]\nvar openAiMetrics = [for category in openAiMetricCategories: {\n category: category\n enabled: true\n}]\n\n// Resources\nresource openAi 'Microsoft.CognitiveServices/accounts@2022-12-01' = {\n name: name\n location: location\n sku: sku\n kind: 'OpenAI'\n identity: identity\n tags: tags\n properties: {\n customSubDomainName: customSubDomainName\n publicNetworkAccess: publicNetworkAccess\n }\n}\n\nresource model 'Microsoft.CognitiveServices/accounts/deployments@2022-12-01' = \n [for deployment in deployments: {\n name: deployment.name\n parent: openAi\n properties: {\n model: {\n format: 'OpenAI'\n name: deployment.name\n version: deployment.version\n }\n raiPolicyName: deployment.raiPolicyName\n scaleSettings: {\n capacity: deployment.capacity\n scaleType: deployment.scaleType\n }\n }\n}]\n\nresource openAiDiagnosticSettings 'Microsoft.Insights/diagnosticSettings@2021-05-01-preview' = {\n name: diagnosticSettingsName\n scope: openAi\n properties: {\n workspaceId: workspaceId\n logs: openAiLogs\n metrics: openAiMetrics\n }\n}\n\n// Outputs\noutput id string = openAi.id\noutput name string = openAi.name\n



\n

Azure Cognitive Services use custom subdomain names for each resource created through the Azure portal, Azure Cloud Shell, Azure CLI, Bicep, Azure Resource Manager (ARM), or Terraform. Unlike regional endpoints, common for all customers in a specific Azure region, custom subdomain names are unique to the resource. Custom subdomain names are required to enable authentication features like Azure Active Directory (Azure AD). We need to specify a custom subdomain for our Azure OpenAI Service, as our chatbot application will use an Azure AD security token to access it. By default, the main.bicep module sets the value of the customSubDomainName parameter to the lowercase name of the Azure OpenAI resource. For more information on custom subdomains, see Custom subdomain names for Cognitive Services.

\n



\n

This bicep module allows you to pass an array containing the definition of one or more model deployments in the deployments parameter. For more information on model deployments, see Create a resource and deploy a model using Azure OpenAI

\n



\n

AKS Cluster Bicep module

\n

The aksCluster.bicep Bicep module is used to deploy the Azure Kubernetes Service(AKS) cluster. In particular, the following code snippet creates the user-defined managed identity used by the chatbot to acquire a security token from Azure Active Directory via Azure AD workload identity. When the boolean openAiEnabled parameter is true, the Bicep code performs the following steps:

\n



\n\n



\n

For more information, see the following resources:

\n



\n\n



\n...\n@description('Specifies the name of the user-defined managed identity used by the application that uses Azure AD workload identity to authenticate against Azure OpenAI.')\nparam workloadManagedIdentityName string\n\n@description('Specifies whether creating the Azure OpenAi resource or not.')\nparam openAiEnabled bool = false\n...\n// This user-defined managed identity used by the workload to connect to the Azure OpenAI resource with a security token issued by Azure Active Directory\nresource workloadManagedIdentity 'Microsoft.ManagedIdentity/userAssignedIdentities@2023-01-31' = if (openAiEnabled) {\n name: workloadManagedIdentityName\n location: location\n tags: tags\n}\n\n// Assign the Cognitive Services User role to the user-defined managed identity used by workloads\nresource cognitiveServicesUserRoleAssignment 'Microsoft.Authorization/roleAssignments@2022-04-01' = if (openAiEnabled) {\n name: guid(workloadManagedIdentity.id, cognitiveServicesUserRoleDefinitionId)\n scope: resourceGroup()\n properties: {\n roleDefinitionId: cognitiveServicesUserRoleDefinitionId\n principalId: workloadManagedIdentity.properties.principalId\n principalType: 'ServicePrincipal'\n }\n}\n\n// Create federated identity for the user-defined managed identity used by the workload\nresource federatedIdentityCredentials 'Microsoft.ManagedIdentity/userAssignedIdentities/federatedIdentityCredentials@2023-01-31' = {\n name: letterCaseType == 'UpperCamelCase' ? '${toUpper(first(namespace))}${toLower(substring(namespace, 1, length(namespace) - 1))}FederatedIdentity' : letterCaseType == 'CamelCase' ? '${toLower(namespace)}FederatedIdentity' : '${toLower(namespace)}-federated-identity'\n parent: workloadManagedIdentity\n properties: {\n issuer: aksCluster.properties.oidcIssuerProfile.issuerURL\n subject: 'system:serviceaccount:${namespace}:${serviceAccountName}'\n audiences: [\n 'api://AzureADTokenExchange'\n ]\n }\n}\n...\n// Output\noutput id string = aksCluster.id\noutput name string = aksCluster.name\noutput issuerUrl string = aksCluster.properties.oidcIssuerProfile.issuerURL\noutput workloadManagedIdentityClientId string = workloadManagedIdentity.properties.clientId\n



\n

Validate the deployment

\n

Open the Azure Portal, and navigate to the resource group. Open the Azure Open AI Service resource, navigate to Keys and Endpoint, and check that the endpoint contains a custom subdomain rather than the regional Cognitive Services endpoint.

\n

\n

\n

 

\n



\n

Open to the <Prefix>WorkloadManagedIdentity managed identity, navigate to the Federated credentials, and verify that the federated identity credentials for the magic8ball-sa service account were created correctly, as shown in the following picture.

\n

\n

\n



\n

Use Azure AD workload identity with Azure Kubernetes Service (AKS)

\n

Workloads deployed on an Azure Kubernetes Services (AKS) cluster require Azure Active Directory (Azure AD) application credentials or managed identities to access Azure AD-protected resources, such as Azure Key Vault and Microsoft Graph. Azure AD workload identity integrates with the capabilities native to Kubernetes to federate with external identity providers.

\n

Azure AD workload identity uses Service Account Token Volume Projection to enable pods to use a Kubernetes service account. When enabled, the AKS OIDC Issuer issues a service account security token to a workload, and OIDC federation enables the application to access Azure resources securely with Azure AD based on annotated service accounts.

\n

Azure AD workload identity works well with the Azure Identity client libraries and the Microsoft Authentication Library (MSAL) collection if you use a registered application instead of a managed identity. Your workload can use any of these libraries to authenticate and access Azure cloud resources seamlessly. For more information, see the following resources:

\n



\n\n



\n

Azure Identity client libraries

\n

In the Azure Identity client libraries, you can choose one of the following approaches:

\n



\n\n

The following table provides the minimum package version required for each language's client library.

\n



\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
LanguageLibraryMinimum VersionExample
.NETAzure.Identity1.9.0Link
Goazidentity1.3.0Link
Javaazure-identity1.9.0Link
JavaScript@azure/identity3.2.0Link
Pythonazure-identity1.13.0Link
\n



\n

Microsoft Authentication Library (MSAL)

\n

The following client libraries are the minimum version required

\n



\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
LanguageLibraryImageExampleHas Windows
.NETmicrosoft-authentication-library-for-dotnetghcr.io/azure/azure-workload-identity/msal-netLinkYes
Gomicrosoft-authentication-library-for-goghcr.io/azure/azure-workload-identity/msal-goLinkYes
Javamicrosoft-authentication-library-for-javaghcr.io/azure/azure-workload-identity/msal-javaLinkNo
JavaScriptmicrosoft-authentication-library-for-jsghcr.io/azure/azure-workload-identity/msal-nodeLinkNo
Pythonmicrosoft-authentication-library-for-pythonghcr.io/azure/azure-workload-identity/msal-pythonLinkNo
\n



\n

Deployment Script

\n

The sample makes use of a Deployment Script to run the install-nginx-via-helm-and-create-sa.sh Bash script that creates the namespace and service account for the sample application and installs the following packages to the AKS cluster via Helm. For more information on deployment scripts, see Use deployment scripts in Bicep.

\n



\n\n



\n

This sample uses the NGINX Ingress Controller to expose the chatbot to the public internet. Companion Bicep modules allow deploying an Azure Application Gateway and Application Gateway Ingress Controller just by setting the value of the applicationGatewayEnabled to true. So you can easily modify this sample to expose the chatbot to the public internet using the Application Gateway Ingress Controller instead of the NGINX Ingress Controller.

\n



\n# Install kubectl\naz aks install-cli --only-show-errors\n\n# Get AKS credentials\naz aks get-credentials \\\n --admin \\\n --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --only-show-errors\n\n# Check if the cluster is private or not\nprivate=$(az aks show --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --query apiServerAccessProfile.enablePrivateCluster \\\n --output tsv)\n\n# Install Helm\ncurl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 -o get_helm.sh -s\nchmod 700 get_helm.sh\n./get_helm.sh &>/dev/null\n\n# Add Helm repos\nhelm repo add prometheus-community https://prometheus-community.github.io/helm-charts\nhelm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx\nhelm repo add jetstack https://charts.jetstack.io\n\n# Update Helm repos\nhelm repo update\n\nif [[ $private == 'true' ]]; then\n # Log whether the cluster is public or private\n echo \"$clusterName AKS cluster is public\"\n\n # Install Prometheus\n command=\"helm install prometheus prometheus-community/kube-prometheus-stack \\\n --create-namespace \\\n --namespace prometheus \\\n --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \\\n --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false\"\n\n az aks command invoke \\\n --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --command \"$command\"\n\n # Install NGINX ingress controller using the internal load balancer\n command=\"helm install nginx-ingress ingress-nginx/ingress-nginx \\\n --create-namespace \\\n --namespace ingress-basic \\\n --set controller.replicaCount=3 \\\n --set controller.nodeSelector.\\\"kubernetes\\.io/os\\\"=linux \\\n --set defaultBackend.nodeSelector.\\\"kubernetes\\.io/os\\\"=linux \\\n --set controller.metrics.enabled=true \\\n --set controller.metrics.serviceMonitor.enabled=true \\\n --set controller.metrics.serviceMonitor.additionalLabels.release=\\\"prometheus\\\" \\\n --set controller.service.annotations.\\\"service\\.beta\\.kubernetes\\.io/azure-load-balancer-health-probe-request-path\\\"=/healthz\"\n\n az aks command invoke \\\n --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --command \"$command\"\n\n # Install certificate manager\n command=\"helm install cert-manager jetstack/cert-manager \\\n --create-namespace \\\n --namespace cert-manager \\\n --set installCRDs=true \\\n --set nodeSelector.\\\"kubernetes\\.io/os\\\"=linux\"\n\n az aks command invoke \\\n --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --command \"$command\"\n\n # Create cluster issuer\n command=\"cat <<EOF | kubectl apply -f -\napiVersion: cert-manager.io/v1\nkind: ClusterIssuer\nmetadata:\n name: letsencrypt-nginx\nspec:\n acme:\n server: https://acme-v02.api.letsencrypt.org/directory\n email: $email\n privateKeySecretRef:\n name: letsencrypt\n solvers:\n - http01:\n ingress:\n class: nginx\n podTemplate:\n spec:\n nodeSelector:\n \"kubernetes.io/os\": linux\nEOF\"\n\n az aks command invoke \\\n --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --command \"$command\"\n\n # Create workload namespace\n command=\"kubectl create namespace $namespace\"\n\n az aks command invoke \\\n --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --command \"$command\"\n\n # Create service account\n command=\"cat <<EOF | kubectl apply -f -\napiVersion: v1\nkind: ServiceAccount\nmetadata:\n annotations:\n azure.workload.identity/client-id: $workloadManagedIdentityClientId\n azure.workload.identity/tenant-id: $tenantId\n labels:\n azure.workload.identity/use: \"true\"\n name: $serviceAccountName\n namespace: $namespace\nEOF\"\n\n az aks command invoke \\\n --name $clusterName \\\n --resource-group $resourceGroupName \\\n --subscription $subscriptionId \\\n --command \"$command\"\n\nelse\n # Log whether the cluster is public or private\n echo \"$clusterName AKS cluster is private\"\n\n # Install Prometheus\n helm install prometheus prometheus-community/kube-prometheus-stack \\\n --create-namespace \\\n --namespace prometheus \\\n --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \\\n --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false\n\n # Install NGINX ingress controller using the internal load balancer\n helm install nginx-ingress ingress-nginx/ingress-nginx \\\n --create-namespace \\\n --namespace ingress-basic \\\n --set controller.replicaCount=3 \\\n --set controller.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n --set defaultBackend.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n --set controller.metrics.enabled=true \\\n --set controller.metrics.serviceMonitor.enabled=true \\\n --set controller.metrics.serviceMonitor.additionalLabels.release=\"prometheus\" \\\n --set controller.service.annotations.\"service\\.beta\\.kubernetes\\.io/azure-load-balancer-health-probe-request-path\"=/healthz\n\n helm install $nginxReleaseName $nginxRepoName/$nginxChartName \\\n --create-namespace \\\n --namespace $nginxNamespace\n\n # Install certificate manager\n helm install cert-manager jetstack/cert-manager \\\n --create-namespace \\\n --namespace cert-manager \\\n --set installCRDs=true \\\n --set nodeSelector.\"kubernetes\\.io/os\"=linux\n\n # Create cluster issuer\n cat <<EOF | kubectl apply -f -\napiVersion: cert-manager.io/v1\nkind: ClusterIssuer\nmetadata:\n name: letsencrypt-nginx\nspec:\n acme:\n server: https://acme-v02.api.letsencrypt.org/directory\n email: $email\n privateKeySecretRef:\n name: letsencrypt\n solvers:\n - http01:\n ingress:\n class: nginx\n podTemplate:\n spec:\n nodeSelector:\n \"kubernetes.io/os\": linux\nEOF\n\n # Create workload namespace\n kubectl create namespace $namespace\n\n # Create service account\n cat <<EOF | kubectl apply -f -\napiVersion: v1\nkind: ServiceAccount\nmetadata:\n annotations:\n azure.workload.identity/client-id: $workloadManagedIdentityClientId\n azure.workload.identity/tenant-id: $tenantId\n labels:\n azure.workload.identity/use: \"true\"\n name: $serviceAccountName\n namespace: $namespace\nEOF\n\nfi\n\n# Create output as JSON file\necho '{}' |\n jq --arg x $namespace '.namespace=$x' |\n jq --arg x $serviceAccountName '.serviceAccountName=$x' |\n jq --arg x 'prometheus' '.prometheus=$x' |\n jq --arg x 'cert-manager' '.certManager=$x' |\n jq --arg x 'ingress-basic' '.nginxIngressController=$x' >$AZ_SCRIPTS_OUTPUT_PATH\n



\n

The install-nginx-via-helm-and-create-sa.sh Bash script can run on a public AKS cluster or on a private AKS cluster using the az aks command invoke. For more information, see Use command invoke to access a private Azure Kubernetes Service (AKS) cluster.

\n

The install-nginx-via-helm-and-create-sa.sh Bash script returns the following outputs to the deployment script:

\n



\n\n



\n

Chatbot Application

\n

The chatbot is a Python application inspired by the sample code in the It’s Time To Create A Private ChatGPT For Yourself Today article.

\n

\n

The application is contained in a single file called app.py. The application makes use of the following libraries:

\n



\n\n

The requirements.txt file under the scripts folder contains the list of packages used by the app.py application that you can restore using the following command:

\n



\npip install -r requirements.txt --upgrade\n



\n

The following table contains the code of the app.py chatbot:

\n



\n# Import packages\nimport os\nimport sys\nimport time\nimport openai\nimport logging\nimport streamlit as st\nfrom streamlit_chat import message\nfrom azure.identity import DefaultAzureCredential\nfrom dotenv import load_dotenv\nfrom dotenv import dotenv_values\n\n# Load environment variables from .env file\nif os.path.exists(\".env\"):\n load_dotenv(override=True)\n config = dotenv_values(\".env\")\n\n# Read environment variables\nassistan_profile = \"\"\"\nYou are the infamous Magic 8 Ball. You need to randomly reply to any question with one of the following answers:\n\n- It is certain.\n- It is decidedly so.\n- Without a doubt.\n- Yes definitely.\n- You may rely on it.\n- As I see it, yes.\n- Most likely.\n- Outlook good.\n- Yes.\n- Signs point to yes.\n- Reply hazy, try again.\n- Ask again later.\n- Better not tell you now.\n- Cannot predict now.\n- Concentrate and ask again.\n- Don't count on it.\n- My reply is no.\n- My sources say no.\n- Outlook not so good.\n- Very doubtful.\n\nAdd a short comment in a pirate style at the end! Follow your heart and be creative! \nFor mor information, see https://en.wikipedia.org/wiki/Magic_8_Ball\n\"\"\"\ntitle = os.environ.get(\"TITLE\", \"Magic 8 Ball\")\ntext_input_label = os.environ.get(\"TEXT_INPUT_LABEL\", \"Pose your question and cross your fingers!\")\nimage_file_name = os.environ.get(\"IMAGE_FILE_NAME\", \"magic8ball.png\")\nimage_width = int(os.environ.get(\"IMAGE_WIDTH\", 80))\ntemperature = float(os.environ.get(\"TEMPERATURE\", 0.9))\nsystem = os.environ.get(\"SYSTEM\", assistan_profile)\napi_base = os.getenv(\"AZURE_OPENAI_BASE\")\napi_key = os.getenv(\"AZURE_OPENAI_KEY\")\napi_type = os.environ.get(\"AZURE_OPENAI_TYPE\", \"azure\")\napi_version = os.environ.get(\"AZURE_OPENAI_VERSION\", \"2023-05-15\")\nengine = os.getenv(\"AZURE_OPENAI_DEPLOYMENT\")\nmodel = os.getenv(\"AZURE_OPENAI_MODEL\")\n\n# Configure OpenAI\nopenai.api_type = api_type\nopenai.api_version = api_version\nopenai.api_base = api_base \n\n# Set default Azure credential\ndefault_credential = DefaultAzureCredential() if openai.api_type == \"azure_ad\" else None\n\n# Configure a logger\nlogging.basicConfig(stream = sys.stdout, \n format = '[%(asctime)s] {%(filename)s:%(lineno)d} %(levelname)s - %(message)s',\n level = logging.INFO)\nlogger = logging.getLogger(__name__)\n\n# Log variables\nlogger.info(f\"title: {title}\")\nlogger.info(f\"text_input_label: {text_input_label}\")\nlogger.info(f\"image_file_name: {image_file_name}\")\nlogger.info(f\"image_width: {image_width}\")\nlogger.info(f\"temperature: {temperature}\")\nlogger.info(f\"system: {system}\")\nlogger.info(f\"api_base: {api_base}\")\nlogger.info(f\"api_key: {api_key}\")\nlogger.info(f\"api_type: {api_type}\")\nlogger.info(f\"api_version: {api_version}\")\nlogger.info(f\"engine: {engine}\")\nlogger.info(f\"model: {model}\")\n\n# Authenticate to Azure OpenAI\nif openai.api_type == \"azure\":\n openai.api_key = api_key\nelif openai.api_type == \"azure_ad\":\n openai_token = default_credential.get_token(\"https://cognitiveservices.azure.com/.default\")\n openai.api_key = openai_token.token\n if 'openai_token' not in st.session_state:\n st.session_state['openai_token'] = openai_token\nelse:\n logger.error(\"Invalid API type. Please set the AZURE_OPENAI_TYPE environment variable to azure or azure_ad.\")\n raise ValueError(\"Invalid API type. Please set the AZURE_OPENAI_TYPE environment variable to azure or azure_ad.\")\n\n# Customize Streamlit UI using CSS\nst.markdown(\"\"\"\n<style>\n\ndiv.stButton > button:first-child {\n background-color: #eb5424;\n color: white;\n font-size: 20px;\n font-weight: bold;\n border-radius: 0.5rem;\n padding: 0.5rem 1rem;\n border: none;\n box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n width: 300 px;\n height: 42px;\n transition: all 0.2s ease-in-out;\n} \n\ndiv.stButton > button:first-child:hover {\n transform: translateY(-3px);\n box-shadow: 0 1rem 2rem rgba(0,0,0,0.15);\n}\n\ndiv.stButton > button:first-child:active {\n transform: translateY(-1px);\n box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n}\n\ndiv.stButton > button:focus:not(:focus-visible) {\n color: #FFFFFF;\n}\n\n@media only screen and (min-width: 768px) {\n /* For desktop: */\n div {\n font-family: 'Roboto', sans-serif;\n }\n\n div.stButton > button:first-child {\n background-color: #eb5424;\n color: white;\n font-size: 20px;\n font-weight: bold;\n border-radius: 0.5rem;\n padding: 0.5rem 1rem;\n border: none;\n box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n width: 300 px;\n height: 42px;\n transition: all 0.2s ease-in-out;\n position: relative;\n bottom: -32px;\n right: 0px;\n } \n\n div.stButton > button:first-child:hover {\n transform: translateY(-3px);\n box-shadow: 0 1rem 2rem rgba(0,0,0,0.15);\n }\n\n div.stButton > button:first-child:active {\n transform: translateY(-1px);\n box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n }\n\n div.stButton > button:focus:not(:focus-visible) {\n color: #FFFFFF;\n }\n\n input {\n border-radius: 0.5rem;\n padding: 0.5rem 1rem;\n border: none;\n box-shadow: 0 0.5rem 1rem rgba(0,0,0,0.15);\n transition: all 0.2s ease-in-out;\n height: 40px;\n }\n}\n</style>\n\"\"\", unsafe_allow_html=True)\n\n# Initialize Streamlit session state\nif 'prompts' not in st.session_state:\n st.session_state['prompts'] = [{\"role\": \"system\", \"content\": system}]\n\nif 'generated' not in st.session_state:\n st.session_state['generated'] = []\n\nif 'past' not in st.session_state:\n st.session_state['past'] = []\n\n# Refresh the OpenAI security token every 45 minutes\ndef refresh_openai_token():\n if st.session_state['openai_token'].expires_on < int(time.time()) - 45 * 60:\n st.session_state['openai_token'] = default_credential.get_token(\"https://cognitiveservices.azure.com/.default\")\n openai.api_key = st.session_state['openai_token'].token\n\n# Send user prompt to Azure OpenAI \ndef generate_response(prompt):\n try:\n st.session_state['prompts'].append({\"role\": \"user\", \"content\": prompt})\n\n if openai.api_type == \"azure_ad\":\n refresh_openai_token()\n\n completion = openai.ChatCompletion.create(\n engine = engine,\n model = model,\n messages = st.session_state['prompts'],\n temperature = temperature,\n )\n \n message = completion.choices[0].message.content\n return message\n except Exception as e:\n logging.exception(f\"Exception in generate_response: {e}\")\n\n# Reset Streamlit session state to start a new chat from scratch\ndef new_click():\n st.session_state['prompts'] = [{\"role\": \"system\", \"content\": system}]\n st.session_state['past'] = []\n st.session_state['generated'] = []\n st.session_state['user'] = \"\"\n\n# Handle on_change event for user input\ndef user_change():\n # Avoid handling the event twice when clicking the Send button\n chat_input = st.session_state['user']\n st.session_state['user'] = \"\"\n if (chat_input == '' or\n (len(st.session_state['past']) > 0 and chat_input == st.session_state['past'][-1])):\n return\n \n # Generate response invoking Azure OpenAI LLM\n if chat_input != '':\n output = generate_response(chat_input)\n \n # store the output\n st.session_state['past'].append(chat_input)\n st.session_state['generated'].append(output)\n st.session_state['prompts'].append({\"role\": \"assistant\", \"content\": output})\n\n# Create a 2-column layout. Note: Streamlit columns do not properly render on mobile devices.\n# For more information, see https://github.com/streamlit/streamlit/issues/5003\ncol1, col2 = st.columns([1, 7])\n\n# Display the robot image\nwith col1:\n st.image(image = os.path.join(\"images\", image_file_name), width = image_width)\n\n# Display the title\nwith col2:\n st.title(title)\n\n# Create a 3-column layout. Note: Streamlit columns do not properly render on mobile devices.\n# For more information, see https://github.com/streamlit/streamlit/issues/5003\ncol3, col4, col5 = st.columns([7, 1, 1])\n\n# Create text input in column 1\nwith col3:\n user_input = st.text_input(text_input_label, key = \"user\", on_change = user_change)\n\n# Create send button in column 2\nwith col4:\n st.button(label = \"Send\")\n\n# Create new button in column 3\nwith col5:\n st.button(label = \"New\", on_click = new_click)\n\n# Display the chat history in two separate tabs\n# - normal: display the chat history as a list of messages using the streamlit_chat message() function \n# - rich: display the chat history as a list of messages using the Streamlit markdown() function\nif st.session_state['generated']:\n tab1, tab2 = st.tabs([\"normal\", \"rich\"])\n with tab1:\n for i in range(len(st.session_state['generated']) - 1, -1, -1):\n message(st.session_state['past'][i], is_user = True, key = str(i) + '_user', avatar_style = \"fun-emoji\", seed = \"Nala\")\n message(st.session_state['generated'][i], key = str(i), avatar_style = \"bottts\", seed = \"Fluffy\")\n with tab2:\n for i in range(len(st.session_state['generated']) - 1, -1, -1):\n st.markdown(st.session_state['past'][i])\n st.markdown(st.session_state['generated'][i])\n



\n

The application uses an internal cascading style sheet (CSS) inside an st.markdown element to add a unique style to the Streamlit chatbot for mobile and desktop devices. For more information on how to tweak the user interface of a Streamlit application, see 3 Tips to Customize your Streamlit App.

\n



\nstreamlit run app.py\n



\n

Working with the ChatGPT and GPT-4 models

\n

The generate_response function creates and sends the prompt to the Chat Completion API of the ChatGPT model.

\n



\ndef generate_response(prompt):\n try:\n st.session_state['prompts'].append({\"role\": \"user\", \"content\": prompt})\n\n if openai.api_type == \"azure_ad\":\n refresh_openai_token()\n\n completion = openai.ChatCompletion.create(\n engine = engine,\n model = model,\n messages = st.session_state['prompts'],\n temperature = temperature,\n )\n \n message = completion.choices[0].message.content\n return message\n except Exception as e:\n logging.exception(f\"Exception in generate_response: {e}\")\n



\n

OpenAI trained the ChatGPT and GPT-4 models to accept input formatted as a conversation. The messages parameter takes an array of dictionaries with a conversation organized by role or message: system, user, and assistant. The format of a basic Chat Completion is as follows:

\n



\n{\"role\": \"system\", \"content\": \"Provide some context and/or instructions to the model\"},\n{\"role\": \"user\", \"content\": \"The users messages goes here\"},\n{\"role\": \"assistant\", \"content\": \"The response message goes here.\"}\n



\n

The system role, also known as the system message, is included at the beginning of the array. This message provides the initial instructions for the model. You can provide various information in the system role, including:

\n



\n\n



\n

The system role or message is optional, but it's recommended to at least include a basic one to get the best results. The user role or message represents an input or inquiry from the user, while the assistant message corresponds to the response generated by the GPT API. This dialog exchange aims to simulate a human-like conversation, where the user message initiates the interaction and the assistant message provides a relevant and informative answer. This context helps the chat model generate a more appropriate response later on. The last user message refers to the prompt currently requested. For more information, see Learn how to work with the ChatGPT and GPT-4 models.

\n



\n

Application Configuration

\n

Make sure to provide a value for the following environment variables when testing the app.py Python app locally, for example in Visual Studio Code. You can eventually define environment variables in a .env file in the same folder as the app.py file.

\n



\n\n



\n

When deploying the application to Azure Kubernetes Service (AKS), these values are provided in a Kubernetes ConfigMap. For more information, see the next section.

\n



\n

OpenAI Library

\n

To use the openai library with Microsoft Azure endpoints, you need to set the api_type, api_base and api_version in addition to the api_key. The api_type must be set to 'azure' and the others correspond to the properties of your endpoint. In addition, the deployment name must be passed as the engine parameter. To use OpenAI Key to authenticate to your Azure endpoint, you need to set the api_type to azure and pass the OpenAI Key to api_key.

\n



\nimport openai\nopenai.api_type = \"azure\"\nopenai.api_key = \"...\"\nopenai.api_base = \"https://example-endpoint.openai.azure.com\"\nopenai.api_version = \"2023-05-15\"\n\n# create a chat completion\nchat_completion = openai.ChatCompletion.create(deployment_id=\"gpt-3.5-turbo\", model=\"gpt-3.5-turbo\", messages=[{\"role\": \"user\", \"content\": \"Hello world\"}])\n\n# print the completion\nprint(completion.choices[0].message.content)\n



\n

For a detailed example of how to use fine-tuning and other operations using Azure endpoints, please check out the following Jupyter notebooks:

\n



\n\n



\n

To use Microsoft Active Directory to authenticate to your Azure endpoint, you need to set the api_type to azure_ad and pass the acquired credential token to api_key. The rest of the parameters must be set as specified in the previous section.

\n



\nfrom azure.identity import DefaultAzureCredential\nimport openai\n\n# Request credential\ndefault_credential = DefaultAzureCredential()\ntoken = default_credential.get_token(\"https://cognitiveservices.azure.com/.default\")\n\n# Setup parameters\nopenai.api_type = \"azure_ad\"\nopenai.api_key = token.token\nopenai.api_base = \"https://example-endpoint.openai.azure.com/\"\nopenai.api_version = \"2023-05-15\"\n\n# ...\n



\n

You can use two different authentication methods in the magic8ball chatbot application:

\n



\n\n



\n

Build the container image

\n

You can build the container image using the 01-build-docker-image.sh in the scripts folder.

\n



\n

Dockerfile

\n



\n# app/Dockerfile\n\n# # Stage 1 - Install build dependencies\n\n# A Dockerfile must start with a FROM instruction which sets the base image for the container.\n# The Python images come in many flavors, each designed for a specific use case.\n# The python:3.11-slim image is a good base image for most applications.\n# It is a minimal image built on top of Debian Linux and includes only the necessary packages to run Python.\n# The slim image is a good choice because it is small and contains only the packages needed to run Python.\n# For more information, see: \n# * https://hub.docker.com/_/python \n# * https://docs.streamlit.io/knowledge-base/tutorials/deploy/docker\nFROM python:3.11-slim AS builder\n\n# The WORKDIR instruction sets the working directory for any RUN, CMD, ENTRYPOINT, COPY and ADD instructions that follow it in the Dockerfile.\n# If the WORKDIR doesn’t exist, it will be created even if it’s not used in any subsequent Dockerfile instruction.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#workdir\nWORKDIR /app\n\n# Set environment variables. \n# The ENV instruction sets the environment variable <key> to the value <value>.\n# This value will be in the environment of all “descendant” Dockerfile commands and can be replaced inline in many as well.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#env\nENV PYTHONDONTWRITEBYTECODE 1\nENV PYTHONUNBUFFERED 1\n\n# Install git so that we can clone the app code from a remote repo using the RUN instruction.\n# The RUN comand has 2 forms:\n# * RUN <command> (shell form, the command is run in a shell, which by default is /bin/sh -c on Linux or cmd /S /C on Windows)\n# * RUN [\"executable\", \"param1\", \"param2\"] (exec form)\n# The RUN instruction will execute any commands in a new layer on top of the current image and commit the results. \n# The resulting committed image will be used for the next step in the Dockerfile.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#run\nRUN apt-get update && apt-get install -y \\\n build-essential \\\n curl \\\n software-properties-common \\\n git \\\n && rm -rf /var/lib/apt/lists/*\n\n# Create a virtualenv to keep dependencies together\nRUN python -m venv /opt/venv\nENV PATH=\"/opt/venv/bin:$PATH\"\n\n# Clone the requirements.txt which contains dependencies to WORKDIR\n# COPY has two forms:\n# * COPY <src> <dest> (this copies the files from the local machine to the container's own filesystem)\n# * COPY [\"<src>\",... \"<dest>\"] (this form is required for paths containing whitespace)\n# For more information, see: https://docs.docker.com/engine/reference/builder/#copy\nCOPY requirements.txt .\n\n# Install the Python dependencies\nRUN pip install --no-cache-dir --no-deps -r requirements.txt\n\n# Stage 2 - Copy only necessary files to the runner stage\n\n# The FROM instruction initializes a new build stage for the application\nFROM python:3.11-slim\n\n# Sets the working directory to /app\nWORKDIR /app\n\n# Copy the virtual environment from the builder stage\nCOPY --from=builder /opt/venv /opt/venv\n\n# Set environment variables\nENV PATH=\"/opt/venv/bin:$PATH\"\n\n# Clone the app.py containing the application code\nCOPY app.py .\n\n# Copy the images folder to WORKDIR\n# The ADD instruction copies new files, directories or remote file URLs from <src> and adds them to the filesystem of the image at the path <dest>.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#add\nADD images ./images\n\n# The EXPOSE instruction informs Docker that the container listens on the specified network ports at runtime.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#expose\nEXPOSE 8501\n\n# The HEALTHCHECK instruction has two forms:\n# * HEALTHCHECK [OPTIONS] CMD command (check container health by running a command inside the container)\n# * HEALTHCHECK NONE (disable any healthcheck inherited from the base image)\n# The HEALTHCHECK instruction tells Docker how to test a container to check that it is still working. \n# This can detect cases such as a web server that is stuck in an infinite loop and unable to handle new connections, \n# even though the server process is still running. For more information, see: https://docs.docker.com/engine/reference/builder/#healthcheck\nHEALTHCHECK CMD curl --fail http://localhost:8501/_stcore/health\n\n# The ENTRYPOINT instruction has two forms:\n# * ENTRYPOINT [\"executable\", \"param1\", \"param2\"] (exec form, preferred)\n# * ENTRYPOINT command param1 param2 (shell form)\n# The ENTRYPOINT instruction allows you to configure a container that will run as an executable.\n# For more information, see: https://docs.docker.com/engine/reference/builder/#entrypoint\nENTRYPOINT [\"streamlit\", \"run\", \"app.py\", \"--server.port=8501\", \"--server.address=0.0.0.0\"]\n



\n

01-build-docker-image.sh

\n



\n#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Build the docker image\ndocker build -t $imageName:$tag -f Dockerfile .\n



\n

Before running any script, make sure to customize the value of the variables inside the 00-variables.sh file. This file is embedded in all the scripts and contains the following variables:

\n



\n# Variables\nacrName=\"CoralAcr\"\nacrResourceGrougName=\"CoralRG\"\nlocation=\"FranceCentral\"\nattachAcr=false\nimageName=\"magic8ball\"\ntag=\"v2\"\ncontainerName=\"magic8ball\"\nimage=\"$acrName.azurecr.io/$imageName:$tag\"\nimagePullPolicy=\"IfNotPresent\" # Always, Never, IfNotPresent\nmanagedIdentityName=\"OpenAiManagedIdentity\"\nfederatedIdentityName=\"Magic8BallFederatedIdentity\"\n\n# Azure Subscription and Tenant\nsubscriptionId=$(az account show --query id --output tsv)\nsubscriptionName=$(az account show --query name --output tsv)\ntenantId=$(az account show --query tenantId --output tsv)\n\n# Parameters\ntitle=\"Magic 8 Ball\"\nlabel=\"Pose your question and cross your fingers!\"\ntemperature=\"0.9\"\nimageWidth=\"80\"\n\n# OpenAI\nopenAiName=\"CoralOpenAi \"\nopenAiResourceGroupName=\"CoralRG\"\nopenAiType=\"azure_ad\"\nopenAiBase=\"https://coralopenai.openai.azure.com/\"\nopenAiModel=\"gpt-35-turbo\"\nopenAiDeployment=\"gpt-35-turbo\"\n\n# Nginx Ingress Controller\nnginxNamespace=\"ingress-basic\"\nnginxRepoName=\"ingress-nginx\"\nnginxRepoUrl=\"https://kubernetes.github.io/ingress-nginx\"\nnginxChartName=\"ingress-nginx\"\nnginxReleaseName=\"nginx-ingress\"\nnginxReplicaCount=3\n\n# Certificate Manager\ncmNamespace=\"cert-manager\"\ncmRepoName=\"jetstack\"\ncmRepoUrl=\"https://charts.jetstack.io\"\ncmChartName=\"cert-manager\"\ncmReleaseName=\"cert-manager\"\n\n# Cluster Issuer\nemail=\"paolos@microsoft.com\"\nclusterIssuerName=\"letsencrypt-nginx\"\nclusterIssuerTemplate=\"cluster-issuer.yml\"\n\n# AKS Cluster\naksClusterName=\"CoralAks\"\naksResourceGroupName=\"CoralRG\"\n\n# Sample Application\nnamespace=\"magic8ball\"\nserviceAccountName=\"magic8ball-sa\"\ndeploymentTemplate=\"deployment.yml\"\nserviceTemplate=\"service.yml\"\nconfigMapTemplate=\"configMap.yml\"\nsecretTemplate=\"secret.yml\"\n\n# Ingress and DNS\ningressTemplate=\"ingress.yml\"\ningressName=\"magic8ball-ingress\"\ndnsZoneName=\"babosbird.com\"\ndnsZoneResourceGroupName=\"DnsResourceGroup\"\nsubdomain=\"magic8ball\"\nhost=\"$subdomain.$dnsZoneName\"\n



\n

Upload Docker container image to Azure Container Registry (ACR)

\n

You can push the Docker container image to Azure Container Registry (ACR) using the 03-push-docker-image.sh script in the scripts folder.

\n



\n#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Login to ACR\naz acr login --name $acrName \n\n# Retrieve ACR login server. Each container image needs to be tagged with the loginServer name of the registry. \nloginServer=$(az acr show --name $acrName --query loginServer --output tsv)\n\n# Tag the local image with the loginServer of ACR\ndocker tag ${imageName,,}:$tag $loginServer/${imageName,,}:$tag\n\n# Push latest container image to ACR\ndocker push $loginServer/${imageName,,}:$tag\n



\n

Deployment Scripts

\n

If you deployed the Azure infrastructure using the Bicep modules provided with this sample, you only need to deploy the application using the following scripts and YAML templates in the scripts folder.

\n



\n\n



\n

If you instead want to deploy the application in your AKS cluster, you can use the following scripts to configure your environment.

\n



\n

04-create-nginx-ingress-controller.sh

\n

The script installs the NGINX Ingress Controller using Helm.

\n



\n#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Use Helm to deploy an NGINX ingress controller\nresult=$(helm list -n $nginxNamespace | grep $nginxReleaseName | awk '{print $1}')\n\nif [[ -n $result ]]; then\n echo \"[$nginxReleaseName] ingress controller already exists in the [$nginxNamespace] namespace\"\nelse\n # Check if the ingress-nginx repository is not already added\n result=$(helm repo list | grep $nginxRepoName | awk '{print $1}')\n\n if [[ -n $result ]]; then\n echo \"[$nginxRepoName] Helm repo already exists\"\n else\n # Add the ingress-nginx repository\n echo \"Adding [$nginxRepoName] Helm repo...\"\n helm repo add $nginxRepoName $nginxRepoUrl\n fi\n\n # Update your local Helm chart repository cache\n echo 'Updating Helm repos...'\n helm repo update\n\n # Deploy NGINX ingress controller\n echo \"Deploying [$nginxReleaseName] NGINX ingress controller to the [$nginxNamespace] namespace...\"\n helm install $nginxReleaseName $nginxRepoName/$nginxChartName \\\n --create-namespace \\\n --namespace $nginxNamespace \\\n --set controller.config.enable-modsecurity=true \\\n --set controller.config.enable-owasp-modsecurity-crs=true \\\n --set controller.config.modsecurity-snippet=\\\n'SecRuleEngine On\nSecRequestBodyAccess On\nSecAuditLog /dev/stdout\nSecAuditLogFormat JSON\nSecAuditEngine RelevantOnly\nSecRule REMOTE_ADDR \"@ipMatch 127.0.0.1\" \"id:87,phase:1,pass,nolog,ctl:ruleEngine=Off\"' \\\n --set controller.metrics.enabled=true \\\n --set controller.metrics.serviceMonitor.enabled=true \\\n --set controller.metrics.serviceMonitor.additionalLabels.release=\"prometheus\" \\\n --set controller.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n --set controller.replicaCount=$replicaCount \\\n --set defaultBackend.nodeSelector.\"kubernetes\\.io/os\"=linux \\\n --set controller.service.annotations.\"service\\.beta\\.kubernetes\\.io/azure-load-balancer-health-probe-request-path\"=/healthz\nfi\n



\n

05-install-cert-manager.sh
This script installs the cert-manager using Helm.

\n



\n#/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Check if the ingress-nginx repository is not already added\nresult=$(helm repo list | grep $cmRepoName | awk '{print $1}')\n\nif [[ -n $result ]]; then\n echo \"[$cmRepoName] Helm repo already exists\"\nelse\n # Add the Jetstack Helm repository\n echo \"Adding [$cmRepoName] Helm repo...\"\n helm repo add $cmRepoName $cmRepoUrl\nfi\n\n# Update your local Helm chart repository cache\necho 'Updating Helm repos...'\nhelm repo update\n\n# Install cert-manager Helm chart\nresult=$(helm list -n $cmNamespace | grep $cmReleaseName | awk '{print $1}')\n\nif [[ -n $result ]]; then\n echo \"[$cmReleaseName] cert-manager already exists in the $cmNamespace namespace\"\nelse\n # Install the cert-manager Helm chart\n echo \"Deploying [$cmReleaseName] cert-manager to the $cmNamespace namespace...\"\n helm install $cmReleaseName $cmRepoName/$cmChartName \\\n --create-namespace \\\n --namespace $cmNamespace \\\n --set installCRDs=true \\\n --set nodeSelector.\"kubernetes\\.io/os\"=linux\nfi\n



\n

06-create-cluster-issuer.sh

\n

 This script creates a cluster issuer for the NGINX Ingress Controller based on the Let's Encrypt ACME certificate issuer.

\n



\n#/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Check if the cluster issuer already exists\nresult=$(kubectl get ClusterIssuer -o json | jq -r '.items[].metadata.name | select(. == \"'$clusterIssuerName'\")')\n\nif [[ -n $result ]]; then\n echo \"[$clusterIssuerName] cluster issuer already exists\"\n exit\nelse\n # Create the cluster issuer\n echo \"[$clusterIssuerName] cluster issuer does not exist\"\n echo \"Creating [$clusterIssuerName] cluster issuer...\"\n cat $clusterIssuerTemplate |\n yq \"(.spec.acme.email)|=\"\\\"\"$email\"\\\" |\n kubectl apply -f -\nfi\n



\n

07-create-workload-managed-identity.sh

\n

This script creates the managed identity used by the magic8ballchatbot and assigns it the Cognitive Services User role on the Azure OpenAI Service.

\n



\n#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Check if the user-assigned managed identity already exists\necho \"Checking if [$managedIdentityName] user-assigned managed identity actually exists in the [$aksResourceGroupName] resource group...\"\n\naz identity show \\\n --name $managedIdentityName \\\n --resource-group $aksResourceGroupName &>/dev/null\n\nif [[ $? != 0 ]]; then\n echo \"No [$managedIdentityName] user-assigned managed identity actually exists in the [$aksResourceGroupName] resource group\"\n echo \"Creating [$managedIdentityName] user-assigned managed identity in the [$aksResourceGroupName] resource group...\"\n\n # Create the user-assigned managed identity\n az identity create \\\n --name $managedIdentityName \\\n --resource-group $aksResourceGroupName \\\n --location $location \\\n --subscription $subscriptionId 1>/dev/null\n\n if [[ $? == 0 ]]; then\n echo \"[$managedIdentityName] user-assigned managed identity successfully created in the [$aksResourceGroupName] resource group\"\n else\n echo \"Failed to create [$managedIdentityName] user-assigned managed identity in the [$aksResourceGroupName] resource group\"\n exit\n fi\nelse\n echo \"[$managedIdentityName] user-assigned managed identity already exists in the [$aksResourceGroupName] resource group\"\nfi\n\n# Retrieve the clientId of the user-assigned managed identity\necho \"Retrieving clientId for [$managedIdentityName] managed identity...\"\nclientId=$(az identity show \\\n --name $managedIdentityName \\\n --resource-group $aksResourceGroupName \\\n --query clientId \\\n --output tsv)\n\nif [[ -n $clientId ]]; then\n echo \"[$clientId] clientId for the [$managedIdentityName] managed identity successfully retrieved\"\nelse\n echo \"Failed to retrieve clientId for the [$managedIdentityName] managed identity\"\n exit\nfi\n\n# Retrieve the principalId of the user-assigned managed identity\necho \"Retrieving principalId for [$managedIdentityName] managed identity...\"\nprincipalId=$(az identity show \\\n --name $managedIdentityName \\\n --resource-group $aksResourceGroupName \\\n --query principalId \\\n --output tsv)\n\nif [[ -n $principalId ]]; then\n echo \"[$principalId] principalId for the [$managedIdentityName] managed identity successfully retrieved\"\nelse\n echo \"Failed to retrieve principalId for the [$managedIdentityName] managed identity\"\n exit\nfi\n\n# Get the resource id of the Azure OpenAI resource\nopenAiId=$(az cognitiveservices account show \\\n --name $openAiName \\\n --resource-group $openAiResourceGroupName \\\n --query id \\\n --output tsv)\n\nif [[ -n $openAiId ]]; then\n echo \"Resource id for the [$openAiName] Azure OpenAI resource successfully retrieved\"\nelse\n echo \"Failed to the resource id for the [$openAiName] Azure OpenAI resource\"\n exit -1\nfi\n\n# Assign the Cognitive Services User role on the Azure OpenAI resource to the managed identity\nrole=\"Cognitive Services User\"\necho \"Checking if the [$managedIdentityName] managed identity has been assigned to [$role] role with [$openAiName] Azure OpenAI resource as a scope...\"\ncurrent=$(az role assignment list \\\n --assignee $principalId \\\n --scope $openAiId \\\n --query \"[?roleDefinitionName=='$role'].roleDefinitionName\" \\\n --output tsv 2>/dev/null)\n\nif [[ $current == $role ]]; then\n echo \"[$managedIdentityName] managed identity is already assigned to the [\"$current\"] role with [$openAiName] Azure OpenAI resource as a scope\"\nelse\n echo \"[$managedIdentityName] managed identity is not assigned to the [$role] role with [$openAiName] Azure OpenAI resource as a scope\"\n echo \"Assigning the [$role] role to the [$managedIdentityName] managed identity with [$openAiName] Azure OpenAI resource as a scope...\"\n\n az role assignment create \\\n --assignee $principalId \\\n --role \"$role\" \\\n --scope $openAiId 1>/dev/null\n\n if [[ $? == 0 ]]; then\n echo \"[$managedIdentityName] managed identity successfully assigned to the [$role] role with [$openAiName] Azure OpenAI resource as a scope\"\n else\n echo \"Failed to assign the [$managedIdentityName] managed identity to the [$role] role with [$openAiName] Azure OpenAI resource as a scope\"\n exit\n fi\nfi\n



\n

08-create-service-account.sh

\n

This script creates the namespace and service account for the magic8ball chatbot and federate the service account with the user-defined managed identity created in the previous step.

\n



\n#!/bin/bash\n\n# Variables for the user-assigned managed identity\nsource ./00-variables.sh\n\n# Check if the namespace already exists\nresult=$(kubectl get namespace -o 'jsonpath={.items[?(@.metadata.name==\"'$namespace'\")].metadata.name'})\n\nif [[ -n $result ]]; then\n echo \"[$namespace] namespace already exists\"\nelse\n # Create the namespace for your ingress resources\n echo \"[$namespace] namespace does not exist\"\n echo \"Creating [$namespace] namespace...\"\n kubectl create namespace $namespace\nfi\n\n# Check if the service account already exists\nresult=$(kubectl get sa -n $namespace -o 'jsonpath={.items[?(@.metadata.name==\"'$serviceAccountName'\")].metadata.name'})\n\nif [[ -n $result ]]; then\n echo \"[$serviceAccountName] service account already exists\"\nelse\n # Retrieve the resource id of the user-assigned managed identity\n echo \"Retrieving clientId for [$managedIdentityName] managed identity...\"\n managedIdentityClientId=$(az identity show \\\n --name $managedIdentityName \\\n --resource-group $aksResourceGroupName \\\n --query clientId \\\n --output tsv)\n\n if [[ -n $managedIdentityClientId ]]; then\n echo \"[$managedIdentityClientId] clientId for the [$managedIdentityName] managed identity successfully retrieved\"\n else\n echo \"Failed to retrieve clientId for the [$managedIdentityName] managed identity\"\n exit\n fi\n\n # Create the service account\n echo \"[$serviceAccountName] service account does not exist\"\n echo \"Creating [$serviceAccountName] service account...\"\n cat <<EOF | kubectl apply -f -\napiVersion: v1\nkind: ServiceAccount\nmetadata:\n annotations:\n azure.workload.identity/client-id: $managedIdentityClientId\n azure.workload.identity/tenant-id: $tenantId\n labels:\n azure.workload.identity/use: \"true\"\n name: $serviceAccountName\n namespace: $namespace\nEOF\nfi\n\n# Show service account YAML manifest\necho \"Service Account YAML manifest\"\necho \"-----------------------------\"\nkubectl get sa $serviceAccountName -n $namespace -o yaml\n\n# Check if the federated identity credential already exists\necho \"Checking if [$federatedIdentityName] federated identity credential actually exists in the [$aksResourceGroupName] resource group...\"\n\naz identity federated-credential show \\\n --name $federatedIdentityName \\\n --resource-group $aksResourceGroupName \\\n --identity-name $managedIdentityName &>/dev/null\n\nif [[ $? != 0 ]]; then\n echo \"No [$federatedIdentityName] federated identity credential actually exists in the [$aksResourceGroupName] resource group\"\n\n # Get the OIDC Issuer URL\n aksOidcIssuerUrl=\"$(az aks show \\\n --only-show-errors \\\n --name $aksClusterName \\\n --resource-group $aksResourceGroupName \\\n --query oidcIssuerProfile.issuerUrl \\\n --output tsv)\"\n\n # Show OIDC Issuer URL\n if [[ -n $aksOidcIssuerUrl ]]; then\n echo \"The OIDC Issuer URL of the $aksClusterName cluster is $aksOidcIssuerUrl\"\n fi\n\n echo \"Creating [$federatedIdentityName] federated identity credential in the [$aksResourceGroupName] resource group...\"\n\n # Establish the federated identity credential between the managed identity, the service account issuer, and the subject.\n az identity federated-credential create \\\n --name $federatedIdentityName \\\n --identity-name $managedIdentityName \\\n --resource-group $aksResourceGroupName \\\n --issuer $aksOidcIssuerUrl \\\n --subject system:serviceaccount:$namespace:$serviceAccountName\n\n if [[ $? == 0 ]]; then\n echo \"[$federatedIdentityName] federated identity credential successfully created in the [$aksResourceGroupName] resource group\"\n else\n echo \"Failed to create [$federatedIdentityName] federated identity credential in the [$aksResourceGroupName] resource group\"\n exit\n fi\nelse\n echo \"[$federatedIdentityName] federated identity credential already exists in the [$aksResourceGroupName] resource group\"\nfi\n



\n

09-deploy-app.sh

\n

This script creates the Kubernetes config map, deployment, and service used by the magic8ball chatbot.

\n



\n#!/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Attach ACR to AKS cluster\nif [[ $attachAcr == true ]]; then\n echo \"Attaching ACR $acrName to AKS cluster $aksClusterName...\"\n az aks update \\\n --name $aksClusterName \\\n --resource-group $aksResourceGroupName \\\n --attach-acr $acrName\nfi\n\n# Check if namespace exists in the cluster\nresult=$(kubectl get namespace -o jsonpath=\"{.items[?(@.metadata.name=='$namespace')].metadata.name}\")\n\nif [[ -n $result ]]; then\n echo \"$namespace namespace already exists in the cluster\"\nelse\n echo \"$namespace namespace does not exist in the cluster\"\n echo \"creating $namespace namespace in the cluster...\"\n kubectl create namespace $namespace\nfi\n\n# Create config map\ncat $configMapTemplate |\n yq \"(.data.TITLE)|=\"\\\"\"$title\"\\\" |\n yq \"(.data.LABEL)|=\"\\\"\"$label\"\\\" |\n yq \"(.data.TEMPERATURE)|=\"\\\"\"$temperature\"\\\" |\n yq \"(.data.IMAGE_WIDTH)|=\"\\\"\"$imageWidth\"\\\" |\n yq \"(.data.AZURE_OPENAI_TYPE)|=\"\\\"\"$openAiType\"\\\" |\n yq \"(.data.AZURE_OPENAI_BASE)|=\"\\\"\"$openAiBase\"\\\" |\n yq \"(.data.AZURE_OPENAI_MODEL)|=\"\\\"\"$openAiModel\"\\\" |\n yq \"(.data.AZURE_OPENAI_DEPLOYMENT)|=\"\\\"\"$openAiDeployment\"\\\" |\n kubectl apply -n $namespace -f -\n\n# Create deployment\ncat $deploymentTemplate |\n yq \"(.spec.template.spec.containers[0].image)|=\"\\\"\"$image\"\\\" |\n yq \"(.spec.template.spec.containers[0].imagePullPolicy)|=\"\\\"\"$imagePullPolicy\"\\\" |\n yq \"(.spec.template.spec.serviceAccountName)|=\"\\\"\"$serviceAccountName\"\\\" |\n kubectl apply -n $namespace -f -\n\n# Create deployment\nkubectl apply -f $serviceTemplate -n $namespace\n



\n

10-create-ingress.sh

\n

This script creates the ingress object to expose the service via the NGINX Ingress Controller.

\n



\n#/bin/bash\n\n# Variables\nsource ./00-variables.sh\n\n# Create the ingress\necho \"[$ingressName] ingress does not exist\"\necho \"Creating [$ingressName] ingress...\"\ncat $ingressTemplate |\n yq \"(.spec.tls[0].hosts[0])|=\"\\\"\"$host\"\\\" |\n yq \"(.spec.rules[0].host)|=\"\\\"\"$host\"\\\" |\n kubectl apply -n $namespace -f -\n



\n

11-configure-dns.sh

\n

This script creates an A record in the Azure DNS Zone to expose the application via a given subdomain (e.g., https://magic8ball.example.com).

\n



\n# Variables\nsource ./00-variables.sh\n\n# Retrieve the public IP address from the ingress\necho \"Retrieving the external IP address from the [$ingressName] ingress...\"\npublicIpAddress=$(kubectl get ingress $ingressName -n $namespace -o jsonpath='{.status.loadBalancer.ingress[0].ip}')\n\nif [ -n $publicIpAddress ]; then\n echo \"[$publicIpAddress] external IP address of the application gateway ingress controller successfully retrieved from the [$ingressName] ingress\"\nelse\n echo \"Failed to retrieve the external IP address of the application gateway ingress controller from the [$ingressName] ingress\"\n exit\nfi\n\n# Check if an A record for todolist subdomain exists in the DNS Zone\necho \"Retrieving the A record for the [$subdomain] subdomain from the [$dnsZoneName] DNS zone...\"\nipv4Address=$(az network dns record-set a list \\\n --zone-name $dnsZoneName \\\n --resource-group $dnsZoneResourceGroupName \\\n --query \"[?name=='$subdomain'].arecords[].ipv4Address\" \\\n --output tsv)\n\nif [[ -n $ipv4Address ]]; then\n echo \"An A record already exists in [$dnsZoneName] DNS zone for the [$subdomain] subdomain with [$ipv4Address] IP address\"\n\n if [[ $ipv4Address == $publicIpAddress ]]; then\n echo \"The [$ipv4Address] ip address of the existing A record is equal to the ip address of the [$ingressName] ingress\"\n echo \"No additional step is required\"\n exit\n else\n echo \"The [$ipv4Address] ip address of the existing A record is different than the ip address of the [$ingressName] ingress\"\n fi\n\n # Retrieving name of the record set relative to the zone\n echo \"Retrieving the name of the record set relative to the [$dnsZoneName] zone...\"\n\n recordSetName=$(az network dns record-set a list \\\n --zone-name $dnsZoneName \\\n --resource-group $dnsZoneResourceGroupName \\\n --query \"[?name=='$subdomain'].name\" \\\n --output name 2>/dev/null)\n\n if [[ -n $recordSetName ]]; then\n \"[$recordSetName] record set name successfully retrieved\"\n else\n \"Failed to retrieve the name of the record set relative to the [$dnsZoneName] zone\"\n exit\n fi\n\n # Remove the a record\n echo \"Removing the A record from the record set relative to the [$dnsZoneName] zone...\"\n\n az network dns record-set a remove-record \\\n --ipv4-address $ipv4Address \\\n --record-set-name $recordSetName \\\n --zone-name $dnsZoneName \\\n --resource-group $dnsZoneResourceGroupName\n\n if [[ $? == 0 ]]; then\n echo \"[$ipv4Address] ip address successfully removed from the [$recordSetName] record set\"\n else\n echo \"Failed to remove the [$ipv4Address] ip address from the [$recordSetName] record set\"\n exit\n fi\nfi\n\n# Create the a record\necho \"Creating an A record in [$dnsZoneName] DNS zone for the [$subdomain] subdomain with [$publicIpAddress] IP address...\"\naz network dns record-set a add-record \\\n --zone-name $dnsZoneName \\\n --resource-group $dnsZoneResourceGroupName \\\n --record-set-name $subdomain \\\n --ipv4-address $publicIpAddress 1>/dev/null\n\nif [[ $? == 0 ]]; then\n echo \"A record for the [$subdomain] subdomain with [$publicIpAddress] IP address successfully created in [$dnsZoneName] DNS zone\"\nelse\n echo \"Failed to create an A record for the $subdomain subdomain with [$publicIpAddress] IP address in [$dnsZoneName] DNS zone\"\nfi\n



\n

The scripts used to deploy the YAML template use the yq tool to customize the manifests with the value of the variables defined in the 00-variables.sh file. This tool is a lightweight and portable command-line YAML, JSON and XML processor that uses jq like syntax but works with YAML files as well as json, xml, properties, csv and tsv. It doesn't yet support everything jq does - but it does support the most common operations and functions, and more is being added continuously.

\n



\n

YAML manifests

\n

Below, you can read the YAML manifests used to deploy the magic8ball chatbot to AKS.

\n



\n

configmap.yml

\n

The configmap.yml defines a value for the environment variables passed to the application container. The config map does not define any environment variable for the OpenAI key as the container.

\n



\napiVersion: v1\nkind: ConfigMap\nmetadata:\n name: magic8ball-configmap\ndata:\n TITLE: \"Magic 8 Ball\"\n LABEL: \"Pose your question and cross your fingers!\"\n TEMPERATURE: \"0.9\"\n IMAGE_WIDTH: \"80\"\n AZURE_OPENAI_TYPE: azure_ad\n AZURE_OPENAI_BASE: https://baboopenai.openai.azure.com/\n AZURE_OPENAI_KEY: \"\"\n AZURE_OPENAI_MODEL: gpt-35-turbo\n AZURE_OPENAI_DEPLOYMENT: magic8ballGPT\n



\n

These are the parameters defined by the configmap:

\n



\n\n



\n

deployment.yml
Thedeployment.ymlmanifest is used create a Kubernetesdeploymentthat defines the application pods to create azure.workload.identity/use label is required in the pod template spec. Only pods with this label will be mutated by the azure-workload-identity mutating admission webhook to inject the Azure specific environment variables and the projected service account token volume.

\n



\napiVersion: apps/v1\nkind: Deployment\nmetadata:\n name: magic8ball\n labels:\n app: magic8ball\nspec:\n replicas: 3\n selector:\n matchLabels:\n app: magic8ball\n azure.workload.identity/use: \"true\"\n strategy:\n rollingUpdate:\n maxSurge: 1\n maxUnavailable: 1\n minReadySeconds: 5\n template:\n metadata:\n labels:\n app: magic8ball\n azure.workload.identity/use: \"true\"\n prometheus.io/scrape: \"true\"\n spec:\n serviceAccountName: magic8ball-sa\n topologySpreadConstraints:\n - maxSkew: 1\n topologyKey: topology.kubernetes.io/zone\n whenUnsatisfiable: DoNotSchedule\n labelSelector:\n matchLabels:\n app: magic8ball\n - maxSkew: 1\n topologyKey: kubernetes.io/hostname\n whenUnsatisfiable: DoNotSchedule\n labelSelector:\n matchLabels:\n app: magic8ball\n nodeSelector:\n \"kubernetes.io/os\": linux\n containers:\n - name: magic8ball\n image: paolosalvatori.azurecr.io/magic8ball:v1\n imagePullPolicy: Always\n resources:\n requests:\n memory: \"128Mi\"\n cpu: \"250m\"\n limits:\n memory: \"256Mi\"\n cpu: \"500m\"\n ports:\n - containerPort: 8501\n livenessProbe:\n httpGet:\n path: /\n port: 8501\n failureThreshold: 1\n initialDelaySeconds: 60\n periodSeconds: 30\n timeoutSeconds: 5\n readinessProbe:\n httpGet:\n path: /\n port: 8501\n failureThreshold: 1\n initialDelaySeconds: 60\n periodSeconds: 30\n timeoutSeconds: 5\n startupProbe:\n httpGet:\n path: /\n port: 8501\n failureThreshold: 1\n initialDelaySeconds: 60\n periodSeconds: 30\n timeoutSeconds: 5\n env:\n - name: TITLE\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: TITLE\n - name: IMAGE_WIDTH\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: IMAGE_WIDTH\n - name: LABEL\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: LABEL\n - name: TEMPERATURE\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: TEMPERATURE\n - name: AZURE_OPENAI_TYPE\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: AZURE_OPENAI_TYPE\n - name: AZURE_OPENAI_BASE\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: AZURE_OPENAI_BASE\n - name: AZURE_OPENAI_KEY\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: AZURE_OPENAI_KEY\n - name: AZURE_OPENAI_MODEL\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: AZURE_OPENAI_MODEL\n - name: AZURE_OPENAI_DEPLOYMENT\n valueFrom:\n configMapKeyRef:\n name: magic8ball-configmap\n key: AZURE_OPENAI_DEPLOYMENT\n



\n

service.yml

\n

The application is exposed using a ClusterIP Kubernetes service.

\n



\napiVersion: v1\nkind: Service\nmetadata:\n name: magic8ball\n labels:\n app: magic8ball\nspec:\n type: ClusterIP\n ports:\n - protocol: TCP\n port: 8501\n selector:\n app: magic8ball\n



\n

ingress.yml

\n

The ingress.yml manifest defines a Kubernetes ingress object used to expose the service via the NGINX Ingress Controller.

\n



\napiVersion: networking.k8s.io/v1\nkind: Ingress\nmetadata:\n name: magic8ball-ingress\n annotations:\n cert-manager.io/cluster-issuer: letsencrypt-nginx\n cert-manager.io/acme-challenge-type: http01 \n nginx.ingress.kubernetes.io/proxy-connect-timeout: \"360\"\n nginx.ingress.kubernetes.io/proxy-send-timeout: \"360\"\n nginx.ingress.kubernetes.io/proxy-read-timeout: \"360\"\n nginx.ingress.kubernetes.io/proxy-next-upstream-timeout: \"360\"\n nginx.ingress.kubernetes.io/configuration-snippet: |\n more_set_headers \"X-Frame-Options: SAMEORIGIN\";\nspec:\n ingressClassName: nginx\n tls:\n - hosts:\n - magic8ball.babosbird.com\n secretName: tls-secret\n rules:\n - host: magic8ball.babosbird.com\n http:\n paths:\n - path: /\n pathType: Prefix\n backend:\n service:\n name: magic8ball\n port:\n number: 8501\n



\n

The ingress object defines the following annotations:

\n



\n\n



\n

Review deployed resources

\n

Use the Azure portal, Azure CLI, or Azure PowerShell to list the deployed resources in the resource group.

\n



\n

Azure CLI

\n



\naz resource list --resource-group <resource-group-name>\n



\n

PowerShell

\n



\nGet-AzResource -ResourceGroupName <resource-group-name>\n



\n



\n

Clean up resources

\n

When you no longer need the resources you created, delete the resource group. This will remove all the Azure resources.

\n



\n

Azure CLI

\n



\naz group delete --name <resource-group-name>\n



\n

PowerShell

\n



\nRemove-AzResourceGroup -Name <resource-group-name>\n



\n



","kudosSumWeight":11,"postTime":"2023-05-30T09:33:15.276-07:00","images":{"__typename":"AssociatedImageConnection","edges":[{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDE","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTE1MGkxRERBRTk5ODgyOTUwNThB?revision=5\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDI","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTEzM2lBQUQ1RTk5RjkyRjFBQzhF?revision=5\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDM","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTM5MWk1NzM2QzYyNDgzRDY3MzlC?revision=5\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDQ","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTM5Mmk2RkVGQ0QyN0E0Nzk4MzA1?revision=5\"}"}},{"__typename":"AssociatedImageEdge","cursor":"MjUuM3wyLjF8b3wyNXxfTlZffDU","node":{"__ref":"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTE1MWkwM0ZEMjI3NThDNDQyRDVC?revision=5\"}"}}],"totalCount":5,"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"attachments":{"__typename":"AttachmentConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"tags":{"__typename":"TagConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDE","node":{"__typename":"Tag","id":"tag:App","text":"App","time":"2016-07-12T09:46:46.175-07:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}},{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDI","node":{"__typename":"Tag","id":"tag:Cloud Native Apps","text":"Cloud Native Apps","time":"2021-01-08T08:35:18.760-08:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}},{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDM","node":{"__typename":"Tag","id":"tag:Infra","text":"Infra","time":"2020-03-04T21:21:46.909-08:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}},{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDQ","node":{"__typename":"Tag","id":"tag:ISVs","text":"ISVs","time":"2020-09-16T12:09:53.388-07:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}},{"__typename":"TagEdge","cursor":"MjUuM3wyLjF8b3wxMHxfTlZffDU","node":{"__typename":"Tag","id":"tag:saas","text":"saas","time":"2018-09-20T07:53:04.840-07:00","lastActivityTime":null,"messagesCount":null,"followersCount":null}}]},"timeToRead":47,"rawTeaser":"

This article shows how to deploy an Azure Kubernetes Service(AKS) cluster and Azure OpenAI Service via Bicep and how to deploy a Python chatbot that authenticates against Azure OpenAI using Azure AD workload identity and calls the Chat Completion API of a ChatGPT model.

\n

\n

 

\n

 

","introduction":"","coverImage":null,"coverImageProperties":{"__typename":"CoverImageProperties","style":"STANDARD","titlePosition":"BOTTOM","altText":""},"currentRevision":{"__ref":"Revision:revision:3834619_5"},"latestVersion":{"__typename":"FriendlyVersion","major":"5","minor":"0"},"metrics":{"__typename":"MessageMetrics","views":38129},"visibilityScope":"PUBLIC","canonicalUrl":null,"seoTitle":null,"seoDescription":null,"placeholder":false,"originalMessageForPlaceholder":null,"contributors":{"__typename":"UserConnection","edges":[]},"nonCoAuthorContributors":{"__typename":"UserConnection","edges":[]},"coAuthors":{"__typename":"UserConnection","edges":[]},"blogMessagePolicies":{"__typename":"BlogMessagePolicies","canDoAuthoringActionsOnBlog":{"__typename":"PolicyResult","failureReason":{"__typename":"FailureReason","message":"error.lithium.policies.blog.action_can_do_authoring_action.accessDenied","key":"error.lithium.policies.blog.action_can_do_authoring_action.accessDenied","args":[]}}},"archivalData":null,"replies":{"__typename":"MessageConnection","edges":[{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzg0MzIwMCwzODQzMjAw","node":{"__ref":"BlogReplyMessage:message:3843200"}},{"__typename":"MessageEdge","cursor":"MjUuM3wyLjF8aXwxMHwxMzI6MHxpbnQsMzg0MzIwMCwzODQzMTky","node":{"__ref":"BlogReplyMessage:message:3843192"}}],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}},"customFields":[],"revisions({\"constraints\":{\"isPublished\":{\"eq\":true}},\"first\":1})":{"__typename":"RevisionConnection","totalCount":5}},"Conversation:conversation:3834619":{"__typename":"Conversation","id":"conversation:3834619","solved":false,"topic":{"__ref":"BlogTopicMessage:message:3834619"},"lastPostingActivityTime":"2023-06-08T08:43:03.341-07:00","lastPostTime":"2023-06-08T08:39:05.690-07:00","unreadReplyCount":2,"isSubscribed":false},"ModerationData:moderation_data:3834619":{"__typename":"ModerationData","id":"moderation_data:3834619","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTE1MGkxRERBRTk5ODgyOTUwNThB?revision=5\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTE1MGkxRERBRTk5ODgyOTUwNThB?revision=5","title":"architecture.png","associationType":"TEASER","width":690,"height":758,"altText":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTEzM2lBQUQ1RTk5RjkyRjFBQzhF?revision=5\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTEzM2lBQUQ1RTk5RjkyRjFBQzhF?revision=5","title":"architecture.png","associationType":"BODY","width":690,"height":758,"altText":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTM5MWk1NzM2QzYyNDgzRDY3MzlC?revision=5\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTM5MWk1NzM2QzYyNDgzRDY3MzlC?revision=5","title":"openai.png","associationType":"BODY","width":1012,"height":587,"altText":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTM5Mmk2RkVGQ0QyN0E0Nzk4MzA1?revision=5\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTM5Mmk2RkVGQ0QyN0E0Nzk4MzA1?revision=5","title":"federatedidentitycredentials.png","associationType":"BODY","width":876,"height":673,"altText":null},"AssociatedImage:{\"url\":\"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTE1MWkwM0ZEMjI3NThDNDQyRDVC?revision=5\"}":{"__typename":"AssociatedImage","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/images/bS0zODM0NjE5LTQ3NTE1MWkwM0ZEMjI3NThDNDQyRDVC?revision=5","title":"magic8ball.png","associationType":"BODY","width":754,"height":587,"altText":null},"Revision:revision:3834619_5":{"__typename":"Revision","id":"revision:3834619_5","lastEditTime":"2023-06-08T08:43:03.341-07:00"},"CachedAsset:theme:customTheme1-1746563245856":{"__typename":"CachedAsset","id":"theme:customTheme1-1746563245856","value":{"id":"customTheme1","animation":{"fast":"150ms","normal":"250ms","slow":"500ms","slowest":"750ms","function":"cubic-bezier(0.07, 0.91, 0.51, 1)","__typename":"AnimationThemeSettings"},"avatar":{"borderRadius":"50%","collections":["default"],"__typename":"AvatarThemeSettings"},"basics":{"browserIcon":{"imageAssetName":"favicon-1730836283320.png","imageLastModified":"1730836286415","__typename":"ThemeAsset"},"customerLogo":{"imageAssetName":"favicon-1730836271365.png","imageLastModified":"1730836274203","__typename":"ThemeAsset"},"maximumWidthOfPageContent":"1300px","oneColumnNarrowWidth":"800px","gridGutterWidthMd":"30px","gridGutterWidthXs":"10px","pageWidthStyle":"WIDTH_OF_BROWSER","__typename":"BasicsThemeSettings"},"buttons":{"borderRadiusSm":"3px","borderRadius":"3px","borderRadiusLg":"5px","paddingY":"5px","paddingYLg":"7px","paddingYHero":"var(--lia-bs-btn-padding-y-lg)","paddingX":"12px","paddingXLg":"16px","paddingXHero":"60px","fontStyle":"NORMAL","fontWeight":"700","textTransform":"NONE","disabledOpacity":0.5,"primaryTextColor":"var(--lia-bs-white)","primaryTextHoverColor":"var(--lia-bs-white)","primaryTextActiveColor":"var(--lia-bs-white)","primaryBgColor":"var(--lia-bs-primary)","primaryBgHoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.85))","primaryBgActiveColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) * 0.7))","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","primaryBorderActive":"1px solid transparent","primaryBorderFocus":"1px solid var(--lia-bs-white)","primaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","secondaryTextColor":"var(--lia-bs-gray-900)","secondaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","secondaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","secondaryBgColor":"var(--lia-bs-gray-200)","secondaryBgHoverColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.96))","secondaryBgActiveColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.92))","secondaryBorder":"1px solid transparent","secondaryBorderHover":"1px solid transparent","secondaryBorderActive":"1px solid transparent","secondaryBorderFocus":"1px solid transparent","secondaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","tertiaryTextColor":"var(--lia-bs-gray-900)","tertiaryTextHoverColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.95))","tertiaryTextActiveColor":"hsl(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), calc(var(--lia-bs-gray-900-l) * 0.9))","tertiaryBgColor":"transparent","tertiaryBgHoverColor":"transparent","tertiaryBgActiveColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.04)","tertiaryBorder":"1px solid transparent","tertiaryBorderHover":"1px solid hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","tertiaryBorderActive":"1px solid transparent","tertiaryBorderFocus":"1px solid transparent","tertiaryBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","destructiveTextColor":"var(--lia-bs-danger)","destructiveTextHoverColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.95))","destructiveTextActiveColor":"hsl(var(--lia-bs-danger-h), var(--lia-bs-danger-s), calc(var(--lia-bs-danger-l) * 0.9))","destructiveBgColor":"var(--lia-bs-gray-200)","destructiveBgHoverColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.96))","destructiveBgActiveColor":"hsl(var(--lia-bs-gray-200-h), var(--lia-bs-gray-200-s), calc(var(--lia-bs-gray-200-l) * 0.92))","destructiveBorder":"1px solid transparent","destructiveBorderHover":"1px solid transparent","destructiveBorderActive":"1px solid transparent","destructiveBorderFocus":"1px solid transparent","destructiveBoxShadowFocus":"0 0 0 1px var(--lia-bs-primary), 0 0 0 4px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","__typename":"ButtonsThemeSettings"},"border":{"color":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","mainContent":"NONE","sideContent":"LIGHT","radiusSm":"3px","radius":"5px","radiusLg":"9px","radius50":"100vw","__typename":"BorderThemeSettings"},"boxShadow":{"xs":"0 0 0 1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.08), 0 3px 0 -1px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.16)","sm":"0 2px 4px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.12)","md":"0 5px 15px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.3)","lg":"0 10px 30px hsla(var(--lia-bs-gray-900-h), var(--lia-bs-gray-900-s), var(--lia-bs-gray-900-l), 0.3)","__typename":"BoxShadowThemeSettings"},"cards":{"bgColor":"var(--lia-panel-bg-color)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":"var(--lia-box-shadow-xs)","__typename":"CardsThemeSettings"},"chip":{"maxWidth":"300px","height":"30px","__typename":"ChipThemeSettings"},"coreTypes":{"defaultMessageLinkColor":"var(--lia-bs-link-color)","defaultMessageLinkDecoration":"none","defaultMessageLinkFontStyle":"NORMAL","defaultMessageLinkFontWeight":"400","defaultMessageFontStyle":"NORMAL","defaultMessageFontWeight":"400","defaultMessageFontFamily":"var(--lia-bs-font-family-base)","forumColor":"#4099E2","forumFontFamily":"var(--lia-bs-font-family-base)","forumFontWeight":"var(--lia-default-message-font-weight)","forumLineHeight":"var(--lia-bs-line-height-base)","forumFontStyle":"var(--lia-default-message-font-style)","forumMessageLinkColor":"var(--lia-default-message-link-color)","forumMessageLinkDecoration":"var(--lia-default-message-link-decoration)","forumMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","forumMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","forumSolvedColor":"#148563","blogColor":"#1CBAA0","blogFontFamily":"var(--lia-bs-font-family-base)","blogFontWeight":"var(--lia-default-message-font-weight)","blogLineHeight":"1.75","blogFontStyle":"var(--lia-default-message-font-style)","blogMessageLinkColor":"var(--lia-default-message-link-color)","blogMessageLinkDecoration":"var(--lia-default-message-link-decoration)","blogMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","blogMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","tkbColor":"#4C6B90","tkbFontFamily":"var(--lia-bs-font-family-base)","tkbFontWeight":"var(--lia-default-message-font-weight)","tkbLineHeight":"1.75","tkbFontStyle":"var(--lia-default-message-font-style)","tkbMessageLinkColor":"var(--lia-default-message-link-color)","tkbMessageLinkDecoration":"var(--lia-default-message-link-decoration)","tkbMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","tkbMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaColor":"#4099E2","qandaFontFamily":"var(--lia-bs-font-family-base)","qandaFontWeight":"var(--lia-default-message-font-weight)","qandaLineHeight":"var(--lia-bs-line-height-base)","qandaFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkColor":"var(--lia-default-message-link-color)","qandaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","qandaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","qandaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","qandaSolvedColor":"#3FA023","ideaColor":"#FF8000","ideaFontFamily":"var(--lia-bs-font-family-base)","ideaFontWeight":"var(--lia-default-message-font-weight)","ideaLineHeight":"var(--lia-bs-line-height-base)","ideaFontStyle":"var(--lia-default-message-font-style)","ideaMessageLinkColor":"var(--lia-default-message-link-color)","ideaMessageLinkDecoration":"var(--lia-default-message-link-decoration)","ideaMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","ideaMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","contestColor":"#FCC845","contestFontFamily":"var(--lia-bs-font-family-base)","contestFontWeight":"var(--lia-default-message-font-weight)","contestLineHeight":"var(--lia-bs-line-height-base)","contestFontStyle":"var(--lia-default-message-link-font-style)","contestMessageLinkColor":"var(--lia-default-message-link-color)","contestMessageLinkDecoration":"var(--lia-default-message-link-decoration)","contestMessageLinkFontStyle":"ITALIC","contestMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","occasionColor":"#D13A1F","occasionFontFamily":"var(--lia-bs-font-family-base)","occasionFontWeight":"var(--lia-default-message-font-weight)","occasionLineHeight":"var(--lia-bs-line-height-base)","occasionFontStyle":"var(--lia-default-message-font-style)","occasionMessageLinkColor":"var(--lia-default-message-link-color)","occasionMessageLinkDecoration":"var(--lia-default-message-link-decoration)","occasionMessageLinkFontStyle":"var(--lia-default-message-link-font-style)","occasionMessageLinkFontWeight":"var(--lia-default-message-link-font-weight)","grouphubColor":"#333333","categoryColor":"#949494","communityColor":"#FFFFFF","productColor":"#949494","__typename":"CoreTypesThemeSettings"},"colors":{"black":"#000000","white":"#FFFFFF","gray100":"#F7F7F7","gray200":"#F7F7F7","gray300":"#E8E8E8","gray400":"#D9D9D9","gray500":"#CCCCCC","gray600":"#717171","gray700":"#707070","gray800":"#545454","gray900":"#333333","dark":"#545454","light":"#F7F7F7","primary":"#0069D4","secondary":"#333333","bodyText":"#1E1E1E","bodyBg":"#FFFFFF","info":"#409AE2","success":"#41C5AE","warning":"#FCC844","danger":"#BC341B","alertSystem":"#FF6600","textMuted":"#707070","highlight":"#FFFCAD","outline":"var(--lia-bs-primary)","custom":["#D3F5A4","#243A5E"],"__typename":"ColorsThemeSettings"},"divider":{"size":"3px","marginLeft":"4px","marginRight":"4px","borderRadius":"50%","bgColor":"var(--lia-bs-gray-600)","bgColorActive":"var(--lia-bs-gray-600)","__typename":"DividerThemeSettings"},"dropdown":{"fontSize":"var(--lia-bs-font-size-sm)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius-sm)","dividerBg":"var(--lia-bs-gray-300)","itemPaddingY":"5px","itemPaddingX":"20px","headerColor":"var(--lia-bs-gray-700)","__typename":"DropdownThemeSettings"},"email":{"link":{"color":"#0069D4","hoverColor":"#0061c2","decoration":"none","hoverDecoration":"underline","__typename":"EmailLinkSettings"},"border":{"color":"#e4e4e4","__typename":"EmailBorderSettings"},"buttons":{"borderRadiusLg":"5px","paddingXLg":"16px","paddingYLg":"7px","fontWeight":"700","primaryTextColor":"#ffffff","primaryTextHoverColor":"#ffffff","primaryBgColor":"#0069D4","primaryBgHoverColor":"#005cb8","primaryBorder":"1px solid transparent","primaryBorderHover":"1px solid transparent","__typename":"EmailButtonsSettings"},"panel":{"borderRadius":"5px","borderColor":"#e4e4e4","__typename":"EmailPanelSettings"},"__typename":"EmailThemeSettings"},"emoji":{"skinToneDefault":"#ffcd43","skinToneLight":"#fae3c5","skinToneMediumLight":"#e2cfa5","skinToneMedium":"#daa478","skinToneMediumDark":"#a78058","skinToneDark":"#5e4d43","__typename":"EmojiThemeSettings"},"heading":{"color":"var(--lia-bs-body-color)","fontFamily":"Segoe UI","fontStyle":"NORMAL","fontWeight":"400","h1FontSize":"34px","h2FontSize":"32px","h3FontSize":"28px","h4FontSize":"24px","h5FontSize":"20px","h6FontSize":"16px","lineHeight":"1.3","subHeaderFontSize":"11px","subHeaderFontWeight":"500","h1LetterSpacing":"normal","h2LetterSpacing":"normal","h3LetterSpacing":"normal","h4LetterSpacing":"normal","h5LetterSpacing":"normal","h6LetterSpacing":"normal","subHeaderLetterSpacing":"2px","h1FontWeight":"var(--lia-bs-headings-font-weight)","h2FontWeight":"var(--lia-bs-headings-font-weight)","h3FontWeight":"var(--lia-bs-headings-font-weight)","h4FontWeight":"var(--lia-bs-headings-font-weight)","h5FontWeight":"var(--lia-bs-headings-font-weight)","h6FontWeight":"var(--lia-bs-headings-font-weight)","__typename":"HeadingThemeSettings"},"icons":{"size10":"10px","size12":"12px","size14":"14px","size16":"16px","size20":"20px","size24":"24px","size30":"30px","size40":"40px","size50":"50px","size60":"60px","size80":"80px","size120":"120px","size160":"160px","__typename":"IconsThemeSettings"},"imagePreview":{"bgColor":"var(--lia-bs-gray-900)","titleColor":"var(--lia-bs-white)","controlColor":"var(--lia-bs-white)","controlBgColor":"var(--lia-bs-gray-800)","__typename":"ImagePreviewThemeSettings"},"input":{"borderColor":"var(--lia-bs-gray-600)","disabledColor":"var(--lia-bs-gray-600)","focusBorderColor":"var(--lia-bs-primary)","labelMarginBottom":"10px","btnFontSize":"var(--lia-bs-font-size-sm)","focusBoxShadow":"0 0 0 3px hsla(var(--lia-bs-primary-h), var(--lia-bs-primary-s), var(--lia-bs-primary-l), 0.2)","checkLabelMarginBottom":"2px","checkboxBorderRadius":"3px","borderRadiusSm":"var(--lia-bs-border-radius-sm)","borderRadius":"var(--lia-bs-border-radius)","borderRadiusLg":"var(--lia-bs-border-radius-lg)","formTextMarginTop":"4px","textAreaBorderRadius":"var(--lia-bs-border-radius)","activeFillColor":"var(--lia-bs-primary)","__typename":"InputThemeSettings"},"loading":{"dotDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.2)","dotLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.5)","barDarkColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.06)","barLightColor":"hsla(var(--lia-bs-white-h), var(--lia-bs-white-s), var(--lia-bs-white-l), 0.4)","__typename":"LoadingThemeSettings"},"link":{"color":"var(--lia-bs-primary)","hoverColor":"hsl(var(--lia-bs-primary-h), var(--lia-bs-primary-s), calc(var(--lia-bs-primary-l) - 10%))","decoration":"none","hoverDecoration":"underline","__typename":"LinkThemeSettings"},"listGroup":{"itemPaddingY":"15px","itemPaddingX":"15px","borderColor":"var(--lia-bs-gray-300)","__typename":"ListGroupThemeSettings"},"modal":{"contentTextColor":"var(--lia-bs-body-color)","contentBg":"var(--lia-bs-white)","backgroundBg":"var(--lia-bs-black)","smSize":"440px","mdSize":"760px","lgSize":"1080px","backdropOpacity":0.3,"contentBoxShadowXs":"var(--lia-bs-box-shadow-sm)","contentBoxShadow":"var(--lia-bs-box-shadow)","headerFontWeight":"700","__typename":"ModalThemeSettings"},"navbar":{"position":"FIXED","background":{"attachment":null,"clip":null,"color":"var(--lia-bs-white)","imageAssetName":"","imageLastModified":"0","origin":null,"position":"CENTER_CENTER","repeat":"NO_REPEAT","size":"COVER","__typename":"BackgroundProps"},"backgroundOpacity":0.8,"paddingTop":"15px","paddingBottom":"15px","borderBottom":"1px solid var(--lia-bs-border-color)","boxShadow":"var(--lia-bs-box-shadow-sm)","brandMarginRight":"30px","brandMarginRightSm":"10px","brandLogoHeight":"30px","linkGap":"10px","linkJustifyContent":"flex-start","linkPaddingY":"5px","linkPaddingX":"10px","linkDropdownPaddingY":"9px","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkColor":"var(--lia-bs-body-color)","linkHoverColor":"var(--lia-bs-primary)","linkFontSize":"var(--lia-bs-font-size-sm)","linkFontStyle":"NORMAL","linkFontWeight":"400","linkTextTransform":"NONE","linkLetterSpacing":"normal","linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkBgColor":"transparent","linkBgHoverColor":"transparent","linkBorder":"none","linkBorderHover":"none","linkBoxShadow":"none","linkBoxShadowHover":"none","linkTextBorderBottom":"none","linkTextBorderBottomHover":"none","dropdownPaddingTop":"10px","dropdownPaddingBottom":"15px","dropdownPaddingX":"10px","dropdownMenuOffset":"2px","dropdownDividerMarginTop":"10px","dropdownDividerMarginBottom":"10px","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","controllerIconColor":"var(--lia-bs-body-color)","controllerIconHoverColor":"var(--lia-bs-body-color)","controllerTextColor":"var(--lia-nav-controller-icon-color)","controllerTextHoverColor":"var(--lia-nav-controller-icon-hover-color)","controllerHighlightColor":"hsla(30, 100%, 50%)","controllerHighlightTextColor":"var(--lia-yiq-light)","controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerColor":"var(--lia-nav-controller-icon-color)","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","hamburgerBgColor":"transparent","hamburgerBgHoverColor":"transparent","hamburgerBorder":"none","hamburgerBorderHover":"none","collapseMenuMarginLeft":"20px","collapseMenuDividerBg":"var(--lia-nav-link-color)","collapseMenuDividerOpacity":0.16,"__typename":"NavbarThemeSettings"},"pager":{"textColor":"var(--lia-bs-link-color)","textFontWeight":"var(--lia-font-weight-md)","textFontSize":"var(--lia-bs-font-size-sm)","__typename":"PagerThemeSettings"},"panel":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-bs-border-radius)","borderColor":"var(--lia-bs-border-color)","boxShadow":"none","__typename":"PanelThemeSettings"},"popover":{"arrowHeight":"8px","arrowWidth":"16px","maxWidth":"300px","minWidth":"100px","headerBg":"var(--lia-bs-white)","borderColor":"var(--lia-bs-border-color)","borderRadius":"var(--lia-bs-border-radius)","boxShadow":"0 0.5rem 1rem hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.15)","__typename":"PopoverThemeSettings"},"prism":{"color":"#000000","bgColor":"#f5f2f0","fontFamily":"var(--font-family-monospace)","fontSize":"var(--lia-bs-font-size-base)","fontWeightBold":"var(--lia-bs-font-weight-bold)","fontStyleItalic":"italic","tabSize":2,"highlightColor":"#b3d4fc","commentColor":"#62707e","punctuationColor":"#6f6f6f","namespaceOpacity":"0.7","propColor":"#990055","selectorColor":"#517a00","operatorColor":"#906736","operatorBgColor":"hsla(0, 0%, 100%, 0.5)","keywordColor":"#0076a9","functionColor":"#d3284b","variableColor":"#c14700","__typename":"PrismThemeSettings"},"rte":{"bgColor":"var(--lia-bs-white)","borderRadius":"var(--lia-panel-border-radius)","boxShadow":" var(--lia-panel-box-shadow)","customColor1":"#bfedd2","customColor2":"#fbeeb8","customColor3":"#f8cac6","customColor4":"#eccafa","customColor5":"#c2e0f4","customColor6":"#2dc26b","customColor7":"#f1c40f","customColor8":"#e03e2d","customColor9":"#b96ad9","customColor10":"#3598db","customColor11":"#169179","customColor12":"#e67e23","customColor13":"#ba372a","customColor14":"#843fa1","customColor15":"#236fa1","customColor16":"#ecf0f1","customColor17":"#ced4d9","customColor18":"#95a5a6","customColor19":"#7e8c8d","customColor20":"#34495e","customColor21":"#000000","customColor22":"#ffffff","defaultMessageHeaderMarginTop":"40px","defaultMessageHeaderMarginBottom":"20px","defaultMessageItemMarginTop":"0","defaultMessageItemMarginBottom":"10px","diffAddedColor":"hsla(170, 53%, 51%, 0.4)","diffChangedColor":"hsla(43, 97%, 63%, 0.4)","diffNoneColor":"hsla(0, 0%, 80%, 0.4)","diffRemovedColor":"hsla(9, 74%, 47%, 0.4)","specialMessageHeaderMarginTop":"40px","specialMessageHeaderMarginBottom":"20px","specialMessageItemMarginTop":"0","specialMessageItemMarginBottom":"10px","__typename":"RteThemeSettings"},"tags":{"bgColor":"var(--lia-bs-gray-200)","bgHoverColor":"var(--lia-bs-gray-400)","borderRadius":"var(--lia-bs-border-radius-sm)","color":"var(--lia-bs-body-color)","hoverColor":"var(--lia-bs-body-color)","fontWeight":"var(--lia-font-weight-md)","fontSize":"var(--lia-font-size-xxs)","textTransform":"UPPERCASE","letterSpacing":"0.5px","__typename":"TagsThemeSettings"},"toasts":{"borderRadius":"var(--lia-bs-border-radius)","paddingX":"12px","__typename":"ToastsThemeSettings"},"typography":{"fontFamilyBase":"Segoe UI","fontStyleBase":"NORMAL","fontWeightBase":"400","fontWeightLight":"300","fontWeightNormal":"400","fontWeightMd":"500","fontWeightBold":"700","letterSpacingSm":"normal","letterSpacingXs":"normal","lineHeightBase":"1.5","fontSizeBase":"16px","fontSizeXxs":"11px","fontSizeXs":"12px","fontSizeSm":"14px","fontSizeLg":"20px","fontSizeXl":"24px","smallFontSize":"14px","customFonts":[{"source":"SERVER","name":"Segoe UI","styles":[{"style":"NORMAL","weight":"400","__typename":"FontStyleData"},{"style":"NORMAL","weight":"300","__typename":"FontStyleData"},{"style":"NORMAL","weight":"600","__typename":"FontStyleData"},{"style":"NORMAL","weight":"700","__typename":"FontStyleData"},{"style":"ITALIC","weight":"400","__typename":"FontStyleData"}],"assetNames":["SegoeUI-normal-400.woff2","SegoeUI-normal-300.woff2","SegoeUI-normal-600.woff2","SegoeUI-normal-700.woff2","SegoeUI-italic-400.woff2"],"__typename":"CustomFont"},{"source":"SERVER","name":"MWF Fluent Icons","styles":[{"style":"NORMAL","weight":"400","__typename":"FontStyleData"}],"assetNames":["MWFFluentIcons-normal-400.woff2"],"__typename":"CustomFont"}],"__typename":"TypographyThemeSettings"},"unstyledListItem":{"marginBottomSm":"5px","marginBottomMd":"10px","marginBottomLg":"15px","marginBottomXl":"20px","marginBottomXxl":"25px","__typename":"UnstyledListItemThemeSettings"},"yiq":{"light":"#ffffff","dark":"#000000","__typename":"YiqThemeSettings"},"colorLightness":{"primaryDark":0.36,"primaryLight":0.74,"primaryLighter":0.89,"primaryLightest":0.95,"infoDark":0.39,"infoLight":0.72,"infoLighter":0.85,"infoLightest":0.93,"successDark":0.24,"successLight":0.62,"successLighter":0.8,"successLightest":0.91,"warningDark":0.39,"warningLight":0.68,"warningLighter":0.84,"warningLightest":0.93,"dangerDark":0.41,"dangerLight":0.72,"dangerLighter":0.89,"dangerLightest":0.95,"__typename":"ColorLightnessThemeSettings"},"localOverride":false,"__typename":"Theme"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/Loading/LoadingDot-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/Loading/LoadingDot-1745505307000","value":{"title":"Loading..."},"localOverride":false},"CachedAsset:quilt:o365.prod:pages/blogs/BlogMessagePage:board:FastTrackforAzureBlog-1746563244026":{"__typename":"CachedAsset","id":"quilt:o365.prod:pages/blogs/BlogMessagePage:board:FastTrackforAzureBlog-1746563244026","value":{"id":"BlogMessagePage","container":{"id":"Common","headerProps":{"backgroundImageProps":null,"backgroundColor":null,"addComponents":null,"removeComponents":["community.widget.bannerWidget"],"componentOrder":null,"__typename":"QuiltContainerSectionProps"},"headerComponentProps":{"community.widget.breadcrumbWidget":{"disableLastCrumbForDesktop":false}},"footerProps":null,"footerComponentProps":null,"items":[{"id":"blog-article","layout":"ONE_COLUMN","bgColor":null,"showTitle":null,"showDescription":null,"textPosition":null,"textColor":null,"sectionEditLevel":"LOCKED","bgImage":null,"disableSpacing":null,"edgeToEdgeDisplay":null,"fullHeight":null,"showBorder":null,"__typename":"OneColumnQuiltSection","columnMap":{"main":[{"id":"blogs.widget.blogArticleWidget","className":"lia-blog-container","props":null,"__typename":"QuiltComponent"}],"__typename":"OneSectionColumns"}},{"id":"section-1729184836777","layout":"MAIN_SIDE","bgColor":"transparent","showTitle":false,"showDescription":false,"textPosition":"CENTER","textColor":"var(--lia-bs-body-color)","sectionEditLevel":null,"bgImage":null,"disableSpacing":null,"edgeToEdgeDisplay":null,"fullHeight":null,"showBorder":null,"__typename":"MainSideQuiltSection","columnMap":{"main":[],"side":[],"__typename":"MainSideSectionColumns"}}],"__typename":"QuiltContainer"},"__typename":"Quilt","localOverride":false},"localOverride":false},"CachedAsset:text:en_US-components/common/EmailVerification-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/common/EmailVerification-1745505307000","value":{"email.verification.title":"Email Verification Required","email.verification.message.update.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. To change your email, visit My Settings.","email.verification.message.resend.email":"To participate in the community, you must first verify your email address. The verification email was sent to {email}. Resend email."},"localOverride":false},"CachedAsset:text:en_US-pages/blogs/BlogMessagePage-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-pages/blogs/BlogMessagePage-1745505307000","value":{"title":"{contextMessageSubject} | {communityTitle}","errorMissing":"This blog post cannot be found","name":"Blog Message Page","section.blog-article.title":"Blog Post","archivedMessageTitle":"This Content Has Been Archived","section.section-1729184836777.title":"","section.section-1729184836777.description":"","section.CncIde.title":"Blog Post","section.tifEmD.description":"","section.tifEmD.title":""},"localOverride":false},"CachedAsset:quiltWrapper:o365.prod:Common:1746563184305":{"__typename":"CachedAsset","id":"quiltWrapper:o365.prod:Common:1746563184305","value":{"id":"Common","header":{"backgroundImageProps":{"assetName":null,"backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"CENTER_CENTER","lastModified":null,"__typename":"BackgroundImageProps"},"backgroundColor":"transparent","items":[{"id":"community.widget.navbarWidget","props":{"showUserName":true,"showRegisterLink":true,"useIconLanguagePicker":true,"useLabelLanguagePicker":true,"className":"QuiltComponent_lia-component-edit-mode__0nCcm","links":{"sideLinks":[],"mainLinks":[{"children":[],"linkType":"INTERNAL","id":"gxcuf89792","params":{},"routeName":"CommunityPage"},{"children":[],"linkType":"EXTERNAL","id":"external-link","url":"/Directory","target":"SELF"},{"children":[{"linkType":"INTERNAL","id":"microsoft365","params":{"categoryId":"microsoft365"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"windows","params":{"categoryId":"Windows"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"Common-microsoft365-copilot-link","params":{"categoryId":"Microsoft365Copilot"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-teams","params":{"categoryId":"MicrosoftTeams"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-securityand-compliance","params":{"categoryId":"microsoft-security"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"azure","params":{"categoryId":"Azure"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"Common-content_management-link","params":{"categoryId":"Content_Management"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"exchange","params":{"categoryId":"Exchange"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"windows-server","params":{"categoryId":"Windows-Server"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"outlook","params":{"categoryId":"Outlook"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-endpoint-manager","params":{"categoryId":"microsoftintune"},"routeName":"CategoryPage"},{"linkType":"EXTERNAL","id":"external-link-2","url":"/Directory","target":"SELF"}],"linkType":"EXTERNAL","id":"communities","url":"/","target":"BLANK"},{"children":[{"linkType":"INTERNAL","id":"a-i","params":{"categoryId":"AI"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"education-sector","params":{"categoryId":"EducationSector"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"partner-community","params":{"categoryId":"PartnerCommunity"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"i-t-ops-talk","params":{"categoryId":"ITOpsTalk"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"healthcare-and-life-sciences","params":{"categoryId":"HealthcareAndLifeSciences"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-mechanics","params":{"categoryId":"MicrosoftMechanics"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"public-sector","params":{"categoryId":"PublicSector"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"s-m-b","params":{"categoryId":"MicrosoftforNonprofits"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"io-t","params":{"categoryId":"IoT"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"startupsat-microsoft","params":{"categoryId":"StartupsatMicrosoft"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"driving-adoption","params":{"categoryId":"DrivingAdoption"},"routeName":"CategoryPage"},{"linkType":"EXTERNAL","id":"external-link-1","url":"/Directory","target":"SELF"}],"linkType":"EXTERNAL","id":"communities-1","url":"/","target":"SELF"},{"children":[],"linkType":"EXTERNAL","id":"external","url":"/Blogs","target":"SELF"},{"children":[],"linkType":"EXTERNAL","id":"external-1","url":"/Events","target":"SELF"},{"children":[{"linkType":"INTERNAL","id":"microsoft-learn-1","params":{"categoryId":"MicrosoftLearn"},"routeName":"CategoryPage"},{"linkType":"INTERNAL","id":"microsoft-learn-blog","params":{"boardId":"MicrosoftLearnBlog","categoryId":"MicrosoftLearn"},"routeName":"BlogBoardPage"},{"linkType":"EXTERNAL","id":"external-10","url":"https://learningroomdirectory.microsoft.com/","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-3","url":"https://docs.microsoft.com/learn/dynamics365/?WT.mc_id=techcom_header-webpage-m365","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-4","url":"https://docs.microsoft.com/learn/m365/?wt.mc_id=techcom_header-webpage-m365","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-5","url":"https://docs.microsoft.com/learn/topics/sci/?wt.mc_id=techcom_header-webpage-m365","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-6","url":"https://docs.microsoft.com/learn/powerplatform/?wt.mc_id=techcom_header-webpage-powerplatform","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-7","url":"https://docs.microsoft.com/learn/github/?wt.mc_id=techcom_header-webpage-github","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-8","url":"https://docs.microsoft.com/learn/teams/?wt.mc_id=techcom_header-webpage-teams","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-9","url":"https://docs.microsoft.com/learn/dotnet/?wt.mc_id=techcom_header-webpage-dotnet","target":"BLANK"},{"linkType":"EXTERNAL","id":"external-2","url":"https://docs.microsoft.com/learn/azure/?WT.mc_id=techcom_header-webpage-m365","target":"BLANK"}],"linkType":"INTERNAL","id":"microsoft-learn","params":{"categoryId":"MicrosoftLearn"},"routeName":"CategoryPage"},{"children":[],"linkType":"INTERNAL","id":"community-info-center","params":{"categoryId":"Community-Info-Center"},"routeName":"CategoryPage"}]},"style":{"boxShadow":"var(--lia-bs-box-shadow-sm)","controllerHighlightColor":"hsla(30, 100%, 50%)","linkFontWeight":"400","dropdownDividerMarginBottom":"10px","hamburgerBorderHover":"none","linkBoxShadowHover":"none","linkFontSize":"14px","backgroundOpacity":0.8,"controllerBorderRadius":"var(--lia-border-radius-50)","hamburgerBgColor":"transparent","hamburgerColor":"var(--lia-nav-controller-icon-color)","linkTextBorderBottom":"none","brandLogoHeight":"30px","linkBgHoverColor":"transparent","linkLetterSpacing":"normal","collapseMenuDividerOpacity":0.16,"dropdownPaddingBottom":"15px","paddingBottom":"15px","dropdownMenuOffset":"2px","hamburgerBgHoverColor":"transparent","borderBottom":"1px solid var(--lia-bs-border-color)","hamburgerBorder":"none","dropdownPaddingX":"10px","brandMarginRightSm":"10px","linkBoxShadow":"none","collapseMenuDividerBg":"var(--lia-nav-link-color)","linkColor":"var(--lia-bs-body-color)","linkJustifyContent":"flex-start","dropdownPaddingTop":"10px","controllerHighlightTextColor":"var(--lia-yiq-dark)","controllerTextColor":"var(--lia-nav-controller-icon-color)","background":{"imageAssetName":"","color":"var(--lia-bs-white)","size":"COVER","repeat":"NO_REPEAT","position":"CENTER_CENTER","imageLastModified":""},"linkBorderRadius":"var(--lia-bs-border-radius-sm)","linkHoverColor":"var(--lia-bs-body-color)","position":"FIXED","linkBorder":"none","linkTextBorderBottomHover":"2px solid var(--lia-bs-body-color)","brandMarginRight":"30px","hamburgerHoverColor":"var(--lia-nav-controller-icon-color)","linkBorderHover":"none","collapseMenuMarginLeft":"20px","linkFontStyle":"NORMAL","controllerTextHoverColor":"var(--lia-nav-controller-icon-hover-color)","linkPaddingX":"10px","linkPaddingY":"5px","paddingTop":"15px","linkTextTransform":"NONE","dropdownBorderColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.08)","controllerBgHoverColor":"hsla(var(--lia-bs-black-h), var(--lia-bs-black-s), var(--lia-bs-black-l), 0.1)","linkBgColor":"transparent","linkDropdownPaddingX":"var(--lia-nav-link-px)","linkDropdownPaddingY":"9px","controllerIconColor":"var(--lia-bs-body-color)","dropdownDividerMarginTop":"10px","linkGap":"10px","controllerIconHoverColor":"var(--lia-bs-body-color)"},"showSearchIcon":false,"languagePickerStyle":"iconAndLabel"},"__typename":"QuiltComponent"},{"id":"community.widget.breadcrumbWidget","props":{"backgroundColor":"transparent","linkHighlightColor":"var(--lia-bs-primary)","visualEffects":{"showBottomBorder":true},"linkTextColor":"var(--lia-bs-gray-700)"},"__typename":"QuiltComponent"},{"id":"custom.widget.community_banner","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"usePageWidth":false,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"},{"id":"custom.widget.HeroBanner","props":{"widgetVisibility":"signedInOrAnonymous","usePageWidth":false,"useTitle":true,"cMax_items":3,"useBackground":false,"title":"","lazyLoad":false,"widgetChooser":"custom.widget.HeroBanner"},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"footer":{"backgroundImageProps":{"assetName":null,"backgroundSize":"COVER","backgroundRepeat":"NO_REPEAT","backgroundPosition":"CENTER_CENTER","lastModified":null,"__typename":"BackgroundImageProps"},"backgroundColor":"transparent","items":[{"id":"custom.widget.MicrosoftFooter","props":{"widgetVisibility":"signedInOrAnonymous","useTitle":true,"useBackground":false,"title":"","lazyLoad":false},"__typename":"QuiltComponent"}],"__typename":"QuiltWrapperSection"},"__typename":"QuiltWrapper","localOverride":false},"localOverride":false},"CachedAsset:text:en_US-components/common/ActionFeedback-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/common/ActionFeedback-1745505307000","value":{"joinedGroupHub.title":"Welcome","joinedGroupHub.message":"You are now a member of this group and are subscribed to updates.","groupHubInviteNotFound.title":"Invitation Not Found","groupHubInviteNotFound.message":"Sorry, we could not find your invitation to the group. The owner may have canceled the invite.","groupHubNotFound.title":"Group Not Found","groupHubNotFound.message":"The grouphub you tried to join does not exist. It may have been deleted.","existingGroupHubMember.title":"Already Joined","existingGroupHubMember.message":"You are already a member of this group.","accountLocked.title":"Account Locked","accountLocked.message":"Your account has been locked due to multiple failed attempts. Try again in {lockoutTime} minutes.","editedGroupHub.title":"Changes Saved","editedGroupHub.message":"Your group has been updated.","leftGroupHub.title":"Goodbye","leftGroupHub.message":"You are no longer a member of this group and will not receive future updates.","deletedGroupHub.title":"Deleted","deletedGroupHub.message":"The group has been deleted.","groupHubCreated.title":"Group Created","groupHubCreated.message":"{groupHubName} is ready to use","accountClosed.title":"Account Closed","accountClosed.message":"The account has been closed and you will now be redirected to the homepage","resetTokenExpired.title":"Reset Password Link has Expired","resetTokenExpired.message":"Try resetting your password again","invalidUrl.title":"Invalid URL","invalidUrl.message":"The URL you're using is not recognized. Verify your URL and try again.","accountClosedForUser.title":"Account Closed","accountClosedForUser.message":"{userName}'s account is closed","inviteTokenInvalid.title":"Invitation Invalid","inviteTokenInvalid.message":"Your invitation to the community has been canceled or expired.","inviteTokenError.title":"Invitation Verification Failed","inviteTokenError.message":"The url you are utilizing is not recognized. Verify your URL and try again","pageNotFound.title":"Access Denied","pageNotFound.message":"You do not have access to this area of the community or it doesn't exist","eventAttending.title":"Responded as Attending","eventAttending.message":"You'll be notified when there's new activity and reminded as the event approaches","eventInterested.title":"Responded as Interested","eventInterested.message":"You'll be notified when there's new activity and reminded as the event approaches","eventNotFound.title":"Event Not Found","eventNotFound.message":"The event you tried to respond to does not exist.","redirectToRelatedPage.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.title":"Showing Related Content","redirectToRelatedPageForBaseUsers.message":"The content you are trying to access is archived","redirectToRelatedPage.message":"The content you are trying to access is archived","relatedUrl.archivalLink.flyoutMessage":"The content you are trying to access is archived View Archived Content"},"localOverride":false},"QueryVariables:TopicReplyList:message:3834619:5":{"__typename":"QueryVariables","id":"TopicReplyList:message:3834619:5","value":{"id":"message:3834619","first":10,"sorts":{"postTime":{"direction":"DESC"}},"repliesFirst":3,"repliesFirstDepthThree":1,"repliesSorts":{"postTime":{"direction":"DESC"}},"useAvatar":true,"useAuthorLogin":true,"useAuthorRank":true,"useBody":true,"useKudosCount":true,"useTimeToRead":false,"useMedia":false,"useReadOnlyIcon":false,"useRepliesCount":true,"useSearchSnippet":false,"useAcceptedSolutionButton":false,"useSolvedBadge":false,"useAttachments":false,"attachmentsFirst":5,"useTags":true,"useNodeAncestors":false,"useUserHoverCard":false,"useNodeHoverCard":false,"useModerationStatus":true,"usePreviewSubjectModal":false,"useMessageStatus":true}},"ROOT_MUTATION":{"__typename":"Mutation"},"CachedAsset:component:custom.widget.community_banner-en-us-1746563280879":{"__typename":"CachedAsset","id":"component:custom.widget.community_banner-en-us-1746563280879","value":{"component":{"id":"custom.widget.community_banner","template":{"id":"community_banner","markupLanguage":"HANDLEBARS","style":".community-banner {\n a.top-bar.btn {\n top: 0px;\n width: 100%;\n z-index: 999;\n text-align: center;\n left: 0px;\n background: #0068b8;\n color: white;\n padding: 10px 0px;\n display: block;\n box-shadow: none !important;\n border: none !important;\n border-radius: none !important;\n margin: 0px !important;\n font-size: 14px;\n }\n}\n","texts":{},"defaults":{"config":{"applicablePages":[],"description":"community announcement text","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.community_banner","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"community announcement text","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":{"css":".custom_widget_community_banner_community-banner_1x9u2_1 {\n a.custom_widget_community_banner_top-bar_1x9u2_2.custom_widget_community_banner_btn_1x9u2_2 {\n top: 0;\n width: 100%;\n z-index: 999;\n text-align: center;\n left: 0;\n background: #0068b8;\n color: white;\n padding: 0.625rem 0;\n display: block;\n box-shadow: none !important;\n border: none !important;\n border-radius: none !important;\n margin: 0 !important;\n font-size: 0.875rem;\n }\n}\n","tokens":{"community-banner":"custom_widget_community_banner_community-banner_1x9u2_1","top-bar":"custom_widget_community_banner_top-bar_1x9u2_2","btn":"custom_widget_community_banner_btn_1x9u2_2"}},"form":null},"localOverride":false},"CachedAsset:component:custom.widget.HeroBanner-en-us-1746563280879":{"__typename":"CachedAsset","id":"component:custom.widget.HeroBanner-en-us-1746563280879","value":{"component":{"id":"custom.widget.HeroBanner","template":{"id":"HeroBanner","markupLanguage":"REACT","style":null,"texts":{"searchPlaceholderText":"Search this community","followActionText":"Follow","unfollowActionText":"Following","searchOnHoverText":"Please enter your search term(s) and then press return key to complete a search.","blogs.sidebar.pagetitle":"Latest Blogs | Microsoft Tech Community","followThisNode":"Follow this node","unfollowThisNode":"Unfollow this node"},"defaults":{"config":{"applicablePages":[],"description":null,"fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[{"id":"max_items","dataType":"NUMBER","list":false,"defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"control":"INPUT","__typename":"PropDefinition"}],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.HeroBanner","form":{"fields":[{"id":"widgetChooser","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"title","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useTitle","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useBackground","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"widgetVisibility","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"moreOptions","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"cMax_items","validation":null,"noValidation":null,"dataType":"NUMBER","list":false,"control":"INPUT","defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"__typename":"FormField"}],"layout":{"rows":[{"id":"widgetChooserGroup","type":"fieldset","as":null,"items":[{"id":"widgetChooser","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"titleGroup","type":"fieldset","as":null,"items":[{"id":"title","className":null,"__typename":"FormFieldRef"},{"id":"useTitle","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"useBackground","type":"fieldset","as":null,"items":[{"id":"useBackground","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"widgetVisibility","type":"fieldset","as":null,"items":[{"id":"widgetVisibility","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"moreOptionsGroup","type":"fieldset","as":null,"items":[{"id":"moreOptions","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"componentPropsGroup","type":"fieldset","as":null,"items":[{"id":"cMax_items","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"}],"actionButtons":null,"className":"custom_widget_HeroBanner_form","formGroupFieldSeparator":"divider","__typename":"FormLayout"},"__typename":"Form"},"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":null,"fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[{"id":"max_items","dataType":"NUMBER","list":false,"defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"control":"INPUT","__typename":"PropDefinition"}],"__typename":"ComponentProperties"},"form":{"fields":[{"id":"widgetChooser","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"title","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useTitle","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useBackground","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"widgetVisibility","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"moreOptions","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"cMax_items","validation":null,"noValidation":null,"dataType":"NUMBER","list":false,"control":"INPUT","defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"__typename":"FormField"}],"layout":{"rows":[{"id":"widgetChooserGroup","type":"fieldset","as":null,"items":[{"id":"widgetChooser","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"titleGroup","type":"fieldset","as":null,"items":[{"id":"title","className":null,"__typename":"FormFieldRef"},{"id":"useTitle","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"useBackground","type":"fieldset","as":null,"items":[{"id":"useBackground","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"widgetVisibility","type":"fieldset","as":null,"items":[{"id":"widgetVisibility","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"moreOptionsGroup","type":"fieldset","as":null,"items":[{"id":"moreOptions","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"componentPropsGroup","type":"fieldset","as":null,"items":[{"id":"cMax_items","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"}],"actionButtons":null,"className":"custom_widget_HeroBanner_form","formGroupFieldSeparator":"divider","__typename":"FormLayout"},"__typename":"Form"},"__typename":"Component","localOverride":false},"globalCss":null,"form":{"fields":[{"id":"widgetChooser","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"title","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useTitle","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"useBackground","validation":null,"noValidation":null,"dataType":"BOOLEAN","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"widgetVisibility","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"moreOptions","validation":null,"noValidation":null,"dataType":"STRING","list":null,"control":null,"defaultValue":null,"label":null,"description":null,"possibleValues":null,"__typename":"FormField"},{"id":"cMax_items","validation":null,"noValidation":null,"dataType":"NUMBER","list":false,"control":"INPUT","defaultValue":"3","label":"Max Items","description":"The maximum number of items to display in the carousel","possibleValues":null,"__typename":"FormField"}],"layout":{"rows":[{"id":"widgetChooserGroup","type":"fieldset","as":null,"items":[{"id":"widgetChooser","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"titleGroup","type":"fieldset","as":null,"items":[{"id":"title","className":null,"__typename":"FormFieldRef"},{"id":"useTitle","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"useBackground","type":"fieldset","as":null,"items":[{"id":"useBackground","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"widgetVisibility","type":"fieldset","as":null,"items":[{"id":"widgetVisibility","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"moreOptionsGroup","type":"fieldset","as":null,"items":[{"id":"moreOptions","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"},{"id":"componentPropsGroup","type":"fieldset","as":null,"items":[{"id":"cMax_items","className":null,"__typename":"FormFieldRef"}],"props":null,"legend":null,"description":null,"className":null,"viewVariant":null,"toggleState":null,"__typename":"FormFieldset"}],"actionButtons":null,"className":"custom_widget_HeroBanner_form","formGroupFieldSeparator":"divider","__typename":"FormLayout"},"__typename":"Form"}},"localOverride":false},"CachedAsset:component:custom.widget.MicrosoftFooter-en-us-1746563280879":{"__typename":"CachedAsset","id":"component:custom.widget.MicrosoftFooter-en-us-1746563280879","value":{"component":{"id":"custom.widget.MicrosoftFooter","template":{"id":"MicrosoftFooter","markupLanguage":"HANDLEBARS","style":".context-uhf {\n min-width: 280px;\n font-size: 15px;\n box-sizing: border-box;\n -ms-text-size-adjust: 100%;\n -webkit-text-size-adjust: 100%;\n & *,\n & *:before,\n & *:after {\n box-sizing: inherit;\n }\n a.c-uhff-link {\n color: #616161;\n word-break: break-word;\n text-decoration: none;\n }\n &a:link,\n &a:focus,\n &a:hover,\n &a:active,\n &a:visited {\n text-decoration: none;\n color: inherit;\n }\n & div {\n font-family: 'Segoe UI', SegoeUI, 'Helvetica Neue', Helvetica, Arial, sans-serif;\n }\n}\n.c-uhff {\n background: #f2f2f2;\n margin: -1.5625;\n width: auto;\n height: auto;\n}\n.c-uhff-nav {\n margin: 0 auto;\n max-width: calc(1600px + 10%);\n padding: 0 5%;\n box-sizing: inherit;\n &:before,\n &:after {\n content: ' ';\n display: table;\n clear: left;\n }\n @media only screen and (max-width: 1083px) {\n padding-left: 12px;\n }\n .c-heading-4 {\n color: #616161;\n word-break: break-word;\n font-size: 15px;\n line-height: 20px;\n padding: 36px 0 4px;\n font-weight: 600;\n }\n .c-uhff-nav-row {\n .c-uhff-nav-group {\n display: block;\n float: left;\n min-height: 1px;\n vertical-align: text-top;\n padding: 0 12px;\n width: 100%;\n zoom: 1;\n &:first-child {\n padding-left: 0;\n @media only screen and (max-width: 1083px) {\n padding-left: 12px;\n }\n }\n @media only screen and (min-width: 540px) and (max-width: 1082px) {\n width: 33.33333%;\n }\n @media only screen and (min-width: 1083px) {\n width: 16.6666666667%;\n }\n ul.c-list.f-bare {\n font-size: 11px;\n line-height: 16px;\n margin-top: 0;\n margin-bottom: 0;\n padding-left: 0;\n list-style-type: none;\n li {\n word-break: break-word;\n padding: 8px 0;\n margin: 0;\n }\n }\n }\n }\n}\n.c-uhff-base {\n background: #f2f2f2;\n margin: 0 auto;\n max-width: calc(1600px + 10%);\n padding: 30px 5% 16px;\n &:before,\n &:after {\n content: ' ';\n display: table;\n }\n &:after {\n clear: both;\n }\n a.c-uhff-ccpa {\n font-size: 11px;\n line-height: 16px;\n float: left;\n margin: 3px 0;\n }\n a.c-uhff-ccpa:hover {\n text-decoration: underline;\n }\n ul.c-list {\n font-size: 11px;\n line-height: 16px;\n float: right;\n margin: 3px 0;\n color: #616161;\n li {\n padding: 0 24px 4px 0;\n display: inline-block;\n }\n }\n .c-list.f-bare {\n padding-left: 0;\n list-style-type: none;\n }\n @media only screen and (max-width: 1083px) {\n display: flex;\n flex-wrap: wrap;\n padding: 30px 24px 16px;\n }\n}\n\n.social-share {\n position: fixed;\n top: 60%;\n transform: translateY(-50%);\n left: 0;\n z-index: 1000;\n}\n\n.sharing-options {\n list-style: none;\n padding: 0;\n margin: 0;\n display: block;\n flex-direction: column;\n background-color: white;\n width: 43px;\n border-radius: 0px 7px 7px 0px;\n}\n.linkedin-icon {\n border-top-right-radius: 7px;\n}\n.linkedin-icon:hover {\n border-radius: 0;\n}\n.social-share-rss-image {\n border-bottom-right-radius: 7px;\n}\n.social-share-rss-image:hover {\n border-radius: 0;\n}\n\n.social-link-footer {\n position: relative;\n display: block;\n margin: -2px 0;\n transition: all 0.2s ease;\n}\n.social-link-footer:hover .linkedin-icon {\n border-radius: 0;\n}\n.social-link-footer:hover .social-share-rss-image {\n border-radius: 0;\n}\n\n.social-link-footer img {\n width: 40px;\n height: auto;\n transition: filter 0.3s ease;\n}\n\n.social-share-list {\n width: 40px;\n}\n.social-share-rss-image {\n width: 40px;\n}\n\n.share-icon {\n border: 2px solid transparent;\n display: inline-block;\n position: relative;\n}\n\n.share-icon:hover {\n opacity: 1;\n border: 2px solid white;\n box-sizing: border-box;\n}\n\n.share-icon:hover .label {\n opacity: 1;\n visibility: visible;\n border: 2px solid white;\n box-sizing: border-box;\n border-left: none;\n}\n\n.label {\n position: absolute;\n left: 100%;\n white-space: nowrap;\n opacity: 0;\n visibility: hidden;\n transition: all 0.2s ease;\n color: white;\n border-radius: 0 10 0 10px;\n top: 50%;\n transform: translateY(-50%);\n height: 40px;\n border-radius: 0 6px 6px 0;\n display: flex;\n align-items: center;\n justify-content: center;\n padding: 20px 5px 20px 8px;\n margin-left: -1px;\n}\n.linkedin {\n background-color: #0474b4;\n}\n.facebook {\n background-color: #3c5c9c;\n}\n.twitter {\n background-color: white;\n color: black;\n}\n.reddit {\n background-color: #fc4404;\n}\n.mail {\n background-color: #848484;\n}\n.bluesky {\n background-color: white;\n color: black;\n}\n.rss {\n background-color: #ec7b1c;\n}\n#RSS {\n width: 40px;\n height: 40px;\n}\n\n@media (max-width: 991px) {\n .social-share {\n display: none;\n }\n}\n","texts":{"New tab":"What's New","New 1":"Surface Laptop Studio 2","New 2":"Surface Laptop Go 3","New 3":"Surface Pro 9","New 4":"Surface Laptop 5","New 5":"Surface Studio 2+","New 6":"Copilot in Windows","New 7":"Microsoft 365","New 8":"Windows 11 apps","Store tab":"Microsoft Store","Store 1":"Account Profile","Store 2":"Download Center","Store 3":"Microsoft Store Support","Store 4":"Returns","Store 5":"Order tracking","Store 6":"Certified Refurbished","Store 7":"Microsoft Store Promise","Store 8":"Flexible Payments","Education tab":"Education","Edu 1":"Microsoft in education","Edu 2":"Devices for education","Edu 3":"Microsoft Teams for Education","Edu 4":"Microsoft 365 Education","Edu 5":"How to buy for your school","Edu 6":"Educator Training and development","Edu 7":"Deals for students and parents","Edu 8":"Azure for students","Business tab":"Business","Bus 1":"Microsoft Cloud","Bus 2":"Microsoft Security","Bus 3":"Dynamics 365","Bus 4":"Microsoft 365","Bus 5":"Microsoft Power Platform","Bus 6":"Microsoft Teams","Bus 7":"Microsoft Industry","Bus 8":"Small Business","Developer tab":"Developer & IT","Dev 1":"Azure","Dev 2":"Developer Center","Dev 3":"Documentation","Dev 4":"Microsoft Learn","Dev 5":"Microsoft Tech Community","Dev 6":"Azure Marketplace","Dev 7":"AppSource","Dev 8":"Visual Studio","Company tab":"Company","Com 1":"Careers","Com 2":"About Microsoft","Com 3":"Company News","Com 4":"Privacy at Microsoft","Com 5":"Investors","Com 6":"Diversity and inclusion","Com 7":"Accessiblity","Com 8":"Sustainibility"},"defaults":{"config":{"applicablePages":[],"description":"The Microsoft Footer","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"components":[{"id":"custom.widget.MicrosoftFooter","form":null,"config":null,"props":[],"__typename":"Component"}],"grouping":"CUSTOM","__typename":"ComponentTemplate"},"properties":{"config":{"applicablePages":[],"description":"The Microsoft Footer","fetchedContent":null,"__typename":"ComponentConfiguration"},"props":[],"__typename":"ComponentProperties"},"form":null,"__typename":"Component","localOverride":false},"globalCss":{"css":".custom_widget_MicrosoftFooter_context-uhf_105bp_1 {\n min-width: 17.5rem;\n font-size: 0.9375rem;\n box-sizing: border-box;\n -ms-text-size-adjust: 100%;\n -webkit-text-size-adjust: 100%;\n & *,\n & *:before,\n & *:after {\n box-sizing: inherit;\n }\n a.custom_widget_MicrosoftFooter_c-uhff-link_105bp_12 {\n color: #616161;\n word-break: break-word;\n text-decoration: none;\n }\n &a:link,\n &a:focus,\n &a:hover,\n &a:active,\n &a:visited {\n text-decoration: none;\n color: inherit;\n }\n & div {\n font-family: 'Segoe UI', SegoeUI, 'Helvetica Neue', Helvetica, Arial, sans-serif;\n }\n}\n.custom_widget_MicrosoftFooter_c-uhff_105bp_12 {\n background: #f2f2f2;\n margin: -1.5625;\n width: auto;\n height: auto;\n}\n.custom_widget_MicrosoftFooter_c-uhff-nav_105bp_35 {\n margin: 0 auto;\n max-width: calc(100rem + 10%);\n padding: 0 5%;\n box-sizing: inherit;\n &:before,\n &:after {\n content: ' ';\n display: table;\n clear: left;\n }\n @media only screen and (max-width: 1083px) {\n padding-left: 0.75rem;\n }\n .custom_widget_MicrosoftFooter_c-heading-4_105bp_49 {\n color: #616161;\n word-break: break-word;\n font-size: 0.9375rem;\n line-height: 1.25rem;\n padding: 2.25rem 0 0.25rem;\n font-weight: 600;\n }\n .custom_widget_MicrosoftFooter_c-uhff-nav-row_105bp_57 {\n .custom_widget_MicrosoftFooter_c-uhff-nav-group_105bp_58 {\n display: block;\n float: left;\n min-height: 0.0625rem;\n vertical-align: text-top;\n padding: 0 0.75rem;\n width: 100%;\n zoom: 1;\n &:first-child {\n padding-left: 0;\n @media only screen and (max-width: 1083px) {\n padding-left: 0.75rem;\n }\n }\n @media only screen and (min-width: 540px) and (max-width: 1082px) {\n width: 33.33333%;\n }\n @media only screen and (min-width: 1083px) {\n width: 16.6666666667%;\n }\n ul.custom_widget_MicrosoftFooter_c-list_105bp_78.custom_widget_MicrosoftFooter_f-bare_105bp_78 {\n font-size: 0.6875rem;\n line-height: 1rem;\n margin-top: 0;\n margin-bottom: 0;\n padding-left: 0;\n list-style-type: none;\n li {\n word-break: break-word;\n padding: 0.5rem 0;\n margin: 0;\n }\n }\n }\n }\n}\n.custom_widget_MicrosoftFooter_c-uhff-base_105bp_94 {\n background: #f2f2f2;\n margin: 0 auto;\n max-width: calc(100rem + 10%);\n padding: 1.875rem 5% 1rem;\n &:before,\n &:after {\n content: ' ';\n display: table;\n }\n &:after {\n clear: both;\n }\n a.custom_widget_MicrosoftFooter_c-uhff-ccpa_105bp_107 {\n font-size: 0.6875rem;\n line-height: 1rem;\n float: left;\n margin: 0.1875rem 0;\n }\n a.custom_widget_MicrosoftFooter_c-uhff-ccpa_105bp_107:hover {\n text-decoration: underline;\n }\n ul.custom_widget_MicrosoftFooter_c-list_105bp_78 {\n font-size: 0.6875rem;\n line-height: 1rem;\n float: right;\n margin: 0.1875rem 0;\n color: #616161;\n li {\n padding: 0 1.5rem 0.25rem 0;\n display: inline-block;\n }\n }\n .custom_widget_MicrosoftFooter_c-list_105bp_78.custom_widget_MicrosoftFooter_f-bare_105bp_78 {\n padding-left: 0;\n list-style-type: none;\n }\n @media only screen and (max-width: 1083px) {\n display: flex;\n flex-wrap: wrap;\n padding: 1.875rem 1.5rem 1rem;\n }\n}\n.custom_widget_MicrosoftFooter_social-share_105bp_138 {\n position: fixed;\n top: 60%;\n transform: translateY(-50%);\n left: 0;\n z-index: 1000;\n}\n.custom_widget_MicrosoftFooter_sharing-options_105bp_146 {\n list-style: none;\n padding: 0;\n margin: 0;\n display: block;\n flex-direction: column;\n background-color: white;\n width: 2.6875rem;\n border-radius: 0 0.4375rem 0.4375rem 0;\n}\n.custom_widget_MicrosoftFooter_linkedin-icon_105bp_156 {\n border-top-right-radius: 7px;\n}\n.custom_widget_MicrosoftFooter_linkedin-icon_105bp_156:hover {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162 {\n border-bottom-right-radius: 7px;\n}\n.custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162:hover {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169 {\n position: relative;\n display: block;\n margin: -0.125rem 0;\n transition: all 0.2s ease;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169:hover .custom_widget_MicrosoftFooter_linkedin-icon_105bp_156 {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169:hover .custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162 {\n border-radius: 0;\n}\n.custom_widget_MicrosoftFooter_social-link-footer_105bp_169 img {\n width: 2.5rem;\n height: auto;\n transition: filter 0.3s ease;\n}\n.custom_widget_MicrosoftFooter_social-share-list_105bp_188 {\n width: 2.5rem;\n}\n.custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162 {\n width: 2.5rem;\n}\n.custom_widget_MicrosoftFooter_share-icon_105bp_195 {\n border: 2px solid transparent;\n display: inline-block;\n position: relative;\n}\n.custom_widget_MicrosoftFooter_share-icon_105bp_195:hover {\n opacity: 1;\n border: 2px solid white;\n box-sizing: border-box;\n}\n.custom_widget_MicrosoftFooter_share-icon_105bp_195:hover .custom_widget_MicrosoftFooter_label_105bp_207 {\n opacity: 1;\n visibility: visible;\n border: 2px solid white;\n box-sizing: border-box;\n border-left: none;\n}\n.custom_widget_MicrosoftFooter_label_105bp_207 {\n position: absolute;\n left: 100%;\n white-space: nowrap;\n opacity: 0;\n visibility: hidden;\n transition: all 0.2s ease;\n color: white;\n border-radius: 0 10 0 0.625rem;\n top: 50%;\n transform: translateY(-50%);\n height: 2.5rem;\n border-radius: 0 0.375rem 0.375rem 0;\n display: flex;\n align-items: center;\n justify-content: center;\n padding: 1.25rem 0.3125rem 1.25rem 0.5rem;\n margin-left: -0.0625rem;\n}\n.custom_widget_MicrosoftFooter_linkedin_105bp_156 {\n background-color: #0474b4;\n}\n.custom_widget_MicrosoftFooter_facebook_105bp_237 {\n background-color: #3c5c9c;\n}\n.custom_widget_MicrosoftFooter_twitter_105bp_240 {\n background-color: white;\n color: black;\n}\n.custom_widget_MicrosoftFooter_reddit_105bp_244 {\n background-color: #fc4404;\n}\n.custom_widget_MicrosoftFooter_mail_105bp_247 {\n background-color: #848484;\n}\n.custom_widget_MicrosoftFooter_bluesky_105bp_250 {\n background-color: white;\n color: black;\n}\n.custom_widget_MicrosoftFooter_rss_105bp_254 {\n background-color: #ec7b1c;\n}\n#custom_widget_MicrosoftFooter_RSS_105bp_1 {\n width: 2.5rem;\n height: 2.5rem;\n}\n@media (max-width: 991px) {\n .custom_widget_MicrosoftFooter_social-share_105bp_138 {\n display: none;\n }\n}\n","tokens":{"context-uhf":"custom_widget_MicrosoftFooter_context-uhf_105bp_1","c-uhff-link":"custom_widget_MicrosoftFooter_c-uhff-link_105bp_12","c-uhff":"custom_widget_MicrosoftFooter_c-uhff_105bp_12","c-uhff-nav":"custom_widget_MicrosoftFooter_c-uhff-nav_105bp_35","c-heading-4":"custom_widget_MicrosoftFooter_c-heading-4_105bp_49","c-uhff-nav-row":"custom_widget_MicrosoftFooter_c-uhff-nav-row_105bp_57","c-uhff-nav-group":"custom_widget_MicrosoftFooter_c-uhff-nav-group_105bp_58","c-list":"custom_widget_MicrosoftFooter_c-list_105bp_78","f-bare":"custom_widget_MicrosoftFooter_f-bare_105bp_78","c-uhff-base":"custom_widget_MicrosoftFooter_c-uhff-base_105bp_94","c-uhff-ccpa":"custom_widget_MicrosoftFooter_c-uhff-ccpa_105bp_107","social-share":"custom_widget_MicrosoftFooter_social-share_105bp_138","sharing-options":"custom_widget_MicrosoftFooter_sharing-options_105bp_146","linkedin-icon":"custom_widget_MicrosoftFooter_linkedin-icon_105bp_156","social-share-rss-image":"custom_widget_MicrosoftFooter_social-share-rss-image_105bp_162","social-link-footer":"custom_widget_MicrosoftFooter_social-link-footer_105bp_169","social-share-list":"custom_widget_MicrosoftFooter_social-share-list_105bp_188","share-icon":"custom_widget_MicrosoftFooter_share-icon_105bp_195","label":"custom_widget_MicrosoftFooter_label_105bp_207","linkedin":"custom_widget_MicrosoftFooter_linkedin_105bp_156","facebook":"custom_widget_MicrosoftFooter_facebook_105bp_237","twitter":"custom_widget_MicrosoftFooter_twitter_105bp_240","reddit":"custom_widget_MicrosoftFooter_reddit_105bp_244","mail":"custom_widget_MicrosoftFooter_mail_105bp_247","bluesky":"custom_widget_MicrosoftFooter_bluesky_105bp_250","rss":"custom_widget_MicrosoftFooter_rss_105bp_254","RSS":"custom_widget_MicrosoftFooter_RSS_105bp_1"}},"form":null},"localOverride":false},"CachedAsset:text:en_US-components/community/Breadcrumb-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/Breadcrumb-1745505307000","value":{"navLabel":"Breadcrumbs","dropdown":"Additional parent page navigation"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBanner-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBanner-1745505307000","value":{"messageMarkedAsSpam":"This post has been marked as spam","messageMarkedAsSpam@board:TKB":"This article has been marked as spam","messageMarkedAsSpam@board:BLOG":"This post has been marked as spam","messageMarkedAsSpam@board:FORUM":"This discussion has been marked as spam","messageMarkedAsSpam@board:OCCASION":"This event has been marked as spam","messageMarkedAsSpam@board:IDEA":"This idea has been marked as spam","manageSpam":"Manage Spam","messageMarkedAsAbuse":"This post has been marked as abuse","messageMarkedAsAbuse@board:TKB":"This article has been marked as abuse","messageMarkedAsAbuse@board:BLOG":"This post has been marked as abuse","messageMarkedAsAbuse@board:FORUM":"This discussion has been marked as abuse","messageMarkedAsAbuse@board:OCCASION":"This event has been marked as abuse","messageMarkedAsAbuse@board:IDEA":"This idea has been marked as abuse","preModCommentAuthorText":"This comment will be published as soon as it is approved","preModCommentModeratorText":"This comment is awaiting moderation","messageMarkedAsOther":"This post has been rejected due to other reasons","messageMarkedAsOther@board:TKB":"This article has been rejected due to other reasons","messageMarkedAsOther@board:BLOG":"This post has been rejected due to other reasons","messageMarkedAsOther@board:FORUM":"This discussion has been rejected due to other reasons","messageMarkedAsOther@board:OCCASION":"This event has been rejected due to other reasons","messageMarkedAsOther@board:IDEA":"This idea has been rejected due to other reasons","messageArchived":"This post was archived on {date}","relatedUrl":"View Related Content","relatedContentText":"Showing related content","archivedContentLink":"View Archived Content"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageView/MessageViewStandard-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageView/MessageViewStandard-1745505307000","value":{"anonymous":"Anonymous","author":"{messageAuthorLogin}","authorBy":"{messageAuthorLogin}","board":"{messageBoardTitle}","replyToUser":" to {parentAuthor}","showMoreReplies":"Show More","replyText":"Reply","repliesText":"Replies","markedAsSolved":"Marked as Solution","movedMessagePlaceholder.BLOG":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.TKB":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.FORUM":"{count, plural, =0 {This reply has been} other {These replies have been} }","movedMessagePlaceholder.IDEA":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholder.OCCASION":"{count, plural, =0 {This comment has been} other {These comments have been} }","movedMessagePlaceholderUrlText":"moved.","messageStatus":"Status: ","statusChanged":"Status changed: {previousStatus} to {currentStatus}","statusAdded":"Status added: {status}","statusRemoved":"Status removed: {status}","labelExpand":"expand replies","labelCollapse":"collapse replies","unhelpfulReason.reason1":"Content is outdated","unhelpfulReason.reason2":"Article is missing information","unhelpfulReason.reason3":"Content is for a different Product","unhelpfulReason.reason4":"Doesn't match what I was searching for"},"localOverride":false},"CachedAsset:text:en_US-components/messages/ThreadedReplyList-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/ThreadedReplyList-1745505307000","value":{"title":"{count, plural, one{# Reply} other{# Replies}}","title@board:BLOG":"{count, plural, one{# Comment} other{# Comments}}","title@board:TKB":"{count, plural, one{# Comment} other{# Comments}}","title@board:IDEA":"{count, plural, one{# Comment} other{# Comments}}","title@board:OCCASION":"{count, plural, one{# Comment} other{# Comments}}","noRepliesTitle":"No Replies","noRepliesTitle@board:BLOG":"No Comments","noRepliesTitle@board:TKB":"No Comments","noRepliesTitle@board:IDEA":"No Comments","noRepliesTitle@board:OCCASION":"No Comments","noRepliesDescription":"Be the first to reply","noRepliesDescription@board:BLOG":"Be the first to comment","noRepliesDescription@board:TKB":"Be the first to comment","noRepliesDescription@board:IDEA":"Be the first to comment","noRepliesDescription@board:OCCASION":"Be the first to comment","messageReadOnlyAlert:BLOG":"Comments have been turned off for this post","messageReadOnlyAlert:TKB":"Comments have been turned off for this article","messageReadOnlyAlert:IDEA":"Comments have been turned off for this idea","messageReadOnlyAlert:FORUM":"Replies have been turned off for this discussion","messageReadOnlyAlert:OCCASION":"Comments have been turned off for this event"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyCallToAction-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyCallToAction-1745505307000","value":{"leaveReply":"Leave a reply...","leaveReply@board:BLOG@message:root":"Leave a comment...","leaveReply@board:TKB@message:root":"Leave a comment...","leaveReply@board:IDEA@message:root":"Leave a comment...","leaveReply@board:OCCASION@message:root":"Leave a comment...","repliesTurnedOff.FORUM":"Replies are turned off for this topic","repliesTurnedOff.BLOG":"Comments are turned off for this topic","repliesTurnedOff.TKB":"Comments are turned off for this topic","repliesTurnedOff.IDEA":"Comments are turned off for this topic","repliesTurnedOff.OCCASION":"Comments are turned off for this topic","infoText":"Stop poking me!"},"localOverride":false},"Category:category:Exchange":{"__typename":"Category","id":"category:Exchange","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Outlook":{"__typename":"Category","id":"category:Outlook","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Community-Info-Center":{"__typename":"Category","id":"category:Community-Info-Center","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:EducationSector":{"__typename":"Category","id":"category:EducationSector","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:DrivingAdoption":{"__typename":"Category","id":"category:DrivingAdoption","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Azure":{"__typename":"Category","id":"category:Azure","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Windows-Server":{"__typename":"Category","id":"category:Windows-Server","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftTeams":{"__typename":"Category","id":"category:MicrosoftTeams","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:PublicSector":{"__typename":"Category","id":"category:PublicSector","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:microsoft365":{"__typename":"Category","id":"category:microsoft365","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:IoT":{"__typename":"Category","id":"category:IoT","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:HealthcareAndLifeSciences":{"__typename":"Category","id":"category:HealthcareAndLifeSciences","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:ITOpsTalk":{"__typename":"Category","id":"category:ITOpsTalk","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftLearn":{"__typename":"Category","id":"category:MicrosoftLearn","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Blog:board:MicrosoftLearnBlog":{"__typename":"Blog","id":"board:MicrosoftLearnBlog","blogPolicies":{"__typename":"BlogPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}},"boardPolicies":{"__typename":"BoardPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:AI":{"__typename":"Category","id":"category:AI","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftMechanics":{"__typename":"Category","id":"category:MicrosoftMechanics","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:MicrosoftforNonprofits":{"__typename":"Category","id":"category:MicrosoftforNonprofits","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:StartupsatMicrosoft":{"__typename":"Category","id":"category:StartupsatMicrosoft","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:PartnerCommunity":{"__typename":"Category","id":"category:PartnerCommunity","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Microsoft365Copilot":{"__typename":"Category","id":"category:Microsoft365Copilot","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Windows":{"__typename":"Category","id":"category:Windows","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:Content_Management":{"__typename":"Category","id":"category:Content_Management","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:microsoft-security":{"__typename":"Category","id":"category:microsoft-security","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"Category:category:microsoftintune":{"__typename":"Category","id":"category:microsoftintune","categoryPolicies":{"__typename":"CategoryPolicies","canReadNode":{"__typename":"PolicyResult","failureReason":null}}},"ModerationData:moderation_data:3843200":{"__typename":"ModerationData","id":"moderation_data:3843200","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3843200":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:988334"},"id":"message:3843200","revisionNum":1,"uid":3843200,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:FastTrackforAzureBlog"},"parent":{"__ref":"BlogTopicMessage:message:3834619"},"conversation":{"__ref":"Conversation:conversation:3834619"},"subject":"Re: Deploy and run a Azure OpenAI/ChatGPT application on AKS via Bicep","moderationData":{"__ref":"ModerationData:moderation_data:3843200"},"body":"

waelkdouh good catch \":smile:\" Let me fix it, thanks

","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"57","kudosSumWeight":0,"repliesCount":0,"postTime":"2023-06-08T08:39:05.690-07:00","lastPublishTime":"2023-06-08T08:39:05.690-07:00","metrics":{"__typename":"MessageMetrics","views":8531},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:FastTrack/category:products-services/category:communities/community:gxcuf89792board:FastTrackforAzureBlog/message:3834619/message:3843200","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"Rank:rank:37":{"__typename":"Rank","id":"rank:37","position":18,"name":"Copper Contributor","color":"333333","icon":null,"rankStyle":"TEXT"},"User:user:1894018":{"__typename":"User","id":"user:1894018","uid":1894018,"login":"waelkdouh","biography":null,"registrationData":{"__typename":"RegistrationData","status":null,"registrationTime":"2023-06-08T08:31:18.197-07:00"},"deleted":false,"email":"","avatar":{"__typename":"UserAvatar","url":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/m_assets/avatars/default/avatar-8.svg?time=0"},"rank":{"__ref":"Rank:rank:37"},"entityType":"USER","eventPath":"community:gxcuf89792/user:1894018"},"ModerationData:moderation_data:3843192":{"__typename":"ModerationData","id":"moderation_data:3843192","status":"APPROVED","rejectReason":null,"isReportedAbuse":false,"rejectUser":null,"rejectTime":null,"rejectActorType":null},"BlogReplyMessage:message:3843192":{"__typename":"BlogReplyMessage","author":{"__ref":"User:user:1894018"},"id":"message:3843192","revisionNum":1,"uid":3843192,"depth":1,"hasGivenKudo":false,"subscribed":false,"board":{"__ref":"Blog:board:FastTrackforAzureBlog"},"parent":{"__ref":"BlogTopicMessage:message:3834619"},"conversation":{"__ref":"Conversation:conversation:3834619"},"subject":"Re: Deploy and run a Azure OpenAI/ChatGPT application on AKS via Bicep","moderationData":{"__ref":"ModerationData:moderation_data:3843192"},"body":"

I think you have a typo. The magic of copy and paste 🙂



For a Bicep version of the article and companion sample, see How to deploy and run an Azure OpenAI ChatGPT application on AKS via Terraform.



should be



For a Terraform version of the article and companion sample, see How to deploy and run an Azure OpenAI ChatGPT application on AKS via Terraform.

","body@stripHtml({\"removeProcessingText\":false,\"removeSpoilerMarkup\":false,\"removeTocMarkup\":false,\"truncateLength\":200})@stringLength":"213","kudosSumWeight":0,"repliesCount":0,"postTime":"2023-06-08T08:32:54.464-07:00","lastPublishTime":"2023-06-08T08:32:54.464-07:00","metrics":{"__typename":"MessageMetrics","views":8527},"visibilityScope":"PUBLIC","placeholder":false,"originalMessageForPlaceholder":null,"entityType":"BLOG_REPLY","eventPath":"category:FastTrack/category:products-services/category:communities/community:gxcuf89792board:FastTrackforAzureBlog/message:3834619/message:3843192","replies":{"__typename":"MessageConnection","pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null},"edges":[]},"customFields":[],"attachments":{"__typename":"AttachmentConnection","edges":[],"pageInfo":{"__typename":"PageInfo","hasNextPage":false,"endCursor":null,"hasPreviousPage":false,"startCursor":null}}},"CachedAsset:text:en_US-components/community/Navbar-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/Navbar-1745505307000","value":{"community":"Community Home","inbox":"Inbox","manageContent":"Manage Content","tos":"Terms of Service","forgotPassword":"Forgot Password","themeEditor":"Theme Editor","edit":"Edit Navigation Bar","skipContent":"Skip to content","gxcuf89792":"Tech Community","external-1":"Events","s-m-b":"Nonprofit Community","windows-server":"Windows Server","education-sector":"Education Sector","driving-adoption":"Driving Adoption","Common-content_management-link":"Content Management","microsoft-learn":"Microsoft Learn","s-q-l-server":"Content Management","partner-community":"Microsoft Partner Community","microsoft365":"Microsoft 365","external-9":".NET","external-8":"Teams","external-7":"Github","products-services":"Products","external-6":"Power Platform","communities-1":"Topics","external-5":"Microsoft Security","planner":"Outlook","external-4":"Microsoft 365","external-3":"Dynamics 365","azure":"Azure","healthcare-and-life-sciences":"Healthcare and Life Sciences","external-2":"Azure","microsoft-mechanics":"Microsoft Mechanics","microsoft-learn-1":"Community","external-10":"Learning Room Directory","microsoft-learn-blog":"Blog","windows":"Windows","i-t-ops-talk":"ITOps Talk","external-link-1":"View All","microsoft-securityand-compliance":"Microsoft Security","public-sector":"Public Sector","community-info-center":"Lounge","external-link-2":"View All","microsoft-teams":"Microsoft Teams","external":"Blogs","microsoft-endpoint-manager":"Microsoft Intune","startupsat-microsoft":"Startups at Microsoft","exchange":"Exchange","a-i":"AI and Machine Learning","io-t":"Internet of Things (IoT)","Common-microsoft365-copilot-link":"Microsoft 365 Copilot","outlook":"Microsoft 365 Copilot","external-link":"Community Hubs","communities":"Products"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarHamburgerDropdown-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarHamburgerDropdown-1745505307000","value":{"hamburgerLabel":"Side Menu"},"localOverride":false},"CachedAsset:text:en_US-components/community/BrandLogo-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/BrandLogo-1745505307000","value":{"logoAlt":"Khoros","themeLogoAlt":"Brand Logo"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarTextLinks-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarTextLinks-1745505307000","value":{"more":"More"},"localOverride":false},"CachedAsset:text:en_US-components/authentication/AuthenticationLink-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/authentication/AuthenticationLink-1745505307000","value":{"title.login":"Sign In","title.registration":"Register","title.forgotPassword":"Forgot Password","title.multiAuthLogin":"Sign In"},"localOverride":false},"CachedAsset:text:en_US-components/nodes/NodeLink-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/nodes/NodeLink-1745505307000","value":{"place":"Place {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageCoverImage-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageCoverImage-1745505307000","value":{"coverImageTitle":"Cover Image"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeTitle-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeTitle-1745505307000","value":{"nodeTitle":"{nodeTitle, select, community {Community} other {{nodeTitle}}} "},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageTimeToRead-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageTimeToRead-1745505307000","value":{"minReadText":"{min} MIN READ"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageSubject-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageSubject-1745505307000","value":{"noSubject":"(no subject)"},"localOverride":false},"CachedAsset:text:en_US-components/users/UserLink-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/users/UserLink-1745505307000","value":{"authorName":"View Profile: {author}","anonymous":"Anonymous"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/users/UserRank-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserRank-1745505307000","value":{"rankName":"{rankName}","userRank":"Author rank {rankName}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageTime-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageTime-1745505307000","value":{"postTime":"Published: {time}","lastPublishTime":"Last Update: {time}","conversation.lastPostingActivityTime":"Last posting activity time: {time}","conversation.lastPostTime":"Last post time: {time}","moderationData.rejectTime":"Rejected time: {time}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageBody-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageBody-1745505307000","value":{"showMessageBody":"Show More","mentionsErrorTitle":"{mentionsType, select, board {Board} user {User} message {Message} other {}} No Longer Available","mentionsErrorMessage":"The {mentionsType} you are trying to view has been removed from the community.","videoProcessing":"Video is being processed. Please try again in a few minutes.","bannerTitle":"Video provider requires cookies to play the video. Accept to continue or {url} it directly on the provider's site.","buttonTitle":"Accept","urlText":"watch"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageCustomFields-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageCustomFields-1745505307000","value":{"CustomField.default.label":"Value of {name}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageRevision-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageRevision-1745505307000","value":{"lastUpdatedDatePublished":"{publishCount, plural, one{Published} other{Updated}} {date}","lastUpdatedDateDraft":"Created {date}","version":"Version {major}.{minor}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/common/QueryHandler-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/common/QueryHandler-1745505307000","value":{"title":"Query Handler"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageReplyButton-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageReplyButton-1745505307000","value":{"repliesCount":"{count}","title":"Reply","title@board:BLOG@message:root":"Comment","title@board:TKB@message:root":"Comment","title@board:IDEA@message:root":"Comment","title@board:OCCASION@message:root":"Comment"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageAuthorBio-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageAuthorBio-1745505307000","value":{"sendMessage":"Send Message","actionMessage":"Follow this blog board to get notified when there's new activity","coAuthor":"CO-PUBLISHER","contributor":"CONTRIBUTOR","userProfile":"View Profile","iconlink":"Go to {name} {type}"},"localOverride":false},"CachedAsset:text:en_US-components/community/NavbarDropdownToggle-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/community/NavbarDropdownToggle-1745505307000","value":{"ariaLabelClosed":"Press the down arrow to open the menu"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/users/UserAvatar-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/users/UserAvatar-1745505307000","value":{"altText":"{login}'s avatar","altTextGeneric":"User's avatar"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/ranks/UserRankLabel-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/ranks/UserRankLabel-1745505307000","value":{"altTitle":"Icon for {rankName} rank"},"localOverride":false},"CachedAsset:text:en_US-components/tags/TagView/TagViewChip-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/tags/TagView/TagViewChip-1745505307000","value":{"tagLabelName":"Tag name {tagName}"},"localOverride":false},"CachedAsset:text:en_US-components/users/UserRegistrationDate-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/users/UserRegistrationDate-1745505307000","value":{"noPrefix":"{date}","withPrefix":"Joined {date}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeAvatar-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeAvatar-1745505307000","value":{"altTitle":"Node avatar for {nodeTitle}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeDescription-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeDescription-1745505307000","value":{"description":"{description}"},"localOverride":false},"CachedAsset:text:en_US-components/messages/MessageListMenu-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-components/messages/MessageListMenu-1745505307000","value":{"postTimeAsc":"Oldest","postTimeDesc":"Newest","kudosSumWeightAsc":"Least Liked","kudosSumWeightDesc":"Most Liked","sortTitle":"Sort By","sortedBy.item":" { itemName, select, postTimeAsc {Oldest} postTimeDesc {Newest} kudosSumWeightAsc {Least Liked} kudosSumWeightDesc {Most Liked} other {}}"},"localOverride":false},"CachedAsset:text:en_US-shared/client/components/nodes/NodeIcon-1745505307000":{"__typename":"CachedAsset","id":"text:en_US-shared/client/components/nodes/NodeIcon-1745505307000","value":{"contentType":"Content Type {style, select, FORUM {Forum} BLOG {Blog} TKB {Knowledge Base} IDEA {Ideas} OCCASION {Events} other {}} icon"},"localOverride":false}}}},"page":"/blogs/BlogMessagePage/BlogMessagePage","query":{"boardId":"fasttrackforazureblog","messageSubject":"deploy-and-run-a-azure-openaichatgpt-application-on-aks-via-bicep","messageId":"3834619"},"buildId":"-gVUpXaWnPcjlrLJZ92B7","runtimeConfig":{"buildInformationVisible":false,"logLevelApp":"info","logLevelMetrics":"info","openTelemetryClientEnabled":false,"openTelemetryConfigName":"o365","openTelemetryServiceVersion":"25.3.0","openTelemetryUniverse":"prod","openTelemetryCollector":"http://localhost:4318","openTelemetryRouteChangeAllowedTime":"5000","apolloDevToolsEnabled":false,"inboxMuteWipFeatureEnabled":false},"isFallback":false,"isExperimentalCompile":false,"dynamicIds":["./components/community/Navbar/NavbarWidget.tsx","./components/community/Breadcrumb/BreadcrumbWidget.tsx","./components/customComponent/CustomComponent/CustomComponent.tsx","./components/blogs/BlogArticleWidget/BlogArticleWidget.tsx","./components/messages/MessageView/MessageViewStandard/MessageViewStandard.tsx","./components/messages/ThreadedReplyList/ThreadedReplyList.tsx","./components/external/components/ExternalComponent.tsx","./components/customComponent/CustomComponentContent/TemplateContent.tsx","../shared/client/components/common/List/UnwrappedList/UnwrappedList.tsx","./components/tags/TagView/TagView.tsx","./components/tags/TagView/TagViewChip/TagViewChip.tsx","../shared/client/components/common/List/UnstyledList/UnstyledList.tsx","./components/messages/MessageView/MessageView.tsx"],"appGip":true,"scriptLoader":[{"id":"analytics","src":"https://techcommunity.microsoft.com/t5/s/gxcuf89792/pagescripts/1730819800000/analytics.js?page.id=BlogMessagePage&entity.id=board%3Afasttrackforazureblog&entity.id=message%3A3834619","strategy":"afterInteractive"}]}
