Exploring CPU vs GPU Speed in AI Training: A Demonstration with TensorFlow

This marks my final blog post of 2023, serving as a fundamental demonstration highlighting the distinctions in speed between CPU and GPU in AI training. The primary aim of this blog is to raise awareness about the accelerated AI training speeds achievable with GPUs. Before delving into the technical details, I'd like to extend my warm wishes for a joyful Christmas and a prosperous New Year in 2024.

In the ever-evolving landscape of artificial intelligence, the speed of model training is a crucial factor that can significantly impact the development and deployment of AI applications. Central Processing Units (CPUs) and Graphics Processing Units (GPUs) are two types of processors commonly used for this purpose. This blog post will delve into a practical demonstration using TensorFlow to showcase the speed differences between CPU and GPU when training a deep learning model.

The main goal of this presentation is to contrast the training speed of a deep learning model on both a CPU and a GPU utilizing TensorFlow. The intention is to offer a lucid comprehension of how the selection of hardware can influence the AI training life cycle, underscoring the importance of GPU acceleration in expediting model training.

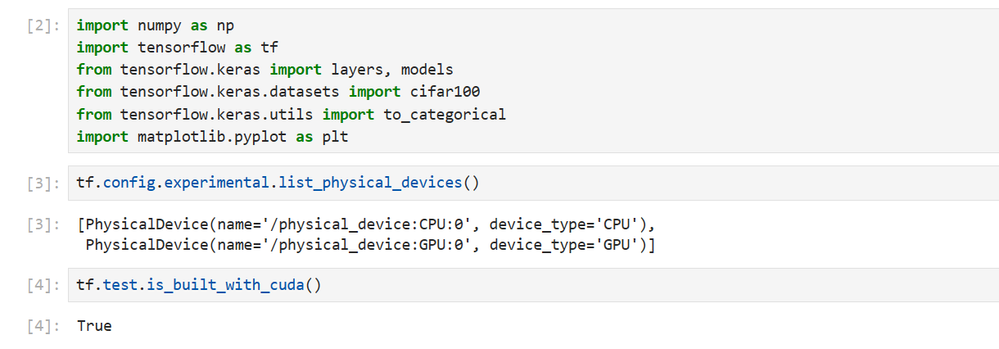

Before we proceed with the demonstration, let's ensure that the necessary libraries and configurations are in place. We will be using TensorFlow, a popular deep-learning framework. The following Python code snippet checks for the availability of devices in the system and verifies whether TensorFlow is built with CUDA (Compute Unified Device Architecture) support, which is essential for GPU acceleration.

#Importing Libraries
import numpy as np
import tensorflow as tf
from tensorflow.keras import layers, models
from tensorflow.keras.datasets import cifar100
from tensorflow.keras.utils import to_categorical
import matplotlib.pyplot as plt

#checking available devices
tf.config.experimental.list_physical_devices()
#Checking cuda support for TF
tf.test.is_built_with_cuda()

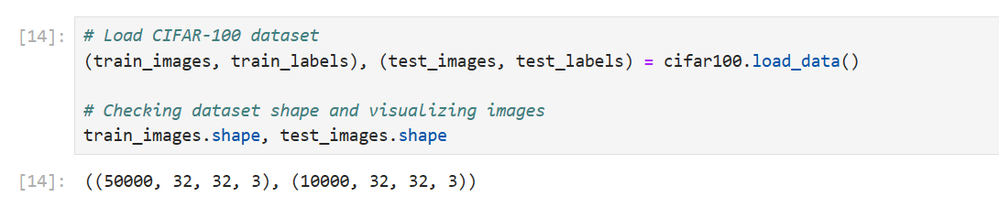

For this demonstration, we will use the CIFAR-100 dataset, CIFAR-100 is an image classification dataset comprising 60,000 32x32 color images across 100 diverse classes, each representing distinct object or scene categories. The dataset is split into 50,000 training images and 10,000 test images, with labels assigned to categories such as animals, vehicles, and household items. CIFAR-100 is widely used in machine learning research to assess the performance of image classification models, offering a benchmark for evaluating their ability to generalize and discriminate among a diverse set of visual concepts.. Let's load the dataset, inspect its features, and visualize some images.

# Load CIFAR-100 dataset
(train_images, train_labels), (test_images, test_labels) = cifar100.load_data()

# Checking dataset shape and visualizing images
train_images.shape, test_images.shape

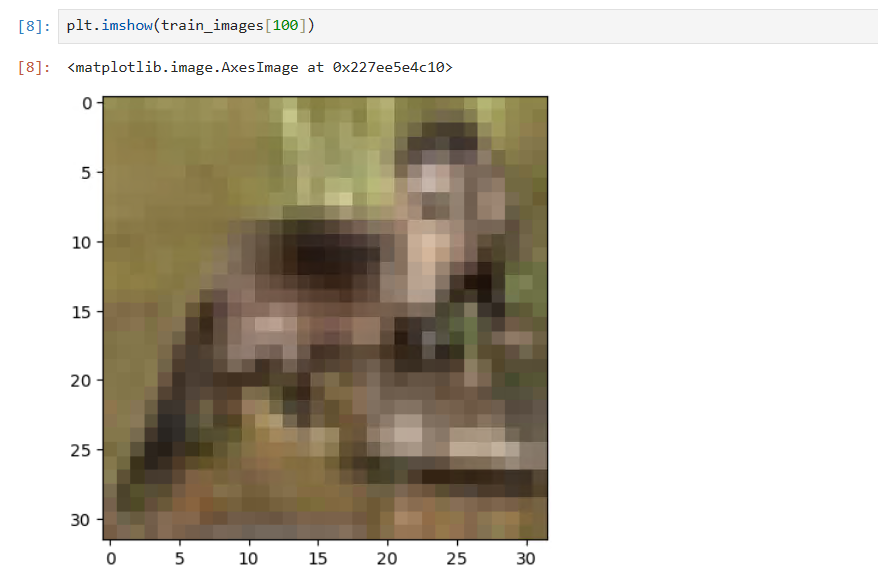

# Lets visualize one sample image
plt.imshow(train_images[100])

To streamline the model training process, it is necessary to scale the images and encode categorical labels. The provided code snippet accomplishes this by scaling the images and transforming the labels into one-hot encoded vectors.

# Normalize pixel values to be between 0 and 1
train_images, test_images = train_images / 255.0, test_images / 255.0

# One-hot encode the labels
train_labels = to_categorical(train_labels, 100)
test_labels = to_categorical(test_labels, 100)

This code segment normalizes the pixel values of the images by dividing them by 255, effectively scaling them to a range between 0 and 1. Additionally, it utilizes the `to_categorical` function from the Keras library to convert categorical labels into one-hot encoded vectors, facilitating the training of the deep learning model.

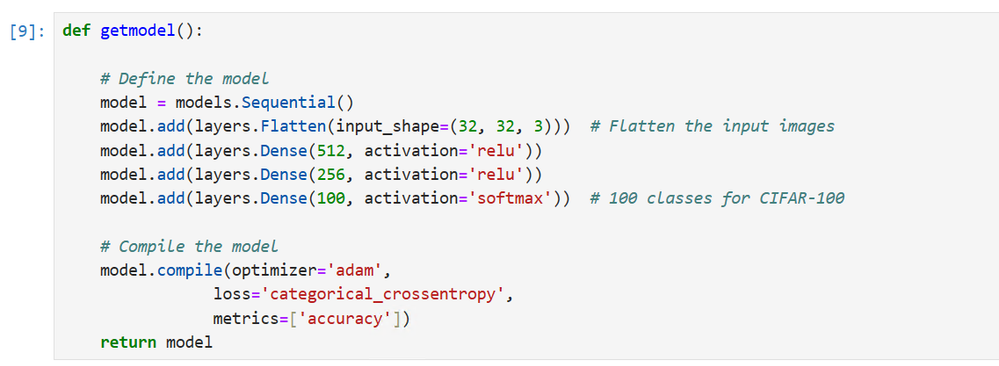

Now, let's define a simple deep-learning model using TensorFlow. The model consists of a flattening layer followed by two dense layers with ReLU activation functions and a final dense layer with a softmax activation function.

# Creating the deep learning model
def getmodel():

    # Define the model
    model = models.Sequential()
    model.add(layers.Flatten(input_shape=(32, 32, 3)))  # Flatten the input images
    model.add(layers.Dense(512, activation='relu'))
    model.add(layers.Dense(256, activation='relu'))
    model.add(layers.Dense(100, activation='softmax'))  # 100 classes for CIFAR-100

    # Compile the model
    model.compile(optimizer='adam',
                loss='categorical_crossentropy',
                metrics=['accuracy'])
    return model

CPU Training Speed

Before proceeding, it's important to note that the provided code is written in a Jupyter Notebook or a similar environment that supports the %%timeit magic command. If you're using a standard Python script or another environment, you may need to adapt the timing measurement accordingly.

%%timeit -n1 -r1
# CPU
with tf.device('/CPU:0'):
    cmodel = getmodel()
    cmodel.fit(train_images, train_labels, epochs = 100)

In this code snippet, the %%timeit magic command is used to measure the execution time of the specified code cell. The options -n1 and -r1 indicate that the cell should be executed once per loop, and the measurement should be repeated only once.

The code itself trains a deep learning model (cmodel) on the CPU. The getmodel() function is assumed to return the architecture of the model. The training data (train_images and train_labels) is used with the fit method for 100 epochs.

To execute this code in a Jupyter Notebook, you can copy and paste it into a code cell and run the cell. The %%timeit command will provide the average execution time per loop, and the total time taken for the operation will be displayed.

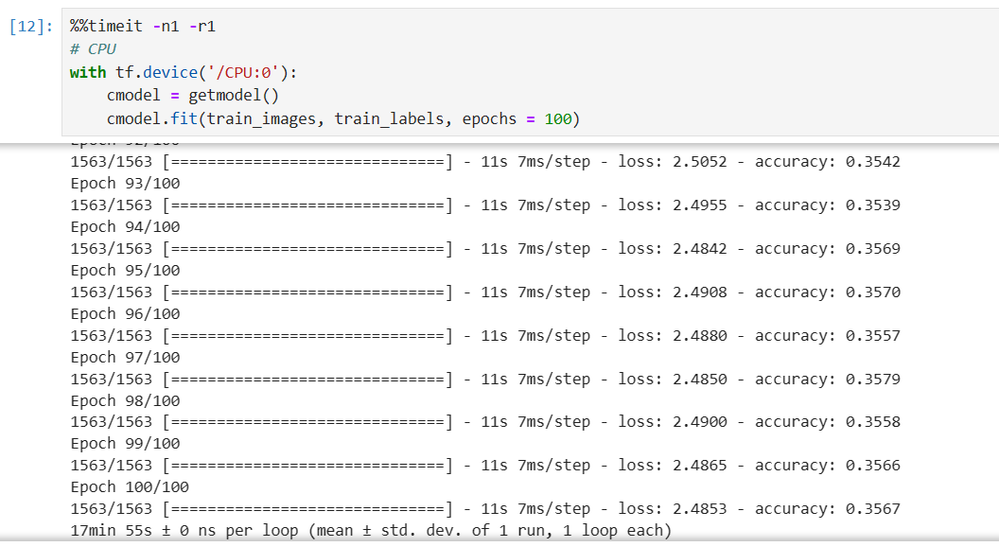

In the obtained results, it's evident that the code required an average of 17 minutes and 55 seconds to finish a single loop of training on the CPU. This duration encompasses both the creation of the model and the training process spanning 100 epochs.

It's important to note that the actual time may fluctuate depending on factors such as the intricacy of your model architecture, the volume of your training data, and the computational capacity of your CPU. These variables play a crucial role in influencing the overall training time and should be considered when assessing performance metrics.

GPU Training Speed

Similar to the CPU example, the %%timeit magic command is used to measure the execution time of the specified code cell. The options -n1 and -r1 indicate that the cell should be executed once per loop, and the measurement should be repeated only once.

In this code, the with tf.device('/GPU:0') context manager is used to specify that the subsequent operations, including model creation and training, should be executed on the GPU ('/GPU:0'). The getmodel() function is assumed to return the architecture of the model. The training data (train_images and train_labels) is then used with the fit method for 100 epochs.

%%timeit -n1 -r1
# CPU
with tf.device('/GPU:0'):
    gmodel = getmodel()
    gmodel.fit(train_images, train_labels, epochs = 100)

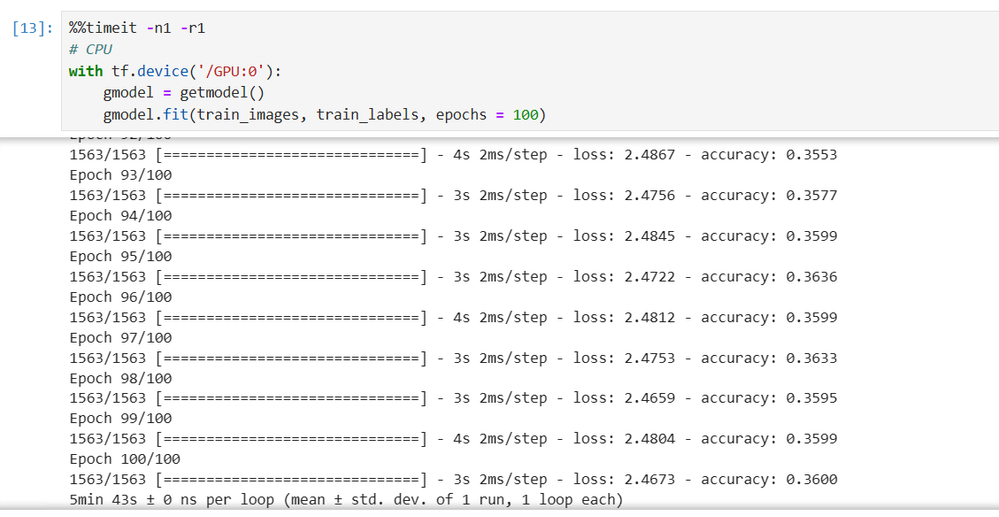

The output indicates that the code took an average of 5 minutes and 43 seconds to complete one loop of training on the GPU. This measurement includes both the model creation and the training process for 100 epochs.

Comparing this with the CPU training output (17 minutes and 55 seconds), the GPU training is significantly faster, showcasing the accelerated performance that GPUs can provide for deep learning tasks. The reduced time is attributed to the parallel processing capabilities of GPUs, which excel at handling the matrix operations involved in neural network training.

Conclusion:

In conclusion, the demonstration vividly illustrates the substantial difference in training speed between CPU and GPU when utilizing TensorFlow for deep learning tasks. The GPU-accelerated training significantly outperforms CPU-based training, showcasing the importance of leveraging GPU capabilities for expediting the AI model training life cycle. As AI models continue to grow in complexity, the role of GPUs becomes increasingly indispensable, empowering researchers and developers to iterate more efficiently and bring innovative AI solutions to fruition. Choosing the right hardware, such as a GPU, can be a strategic decision in optimizing the overall efficiency and performance of AI applications.

Note: This demonstration is conducted on an Azure Standard NC4as T4 v3 Virtual Machine, equipped with the Nvidia Tesla T4 GPU, utilizing the Microsoft DSVM Image.
