Introducing a better way to integrate Azure AD with API Management

adrian_hall we tried the policy fragment route , but soon hit the wall because multi-valued claim check simply doesnt work in the new policy validate-azure-ad-token. To be precise, this wont work:

<fragment>
	<validate-azure-ad-token tenant-id="contoso.onmicrosoft.com" failed-validation-error-message="Invalid Access token ">
		<client-application-ids>
			<application-id>ABC</application-id>
		</client-application-ids>
		<audiences>
			<audience>api://XYZ</audience>
		</audiences>
    <required-claims>
      <claim name="roles" match="all" separator=",">
                <!-- When i set a variable outside of policy fragment and send it here with the exact same claims, I get a 401 error -->
                <value>Claim1,Claim2,Claim3</value>
        </claim>
    </required-claims>

	</validate-azure-ad-token>
</fragment>

This is how I reference the fragment policy:

 <set-variable name="Claims" value="Claim1,Claim2,Claim3" />
        <include-fragment fragment-id="PolicyFragment-ClaimsValidation" />

Hi Rezaal860, given the way that Azure AD scopes and permissions work, there should be no problem doing a generic check at the product level, and then either checking the decoded JWT during the API and Operation or doing another check for the specific claims.  Policy fragments will allow you to set this sort of thing up easily.

adrian_hall  Great works. Thanks for this new policy. Quick question why did you guys decide to make client ID and audience, mandatory? What if somebody wants to check for different attributes at different levels. For example, at the API level I would like to do something like below policy and it doesn't let me do that (I have already validated client Ids and Audience at the Product Policy level)

<validate-azure-ad-token tenant-id="contoso.onmicrosoft.com" failed-validation-error-message="Invalid claims.">
<openid-config url="https://login.microsoftonline.com/contoso.onmicrosoft.com/v2.0/.well-known/openid-configuration" />
<claims-to-validate>
<claim name="roles" match="USA" />
</claims-to-validate>
<failed-validation-response>
<set-status code="401" reason="Unauthorized" />
<return-response>
{
"error": "The provided JWT token does not contain the required claim."
}
</return-response>
</failed-validation-response>
</validate-azure-ad-token>

This forced me to use the old validate-jwt policy to check for the existence of the claims I want to check which works just fine but obviously I want to use the new policy there too  without having to repeat what I already checked at the Product level:

<validate-jwt header-name="Authorization" failed-validation-httpcode="401" failed-validation-error-message="Unauthorized. Invalid calims">
<openid-config url="https://login.microsoftonline.com/contoso.onmicrosoft.com/.well-known/openid-configuration" />
<required-claims>
<claim name="roles" match="all">
<value>USA</value>
</claim>
</required-claims>
</validate-jwt>

How do we do chaining of token validation using this new policy?

Hi markweatherill - Managed System Identities are just regular identities, which are connected to an app registration for permissions.  As long as you know what the app registration is, you can put that into the client-application-id field.  If you've got multiple services connecting to API Management, you can list multiple client-application-id fields.

Hi trevorjones - the library we are using checks against both the v1 and v2 tokens.  Without delving further into the specifics (which I can't do here), I can't say why it isn't working in your specific case.  I suggest you open a support ticket for this situation.

adrian_hall If it knows who the issuer is, why is it returning an error? Is this not a standard authority for Azure AD?

https://login.microsoftonline.com/{{tenant-id}}/v2.0

At the moment it is impossible for me to use this new policy since I have no way of knowing what issuing authorities the policy will accept, and apparently the v2.0 authority I'm using is not accepted and there is no way for me to provide it. I'll have to stick with validate-jwt.

Can this policy be used with clients which are connecting via Managed Identity?

I currently use the approach described here: https://notetoself.tech/2021/04/05/calling-api-management-from-azure-function-using-managed-identities/

i.e., Managed Identities are assigned a role against the application protecting the backend API.

# Assign the managed identity access to the app role.
New-AzureADServiceAppRoleAssignment -ObjectId $managedIdentityObjectId -Id $appRoleId -PrincipalId $managedIdentityObjectId -ResourceId $serverServicePrincipalObjectId

The roles claim is then checked by validate-jwt policy:

<validate-jwt header-name="Authorization" failed-validation-httpcode="401" failed-validation-error-message="Unauthorized. Access token is missing or invalid." require-scheme="Bearer">
     <openid-config url="https://login.microsoftonline.com/{{tenantID}}/v2.0/.well-known/openid-configuration" />
     <audiences>
         <audience>{{clientID}}</audience>
     </audiences>
     <issuers>
         <issuer>https://sts.windows.net/{{tenantID}}/</issuer>
     </issuers>
     <required-claims>
         <claim name="roles" match="any">
             <value>{{roleId}}</value>
         </claim>
     </required-claims>
</validate-jwt>

It's not clear how the client-application-ids should work with Managed Identity.

Given that it is Azure AD and you are providing the tenant ID, we know who the issuer is, so you don't need to provide it.

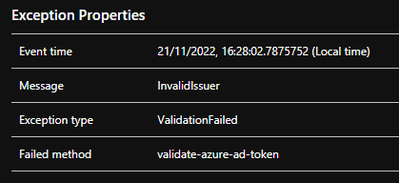

Is there a reason this new policy doesn't support the <issuers> element, as validate-jwt does? Without it, I get "invalid issuer" on v2.0 tokens:

Simple policy:

<validate-azure-ad-token tenant-id="{{tenant-id}}" header-name="token">
    <client-application-ids>
        <application-id>{{app-id}}</application-id>
    </client-application-ids>
</validate-azure-ad-token>

With validate-jwt, I would have to specify the issuer like so:

<issuers>
    <issuer>https://login.microsoftonline.com/{{tenant-id}}/v2.0</issuer>
</issuers>
