How to use Sqlpackage with Managed Identity

nora01's avatar
nora01
Icon for Microsoft rankMicrosoft
Oct 03, 2022

To export Azure SQL database using Sqlpackage and Managed Identity:



Step1

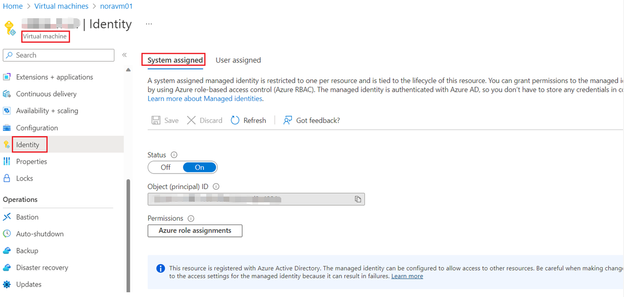

Enable system assigned managed identity on an Azure VM



Step2

- Enable AAD auth on Azure SQL server

- Conn to Azure SQL database via AAD admin

- Create contained user for the managed identity (using Azure VM name as contained username)



        create user <vmname> from external provider;

        alter role db_owner add member <vmname>;



Step3

On the Azure VM where we enabled System assigned Managed Identity, execute below to test getting access token:



# Using PowerShell’s Invoke-WebRequest, make a request to the local managed identity's endpoint to get an access token for Azure SQL:

$response = Invoke-WebRequest -Uri 'http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https%3A%2F%2Fdatabase.windows.net%2F' -Method GET -Headers @{Metadata="true"}



# Convert the response from a JSON object to a PowerShell object:

$content = $response.Content | ConvertFrom-Json



# Extract the access token from the response:

$AccessToken = $content.access_token



Step4

Run sqlpackage + managed identity to export database



./sqlpackage.exe /at:$AccessToken /Action:Export /TargetFile:"C:\AdventureWorksLT.bacpac" \ /SourceConnectionString:"Server=tcp:{yourserver}.database.windows.net,1433;Initial Catalog=AdventureWorksLT;MultipleActiveResultSets=False;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;"

# OR

./sqlpackage.exe /at:$($AccessToken_Object.Token) /Action:Export /TargetFile:"C:\AdventureWorksLT.bacpac" \ /SourceConnectionString:"Server=tcp:{yourserver}.database.windows.net,1433;Initial Catalog=AdventureWorksLT;MultipleActiveResultSets=False;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;"



Reference:

Tutorial: Use a managed identity to access Azure SQL Database - Windows - Azure AD - Microsoft Entra | Microsoft Learn

How managed identities for Azure resources work with Azure virtual machines - Microsoft Entra | Microsoft Learn

SqlPackage Export - SQL Server | Microsoft Learn

Updated Oct 03, 2022
Version 1.0

2 Comments

  • jusnitlive's avatar
    jusnitlive
    Copper Contributor

    yes. pass your managed identity's client id as an argument. see https://learn.microsoft.com/en-us/azure/active-directory/managed-identities-azure-resources/how-to-use-vm-token#get-a-token-using-http



    i.e.:

    Invoke-WebRequest -Uri "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&client_id=f66317fd-7bd9-4345-a000-07db32aa9924&resource=https://vault.azure.net" -Method GET -Headers @{Metadata="true"}
