How to create a Network trace from Azure WebApp PaaS

I want to share with you the following steps to follow if you want to create a Network trace from Azure WebApp PaaS resource:

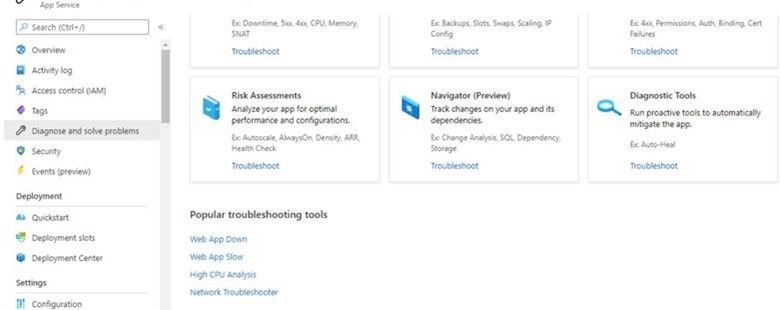

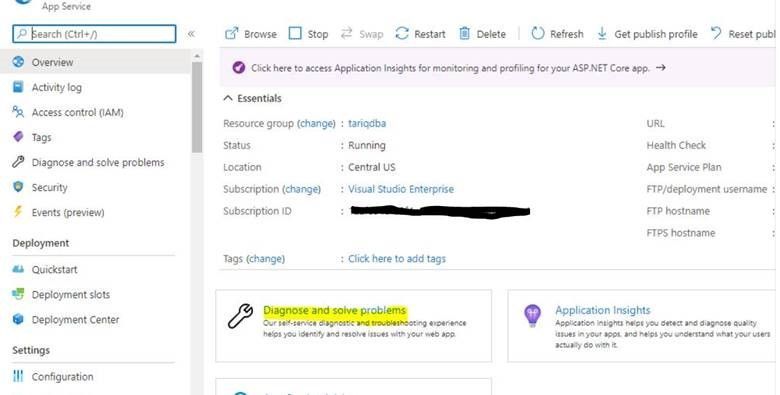

1- On App Service Page on Azure Portal,  Select “Diagnose and Solve Problems”:

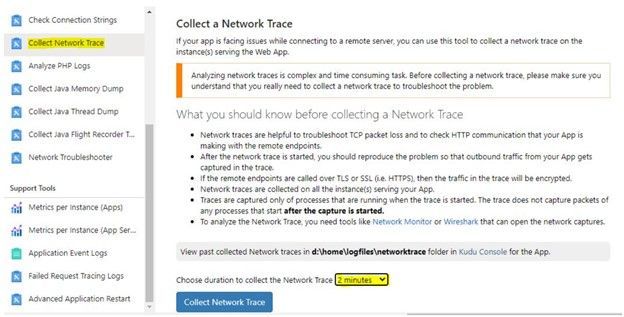

2-  Chose Collect Network trace and the duration as below screenshot:

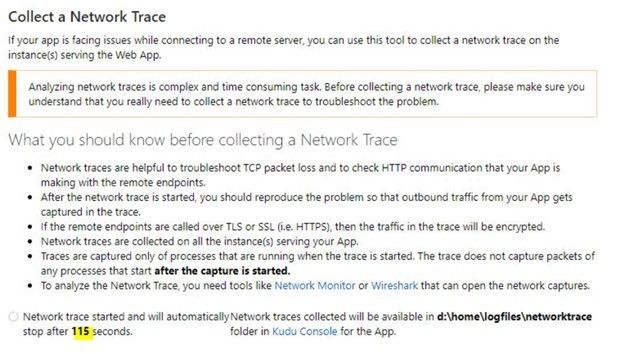

3-  The timer started and the portal will show you the countdown before the trace will automatically stop:

4- Start testing the Application and the connection to the database while the trace is collected.

How to open the trace file:

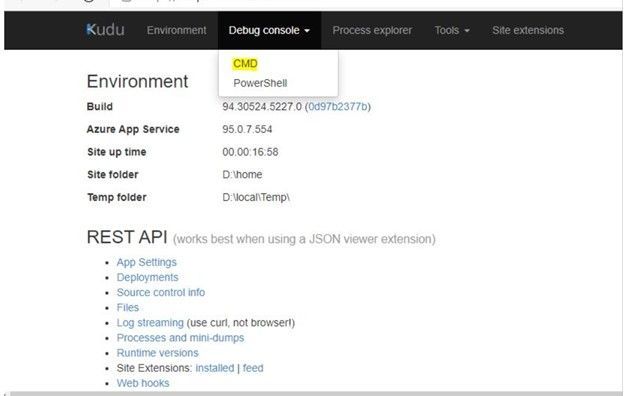

1- On your Browser, go to Kudo console (https://webappname.scm.azurewebsites.net) -->  Debug console --> CMD , as below:

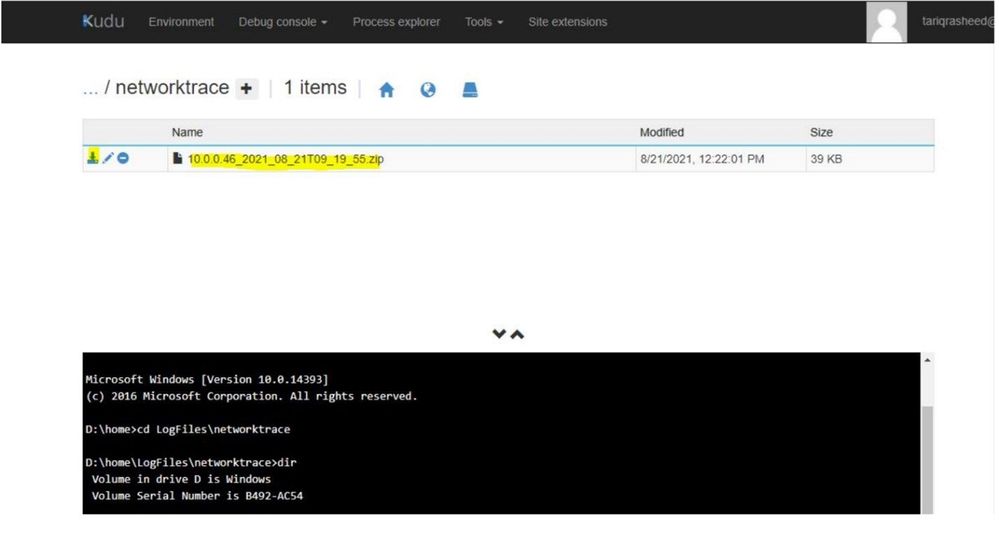

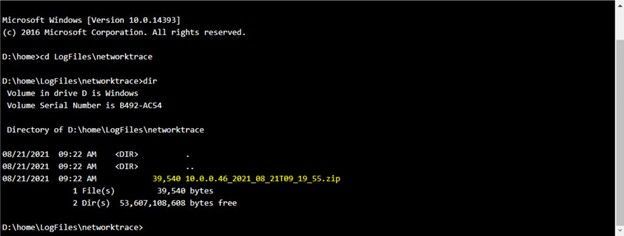

2-  A new Zip file will be created, you can download the trace file (cap file) on your machine as below screenshots:
