Closing the SQL Data Sync Monitoring Gap: Building Proactive Alerts with Azure Logic Apps

Introduction

One of the most common lessons we've learned while working with customers running distributed applications is that data synchronization failures rarely happen suddenly.

Most synchronization issues leave breadcrumbs long before a full outage occurs. A warning here.

A failed row there. A transient connectivity issue that appears harmless today but becomes tomorrow's production incident.

For organizations still leveraging Azure SQL Data Sync, there is an important operational challenge:

SQL Data Sync does not expose synchronization health as an Azure Monitor metric.

This means teams cannot simply create an Azure Monitor alert rule and be notified when synchronization health begins to degrade.

Recently, while working in my own Azure lab environment, We explored a practical way to close this observability gap. The goal was simple:

Detect Data Sync warnings and errors early and automatically notify operations teams before synchronization failures impact business applications.

The result was a lightweight, serverless monitoring solution built entirely with Azure Logic Apps and Managed Identity, requiring minimal operational overhead.

The Hidden Monitoring Challenge

Many Azure services integrate seamlessly with Azure Monitor and emit metrics that can be used for alerting, dashboards, and incident management.

SQL Data Sync is different.

Although synchronization activity is recorded, the health information resides within the Sync Group Logs API, rather than being surfaced directly as alertable Azure Monitor metrics.

As a result:

• Errors can go unnoticed until synchronization stops completely.
• Warning events may be ignored because they're not visible in operational dashboards.
• Support teams often learn about issues only after a downstream application reports stale or inconsistent data.

What's particularly concerning is that:

Row-level warnings frequently appear well before a hard synchronization failure.

These warning entries can serve as valuable leading indicators, giving operations teams time to investigate before users experience impact.

Building a Proactive Monitoring Approach

To address this challenge, I built a lightweight monitoring workflow using Azure Logic Apps.

Instead of waiting for failures to be reported, the Logic App proactively queries the Sync Group Logs API every 15 minutes and looks for:

• Error events
• Warning events

If any matching entries are found, an email notification is automatically sent to the designated operational contact or on-call distribution list.

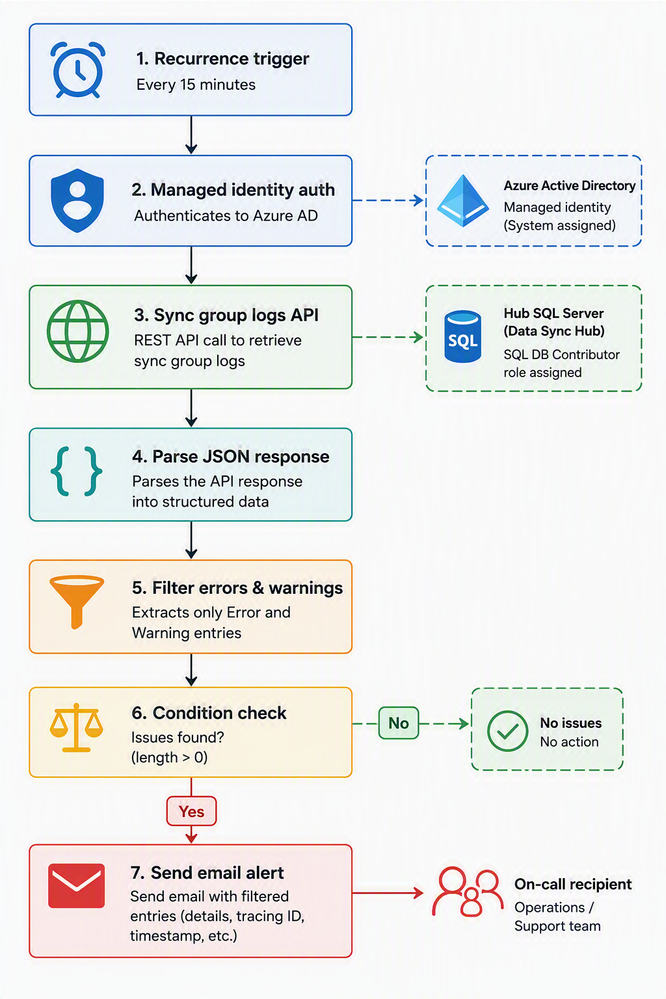

High-Level Architecture

This design is:

•  Serverless
•  Low cost
•  Simple to deploy
•  Secure through Managed Identity
•  Easily customizable

  Solution Architecture Walkthrough
  Step 1: Scheduled Monitoring

  The Logic App runs every 15 minutes.To avoid missing events that occur between execution intervals, the solution queries the previous 20 minutes of logs.

  Why a 20-Minute Lookback on a 15-Minute Schedule?

  Every 15 Minutes
  ▼
  Query Last 20 Minutes
  ▼
  5-Minute Overlap
  ▼



  Key Benefit:

  The 20-minute lookback intentionally overlaps the 15-minute execution schedule, ensuring that warning and error events are not missed due to execution delays, transient platform issues, or timing gaps between runs. This design improves monitoring reliability and early issue detection

Step 2: Managed Identity Authentication

Security was a key design principle.

Rather than storing credentials, secrets, or service principal passwords, the Logic App uses a system-assigned managed identity.

The managed identity is granted the SQL DB Contributor role on the Hub SQL Server.

Benefits include:

• • No credential management
  • Automatic token acquisition
  • Improved security posture
  • Native Azure RBAC integration

Step 3: Querying the Sync Group Logs API

The Logic App executes an HTTP GET request against the SQL Data Sync Logs endpoint.

Example endpoint:

https://management.azure.com/subscriptions/<subscriptionId>/resourceGroups/<resourceGroup>/providers/Microsoft.Sql/servers/<HubServer>/databases/<HubDatabase>/syncGroups/<SyncGroup>/logs?api-version=2020-11-01-preview&startTime=<startUtc>&endTime=<endUtc>&type=All

The request is authenticated using Managed Identity against the Azure Resource Manager endpoint.

Step 4: Parsing the Response

The API returns log entries as a JSON array.

Important fields include:

After parsing the response, each field becomes available for workflow processing.

Step 5: Filter and Prioritize Actionable Events

Not every log entry warrants operational attention. To reduce noise and focus on meaningful health signals, the workflow filters events to retain only those classified as Error or Warning.

A Filter Array action is used to evaluate each log entry and keep only actionable events:

 By filtering out informational and non-critical messages, operations teams can focus on events that may indicate synchronization issues, service degradation, or potential failures requiring investigation.

Or(
equals(item()?['type'], 'Error'),
equals(item()?['type'], 'Warning')
)



By filtering out informational and non-critical messages, operations teams can focus on events that may indicate synchronization issues, service degradation, or potential failures requiring investigation.

Step 6: Notify Operations Teams

After filtering, the workflow determines whether any actionable events were identified.

Condition:

length(body('Filter_array')) > 0

When one or more warning or error events are detected, the Logic App automatically generates an email notification to the designated operations or support team.

The alert includes key diagnostic information such as:

• Event details
• Warning or error classification
• Tracing ID
• Timestamp information

Example Subject

SQL Data Sync Alert:
MySyncGroup - 3 Warning/Error Events Detected

Example Notification

Type: Warning
Timestamp: 2026-07-28T12:15:00Z
Details: Failed row synchronization detected
Tracing ID: abc123xyz

Providing this information upfront enables engineers to begin troubleshooting immediately, reducing the time required to identify and remediate synchronization issues.

Why This Matters

In many organizations, data synchronization is a business-critical workload. Consider scenarios such as:

• Application databases synchronizing across multiple regions
• Distributed retail platforms
• Financial transaction processing systems
• Operational reporting environments
• Legacy SQL Data Sync deployments supporting core business processes

In these environments, early detection can significantly reduce operational risk. The difference between investigating a warning today and responding to a synchronization failure tomorrow may be the difference between a routine operational activity and a customer-impacting incident.

Key Benefits of the Solution

• Improved Visibility:
  Surfaces health signals that would otherwise remain hidden within SQL Data Sync logs, providing operations teams with greater insight into synchronization activity.
• Early Detection
  Identifies warning conditions and row-level synchronization issues before they escalate into service-impacting failures.
• Security-First Architecture
  Leverages Managed Identity for authentication, eliminating the need to store or manage credentials.
• Cost Efficiency
  Built on the Azure Logic Apps Consumption Plan, keeping operational costs low while delivering continuous monitoring capabilities.
• Operational Simplicity
  Requires no custom services, virtual machines, or ongoing infrastructure maintenance, making deployment and management straightforward.

Recommendations and Operational Best Practices

Based on testing and operational experience, consider the following best practices:

1. Treat Warnings as Actionable Signals

Many organizations focus exclusively on errors; however, warnings often provide the earliest indication of synchronization degradation. Investigating warning events proactively can help prevent future outages and service disruptions.

2. Maintain an Up-to-Date On-Call Distribution List

Ensure alerts are delivered to the appropriate responders. An outdated distribution list can be just as ineffective as having no alerting mechanism in place.

3. Use Overlapping Monitoring Windows

Always query a slightly larger time interval than the Logic App execution schedule. This approach helps prevent missed events caused by execution delays, scheduling drift, or transient service interruptions.

4. Review Trends Regularly

Even when warnings do not immediately impact synchronization, recurring patterns may reveal underlying issues such as:

• Connectivity challenges
• Schema inconsistencies
• Permission and access problems
• Data quality concerns

Periodic trend analysis can help teams identify and address systemic issues before they affect business operations.

Conclusion

Although Azure SQL Data Sync does not currently expose native Azure Monitor metrics for synchronization health, organizations are not limited to reactive monitoring approaches.

By combining:

• Azure Logic Apps
• Managed Identity
• SQL Data Sync Logs API
• Automated Email Notifications

organizations can implement a lightweight yet powerful monitoring solution that surfaces hidden warning and error signals before they evolve into production incidents.

In modern cloud operations, resilience is not defined solely by how quickly teams respond to failures. It is equally determined by their ability to identify weak signals early and take proactive action before customers are impacted.

This Logic App-based approach demonstrates how a relatively small amount of automation can significantly improve operational visibility, accelerate issue detection, and reduce the Mean Time to Detect (MTTD) for Azure SQL Data Sync environments.
