Azure SQL Database to ADF connectivity using Azure Private Endpoint

Recently, I came across a question where a user wanted to test Private endpoint connectivity from Azure Data Factory ( ADF) to Azure SQL Database. The Azure SQL server has Deny Public network access.

For this task, I created Data Factory and using Azure Self Hosted Integration runtime tested the desired connectivity. Below are the steps I followed. I started with creating an Azure Data Factory.

• In the global search, search for Data factories.

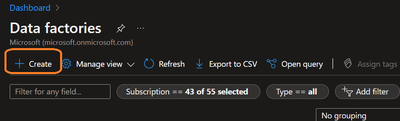

• Click on Create

• Provide the required details

• For the test, select Configure Git later and select review + create.

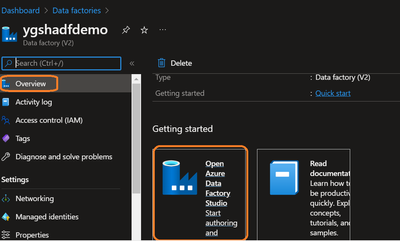

• Once Data Factory is created then go to the created resource and in the overview, blade select Open Azure Data Factory Studio. This will open a new webpage.

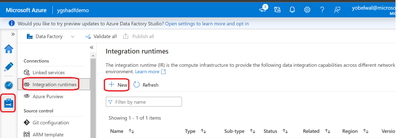

• In the newly opened weblink, go to Integration runtime and click on New




• For the demo I selected integration runtime setup as Azure, Self-Hosted IR

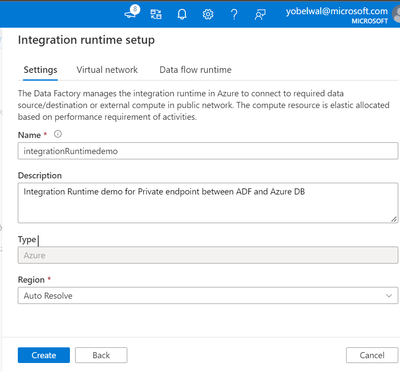

• Click continue and provide the required details

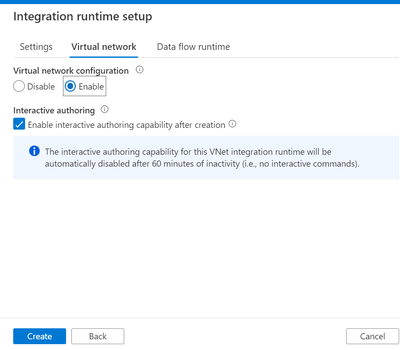

• In the next tab, enable the Virtual network option.








• In the data flow tab, you can select your desired setup or leave it to default settings.
• Click on Create.
• Once Integration Runtime is created, you can see it’s status in Integration Runtimes blade

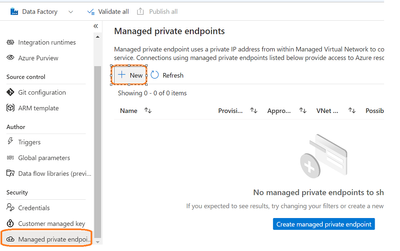

• Now, go to Managed Private Endpoint blade and click on New.

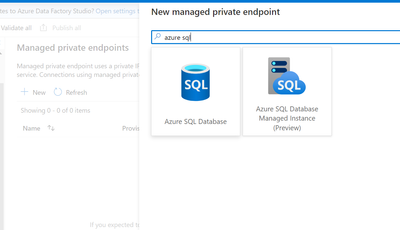

• Select Azure SQL Database.

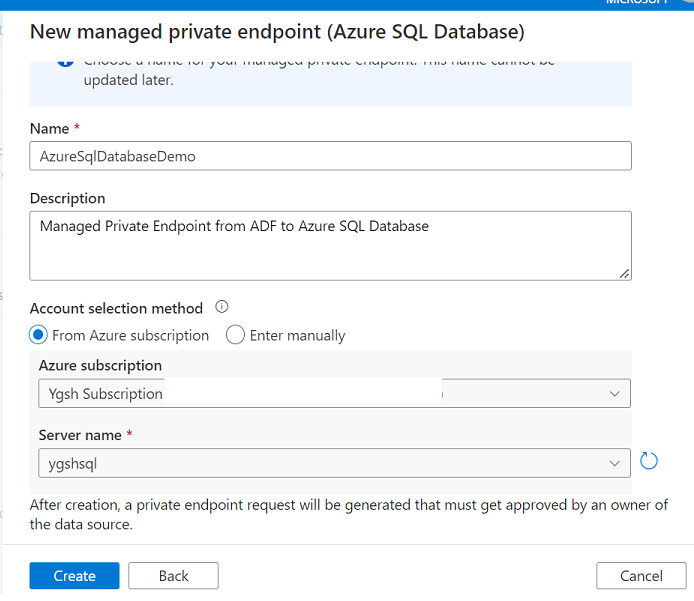

• Provide the details of your Azure SQL Server for which you want to create private communication between ADF and Azure Database and click Create.

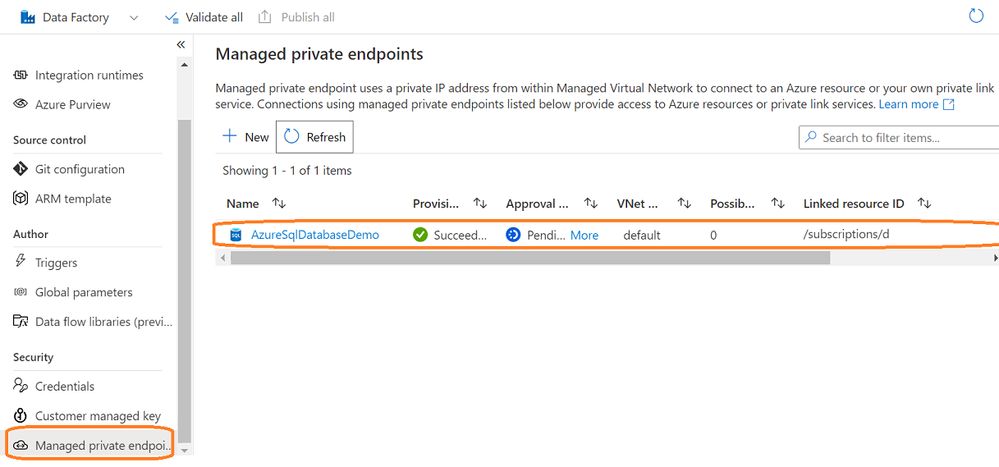

•  You can see the provisioning state of the Managed Private Endpoint, it needs to be succeeded

• Now, let’s create a Linked service. Go to Linked Services and then select New

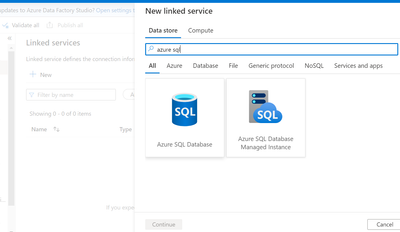

• Search for Azure SQL Database and click on Continue

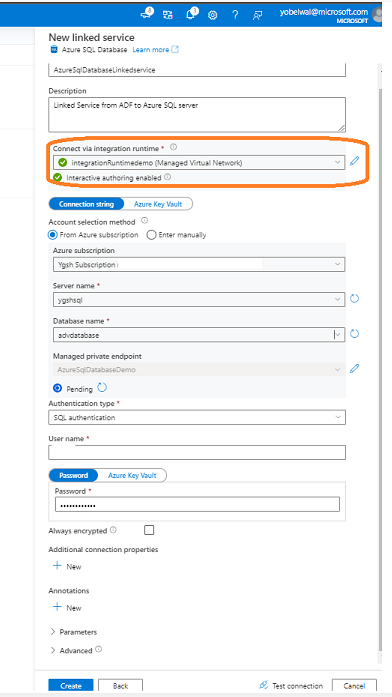

• Provide the required details, but make sure you are providing the correct integration runtime details (the one we created in step 6).

• To test connectivity, click on Test connection.

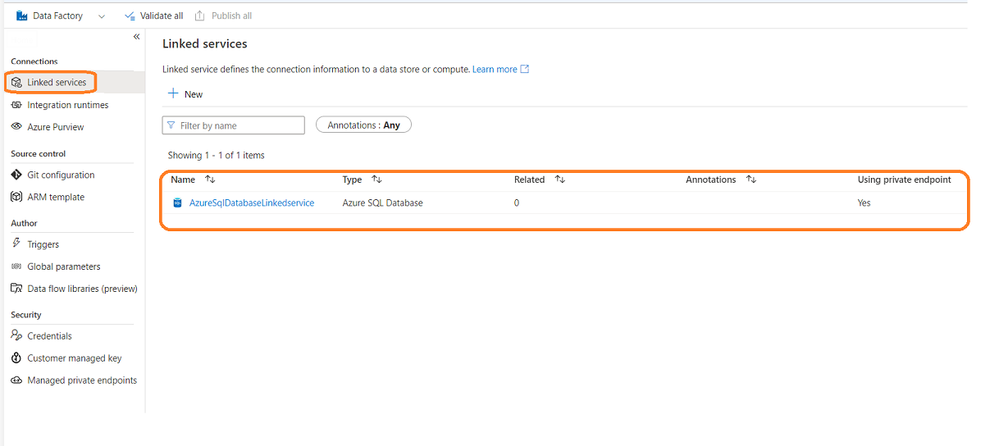

• Once the test is successful, click on Create. You can check the status in Linked Services blade.



• Now, let’s go to Portal.azure.com and in global search, search for Private endpoints



• Go to pending connections tab and approve the pending Private link connection ( which we have just created)

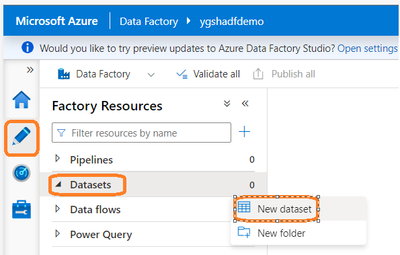

• Once it is approved, then to validate if you can fetch the data from ADF you can create a dataset. For this go to ADF weblink and then go to Author, then to dataset.

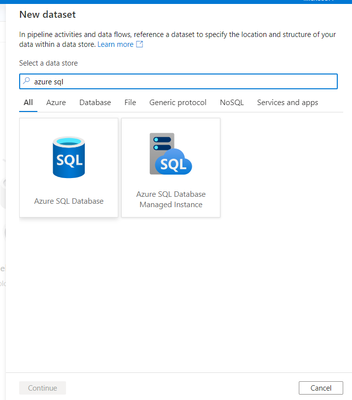

• Search for Azure SQL Database

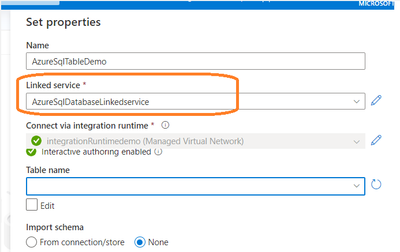

• In the properties tab provide the required details, make sure to provide the correct linked service. Once it is selected click Ok.

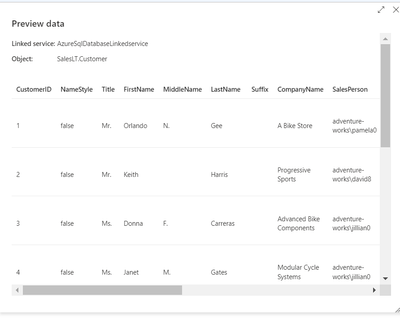

• Now, in the connection tab, select the required table name and then click on Preview data option to see the data.
