Exploring Purview’s REST API with Python

Microsoft

Mar 15, 2021

In this article - we use common Python techniques to explore several Azure Purview built-in capabilities that are available through Purview Studio by taking advantage of the REST API.

In particular - the article is split up into 2 sections:

Column asset classifications: We explore a Python script executed in Azure Synapse with some reusable functions to programmatically access Purview's Atlas REST API.
Purview Insights: The various levels of insights Purview generates is presented in the form of a report. We explore how to use Python to extract this data, and create a custom dashboard in Power BI.

The idea is, the exploratory techniques presented here can be extrapolated to come up with highly creative solutions! The full Python Scripts used to setup both pipelines are linked as GitHub Gists per section (highlighted in blue)

The first version of this article appeared on my blog here. The techniques outlined there have been improved in this version, and extended to form the Power BI reporting capabilities we'll explore below.

Overview

Once Azure Purview is deployed and initially set up (i.e. Data Sources registered, Assets scanned and Classifications applied), there's two high level approaches to interacting with the managed service:

Purview Studio: i.e. the visual interface (great overview here)
Purview REST API: i.e. the programmatic interface - based on Apache Atlas V2 REST API (Swagger definition available here). There are also other REST API's Purview makes available to us under-the-hood while we navigate the web experience (such as api/browse, graphql), as we'll see shortly.

So for example, every time we click around in Purview Studio, the Front-End Web App (i.e. what we see) is really systematically calling the REST APIs under-the-hood using the authenticated user's OAuth token - you can press F12 in your Web Browser to examine how these API calls are structured:

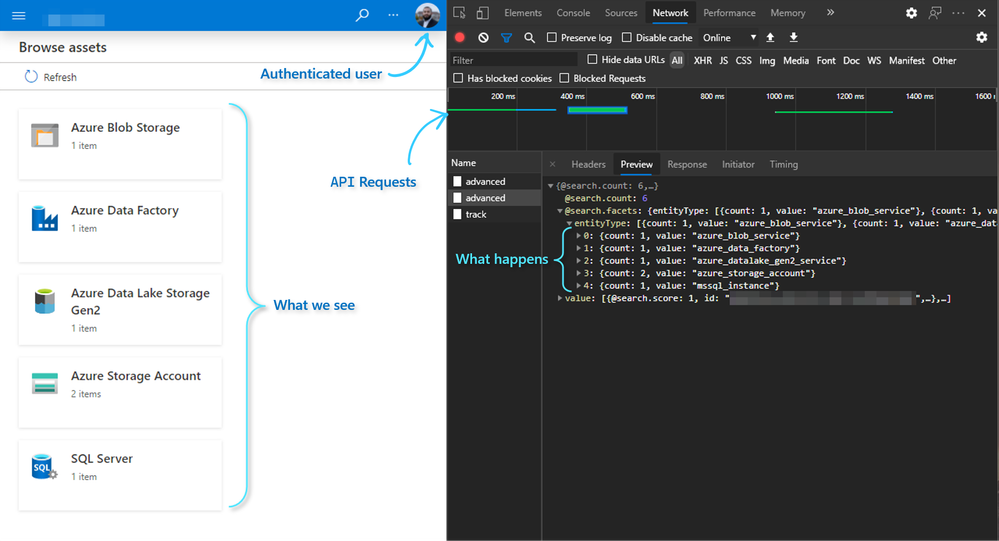

Purview Studio & Purview REST API talking to each other

Amongst many other things, we can leverage this capability to programmatically access the valuable metadata made available through Purview's features - such as Asset Scans and Classifications, to enable downstream Data Engineering capabilities/processes (that would otherwise be extremely cumbersome to automate and implement in a scalable manner).

In simple words, the idea is:

Purview gives us intelligent metadata: "These are the files on your Data Lake and the underlying columns that contain sensitive data"
And in return, we can say to Synapse: "Go ahead and use Spark Pools to drop, obfuscate, anonymize or otherwise deal with those columns"

The first step to unlock this is to programmatically enable Synapse Spark Pools to retrieve the metadata from Purview (in this case, the schema and sensitivity labels). This is the first scenario we are going to implement in this post.

Accessing Purview Asset list, Asset Schema and Column level Classifications in a Spark Dataframe

Once we have the metadata available in Spark as a Dataframe, there's a whole world of existing/up-and-coming Data Engineering capabilities we can leverage to allow us to take action on this metadata, such as dynamically obfuscating columns containing PII (using libraries such as Microsoft Presidio, which comes with pip install, and can also be deployed to a Kubernetes Cluster).

If you've never heard of Microsoft Presidio, check out this live demo website here - it's brilliant.

Similarly, we can use similar techniques to create Custom Power BI dashboards on top of Purview's Insights data - using Python in Power BI to populate a dataset and create a Custom Report on the same data:

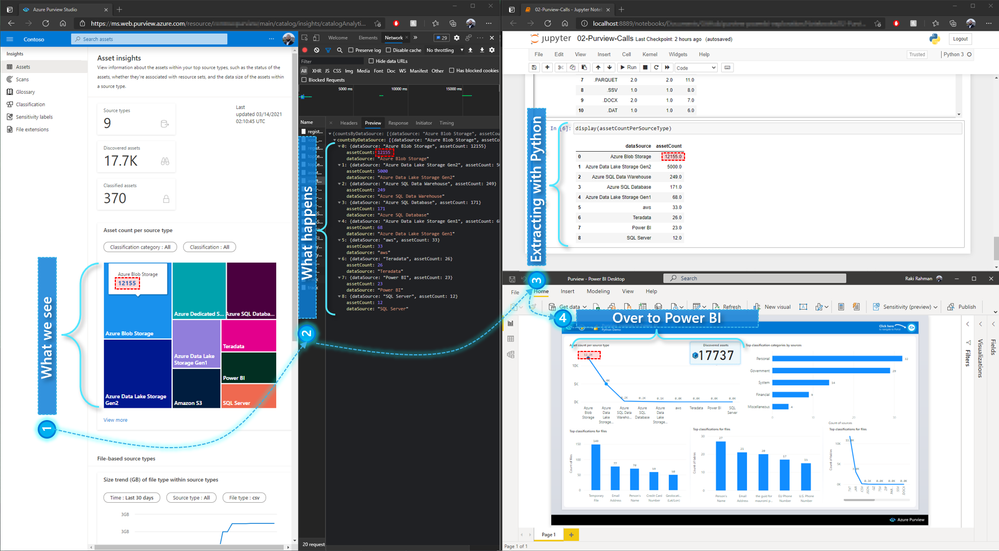

Creating a Custom Dashboard using Data from Purview Insights

This is the second scenario we are going to implement in this post. Let's get started.

Pre-Requisites & Environment Setup

Purview and Data Estate setup

Our data state will be composed of an Azure Data Lake storage account which in turns will be scanned by Purview to index and classify the data. To quickly populate a Data Lake and set up Purview scans, follow this five-part tutorial series that comes with a helpful starter kit (zip file) to generate a variety of random datasets with PII and non-PII data.

App Registration/Service Principal

Once Purview is set up to scan the Data Lake, the next step is to create a Service Principal that will allow us to access the REST API - steps here.

To localize the Python script to point to our Purview implementation, we make note of the:

clientId
tenantId
clientSecret

Libraries used

Here's the contents of the requirements.txt file used to install libraries on the Synapse Spark Pool:

jmespath
pyapacheatlas

JMESPath: link

JMESPath is a nifty library that makes it a breeze to navigate (query, filter etc.) complex JSON data in Python. We use it to comfortably parse and iterate through the JSON payloads received from the Purview REST API.

PyApacheAtlas: link

PyApacheAtlas is a Python library in development by a fellow Microsoft CSA - Will Johnson. Essentially, the library presents a programmatic wrapper around the Atlas API, accessible through a Client object.

For an excellent deep-dive on the internals of the Purview REST API, check out this tutorial from him:

We use a combination of the Purview REST API (via JMESPath), and the Client object to achieve getting the full list of Assets from Purview, and iterating to populate the corresponding metadata per Asset.

Scenario 1: Column asset classifications

GitHub gist: full script

Here's a summarized view of what we achieve:

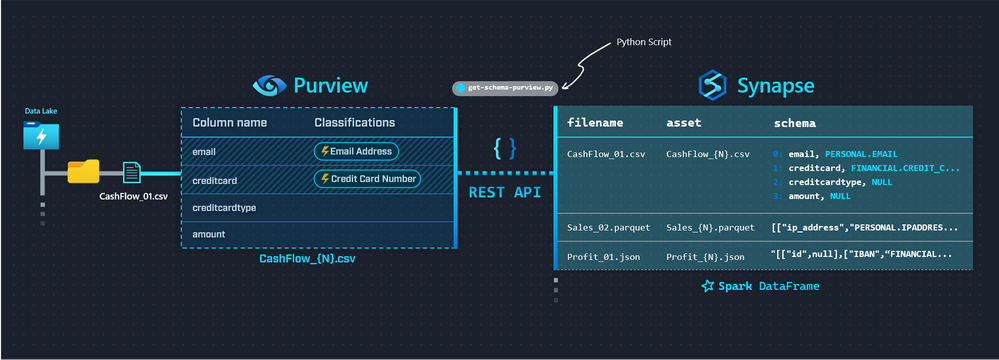

Extracting metadata from Purview with Synapse Spark Pools using Python

Let's look at the relevant components from the script.

The first function azuread_auth is straightforward and not Purview specific - it simply allows us to authenticate to Azure AD using our Service Principal and the Resource URL we want to navigate (in this case, Purview: https://purview.azure.net😞

def azuread_auth(tenant_id: str, client_id: str, client_secret: str, resource_url: str):
    """
    Authenticates Service Principal to the provided Resource URL, and returns the OAuth Access Token
    """
    url = f"https://login.microsoftonline.com/{tenant_id}/oauth2/token"
    payload= f'grant_type=client_credentials&client_id={client_id}&client_secret={client_secret}&resource={resource_url}'
    headers = {
    'Content-Type': 'application/x-www-form-urlencoded'
    }
    response = requests.request("POST", url, headers=headers, data=payload)
    access_token = json.loads(response.text)['access_token']
    return access_token

We're going to be passing around the access_token returned above every time we make a call to Purview's REST API.

Next, we leverage PyApacheAtlas to return a client using purview_auth:

def purview_auth(tenant_id: str, client_id: str, client_secret: str, data_catalog_name: str):
    """
    Authenticates to Atlas Endpoint and returns a client object
    """
    oauth = ServicePrincipalAuthentication(
        tenant_id = tenant_id,
        client_id = client_id,
        client_secret = client_secret
    )
    client = PurviewClient(
        account_name = data_catalog_name,
        authentication = oauth
    )
    return client

Once we have our proof of authentication (access_token and client) - we're ready to programmatically access the Purview REST API.

We use get_all_adls_assets to recursively retrieve all scanned assets from our Data Lake from the Purview REST API.

Note: this function intentionally traverses the tree structure until only assets remain (i.e. no folders are returned, only files).

The function below applies the simple recursion techniques I outlined in this article against our Data Lake and Purview API to retrieve asset names and schemas.

While this is fine for exploration, due diligence (i.e. implementing a more optimal, piecemeal approach) should be applied for Production implementations on a case-by-case basis to avoid long-running jobs.

The API parameter used to determine whether we hit the end is isLeaf:

def get_all_adls_assets(path: str, data_catalog_name: str, azuread_access_token: str, max_depth=1):
    """
    Retrieves all scanned assets for the specified ADLS Storage Account Container.

    Note: this function intentionally recursively traverses until only assets remain (i.e. no folders are returned, only files).
    """

    # List all files in path
    url = f"https://{data_catalog_name}.catalog.purview.azure.com/api/browse"

    headers = {
            'Authorization': f'Bearer {azuread_access_token}',
            'Content-Type': 'application/json'
            }

    payload="""{"limit": 100,
                "offset": null,
                "path": "%s"
                }""" % (path)

    response = requests.request("POST", url, headers=headers, data=payload)

    li = json.loads(response.text)

    # Return all files
    for x in jmespath.search("value", li):
        if jmespath.search("isLeaf", x):
            yield x

    # If the max_depth has not been reached, start
    # listing files and folders in subdirectories
    if max_depth > 1:
        for x in jmespath.search("value", li):
            if jmespath.search("isLeaf", x):
                continue
            for y in get_all_adls_assets(jmespath.search("path", x), data_catalog_name, azuread_access_token, max_depth - 1):
                yield y

    # If max_depth has been reached,
    # return the folders
    else:
        for x in jmespath.search("value", li):
            if jmespath.search("!isLeaf", x):
                yield x

Note a couple points regarding this function:

We can further expand the implementation by abstracting away the data source and making source_type into a parameter (i.e. besides ADLS, we can query metadata about other sources supported on Purview - e.g. SQL DB, Cosmos DB etc.).

We'll just need to deal with curating the payload on a case-by-case basis, but the basic premise remains the same.
Note the limit: 100 parameter is there because I didn't want to deal with API Pagination logic (the demo Data Lake is small).

This parameter can be increased for larger implementations up until we hit the upper limit defined by the API - at which point we need to implement pagination best practices into our script logic (no different than other Azure/non-Azure APIs).
For deeper folder structures, max_depth can be increased as desired

Once we have a list of all our assets, we can iterate through the list and retrieve the Schema and Classification from Purview inline:

files_df['schema'] = files_df.apply(lambda row: get_adls_asset_schema(assets_all, row['asset'], atlas_client), axis=1)

Where we use the client object we defined earlier to call get_adls_asset_schema:

def get_adls_asset_schema(assets_all: list, asset: str, purview_client: str):
    """
    Returns the asset schema and classifications from Purview
    """
    # Filter response for our asset of interest
    assets_list = list(filter(lambda i: i['name'] == asset, assets_all))

    # Find the guid for the asset to retrieve the tabular_schema or attachedSchema (based on the asset type)
    match_id = ""
    for entry in assets_list:
        # Retrieve the asset definition from the Atlas Client
        response = purview_client.get_entity(entry['id'])

        # API response is different based on the asset
        if asset.split('.', 1)[-1] == "json":
            filtered_response = jmespath.search("entities[?source=='DataScan'].[relationshipAttributes.attachedSchema[0].guid]", response)
        else:
            filtered_response = jmespath.search("entities[?source=='DataScan'].[relationshipAttributes.tabular_schema.guid]", response)

        # Update match_id if source is DataScan
        if filtered_response:
            match_id = filtered_response[0][0]

    # Retrieve the schema based on the guid match
    response = purview_client.get_entity(match_id)
    asset_schema = jmespath.search("[referredEntities.*.[attributes.name, classifications[0].[typeName][0]]]", response)[0]

    return asset_schema

Note a couple takeaways from here:

JMESPath is awesome
The Atlas API response is slightly different based on the filetype (e.g. json vs csv), hence we deal with it case-by-case.

This makes sense, since json technically has attachedSchema (i.e. Schema that comes as a part of the object itself), whereas csv is of type tabular_schema (i.e. Schema that Purview had to infer)

Finally, once the functions are done calling the API, we can call a display(files_df) on our DataFrame to get back the final output:

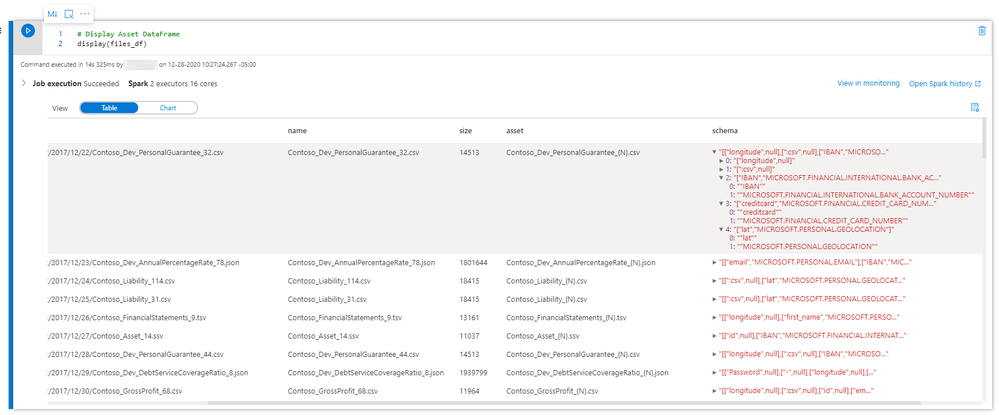

Final Output

Note: files_df is a Pandas DataFrame, but we can easily convert to Spark with files_df = spark.createDataFrame(files_df).

Shouldn't make a difference for our purposes since the DataFrame is small.

Scenario 2: Purview Insights

GitHub gist: full script

Our goal is to create this Power BI Report - which provides us with the same data that Purview Studio makes visually available to us. The idea here is for us to be able to leverage the ability of Power BI to create Custom Reports:

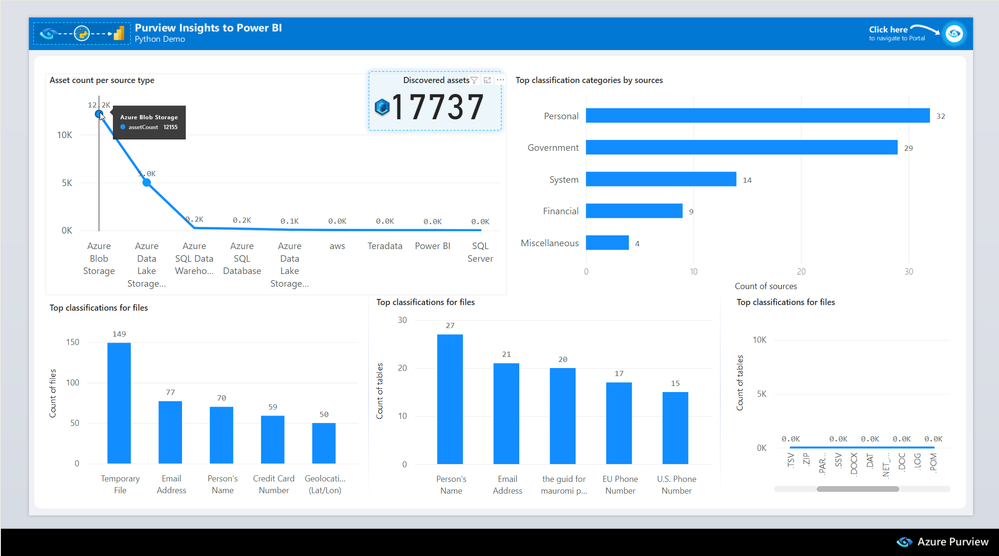

Demo Power BI Report generated from Purview Insights data

We simply specify the script as a Python Data source - where the script is structured such that it queries Purview's APIs to produce Pandas Dataframes:

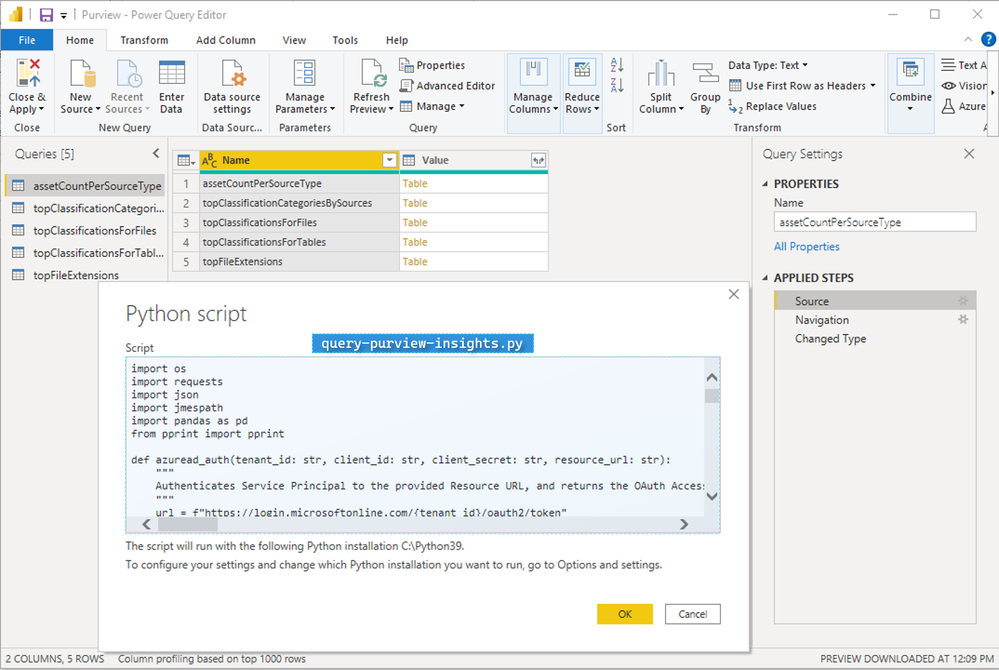

Using the Python Script as a Power BI Data Source

Note: We acknowledge that this method of data extraction is experimental in nature, and is definitely not suitable for ingesting a large amount of data into Power BI.

In our case, since the Insights data is pre-computed by the Purview Engine already, this serves the end goal of creating simple Custom Reports (i.e. our Python script doesn't have to work very hard to extract this data).

Finally, we can refresh this Power BI report as needed, to ingest the latest data points from Purview:

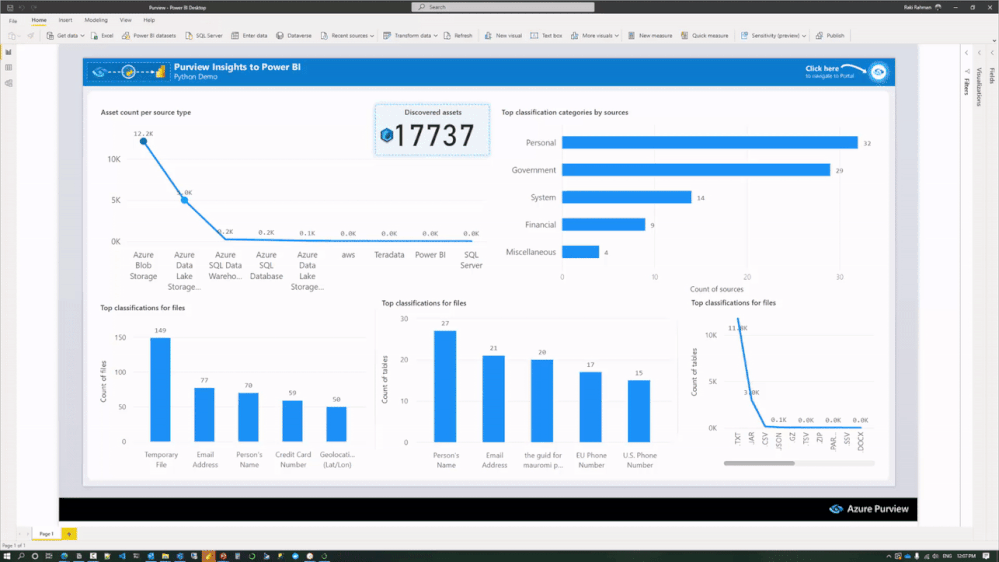

Refreshing the Power BI dataset, which executes the underlying Python query

Wrap Up

We explored how to call the Purview REST API with Python to programmatically obtain Purview Asset Metadata - i.e. Schema and Classifications into Synapse as a DataFrame. We also looked at how we can apply the same techniques to ingest data from Purview Insights, and create custom Power BI dashboards with ease.
