Tutorial: Publish Azure Static Web Apps with GitLab

This article demonstrates how to deploy to Azure Static Web Apps using GitLab.



In this tutorial, you learn to:

• Set up an Azure Static Web Apps site for a Vanilla Basic app.
• Create an GitLab Pipeline to build and publish a static web app via Azure portal.



Prerequisites

• Active Azure account: If you don't have one, you can create an account for free.
• GitLab project: If you don't have one, you can create a project for free.
• You’ll need to validate your account with a credit card. This is required to discourage and reduce abuse on GitLab infrastructure.



Create a repository in GitLab

• Navigate to your repository in GitLab Repos.
• Go to create new project page.
• Click on Import Project.

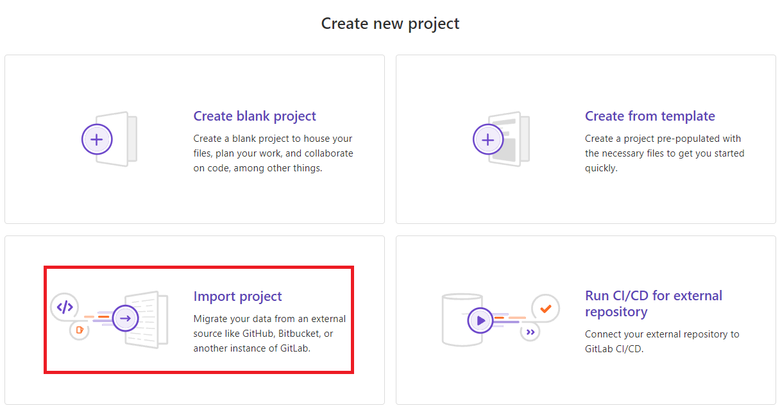

                                                       Creation of new project using import method



• Click on Repo by URL.





• In Git repository URL, enter “https://github.com/staticwebdev/vanilla-basic.git”.

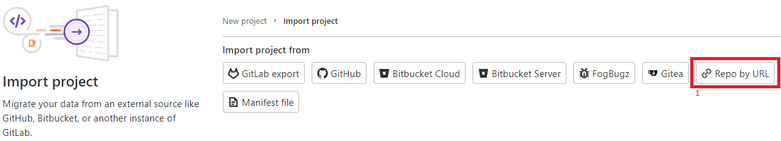

                                                                Importing project using Repo by URL



• Select Create project.



Create a static web app

• Navigate to the Azure portal.
• Select Create a Resource.
• Search for Static Web Apps.
• Select Static Web Apps.
• Select Create.
• Create a new static web app with the following values.



Setting	Value
Subscription	Your Azure subscription name.
Resource Group	Select an existing group name or create a new one.
Name	Enter myGitLabApp.
Hosting plan type	Select Free.
Region	Select a region closest to you.
Source	Select Other.

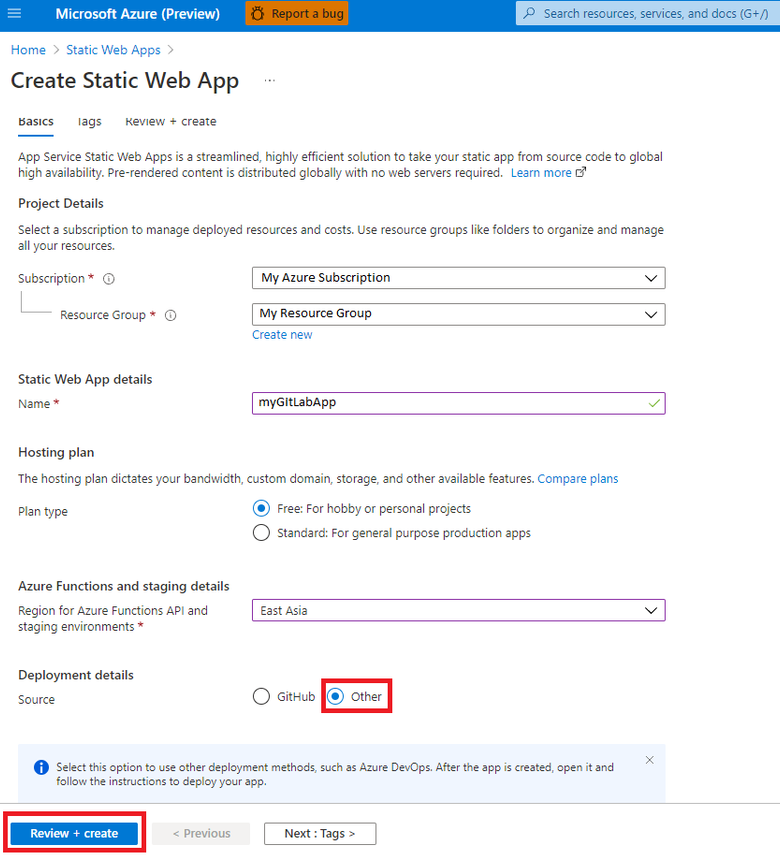

                                                                   Static Web App resource creation

*Note: This is just an example.





• Select Review + create
• Select Create.
• Once the deployment is successful, select Go to resource.
• Select Manage deployment token.
• Copy the deployment token and paste the deployment token value into a text editor for use in another screen.





                                               Copying deployment token from Static Web App resource





Create the Pipeline Task in GitLab

• Navigate to the repository in GitLab that was created earlier.
• Select Settings.
• Select CI/CD.

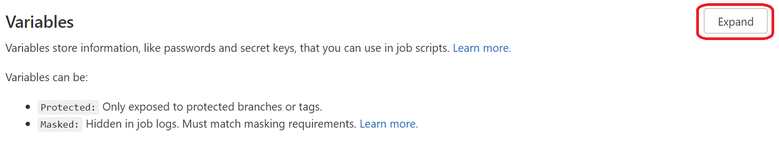

• Select Expand Variable sub-section.



• Select Add variable.

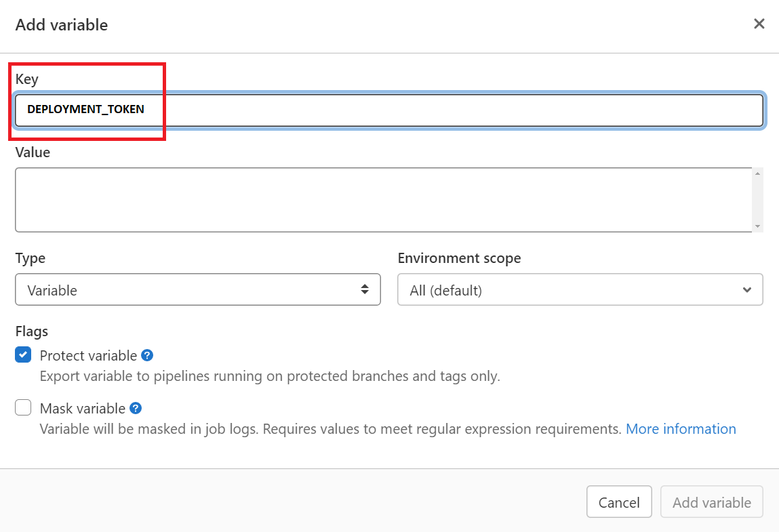

                                        Adding Deployment Token in project CI/CD variable section



• Write DEPLOYMENT_TOKEN in Key section.
• Copy the deployment token in Value section that you previously pasted into a text editor.
• Create a new file .gitlab-ci.yml. at the root directory.
• Copy the following YAML in .gitlab-ci.yml  file and the select commit.







variables:
  API_TOKEN: $DEPLOYMENT_TOKEN
  APP_PATH: '$CI_PROJECT_DIR/src'

deploy:
  stage: deploy
  image: registry.gitlab.com/static-web-apps/azure-static-web-apps-deploy
  script:
    - echo "App deployed successfully."







*Note: $CI_PROJECT_DIR is the full path the repository is cloned to, and where the job runs from.



Note:

If you are not using sample app, the values for APP_PATH, API_PATH and OUTPUT_PATH need to change to match the values in your application.





Property	Description	Example	Required
APP_PATH	Location of your application code.	Enter $CI_PROJECT_DIR/ if your application source code is at the root of the repository, or $CI_PROJECT_DIR /app if your application code is in a directory called app.	Yes
API_PATH	Location of your Azure Functions code.	Enter $CI_PROJECT_DIR /api if your app code is in a folder called api.	No
OUTPUT_PATH	Location of the build output directory relative to the APP_PATH.	If your application source code is located at $CI_PROJECT_DIR /app, and the build script outputs files to the $CI_PROJECT_DIR /app/build folder, then set $CI_PROJECT_DIR /app/build as the OUTPUT_PATH value.	No
API_TOKEN	API token for deployment	Include API_TOKEN: $DEPLOYMENT_TOKEN	Yes



• Select commit.
• Once the deployment is successful, navigate to the Azure Static Web Apps Overview which includes links to the deployment configuration. Note how the Source link now points to the GitLab.
• Select the URL to see your newly deployed website.

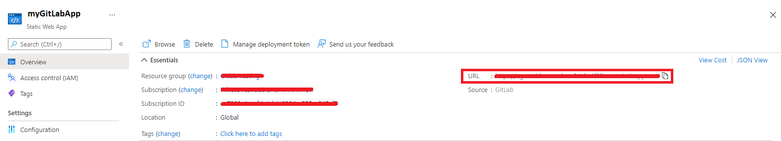

                                                                      URL for newly deployed app



Clean up resources

Clean up the resources you deployed by deleting the resource group.

• From the Azure portal, select Resource group from the left menu.
• Enter the resource group name in the Filter by name field.
• Select the resource group name you used in this tutorial.
• Select Delete resource group from the top menu.



Additional Resources

• If you need help getting started with Pipelines, see Create your first pipeline.
• If you need reference to help you with writing pipeline, see Reference for .gitlab-ci-yml file.
