Connected Microservices with Azure Container Apps

Azure Container Apps(Preview) enables users to run containerised applications in a completely Serverless manner providing complete isolation of Orchestration and Infrastructure. Applications built on Azure Container Apps can dynamically scale based on the various triggers as well as KEDA-supported scalers

Features of Azure Container Apps include:

• Run multiple Revisions of containerised applications

• Autoscale apps based on any KEDA-supported scale trigger

• Enable HTTPS Ingress without having to manage other Azure infrastructure like L7 Load Balancers

• Easily implement Blue/Green deployment and perform A/B Testing by splitting traffic across multiple versions of an application

• Azure CLI extension or ARM templates to automate management of containerised applications

• Manage Application Secrets securely

• View Application Logs using Azure Log Analytics

• Manage multiple Container Apps using Azure APIM providing rich APIM Policies and Authentication mechanisms to the Container Apps. This can be achieved in couple of ways:

  • Leverage Virtual Network Integration feature of Container Apps to securely manage through API Management in a virtual Network

  • Use Self-hosted Gateway feature of APIM to treat this as a Container App and manage other Container apps



This article would demonstrate:

• How to Setup Azure Container Apps using Azure CLI

• How to Deploy a containerised Logic App as Azure Container App

• How to Deploy a containerised Azure Function as Azure Container App

• Deploy APIM in a Virtual Network

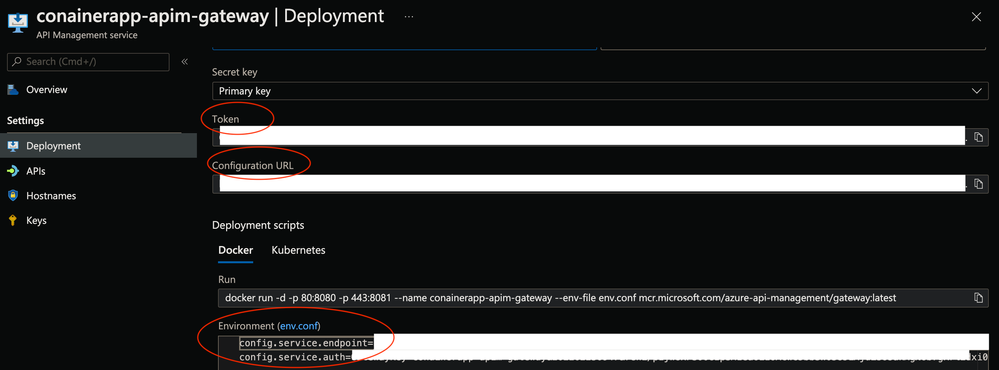

• Deploy the Self-hosted Gateway component of APIM as a Container App

• Integrate the two Container Apps with APIM Container App

• Test the flow end to end

Source Code



How to Setup



Set CLI Variables

tenantId="<tenantId>"
subscriptionId="<subscriptionId>"
resourceGroup="<resourceGroup>"
monitoringResourceGroup="<monitoringResourceGroup>"
location="<location>"
logWorkspace="<logWorkspace>"
basicEnvironment="basic-env"
securedEnvironment="secure-env"
acrName="<acrName>"
registryServer="<container_registry_server>"
registryUserName="<container_registry_username>"
registryPassword="<container_registry_password>"
​
# Function App would call this url to get the POST url end point of the http trigerred Logic App
logicAppCallback=""
​
# Logic App POST url returned from the previous call
logicAppPost=""
​
# VNET for Securing Container Apps
containerAppVnetName="containerapp-workshop-vnet"
containerAppVnetId=
containerVnetPrefix=""
​
# Subnet for Control plane of the Container Apps Infrastructure
controlPlaneSubnetName="containerapp-cp-subnet"
controlPlaneSubnetId=
controlPlaneSubnetPrefix=""
​
# Private DNS zone for Container Apps
containerAppLinkName="containerapp-dns-plink"
​
# Subnet for hosting Container Apps
appsSubnetName="containerapp-app-subnet"
appsSubnetId=
appsSubnetPrefix=""
​
# Both Control plane Subnet and Application Services Subnet should be in same VNET viz. $containerAppVnetName
​
apimVnetName="apim-workshop-vnet"
apimVnetId=
apimVnetPrefix=""
apimSubnetName="apim-workshop-subnet"
apimSubnetId=
apimSubnetPrefix=""
​
# Private DNS zone for APIM
apimLinkName="apim-dns-plink"

# VNET peering between Container App Vnet and APIM VNet (In case two subnets are not within same Vnet)
containerAppPeeringName="containerpp-apim-peering"
apimPeeringName="apim-containerpp-peering"





Configure Azure CLI

# Add CLI extension for Container Apps
az extension add \
--source https://workerappscliextension.blob.core.windows.net/azure-cli-extension/containerapp-0.2.2-py2.py3-none-any.whl

# Register the Microsoft.Web namespace
az provider register --namespace Microsoft.Web
az provider show --namespace Microsoft.Web



Create Log Analytics Workspace

az monitor log-analytics workspace create --resource-group $monitoringResourceGroup --workspace-name $logWorkspace
​
# Retrieve Log Analytics ResourceId
logWorkspaceId=$(az monitor log-analytics workspace show --query customerId -g $monitoringResourceGroup -n $logWorkspace -o tsv)
​
# Retrieve Log Analytics Secrets
logWorkspaceSecret=$(az monitor log-analytics workspace get-shared-keys --query primarySharedKey -g $monitoringResourceGroup -n $logWorkspace -o tsv)



Create Container App Environment

# Simple environment with no additional security for the underlying sInfrastructure
az containerapp env create --name $basicEnvironment --resource-group $resourceGroup \
  --logs-workspace-id $logWorkspaceId --logs-workspace-key $logWorkspaceSecret --location $location

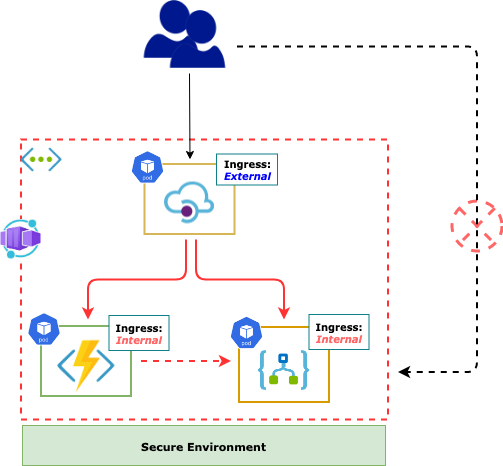

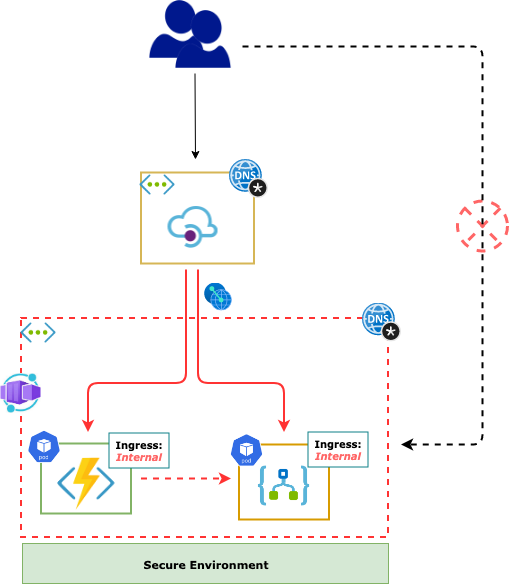

Connecting the Dots....



• Setup a Secured Container App environment integrating it with a Virtual Network

• Restrict communication to the Secured environment is from within the Virtual Network or a peer Virtual Network

• Deploy a Logic App as a Container App into the Secured environment

• Deploy a Function App as a Container App into the Secured environment

• Deploy an APIM instance in a peered Virtual Network (either External or Internal)

• Configure APIM to connect to the Container Apps securely





Setup Azure Container App
​

Create Virtual Network to inject Container Apps

# Container App Vnet
az network vnet create --name $containerVnetName --resource-group $resourceGroup --address-prefixes $containerVnetPrefix
containerAppVnetId=$(az network vnet show --name $containerVnetName --resource-group $resourceGroup --query="id" -o tsv)
​
# ControlPlane Subnet
az network vnet subnet create --name $controlPlaneSubnetName --vnet-name $containerVnetName --resource-group $resourceGroup --address-prefixes $controlPlaneSubnetPrefix
controlPlaneSubnetId=$(az network vnet subnet show -n $controlPlaneSubnetName --vnet-name $containerVnetName --resource-group $resourceGroup --query="id" -o tsv)
​
# Apps Subnet
az network vnet subnet create --name $appsSubnetName --vnet-name $containerVnetName --resource-group $resourceGroup --address-prefixes $appsSubnetPrefix
appsSubnetId=$(az network vnet subnet show -n $appsSubnetName --vnet-name $containerVnetName --resource-group $resourceGroup --query="id" -o tsv)
​
# APIM Vnet
az network vnet create --name $apimVnetName --resource-group $resourceGroup --address-prefixes $apimVnetPrefix
apimVnetId=$(az network vnet show --name $apimVnetName --resource-group $resourceGroup --query="id" -o tsv)
​
# APIM Subnet
az network vnet subnet create --name $apimSubnetName --vnet-name $apimVnetName --resource-group $resourceGroup --address-prefixes $apimSubnetPrefix
apimSubnetId=$(az network vnet subnet show --name $apimSubnetName --vnet-name $apimVnetName --resource-group $resourceGroup --query="id" -o tsv)

# VNET peering between Container App Vnet and APIM VNet (In case two subnets are not within same Vnet)
az network vnet peering create --name $containerAppPeeringName --remote-vnet $apimVnetId \
--resource-group $resourceGroup --vnet-name $containerVnetName --allow-vnet-access

az network vnet peering create --name $apimPeeringName --remote-vnet $containerAppVnetId \
--resource-group $resourceGroup --vnet-name $apimVnetName --allow-vnet-access





Create a Secured Environment

Please follow this excellent article to get a detailed view on this

az containerapp env create --name $securedEnvironment --resource-group $resourceGroup \
  --logs-workspace-id $logWorkspaceId --logs-workspace-key $logWorkspaceSecret --location $location \
  --controlplane-subnet-resource-id $controlPlaneSubnetId \
  --app-subnet-resource-id $appsSubnetId --internal-only
​

• --internal-only flag ensures that this environment can communicate with services on same virtual network or on a peered virtual network

• Excluding --internal-only flag makes this environment reachable from other container apps in the same environment





Configure a Secured Environment

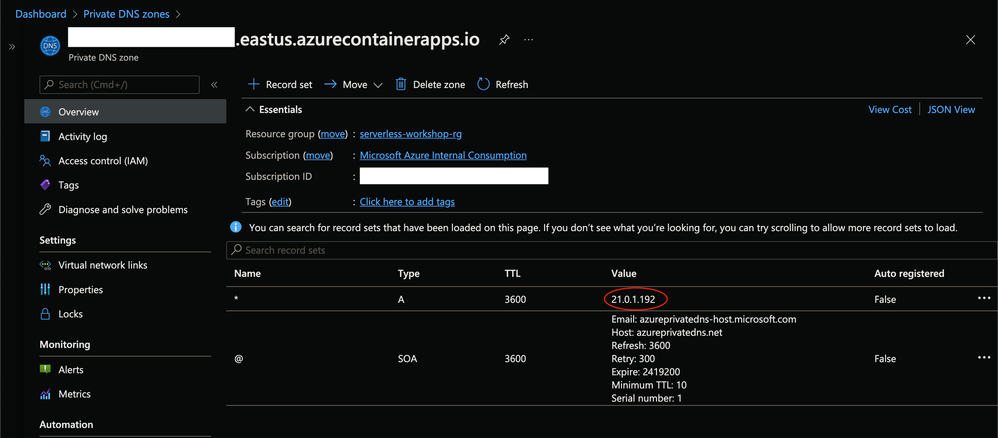

Create Private DNS Zone



defaultDomain=$(az containerapp env show --name $securedEnvironment --resource-group $resourceGroup --query="defaultDomain" -o tsv)
staticIp=$(az containerapp env show --name $securedEnvironment --resource-group $resourceGroup --query="staticIp" -o tsv)
​
az network private-dns zone create --name $defaultDomain --resource-group $resourceGroup
​
#az network private-dns zone show --name $defaultDomain --resource-group $resourceGroup



Link Virtual Networks





az network private-dns link vnet create --name $containerAppLinkName --resource-group $resourceGroup \
--virtual-network $containerAppVnetName --zone-name $defaultDomain
​
#az network private-dns link vnet show --name $containerAppLinkName --resource-group $resourceGroup --zone-name $defaultDomain
​
az network private-dns link vnet create --name $apimLinkName --resource-group $resourceGroup \
--virtual-network $apimVnetName --zone-name $defaultDomain
​
#az network private-dns link vnet show --name $apimLinkName --resource-group $resourceGroup --zone-name $defaultDomain





Deploy Azure Logic App as Container App

Build a Logic App with basic request/response workflow - viz. LogicContainerApp

• Run and test this Logic app as docker container locally

• Deploy the Logic App container onto Azure as a Container App

• Host the Logic App inside a Virtual Network (Secured Environment)

• Expose the container app with Internal Ingress - blocking all public access

Logic App in a Container

• Let us first Create and Deploy a Logic app as Docker Container

• Logic App runs an Azure Function locally and hence few tools/extensions need to be installed

  Pre-Requisites

  • Azure Function Core Tools - v3.x

    • The above link is for macOS; please install the appropriate links in the same page for other Operating Systems

    • At the time of writing, Core tools 3.x only supports the Logic App Designer within Visual Studio Code

    • The current example has been tested with - Function Core Tools version 3.0.3904 on a Windows box

  • Docker Desktop for Windows

  • A Storage Account on Azure - which is needed by any Azure function App

    • Logic App (aka Azure Function) would use this storage to cache its state

  • VS Code Extension for Standard Logic App

  • VS Code Extension for Azure Function

  • VS Code extension for Docker

    • This is Optional but recommended; it makes life easy while dealing with Dockerfile and Docker CLI commands

• Create a Local folder to host all files related Logic App - viz. LogicContainerApp

• Open the folder in VS Code

• Create a New Logic App Project in this Folder

  • Choose Stateful workflow in the process and name accordingly - viz. httperesflow

  • This generates all necessary files and sub-folders within the current folder

    • A folder named httpresflow is also added which contains the workflow.json file

    • This describes the Logic App Actions/triggers

    • This example uses a Http Request/Response type Logic App for simplicity

    • The Logic App would accept a Post body as below and would return back the same as response

      {
          "Zip": "testzip-2011.zip"
      }

• Right click on the workflow.json file and Open the Logic App Designer - this might take few seconds to launch

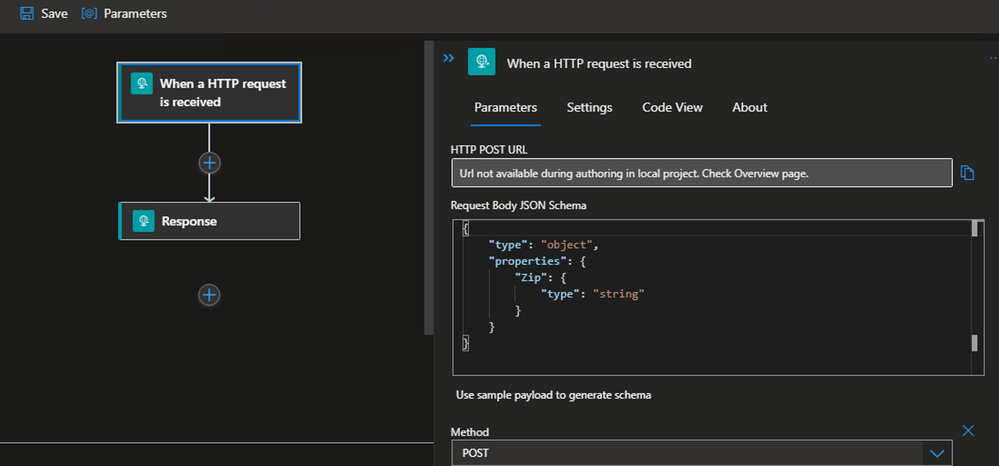

• Add Http Request trigger

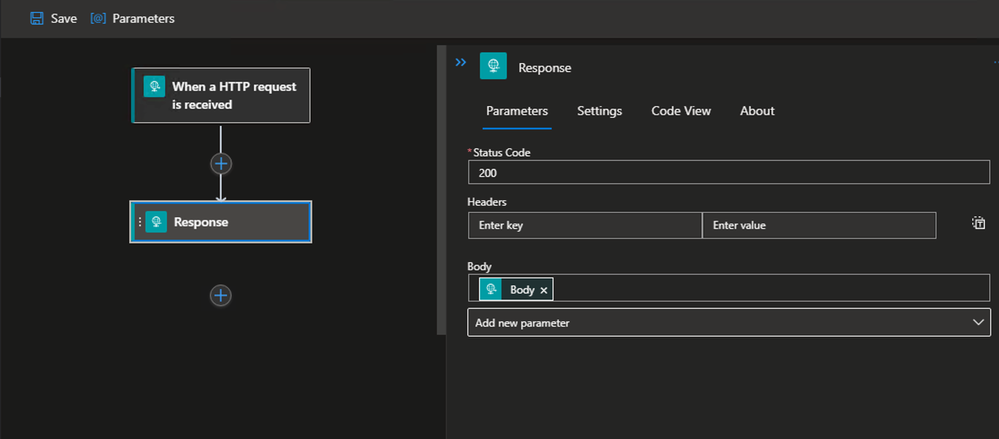

• Add Http Response Action



• Save the Designer changes

• Right click on the empty area on the workspace folder structure and Open the Context menu

  • Select the menu options that says - Convert to Nuget-based Logic App project

  • This would generate .NET specific files - along with a LogicContainerApp.csproj file



• Open the local.settings.json file

• Replace the value of AzureWebJobsStorage variable with the value from Storage Account Connection string created earlier

• Add a Dockerfile in the workspace

  FROM mcr.microsoft.com/azure-functions/node:3.0
  ​
  ENV AzureWebJobsScriptRoot=/home/site/wwwroot \
       AzureFunctionsJobHost__Logging__Console__IsEnabled=true \
       FUNCTIONS_V2_COMPATIBILITY_MODE=true \
       AzureWebJobsStorage='' \
       AZURE_FUNCTIONS_ENVIRONMENT=Development \
       WEBSITE_HOSTNAME=localhost \
       WEBSITE_SITE_NAME=logiccontainerapp
  ​
  COPY ./bin/Debug/netcoreapp3.1 /home/site/wwwroot

  • WEBSITE_SITE_NAME - this is the name by which entries are created in Storage Account by the Logic App while caching its state



• Build docker image

  docker build -t <repo_name>/<image_name>:<tag> .



• Create the Logic App Container

  docker run --name logiccontainerapp -e AzureWebJobsStorage=$azureWebJobsStorage -d -p 8080:80 <repo_name>/<image_name>:<tag>



• Let us now Run the logic app locally as a Docker container

• Open the Storage account created earlier

• Open the Containers

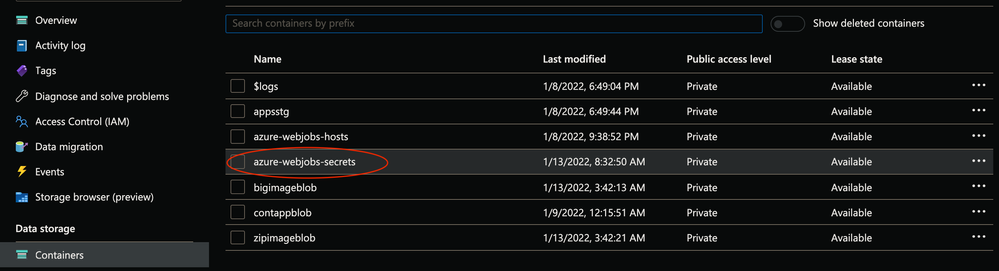

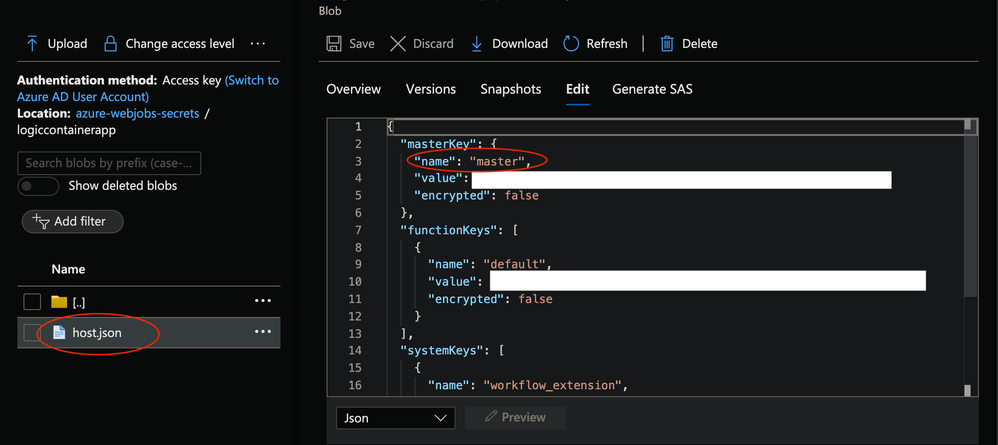

• Open azure-webjobs-secrets blob

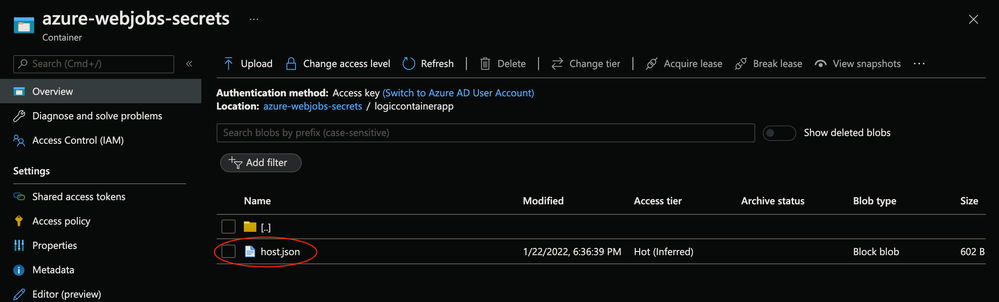

• Get the value of the master key in the host.json file



• Open POSTMAN or any Rest client of choice like curl

http://localhost:8080/runtime/webhooks/workflow/api/management/workflows/httpresflow/triggers/manual/listCallbackUrl?api-version=2020-05-01-preview&code=<master_key_value_from_storage_account>

• This would return the Post callback Url for Http triggered Logic App

{
    "value": "https://localhost:443/api/httpresflow/triggers/manual/invoke?api-version=2020-05-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=<value>",
    "method": "POST",
    "basePath": "https://localhost/api/httpresflow/triggers/manual/invoke",
    "queries": {
        "api-version": "2020-05-01-preview",
        "sp": "/triggers/manual/run",
        "sv": "1.0",
        "sig": "<value>"
    }
}

• Copy the value of the value parameter from the json response
• Make following Http call

http://localhost:8080/api/httpresflow/triggers/manual/invoke?api-version=2020-05-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig=<value>

• Post Body

{
    "Zip": "testzip-2011.zip"
}

• Check the response coming back from Logic App as below

{
    "Zip": "testzip-2011.zip"
}

Setup Azure Container App

• Create Virtual Network to inject Container Apps

containerAppVnetId=$(az network vnet show -n $containerAppVnetName --resource-group $resourceGroup --query="id" -o tsv)
​
controlPlaneSubnetId=$(az network vnet subnet show -n $controlPlaneSubnetName --vnet-name $containerAppVnetName --resource-group $resourceGroup --query="id" -o tsv)
​
appsSubnetId=$(az network vnet subnet show -n $appsSubnetName --vnet-name $containerAppVnetName --resource-group $resourceGroup --query="id" -o tsv)
​

• Create a Secured Environment for Azure Container Apps with this Virtual Network

az containerapp env create --name $securedEnvironment --resource-group $resourceGroup \
  --logs-workspace-id $logWorkspaceId --logs-workspace-key $logWorkspaceSecret --location $location \
  --controlplane-subnet-resource-id $controlPlaneSubnetId \
  --app-subnet-resource-id $appsSubnetId



Logic App as Azure Container App

• Let us now deploy the logic app container onto Azure as Container App

• Push Logic App container image to Azure Container Registry

  # If Container image is already created and tested, use Docker CLI
  docker push <repo_name>/<image_name>:<tag>

    OR

  # Use Azure CLI command for ACR to build and push
  az acr build -t <repo_name>/<image_name>:<tag> -r $acrName .

• Create Azure Container App with this image

  logicappImageName="$registryServer/logiccontainerapp:v1.0.0"
        azureWebJobsStorage="<storage_account_connection_string"

  az containerapp create --name logicontainerapp --resource-group $resourceGroup \
      --image $logicappImageName --environment $securedEnvironment \
      --registry-login-server $registryServer --registry-username $registryUserName \
      --registry-password $registryPassword \
      --ingress internal --target-port 80 --transport http \
      --secrets azurewebjobsstorage=$azureWebJobsStorage \
      --environment-variables "AzureWebJobsStorage=secretref:azurewebjobsstorage"

• Note down the Logic App ingress url





Deploy Azure Function as Container App

Build an Azure Function App with Http POST trigger - viz. HttpLogicContainerApp

• Azure Function would call the above logic app (i.e. LogicContainerApp) sending some Json as POST body

• Function would receive the http response from Logic App and return back to the caller

• Run and test this function app as docker container locally

• Deploy the Function App container onto Azure as a Container App

• Host the Function App inside a Virtual Network (Secured Environment)

• Expose the container app with Internal Ingress - blocking all public access

This function will be triggered by a http Post call

• This is going to invoke Logic App internally

• Return the response back to the caller

• Before we Deploy the function app, let us look at its code



using System;
using System.IO;
using System.Net.Http;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Azure.WebJobs;
using Microsoft.Azure.WebJobs.Extensions.Http;
using Microsoft.AspNetCore.Http;
using Microsoft.Extensions.Logging;
using Newtonsoft.Json;
namespace HttpContainerApps
  {
      public static class HttpContainerApps
      {
          [FunctionName("container")]
          public static async Task<IActionResult> Run(
              [HttpTrigger(AuthorizationLevel.Anonymous, "get", Route = null)] HttpRequest req,
              ILogger log)
          {
              log.LogInformation("C# HTTP trigger function processed a request.");

              var name = req.Query["name"];
              var cl = new HttpClient();

              var uri = $"http://httpcontainerapp-secured.internal.greensea-4ecd9ebc.eastus.azurecontainerapps.io/api/container?name={name}";
              var res = await cl.GetAsync(uri);
              var response = await res.Content.ReadAsStringAsync();
              log.LogInformation($"Status:{res.StatusCode}");
              log.LogInformation($"Response:{response}-v1.0.4");
              response = $"Hello, {response}-v1.0.4";
              // var response = $"Secured, {name}-v1.0.3";
              return new OkObjectResult(response);
          }
      }
  }

• Deploy Azure Function app as Container App


httpImageName="$registryServer/httplogiccontainerapp:v1.0.5"

# Function App would call this url to get the POST url end point of the http trigerred Logic App
logicAppCallbackUrl="https://<logicontainerapp_internal_ingress_url>/runtime/webhooks/workflow/api/management/workflows/httpresflow/triggers/manual/listCallbackUrl?api-version=2020-05-01-preview&code=<master_key_value_from_storage_account>"

# Logic App POST url returned from the previous call
logicAppPostUrl="https://<logicontainerapp_internal_ingress_url>/api/httpresflow/triggers/manual/invoke?api-version=2020-05-01-preview&sp=%2Ftriggers%2Fmanual%2Frun&sv=1.0&sig={0}"

az containerapp create --name httplogiccontainerapp --resource-group $resourceGroup \
--image $httpImageName --environment $securedEnvironment \
--registry-login-server $registryServer --registry-username $registryUserName \
--registry-password $registryPassword \
--ingress internal --target-port 80 --transport http \
--secrets azurewebjobsstorage=$azureWebJobsStorage,logicappcallbackurl=$logicAppCallbackUrl,logicappposturl=$logicAppPostUrl \
--environment-variables "AzureWebJobsStorage=secretref:azurewebjobsstorage,LOGICAPP_CALLBACK_URL=secretref:logicappcallbackurl,LOGICAPP_POST_URL=secretref:logicappposturl"

• This Container App is with Ingress type Internal so this would be at exposed publicly







Deploy APIM in a Virtual Network



• Integrate both the Container Apps (Function App and Logic App) with Azure APIM

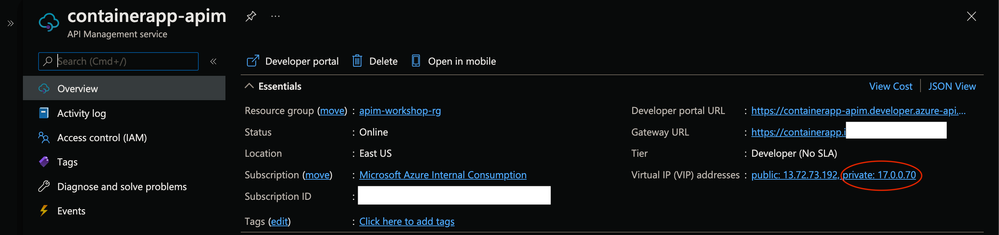

• Create an APIM instance on Azure

• Deploy APIM in an Internal Vnet or External Vnet and follow instructions accordingly

• Add two Container Apps (as deployed above) as backend for the APIM





Alternate Approach

Deploy Self-hosted Gateway for APIM as Container App



Integrate both the Container Apps (Function App and Logic App) with Azure APIM

• Create an APIM instance on Azure with a Self-hosted Gateway

• Deploy Self-hosted APIM as Container App and in the same Secured Environment as above

• Add two Container Apps (as deployed above) as backend for the APIM

• Expose the APIM Container App with External Ingress thus making it the only public facing endpoint for the entire system

• APIM Container App (Self-hosted Gateway) would be able to call the internal Container Apps since being part of the same Secured Environment

• Select gateway option in APIM in the Azure Portal



• Get the Endpoint Url and Auth Token from the portal



• Define ARM template for APIM Container App

{
          "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
          "contentVersion": "1.0.0.0",
          "parameters": {
              "containerappName": {
                  "defaultValue": "apimcontainerapp",
                  "type": "String"
              },
              "location": {
                  "defaultValue": "eastus",
                  "type": "String"
              },
              "environmentName": {
                  "defaultValue": "secure-env",
                  "type": "String"
              },
              "serviceEndpoint": {
                  "defaultValue": "",
                  "type": "String"
              },
              "serviceAuth": {
                  "defaultValue": "",
                  "type": "String"
              }
          },
          "variables": {},
          "resources": [
              {
                  "apiVersion": "2021-03-01",
                  "type": "Microsoft.Web/containerApps",
                  "name": "[parameters('containerappName')]",
                  "location": "[parameters('location')]",
                  "properties": {
                      "kubeEnvironmentId": "[resourceId('Microsoft.Web/kubeEnvironments', parameters('environmentName'))]",
                      "configuration": {
                          "ingress": {
                              "external": true,
                              "targetPort": 8080,
                              "allowInsecure": false,
                              "traffic": [
                                  {
                                      "latestRevision": true,
                                      "weight": 100
                                  }
                              ]
                          }
                      },
                      "template": {
                          // "revisionSuffix": "revapim",
                          "containers": [
                              {
                                  "name": "conainerapp-apim-gateway",
                                  "image": "mcr.microsoft.com/azure-api-management/gateway:latest",
                                  "env": [
                                      {
                                          "name": "config.service.endpoint",
                                          "value": "[parameters('serviceEndpoint')]"
                                      },
                                      {
                                          "name": "config.service.auth",
                                          "value": "[parameters('serviceAuth')]"
                                      }
                                  ],
                                  "resources": {
                                      "cpu": 0.5,
                                      "memory": "1Gi"
                                  }
                              }
                          ],
                          "scale": {
                              "minReplicas": 1,
                              "maxReplicas": 3
                          }
                      }
                  }
              }
          ]
      }

• Deploy APIM as Container App

apimappImageName="mcr.microsoft.com/azure-api-management/gateway:latest"
serviceEndpoint="<service_Endpoint>"
serviceAuth="<service_Auth>"
​
az deployment group create -f ./api-deploy.json -g $resourceGroup \
  --parameters serviceEndpoint=$serviceEndpoint serviceAuth=$serviceAuth





Integrate All using APIM

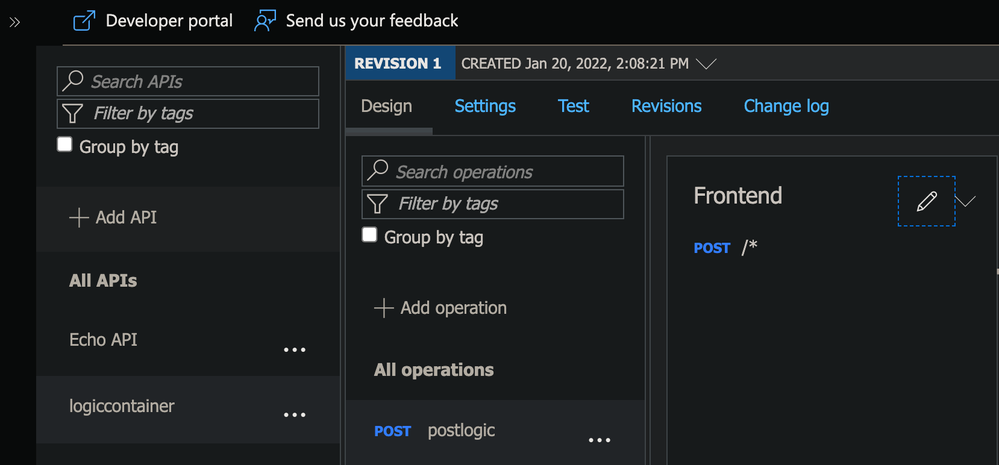

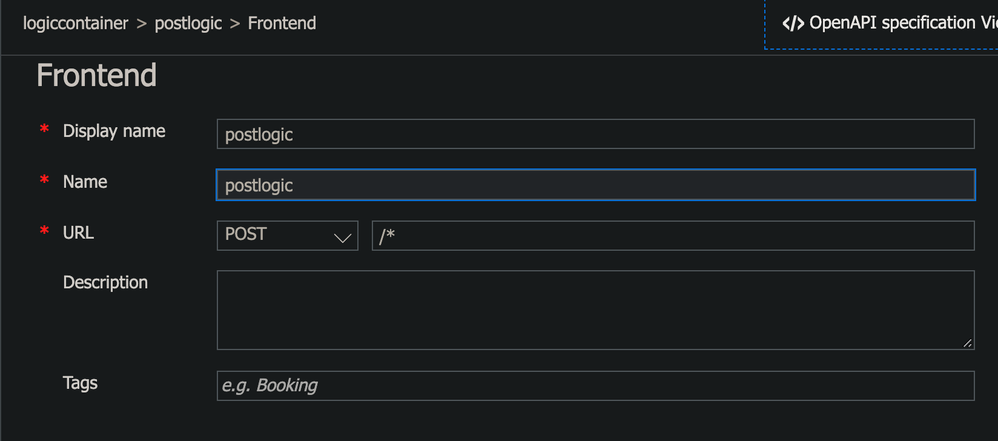

• Add Container Apps as APIM back end

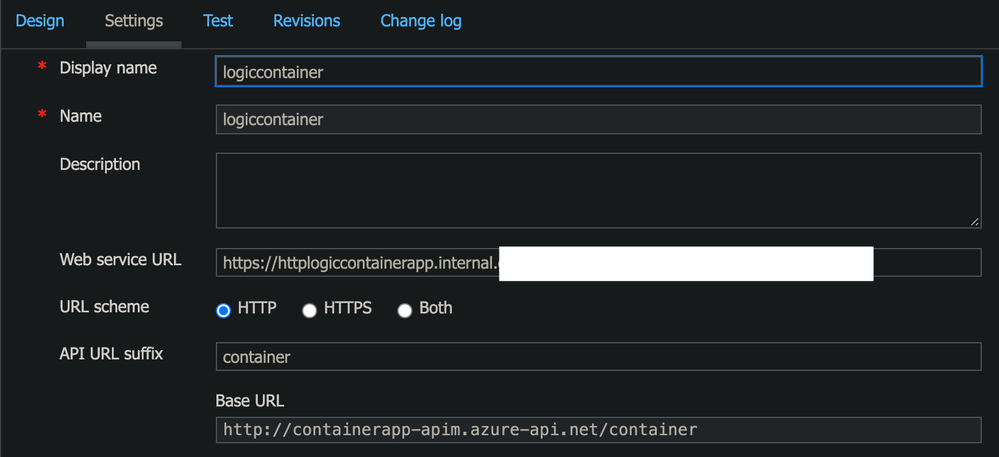

• The Web Service URL would be the Internal Ingress url of the Http Container App







Test End-to-End

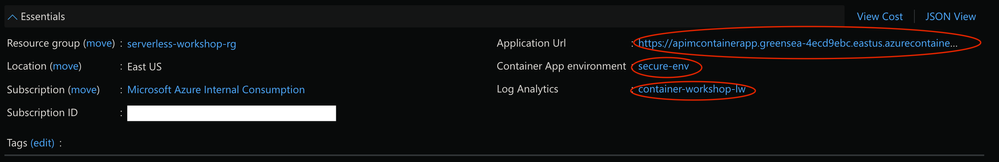

Grab the FQDN of the APIM Container App from the portal

The FQDN can be obtained through Azure CLI as well

fqdn=$(az containerapp show -g $resourceGroup -n apimcontainerapp --query="configuration.ingress.fqdn")

Make a call to the API URL as below and receive the response back

curl -k -X POST --data '{"zip":"test.zip"}' https://$fqdn/container/api/logicapp/
....
​
{"zip":"test.zip"}





References

• Azure Container Apps

• Container App - Virtual Network Integration

• Logic App Standard

• Azure APIM - Virtual Network and Internal Virtual Network

• Azure APIM Self-hosted Gateway

• Source Repo
