In Azure App Service, developers often need to serve files (images, config files, data files, etc.) that are stored outside the app’s wwwroot folder — such as on an Azure File Share.

Background:

In Azure App Service, developers often need to serve files (images, config files, data files, etc.) that are stored outside the app’s wwwroot folder — such as on an Azure File Share.

This is especially useful when:

  • You want to share files across multiple web apps
  • Your files are too large to bundle with the app
  • You need to manage files independently from the app deployment

To accomplish this, Azure provides the ability to:

  • Mount external Azure File Shares into your web app's file system
  • Expose those mounted folders via virtual paths
  • Configure directory browsing and MIME types to make files directly accessible over the browser

Step-by-Step Configuration:

===Azure Storage Account part===

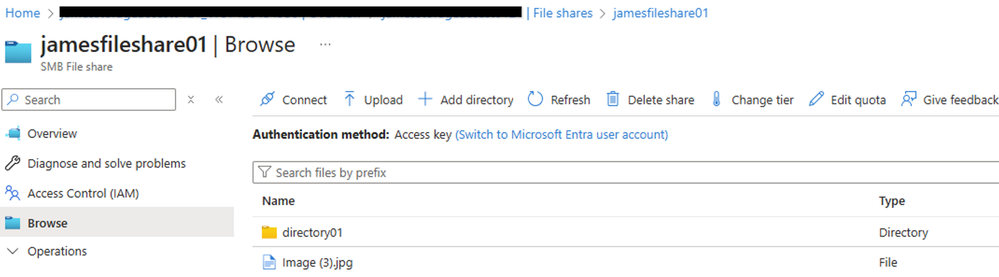

Create Azure File Share

===Azure App Service part===

1.Mount Azure File Share

Azure Portal → App Service → Configuration → Path Mappings → Mount Storage

  • Click + New Azure Storage Mount
  • Provide:
    • Name: (e.g. fileshare)
    • Storage account: Select your storage account
    • Storage container: Select your file share name
    • Mount Path: (e.g. /mounts/share)

The mounted path will appear as C:\mounts\share in the backend file system (Kudu).



2.Set Virtual Path to Expose via URL

Azure Portal → Configuration → Path Mappings → Virtual applications and directories

  • Click + Add
    • Virtual Path: e.g. /fileshare (URL access path)
      • The Virtual Path is the URL path that users will type in the browser to access a folder or file hosted by your App Service.
    • Physical Path: \mounts\share
      • The Physical Path (Mount Path) is the actual folder path on the file system where your Azure File Share is located inside the App Service.
    • Select Directory

This maps URL path (Virtual Path, like /files) to a specific physical folder (Physical Path, like C:\mounts\share).

3.Verify File Structure in Kudu

Open Kudu: https://<your-app-name>.scm.azurewebsites.net

Go to: Debug Console → CMD → C:\mounts\share

You should see your mounted file share contents (e.g., folders, .jpg, .json)



Common Issues & Fixes

Issue 1: Access Denied When Browsing Virtual Path

Example URL: https://<app>.azurewebsites.net/fileshare/

-> Showing directory listing

Error message from browser: You do not have permission to view this directory or page.

Cause: Directory browsing is disabled by default.

Solution: Create a web.config file under site\wwwroot with:

<configuration>
  <system.webServer>
    <directoryBrowse enabled="true" />
  </system.webServer>
</configuration>

This enables directory listing in browser.



Issue 2: Can't open .json Files

Example URL: https://<app>.azurewebsites.net/fileshare/folder1/AppInit.json

-> Serving .json file correctly

Error message from browser: The resource you are looking for has been removed, had its name changed, or is temporarily unavailable.

Cause: MIME type for .json files is not configured.

Solution: Update web.config to allow serving .json:

<configuration>
  <system.webServer>
    <staticContent>
      <mimeMap fileExtension=".json" mimeType="application/json" />
    </staticContent>
  </system.webServer>
</configuration>



Reference: Configure an App Service App - Azure App Service | Microsoft Learn
