Project Tye is an experimental developer tool that the .NET team is working on to make the experience of creating, testing and deploying microservices and distributed apps easier.
If you've done any work in this space over the past many years you've no doubt seen the changes in technology and tools; Docker Swarm, Mesosphere, Kubernetes, and various tools and configuration options that more than likely caused some sort of pain.
The goals of Tye are to help make the development easier by running many services with a single command, options for using containers or not, service discovery by convention, and simplifying deployment to Kubernetes with minimal knowledge and/or configuration.
In March, the team gave a quick overview during the .NET Community StandUp
Getting Started
There are a number of resources for getting up and running.
- GitHub Project Page : dotnet/tye
- Project Announcement post : Introducing Project Tye
- MS Build : Cloud Native Apps with .NET and AKS
- MS Build: Journey to one .NET
Tye is a .NET global tool and is installed using the command
dotnet tool install -g Microsoft.Tye --version "0.3.0-alpha.20319.3"
After installing the tye global tool, we can now create and run single and multiple services using the dotnet CLI commands.
# Create a Razor Pages App
dotnet new razor -n frontend
# Create a WebAPI App
dotnet new webapi -n backend
# Create the Solution file and add the projects
dotnet new sln -n microservices
dotnet sln add frontend backend
Typically when creating multiple applications and wanting to run them all together there is usually some Dockerfile(s) involved, references, nginx.conf files etc.
With tye, that is handled for you. Just use the following:
tye run --dashboard

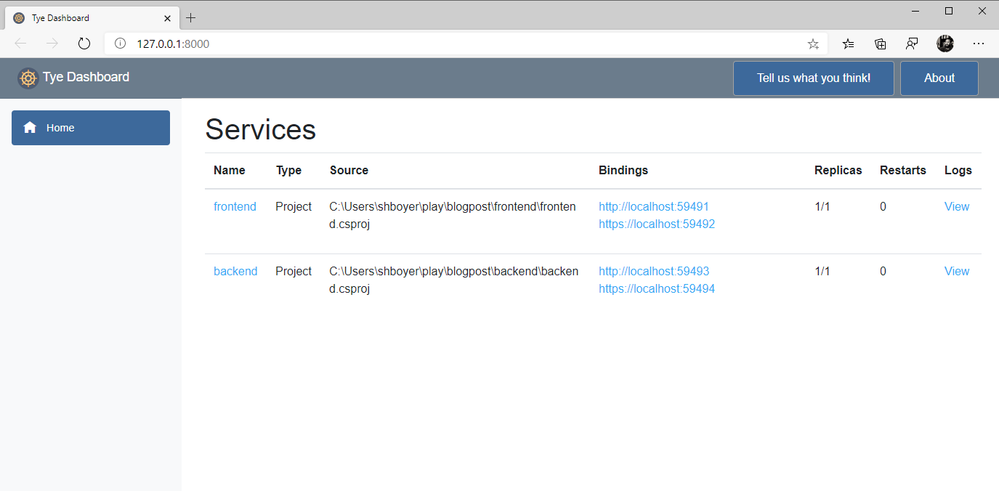

Using the --dashboard option automatically opens the tye dashboard web application and displayed the two applications, ports, logs and other information running.
There is some work to be done to connect the backend and frontend applications, see the steps here for that work.
Deploying your application
Once you've successfully run the applications locally, the next step is to push your services and apps to your cluster. There are a few requirements:
- Docker for your OS
- Container registry for the images that are produced, tagged and pushed prior to deployment to the cluster. i.e. Azure Container Registry, Docker Hub, GitHub etc.
- A Kubernetes Cluster like AKS for example.
Once all of these are setup, use the deploy command with the --interactive option.
tye deploy --interactive
You'll be prompted for your container registry and if you have configured an ingress controller; you may be asked about deployment options for this as well.
Once complete, you can use the standard commands from kubectl to inspect pods, services and deployments.
> kubectl get pods
NAME READY STATUS RESTARTS AGE
backend-ccdfd756f-xk2w2 1/1 Running 0 5m
frontend-84dfdf4f7d-6r5vb 1/1 Running 0 5m
Using tye deploy is a quick and easy motion to publish your things to the cloud, but is it the method we'd want to continually do for production? Or even QA and Test? What would it look like to use tye and a CI/CD system together?
Deploying your application with GitHub Actions
This sample uses the frontend/backend sample from a above but also adds an ingress controller to the cluster to expose a public IP address for the frontend application. The GitHub action will use tye in conjunction with an Azure Kubernetes Service (AKS) cluster and Azure Container Registry (ACR).
Before setting up the action, create the AKS with the proper integration with the ACR instance.
az aks create -n mytyecluster -g mytyegroup --generate-ssh-keys --attach-acr myregistry --node-count 3
Below is the tye.yaml configuration file created using tye init allowing for specifying the registry name as well as the ingress instance and routes to deploy.
name: microservice
registry: myregistry.azurecr.io
ingress:
- name: ingress
bindings:
- port: 8080
rules:
- path: /
service: frontend
- path: /backend
service: backend
services:
- name: frontend
project: frontend/frontend.csproj
replicas: 2
- name: backend
project: backend/backend.csproj

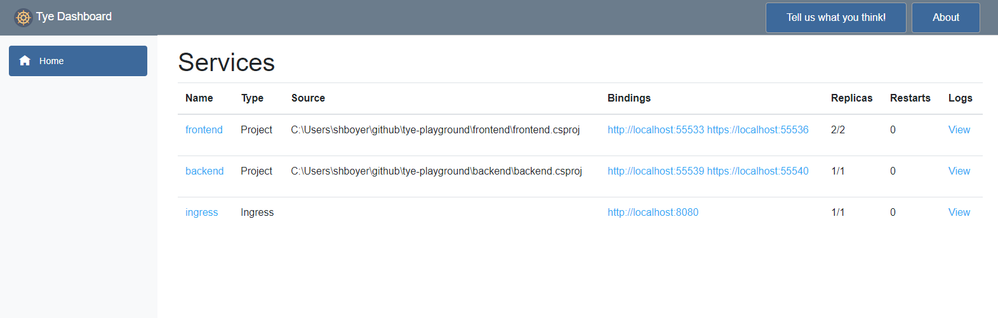

Running locally using tye run works as we'd expect, browsing the tye dashboard you should see the applications and the ingress similar to the following.
GitHub Action
Setting up the GitHub Action requires a few actions to compose the complete integration.
First, the name of the AKS cluster, resource group, and container registry are set as Environment variables.
env:
AZURE_AKS_CLUSTER: mytyecluster
AKS_RESOURCE_GROUP: mytyegroup
ACR_RESOURCE_URI: myregistry.azurecr.io
Next, ensure that the version of .NET Core and tye are installed.
- name: 🧰 Setup .NET Core
uses: actions/setup-dotnet@v1.5.0
with:
dotnet-version: 3.1.300
- name: Install Tye tools
run: |
dotnet tool install -g Microsoft.Tye --version "0.2.0-alpha.20258.3"
Using the name of the registry and the Azure docker action to login to your registry. This step is needed prior to running the deploy command which will build and push the images to the registry.
- name: Login to ACR
uses: Azure/docker-login@v1
with:
login-server: ${{ env.ACR_RESOURCE_URI }}
username: ${{ secrets.ACR_USER }}
password: ${{ secrets.ACR_PASSWORD }}
Next, we need to set the current context for our AKS cluster. Use Azure aks-set-context action for this.
- name: Set AKS context
uses: azure/aks-set-context@v1
with:
creds: '${{ secrets.AZURE_CREDENTIALS }}'
cluster-name: ${{ env.AZURE_AKS_CLUSTER }}
resource-group: ${{ env.AKS_RESOURCE_GROUP }}
When deploying manually you can use the --interactive option and the tye CLI will detect the configuration, inspect the cluster and ask/prompt for deployment. However, in this case it is automated and we need to deploy it as a part of the action.
We can just use a run action and apply the standard ingress from tye.
- name: Install ingress-nginx
run: |
kubectl apply -f https://aka.ms/tye/ingress/deploy
Finally, deploy the application!
- name: ☸ tye deploy
run: |
tye deploy -v Debug
The complete action looks like the following snippet:
name: Build and Deploy
on: [push]
env:
AZURE_AKS_CLUSTER: mytyecluster
AKS_RESOURCE_GROUP: mytyegroup
ACR_RESOURCE_URI: myregistry.azurecr.io
jobs:
build:
if: github.event_name == 'push' && contains(toJson(github.event.commits), '***NO_CI***') == false && contains(toJson(github.event.commits), '[ci skip]') == false && contains(toJson(github.event.commits), '[skip ci]') == false
name: tye deploy
runs-on: ubuntu-latest
steps:
- name: ✔ Checkout
uses: actions/checkout@v2
- name: 🧰 Setup .NET Core
uses: actions/setup-dotnet@v1.5.0
with:
dotnet-version: 3.1.300
- name: Install Tye tools
run: |
dotnet tool install -g Microsoft.Tye --version "0.3.0-alpha.20319.3"
- name: Login to ACR
uses: Azure/docker-login@v1
with:
login-server: ${{ env.ACR_RESOURCE_URI }}
username: ${{ secrets.ACR_USER }}
password: ${{ secrets.ACR_PASSWORD }}
- name: Set AKS context
uses: azure/aks-set-context@v1
with:
creds: '${{ secrets.AZURE_CREDENTIALS }}'
cluster-name: ${{ env.AZURE_AKS_CLUSTER }}
resource-group: ${{ env.AKS_RESOURCE_GROUP }}
- name: Install ingress-nginx
run: |
kubectl apply -f https://aka.ms/tye/ingress/deploy
- name: ☸ tye deploy
run: |
tye deploy -v Debug
Viewing the deployed application
Using kubectl, look for the ingress-nginx namespace and LoadBalancer TYPE to find the external IP address for the frontend application.
> kubectl get all -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ingress-nginx-controller LoadBalancer 10.0.125.110 52.142.9.218 80:31128/TCP,443:31740/TCP 9m
service/ingress-nginx-controller-admission ClusterIP 10.0.103.118 <none> 443/TCP 9m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/ingress-nginx-controller 1/1 1 1 9m
Feedback
Please file any issues on the dotnet/tye repo, feel free to reach out to me on twitter @spboyer or ask questions here in post!
