Azure Resource Graph Explorer for Microsoft.Web resources

Azure Resource Graph



Azure Resource Graph is an Azure service designed to extend Azure Resource Management by providing efficient and performant resource exploration with the ability to query at scale across a given set of subscriptions so that you can effectively govern your environment.

These queries provide the following abilities:

• Query resources with complex filtering, grouping, and sorting by resource properties.
• Explore resources iteratively based on governance requirements.
• Assess the impact of applying policies in a vast cloud environment.
• Query changes made to resource properties (preview).

Below are few resource types supported by Azure Resource Graph:



• Microsoft.web/apimanagementaccounts
• Microsoft.web/apimanagementaccounts/apis
• Microsoft.web/certificates
• Microsoft.Web/connectionGateways (On-premises Data Gateways)
• Microsoft.Web/connections (API Connections)
• Microsoft.Web/customApis (Logic Apps Custom Connector)
• Microsoft.Web/HostingEnvironments (App Service Environments)
• Microsoft.Web/KubeEnvironments (App Service Kubernetes Environments)
• Microsoft.Web/serverFarms (App Service plans)
• Microsoft.Web/sites (App Services)
• Microsoft.web/sites/premieraddons
• Microsoft.Web/sites/slots (App Service (Slots))
• Microsoft.Web/StaticSites (Static Web Apps)
• Microsoft.Web/WorkerApps (Container Apps)

How to Explore Azure Graph Explorer on Azure portal:



Go to Azure Portal > Search for Resource Graph

Use Resource Graph Explorer for executing the queries.

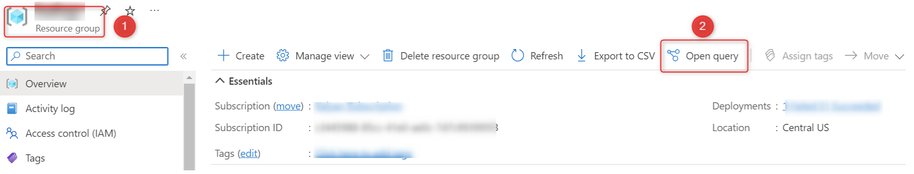

Access Resource explorer directly from Resource Group

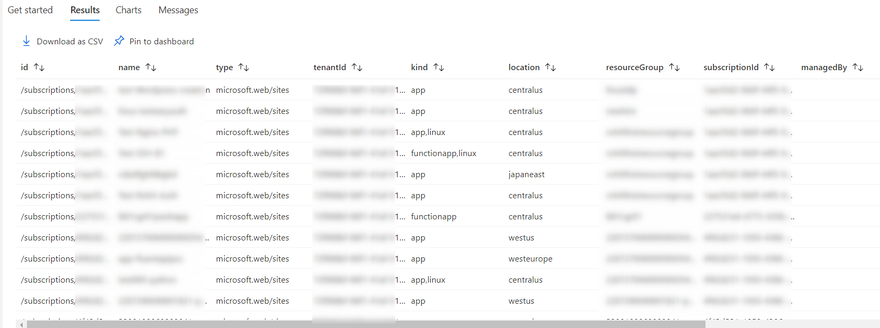

To list all sites across all subscriptions and resources groups:



resources

| where type == "microsoft.web/sites"





To view all your sites that are located in West US:



resources

| where type == "microsoft.web/sites"

| where location == "westus"



List all your apps by specific property

To view all your running sites, you can drill into the “properties” object: List all your apps by specific property



resources
| where type == "microsoft.web/sites"
| where properties.state == "Running"



List Apps based on Stack

You can drill into properties object for getting stack used by the app, below is the sample query for Python 3.6



resources
| where type == 'microsoft.web/sites'
| where subscriptionId =~ '<SubIdHere>'
| where properties.siteProperties.properties contains "Python|3.6"



To get sites count by region:



resources
| where type == "microsoft.web/sites"
| summarize count() by location





Quickly Discover any expiring certificates for Azure App Services using azure graph queries

We can make use of Azure Resource Graph to make cross-subscription queries to see if I have any upcoming expiring certificates.

To learn more on Azure Graph Queries, click here.

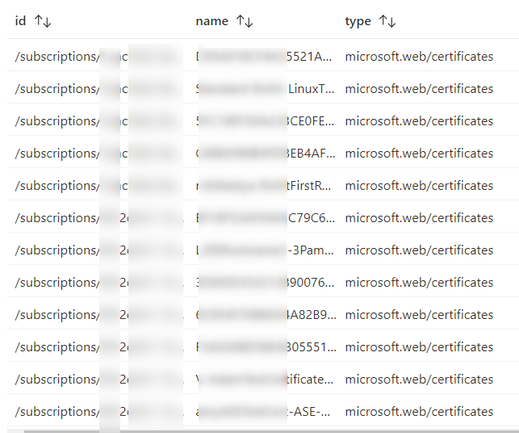

Get all web app certificates

This will get you a list of all the app service certificates you have in your subscription(s).



resources

| where type == "microsoft.web/certificates"

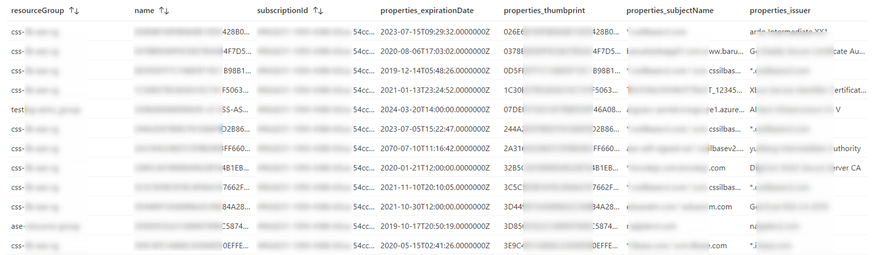

To simplify the overview, we can limit the properties we return:



resources

| where type == "microsoft.web/certificates"

| project resourceGroup, name, subscriptionId, properties.expirationDate, properties.thumbprint, properties.subjectName, properties.issuer

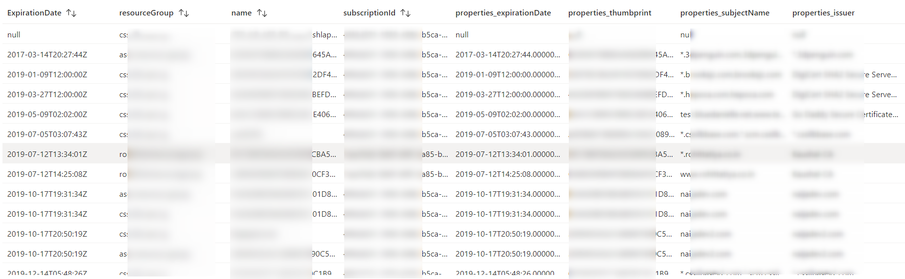

Get the Expiration Date of certificates:



resources

| where type == "microsoft.web/certificates"

| extend ExpirationDate = todatetime(properties.expirationDate)

| project ExpirationDate, resourceGroup, name, subscriptionId, properties.expirationDate, properties.thumbprint, properties.subjectName, properties.issuer

| order by ExpirationDate asc

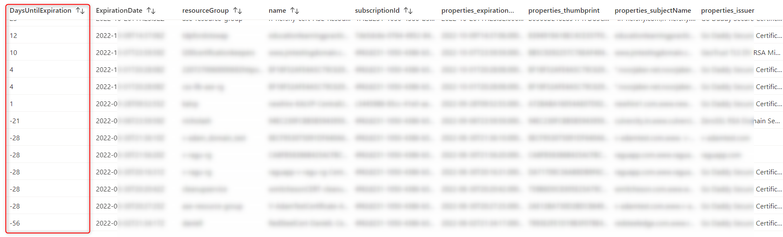

Get the number of days until expiration:



resources

| where type == "microsoft.web/certificates"

| extend ExpirationDate = todatetime(properties.expirationDate)

| extend DaysUntilExpiration = datetime_diff("day", ExpirationDate, now())

| project DaysUntilExpiration, ExpirationDate, resourceGroup, name, subscriptionId, properties.expirationDate, properties.thumbprint, properties.subjectName, properties.issuer

| where ExpirationDate < now() + 60d

| order by DaysUntilExpiration

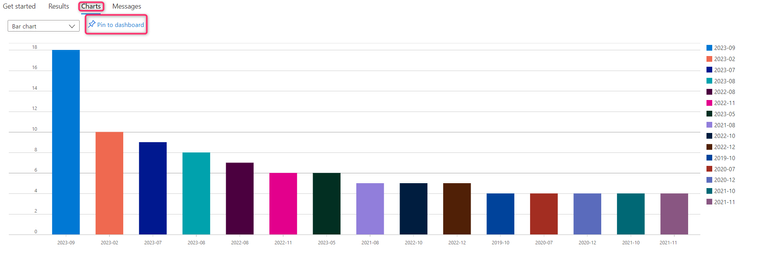

Group by month for easy visualization:



resources

| where type == "microsoft.web/certificates"

| extend ExpirationDate = todatetime(properties.expirationDate)

| extend ExpirationYear = getyear(ExpirationDate)

| extend ExpirationMonth = format_datetime(ExpirationDate, 'yyyy-MM')

| extend DaysUntilExpiration = datetime_diff("day", ExpirationDate, now())

| summarize count() by ExpirationMonth

| order by ExpirationMonth asc



You can also pin these results, and visualizations, to your Azure Dashboards(Private/Shared).

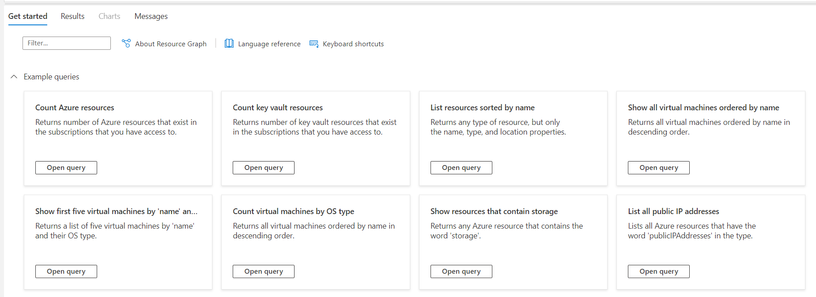

Use Get Started view for more queries available by default:





To know more abput Azure resource graph queries, please refer here.



Please feel free to comment for any queries!
