Build AI Agents with Azure Database for PostgreSQL and Azure AI Agent Service

Introduction

AI agents are revolutionizing how applications interact with data by combining large language models (LLMs) with external tools and databases. This blog will show you how to combine Azure Database for PostgreSQL with Azure AI Agent Service to create intelligent AI agents that can search and analyze your data. We'll use a legal research assistant as our example and walk through setup, implementation, and testing. With just a few hours of work, you can build an AI solution that would have taken weeks of traditional development.

Why AI Agents Matter

AI agents can improve productivity by handling repetitive, time-consuming tasks. AI agents can transform how businesses interact with their data by automating complex workflows, providing more accurate information retrieval, and enabling natural language interfaces to databases.

What are AI agents?

AI agents go beyond simple chatbots by combining large language models (LLMs) with external tools and databases. Unlike standalone LLMs or standard RAG systems, AI agents can:

• Plan: Break down complex tasks into smaller, sequential steps.
• Use Tools: Leverage APIs, code execution, search systems to gather information or perform actions.
• Perceive: Understand and process inputs from various data sources.
• Remember: Store and recall previous interactions for better decision-making.

By connecting AI agents to databases like Azure Database for PostgreSQL, agents can deliver more accurate, context-aware responses based on your data. AI agents extend beyond basic human conversation to carry out tasks based on natural language. These tasks traditionally required coded logic; however, agents can plan the tasks needed to execute based on user-provided context.

Agents can be implemented using various GenAI frameworks including LangChain, LangGraph, LlamaIndex and Semantic Kernel. All these frameworks support using Azure Database for PostgreSQL as a tool. This uses the Azure AI Agents Service for agent planning, tool usage, and perception, while using Azure Database for PostgreSQL as a tool for vector database and semantic search capabilities.





Real-World Use Case: Legal Research Assistant

In this tutorial, we'll build an AI agent that helps legal teams research relevant cases to support their clients in Washington state. Our agent will:

1. Accept natural language queries about legal situations.
2. Use vector search in Azure Database for PostgreSQL to find relevant case precedents.
3. Analyze and summarize the findings in a format useful for legal professionals.

Prerequisites

Azure Resources

• An active Azure account.

• Azure Database for PostgreSQL Flexible Server instance running PG 14 or higher.
• With pg_vector and azure_ai extensions enabled
• Azure AI Foundry Project
• Deployed Azure GPT-4o-mini endpoint.
• Deployed Azure text-embedding-small endpoint.

Local Setup

• Install Visual Studio Code.
• Install the Python extension.
• Install Python 3.11.x.
• Install Azure CLI.(latest version)

Project Implementation

All the code and sample datasets are available in this GitHub repository.

Step 1: Set Up Vector Search in Azure Database for PostgreSQL

First, we'll prepare our database to store and search legal case data using vector embeddings:

Environment Setup:

If using macOS / bash:

python -m venv .pg-azure-ai
source .pg-azure-ai/bin/activate
pip install -r requirements.txt

Windows / PowerShell

python -m venv .pg-azure-ai
.pg-azure-ai \Scripts\Activate.ps1
pip install -r requirements.txt

Windows / cmd.exe:

python -m venv .pg-azure-ai
.pg-azure-ai \Scripts\activate.bat
pip install -r requirements.txt



Configure Environment Variables:

Create a .env file with your credentials:

AZURE_OPENAI_API_KEY=""
AZURE_OPENAI_ENDPOINT=""
EMBEDDING_MODEL_NAME=""
AZURE_PG_CONNECTION=""



Load documents and vectors

The Python file load_data/main.py serves as the central entry point for loading data into Azure Database for PostgreSQL. This code processes sample cases data, including information about cases in Washington.



High level details of main.py:

1. Database setup and Table Creation: Creates necessary extensions, sets up OpenAI API settings, and manages database tables by dropping existing ones and creating new ones for storing case data.
2. Data Ingestion: Reads data from a CSV file and inserts it into a temporary table, then processes and transfers this data into the main cases table.
3. Embedding Generation: Adds a new column for embeddings in the cases table and generates embeddings for case opinions using OpenAI's API, storing them in the new column. The embedding process will take ~3-5 minutes

To start the data loading process, run the following command from the load_data directory:

python main.py



Here's the output of main.py:

Extensions created successfully
OpenAI connection established successfully
Cases table created successfully
Temp cases table created successfully
Data loaded into temp_cases_data table successfully
Data loaded into cases table successfully
Adding Embeddings, this will take a while around 3-5 mins...
Embeddings added successfully All Data loaded successfully!

Step 2: Create Postgres tool for the Agent

In this step we will be configuring AI agent tools to retrieve data from Postgres and then using the Azure AI Agent Service SDK to connect your AI agent to the Postgres database.

Define a function for your agent to call

Start by defining a function for your agent to call by describing its structure and any required parameters in a docstring. Include all your function definitions in a single file, legal_agent_tools.py which you can then import into your main script.

def vector_search_cases(vector_search_query: str, start_date: datetime ="1911-01-01", end_date: datetime ="2025-12-31", limit: int = 10) -> str:
    """
    Fetches the cases information in Washington State for the specified query.

    :param query(str): The query to fetch cases for specifically in Washington.
    :type query: str
    :param start_date: The start date for the search, defaults to "1911-01-01"
    :type start_date: datetime, optional
    :param end_date: The end date for the search, defaults to "2025-12-31"
    :type end_date: datetime, optional
    :param limit: The maximum number of cases to fetch, defaults to 10
    :type limit: int, optional

    :return: Cases information as a JSON string.
    :rtype: str
    """

    db = create_engine(CONN_STR)

    query = """
    SELECT id, name, opinion,
    opinions_vector <=> azure_openai.create_embeddings(
    'text-embedding-3-small', %s)::vector as similarity
    FROM cases
    WHERE decision_date BETWEEN %s AND %s
    ORDER BY similarity
    LIMIT %s;
    """

    # Fetch cases information from the database
    df = pd.read_sql(query, db, params=(vector_search_query,datetime.strptime(start_date, "%Y-%m-%d"), datetime.strptime(end_date, "%Y-%m-%d"),limit))

    cases_json = json.dumps(df.to_json(orient="records"))
    return cases_json



Step 3: Create and Configure the AI Agent with Postgres



Now we'll set up the AI agent and integrate it with our PostgreSQL tool. The Python file src/simple_postgres_and_ai_agent.py serves as the central entry point for creating and using your agent.

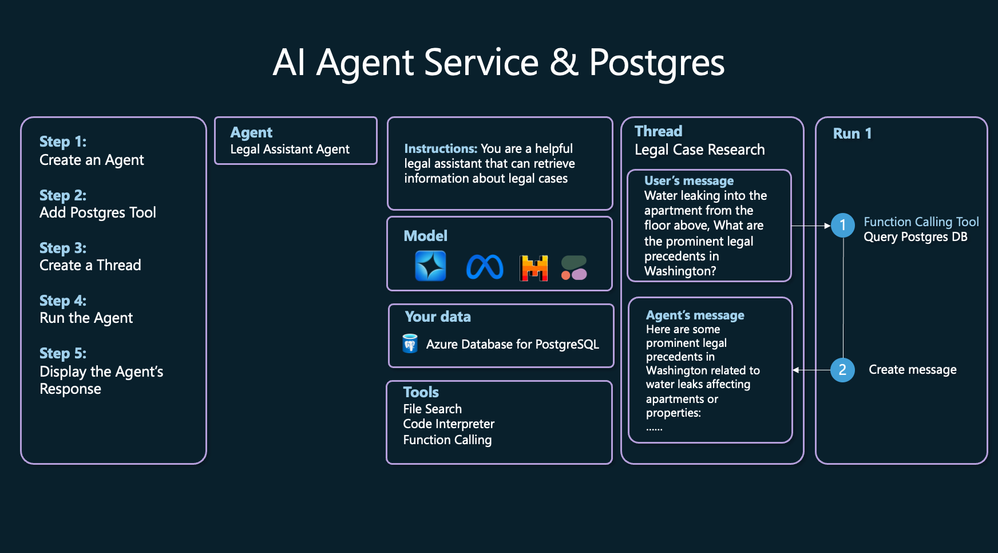

High level details of simple_postgres_and_ai_agent.py:

1. Create an Agent: Initializes the agent in your Azure AI Project with a specific model.
2. Add Postgres tool: During the agent initialization, the Postgres tool to do vector search on your Postgres DB is added.
3. Create a Thread: Sets up a communication thread. This will be used to send messages to the agent to process
4. Run the Agent and Call Postgres tool: Processes the user's query using the agent and tools. The agent can plan with tools to use to get the correct answer. In this use case the agent will call the Postgres tool based on the function signature and docstring to do vector search and retrieve the relevant data to answer the question.
5. Display the Agent’s Response: Outputs the agent's response to the user's query.



Find the Project Connection String in Azure AI Foundry:

In your Azure AI Foundry project you will find you Project Connection String from the Overview page of the project we will use this string to connect the project to the AI agent SDK. We will be adding this string to the .env file.







Connection Setup:

Add these variables to your .env file in the root directory:

PROJECT_CONNECTION_STRING=" "
MODEL_DEPLOYMENT_NAME="gpt-4o-mini"
AZURE_TRACING_GEN_AI_CONTENT_RECORDING_ENABLED="true"

Create the Agent with Tool Access

We will create the agent in the AI Foundry project and add the Postgres tools needed to query to Database. The code snippet below is an excerpt from the file simple_postgres_and_ai_agent.py.

# Create an Azure AI Client
project_client = AIProjectClient.from_connection_string(
    credential=DefaultAzureCredential(),
    conn_str=os.environ["PROJECT_CONNECTION_STRING"],
)

# Initialize agent toolset with user functions
functions = FunctionTool(user_functions)
toolset = ToolSet()
toolset.add(functions)

agent = project_client.agents.create_agent(
    model= os.environ["MODEL_DEPLOYMENT_NAME"],
    name="legal-cases-agent",
    instructions= "You are a helpful legal assistant that can retrieve information about legal cases.",
    toolset=toolset
)



Create Communication Thread:

 This code snippet, shows how to create a thread and message for the agent. The thread and message will be what the agent processes in a run.

# Create thread for communication
thread = project_client.agents.create_thread()

# Create message to thread
message = project_client.agents.create_message(
    thread_id=thread.id,
    role="user",
    content="Water leaking into the apartment from the floor above, What are the prominent legal precedents in Washington on this problem in the last 10 years?"
)

Process the Request:

This code snippet creates a run for the agent to process the message and use the appropriate tools to provide the best result.

Using the tool, the agent will be able to call your Postgres and the vector search on the query “Water leaking into the apartment from the floor above”, to retrieve the data it will need to answer the question best.

from pprint import pprint

# Create and process agent run in thread with tools
run = project_client.agents.create_and_process_run(
thread_id=thread.id,
agent_id=agent.id
)

# Fetch and log all messages
messages = project_client.agents.list_messages(thread_id=thread.id)
pprint(messages['data'][0]['content'][0]['text']['value'])



Run the Agent:

To run the agent, run the following command from the src directory:

python simple_postgres_and_ai_agent.py

The agent will produce a similar result as below using the Azure Database for PostgreSQL tool to access case data saved in the Postgres Database.



Snippet of output from agent:

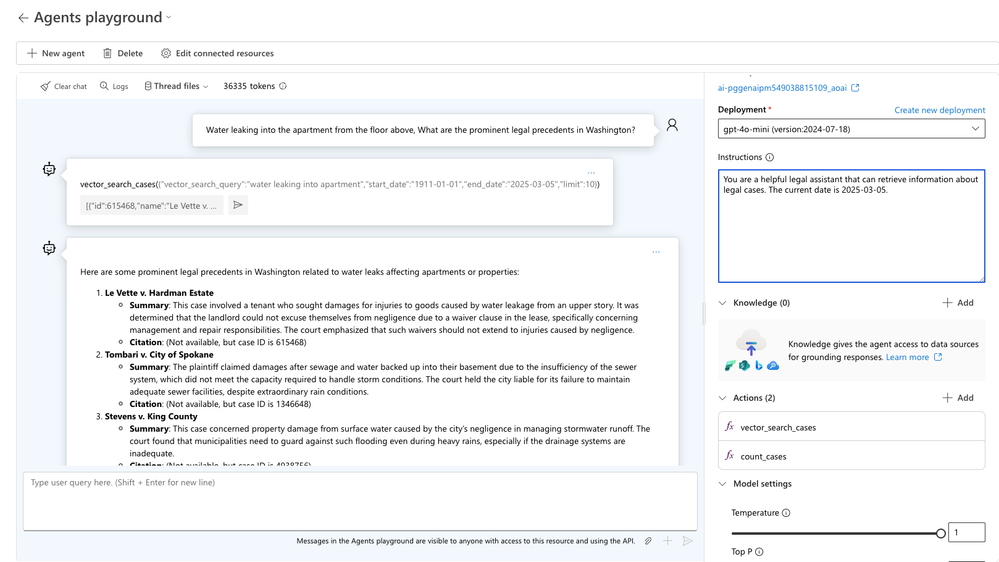

Step 4: Testing and Debugging with Azure AI Foundry Playground

After running your agent with Azure AI Agent SDK, the agent will be stored in your project, and you can experiment with the agent in the Agent playground.

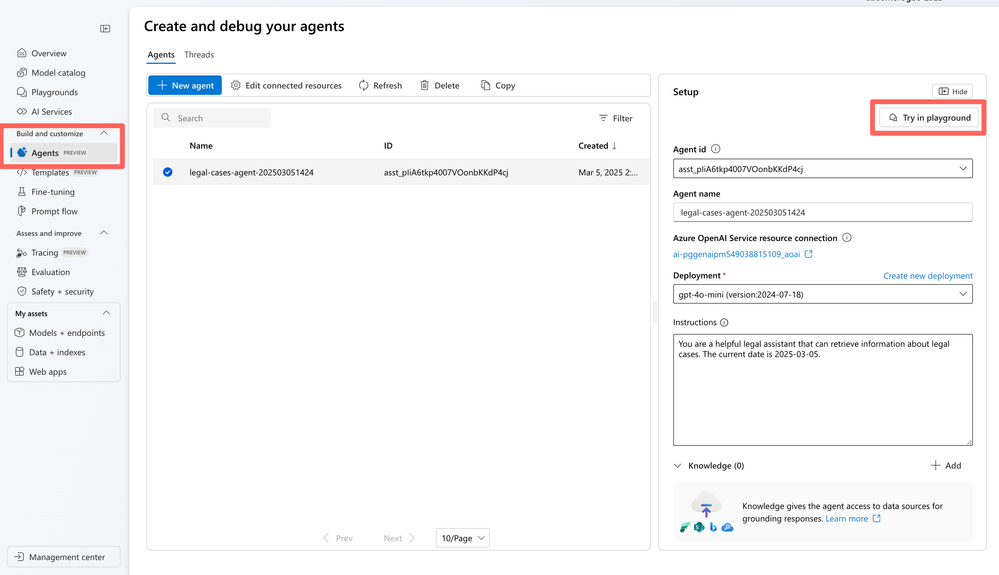

Using the Agent Playground:

1. Navigate to the Agents section in Azure AI Foundry
2. Find your agent in the list and click to open
3. Use the playground interface to test various legal queries





4. Test the query “Water leaking into the apartment from the floor above, What are the prominent legal precedents in Washington?”. The agent will pick the right tool to use and ask for the expected output for that query. Use sample_vector_search_cases_output.json as the sample output.

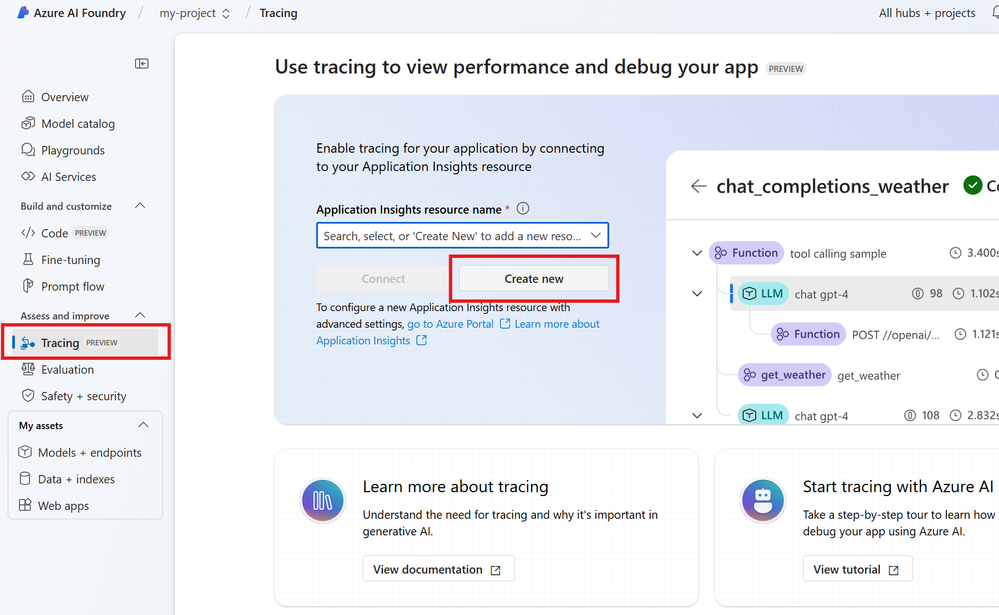

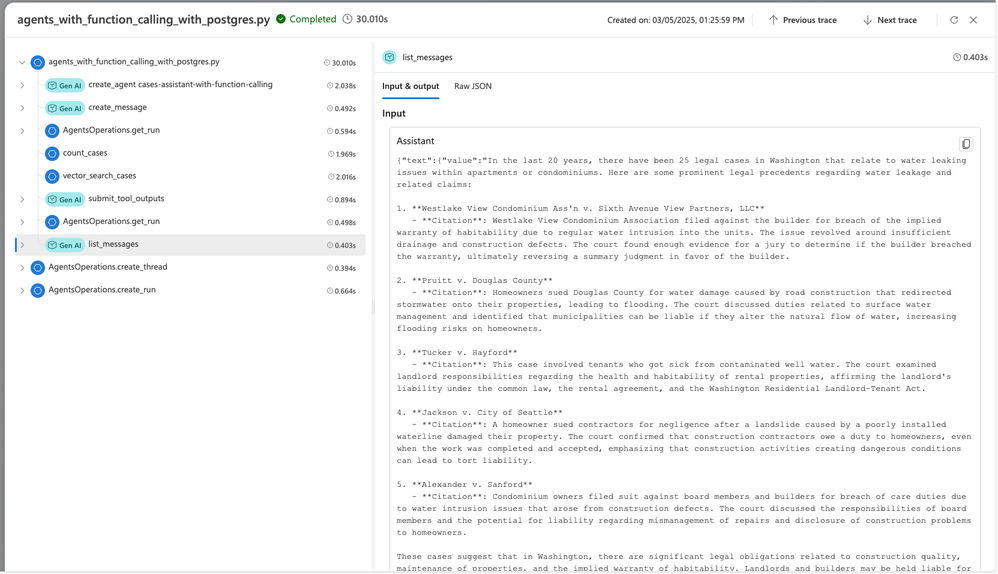

Step 5: Debugging with Azure AI Foundry Tracing

When developing the agent by using the Azure AI Foundry SDK, you can also debug the agent with Tracing. You will be able to debug the calls to tools like Postgres as well as seeing how to agent orchestrated each task.



Debugging with Tracing:

1. Click Tracing in the Azure AI Foundry menu
2. Create a new Application Insights resource or connect an existing one





3. View detailed traces of your agent's operations

Learn more about how to set up tracing with the AI agent and Postgres in the advanced_postgres_and_ai_agent_with_tracing.py file on Github.

Get Started Today

By combining Azure Database for PostgreSQL with Azure AI Agent Service, developers can create intelligent agents that automate data retrieval, improve decision-making, and unlock powerful insights. Whether you're working on legal research, customer support, or data analytics, this setup provides a scalable and efficient solution to enhance your AI applications.

Ready to build your own AI agent? Try building your own legal agent with Azure AI agent service and Postgres.

1. Setup Azure AI Foundry and Azure Database for PostgreSQL Flexible Server

• Setup up an AI Foundry Project and deploy models
• Deploy the “gpt-4o-mini” model and “text-embedding-small” models
• Setup Azure Database for PostgreSQL Flexible Server and pg_vector extension
• Allow the azure_ai extension

2. Run our end-to-end sample AI Agent using Azure Database for PostgreSQL tool

3. Customize for your use case:

• Replace legal data with your domain-specific information
• Adjust agent instructions for your specific needs
• Add additional tools as required

Learn More

Read more able Azure Database for PostgreSQL and the Azure AI Agent service.

• Learn more about Vector Search in Azure Database for PostgreSQL
• Learn more about Azure AI Agent Service
