need to create monitoring queries to track the health status of data connectors
I'm working with Microsoft Sentinel and need to create monitoring queries to track the health status of data connectors. Specifically, I want to: Identify unhealthy or disconnected data connectors, Determine when a data connector last lost connection Get historical connection status information What I'm looking for: A KQL query that can be run in the Sentinel workspace to check connector status OR a PowerShell script/command that can retrieve this information Ideally, something that can be automated for regular monitoring Looking at the SentinelHealth table, but unsure about the exact schema,connector, etc Checking if there are specific tables that track connector status changes Using Azure Resource Graph or management APIs Ive Tried multiple approaches (KQL, PowerShell, Resource Graph) however I somehow cannot get the information I'm looking to obtain. Please assist with this, for example i see this microsoft docs page, https://learn.microsoft.com/en-us/azure/sentinel/monitor-data-connector-health#supported-data-connectors however I would like my query to state data such as - Last ingestion of tables? How much data has been ingested by specific tables and connectors? What connectors are currently connected? The health of my connectors? Please help
Sentinel Data Connector: Google Workspace (G Suite) (using Azure Functions)
I'm encountering a problem when attempting to run the GWorkspace_Report workbook in Azure Sentinel. The query is throwing this error related to the union operator: 'union' operator: Failed to resolve table expression named 'GWorkspace_ReportsAPI_gcp_CL' I've double-checked, and the GoogleWorkspaceReports connector is installed and updated to version 3.0.2. Has anyone seen this or know what might be causing the table GWorkspace_ReportsAPI_gcp_CL to be unresolved? Thanks!Device Tables are not ingesting tables for an orgs workspace

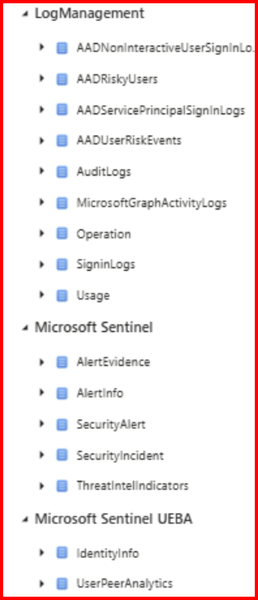

Device Tables are not ingesting tables for an orgs workspace. I can confirm that all devices are enrolled and onboarded to MDE (Microsoft defender for endpoint) I had placed an EICAR file on one of the machine which bought an alert through to sentinel,however this did not invoke any of the device related tables . Workspace i am targeting Workspace from another org with tables enabled and ingesting data Microsoft Defender XDR connector shows as connected however the tables do not seem to be ingesting data; I run the following; DeviceEvents | where TimeGenerated > ago(15m) | top 20 by TimeGenerated DeviceProcessEvents | where TimeGenerated > ago(15m) | top 20 by TimeGenerated I receive no results; No results found from the specified time range Try selecting another time range Please assist As I cannot think where this is failing
Insecure Protocol Workbook
Greetings, maybe most orgs have already eliminated insecure protocols and this workbook is no longer functional? I have it added and it appears to be collecting but when I go to open the template it is completely empty. Is the Insecure Protocol aka IP still supported and if so is there any newer documentation than the blog from 2000 around it? I am hoping to identify ntlm by user and device as the domain controllers are all logging this and the MDI agents on them are forwarding this data to Defender for Identity and Sentinel.How to Filter Logs by User Parameter in Sentinel Workbook KQL?
Hi everyone, I am trying to create a Sentinel Workbook with a dropdown parameter to filter logs based on a selected username. The goal is to dynamically toggle between users and see logs related to each user, including total data downloaded, accessed repositories, and timestamps. Here’s what I have so far: Syslog | extend grpc_method_ = tostring(parse_json(SyslogMessage).["grpc.method"]) | extend grpc_request_glProjectPath_ = tostring(parse_json(SyslogMessage).["grpc.request.glProjectPath"]) | extend username_ = tostring(parse_json(SyslogMessage).username) | extend user_id_ = tostring(parse_json(SyslogMessage).user_id) | where isnotempty(username_) | where trim(" ", username_) == trim(" ", '{{UserParam}}') | extend remote_ip_ = tostring(parse_json(SyslogMessage).remote_ip) | extend response_bytes_ = tostring(parse_json(SyslogMessage).response_bytes) | where Facility == "Local" | where ProcessName <> "ldsclient" | where isnotempty(response_bytes_) //| project TimeGenerated, username_, UserParam, grpc_method_, grpc_request_glProjectPath_, remote_ip_, response_bytes_ I set up a dropdown parameter called userParam, which pulls distinct usernames from the logs using this query: Syslog | extend username_ = tostring(parse_json(SyslogMessage).username) | where isnotempty(username_) | summarize count() by username_ | distinct username_ However, when I select a user from the dropdown, the main query fails. It seems the parameter is not being recognized correctly in the query. How can I properly reference a dropdown parameter in a Sentinel Workbook KQL query? Is there a better way to filter logs dynamically based on a selected user? Any help is highly appreciated!
Add Search Results to alert details in Microsoft Sentinel
Hi everyone, I’m working with Microsoft Sentinel and looking to enhance my alerts by appending search results to the alert details. Specifically, I want to include the events that triggered these alerts in the SecurityAlert table for better context during investigations and for archival purposes. I came across this guide: https://learn.microsoft.com/en-us/azure/sentinel/customize-alert-details?tabs=azure, which explains how to customize alert details. However, it doesn’t clarify whether it’s possible to add search results directly to the alert details. Is there a way to achieve this? If so, what would be the best approach? I’d really appreciate any insights, best practices, or examples from those who have done something similar. Thanks in advance!Investigation Insights Workbook IP address Search
Is there a way to roll back to a previous version of the investigation insights workbook? The new workbook from the content hub no longer allows you to enter an IP address without selecting entities and then IP addressees from the entity list. This was really useful when wanting to just search on an IP address that was suspect and related IOCs, Account sign in etc. Please provide suggestions for either rolling back the Investigation Insights workbook or other ways to achieve the same.
Workbook with multiple visualizations using lowest number of queries
Coming from Splunk world and didn't found answer to this in the workbook documentation. Is it possible to chains searches, like in Splunk, explained here: https://docs.splunk.com/Documentation/Splunk/9.3.1/DashStudio/dsChain Trying to explain in KQL terms: suppose there are 3 very similar queries, like same base search | condition 1 same base search | condition 2 same base search | condition 3 feeding 3 vizualizations. Goal is to execute the "same base search" part only once in the workbook. Defining a new function for "same base search" still means 3 executions, I guess. Your response is appreciated. Thank you.
