Azure Front Door: Resiliency Series – Part 2: Faster recovery (RTO)
In Part 1 of this blog series, we outlined our four‑pillar strategy for resiliency in Azure Front Door: configuration resiliency, data plane resiliency, tenant isolation, and accelerated Recovery Time Objective (RTO). Together, these pillars help Azure Front Door remain continuously available and resilient at global scale. Part 1 focused on the first two pillars: configuration and data plane resiliency. Our goal is to make configuration propagation safer, so incompatible changes never escape pre‑production environments. We discussed how incompatible configurations are blocked early, and how data plane resiliency ensures the system continues serving traffic from a last‑known‑good (LKG) configuration even if a bad change manages to propagate. We also introduced ‘Food Taster’, a dedicated sacrificial process running in each edge server’s data plane, that pretests every configuration change in isolation, before it ever reaches the live data plane. In this post, we turn to the recovery pillar. We describe how we have made key enhancements to the Azure Front Door recovery path so the system can return to full operation in a predictable and bounded timeframe. For a global service like Azure Front Door, serving hundreds of thousands of tenants across 210+ edge sites worldwide, we set an explicit target: to be able to recover any edge site – or all edge sites – within approximately 10 minutes, even in worst‑case scenarios. In typical data plane crash scenarios, we expect recovery in under a second. Repair status The first blog post in this series mentioned the two Azure Front Door incidents from October 2025 – learn more by watching our Azure Incident Retrospective session recordings for the October 9 th incident and/or the October 29 th incident. Before diving into our platform investments for improving our Recovery Time Objectives (RTO), we wanted to provide a quick update on the overall repair items from these incidents. We are pleased to report that the work on configuration propagation and data plane resiliency is now complete and fully deployed across the platform (in the table below, “Completed” means broadly deployed in production). With this, we have reduced configuration propagation latency from ~45 minutes to ~20 minutes. We anticipate reducing this even further – to ~15 minutes by the end of April 2026, while ensuring that platform stability remains our top priority. Learning category Goal Repairs Status Safe customer configuration deployment Incompatible configuration never propagates beyond ‘EUAP or canary regions’ Control plane and data plane defect fixes Forced synchronous configuration processing Additional stages with extended bake time Early detection of crash state Completed Data plane resiliency Configuration processing cannot impact data plane availability Manage data-plane lifecycle to prevent outages caused by configuration-processing defects. Completed Isolated work-process in every data plane server to process and load the configuration. Completed 100% Azure Front Door resiliency posture for Microsoft internal services Microsoft operates an isolated, independent Active/Active fleet with automatic failover for critical Azure services Phase 1: Onboarded critical services batch impacted on Oct 29 th outage running on a day old configuration Completed Phase 2: Automation & hardening of operations, auto-failover and self-management of Azure Front Door onboarding for additional services March 2026 Recovery improvements Data plane crash recovery in under 10 minutes Data plane boot-up time optimized via local cache (~1 hour) Completed Accelerate recovery time < 10 minutes April 2026 Tenant isolation No configuration or traffic regression can impact other tenants Micro cellular Azure Front Door with ingress layered shards June 2026 Why recovery at edge scale is deceptively hard To understand why recovery took as long as it did, it helps to first understand how the Azure Front Door data plane processes configuration. Azure Front Door operates in 210+ edge sites with multiple servers per site. The data plane of each edge server hosts multiple processes. A master process orchestrates the lifecycle of multiple worker processes, that serve customer traffic. A separate configuration translator process runs alongside the data plane processes, and is responsible for converting customer configuration bundles from the control plane into optimized binary FlatBuffer files. This translation step, covering hundreds of thousands of tenants, represents hours of cumulative computation. A per edge server cache is kept locally at each server level – to enable a fast recovery of the data plane, if needed. Once the configuration translator process produces these FlatBuffer files, each worker processes them independently and memory-maps them for zero-copy access. Configuration updates flow through a two-phase commit: new FlatBuffers are first loaded into a staging area and validated, then atomically swapped into production maps. In-flight requests continue using the old configuration, until the last request referencing them completes. The data process recovery is designed to be resilient to different failure modes. A failure or crash at the worker process level has a typical recovery time of less than one second. Since each server has multiple such worker processes which serve customer traffic, this type of crash has no impact on the data plane. In the case of a master process crash, the system automatically tries to recover using the local cache. When the local cache is reused, the system is able to recover quickly – in approximately 60 minutes – since most of the configurations in the cache were already loaded into the data plane before the crash. However, in certain cases if the cache becomes unavailable or must be invalidated because of corruption, the recovery time increases significantly. During the October 29 th incident, a data plane crash triggered a complete recovery sequence that took approximately 4.5 hours. This was not because restarting a process is slow, it is because a defect in the recovery process invalidated the local cache, which meant that “restart” meant rebuilding everything from scratch. The configuration translator process then had to re-fetch and re-translate every one of the hundreds of thousands of customer configurations, before workers could memory-map them and begin serving traffic. This experience has crystallized three fundamental learnings related to our recovery path: Expensive rework: A subset of crashes discarded all previously translated FlatBuffer artifacts, forcing the configuration translator process to repeat hours of conversion work that had already been validated and stored. High restart costs: Every worker on every node had to wait for the configuration translator process to complete the full translation, before it could memory-map any configuration and begin serving requests. Unbounded recovery time: Recovery time grew linearly with total tenant footprint rather than with active traffic, creating a ‘scale penalty’ as more tenants onboarded to the system. Separately and together, the insight was clear: recovery must stop being proportional to the total configuration size. Persisting ‘validated configurations’ across restarts One of the key recovery improvements was strengthening how validated customer configurations are cached and reused across failures, rather than rebuilding configuration states from scratch during recovery. Azure Front Door already cached customer configurations on host‑mounted storage prior to the October incident. The platform enhancements post outage focused on making the local configuration cache resilient to crashes, partial failures, and bad tenant inputs. Our goal was to ensure that recovery behavior is dominated by serving traffic safely, not by reconstructing configuration state. This led us to two explicit design goals… Design goals No category of crash should invalidate the configuration cache: Configuration cache invalidation must never be the default response to failures. Whether the failure is a worker crash, master crash, data plane restart, or coordinated recovery action, previously validated customer configurations should remain usable—unless there is a proven reason to discard it. Bad tenant configuration must not poison the entire cache: A single faulty or incompatible tenant configuration should result in targeted eviction of that tenant’s configuration only—not wholesale cache invalidation across all tenants. Platform enhancements Previously, customer configurations persisted to host‑mounted storage, but certain failure paths treated the cache as unsafe and invalidated it entirely. In those cases, recovery implicitly meant reloading and reprocessing configuration for hundreds of thousands of tenants before traffic could resume, even though the vast majority of cached data was still valid. We changed the recovery model to avoid invalidating customer configurations, with strict scoping around when and how cached entries are discarded: Cached configurations are no longer invalidated based on crash type. Failures are assumed to be orthogonal to configuration correctness unless explicitly proven otherwise. Cache eviction is granular and tenant‑scoped. If a cached configuration fails validation or load checks, only that tenant’s configuration is discarded and reloaded. All other tenant configurations remain available. This ensures that recovery does not regress into a fleet‑wide rebuild due to localized or unrelated faults. Safety and correctness Durability is paired with strong correctness controls, to prevent unsafe configurations from being served: Per‑tenant validation on load: Each cached tenant configuration is validated during the ‘load and verification’ phase, before being promoted for traffic serving. Therefore, failures are contained to that tenant. Targeted re‑translation: When validation fails, only the affected tenant’s configuration is reloaded or reprocessed. Therefore, the cache for other tenants is left untouched. Operational escape hatch: Operators retain the ability to explicitly instruct a clean rebuild of the configuration cache (with proper authorization), preserving control without compromising the default fast‑recovery path. Resulting behavior With these changes, recovery behavior now aligns with real‑world traffic patterns - configuration defects impact tenants locally and predictably, rather than globally. The system now prefers isolated tenant impact, and continued service using last-known-good over aggressive invalidation, both of which are critical for predictable recovery at the scale of Azure Front Door. Making recovery scale with active traffic, not total tenants Reusing configuration cache solves the problem of rebuilding configuration in its entirety, but even with a warm cache, the original startup path had a second bottleneck: eagerly loading a large volume of tenant configurations into memory before serving any traffic. At our scale, memory-mapping, parsing hundreds of thousands of FlatBuffers, constructing internal lookup maps, adding Transport Layer Security (TLS) certificates and configuration blocks for each tenant, collectively added almost an hour to startup time. This was the case even when a majority of those tenants had no active traffic at that moment. We addressed this by fundamentally changing when configuration is loaded into workers. Rather than eagerly loading most of the tenants at startup across all edge locations, Azure Front Door now uses an Machine Learning (ML)-optimized lazy loading model. In the new architecture, instead of loading a large number of tenant configurations, we only load a small subset of tenants that are known to be historically active in a given site, we call this the “warm tenants” list. The warm tenants list per edge site is created through a sophisticated traffic analysis pipeline that leverages ML. However, loading the warm tenants is not good enough, because when a request arrives and we don’t have the configuration in memory, we need to know two things. Firstly, is this a request from a real Azure Front Door tenant – and, if it is, where can I find the configuration? To answer these questions, each worker maintains a hostmap that tracks the state of each tenant’s configuration. This hostmap is constructed during startup, as we process each tenant configuration – if the tenant is in the warm list, we will process and load their configuration fully; if not, then we will just add an entry into the hostmap where all their domain names are mapped to the configuration path location. When a request arrives for one of these tenants, the worker loads and validates that tenant’s configuration on demand, and immediately begins serving traffic. This allows a node to start serving its busiest tenants within a few minutes of startup, while additional tenants are loaded incrementally only when traffic actually arrives—allowing the system to progressively absorb cold tenants as demand increases. The effect on recovery is transformative. Instead of recovery time scaling with the total number of tenants configured on a server, it scales with the number of tenants actively receiving traffic. In practice, even at our busiest edge sites, the active tenant set is a small fraction of the total. Just as importantly, this modified form of lazy loading provides a natural failure isolation boundary. Most Edge sites won’t ever load a faulty configuration of an inactive tenant. When a request for an inactive tenant with an incompatible configuration arrives, impact is contained to a single worker. The configuration load architecture now prefers serving as many customers as quickly as possible, rather than waiting until everything is ready before serving anyone. The above changes are slated to complete in April 2026 and will bring our RTO from the current ~1 hour to under 10 minutes – for complete recovery from a worst case scenario. Continuous validation through Game Days A critical element of our recovery confidence comes from GameDay fault-injection testing. We don’t simply design recovery mechanisms and assume they work—we break the system deliberately and observe how it responds. Since late 2025, we have conducted recurring GameDay drills that simulate the exact failure scenarios we are defending against: Food Taster crash scenarios: Injecting deliberately faulty tenant configurations, to verify that they are caught and isolated with zero impact on live traffic. In our January 2026 GameDay, the Food Taster process crashed as expected, the system halted the update within approximately 5 seconds, and no customer traffic was affected. Master process crash scenarios: Triggering master process crashes across test environments to verify that workers continue serving traffic, that the Local Config Shield engages within 10 seconds, and that the coordinated recovery tool restores full operation within the expected timeframe. Multi-region failure drills: Simulating simultaneous failures across multiple regions to validate that global Config Shield mechanisms engage correctly, and that recovery procedures scale without requiring manual per-region intervention. Fallback test drills for critical Azure services running behind Azure Front Door: In our February 2026 GameDay, we simulated the complete unavailability of Azure Front Door, and successfully validated failover for critical Azure services with no impact to traffic. These drills have both surfaced corner cases and built operational confidence. They have transformed recovery from a theoretical plan into tested, repeatable muscle memory. As we noted in an internal communication to our team: “Game day testing is a deliberate shift from assuming resilience to actively proving it—turning reliability into an observed and repeatable outcome.” Closing Part 1 of this series emphasized preventing unsafe configurations from reaching the data plane, and data plane resiliency in case an incompatible configuration reaches production. This post has shown that prevention alone is not enough—when failures do occur, recovery must be fast, predictable, and bounded. By ensuring that the FlatBuffer cache is never invalidated, by loading only active tenants, and by building safe coordinated recovery tooling, we have transformed failure handling from a fleet-wide crisis into a controlled operation. These recovery investments work in concert with the prevention mechanisms described in Part 1. Together, they ensure that the path from incident detection to full service restoration is measured in minutes, with customer traffic protected at every step. In the next post of this series, we will cover the third pillar of our resiliency strategy: tenant isolation—how micro-cellular architecture and ingress-layered sharding can reduce the blast radius of any failure to a small subset, ensuring that one customer’s configuration or traffic anomaly never becomes everyone’s problem. We deeply value our customers’ trust in Azure Front Door. We are committed to transparently sharing our progress on these resiliency investments, and to exceed expectations for safety, reliability, and operational readiness.QUIC based HTTP/3 with Application Gateway: Feature information Private Preview
Azure Application Gateway now supports HTTP/3 QUIC. As part of private preview, Application Gateway users can create HTTP/3 enabled Listeners which can support either of HTTP/1.1 or HTTP/2 along with HTTP/3. Note: HTTP/3, if enabled on one listener, will be available on that listener only. If some of your clients do not support HTTP/3, there’s no panic. They will still be able to communicate with HTTP/3 enabled listeners using previous HTTP versions. Why should HTTP/3 with Application Gateway be used? HTTP/3 is the latest version of the Hypertext Transfer Protocol built on the top of QUIC which operates over UDP. It represents a significant leap forward in terms of user experience, efficiency, and security. Here are some compelling reasons why migrating to HTTP/3 could greatly benefit your organization: Faster Web Page Loading (~200ms advantage): If you run a website or web application, implementing HTTP/3 can lead to faster page load times and improved user experiences. HTTP/3's reduced connection establishment latency and multiplexing capabilities help deliver resources more efficiently. Table below shows latency numbers of different HTTP versions. HTTPS (TCP+TLS) QUIC 1-RTT QUIC 0-RTT* First time connection 300ms 100ms 100ms Repeat Connection 200ms 50ms 0ms *0-RTT comes with its share of security risks and is not part of the private preview Enhanced Web Application Performance: Applications that make use of multiple resources, like images, scripts, and stylesheets, can benefit from HTTP/3's multiplexing and concurrent stream support. Mobile Applications: If you develop mobile apps, integrating HTTP/3 can enhance data transfer speed and responsiveness, which is especially important on mobile networks where latency can be higher. Reducing HOL Blocking: HTTP/3's use of QUIC helps mitigate head-of-line blocking, where the delay of one resource can block the delivery of others. This is especially advantageous for applications that require efficient resource loading. Security: HTTP/3's integration with QUIC provides improved security features by design, reducing the risk of certain types of attacks compared to previous versions of HTTP. Presently, 26.5% of the internet traffic is on HTTP/3 and there has been a steady increase in the adoption compared to HTTP/2 which has seen a decreasing trend (by ~10% in the last 12 months) owing to some of its demerits (explained in the sections later). How should HTTP/3 with Application Gateway be enabled? Prerequisite: You have an existing Application Gateway resource on standard_v2 SKU only. Please reach out to us @ quicforappgw@microsoft.com with the Resource URI on which you want the HTTP/3 feature enabled and we'll take you along with the next steps. What all HTTP/3 features are supported in private preview? HTTP/3 will be supported only in the front leg of the connection and backends will continue to be HTTP1.1. Application Gateway will support client-initiated connection migration (explained below) Application Gateway will support PMTU discovery. Application Gateway can advertise support for HTTP/3 via alt-svc header as part of HTTP1/2 response. (Image below explains the flow) What is HTTP/3 & QUIC? TCP (Transmission Control Protocol) (RFC793) has been the most widely used transport layer protocol since its inception. But, with the advent of more real time applications, the evolution of the edge, and an ever increasing need to reduce latency and congestion, using TCP is becoming untenable. UDP (User Datagram Protocol) (RFC768) was always seen as an alternative to TCP especially in instances where connectionless-less-reliable transmission was okey-dokey! But UDP suffered with the implementation of congestion control. TLS (Transport Layer Security) (RFC8446) adds another layer over TCP after the 3-way handshake for TLS negotiation to establish session key and session data encryption. Though the combination provides reliability and security, increased connection establishment has made application developers smirk than smile. QUIC (Quick UDP Internet Connections) (RFC9000) attempts to bridge these UDP gaps by inducing the TCP niceties and attempts to reduce the TCP ossification in the network. Put in brief, TCP encapsulated and encrypted in a UDP payload is QUIC. It appears like a bidirectional concealed UDP packet sequence to the external network. To the endpoints, it provides an advantage over TCP by deliberately concealing the transport parameters from the network and by shifting the responsibility of the flow control and the encryption service to the application layer from the transport layer. Pre-HTTP/3 protocols: HTTP/1.1 and HTTP/2 are done over TCP. HTTP/1.x versions have slow response times and never satisfy faster-load-times hungry webpages. HTTP/1.1, being a textual protocol, does a below average job in resource prioritization by transmitting the request and response headers as plain text. Without multiplexing capabilities, network requests are served in an ordered and blocking manner. With this approach, HTTP/1.1 suffers from HTTP Head of Line (HOL) blocking where the client waits for the previous requests to be serviced before sending another resulting in the subsequent blocked requests on a single TCP connection. Imagine a webpage needing multiple resources to load (Images, CSS, HTML files, Js files etc) the complete page! To overcome all these HTTP/1.1 limitations, HTTP/2 was brought in. It introduced header field compression by binary framing layer and creating a stream for communication reducing the amount of data in the header. Concurrent exchanges on the same connection by interleaving request and response messages and efficient coding of HTTP header fields. Prioritization of requests allowed more important requests complete quicker thus improving performance. HTTP/2 protocol communication involved binary encoded frames that carried data mapped to messages (request/response) in a stream which contained identifiers and priority information multiplexed in a single TCP connection. Figure-1 shows the flow of protocol communication in HTTP/2. All these enhancements mean lesser no. of TCP connections, longer-lived connections, less competition with other flows leading to better network utilization. By allowing multiple HTTP requests over a single TCP connection, HTTP/2 resolved HTTP HOL blocking issue but created the TCP HOL blocking issue. In the event of a network blip like network congestion, unavailability of network or change of a cell in a mobile network which might lead to loss of a packet throwing a TCP connection into a tizzy as it ensures that the order of packets transmitted and received are same. A loss of one packet will mean everything stops until the lost packet is retransmitted. In the case of multiple requests multiplexed onto a single TCP connection, all the requests are blocked although the “lost packet” in real impacts only one request. With increasing no. of mobile friendly apps, increase in the usage of cellular networks, and, in countries with not so good networks and high chances of network blips, such an issue can cause interruption to services. Enter QUIC based HTTP/3: HTTP/3 is based on QUIC. It is designed to be faster than TCP with lower latency, lesser overhead during connection establishment and quicker data transfer over the established connection. QUIC is based on UDP and offers 0-RTT and 1-RTT handshakes compared to 3-way handshakes of TCP. This is possible as it supports additional streams. HTTP/3 retains all the niceties of HTTP/2 like server push mechanism, multiplexing of requests over single connection via streams, resource prioritization. It ensures the issue of TCP HOL blocking is resolved. “Lost packets” along the way will not interrupt the data transfer. QUIC sees to it that transferring other data is uninterrupted while the issue of the “lost packet” is being resolved. QUIC based HTTP/3 features and use-cases: Faster connection establishment The regular 3-way handshake gives way to the 1-RTT and 0-RTT handshakes based on QUIC which will lead to a drop in the connection establishment by 66%-95%. The 1-RTT and the 0-RTT connection establishment helps in the improvement of page load times in web browsing immensely. Instant messaging applications, voice assistants, transactional systems (financial transactions, online purchases) benefit from quick connection establishment. In these scenarios, 1-RTT connection establishment can make a noticeable difference in reducing initial delays and enhancing overall user satisfaction. Financial institutions will find a wide range of benefits due the low latency with their mobile apps, online banking portals, provide customers with real-time notifications, effective API integration and many such use cases. Independent HTTP Streams (no TCP HOL Blocking) TCP HOL blocking occurs when a single delayed or lost packet holds up the delivery of subsequent packets, impacting overall communication efficiency. Avoiding TCP HOL blocking can offer significant advantages in real-life scenarios where minimizing latency, improving responsiveness, and optimizing data transmission are crucial. Removing unnecessary bottlenecks and making communication smoother results in happy customers. Web browsing without HOL blocking will help in fetching multiple resources in the page leading to quicker page loading times and thus providing the users with a rich browsing experience. Without HOL blocking, messages in an instant messaging application are delivered promptly without being held up providing the end user a fluid experience. IoT devices that transmit sensor data and updates will be able to deliver all the necessary data without being delayed by a single lost or slow packet, ensuring timely and accurate reporting. Avoiding HOL blocking in financial transactions ensures that data related to transactions is transmitted without unnecessary delays, contributing to real-time processing and confirmations without which CSAT is impacted vastly. Connection Migration Customers are always on the move. Especially with the ever-improving cellular networks, they are seldom stuck to a single network or a cell in the network. This nature of being on the move constantly will mean constant registration with the network and establishing connections frequently and deriving data from different servers. In the traditional HTTP and TCP method, this would lead to several drops in the connectivity. But that is a thing of the past with QUIC and HTTP/3. The QUIC-HTTP/3 combine provides users with a Connection Migration feature. During the QUIC connection establishment, the server provides the client with a set of Connection IDs (CID) as part of the QUIC header. Using this CID, the client can retain an existing connection despite moving networks and attaining new IP addresses. With the help of the connection migration, uninterrupted web browsing would be possible for users. IoT devices’ that need to maintain continuous communication will find the connection migration extremely useful. Users moving from private to public WiFi networks at malls, airports and other public places will be provided with seamless app experience. How to sign up? https://forms.office.com/r/iGeYgrmydA
Integrating Azure Application Gateway v2 with Azure API Management for secure and scalable API
Why Application Gateway v2 + Azure API Management? - Layer-7 routing with path-based rules, host headers, URL rewrites, and WAF protection (OWASP Core Rule Set). - Azure API Management provides API abstraction, versioning, throttling, caching, JWT validation, and per-API policies. - Combined, App Gateway becomes the internet-facing secure entry point and Azure API Management the control plane for API governance. Scenario: Internet → App Gateway (WAF) → Azure API Management (External) → Backends Best when Azure API Management needs to be publicly reachable but protected by WAF and central routing. [Client] ─HTTPS──> [App Gateway v2 (WAF)] ─HTTPS──> [Azure API Management (External)] ─> [Private/On-prem/Azure Backends] Pros: Simple, fast to implement, WAF in front, supports CDN/Front Door chaining. Cons: Azure API Management is public; additional steps required for IP allow-lists and mTLS. Scenario2: Internet → App Gateway (WAF) → Azure API Management (Internal) via Private Endpoint Azure API Management is internal; only App Gateway is public. Zero-trust friendly. [Client] ─HTTPS──> [App Gateway v2 (WAF, Public)] ─HTTPS──> [Private Endpoint] ─> [Azure API Management (Internal)] ─> [Backends] Pros: Azure API Management is not exposed to the internet; traffic flows through App Gateway + Private Link. Cons: Requires vNet planning, DNS, and App Gateway-to-Private Link name resolution. Scenario3: Azure API Management (External) → App Gateway (Internal) → Private Backends Azure API Management is the public front door; App Gateway does L7 routing to internal services. [Client] ─HTTPS──> [Azure API Management (External)] ─HTTPS──> [App Gateway (Internal/WAF)] ─> [Backends] Pros: Privileged Identity Management security & governance is your internet front door. Cons: More Azure API Management policy work; App Gateway must be reachable from Azure API Management. Network & DNS design checklist: - Virtual networks & subnets: - App Gateway-Subnet (required dedicated subnet) - Azure API Management-Subnet (for internal tier) - Shared-services-Subnet for Bastion/jumpbox/logging - Private Link: Enable Azure API Management private endpoint in Azure API Management-Subnet. - Private DNS Zones: privatelink.azure-api.net for Azure API Management, custom zones for backends. - Name resolution: App Gateway must resolve Azure API Management private FQDN via vNet DNS or Azure Private DNS. - Firewall & NSGs: Restrict inbound/outbound; allow only required ports to Azure API Management, Key Vault, Log Analytics. - Hybrid Connectivity: Site-to-site VPN or ExpressRoute for on-prem backends; consider Azure Firewall or NVA. Certificates & TLS - Custom Domains: - App Gateway: api.contoso.com - Azure API Management: gateway.contoso.com (with custom hostname on Azure API Management) - TLS Ports: HTTPS 443 end-to-end; disable TLS 1.0/1.1. - Cert storage: Use Azure Key Vault for SSL certs; integrate App Gateway & Azure API Management with Key Vault (managed identity). - mTLS (Client Certs): Enforce on Azure API Management with policies; optionally on App Gateway via mutual auth for selected listeners. WAF (Web Application Firewall) on App Gateway v2 - Modes: Detection vs prevention (recommend prevention once tuned). - CRS: Start with 3.2; baseline exclusions for APIs (JSON payloads). - Managed rules: Enable bot protection, set anomaly scoring, create exclusions for headers like Authorization. - Logging: Send WAF logs to Log Analytics; build alerts for blocked requests spikes. Azure API Management Policies – Common patterns - Inbound: `validate-jwt`, `check-header`, `rate-limit`, `ip-filter`, `set-backend-service` - Backend: `retry`, `forward-request` with mTLS - Outbound: `set-header`, `find-and-replace`, `cache` - Global vs API vs Operation: Keep global minimal; override at API/operation for precision. - Dev, Test, Prod: Parameterize via named values and Key Vault references. Example – JWT validation and rate limit: xml <policies> <inbound> <base /> <validate-jwt header-name="Authorization" failed-validation-httpcode="401"> <openid-config url="https://login.microsoftonline.com/<tenant-id>/v2.0/.well-known/openid-configuration" /> <audiences> <audience>api://contoso-app-id</audience> </audiences> <issuers> <issuer>https://sts.windows.net/<tenant-id>/</issuer> </issuers> </validate-jwt> <rate-limit calls="100" renewal-period="60" /> </inbound> <backend> <forward-request /> </backend> <outbound> <base /> </outbound> </policies> ## Terraform – Core Resources (App Gateway v2 + Azure API Management) Note: Simplified example; parameterize for prod, add Key Vault integrations, diagnostics, and role assignments. # Variables (example) variable "location" { default = "eastus" } variable "rg_name" { default = "rg-appgw-apim" } variable "vnet_name" { default = "vnet-core" } variable "appgw_subnet" { default = "snet-appgw" } variable "apim_subnet" { default = "snet-apim" } provider "azurerm" { features {} } resource "azurerm_resource_group" "rg" { name = var.rg_name location = var.location } resource "azurerm_virtual_network" "vnet" { name = var.vnet_name location = var.location resource_group_name = azurerm_resource_group.rg.name address_space = ["10.10.0.0/16"] } resource "azurerm_subnet" "snet_appgw" { name = var.appgw_subnet resource_group_name = azurerm_resource_group.rg.name virtual_network_name = azurerm_virtual_network.vnet.name address_prefixes = ["10.10.1.0/24"] } resource "azurerm_subnet" "snet_apim" { name = var.apim_subnet resource_group_name = azurerm_resource_group.rg.name virtual_network_name = azurerm_virtual_network.vnet.name address_prefixes = ["10.10.2.0/24"] } # Public IP for App Gateway resource "azurerm_public_ip" "appgw_pip" { name = "pip-appgw" resource_group_name = azurerm_resource_group.rg.name location = var.location allocation_method = "Static" sku = "Standard" } # Application Gateway v2 (WAF) resource "azurerm_application_gateway" "appgw" { name = "agw-v2-waf" resource_group_name = azurerm_resource_group.rg.name location = var.location sku { name = "WAF_v2" tier = "WAF_v2" capacity = 2 } gateway_ip_configuration { name = "appgw-ipcfg" subnet_id = azurerm_subnet.snet_appgw.id } frontend_port { name = "https-port" port = 443 } frontend_ip_configuration { name = "appgw-feip" public_ip_address_id = azurerm_public_ip.appgw_pip.id } ssl_certificate { name = "ssl-agw" data = filebase64("certs/agw.pfx") password = var.agw_pfx_password } http_listener { name = "listener-https" frontend_ip_configuration_name = "appgw-feip" frontend_port_name = "https-port" protocol = "Https" ssl_certificate_name = "ssl-agw" host_name = "api.contoso.com" } backend_address_pool { name = "apim-bepool" # For Azure API Management private endpoint, use FQDN via custom probe, or IP when static fqdns = ["gateway.contoso.internal"] } backend_http_settings { name = "https-settings" cookie_based_affinity = "Disabled" port = 443 protocol = "Https" pick_host_name_from_backend_address = true request_timeout = 30 probe_name = "apim-probe" } probe { name = "apim-probe" protocol = "Https" path = "/status-0123456789abcdef" pick_host_name_from_backend_http_settings = true interval = 30 timeout = 30 unhealthy_threshold = 3 } request_routing_rule { name = "route-to-apim" rule_type = "Basic" http_listener_name = "listener-https" backend_address_pool_name = "apim-bepool" backend_http_settings_name = "https-settings" } waf_configuration { enabled = true firewall_mode = "Prevention" rule_set_type = "OWASP" rule_set_version = "3.2" } } # Azure API Management (Developer SKU for demo – use Premium for prod & VNET integration) resource "azurerm_api_management" "apim" { name = "apim-contoso" location = var.location resource_group_name = azurerm_resource_group.rg.name publisher_name = "Contoso" publisher_email = "admin@contoso.com" sku_name = "Developer_1" virtual_network_type = "None" # Use "Internal" for vNet, then add private endpoint } ## Azure DevOps – CI/CD YAML (App Gateway + Azure API Management via Terraform) `yaml trigger: branches: include: [ main ] pool: vmImage: 'ubuntu-latest' variables: TF_VERSION: '1.8.5' ARM_USE_MSI: true stages: - stage: Validate jobs: - job: tf_validate steps: - task: Bash@3 displayName: 'Install Terraform' inputs: targetType: 'inline' script: | sudo apt-get update && sudo apt-get install -y unzip curl -L -o tf.zip https://releases.hashicorp.com/terraform/${TF_VERSION}/terraform_${TF_VERSION}_linux_amd64.zip unzip tf.zip && sudo mv terraform /usr/local/bin/ terraform -version - task: AzureCLI@2 displayName: 'Terraform init & validate' inputs: azureSubscription: '$(AZURE_SERVICE_CONNECTION)' scriptType: 'bash' scriptLocation: 'inlineScript' inlineScript: | terraform init -backend-config=backend.hcl terraform fmt -check terraform validate - stage: Plan jobs: - job: tf_plan steps: - task: AzureCLI@2 inputs: azureSubscription: '$(AZURE_SERVICE_CONNECTION)' scriptType: 'bash' scriptLocation: 'inlineScript' inlineScript: | terraform plan -out=tfplan - publish: tfplan artifact: tfplan - stage: Apply condition: and(succeeded(), eq(variables['Build.SourceBranch'], 'refs/heads/main')) jobs: - job: tf_apply steps: - download: current artifact: tfplan - task: AzureCLI@2 inputs: azureSubscription: '$(AZURE_SERVICE_CONNECTION)' scriptType: 'bash' scriptLocation: 'inlineScript' inlineScript: | terraform apply -auto-approve tfplan ##Observability & diagnostics - Access Logs: App Gateway & WAF logs to Log Analytics; query with KQL. - Azure API Management Metrics: Requests, backend duration, cache hits; enable diagnostic settings to Log Analytics/Storage/Event Hub. - End-to-end tracing: Correlate `x-correlation-id` across App Gateway, Azure API Management, and backend logs. - Alerts: 4xx/5xx thresholds, WAF blocks spike, Azure API Management throttling events, TLS certificate expiry. ## Security hardening - Enforce TLS 1.2+, disable weak ciphers. - WAF exclusions tuned minimally; regular rule reviews. - Azure API Management IP allow-lists for admin endpoints; use RBAC and separate admin vs gateway hostnames. - Private Endpoints for Azure API Management & backends; deny public network access where possible. - mTLS from App Gateway→Azure API Management or Client→Azure API Management when required (Key Vault for client certs). - DDoS Protection on vNet with public exposure; consider Azure Front Door WAF for global edge. ## Cost & Performance - Right-size App Gateway v2 capacity; enable autoscaling for variable traffic. - Use Azure API Management Premium only if you need vNet, multi-region, or zone redundancy; otherwise consider Standard/Developer for non-prod. - Caching policies in Azure API Management reduce backend load; use response compression. - Health probes optimized for backend responsiveness (avoid tight intervals). ## Troubleshooting - App Gateway 502/504: Check backend health, probe path, SNI/host header, TLS ciphers, DNS resolution to Azure API Management. - Azure API Management 401/403: Validate JWT audience/issuer; clock skew; named values; policy order. - Private Endpoint: DNS record in `privatelink.azure-api.net` exists; App Gateway subnet can resolve; NSG not blocking. - Cert Issues: PFX password correct; full chain present; key usage supports server auth. - Performance: Turn on App Gateway autoscaling; review Azure API Management throttling; check backend rate limits. ## Production checklist - Custom domains & cert rotation via Key Vault - WAF in Prevention with tuned exclusions - Azure API Management policies for auth, rate limiting, cache, headers - Private endpoints + DNS validated end-to-end - Autoscaling & health probes tuned - Diagnostics & alerts configured - CI/CD gated approvals; Terraform state secured - Runbooks for failover & certificate renewal
Delivering web applications over IPv6
The IPv4 address space pool has been exhausted for some time now, meaning there is no new public address space available for allocation from Internet Registries. The internet continues to run on IPv4 through technical measures such as Network Address Translation (NAT) and Carrier Grade NAT, and reallocation of address space through IPv4 address space trading. IPv6 will ultimately be the dominant network protocol on the internet, as IPv4 life-support mechanisms used by network operators, hosting providers and ISPs will eventually reach the limits of their scalability. Mobile networks are already changing to IPv6-only APNs; reachability of IPv4-only destinations from these mobile network is through 6-4 NAT gateways, which sometimes causes problems. Client uptake of IPv6 is progressing steadily. Google reports 49% of clients connecting to its services over IPv6 globally, with France leading at 80%. IPv6 client access measured by Google: Meanwhile, countries around the world are requiring IPv6 reachability for public web services. Examples are the United States, European Union member states among which the Netherlands and Norway, and India, and Japan. IPv6 adoption per country measured by Google: Entities needing to comply with these mandates are looking at Azure's networking capabilities for solutions. Azure supports IPv6 for both private and public networking, and capabilities have developed and expanded over time. This article discusses strategies to build and deploy IPv6-enabled public, internet-facing applications that are reachable from IPv6(-only) clients. Azure Networking IPv6 capabilities Azure's private networking capabilities center on Virtual Networks (VNETs) and the components that are deployed within. Azure VNETs are IPv4/IPv6 dual stack capable: a VNET must always have IPv4 address space allocated, and can also have IPv6 address space. Virtual machines in a dual stack VNET will have both an IPv4 and an IPv6 address from the VNET range, and can be behind IPv6 capable External- and Internal Load Balancers. VNETs can be connected through VNET peering, which effectively turns the peered VNETs into a single routing domain. It is now possible to peer only the IPv6 address spaces of VNETs, so that the IPv4 space assigned to VNETs can overlap and communication across the peering is over IPv6. The same is true for connectivity to on-premise over ExpressRoute: the Private Peering can be enabled for IPv6 only, so that VNETs in Azure do not have to have unique IPv4 address space assigned, which may be in short supply in an enterprise. Not all internal networking components are IPv6 capable yet. Most notable exceptions are VPN Gateway, Azure Firewall and Virtual WAN; IPv6 compatibility is on the roadmap for these services, but target availability dates have not been communicated. But now let's focus on Azure's externally facing, public, network services. Azure is ready to let customers publish their web applications over IPv6. IPv6 capable externally facing network services include: - Azure Front Door - Application Gateway - External Load Balancer - Public IP addresses and Public IP address prefixes - Azure DNS - Azure DDOS Protection - Traffic Manager - App Service (IPv6 support is in public preview) IPv6 Application Delivery IPv6 Application Delivery refers to the architectures and services that enable your web application to be accessible via IPv6. The goal is to provide an IPv6 address and connectivity for clients, while often continuing to run your application on IPv4 internally. Key benefits of adopting IPv6 in Azure include: ✅ Expanded Client Reach: IPv4-only websites risk being unreachable to IPv6-only networks. By enabling IPv6, you expand your reach into growing mobile and IoT markets that use IPv6 by default. Governments and enterprises increasingly mandate IPv6 support for public-facing services. ✅Address Abundance & No NAT: IPv6 provides a virtually unlimited address pool, mitigating IPv4 exhaustion concerns. This abundance means each service can have its own public IPv6 address, often removing the need for complex NAT schemes. End-to-end addressing can simplify connectivity and troubleshooting. ✅ Dual-Stack Compatibility: Azure supports dual-stack deployments where services listen on both IPv4 and IPv6. This allows a single application instance or endpoint to serve both types of clients seamlessly. Dual-stack ensures you don’t lose any existing IPv4 users while adding IPv6 capability. ✅Performance and Future Services: Some networks and clients might experience better performance over IPv6. Also, being IPv6-ready prepares your architecture for future Azure features and services as IPv6 integration deepens across the platform. General steps to enable IPv6 connectivity for a web application in Azure are: Plan and Enable IPv6 Addressing in Azure: Define an IPv6 address space in your Azure Virtual Network. Azure allows adding IPv6 address space to existing VNETs, making them dual-stack. A /56 segment for the VNET is recommended, /64 segment for subnets are required (Azure requires /64 subnets). If you have existing infrastructure, you might need to create new subnets or migrate resources, especially since older Application Gateway v1 instances cannot simply be “upgraded” to dual-stack. Deploy or Update Frontend Services with IPv6: Choose a suitable Azure service (Application Gateway, External / Global Load Balancer, etc.) and configure it with a public IPv6 address on the frontend. This usually means selecting *Dual Stack* configuration so the service gets both an IPv4 and IPv6 public IP. For instance, when creating an Application Gateway v2, you would specify IP address type: DualStack (IPv4 & IPv6). Azure Front Door by default provides dual-stack capabilities with its global endpoints. Configure Backends and Routing: Usually your backend servers or services will remain on IPv4. At the time of writing this in October 2025, Azure Application Gateway does not support IPv6 for backend pool addresses. This is fine because the frontend terminates the IPv6 network connection from the client, and the backend initiates an IPv4 connection to the backend pool or origin. Ensure that your load balancing rules, listener configurations, and health probes are all set up to route traffic to these backends. Both IPv4 and IPv6 frontend listeners can share the same backend pool. Azure Front Door does support IPv6 origins. Update DNS Records: Publish a DNS AAAA record for your application’s host name, pointing to the new IPv6 address. This step is critical so that IPv6-only clients can discover the IPv6 address of your service. If your service also has an IPv4 address, you will have both A (IPv4) and AAAA (IPv6) records for the same host name. DNS will thus allow clients of either IP family to connect. (In multi-region scenarios using Traffic Manager or Front Door, DNS configuration might be handled through those services as discussed later). Test IPv6 Connectivity: Once set up, test from an IPv6-enabled network or use online tools to ensure the site is reachable via IPv6. Azure’s services like Application Gateway and Front Door will handle the dual-stack routing, but it’s good to verify that content loads on an IPv6-only connection and that SSL certificates, etc., work over IPv6 as they do for IPv4. Next, we explore specific Azure services and architectures for IPv6 web delivery in detail. External Load Balancer - single region Azure External Load Balancer (also known as Public Load Balancer) can be deployed in a single region to provide IPv6 access to applications running on virtual machines or VM scale sets. External Load Balancer acts as a Layer 4 entry point for IPv6 traffic, distributing connections across backend instances. This scenario is ideal when you have stateless applications or services that do not require Layer 7 features like SSL termination or path-based routing. Key IPv6 Features of External Load Balancer: - Dual-Stack Frontend: Standard Load Balancer supports both IPv4 and IPv6 frontends simultaneously. When configured as dual-stack, the load balancer gets two public IP addresses – one IPv4 and one IPv6 – and can distribute traffic from both IP families to the same backend pool. - Zone-Redundant by Default: Standard Load Balancer is zone-redundant by default, providing high availability across Azure Availability Zones within a region without additional configuration. - IPv6 Frontend Availability: IPv6 support in Standard Load Balancer is available in all Azure regions. Basic Load Balancer does not support IPv6, so you must use Standard SKU. - IPv6 Backend Pool Support: While the frontend accepts IPv6 traffic, the load balancer will not translate IPv6 to IPv4. Backend pool members (VMs) must have private IPv6 addresses. You will need to add private IPv6 addressing to your existing VM IPv4-only infrastructure. This is in contrast to Application Gateway, discussed below, which will terminate inbound IPv6 network sessions and connect to the backend-end over IPv4. - Protocol Support: Supports TCP and UDP load balancing over IPv6, making it suitable for web applications and APIs, but also for non-web TCP- or UDP-based services accessed by IPv6-only clients. To set up an IPv6-capable External Load Balancer in one region, follow this high-level process: Enable IPv6 on the Virtual Network: Ensure the VNET where your backend VMs reside has an IPv6 address space. Add a dual-stack address space to the VNET (e.g., add an IPv6 space like 2001:db8:1234::/56 to complement your existing IPv4 space). Configure subnets that are dual-stack, containing both IPv4 and IPv6 prefixes (/64 for IPv6). Create Standard Load Balancer with IPv6 Frontend: In the Azure Portal, create a new Standard Load Balancer. During creation, configure the frontend IP with both IPv4 and IPv6 public IP addresses. Create or select existing Standard SKU public IP resources – one for IPv4 and one for IPv6. Configure Backend Pool: Add your virtual machines or VM scale set instances to the backend pool. Note that your backend instances will need to have private IPv6 addresses, in addition to IPv4 addresses, to receive inbound IPv6 traffic via the load balancer. Set Up Load Balancing Rules: Create load balancing rules that map frontend ports to backend ports. For web applications, typically map port 80 (HTTP) and 443 (HTTPS) from both the IPv4 and IPv6 frontends to the corresponding backend ports. Configure health probes to ensure only healthy instances receive traffic. Configure Network Security Groups: Ensure an NSG is present on the backend VM's subnet, allowing inbound traffic from the internet to the port(s) of the web application. Inbound traffic is "secure by default" meaning that inbound connectivity from internet is blocked unless there is an NSG present that explicitly allows it. DNS Configuration: Create DNS records for your application: an A record pointing to the IPv4 address and an AAAA record pointing to the IPv6 address of the load balancer frontend. Outcome: In this single-region scenario, IPv6-only clients will resolve your application's hostname to an IPv6 address and connect to the External Load Balancer over IPv6. Example: Consider a web application running on a VM (or a VM scale set) behind an External Load Balancer in Sweden Central. The VM runs the Azure Region and Client IP Viewer containerized application exposed on port 80, which displays the region the VM is deployed in and the calling client's IP address. The load balancer's front-end IPv6 address has a DNS name of ipv6webapp-elb-swedencentral.swedencentral.cloudapp.azure.com. When called from a client with an IPv6 address, the application shows its region and the client's address. Limitations & Considerations: - Standard SKU Required: Basic Load Balancer does not support IPv6. You must use Standard Load Balancer. - Layer 4 Only: Unlike Application Gateway, External Load Balancer operates at Layer 4 (transport layer). It cannot perform SSL termination, cookie-based session affinity, or path-based routing. If you need these features, consider Application Gateway instead. - Dual stack IPv4/IPv6 Backend required: Backend pool members must have private IPv6 addresses to receive inbound IPv6 traffic via the load balancer. The load balancer does not translate between the IPv6 frontend and an IPv4 backend. - Outbound Connectivity: If your backend VMs need outbound internet access over IPv6, you need to configure an IPv6 outbound rule. Global Load Balancer - multi-region Azure Global Load Balancer (aka Cross-Region Load Balancer) provides a cloud-native global network load balancing solution for distributing traffic across multiple Azure regions. Unlike DNS-based solutions, Global Load Balancer uses anycast IP addressing to automatically route clients to the nearest healthy regional deployment through Microsoft's global network. Key Features of Global Load Balancer: - Static Anycast Global IP: Global Load Balancer provides a single static public IP address (both IPv4 and IPv6 supported) that is advertised from all Microsoft WAN edge nodes globally. This anycast address ensures clients always connect to the nearest available Microsoft edge node without requiring DNS resolution. - Geo-Proximity Routing: The geo-proximity load-balancing algorithm minimizes latency by directing traffic to the nearest region where the backend is deployed. Unlike DNS-based routing, there's no DNS lookup delay - clients connect directly to the anycast IP and are immediately routed to the best region. - Layer 4 Pass-Through: Global Load Balancer operates as a Layer 4 pass-through network load balancer, preserving the original client IP address (including IPv6 addresses) for backend applications to use in their logic. - Regional Redundancy: If one region fails, traffic is automatically routed to the next closest healthy regional load balancer within seconds, providing instant global failover without DNS propagation delays. Architecture Overview: Global Load Balancer sits in front of multiple regional Standard Load Balancers, each deployed in different Azure regions. Each regional load balancer serves a local deployment of your application with IPv6 frontends. The global load balancer provides a single anycast IP address that clients worldwide can use to access your application, with automatic routing to the nearest healthy region. Multi-Region Deployment Steps: Deploy Regional Load Balancers: Create Standard External Load Balancers in multiple Azure regions (e.g. Sweden Central, East US2). Configure each with dual-stack frontends (IPv4 and IPv6 public IPs) and connect them to regional VM deployments or VM scale sets running your application. Configure Global Frontend IP address: Create a Global tier public IPv6 address for the frontend, in one of the supported Global Load Balancer home regions . This becomes your application's global anycast address. Create Global Load Balancer: Deploy the Global Load Balancer in the same home region. The home region is where the global load balancer resource is deployed - it doesn't affect traffic routing. Add Regional Backends: Configure the backend pool of the Global Load Balancer to include your regional Standard Load Balancers. Each regional load balancer becomes an endpoint in the global backend pool. The global load balancer automatically monitors the health of each regional endpoint. Set Up Load Balancing Rules: Create load balancing rules mapping frontend ports to backend ports. For web applications, typically map port 80 (HTTP) and 443 (HTTPS). The backend port on the global load balancer must match the frontend port of the regional load balancers. Configure Health Probes: Global Load Balancer automatically monitors the health of regional load balancers every 5 seconds. If a regional load balancer's availability drops to 0, it is automatically removed from rotation, and traffic is redirected to other healthy regions. DNS Configuration: Create DNS records pointing to the global load balancer's anycast IP addresses. Create both A (IPv4) and AAAA (IPv6) records for your application's hostname pointing to the global load balancer's static IPs. Outcome: IPv6 clients connecting to your application's hostname will resolve to the global load balancer's anycast IPv6 address. When they connect to this address, the Microsoft global network infrastructure automatically routes their connection to the nearest participating Azure region. The regional load balancer then distributes the traffic across local backend instances. If that region becomes unavailable, subsequent connections are automatically routed to the next nearest healthy region. Example: Our web application, which displays the region it is in, and the calling client's IP address, now runs on VMs behind External Load Balancers in Sweden Central and East US2. The External Load Balancer's front-ends are in the backend pool of a Global Load Balancer, which has a Global tier front-end IPv6 address. The front-end has an FQDN of `ipv6webapp-glb.eastus2.cloudapp.azure.com` (the region designation `eastus2` in the FQDN refers to the Global Load Balancer's "home region", into which the Global tier public IP must be deployed). When called from a client in Europe, Global Load Balancer directs the request to the instance deployed in Sweden Central. When called from a client in the US, Global Load Balancer directs the request to the instance deployed in US East 2. Features: - Client IP Preservation: The original IPv6 client address is preserved and available to backend applications, enabling IP-based logic and compliance requirements. - Floating IP Support: Configure floating IP at the global level for advanced networking scenarios requiring direct server return or high availability clustering. - Instant Scaling: Add or remove regional deployments behind the global endpoint without service interruption, enabling dynamic scaling for traffic events. - Multiple Protocol Support: Supports both TCP and UDP traffic distribution across regions, suitable for various application types beyond web services. Limitations & Considerations: - Home Region Requirement: Global Load Balancer can only be deployed in specific home regions, though this doesn't affect traffic routing performance. - Public Frontend Only: Global Load Balancer currently supports only public frontends - internal/private global load balancing is not available. - Standard Load Balancer Backends: Backend pool can only contain Standard Load Balancers, not Basic Load Balancers or other resource types. - Same IP Version Requirement: NAT64 translation isn't supported - frontend and backend must use the same IP version (IPv4 or IPv6). - Port Consistency: Backend port on global load balancer must match the frontend port of regional load balancers for proper traffic flow. - Health Probe Dependencies: Regional load balancers must have proper health probes configured for the global load balancer to accurately assess regional health. Comparison with DNS-Based Solutions: Unlike Traffic Manager or other DNS-based global load balancing solutions, Global Load Balancer provides: - Instant Failover: No DNS TTL delays - failover happens within seconds at the network level. - True Anycast: Single IP address that works globally without client-side DNS resolution. - Consistent Performance: Geo-proximity routing through Microsoft's backbone network ensures optimal paths. - Simplified Management: No DNS record management or TTL considerations. This architecture delivers global high availability and optimal performance for IPv6 applications through anycast routing, making it a good solution for latency-sensitive applications requiring worldwide accessibility with near-instant regional failover. Application Gateway - single region Azure Application Gateway can be deployed in a single region to provide IPv6 access to applications in that region. Application Gateway acts as the entry point for IPv6 traffic, terminating HTTP/S from IPv6 clients and forwarding to backend servers over IPv4. This scenario works well when your web application is served from one Azure region and you want to enable IPv6 connectivity for it. Key IPv6 Features of Application Gateway (v2 SKU): - Dual-Stack Frontend: Application Gateway v2 supports both [IPv4 and IPv6 frontends](https://learn.microsoft.com/en-us/azure/application-gateway/application-gateway-faq). When configured as dual-stack, the gateway gets two IP addresses – one IPv4 and one IPv6 – and can listen on both. (IPv6-only is not supported; IPv4 is always paired). IPv6 support requires Application Gateway v2, v1 does not support IPv6. - No IPv6 on Backends: The backend pool must use IPv4 addresses. IPv6 addresses for backend servers are currently not supported. This means your web servers can remain on IPv4 internal addresses, simplifying adoption because you only enable IPv6 on the frontend. - WAF Support: The Application Gateway Web Application Firewall (WAF) will inspect IPv6 client traffic just as it does IPv4. Single Region Deployment Steps: To set up an IPv6-capable Application Gateway in one region, consider the following high-level process: Enable IPv6 on the Virtual Network: Ensure the region’s VNET where the Application Gateway will reside has an IPv6 address space. Configure a subnet for the Application Gateway that is dual-stack (contains both an IPv4 subnet prefix and an IPv6 /64 prefix). Deploy Application Gateway (v2) with Dual Stack Frontend: Create a new Application Gateway using the Standard_v2 or WAF_v2 SKU. Populate Backend Pool: Ensure your backend pool (the target application servers or service) contains (DNS names pointing to) IPv4 addresses of your actual web servers. IPv6 addresses are not supported for backends. Configure Listeners and Rules: Set up listeners on the Application Gateway for your site. When creating an HTTP(S) listener, you choose which frontend IP to use – you would create one listener for IPv4 address and one for IPv6. Both listeners can use the same domain name (hostname) and the same underlying routing rule to your backend pool. Testing and DNS: After the gateway is deployed and configured, note the IPv6 address of the frontend (you can find it in the Gateway’s overview or in the associated Public IP resource). Update your application’s DNS records: create an AAAA record pointing to this IPv6 address (and update the A record to point to the IPv4 if it changed). With DNS in place, test the application by accessing it from an IPv6-enabled client or tool. Outcome: In this single-region scenario, IPv6-only clients will resolve your website’s hostname to an IPv6 address and connect to the Application Gateway over IPv6. The Application Gateway then handles the traffic and forwards it to your application over IPv4 internally. From the user perspective, the service now appears natively on IPv6. Importantly, this does not require any changes to the web servers, which can continue using IPv4. Application Gateway will include the source IPv6 address in an X-Forwarded-For header, so that the backend application has visibility of the originating client's address. Example: Our web application, which displays the region it is deployed in and the calling client's IP address, now runs on a VM behind Application Gateway in Sweden Central. The front-end has an FQDN of `ipv6webapp-appgw-swedencentral.swedencentral.cloudapp.azure.com`. Application Gateway terminates the IPv6 connection from the client and proxies the traffic to the application over IPv4. The client's IPv6 address is passed in the X-Forwarded-For header, which is read and displayed by the application. Calling the application's API endpoint at `/api/region` shows additional detail, including the IPv4 address of the Application Gateway instance that initiates the connection to the backend, and the original client IPv6 address (with the source port number appended) preserved in the X-Forwarded-For header. { "region": "SwedenCentral", "clientIp": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21:60769", "xForwardedFor": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21:60769", "remoteAddress": "::ffff:10.1.0.4", "isPrivateIP": false, "expressIp": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21:60769", "connectionInfo": { "remoteAddress": "::ffff:10.1.0.4", "remoteFamily": "IPv6", "localAddress": "::ffff:10.1.1.68", "localPort": 80 }, "allHeaders": { "x-forwarded-for": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21:60769" }, "deploymentAdvice": "Public IP detected successfully" } Limitations & Considerations: - Application Gateway v1 SKUs are not supported for IPv6. If you have an older deployment on v1, you’ll need to migrate to v2. - IPv6-only Application Gateway is not allowed. You must have IPv4 alongside IPv6 (the service must be dual-stack). This is usually fine, as dual-stack ensures all clients are covered. - No IPv6 backend addresses: The backend pool must have IPv4 addresses. - Management and Monitoring: Application Gateway logs traffic from IPv6 clients to Log Analytics (the client IP field will show IPv6 addresses). - Security: Azure’s infrastructure provides basic DDoS protection for IPv6 endpoints just as for IPv4. However, it is highly recommended to deploy Azure DDoS Protection Standard: this provides enhanced mitigation tailored to your specific deployment. Consider using the Web Application Firewall function for protection against application layer attacks. Application Gateway - multi-region Mission-critical web applications should be deploy in multiple Azure regions, achieving higher availability and lower latency for users worldwide. In a multi-region scenario, you need a mechanism to direct IPv6 client traffic to the “nearest” or healthiest region. Azure Application Gateway by itself is a regional service, so to use it in multiple regions, we use Azure Traffic Manager for global DNS load balancing, or use Azure Front Door (covered in the next section) as an alternative. This section focuses on the Traffic Manager + Application Gateway approach to multi-region IPv6 delivery. Azure Traffic Manager is a DNS-based load balancer that can distribute traffic across endpoints in different regions. It works by responding to DNS queries with the appropriate endpoint FQDN or IP, based on the routing method (Performance, Priority, Geographic) configured. Traffic Manager is agnostic to the IP version: it either returns CNAMEs, or AAAA records for IPv6 endpoints and A records for IPv4. This makes it suitable for routing IPv6 traffic globally. Architecture Overview: Each region has its own dual-stack Application Gateway. Traffic Manager is configured with an endpoint entry for each region’s gateway. The application’s FQDN is now a domain name hosted by Traffic Manager such as ipv6webapp.traffimanager.net, or a CNAME that ultimately points to it. DNS resolution will go through Traffic Manager, which decides which regional gateway’s FQDN to return. The client then connects directly to that Application Gateway’s IPv6 address, as follows: 1. DNS query: Client asks for ipv6webapp.trafficmanager.net, which is hosted in a Traffic Manager profile. 2. Traffic Manager decision: Traffic Manager sees an incoming DNS request and chooses the best endpoint (say, Sweden Central) based on routing rules (e.g., geographic proximity or lowest latency). 3. Traffic Manager response: Traffic Manager returns the FQDN of the Sweden Central Application Gateway to the client. 4. DNS Resolution: The client resolves regional FQDN and receives a AAAA response containing the IPv6 address. 5. Client connects: The client’s browser connects to the West Europe App Gateway IPv6 address directly. The HTTP/S session is established via IPv6 to that regional gateway, which then handles the request. 6. Failover: If that region becomes unavailable, Traffic Manager’s health checks will detect it and subsequent DNS queries will be answered with the FQDN of the secondary region’s gateway. Deployment Steps for Multi-Region with Traffic Manager: Set up Dual-Stack Application Gateways in each region: Similar to the single-region case, deploy an Azure Application Gateway v2 in each desired region (e.g., one in North America, one in Europe). Configure the web application in each region, these should be parallel deployments serving the same content. Configure a Traffic Manager Profile: In Azure Traffic Manager, create a profile and choose a routing method (such as Performance for nearest region routing, or Priority for primary/backup failover). Add endpoints for each region. Since our endpoints are Azure services with IPs, we can either use Azure endpoints (if the Application Gateways have Azure-provided DNS names) or External endpoints using the IP addresses. The simplest way is to use the Public IP resource of each Application Gateway as an Azure endpoint – ensure each App Gateway’s public IP has a DNS label (so it has a FQDN). Traffic Manager will detect those and also be aware of their IPs. Alternatively, use the IPv6 address as an External endpoint directly. Traffic Manager allows IPv6 addresses and will return AAAA records for them. DNS Setup: Traffic Manager profiles have a FQDN (like ipv6webapp.trafficmanager.net). You can either use that as your service’s CNAME, or you can configure your custom domain to CNAME to the Traffic Manager profile. Health Probing: Traffic Manager continuously checks the health of endpoints. When endpoints are Azure App Gateways, it uses HTTP/S probes to a specified URI path, to each gateway’s address. Make sure each App Gateway has a listener on the probing endpoint (e.g., a health check page) and that health probes are enabled. Testing Failover and Distribution: Test the setup by querying DNS from different geographical locations (to see if you get the nearest region’s IP). Also simulate a region down (stop the App Gateway or backend) and observe if Traffic Manager directs traffic to the other region. Because DNS TTLs are involved, failover isn’t instant but typically within a couple of minutes depending on TTL and probe interval. Considerations in this Architecture: - Latency vs Failover: Traffic Manager as a DNS load balancer directs users at connect time, but once a client has an answer (IP address), it keeps sending to that address until the DNS record TTL expires and it re-resolves. This is fine for most web apps. Ensure the TTL in the Traffic Manager profile is not too high (the default is 30 seconds). - IPv6 DNS and Connectivity: Confirm that each region’s IPv6 address is correctly configured and reachable globally. Azure’s public IPv6 addresses are globally routable. Traffic Manager itself is a global service and fully supports IPv6 in its decision-making. - Cost: Using multiple Application Gateways and Traffic Manager incurs costs for each component (App Gateway is per hour + capacity unit, Traffic Manager per million DNS queries). This is a trade-off for high availability. - Alternative: Azure Front Door: Azure Front Door is an alternative to the Traffic Manager + Application Gateway combination. Front Door can automatically handle global routing and failover at layer 7 without DNS-based limitations, offering potentially faster failover. Azure Front Door is discussed in the next section. In summary, a multi-region IPv6 web delivery with Application Gateways uses Traffic Manager for global DNS load balancing. Traffic Manager will seamlessly return IPv6 addresses for IPv6 clients, ensuring that no matter where an IPv6-only client is, they get pointed to the nearest available regional deployment of your app. This design achieves global resiliency (withstand a regional outage) and low latency access, leveraging IPv6 connectivity on each regional endpoint. Example: The global FQDN of our application is now ipv6webapp.trafficmanager.net and clients will use this FQDN to access the application regardless of their geographical location. Traffic Manager will return the FQDN of one of the regional deployments, `ipv6webapp-appgw-swedencentral.swedencentral.cloudapp.azure.com` or `ipv6webappr2-appgw-eastus2.eastus2.cloudapp.azure.com` depending on the routing method configured, the health state of the regional endpoints and the client's location. Then the client resolves the regional FQDN through its local DNS server and connects to the regional instance of the application. DNS resolution from a client in Europe: Resolve-DnsName ipv6webapp.trafficmanager.net Name Type TTL Section NameHost ---- ---- --- ------- -------- ipv6webapp.trafficmanager.net CNAME 59 Answer ipv6webapp-appgw-swedencentral.swedencentral.cloudapp.azure.com Name : ipv6webapp-appgw-swedencentral.swedencentral.cloudapp.azure.com QueryType : AAAA TTL : 10 Section : Answer IP6Address : 2603:1020:1001:25::168 And from a client in the US: Resolve-DnsName ipv6webapp.trafficmanager.net Name Type TTL Section NameHost ---- ---- --- ------- -------- ipv6webapp.trafficmanager.net CNAME 60 Answer ipv6webappr2-appgw-eastus2.eastus2.cloudapp.azure.com Name : ipv6webappr2-appgw-eastus2.eastus2.cloudapp.azure.com QueryType : AAAA TTL : 10 Section : Answer IP6Address : 2603:1030:403:17::5b0 Azure Front Door Azure Front Door is an application delivery network with built-in CDN, SSL offload, WAF, and routing capabilities. It provides a single, unified frontend distributed across Microsoft’s edge network. Azure Front Door natively supports IPv6 connectivity. For applications that have users worldwide, Front Door offers advantages: - Global Anycast Endpoint: Provides anycast IPv4 and IPv6 addresses, advertised out of all edge locations, with automatic A and AAAA DNS record support. - IPv4 and IPv6 origin support: Azure Front Door supports both IPv4 and IPv6 origins (i.e. backends), both within Azure and externally (i.e. accessible over the internet). - Simplified DNS: Custom domains can be mapped using CNAME records. - Layer-7 Routing: Supports path-based routing and automatic backend health detection. - Edge Security: Includes DDoS protection and optional WAF integration. Front Door enables "cross-IP version" scenario's: a client can connect to the Front Door front-end over IPv6, and then Front Door can connect to an IPv4 origin. Conversely, an IPv4-only client can retrieve content from an IPv6 backend via Front Door. Front Door preserves the client's source IP address in the X-Forwarded-For header. Note: Front Door provides managed IPv6 addresses that are not customer-owned resources. Custom domains should use CNAME records pointing to the Front Door hostname rather than direct IP address references. Private Link Integration Azure Front Door Premium introduces Private Link integration, enabling secure, private connectivity between Front Door and backend resources, without exposing them to the public internet. When Private Link is enabled, Azure Front Door establishes a private endpoint within a Microsoft-managed virtual network. This endpoint acts as a secure bridge between Front Door’s global edge network and your origin resources, such as Azure App Service, Azure Storage, Application Gateway, or workloads behind an internal load balancer. Traffic from end users still enters through Front Door’s globally distributed POPs, benefiting from features like SSL offload, caching, and WAF protection. However, instead of routing to your origin over public, internet-facing, endpoints, Front Door uses the private Microsoft backbone to reach the private endpoint. This ensures that all traffic between Front Door and your origin remains isolated from external networks. The private endpoint connection requires approval from the origin resource owner, adding an extra layer of control. Once approved, the origin can restrict public access entirely, enforcing that all traffic flows through Private Link. Private Link integration brings following benefits: - Enhanced Security: By removing public exposure of backend services, Private Link significantly reduces the risk of DDoS attacks, data exfiltration, and unauthorized access. - Compliance and Governance: Many regulatory frameworks mandate private connectivity for sensitive workloads. Private Link helps meet these requirements without sacrificing global availability. - Performance and Reliability: Traffic between Front Door and your origin travels over Microsoft’s high-speed backbone network, delivering low latency and consistent performance compared to public internet paths. - Defense in Depth: Combined with Web Application Firewall (WAF), TLS encryption, and DDoS protection, Private Link strengthens your security posture across multiple layers. - Isolation and Control: Resource owners maintain control over connection approvals, ensuring that only authorized Front Door profiles can access the origin. - Integration with Hybrid Architectures: For scenarios involving AKS clusters, custom APIs, or workloads behind internal load balancers, Private Link enables secure connectivity without requiring public IPs or complex VPN setups. Private Link transforms Azure Front Door from a global entry point into a fully private delivery mechanism for your applications, aligning with modern security principles and enterprise compliance needs. Example: Our application is now placed behind Azure Front Door. We are combining a public backend endpoint and Private Link integration, to show both in action in a single example. The Sweden Central origin endpoint is the public IPv6 endpoint of the regional External Load Balancers and the origin in US East 2 is connected via Private Link integration The global FQDN `ipv6webapp-d4f4euhnb8fge4ce.b01.azurefd.net` and clients will use this FQDN to access the application regardless of their geographical location. The FQDN resolves to Front Door's global anycast address, and the internet will route client requests to the nearest Microsoft edge from this address is advertised. Front Door will then transparently route the request to the nearest origin deployment in Azure. Although public endpoints are used in this example, that traffic will be route over the Microsoft network. From a client in Europe: Calling the application's api endpoint on `ipv6webapp-d4f4euhnb8fge4ce.b01.azurefd.net/api/region` shows some more detail. { "region": "SwedenCentral", "clientIp": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21", "xForwardedFor": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21", "remoteAddress": "2a01:111:2053:d801:0:afd:ad4:1b28", "isPrivateIP": false, "expressIp": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21", "connectionInfo": { "remoteAddress": "2a01:111:2053:d801:0:afd:ad4:1b28", "remoteFamily": "IPv6", "localAddress": "2001:db8:1:1::4", "localPort": 80 }, "allHeaders": { "x-forwarded-for": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21", "x-azure-clientip": "2001:1c04:3404:9500:fd9b:58f4:1fb2:db21" }, "deploymentAdvice": "Public IP detected successfully" } "remoteAddress": "2a01:111:2053:d801:0:afd:ad4:1b28" is the address from which Front Door sources its request to the origin. From a client in the US: The detailed view shows that the IP address calling the backend instance now is local VNET address. Private Link sources traffic coming in from a local address taken from the VNET it is in. The original client IP address is again preserved in the X-Forwarded-For header. { "region": "eastus2", "clientIp": "2603:1030:501:23::68:55658", "xForwardedFor": "2603:1030:501:23::68:55658", "remoteAddress": "::ffff:10.2.1.5", "isPrivateIP": false, "expressIp": "2603:1030:501:23::68:55658", "connectionInfo": { "remoteAddress": "::ffff:10.2.1.5", "remoteFamily": "IPv6", "localAddress": "::ffff:10.2.2.68", "localPort": 80 }, "allHeaders": { "x-forwarded-for": "2603:1030:501:23::68:55658" }, "deploymentAdvice": "Public IP detected successfully" } Conclusion IPv6 adoption for web applications is no longer optional. It is essential as public IPv4 address space is depleted, mobile networks increasingly use IPv6 only and governments mandate IPv6 reachability for public services. Azure's comprehensive dual-stack networking capabilities provide a clear path forward, enabling organizations to leverage IPv6 externally without sacrificing IPv4 compatibility or requiring complete infrastructure overhauls. Azure's externally facing services — including Application Gateway, External Load Balancer, Global Load Balancer, and Front Door — support IPv6 frontends, while Application Gateway and Front Door maintain IPv4 backend connectivity. This architecture allows applications to remain unchanged while instantly becoming accessible to IPv6-only clients. For single-region deployments, Application Gateway offers layer-7 features like SSL termination and WAF protection. External Load Balancer provides high-performance layer-4 distribution. Multi-region scenarios benefit from Traffic Manager's DNS-based routing combined with regional Application Gateways, or the superior performance and failover capabilities of Global Load Balancer's anycast addressing. Azure Front Door provides global IPv6 delivery with edge optimization, built-in security, and seamless failover across Microsoft's network. Private Link integration allows secure global IPv6 distribution while maintaining backend isolation. The transition to IPv6 application delivery on Azure is straightforward: enable dual-stack addressing on virtual networks, configure IPv6 frontends on load balancing services, and update DNS records. With Application Gateway or Front Door, backend applications require no modifications. These Azure services handle the IPv4-to-IPv6 translation seamlessly. This approach ensures both immediate IPv6 accessibility and long-term architectural flexibility as IPv6 adoption accelerates globally.
Using Application Gateway to secure access to the Azure OpenAI Service: Customer success story
Introduction A large enterprise customer set out to build a generative AI application using Azure OpenAI. While the app would be hosted on-premises, the customer wanted to leverage the latest large language models (LLMs) available through Azure OpenAI. However, they faced a critical challenge: how to securely access Azure OpenAI from an on-prem environment without private network connectivity or a full Azure landing zone. This blog post walks through how customers overcame these limitations using Application Gateway as a reverse proxy in front of their Azure Open AI along with other Azure services, to meet their security and governance requirements. Customer landscape and challenges The customer’s environment lacked: Private network connectivity (no Site-to-Site VPN or ExpressRoute). This was due to using a new Azure Government environment and not having a cloud operations team set up yet Common network topology such as Virtual WAN and Hub-Spoke network design A full Enterprise Scale Landing Zone (ESLZ) of common infrastructure Security components like private DNS zones, DNS resolvers, API Management, and firewalls This meant they couldn’t use private endpoints or other standard security controls typically available in mature Azure environments. Security was non-negotiable. Public access to Azure OpenAI was unacceptable. Customer needs to: Restrict access to specific IP CIDR ranges from on-prem user machines and data centers Limit ports communicating with Azure OpenAI Implement a reverse proxy with SSL termination and Web Application Firewall (WAF) Use a customer-provided SSL certificate to secure traffic Proposed solution To address these challenges, the customer designed a secure architecture using the following Azure components: Key Azure services Application Gateway – Layer 7 reverse proxy, SSL termination & Web Application Firewall (WAF) Public IP – Allows communication over public internet between customer’s IP addresses & Azure IP addresses Virtual Network – Allows control of network traffic in Azure Network Security Group (NSG) – Layer 4 network controls such as port numbers, service tags using five-tuple information (source, source port, destination, destination port, protocol) Azure OpenAI – Large Language Model (LLM) NSG configuration Inbound Rules: Allow traffic only from specific IP CIDR ranges and HTTP(S) ports Outbound Rules: Target AzureCloud.<region> with HTTP(S) ports (no service tag for Azure OpenAI yet) Application Gateway setup SSL Certificate: Issued by the customer’s on-prem Certificate Authority HTTPS Listener: Uses the on-prem certificate to terminate SSL Traffic flow: Decrypt incoming traffic Scan with WAF Re-encrypt using a well-known Azure CA Override backend hostname Custom health probe: Configured to detect a 404 response from Azure OpenAI (since no health check endpoint exists) Azure OpenAI configuration IP firewall restrictions: Only allow traffic from the Application Gateway subnet Outcome By combining Application Gateway, NSGs, and custom SSL configurations, the customer successfully secured their Azure OpenAI deployment—without needing a full ESLZ or private connectivity. This approach enabled them to move forward with their generative AI app while maintaining enterprise-grade security and governance.Unlock visibility, flexibility, and cost efficiency with Application Gateway logging enhancements

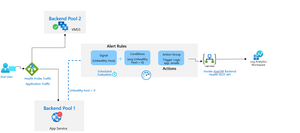

Introduction In today’s cloud-native landscape, organizations are accelerating the deployment of web applications at unprecedented speed. But with rapid scale comes increased complexity—and a growing need for deep, actionable visibility into the underlying infrastructure. As businesses embrace modern architectures, the demand for scalable, secure, and observable web applications continues to rise. Azure Application Gateway is evolving to meet these needs, offering enhanced logging capabilities that empower teams to gain richer insights, optimize costs, and simplify operations. This article highlights three powerful enhancements that are transforming how teams use logging in Azure Application Gateway: Resource-specific tables Data collection rule (DCR) transformations Basic log plan Resource-specific tables improve organization and query performance. DCR transformations give teams fine-grained control over the structure and content of their log data. And the basic log plan makes comprehensive logging more accessible and cost-effective. Together, these capabilities deliver a smarter, more structured, and cost-aware approach to observability. Resource-specific tables: Structured and efficient logging Azure Monitor stores logs in a Log Analytics workspace powered by Azure Data Explorer. Previously, when you configured Log Analytics, all diagnostic data for Application Gateway was stored in a single, generic table called AzureDiagnostics. This approach often led to slower queries and increased complexity, especially when working with large datasets. With resource-specific logging, Application Gateway logs are now organised into dedicated tables, each optimised for a specific log type: AGWAccessLogs- Contains access log information AGWPerformanceLogs-Contains performance metrics and data AGWFirewallLogs-Contains Web Application Firewall (WAF) log data This structured approach delivers several key benefits: Simplified queries – Reduces the need for complex filtering and data manipulation Improved schema discovery – Makes it easier to understand log structure and fields Enhanced performance – Speeds up both ingestion and query execution Granular access control – Allows you to grant Azure role-based access control (RBAC) permissions on specific tables Example: Azure diagnostics vs. resource-specific table approach Traditional AzureDiagnostics query: AzureDiagnostics | where ResourceType == "APPLICATIONGATEWAYS" and Category == "ApplicationGatewayAccessLog" | extend clientIp_s = todynamic(properties_s).clientIP | where clientIp_s == "203.0.113.1" New resource-specific table query: AGWAccessLogs | where ClientIP == "203.0.113.1" The resource-specific approach is cleaner, faster, and easier to maintain as it eliminates complex filtering and data manipulation. Data collection rules (DCR) log transformations: Take control of your log pipeline DCR transformations offer a flexible way to shape log data before it reaches your Log Analytics workspace. Instead of ingesting raw logs and filtering them post-ingestion, you can now filter, enrich, and transform logs at the source, giving you greater control and efficiency. Why DCR transformations matter: Optimize costs: Reduce ingestion volume by excluding non-essential data Support compliance: Strip out personally identifiable information (PII) before logs are stored, helping meet GDPR and CCPA requirements Manage volume: Ideal for high-throughput environments where only actionable data is needed Real-world use cases Whether you're handling high-traffic e-commerce workloads, processing sensitive healthcare data, or managing development environments with cost constraints, DCR transformations help tailor your logging strategy to meet specific business and regulatory needs. For implementation guidance and best practices, refer to Transformations Azure Monitor - Azure Monitor Basic log plan - Cost-effective logging for low-priority data Not all logs require real-time analysis. Some are used for occasional debugging or compliance audits. The Basic log plan in Log Analytics provides a cost-effective way to retain high-volume, low-priority diagnostic data—without paying for premium features you may not need. When to use the Basic log plan Save on costs: Pay-as-you-go pricing with lower ingestion rates Debugging and forensics: Retain data for troubleshooting and incident analysis, without paying premium costs for features you don't use regularly Understanding the trade-offs While the Basic plan offers significant savings, it comes with limitations: No real-time alerts: Not suitable for monitoring critical health metrics Query constraints: Limited KQL functionality and additional query costs Choose the Basic plan when deep analytics and alerting aren’t required and focus premium resources on critical logs. Building a smart logging strategy with Azure Application Gateway To get the most out of Azure Application Gateway logging, combine the strengths of all three capabilities: Assess your needs: Identify which logs require real-time monitoring versus those used for compliance or debugging Design for efficiency: Use the Basic log plan for low-priority data, and reserve standard tiers for critical logs Transform at the source: Apply DCR transformations to reduce costs and meet compliance before ingestion Query with precision: Use resource-specific tables to simplify queries and improve performance This integrated approach helps teams achieve deep visibility, maintain compliance, and manage costs.Azure Networking Portfolio Consolidation
Overview Over the past decade, Azure Networking has expanded rapidly, bringing incredible tools and capabilities to help customers build, connect, and secure their cloud infrastructure. But we've also heard strong feedback: with over 40 different products, it hasn't always been easy to navigate and find the right solution. The complexity often led to confusion, slower onboarding, and missed capabilities. That's why we're excited to introduce a more focused, streamlined, and intuitive experience across Azure.com, the Azure portal, and our documentation pivoting around four core networking scenarios: Network foundations: Network foundations provide the core connectivity for your resources, using Virtual Network, Private Link, and DNS to build the foundation for your Azure network. Try it with this link: Network foundations Hybrid connectivity: Hybrid connectivity securely connects on-premises, private, and public cloud environments, enabling seamless integration, global availability, and end-to-end visibility, presenting major opportunities as organizations advance their cloud transformation. Try it with this link: Hybrid connectivity Load balancing and content delivery: Load balancing and content delivery helps you choose the right option to ensure your applications are fast, reliable, and tailored to your business needs. Try it with this link: Load balancing and content delivery Network security: Securing your environment is just as essential as building and connecting it. The Network Security hub brings together Azure Firewall, DDoS Protection, and Web Application Firewall (WAF) to provide a centralized, unified approach to cloud protection. With unified controls, it helps you manage security more efficiently and strengthen your security posture. Try it with this link: Network security This new structure makes it easier to discover the right networking services and get started with just a few clicks so you can focus more on building, and less on searching. What you’ll notice: Clearer starting points: Azure Networking is now organized around four core scenarios and twelve essential services, reflecting the most common customer needs. Additional services are presented within the context of these scenarios, helping you stay focused and find the right solution without feeling overwhelmed. Simplified choices: We’ve merged overlapping or closely related services to reduce redundancy. That means fewer, more meaningful options that are easier to evaluate and act on. Sunsetting outdated services: To reduce clutter and improve clarity, we’re sunsetting underused offerings such as white-label CDN services and China CDN. These capabilities have been rolled into newer, more robust services, so you can focus on what’s current and supported. What this means for you Faster decision-making: With clearer guidance and fewer overlapping products, it's easier to discover what you need and move forward confidently. More productive sales conversations: With this simplified approach, you’ll get more focused recommendations and less confusion among sellers. Better product experience: This update makes the Azure Networking portfolio more cohesive and consistent, helping you get started quickly, stay aligned with best practices, and unlock more value from day one. The portfolio consolidation initiative is a strategic effort to simplify and enhance the Azure Networking portfolio, ensuring better alignment with customer needs and industry best practices. By focusing on top-line services, combining related products, and retiring outdated offerings, Azure Networking aims to provide a more cohesive and efficient product experience. Azure.com Before: Our original Solution page on Azure.com was disorganized and static, displaying a small portion of services in no discernable order. After: The revised solution page is now dynamic, allowing customers to click deeper into each networking and network security category, displaying the top line services, simplifying the customer experience. Azure Portal Before: With over 40 networking services available, we know it can feel overwhelming to figure out what’s right for you and where to get started. After: To make it easier, we've introduced four streamlined networking hubs each built around a specific scenario to help you quickly identify the services that match your needs. Each offers an overview to set the stage, key services to help you get started, guidance to support decision-making, and a streamlined left-hand navigation for easy access to all services and features. Documentation For documentation, we looked at our current assets as well as created new assets that aligned with the changes in the portal experience. Like Azure.com, we found the old experiences were disorganized and not well aligned. We updated our assets to focus on our top-line networking services, and to call out the pillars. Our belief is these changes will allow our customers to more easily find the relevant and important information they need for their Azure infrastructure. Azure Network Hub Before the updates, we had a hub page organized around different categories and not well laid out. In the updated hub page, we provided relevant links for top-line services within all of the Azure networking scenarios, as well as a section linking to each scenario's hub page. Scenario Hub pages We added scenario hub pages for each of the scenarios. This provides our customers with a central hub for information about the top-line services for each scenario and how to get started. Also, we included common scenarios and use cases for each scenario, along with references for deeper learning across the Azure Architecture Center, Well Architected Framework, and Cloud Adoption Framework libraries. Scenario Overview articles We created new overview articles for each scenario. These articles were designed to provide customers with an introduction to the services included in each scenario, guidance on choosing the right solutions, and an introduction to the new portal experience. Here's the Load balancing and content delivery overview: Documentation links Azure Networking hub page: Azure networking documentation | Microsoft Learn Scenario Hub pages: Azure load balancing and content delivery | Microsoft Learn Azure network foundation documentation | Microsoft Learn Azure hybrid connectivity documentation | Microsoft Learn Azure network security documentation | Microsoft Learn Scenario Overview pages What is load balancing and content delivery? | Microsoft Learn Azure Network Foundation Services Overview | Microsoft Learn What is hybrid connectivity? | Microsoft Learn What is Azure network security? | Microsoft Lea Improving user experience is a journey and in coming months we plan to do more on this. Watch out for more blogs over the next few months for further improvements.
Azure CNI Overlay for Application Gateway for Containers and Application Gateway Ingress Controller

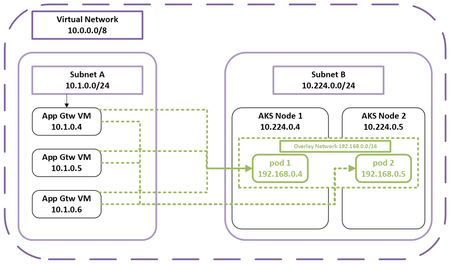

What are Azure CNI Overlay and Application Gateway? Azure CNI Overlay leverages logical network spaces for pod IP assignment management (IPAM). This provides enhanced IP scalability with reduced management responsibilities. Application Gateway for Containers is the latest and most recommended container L7 load-balancing solution. It introduces a new scalable control plane and data plane to address the performance demands and modern workloads being deployed to AKS clusters on Azure. Azure network control plane configures routing between Application Gateway and overlay pods. Why is the feature needed? As businesses increasingly use containerized solutions, managing container networks at scale has become a priority. Within container network management, IP address exhaustion, scalability and application load balancing performance are highly requested and discussed in many forums. Azure CNI Overlay is the default container networking IPAM mode on AKS. In the overlay design, AKS nodes use IPs from Azure virtual network (VNet) IP address range and pods are addressed from an overlay IP address range. The overlay pods can communicate with each other directly via a different routing domain. Overlay IP addresses can be reused across multiple clusters in the same VNet, provisioning a solution for IP exhaustion and increasing IP scale to over 1M. Azure CNI Overlay supporting Application Gateway for Containers provides customers with a more performant, reliable, and scalable container networking solution. Meanwhile, Azure CNI Overlay supporting AGIC provides customers with full feature parity if they choose to upgrade AKS clusters from kubenet to Azure CNI Overlay. Key Benefits High scale with Azure CNI Overlay combined with a high-performance ingress solution Azure CNI Overlay provides direct pod to pod routing with high IP scale using direct azure native routing with no encapsulation overhead. IPs can be reused across clusters in the same VNET allowing customers to conserve IP addresses. Application Gateway for Containers is the latest and most recommended container L7 load-balancing solution. Installing Application Gateway for Containers on AKS clusters with Azure CNI Overlay provides customers with the best solution combination of IP scalability and ingress solution on Azure. Feature parity between kubenet and Azure CNI Overlay With the retirement announcement of kubenet, we expect to see customers upgrade their AKS container networking solution from kubenet to Azure CNI Overlay soon. This feature allows customers to maintain business continuity during the transitioning process. Learn More Read more about Azure CNI Overlay and Application Gateway for Containers. Learn more on how to upgrade AKS clusters’ IPAM to Azure CNI Overlay. Learn more about Azure Kubernetes Service and Application Gateway.Unlock enterprise AI/ML with confidence: Azure Application Gateway as your scalable AI access layer

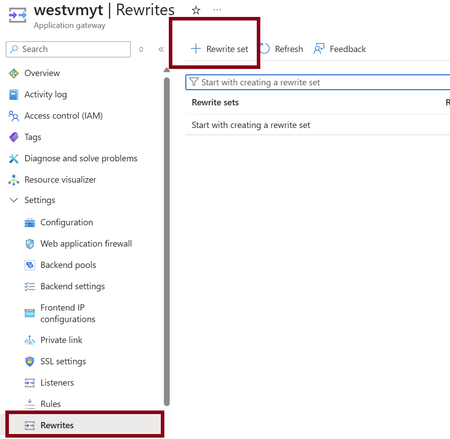

As enterprises accelerate their adoption of generative AI and machine learning to transform operations, enhance productivity, and deliver smarter customer experiences, Microsoft Azure has emerged as a leading platform for hosting and scaling intelligent applications. With offerings like Azure OpenAI, Azure Machine Learning, and Cognitive Services, organizations are building copilots, virtual agents, recommendation engines, and advanced analytics platforms that push the boundaries of what is possible. However, scaling these applications to serve global users introduces new complexities: latency, traffic bursts, backend rate limits, quota distribution, and regional failovers must all be managed effectively to ensure seamless user experiences and resilient architectures. Azure Application Gateway: The AI access layer Azure Application Gateway plays a foundational role in enabling AI/ML at scale by acting as a high-performance Layer 7 reverse proxy—built to intelligently route, protect, and optimize traffic between clients and AI services. Hundreds of enterprise customers are already using Azure Application Gateway to efficiently manage traffic across diverse Azure-hosted AI/ML models—ensuring uptime, performance, and security at global scale. The AI delivery challenge Inferencing against AI/ML backends is more than connecting to a service. It is about doing so: Reliably: across regions, regardless of load conditions Securely: protecting access from bad actors and abusive patterns Efficiently: minimizing latency and request cost Scalable: handling bursts and high concurrency without errors Observably: with real-time insights, diagnostics, and feedback loops for proactive tuning Key features of Azure Application Gateway for AI traffic Smart request distribution: Path-based and round-robin routing across OpenAI and ML endpoints. Built-in health probes: Automatically bypass unhealthy endpoints Security enforcement: With WAF, TLS offload, and mTLS to protect sensitive AI/ML workloads Unified endpoint: Expose a single endpoint for clients; manage complexity internally. Observability: Full diagnostics, logs, and metrics for traffic and routing visibility. Smart rewrite rules: Append path, or rewrite headers per policy. Horizontal scalability: Easily scale to handle surges in demand by distributing load across multiple regions, instances, or models. SSE and real-time streaming: Optimize connection handling and buffering to enable seamless AI response streaming. Azure Web Application Firewall (WAF) Protections for AI/ML Workloads When deploying AI/ML workloads, especially those exposed via APIs, model endpoints, or interactive web apps, security is as critical as performance. A modern WAF helps protect not just the application, but also the sensitive models, training data, and inference pipelines behind it. Core Protections: SQL injection – Prevents malicious database queries targeting training datasets, metadata stores, or experiment tracking systems. Cross-site scripting (XSS) – Blocks injected scripts that could compromise AI dashboards, model monitoring tools, or annotation platforms. Malformed payloads – Stops corrupted or adversarial crafted inputs designed to break parsing logic or exploit model pre/post-processing pipelines. Bot protections – Bot Protection Rule Set detects & blocks known malicious bot patterns (credential stuffing, password spraying). Block traffic based on request body size, HTTP headers, IP addresses, or geolocation to prevent oversized payloads or region-specific attacks on model APIs. Enforce header requirements to ensure only authorized clients can access model inference or fine-tuning endpoints. Rate limiting based on IP, headers, or user agent to prevent inference overloads, cost spikes, or denial of service against AI models. By integrating these WAF protections, AI/ML workloads can be shielded from both conventional web threats and emerging AI-specific attack vectors, ensuring models remain accurate, reliable, and secure. Architecture Real-world architectures with Azure Application Gateway Industries across sectors rely on Azure Application Gateway to securely expose AI and ML workloads: Healthcare → Protecting patient-facing copilots and clinical decision support tools with HIPAA-compliant routing, private inference endpoints, and strict access control. Finance → Safeguarding trading assistants, fraud-detection APIs, and customer chatbots with enterprise WAF rules, rate limiting, and region-specific compliance. Retail & eCommerce → Defending product recommendation engines, conversational shopping copilots, and personalization APIs from scraping and automated abuse. Manufacturing & industrial IoT → Securing AI-driven quality control, predictive maintenance APIs, and digital twin interfaces with private routing and bot protection. Education → Hosting learning copilots and tutoring assistants safely behind WAF, preventing misuse while scaling access for students and researchers. Public sector & government → Enforcing FIPS-compliant TLS, private routing, and zero-trust controls for citizen services and AI-powered case management. Telecommunications & media → Protecting inference endpoints powering real-time translation, content moderation, and media recommendations at scale. Energy & utilities → Safeguarding smart grid analytics, sustainability dashboards, and AI-powered forecasting models through secure gateway routing. Advanced integrations Position Azure Application Gateway as the secure, scalable network entry point to your AI infrastructure Private-only Azure Application Gateway: Host AI endpoints entirely within virtual networks for secure internal access SSE support: Configure HTTP settings for streaming completions via Server-Sent Events Azure Application Gateway+ Azure Functions: Build adaptive policies that reroute traffic based on usage, cost, or time of day Azure Application Gateway + API management to protect OpenAI workloads What’s next: Adaptive AI gateways Microsoft is evolving Azure Application Gateway into a more intelligent, AI aware platform with capabilities such as: Auto rerouting to healthy endpoints or more cost-efficient models. Dynamic token management directly within Azure Application Gateway to optimize AI inference usage. Integrated feedback loops with Azure Monitor and Log Analytics for real-time performance tuning. The goal is to transform Azure Application Gateway from a traditional traffic manager into an adaptive inference orchestrator one that predicts failures, optimizes operational costs, and safeguards AI workloads from misuse. Conclusion Azure Application Gateway is not just a load balancer—it’s becoming a critical enabler for enterprise-grade AI delivery. Today, it delivers smart routing, security enforcement, adaptive observability, and a compliance-ready architecture, enabling organizations to scale AI confidently while safeguarding performance and cost. Looking ahead, Microsoft’s vision includes future capabilities such as quota resiliency to intelligently manage and balance AI usage limits, auto-rerouting to healthy endpoints or more cost-efficient models, dynamic token management within Azure Application Gateway to optimize inference usage, and integrated feedback loops with Azure Monitor and Log Analytics for real-time performance tuning. Together, these advancements will transform Azure Application Gateway from a traditional traffic manager into an adaptive inference orchestrator capable of anticipating failures, optimizing costs, and protecting AI workloads from misuse. If you’re building with Azure OpenAI, Machine Learning, or Cognitive Services, let Azure Application Gateway be your intelligent command center—anticipating needs, adapting in real time, and orchestrating every interaction so your AI can deliver with precision, security, and limitless scale. For more information, please visit: What is Azure Application Gateway v2? | Microsoft Learn What Is Azure Web Application Firewall on Azure Application Gateway? | Microsoft Learn Azure Application Gateway URL-based content routing overview | Microsoft Learn Using Server-sent events with Application Gateway (Preview) | Microsoft Learn AI Architecture Design - Azure Architecture Center | Microsoft LearnDecoding On-Premises ADC Rules: Migration to Azure Application Gateway
Overview As Azure Application Gateway evolves, many organizations are considering how their existing on-premises solutions—such as F5, NetScaler, and Radware—can transition to leverage Azure’s native services. During this shift to cloud-native architecture, a frequent question arises: ‘Can Application Gateway support my current load balancing configurations?’” The short answer: It depends on your use case. With the right approach, the transition can be smooth, scalable, and secure. Azure Application Gateway, especially when used with Azure-native services like Web Application Firewall (WAF), Azure Front Door, and Azure Firewall, can support common use cases. This guide provides a functional comparison, outlines what’s supported and offers a blueprint for successful migration. Key Capabilities of Application Gateway Azure Application Gateway v2 brings a host of enhancements that align with the needs of modern, cloud-first organizations: Autoscaling & Zone Redundancy Native WAF + Azure DDoS Protection Native support for Header Rewrites, URL-based routing, and SSL termination Integration with Azure Monitor, Log Analytics, Defender for Cloud Azure-native deployment: ARM/Bicep, CLI, GitOps, Terraform, CI/CD These features make App Gateway a strong option for cloud-first and hybrid scenarios, especially for cloud-first and hybrid scenarios. customers benefit from simplified operations, improved agility, and enhanced security. What are ADC Rules? On-premises ADCs (Application Delivery Controllers) often include advanced traffic management features, such as iRules and Citrix policy expressions. These Layer 4–7 devices go beyond basic load balancing, enabling traffic manipulation at various stages of the connection lifecycle. ADCs are powerful, flexible, and often deeply embedded in enterprise traffic logic. If you rely on these features, migration is still possible—Azure Application Gateway supports many commonly used functionalities out of the box. Common ADCs scenarios: Redirects and rewrites IP filtering and geo-blocking Custom error handling Event-driven logic like HTTP_REQUEST, CLIENT_ACCEPTED Application Gateway Feature Patterns ADCs traffic management features are powerful and flexible, often deeply embedded in enterprise traffic flows. Application Gateway does provide native support for many common scenarios. In this guide, we’ll show you how to translate advanced rules typical patterns into configurations. [Note]: When migrating WAF rules, enable detection mode first to identify false positives before enforcing blocks Citrix Features iRule Feature App Gateway v2 Equivalent Supported for App Gateway? Responder Policies Redirects (301/302) Native redirect rules ✅ Rewrite Policies Header rewrites Rewrite Set rules ✅ GSLB + Responder Policies Geo-based Routing Combining with Azure Front Door ✅ Content Switching Policies URL-based routing Path-based routing rules ✅ Responder/ACLs IP filtering WAF custom rules or NSGs ✅ GSLB + Policy Expressions Geo-blocking WAF rules ✅ Content Switching Policies Path-based routing URL path maps ✅ Content Switching / Rewrite Policies Header-based Routing Limited with parameter-based path selection ➗ Advanced Policy Expressions (Regex supported) Regex-based routing Limited regex support via path parameters ➗ Priority Queues / Rate Control Real-time traffic shaping Limited with Azure Front Door ➗ AppExpert with TCP expressions TCP payload inspection Not supported ❌ Not supported Event-driven hooks (HTTP_REQUEST, etc) Not supported ❌ Not Supported Query Pool Not supported ❌ Not supported Per-request scripting Not supported ❌ Deep packet inspection + Policies (limited) Payload-based routing Not supported ❌ Not supported Full scripting (TCL) Not supported ❌ Translating Advanced Rules Migrating features such as iRules and Citrix policy expressions from ADCs is less about line-by-line translation and more about recognizing patterns. Think of it as translating a language—not word-for-word, but intent-for-intent. How to get started: Tool-assisted translation: Use Copilot or GPT-based tools to translate common ADC rule patterns. Inventory & analyze: Break complex rules into modular App Gateway functions (Redirects, Rewrites) Document: Document everything of original goal and their translated equivalents. Where to Configure in Azure You can implement routing and rewrite logic via: Azure portal UI Azure CLI / PowerShell (az network application-gateway) ARM templates / Bicep (for infrastructure-as-code deployments) REST API (for automation/CI-CD pipelines) Example: Configure header rewrite in the portal Open your Application Gateway in the Azure portal Navigate to Rewrites on the sidebar Click + Add Rewrite Set, then apply it to your routing rule Define your rewrite conditions and actions [NOTE]: Not sure what rewrites are? Learn more here about Rewrite HTTP Headers. Rewrite configuration: click + Add Rewrite set to apply a new Rewrite to your routing rule: Resources Application Gateway v1 to v2: Migrate from App Gateway v1 to v2 Best Practices: Architecture Best Practices for Azure Application Gateway v2 - Microsoft Azure Well-Architected Framework | Microsoft Learn Rewrites: https://learn.microsoft.com/en-us/azure/application-gateway/rewrite-http-headers-url Header-based routing: https://learn.microsoft.com/en-us/azure/application-gateway/parameter-based-path-selection-portal Tuning WAF rules: Tune Azure Web Application Firewall for Azure Front Door | Microsoft Learn Conclusion While AI-powered assistants can help interpret and translate common ADC traffic management patterns, manual recreation and validation of rules are still necessary to ensure accuracy and alignment with your specific requirements. Nevertheless, migrating to Application Gateway v2 is not only feasible—it represents a strategic move toward a modern, cloud-native infrastructure. With thoughtful planning and the right mindset, organizations can maintain traffic flexibility while gaining the agility, scalability, and operational efficiency of the Azure ecosystem. If you are unsure whether your current on-premises configuration can be supported in Azure Application Gateway, please consult the official Azure documentation or reach out to Microsoft support for guidance.
