Forum Discussion
nikitamobile855
Apr 14, 2022Brass Contributor
DFS replication issues

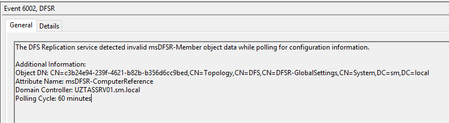

Hello everyone, We are running Windows Server 2016 as a Primary Domain Controller. We don't have DFS management tool installed however I'm getting 6002 errors in event viewer. Please advise on h...
- Apr 20, 2022
Thanks, Nikita. That helped a great deal and saved a lot of time.
I'll start at the end and work backwards.
You want to run these commands to clean up what is a very broken DFS-R configuration. I'll provide an in-depth explanation after the commands
Remove-ADObject -Identity "CN=45d9316b-1098-408e-a65d-8ce8449f0aaa,CN=DFSR-LocalSettings,CN=UZTASSRV01,OU=Domain Controllers,DC=sm,DC=local" -Recursive -Confirm:$false; Remove-ADObject -Identity "CN=a7297769-fdcd-4490-ae1c-c80808f44d36,CN=DFSR-LocalSettings,CN=UZTASSRV01,OU=Domain Controllers,DC=sm,DC=local" -Recursive -Confirm:$false; Remove-ADObject -Identity "CN=DFS,CN=DFSR-GlobalSettings,CN=System,DC=sm,DC=local" -Recursive -Confirm:$false; Remove-ADObject -Identity "CN=DFS_IT,CN=DFSR-GlobalSettings,CN=System,DC=sm,DC=local" -Recursive -Confirm:$false; Remove-ADObject -Identity "CN=UZTASSVR02,CN=Topology,CN=Domain System Volume,CN=DFSR-GlobalSettings,CN=System,DC=sm,DC=local" -Recursive -Confirm:$false;
Overview
What the JSON output you provided showed is:
- There are no DFS namespaces configured;
- The DFS replication group definitions are badly broken in places;
- The "built-in" SYSVOL DFS-R definition is fine but contains an orphaned reference to a domain controller no longer in existence (UZTASSVR02);
- Three DFS replications groups are defined:
- DFS;
- DFS_IT;
- Domain System Volume.
Approach
There were two options I could have pursued:
- Add the missing "MemberReference" values onto the existing "msDFSR-Subscriber" objects; or
- Delete the DFS and DFS_IT DFS replication groups.
I have chosen option 2 since:
- There is no associated DFS namespace;
- The replication groups would only have a single member, which is pointless;
- It provides you with the cleanest outcome, since you can always create new DFS namespaces and replication groups if you decide to later on, and you won't have to worry about old, corrupt data lingering around.
Explanation of each command
Line Comment 1 Removes the orphaned subscription to the "DFS" replication group from UZTASSRV01. 2 Removes the orphaned subscription to the "DFS_IT" replication group from UZTASSRV01. 3 Removes the "DFS" replication group. 4 Removes the "DFS_IT" replication group. 5 Removes the orphaned UZTASSVR02 reference from the "Domain System Volume" replication group. Once you have removed these objects, it will take DFS-R a little while to recognise the changes.
If you want to hurry the process up, you can do any one of the following:
- Restart UZTASSRV01 (since it's the only remaining host); or
- Restart the the "DFSR" service on UZTASSRV01; or
- Run the following command on UZTASSRV01 (it may not be installed though, which is fine):
dfsdiag pollad
Anyhow, once you've either waited a bit or hurried things up, you should find the Event Viewer errors stop.
Cheers,
Lain
LainRobertson
Jun 10, 2022Silver Contributor
Yeah, okay - that makes sense. My powers of observation and memory are failing me in my old age.
I wasn't sure if through being a backlink it would be editable. I thought it might be, but clearly I thought wrong.
What that means is a forward reference stored on another object will be missing, which results in this backlink also showing up as missing.
If you navigate back to this object in the default naming context:
CN=IOS-SEA-A1,CN=Topology,CN=Domain System Volume,CN=DFSR-GlobalSettings,CN=System,DC=iosdomain,DC=local
Does it have a value for "serverReference" equal to:
CN=NTDS Settings,CN=IOS-SEA-A1,CN=Servers,CN=SEATTLE,CN=Sites,CN=Configuration,DC=iosdomain,DC=local
Edited to remove the question mark in the line above, which got caught in the <pre> formatting tag.
If serverReference value is missing, set it to the above value and then re-check the object in the configuration partition. You should find it now shows the serverReferenceBL value.
Cheers,
Lain
Zalastar
Jun 10, 2022Copper Contributor
First I want to thank you for helping me, your time has been invaluable.
My attention span was fading after being up all night. I decided to go to bed before I made a bigger mistake.
So your advice fixed the issue . It brought me back to how I got into this mess.
I was trying to follow these instructions and deleted the objects somehow
The DFS Replication service stopped replication on the folder with the following local path: C:\Windows\SYSVOL\domain. This server has been disconnected from other partners for 948 days, which is longer than the time allowed by the MaxOfflineTimeInDays parameter (60). DFS Replication considers the data in this folder to be stale, and this server will not replicate the folder until this error is corrected.
To resume replication of this folder, use the DFS Management snap-in to remove this server from the replication group, and then add it back to the group. This causes the server to perform an initial synchronization task, which replaces the stale data with fresh data from other members of the replication group.
Additional Information:
Error: 9061 (The replicated folder has been offline for too long.)
Replicated Folder Name: SYSVOL Share
Replicated Folder ID: 8EC04617-53A4-4148-AB24-4CDD050A1716
Replication Group Name: Domain System Volume
Replication Group ID: 860C23C1-6213-4EDC-8AA3-0C4B75F238DA
Member ID: 43A19C80-D9AB-4DCC-8434-7BC4987D3B5B
- ZalastarJun 10, 2022Copper Contributorso I just performed a D2 Sysvol Replication but that didn't solve it
The DFS Replication service stopped replication on the replicated folder at local path C:\Windows\SYSVOL\domain.
Additional Information:
Error: 9003 (The replication group is invalid)
Additional context of the error:
Replicated Folder Name: SYSVOL Share
Replicated Folder ID: 8EC04617-53A4-4148-AB24-4CDD050A1716
Replication Group Name: Domain System Volume
Replication Group ID: 860C23C1-6213-4EDC-8AA3-0C4B75F238DA
Member ID: 43A19C80-D9AB-4DCC-8434-7BC4987D3B5B
