Windows 11 assigned access - setting kiosk mode over powershell and WMI

Silver Contributor

Aug 11, 2023

Okay, that actually looks good. The username is right and the earlier call you made above that to Get-CimInstance succeeded.

So, I've gone back up and had a look at the script and it looks like a simple formatting issue.

Line 6 should actually be part of line 5. So, this (your lines 5 and 6):

$obj.Configuration = [System.Web.HttpUtility]::HtmlEncode
(@"

Should become this:

$obj.Configuration = [System.Web.HttpUtility]::HtmlEncode(@"

The issue putting the "(" on the next line creates is that the XML doesn't get assigned to $obj.Configuration. Instead, $obj.Configuration has the definition of the

[System.Web.HttpUtility]::HtmlEncode method assigned to it. It's not important to understand that, only that it will cause your Set-CimInstance to fail.

So, make the simple change above and try again.

Cheers,

Lain

MichaelW

Copper Contributor

Aug 11, 2023

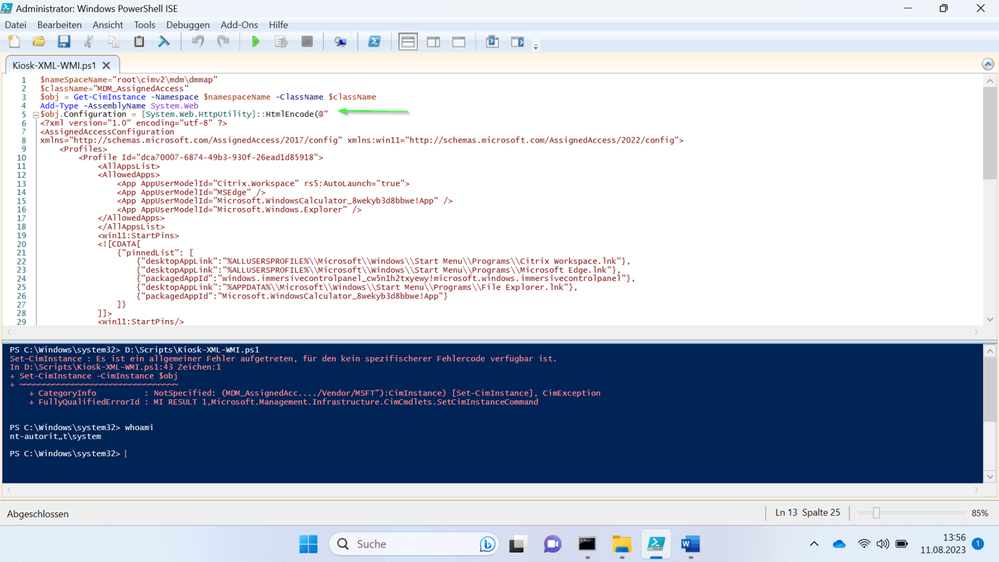

LainRobertson Hi Lain, I understand unfortunately I got another error, I double checked the script on synthax errors, and wrote exactly as in the example stated on this page (https://learn.microsoft.com/en-us/windows/configuration/lock-down-windows-11-to-specific-apps)

$nameSpaceName="root\cimv2\mdm\dmmap"
$className="MDM_AssignedAccess"
$obj = Get-CimInstance -Namespace $namespaceName -ClassName $className
Add-Type -AssemblyName System.Web
$obj.Configuration = [System.Web.HttpUtility]::HtmlEncode(@"

<?xml version="1.0" encoding="utf-8" ?>
<AssignedAccessConfiguration
xmlns="http://schemas.microsoft.com/AssignedAccess/2017/config" xmlns:win11="http://schemas.microsoft.com/AssignedAccess/2022/config">
    <Profiles>
        <Profile Id="dca70007-6874-49b3-930f-26ead1d85918">
            <AllAppsList>
            <AllowedApps>
                <App AppUserModelId="Citrix.Workspace" rs5:AutoLaunch="true">
                <App AppUserModelId="MSEdge" />
                <App AppUserModelId="Microsoft.WindowsCalculator_8wekyb3d8bbwe!App" />
                <App AppUserModelId="Microsoft.Windows.Explorer" />
            </AllowedApps>
            </AllAppsList>
            <win11:StartPins>
            <![CDATA[
                {"pinnedList": [
                    {"desktopAppLink":"%ALLUSERSPROFILE%\\Microsoft\\Windows\\Start Menu\\Programs\\Citrix Workspace.lnk"},
                    {"desktopAppLink":"%ALLUSERSPROFILE%\\Microsoft\\Windows\\Start Menu\\Programs\\Microsoft Edge.lnk"},
                    {"packagedAppId":"windows.immersivecontrolpanel_cw5n1h2txyewy!microsoft.windows.immersivecontrolpanel"},
                    {"desktopAppLink":"%APPDATA%\\Microsoft\\Windows\\Start Menu\\Programs\\File Explorer.lnk"},
                    {"packagedAppId":"Microsoft.WindowsCalculator_8wekyb3d8bbwe!App"}
                ]}
            ]]>
            <win11:StartPins/>
            <Taskbar ShowTaskbar="true"/><Taskbar/>
        </Profile>
    </Profiles>
    <Configs>
        <Config>
            <AutoLogonAccount/>
            <DefaultProfile Id="{c374b80f-6aea-4c02-b1db-7bb1dfc4fe84}"/>
        </Config>
    </Configs>
</AssignedAccessConfiguration>

"@)

Set-CimInstance -CimInstance $obj

LainRobertson
Silver Contributor
Aug 11, 2023
MichaelW

That's okay. It still looks like you're making progress, and it doesn't help that this is more about InTune than PowerShell, as all I can do is guess when it comes to InTune.

Because I don't understand the MDM's XML, could you leave out the XML and run just the following script skeleton for me as a test, and see if you still get an error?

$nameSpaceName="root\cimv2\mdm\dmmap" $className="MDM_AssignedAccess" $obj = Get-CimInstance -Namespace $namespaceName -ClassName $className Add-Type -AssemblyName System.Web Set-CimInstance -CimInstance $obj

If you don't get an error, then we know something is wrong with the XML. If we do get an error, then it's due to something other than the XML.

With all the previous issues taken care of, I'm expecting there should be no error.

Cheers,
Lain
- MichaelW
  Copper Contributor
  Aug 11, 2023
  No errors with the skeleton
