Part 3 - Manage Azure and Microsoft 365 with the Microsoft Graph PowerShell SDK!



Dear Microsoft Azure and Microsoft 365 Friends,



This article continues with the topic Microsoft Graph PowerShell SDK.



Part 1 and 2 can be found here:

https://techcommunity.microsoft.com/t5/windows-powershell/part-1-manage-azure-and-microsoft-365-with-the-microsoft-graph/m-p/3300352



https://techcommunity.microsoft.com/t5/windows-powershell/part-2-manage-azure-and-microsoft-365-with-the-microsoft-graph/m-p/3302366



How to Connect to Microsoft 365?

1. With direct Command
or
2. Azure App Registration



Modifying an Existing Connection:

- Scopes are required for each connection
- Scope permissions are for the current session (unless using an Azure App Registration)
- Extra needed permissions require re-connecting with the specified scopes



Viewing Existing Connection Details:

#If needed
Import-Module Microsoft.Graph



#Connect to Microsoft 365 to Access Users and Groups
Connect-MgGraph -Scopes "User.ReadWrite.All","Group.ReadWrite.All"



#View Current Connection Details
Get-MgContext
(Get-MgContext).AuthType
(Get-MgContext).Scopes



Reconnect Connection with Updated Scopes:

#Original Connection
Connect-MgGraph -Scopes "User.ReadWrite.All","Group.ReadWrite.All"



#Update Connection to Allow "Group Members"
Connect-MgGraph

-Scopes "User.ReadWrite.All","Group.ReadWrite.All","GroupMember.ReadWrite.All"

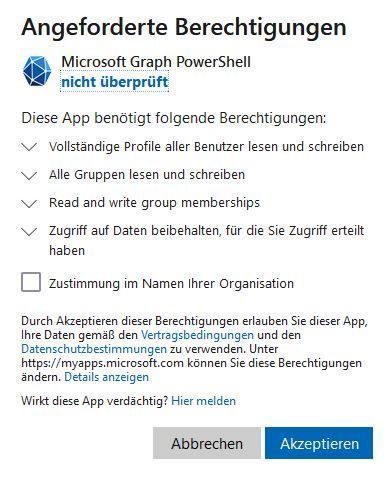

Don't forget, when updating the connection, you need to confirm the consent again.

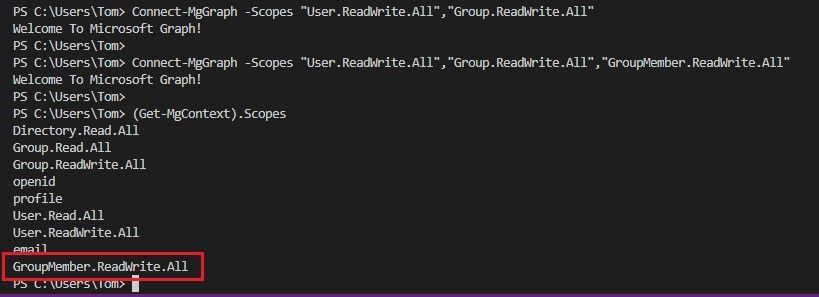

#View the new Current Connection Details
Get-MgContext
(Get-MgContext).AuthType
(Get-MgContext).Scopes



Connecting Using an Azure App Registration (Advantages of Azure App Registrations):

- App-only Access Grants Permissions to an Application
- Requires Administration Consent
- Predefined Permissions Control Access



Prerequisites to Using App-only Authentication:

- Require a Certificate
        - Self-signed or from an Authority
- Register an Azure Active Directory App
- Assign Required Permissions Scopes
- Share the Public Key of the Certificate



Creating a Self-signed Certificate:

#Create the Certificate



#Export the Created Certificate
Export-Certificate -Cert $cert -FilePath "C:\Certs\{GraphCertificate}.cer"



#Set the Password and Export as "PFX"
$pwd = ConvertTo-SecureString -String "{Password}" -Force –AsPlainTextExport -PfxCertificate `
-Cert $cert -FilePath "C:\Certs\{GraphCertificate}.pfx" -Password $pwd



Create the Azure App Registration:

1. Navigate to the Azure Active Directory Admin Center
2. Register a New Application using Accounts in the Organizational Directory Only
3. Copy the Application and Directory ID
4. Assign API Permissions
5. Upload the Certificate



Connect Using Azure App Registration:

#Connect Using an Azure App Registration
Connect-MgGraph `
-ClientId "YOUR CLIENT ID" `
-TenantId "YOUR TENANT ID" `
-CertificateThumbprint "YOUR CERT THUMBPRINT"



#Check the Current Context
Get-MgContext



That's it for the third part. In the next part, we will continue with managing Users and Groups. See you soon!
