Convert the standard Blazor navigation menu to a collapsible icon menu

While I admittedly love Blazor I’ve always changed the out-of-the-box navigation menu that comes with it. It’s the first manoeuvre I pull when spinning up a new Blazor app, stripping out the purple gradient and getting it in, what I consider, a “blank slate state”. The other change I’ve wanted to make to the out-the-box look is one of those deluxe collapsible menus that leave just the icons showing. Anyone that’s used Azure DevOps will know what I’m talking about.

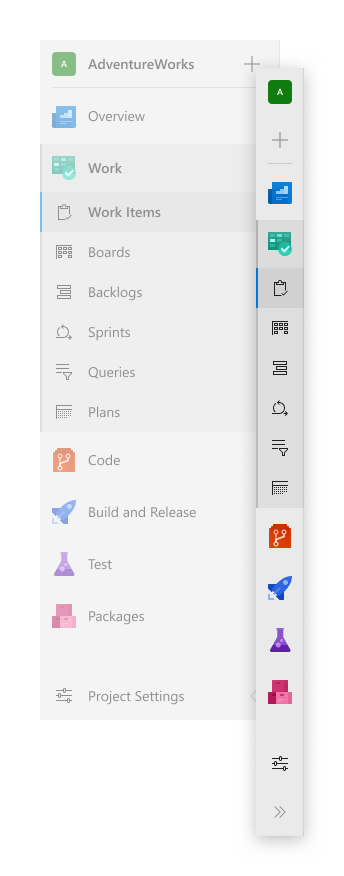

I’ve included a picture to show DevOps example of what I’d like to see in my Blazor app. It gives a load of extra screen real estate which is always a priority for me in business applications particularly with complex or intensive workflows. Plus it gives the user the option to remove the text prompts once they are familiar with the system which is supported with carefully selected icon choices.

As with most tasks that I assume will be an obvious solution I hit my search engine of choice and looked to avoid reinventing the wheel. However I found no source of pre-written changes to achieve this and was directed to fairly expensive third party controls to solve this one for me, which, being tight fisted, pushed me to do it for myself.

Here I hope you save you the trouble of paying a pretty penny or having to wrestle the CSS into submission and provide a guide for producing a nice collapsible icon navigation menu by altering the existing out of the box menu in Blazor.

In the following example I have left all the standard styling as is with the menu and just done the changes required to make the collapsible menu. The three files that require changes are MainLayout.razor, NavMenu.razor and NavMenu.razor.css. The code changes are shown below:

Firstly the NavMenu.razor requires a bool value (IconMenuActive) to indicate whether the icon menu is showing or not, then wrap the text of the each NavItem in an if statement dependent on this bool. Then a method for toggling this bool and EventCalBack to send a bool to the MainLayout.razor for shrinking the width of the sidebar. Lastly there needs to be the control for switching menu views (I used the standard io icon arrows).

NavMenu.razor

<div class="top-row ps-3 navbar navbar-dark">
    <div class="container-fluid">
        <span class="oi oi-monitor" style="color:white;" aria-hidden="true"></span>
        @if (!@IconMenuActive)
        {
            <a class="navbar-brand" href="">The Menu Title Here</a>
        }
        <button title="Navigation menu" class="navbar-toggler" @onclick="ToggleNavMenu">
            <span class="navbar-toggler-icon"></span>
        </button>
    </div>
</div>

<div class="@NavMenuCssClass" @onclick="ToggleNavMenu">
    <nav class="flex-column">
        <div class="nav-item px-3">
            <NavLink class="nav-link" href="" Match="NavLinkMatch.All">
                <span class="oi oi-home" aria-hidden="true"></span>
                @if (!@IconMenuActive)
                {
                    <label>Home</label>
                }
            </NavLink>
        </div>
        <div class="nav-item px-3">
            <NavLink class="nav-link" href="counter">
                <span class="oi oi-plus" aria-hidden="true"></span>
                @if (!@IconMenuActive)
                {
                    <label>Counter</label>
                }
            </NavLink>
        </div>
        <div class="nav-item px-3">
            <NavLink class="nav-link" href="fetchdata">
                <span class="oi oi-list-rich" aria-hidden="true"></span>
                @if (!@IconMenuActive)
                {
                    <label>Fetch data</label>
                }
            </NavLink>
        </div>
    </nav>


</div>

<div class="bottom-row">
    <div class="icon-menu-arrow">
        @if (!@IconMenuActive)
        {
            <span class="oi oi-arrow-left" style="color: white;" @onclick="ToggleIconMenu"></span>
        }
        else
        {
            <span class="oi oi-arrow-right" style="color: white;" @onclick="ToggleIconMenu"></span>
        }
    </div>
</div>

@code {
    //bool to send to MainLayout for shrinking sidebar and showing/hide menu text
    private bool IconMenuActive { get; set; } = false;

    //EventCallback for sending bool to MainLayout
    [Parameter]
    public EventCallback<bool> ShowIconMenu { get; set; }

    private bool collapseNavMenu = true;

    private string? NavMenuCssClass => collapseNavMenu ? "collapse" : null;

    private void ToggleNavMenu()
    {
        collapseNavMenu = !collapseNavMenu;
    }

    //Method to toggle IconMenuActive bool and send bool via EventCallback
    private async Task ToggleIconMenu()
    {
        IconMenuActive = !IconMenuActive;
        await ShowIconMenu.InvokeAsync(IconMenuActive);
    }
}

Next I add in a bit of CSS in to NavMenu.razor.css to put the arrow for toggling the menu at the bottom of the sidebar and a media query to make sure it doesn't show up in mobile view. The CSS classes added are .bottom-row and .icon-menu-arrow.

NavMenu.razor.css

.navbar-toggler {
    background-color: rgba(255, 255, 255, 0.1);
}

.top-row {
    height: 3.5rem;
    background-color: rgba(0,0,0,0.4);
}

.bottom-row {
    position: absolute;
    bottom: 0;
    padding-bottom: 10px;
    text-align: right;
    width: 100%;
    padding-right: 28px;
}

.icon-menu-arrow {
    text-align: right;
}

.navbar-brand {
    font-size: 1.1rem;
}

.oi {
    width: 2rem;
    font-size: 1.1rem;
    vertical-align: text-top;
    top: -2px;
}

.nav-item {
    font-size: 0.9rem;
    padding-bottom: 0.5rem;
}

    .nav-item:first-of-type {
        padding-top: 1rem;
    }

    .nav-item:last-of-type {
        padding-bottom: 1rem;
    }

    .nav-item ::deep a {
        color: #d7d7d7;
        border-radius: 4px;
        height: 3rem;
        display: flex;
        align-items: center;
        line-height: 3rem;
    }

.nav-item ::deep a.active {
    background-color: rgba(255,255,255,0.25);
    color: white;
}

.nav-item ::deep a:hover {
    background-color: rgba(255,255,255,0.1);
    color: white;
}

@media (min-width: 641px) {
    .navbar-toggler {
        display: none;
    }

    .collapse {
        /* Never collapse the sidebar for wide screens */
        display: block;
    }
}

@media (max-width: 640px) {
    .bottom-row {
        display: block;
    }
}

Finally I add in the handler for the EventCallback to MainLayout.razor and a method to alter the width of the sidebar.

MainLayout.razor

@inherits LayoutComponentBase

<div class="page">
    <div class="sidebar" style="@IconMenuCssClass">
        <NavMenu ShowIconMenu="ToggleIconMenu"/>
    </div>

    <main>
        <div class="top-row px-4">
            <a href="https://docs.microsoft.com/aspnet/" target="_blank">About</a>
        </div>

        <article class="content px-4">
            @Body
        </article>
    </main>
</div>

@code{
    private bool _iconMenuActive { get; set; }
    private string? IconMenuCssClass => _iconMenuActive ? "width: 80px;" : null;

    protected void ToggleIconMenu(bool iconMenuActive)
    {
        _iconMenuActive = iconMenuActive;
    }
}

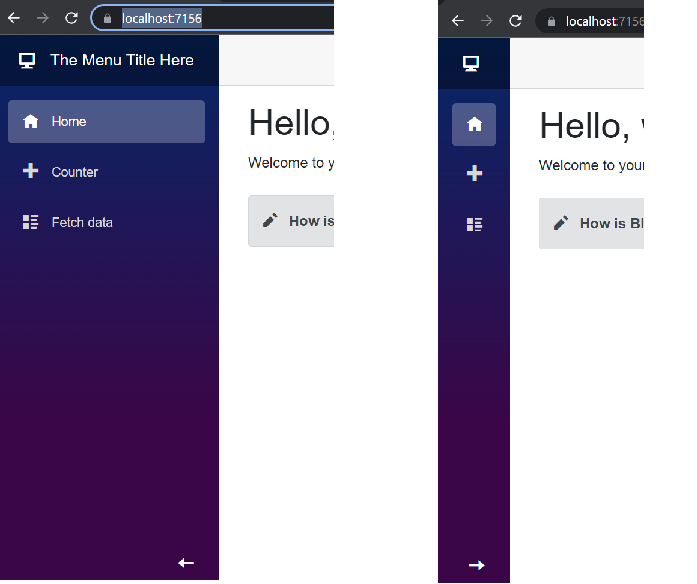

The final product of these little changes are shown in the pictures below:

I'd love to hear if anyone has tackled this in a different way to me and if they've got any ideas on making it cleaner.

Have yourselves a wonderful day,

Gav
