Forum Discussion

DanrCarollo's avatar
DanrCarollo
Copper Contributor
Apr 11, 2024

Error Upgrading from SQL 2019 to 2022 (EE): Error installing Microsoft ODBC Driver for SQL Server

So I've seen this error on 5 separate servers after attempting to upgrade from SQL Server 2019 (RTM-CU22-GDR) to SQL Server 2022, CU11.



The only way I could get SQL Setup to complete successfully was by first uninstalling both ODBC 17 and OLEDB driver using Add/Remove Programs (then rebooting).



Has anyone else experienced this?  It seems to me this might be a setup bug.  I thought maybe it was because some of the servers have multiple ODBC drivers (one from SQL 2016 and 2019), but even the servers with only ONE version of the driver (17), it still threw an error.  I have attached the detailed log file (with user names and computer names obfuscated)

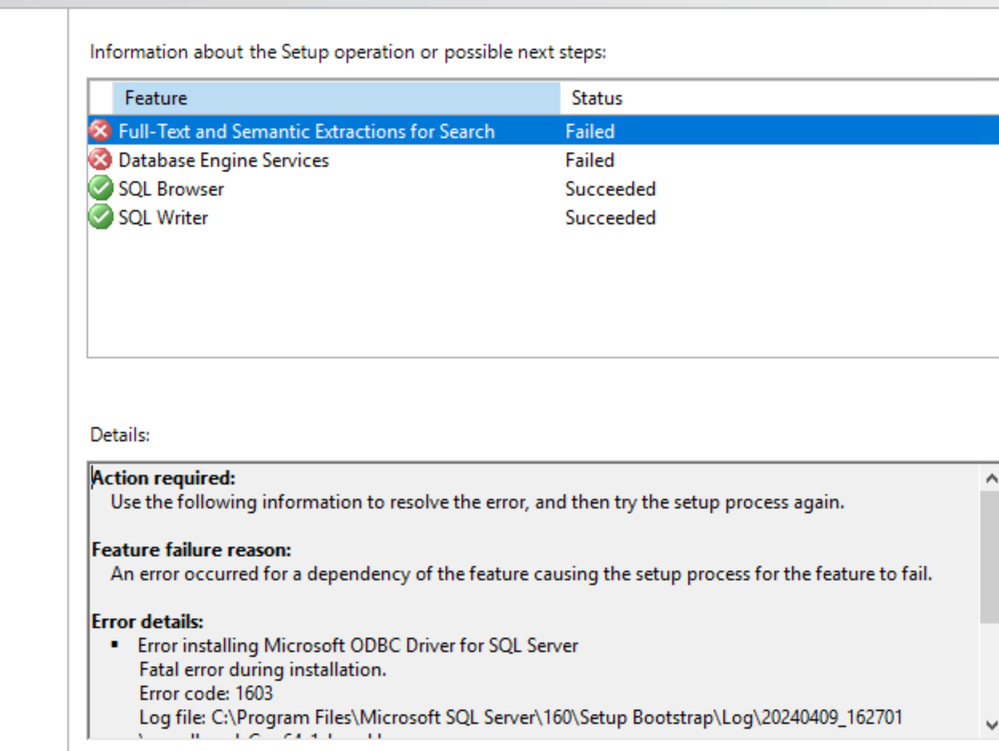

Feature failure reason: An error occured for a dependency of the feature causing the setup process for the feature to fail.

Error details: Error installing Microsoft ODBC Driver for SQL Server Fatal error during installation

Error code: 1603



Error details from the msodbcsql_Cpu64_1_Local.log setup log...  (Attached as PDF file)



NOTE: FullText search is probably a red-herring because one of the servers did NOT have FullText Search installed. The same ODBC error is showing under Database Engine Services as well.



Detailed Steps:
1. Copied all of our setup bits to local folder on server

2. Ran setup from command line (slip-streaming CU11 update):


SETUP.EXE /Action=upgrade /PRODUCTCOVEREDBYSA /SUPPRESSPRIVACYSTATEMENTNOTICE /IACCEPTSQLSERVERLICENSETERMS /INSTANCENAME=MSSQLSERVER /UpdateEnabled=True /UpdateSource=".\Updates"

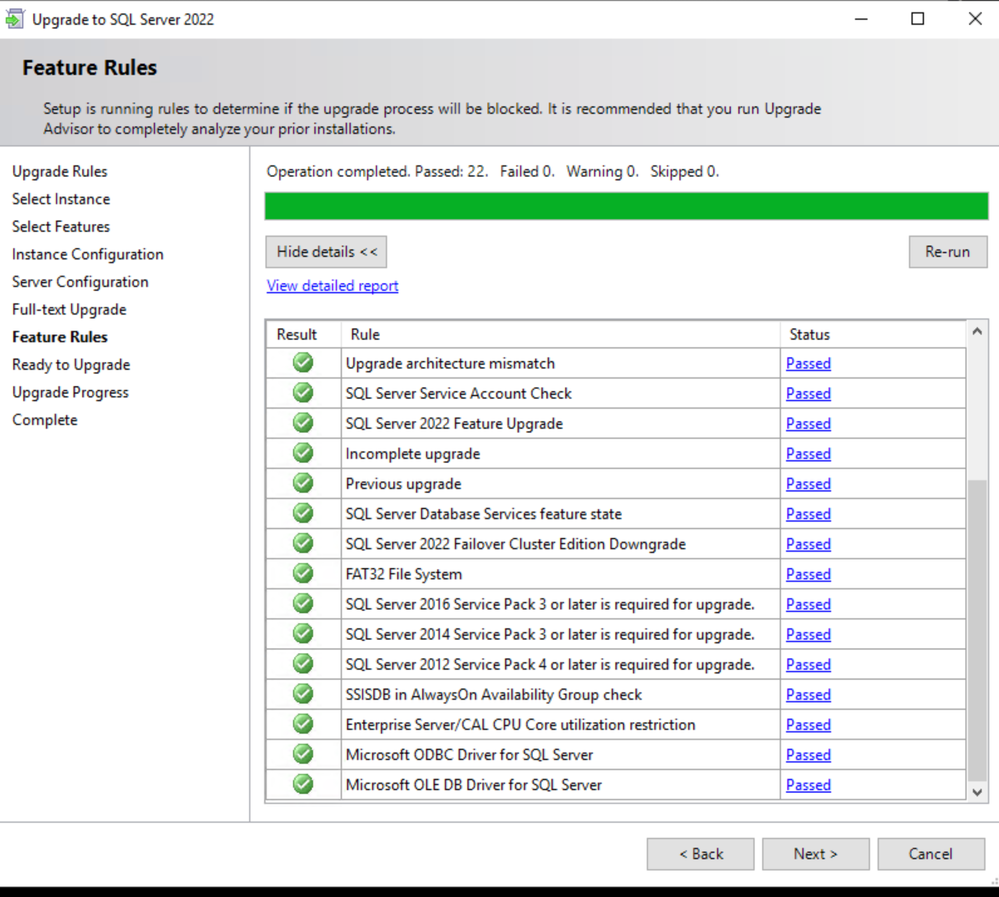

3. The pre-requisite check in the setup wizard completes successfully with no errors for either ODBC or OLEDB (as shown in the screenshot below).

4. Run setup -- which finally aborts with the error:   Error installing Microsoft ODBC Driver for SQL Server Fatal error during installation
5. To "workaround" the problem, I uninstall both ODBC and OLEDB from Add/Remove Programs and then reboot the server.  After that, I was able to successfully run SETUP with no errors.









  • MarlonRibunal's avatar
    MarlonRibunal
    Copper Contributor
    Not sure about this error but what I can say is that patching your old version to its latest CU before upgrading to SQL 2022 will save you lots of headaches.
    • DanrCarollo's avatar
      DanrCarollo
      Copper Contributor

      MarlonRibunal  I was already running CU22-GDR for SQL 2019.

      Now The one commonality -- these servers had either FullText Search, SSIS, and ONE server was enabled Distribution server (for Replication).   Otherwise, all of our basic vanilla SQL Servers (only SQL Server engine installed) had no problems.

      I'm not sure I'll get another chance to try to reproduce this in our environment.

  • SivertSolem's avatar
    SivertSolem
    Iron Contributor
    I've had a similar issue, where I've got SSMS installed and then attempt to install SQL Server 2022.
    You have correctly identified that it's the ODBC and/or OLE DB drivers.

    For some reason the SQL Server 2022 setup is unable to use the drivers if they're not installed by another SQL Server 2022 installation procedure.
    • DanrCarollo's avatar
      DanrCarollo
      Copper Contributor
      That's a very likely scenario, because almost all of the servers this was a problem with had gone through several updates previously. But I would have expected if the Rule Check ran clean, then the actual upgrade step should have, too.
