Hybird SIP domain

Hi John,

For any SIP domains that only exist in Office 365, all DNS records can point to Office 365. There are 4 records per domain that you need to configure:

SRV Records

TypeServiceProtocolPortWeightPriorityTTLNameTarget

CNAME Records

TypeHost nameDestinationTTL

For any hybrid SIP Domains, domains that exist in both Skype for Business On-Premises and Skype for Business Online, all DNS records need to point to your on-premises Edge Server(s) and Reverse Proxy.

This does of course impact the number of SANs required on your public certificates. However, if you follow the below guidance you can limit the number of SANs required on your Reverse Proxy certificate

DNS Records for Remote User/Federation (Edge Server Certificate)

For each hybrid domain in your environment, you will need to create the following records. These will hit the public certificate on your Edge server/pool. It's important that the domains are consistent between A Records and SRV Records. For example:

SRV _sip._tls.domain.com > A Record sip.domain.com:443

This means that, on your edge servers, you will need an additional SAN entry for each hybrid SIP Domain you want to support.

A Records

Type FQDN IP Address

SRV Records

TypeServiceProtocolPortWeightPriorityTTLNameTarget

DNS Records for web services (Reverse Proxy certificate)

For most URLs in a hybrid Skype for Business environment, you can negate the need to add additional entries to the public certificate by only using the same main domain for all URLs. For example:

Meet URLs

The meet simple URL, when supporting multiple domains, can be constructed like the following example, which uses the same base domain for all supported hybrid SIP Domains:

https://skype.domain.com/sipdomain1/Meet

https://skype.domain.com/sipdomain2/Meet

https://skype.domain.com/sipdomain3/Meet

Dialin URL

An on-premises/hybrid Skype for Business environment only requires a single Dialin URL, no need for multiple:

https://dialin.domain.com

However, as the lyncdiscover record is constructed using the SIP Domain entered when a user signs into the Skype for Business mobility client, you cannot use the same logic used in the meet URL example.

If you want to avoid updating the Reverse Proxy's public certificate SAN list, it can be done, but you will need to open port 80 (http) and allow for lyncdiscover to resolve and return the Skype for Business Front End pool's web services url unsecured. This works the following way:

1. Client enters in SIP Domain in Mobility client (eg john.doe@domain.com)
2. Client tries to connect to secure web services (HTTPS) at https://lyncdiscover.domain.com - fails
3. Client tries to connect to unsecure web services (HTTP) at http://lyncdiscover.domain.com - successful

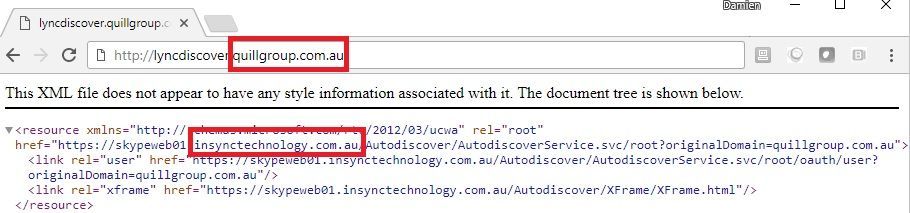

4. XML is returned to client which contains Skype for Busienss pool web services URL, which uses the primary pool SIP Domain. Here's an example of a domain in my environment that uses lyncdiscover over port 80, and shows web services in the primary SIP Doamin - this matches the domain on the Reverse Proxy certificate:

Summary

• SIP Domains only on Skype for Business Online: point all records to cloud
• SIP Domains on-prem and online (hybrid), point to on-premises Edge server(s) & Reverse Proxy
  • Edge server certificate will always require an additional SAN entry
  • Reverse Proxy certificate won't if you are happy to allow lyncdiscover over http (port 80)

I hope this helps.

Damien

I see, in this case;

Only 1 Hybrid domain, let's say for example, "hybrid.abc.com".

DNS record for Hybrid domain.

- Point to on-prem Edge for only "hybrid.abc.com" domain.

Certificate for Hybrid domain.

- Get only one certificate for "hybrid.abc.com"

- No need to consider Certificate and DSN records for Online domains.

- No need to include all other ONLINE DOMAINS.

DNS record for Online Domains.

- Don't change DNS records for Online domains.

- No additional certificates required for Online domain.

Currently all SIP domains pointed to online webdir.online.lync.com.

Go to first question if we  hybrid one sip domain, I need to hybrid all sip domains right?

But online SIP domains  lyncdiscover can still point to webdir.online.lync.com.

hybrid domain can't see online sip domains , if we didn't point all online SIP domains SRV to on-premise edge server? Because it require additional SANs certificate for edge server.

We can't save cost for the SAN certificate for another online SIP domains?

Thanks.

And yes, you can point lyncdiscover to online webdir.online.lync.com
