Windows Firewall logs are enabled, but they do not show up in Sentinel

Hello, We have MMA agent installed on 26 windows server, but we are not getting into Sentinel. I can not see any table named "WindowsFirewall" either. Do the tables appear when data starts pour...

SalmanKhan

Copper Contributor

Oct 05, 2020

CliveWatson Thanks for the prompt response.

Yes, I have configured Event logs and I can see output when I run the heartbeat query that you have mentioned. Following is the configuration for event logs - I have added everything that says "Firewall" to be safe, but it still does not help.

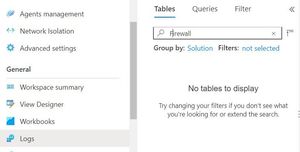

If you see below, this is how the front page of Sentinel looks like:

Is it possible that I need to tune it on the windows firewall (on the servers) as well, so that they are sent over to Sentinel?

CliveWatson

Former Employee

Oct 05, 2020

SalmanKhan

Logs configured as you have done, go into the Events Table

Event
| summarize count() by EventLog

,
Have you looked here, this is how we ask you to configure this in Sentinel? https://docs.microsoft.com/en-us/azure/sentinel/connect-windows-firewall

SalmanKhan
Copper Contributor
Oct 05, 2020
CliveWatson Thanks a lot.
I have now removed the collection via event-logs and have now configured Data Connector for Windows Defender Firewall with Advanced Security. Should it take some time before I see logs coming in?
Would it also help in getting the map "Potential malicious events" to get live?

Thanks for your help Clive 🙂 Much appreciated.
- CliveWatson
  Former Employee
  Oct 05, 2020
  SalmanKhan

  That map shows up when you have data in at least one of these Tables:

  W3CIISLog

  DnsEvents

  WireData

  WindowsFirewall

  VMConnection

  CommonSecurityLog

  to check:

  union isfuzzy=true W3CIISLog, DnsEvents, WireData, WindowsFirewall, VMConnection, CommonSecurityLog | summarize count() by Type
