Search Incidents for entries from an IP Range
Hi,
I'm trying to perform some retrospective investigations and would like to be able to list any Sentinel Incident that contained an entity from a specific IP range.
I'm not great at KQL, so trying to figure it out - any assistance\pointers would be greatly appreciated & educational!! Many thanks
**I've found one of the example queries I'm going to try and butcher and see what happens. Will update if I solve it 🙂
let rangeToCheck = "10.0.0.1/24"; SecurityIncident | summarize arg_max(TimeGenerated,*) by IncidentNumber | extend Alerts = extract("\\[(.*?)\\]", 1, tostring(AlertIds)) | mv-expand AlertIds to typeof(string) | join ( SecurityAlert | extend AlertEntities = parse_json(Entities) | mv-expand AlertEntities | where isnotempty(AlertEntities) | where AlertEntities.Type == "ip" | extend EntityIP = tostring(AlertEntities.Address) | extend EntityType = tostring(AlertEntities.Type) | extend inRange = ipv4_is_in_range(EntityIP, rangeToCheck) ) on $left.AlertIds == $right.SystemAlertId | project IncidntName = Title, IncidentNumber=IncidentNumber, inRange, EntityIP, EntityType, AlertId = AlertIds, AlertName = AlertName
7 Replies

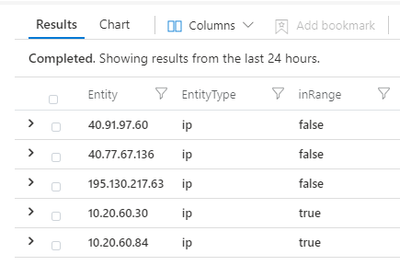

let rangeToCheck = "10.20.60.1/24"; SecurityAlert | extend AlertEntities = parse_json(Entities) | mv-expand AlertEntities | where isnotempty(AlertEntities) | where AlertEntities.Type == "ip" | extend Entity = tostring(AlertEntities.Address) | extend EntityType = tostring(AlertEntities.Type) | distinct Entity, EntityType | extend inRange = ipv4_is_in_range(Entity, rangeToCheck)Amend line #1 to put the range you are looking for, gives you a true/false
Hi Clive_Watson,
Thankyou very much for your code example - this is fantastic and educational.
I'd like to bolt on to this, the incident number & Title that the entity featured in.
Would I need to use a join - like this? (Not my code - taken from the pre-loaded queries):
AlertEvidence
| join AlertInfo on AlertId
| project Timestamp, AlertId, Title, Category , Severity , ServiceSource , DetectionSource , AttackTechniques- I reckon I'm in the wrong schema - going to try this one:
SecurityIncident
https://docs.microsoft.com/en-us/azure/sentinel/manage-soc-with-incident-metrics
CodnChips Take a look at the KQL function "ipv4_is_in_range" ipv4_is_in_range() - Azure Data Explorer | Microsoft Docs and see if that will work for you.
- Hey Gary, thanks for your response.
Yes, I've stumbled across that and am trying to mash that up with the built in query for "Alerts involving a user" - but replacing the "user bits" with the IP address\host\entity
