Playbook is not running
Hi Team, Please help me to resolve this issue. We have created one playbook for outbound traffic to ThreatIntel. But after sometime it is giving blank excel sheet. Before it provide 2-3 times result...
may you re write my query ?so i can understand easily and i will apply to get result
As you dont summarize the results returned, you could be getting 100-30k rows per workspace, that takes time and isn't easily human readable.
Maybe reduce the results using a bin or arg_max (you may in the investigation have to get the specific time range) but for the Alert this should be good enough to get focus on the rough time and details.
e.g. Add one of these lines
..
| where Computer !in (deviceIP)
| extend CommonSecurityLog_TimeGenerated = TimeGenerated
// use this
| summarize count(), make_set(SourceIP) by Computer, DeviceAction, bin(CommonSecurityLog_TimeGenerated,1d)
//or maybe this
//| summarize count(), make_set(SourceIP), arg_max(CommonSecurityLog_TimeGenerated, Computer) by DeviceAction
Maybe reduce the results using a bin or arg_max (you may in the investigation have to get the specific time range) but for the Alert this should be good enough to get focus on the rough time and details.
e.g. Add one of these lines
..
| where Computer !in (deviceIP)
| extend CommonSecurityLog_TimeGenerated = TimeGenerated
// use this
| summarize count(), make_set(SourceIP) by Computer, DeviceAction, bin(CommonSecurityLog_TimeGenerated,1d)
//or maybe this
//| summarize count(), make_set(SourceIP), arg_max(CommonSecurityLog_TimeGenerated, Computer) by DeviceAction
- where we hv to add these line because expression getting failed

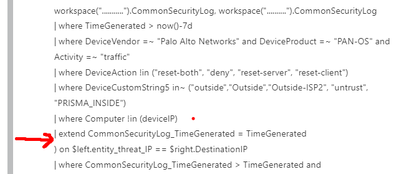

Here you can see the two lines above the arrow that match you query, then you can add either of my suggestions where the arrow is. Later lines will fail as the columns needed wont be there so, you should removed for testing lines after the join
I'd do some testing with a reduce set of KQL, something like this to get this section optimized
let deviceIP = dynamic (['fakeComputer']); CommonSecurityLog | where TimeGenerated > ago(7d) | where DeviceVendor =~ "Palo Alto Networks" and DeviceProduct =~ "PAN-OS" //and Activity =~ "traffic" | where DeviceAction !in ("reset-both", "deny", "reset-server", "reset-client") //| where DeviceCustomString5 in~ ("outside","Outside","Outside-ISP2", "untrust", "PRISMA_INSIDE") | where Computer !in (deviceIP) | extend CommonSecurityLog_TimeGenerated = TimeGenerated // use this //| summarize count(), make_set(SourceIP) by Computer, DeviceAction, bin(CommonSecurityLog_TimeGenerated,1d) //or maybe this | summarize count(), make_set(SourceIP), arg_max(CommonSecurityLog_TimeGenerated, Computer) by DeviceAction- my requirement is match the destination ip which is common in watchlist fw and ThreatIntelligenceIndicator. If i remove the after the join operator then how it will match. i hv to match common security log with ThreatIntelligenceIndicator table. Playbook name is "OutboundTraffictoThreatIntelIPsReport"
