mwolterw's avatar
mwolterw
Copper Contributor
Jan 21, 2021

Azure Monitor Workbooks unable to read parameters on graphs



I'd read the article to set interactive parameters  and it worked for Grid, Tiles and Graph, but when I pick another visualization, it won't work. This happens with all the tables I'd try.



One of the queries I am using to export parameters:



SecurityAlert
where TimeGenerated {TimeRange}
summarize count() by AlertSeverity

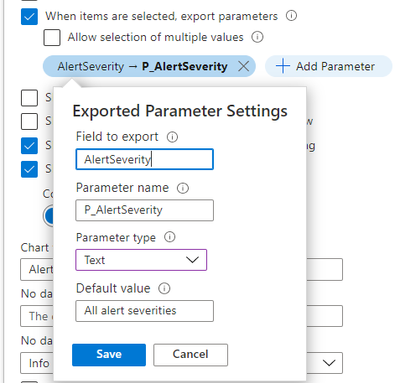

Fig. 1- Parameters setting:

Query I use to project the exported parameters:

SecurityAlert
where TimeGenerated {TimeRange}
where AlertSeverity =='{P_AlertSeverity}' or 'All alert severities' =='{P_AlertSeverity}'
summarize Count=count() by CompromisedEntitySeverity='{P_AlertSeverity}'
top 5 by Count

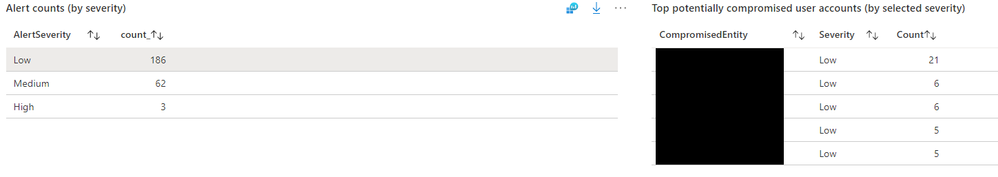

Fig. 2- As a Grid, it works (as well as Tiles and Graphs):

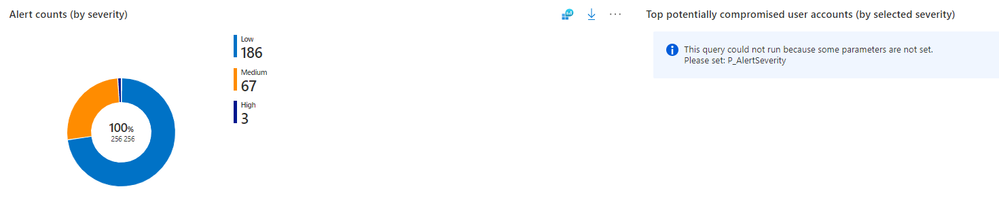

Fig. 3-When I select the Pie chart (Or any of the Bar charts), it won't work:

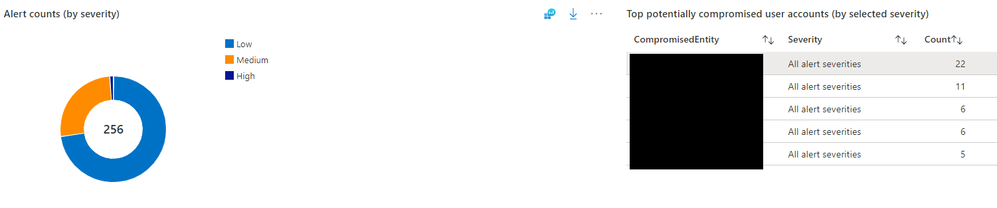

Fig. 4- If I go to the Chart Settings and I change the "Legend Settings" to "Show series legend" is the same, but if I unselect the legends, I am able to capture the default value:


Where do I need to set the parameters to click over the Low, Medium or High and get the list I see in the Fig. 2- ?

It works on Grid, Tiles and Graph, it doesn't on in Pie and Bar charts. Didn't try with the others.

Thanks.


  • mwolterw

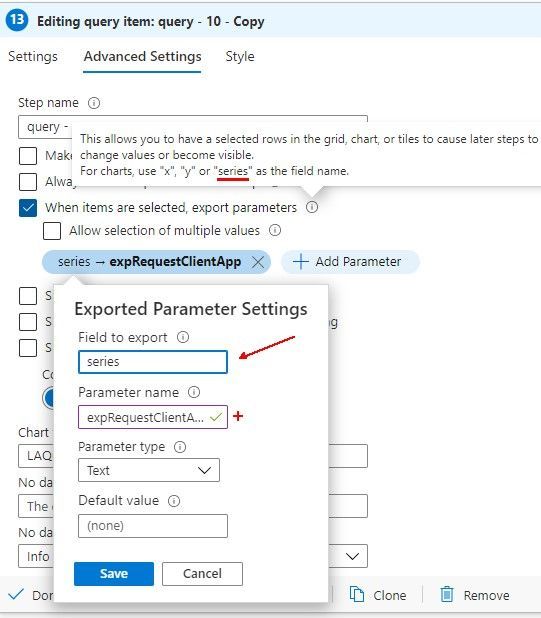

    You need to export the "series" or "x" or "y" for Charts.



    You can then use the exported parameter in a following Query, e.g.



    LAQueryLogs
    | summarize dcount(QueryText) by '{expRequestClientApp}'



  • mwolterw



    You need to export the "series" or "x" or "y" for Charts.



    You can then use the exported parameter in a following Query, e.g.



    LAQueryLogs
    | summarize dcount(QueryText) by '{expRequestClientApp}'
