Azure AD Connect (AADC) V2 upgrade case-by-case scenario

Microsoft strongly recommends upgrading to AADC 2.0 or later by June 2022. Changes in AADC 2.X version can be checked at the following link. What is Azure AD Connect v2.0? | Microsoft Docs Howeve...
Azure Active Directory (AAD)
joseparra's avatar
joseparra
Brass Contributor
Feb 06, 2022

Hi PyungraeCho



Thank you for your article, it was very useful for me. Any way I have a doubt: I upgraded successfully AD Connect from 1.6 to 2.0.91 in a Windows Server 2019. I expected the AD Connect 2.0.91 wizard to show me the error of not using TLS 1.2, because the powershell scripts show me that the corresponding entries were not defined, but I could install it with out errors. I would really like to know if the server is using TLS 1.2 or not. I've googled and it is supoosed that Windows Server 2016 and newer versions use TLS 1.2 by default but I'm confussed because the scripts to check it shows me another think, and I haven't run any script to disable it.

I attach the results of scripts privided in https://docs.microsoft.com/en-us/azure/active-directory/hybrid/reference-connect-tls-enforcement ...





Path Name Value
---- ---- -----
HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319 SystemDefaultTlsVersions Not Found
HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319 SchUseStrongCrypto Not Found
HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319 SystemDefaultTlsVersions Not Found
HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319 SchUseStrongCrypto Not Found
HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Server Enabled Not Found
HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Server DisabledByDefault Not Found
HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Client Enabled Not Found
HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Client DisabledByDefault Not Found



PyungraeCho's avatar
PyungraeCho
Icon for Microsoft rankMicrosoft
Feb 06, 2022

Hi, joseparra.

As far as I know, even in AzureAD Connet 1.X version, TLS 1.2 was already used unless disabled on the server. Also, TLS 1.2 is already enabled by default from Windows 2012 or later.
Protocols in TLS/SSL (Schannel SSP) - Win32 apps | Microsoft Docs

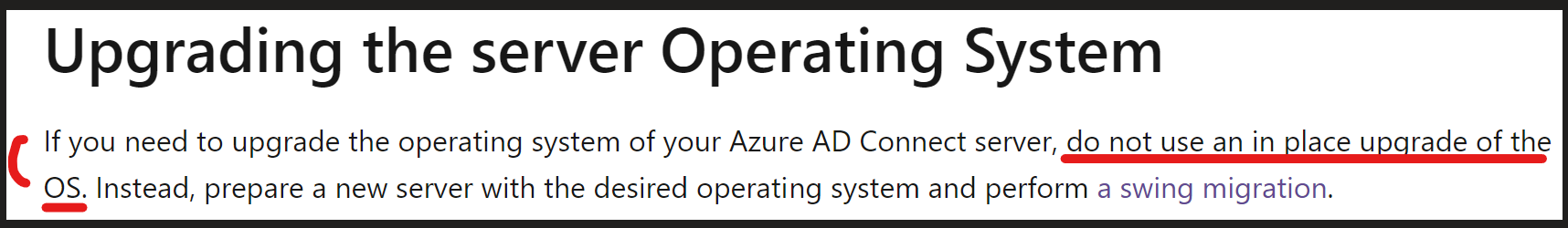

AzureAD Connect Server requires Windows 2016 or later. (In fact, Windows 2016 server or higher is required because SQL Server Express 2019 is required for AzureAD Connect). Then, shouldn't there be no errors about the TLS 1.2 requirements? But when I upgraded, I got an error like the following picture.

But you completed the upgrade on Windows 2019 without any errors. Right?
Perhaps there was an issue in checking the TLS 1.2 version when upgrading. You can find these in the document below. Up to version 2.0.10.0, there was a known issue with the TLS 1.2 check.
Azure AD Connect: Version release history | Microsoft Docs
And this issue was fixed in version 2.0.25.1. (You used the latest 2.0.91.0 installer. )
Azure AD Connect: Version release history | Microsoft Docs
Even when installing a new AzureAD Connect rather than an upgrade, if you use the 2.0.10.0 or lower version of the installation file, you can check the TLS 1.2 error, but in versions higher than this, the installation is completed without any errors like your upgrade.

Regarding TLS 2.0 in AzureAD Connect Upgrade, I also think that the documentation does not explain exactly, but this is my opinion based on test results.

""As a result, the TLS 1.2 force activation script was not needed unless it was previously disabled. And there was an error checking this in the upgrade process and it was fixed. If there are no errors when upgrading with the latest installer now, there is no problem." "
If you want to know if TLS 1.2 is really being used, you can check the network packets.
