Azure Stack HCI, 2306 Supplemental Package (preview) - discrepancy between progress
Fetching the deployment status via XML file is much more readable and precise compared to what you'll see on WAC Lite.
Example of how to fetch the status from a management host using the seeding node:
Invoke-Command -ComputerName $SeedNode -ScriptBlock {
>> ([xml](Get-Content C:\ecestore\efb61d70-47ed-8f44-5d63-bed6adc0fb0f\086a22e3-ef1a-7b3a-dc9d-f407953b0f84)) | Select-Xml -XPath "//Action/Steps/Step" | ForEach-Object { $_.Node } | Select-Object FullStepIndex, Status, Name, StartTimeUtc, EndTimeUtc, @{Name="Duration";Expression={new-timespan -Start $_.StartTimeUtc -End $_.EndTimeUtc } } | Format-Table -AutoSize
>> }

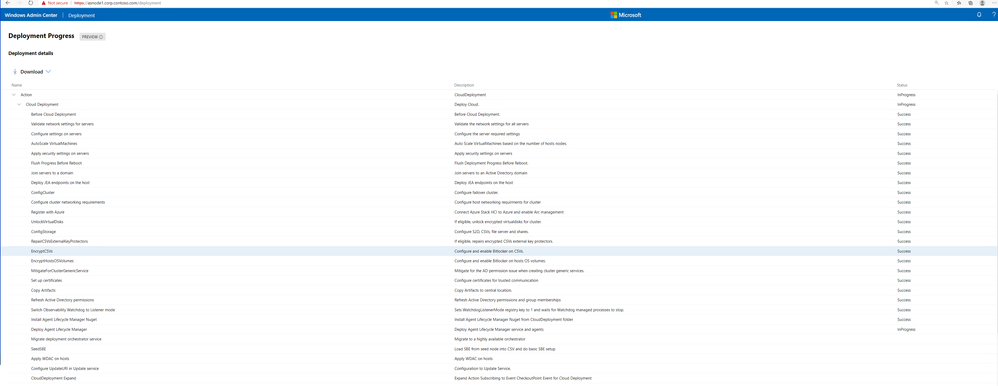

Deployment Status as seen in WAC Lite:
Deployment Status as seen with given PowerShell XML output:
FullStepIndex Status Name StartTimeUtc EndTimeUt
c
------------- ------ ---- ------------ ---------
0 InProgress Cloud Deployment 2023-09-08T02:25:08.8344395Z
0.1 Success Before Cloud Deployment 2023-09-08T02:25:11.4559195Z 2023-0...
0.1.1 Success EnvironmentValidatorFull 2023-09-08T02:25:11.5027893Z 2023-0...
0.1.1.0 Success Azure Stack HCI Connectivity 2023-09-08T02:25:11.5183762Z 2023-0...
0.1.1.1 Success Azure Stack HCI Bitlocker 2023-09-08T02:25:47.2214407Z 2023-0...
0.1.1.2 Success Azure Stack HCI External Active Directory 2023-09-08T02:25:48.2371459Z 2023-0...
0.1.1.3 Success Azure Stack HCI Hardware 2023-09-08T02:26:27.5758371Z 2023-0...
0.1.1.4 Success Azure Stack HCI Network 2023-09-08T02:26:29.2164686Z 2023-0...
0.1.1.5 Success Azure Stack HCI Observability 2023-09-08T02:26:30.294631Z 2023-0...
0.1.1.6 Success Azure Stack HCI Software 2023-09-08T02:26:36.5457993Z 2023-0...
0.1.1.7 Success Azure Stack HCI MOC Stack 2023-09-08T02:26:41.2576857Z 2023-0...
0.1.1.8 Success Azure Stack HCI Arc Integration 2023-09-08T02:26:50.2757153Z 2023-0...
0.1.2 Success SetPrerequisitesForDeployment 2023-09-08T02:27:18.9414396Z 2023-0...
0.1.3 Success SetPrerequisitesForDeployment 2023-09-08T02:27:27.249078Z 2023-0...
0.1.4 Success DisableWindowsUpdateServiceOnAllHosts 2023-09-08T02:27:35.6241222Z 2023-0...
0.1.4.1 Success Parallel per-node operation top step 2023-09-08T02:27:35.6552969Z 2023-0...
0.1.4.1.1 Success DisableWindowsUpdateService 2023-09-08T02:27:35.6552969Z 2023-0...
0.1.4.1.1 Success DisableWindowsUpdateService 2023-09-08T02:27:35.6709951Z 2023-0...
0.1.5 Success SetCloudEnvironmentVariablesOnAllHosts 2023-09-08T02:27:44.5330797Z 2023-0...
0.1.5.1 Success Parallel per-node operation top step 2023-09-08T02:27:44.5487005Z 2023-0...
0.1.5.1.1 Success SetCloudEnvironmentVariables 2023-09-08T02:27:44.5799769Z 2023-0...
0.1.5.1.1 Success SetCloudEnvironmentVariables 2023-09-08T02:27:44.5642973Z 2023-0...
0.1.6 Success Parallel per-node operation top step 2023-09-08T02:27:53.1893504Z 2023-0...
0.1.6.1 Success InstallOSCustomization 2023-09-08T02:27:53.2205614Z 2023-0...
0.1.6.1.0 Success LiveUpdateRegistryKeys 2023-09-08T02:27:53.2518641Z 2023-0...
0.1.6.1.1 Success Install windowsfeatures with restart 2023-09-08T02:28:03.5906765Z 2023-0...
0.1.6.1.2 Success Install windowsfeatures without restart 2023-09-08T02:28:30.9098956Z 2023-0...
0.1.6.1.3 Success LiveUpdateWindowsFeatures 2023-09-08T02:29:08.5907581Z 2023-0...
0.1.6.1 Success InstallOSCustomization 2023-09-08T02:27:53.2049765Z 2023-0...
0.1.6.1.0 Success LiveUpdateRegistryKeys 2023-09-08T02:27:53.2362201Z 2023-0...
0.1.6.1.1 Success Install windowsfeatures with restart 2023-09-08T02:28:03.0595019Z 2023-0...
0.1.6.1.2 Success Install windowsfeatures without restart 2023-09-08T02:28:29.9880426Z 2023-0...
0.1.6.1.3 Success LiveUpdateWindowsFeatures 2023-09-08T02:29:14.318046Z 2023-0...
0.1.7 Success Flush Progress Before Reboot 2023-09-08T02:30:32.6716905Z 2023-0...
0.1.8 Success Restart host node 2023-09-08T02:30:32.6716905Z 2023-0...
0.1.9 Success Flush Progress Before Reboot 2023-09-08T02:31:39.2342427Z 2023-0...
0.1.10 Success Restart host node 2023-09-08T02:31:39.2497477Z 2023-0...
0.1.11 Success Parallel per-node operation top step 2023-09-08T02:34:51.8859374Z 2023-0...
0.1.11.1 Success ValidateWindowsFeatureInstallation 2023-09-08T02:34:51.9170717Z 2023-0...
0.1.11.1 Success ValidateWindowsFeatureInstallation 2023-09-08T02:34:51.9015009Z 2023-0...
0.1.12 Success InstallOSUpdates 2023-09-08T02:36:08.4943378Z 2023-0...
0.1.12.1 Success PrepareOsUpdatesFromSeedNode 2023-09-08T02:36:08.525665Z 2023-0...
0.1.12.2 Success Parallel per-node operation top step 2023-09-08T02:36:12.8105575Z 2023-0...
0.1.12.2.1 Success CopyOsUpdatesFromSeedNode 2023-09-08T02:36:12.8417176Z 2023-0...
0.1.12.2.2 Success InstallOsUpdatesFromNode 2023-09-08T02:36:15.6232297Z 2023-0...
0.1.12.2.3 Success CleanupOsUpdatesFromNode 2023-09-08T02:42:46.1372654Z 2023-0...
0.1.12.2.1 Success CopyOsUpdatesFromSeedNode 2023-09-08T02:36:12.8260575Z 2023-0...
0.1.12.2.2 Success InstallOsUpdatesFromNode 2023-09-08T02:36:16.4201Z 2023-0...
0.1.12.2.3 Success CleanupOsUpdatesFromNode 2023-09-08T02:42:40.6974386Z 2023-0...
0.1.12.3 Success RestartHostNode 2023-09-08T02:42:49.5129135Z 2023-0...
0.1.12.4 Success RestartHostNode 2023-09-08T02:43:53.8356468Z 2023-0...
0.1.13 Success Parallel per-node operation top step 2023-09-08T02:47:09.0400405Z 2023-0...
0.1.13.1 Success Expand Live Update Content 2023-09-08T02:47:09.1180454Z 2023-0...
0.1.13.1 Success Expand Live Update Content 2023-09-08T02:47:09.0867606Z 2023-0...
0.1.14 Success Install Role Nugets 2023-09-08T02:52:42.3352209Z 2023-0...
0.1.15 Success Setup Observability Volume 2023-09-08T02:55:17.8476392Z 2023-0...
0.1.15.0 Success Register Observability EventSource 2023-09-08T02:55:17.8632574Z 2023-0...
0.1.15.1 Success Setup Observability Volume 2023-09-08T02:56:46.1241375Z 2023-0...
0.1.15.2 Success Create Observability Subfolders and Volume Pruner 2023-09-08T02:57:02.1051668Z 2023-0...
0.1.15.3 Success Setup UTC Exporter Feature 2023-09-08T02:57:12.4645786Z 2023-0...
0.1.15.4 Success Install VC Redistributable 2023-09-08T02:57:30.4020852Z 2023-0...
0.1.15.5 Success Setup uptime scheduled task 2023-09-08T02:57:40.4802871Z 2023-0...
0.1.15.6 Success Setup census event scheduled task 2023-09-08T02:57:49.8597304Z 2023-0...
0.1.15.7 Success Setup registration events task 2023-09-08T02:58:01.109813Z 2023-0...
0.1.15.8 Success Set DeviceType Registry Key 2023-09-08T02:58:12.6163635Z 2023-0...
0.1.16 Success Installs Bootstrap Observability 2023-09-08T02:58:17.9757357Z 2023-0...
0.1.16.0 Success Set DeviceType Registry Key 2023-09-08T02:58:17.991366Z 2023-0...
0.1.16.1 Success Set GMATenantJsonRegistryKeys 2023-09-08T02:58:23.2726161Z 2023-0...
0.1.16.2 Success Install Arc for server agent and extensions 2023-09-08T02:58:32.1021905Z 2023-0...
0.1.17 Success EnableFirewallPortsOnAllHosts 2023-09-08T03:05:39.7284057Z 2023-0...
0.1.17.1 Success Parallel per-node operation top step 2023-09-08T03:05:39.7753087Z 2023-0...
0.1.17.1.1 Success EnableFirewallPorts 2023-09-08T03:05:39.8221865Z 2023-0...
0.1.17.1.1 Success EnableFirewallPorts 2023-09-08T03:05:39.7908975Z 2023-0...
0.1.18 Success ResizeSystemDriveOnAllHosts 2023-09-08T03:05:52.3366318Z 2023-0...
0.1.18.1 Success Parallel per-node operation top step 2023-09-08T03:05:52.3522608Z 2023-0...
0.1.18.1.1 Success ResizeSystemDrive 2023-09-08T03:05:52.3991337Z 2023-0...
0.1.18.1.1 Success ResizeSystemDrive 2023-09-08T03:05:52.383508Z 2023-0...
0.1.19 Success AddDSCCertificateOnHost 2023-09-08T03:06:03.0663753Z 2023-0...
0.1.20 Success UpdateStampInformation 2023-09-08T03:06:10.3188924Z 2023-0...
0.1.20.1 Success Parallel per-node operation top step 2023-09-08T03:06:10.3345329Z 2023-0...
0.1.20.1.1 Success Update Stamp Information 2023-09-08T03:06:10.3814005Z 2023-0...
0.1.20.1.1 Success Update Stamp Information 2023-09-08T03:06:10.365804Z 2023-0...
0.2 Success Validate network settings for servers 2023-09-08T03:06:16.287882Z 2023-0...
0.2.1 Success ValidateEceHostNetworkSettings 2023-09-08T03:06:16.3033268Z 2023-0...
0.3 Success Configure settings on servers 2023-09-08T03:06:27.3136903Z 2023-0...
0.3.1 Success ConfigureAzureStackHostsPreConfig 2023-09-08T03:06:27.4388217Z 2023-0...
0.4 Success AutoScale VirtualMachines 2023-09-08T03:06:30.5793357Z 2023-0...
0.5 Success Apply security settings on servers 2023-09-08T03:06:30.7668229Z 2023-0...
0.5.1 Success Parallel per-node operation top step 2023-09-08T03:06:30.7824524Z 2023-0...
0.5.1.1 Success Prepare SecurityBaseline Metadata 2023-09-08T03:06:30.829403Z 2023-0...
0.5.1.2 Success Enforce SecurityBaseline 2023-09-08T03:06:33.9699516Z 2023-0...
0.5.1.3 Success Enforce SecuredCore 2023-09-08T03:06:44.8491817Z 2023-0...
0.5.1.4 Success Configure OSConfig DriftControl 2023-09-08T03:06:48.7241873Z 2023-0...
0.5.1.1 Success Prepare SecurityBaseline Metadata 2023-09-08T03:06:30.8137493Z 2023-0...
0.5.1.2 Success Enforce SecurityBaseline 2023-09-08T03:06:33.8606136Z 2023-0...
0.5.1.3 Success Enforce SecuredCore 2023-09-08T03:06:43.411684Z 2023-0...
0.5.1.4 Success Configure OSConfig DriftControl 2023-09-08T03:06:47.0367128Z 2023-0...
0.6 Success Flush Progress Before Reboot 2023-09-08T03:06:51.5836192Z 2023-0...
0.7 Success Join servers to a domain 2023-09-08T03:06:51.5991867Z 2023-0...
0.7.1 Success Deploy AD and domain join physical machines 2023-09-08T03:06:51.6304755Z 2023-0...
0.7.1.1 Success Add host to domain 2023-09-08T03:06:52.567935Z 2023-0...
0.7.1.2 Success Add host membership to security groups 2023-09-08T03:10:35.9829234Z 2023-0...
0.8 Success Deploy JEA endpoints on the host 2023-09-08T03:10:42.1090313Z 2023-0...
0.8.1 Success Parallel per-node operation top step 2023-09-08T03:10:42.1558589Z 2023-0...
0.8.1.1 Success Update Baremetal JEA endpoints 2023-09-08T03:10:42.202733Z 2023-0...
0.8.1.2 Success Update Baremetal JEA endpoints 2023-09-08T03:10:48.953369Z 2023-0...
0.8.1.2.1 Success Update Baremetal JEA endpoints 2023-09-08T03:10:49.0626434Z 2023-0...
0.8.1.1 Success Update Baremetal JEA endpoints 2023-09-08T03:10:42.187093Z 2023-0...
0.8.1.2 Success Update Baremetal JEA endpoints 2023-09-08T03:10:50.5939981Z 2023-0...
0.8.1.2.1 Success Update Baremetal JEA endpoints 2023-09-08T03:10:50.7191111Z 2023-0...
0.9 Success ConfigCluster 2023-09-08T03:11:31.2731412Z 2023-0...
0.9.1 Success ConfigCluster 2023-09-08T03:11:31.3826336Z 2023-0...
0.9.2 Success ConfigWitness 2023-09-08T03:14:13.3245004Z 2023-0...
0.10 Success Configure cluster networking requirements 2023-09-08T03:14:16.824566Z 2023-0...
0.10.1 Success Start ATC tracing 2023-09-08T03:14:16.8562837Z 2023-0...
0.10.2 Success Configure host networking requirements 2023-09-08T03:14:20.2627417Z 2023-0...
0.10.3 Success Configure hosts adapter IP addresses 2023-09-08T03:18:20.497262Z 2023-0...
0.10.4 Success Validate ATC service 2023-09-08T03:18:23.8653905Z 2023-0...
0.10.5 Success Validate Host Reachability 2023-09-08T03:18:41.2113366Z 2023-0...
0.10.6 Success Stop ATC tracing 2023-09-08T03:18:49.7291644Z 2023-0...
0.11 Success Register with Azure 2023-09-08T03:18:54.5427914Z 2023-0...
0.11.1 Success RegisterStamptoAzure 2023-09-08T03:18:54.5740379Z 2023-0...
0.12 Success UnlockVirtualDisks 2023-09-08T03:25:46.2502502Z 2023-0...
0.12.0 Success Enable S2D for repair 2023-09-08T03:25:46.3283738Z 2023-0...
0.12.1 Success Unlock Enctypted VirtualDisks 2023-09-08T03:25:51.8598104Z 2023-0...
0.13 Success ConfigStorage 2023-09-08T03:25:53.7191889Z 2023-0...
0.13.1 Success ConfigStorage 2023-09-08T03:25:53.7503781Z 2023-0...
0.14 Success RepairCSVsExternalKeyProtectors 2023-09-08T03:27:34.5590147Z 2023-0...
0.14.0 Success Repair Encrypted CSVs External Key Protectors 2023-09-08T03:27:34.6058889Z 2023-0...
0.15 Success EncryptCSVs 2023-09-08T03:27:36.8558855Z 2023-0...
0.16 Success EncryptHostsOSVolumes 2023-09-08T03:27:40.5121677Z 2023-0...
0.17 Success MitigateForClusterGenericService 2023-09-08T03:27:42.0435738Z 2023-0...
0.18 Success Set up certificates 2023-09-08T03:27:51.2019195Z 2023-0...
0.18.0 Success Install ASCA and Set Up External Certficates 2023-09-08T03:27:51.2487492Z 2023-0...
0.18.0.0 Success StageAndGenerateCertificates 2023-09-08T03:27:53.4987664Z 2023-0...
0.18.0.0.0 Success Generate certificates 2023-09-08T03:27:53.5300089Z 2023-0...
0.18.0.0.1 Success Publish artifacts 2023-09-08T03:28:00.4055286Z 2023-0...
0.19 Success Copy Artifacts 2023-09-08T03:28:03.9995672Z 2023-0...
0.20 Success Refresh Active Directory permissions 2023-09-08T03:28:13.8277691Z 2023-0...
0.20.1 Success Parallel per-node operation top step 2023-09-08T03:28:13.8433192Z 2023-0...
0.20.1.1 Success PurgeLocalMachineTicket 2023-09-08T03:28:13.9058177Z 2023-0...
0.20.1.1 Success PurgeLocalMachineTicket 2023-09-08T03:28:13.8901953Z 2023-0...
0.21 InProgress Switch Observability Watchdog to Listener mode 2023-09-08T03:28:21.5785007Z
0.21.0 InProgress Evaluate GMA Configuration type 2023-09-08T03:28:21.5940174Z
0.21.0.1 InProgress Parallel per-node operation top step 2023-09-08T03:28:23.2660084Z
0.21.0.1.1 InProgress Switch Observability Watchdog to Listener mode 2023-09-08T03:28:23.4065185Z
0.21.0.1.2 Stop Arc Extension Observability Agent
0.21.0.1.3 Stop Env Checker and Arc Extension Remote Support Agent
0.21.0.1.1 InProgress Switch Observability Watchdog to Listener mode 2023-09-08T03:28:23.3753356Z
0.21.0.1.2 Stop Arc Extension Observability Agent
0.21.0.1.3 Stop Env Checker and Arc Extension Remote Support Agent
0.22 Install Agent Lifecycle Manager Nuget
0.23 Deploy Agent Lifecycle Manager
0.24 Migrate deployment orchestrator service
0.25 SeedSBE
0.26 Apply WDAC on hosts
0.27 Configure UpdateURI in Update service
0.28 CloudDeployment Expand
0.29 UpdateSBE
0.30 PreCheck for DeployMOCStack
0.31 EnvironmentValidatorReplayResult
0.32 Send Telemetry from cached files
0.33 Enable SMB Encryption
0.34 Migrate deployment orchestrator service
0.35 [Security] FinalizeHostSecurity
0.36 [Security] FinalizeHostEncryption
0.37 Clean up temporary content
I would love if WAC Lite would simply just do the same fetching the XML output and render it in HTML, rather than having its own style of output on the deployment progress, especially since the XML based output is more precise and quite more verbose and gives a better UX to the user in terms of current steps and steps remaining in the process.
Secondly, I believe this would make future changes obsolete in the WAC Lite progress view.
In the XML view the column "description" could be added as done in WAC Lite with the user-friendly description each task.
No RepliesBe the first to reply
