VM details query

Hi Team, Trying to query VM details using KQL but unable to include different thing in query. VMComputer | where _ResourceId != "" | summarize by TimeGenerated, HostName, AzureImageSku, Az...

azure monitor

Query Language

CliveWatson
Mar 11, 2020
Rahul_Mahajan

Those data types are arrays, so need to be strings at the end of a Summarize - I used https://docs.microsoft.com/en-us/azure/kusto/query/tostringfunction to allow this

https://ms.portal.azure.com#@72f988bf-86f1-41af-91ab-2d7cd011db47/blade/Microsoft_Azure_Monitoring_Logs/DemoLogsBlade/resourceId/%2FDemo/source/LogsBlade.AnalyticsShareLinkToQuery/q/H4sIAAAAAAAAA2WQS0%252FDMBCE7%252F0VS08g%252BciVQ2hFiEQAkSpX5CZDYjV%252ByA8qR%252Fx4TAhCafbmndlvZ12XOy1N8LCbLzr3sKD3NzgdbIOipas72m6T4oKU3IoRdIx0EBI5FCz3aBk9auefuQSjbAwWheQdqlOYn3%252Bw3Opg2IaWNVmedMO90GqeqNIaRjsTHKM9DFQL1cSsg%252FI1rJuMl5zXPjrR8KGE1DaW94xezE8%252BoboqOg%252F5wKUY4rodhuE3%252ByWxFtaHBORNLxQO0STP3BPjFLfy6f7VRT79hk3868J83mZta%252BEc3A1bCnt88DD4PBHOPK7kKhwVfMndaSGlMP%252FEb%252FiKGa%252B6AQAA/timespan/P1D

VMComputer | where _ResourceId != "" | summarize by TimeGenerated, HostName, AzureImageSku, AzureResourceGroup, AzureLocation, AzureSize, Cpus, DependencyAgentVersion, PhysicalMemoryMB, OperatingSystemFamily, OperatingSystemFullName, VirtualMachineType, VirtualizationState, tostring(Ipv4Addresses), tostring(Ipv4DefaultGateways), tostring(Ipv4SubnetMasks), tostring(MacAddresses)

I

Rahul_Mahajan

Brass Contributor

Mar 12, 2020

Thanks ton Deleted

One more thing.. can you please help to get VM disk size and state added like stopped or running as I am not able to find any details in it for that.

or suggest any other query which will have all these details.

CliveWatson

Former Employee

Mar 12, 2020

Rahul_Mahajan

For running state if you don't have it in any of your tables (its not a default for logging) then you have to create a test. Here I'm joining the data to the Heartbeat Table as all Log Analytics computers will have this (you may wish to use another Table instead or in addition). Its a basic test as a Server could be up but the agent not sending data.

// left Table
VMComputer
| where _ResourceId != ""
| summarize by TimeGenerated, HostName, AzureImageSku, AzureResourceGroup,
               AzureLocation, AzureSize, Cpus, DependencyAgentVersion,
               PhysicalMemoryMB, OperatingSystemFamily, OperatingSystemFullName,
               VirtualMachineType, VirtualizationState,
               tostring(Ipv4Addresses), tostring(Ipv4DefaultGateways), tostring(Ipv4SubnetMasks), tostring(MacAddresses)
// right Table
| join (
    Heartbeat
    //
    // I consider a machine to be running if we have a positive heartbeat count in the past hour
    // This only tests the agent not the server
    //
    | where TimeGenerated > ago(1h)
    | summarize  HeartbeatCount = count() by Computer
) on $left.HostName == $right.Computer   // join on the HostName, by mapping that to the Computer name
| extend isRunning = iif(HeartbeatCount >=0   ,"Running","Not found")

https://ms.portal.azure.com#@72f988bf-86f1-41af-91ab-2d7cd011db47/blade/Microsoft_Azure_Monitoring_Logs/DemoLogsBlade/resourceId/%2FDemo/source/LogsBlade.AnalyticsShareLinkToQuery/q/H4sIAAAAAAAAA2VSXW%252FaQBB8R%252BI%252FbKw8gGTFrdRXRyJEJUglrQLiNTrshbvG96G7PahRfnzXNoZS%252FGKfd252dnayDCrcEqzEpsLhYL2YWu0ioR8OPuEg0SO8v2Gw0Rc4L%252BEuhyRpSiFqLbw6ImxqWCmNMzToBWGZwosN9Co0pjA5Ro9zLXa4%252FIinY8828za6dDiA66fF%252FLCFIGXN6cqS%252B6QwdTGk8IwOTYmmqCc7NLRGH1rgDdEvWQdViGqB2vp68ZTCT9coVGa3rAOh%252Fi60qurb37GqOvU3lGvlKTKjKKQyuKodg07%252F1LEVvCS24HYoYkc8dxjN3f7bpCw9hoBhnF4XnnErYkUzpjiI%252Bqa8jBuDtBDh46rEai6Mw0GWgVc7ed7oJ%252Fy2ysCo0%252FSCwtMGBXXHLOvfMIfCmqBK9CBAdxNyE9gg%252BGgMdwK1hQOCFHtkiLNBkeJP2VMyQTQE3IwkghOBQPKm4dxiJVUAa6oaCAOFFiaaJYKx1J4C%252Bn0TvX%252B19TG8Chk88k07%252BirHPegSyMuQ01ZQ3gkbjZuoXuI9Zilw34T%252FoQ8s5Dnct%252B499LhOeWuh7Qa7pJvptHCusYYkz89uNYDzVdNQNhvAP8SZBRXeTk7moNR29J%252FOx%252FwLd0uTEyhJk1e2Zcu1Mhn%252FBWaZTUmoAwAA

e.g.

HostName	isRunning	HeartbeatCount
rancher-node-3	Running	60
gangams-kind-k8s-cluster-master	Running	60
InfraScaleVMs	Running	60
demo2	Running	60
MarketingLinux1	Running	60
node-4	Running	30
rancher-node-1	Running	60
rancher-node-2	Running	60
ContosoASCAlert	Running	59

For disk size you will need a counter - do you have any for disk, normally these are under the Perf table?

There is an example query when you OPEN a new Tab.

// Top 10 computers with the highest disk space
// Show the top 10 computers with the highest available disk space
Perf
| where CounterName == "Free Megabytes" and InstanceName == "_Total"
| summarize arg_max(TimeGenerated, *) by Computer
| top 10 by CounterValue

Rahul_Mahajan
Brass Contributor
Mar 17, 2020
CliveWatson

regarding VM state its seems difficult to get the state of VMs with output what we are getting using

VMComputer
| where TimeGenerated > ago(1d)
| where _ResourceId != ""
| summarize by TimeGenerated, HostName, AzureImageSku, AzureResourceGroup,
AzureLocation, AzureSize, Cpus, DependencyAgentVersion,
PhysicalMemoryMB, OperatingSystemFamily, OperatingSystemFullName,
VirtualMachineType, VirtualizationState,
tostring(Ipv4Addresses), tostring(Ipv4DefaultGateways), tostring(Ipv4SubnetMasks), tostring(MacAddresses)

Like I want to get VM status in front of the above query output as Running or Stopped (Deallocated)
or Stopped.

If not possible, can you help to integrate below query details for disk space with VMComputer output

Perf
| where TimeGenerated > now(-10min) and CounterName == "% Free Space" and InstanceName !contains "DPM"
| where strlen(InstanceName) ==2 and InstanceName contains ":"
| summarize FreeDiskSpace = (avg(CounterValue)) by bin(TimeGenerated, 1h), Computer, InstanceName
| sort by TimeGenerated, Computer desc;
- CliveWatson
  Former Employee
  Mar 17, 2020
  Rahul_Mahajan

  Like this? https://ms.portal.azure.com#@72f988bf-86f1-41af-91ab-2d7cd011db47/blade/Microsoft_Azure_Monitoring_Logs/DemoLogsBlade/resourceId/%2FDemo/source/LogsBlade.AnalyticsShareLinkToQuery/q/H4sIAAAAAAAAA2WT3YrbMBCF7w15h2mgYINLuqVXhRTSDZsG6jbUIbdFkSe2Gmlk9LNBYR%252B%252BspPdxLWuLM3RN0cz49kMJB4cbNle4iTZFY9atd6hmSQvcGrQIAhL2qFqXUj%252F%252FEarveG4rrJOYL1SzIgzwj7AVihcIaFhDqscvmvrfjKFOSzO3uBasRrLo79uX0Ero32bTxIYrl7zQ3PmhKbrlTLmyeGx9TaHJbZIFRIPixrJ7dDYXjgCbZpgBWeyQKVNKL7l8KvtHAqqy2Djs56YEjKMj72UF%252Fcj5E4Y5yOR8UYQbkMbRdczce4Nly6WYPwoFytiYoZ03T5%252FXlSVQWvRZvkwsMQD89KtIuLEwihc%252Bj2hK5g9DkLRzT3x1sXZDIyom7cOv8BfLQjSi7sNmsPl67Xbgy7CVyB9Sj88fFSCMmBURbKnCO5qA%252FM5TN%252FDk0GEsmUcp71iTdYx4thL3nFNjgmyMF1uiukwV%252FQukdL7C1mEfhpjbpQvb4zb8HUOlsIeexMwh5Q91%252BnV6I5Jj1nWDeheUPrfkD40d8XKBzknSQaa4P5%252F0KZCMxp1uBGgQsuTf9RyQqRUAwAA

  // left Table VMComputer | where isnotempty(_ResourceId) | summarize by TimeGenerated, HostName, AzureImageSku, AzureResourceGroup, AzureLocation, AzureSize, Cpus, DependencyAgentVersion, PhysicalMemoryMB, OperatingSystemFamily, OperatingSystemFullName, VirtualMachineType, VirtualizationState, tostring(Ipv4Addresses), tostring(Ipv4DefaultGateways), tostring(Ipv4SubnetMasks), tostring(MacAddresses), Computer // right Table | join ( Perf | where TimeGenerated > now(-10min) and CounterName == "% Free Space" and InstanceName !contains "DPM" | where strlen(InstanceName) ==2 and InstanceName contains ":" | summarize FreeDiskSpace = (avg(CounterValue)) by bin(TimeGenerated, 1h), Computer, InstanceName ) on Computer | order by TimeGenerated , Computer desc

  or (with running info)
  - CliveWatson
    Former Employee
    Mar 17, 2020
    @Rahul_Mahajan

    Depending on your use case, if you just wanted to visually see this type of data a Azure Monitor Workbook should help.

    Please look for and open the file (RAW mode is best) at this link: https://github.com/CliveW-MSFT/KQLpublic/blob/master/KQL/Workbooks/AzureVMwithDiskspace.workbook

    you just need to COPY all the file content (Ctrl+A then Ctrl+C)

    Installation

    [Copy] the workbook file content (these are JSON files), open Azure Monitor Workbooks (from portal.azure.com) – open the “empty” Azure Monitor Workbook, in “advanced edit” mode (press the </> icon for advanced edit ). Please [paste] over any json that exists.

    Then Press [apply] then [Done Editing]

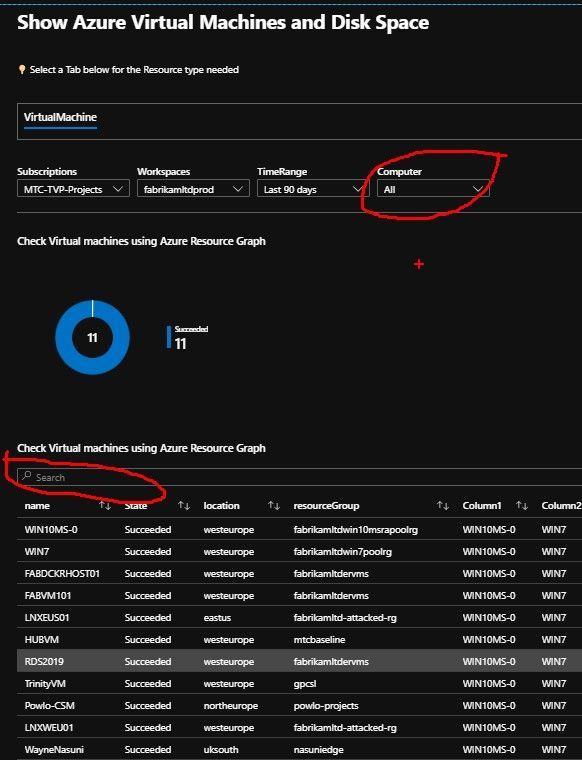

    This should look like

    You can use the Search bar (circled in red) to filter on state, like Succeeded or Deallocated etc...

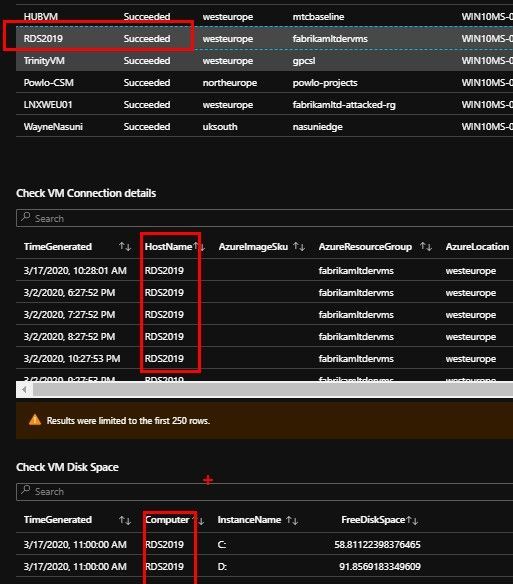

    When you highlight a Virtual Machine, click on a ROW (and if there is data) you get the VM Connection info an or the Disk Space
