Report on selected servers for a week on the memory usage

I would like a help with a Kusto  query which I have almost completed but I am struggling in the last part.



Kusto query

Perf
| where ObjectName == "Memory" and CounterName == "% Committed Bytes In Use" and Computer == "VM-WVD-REL86-5.networkhg.org.uk"
| extend Used_Percent_Memory = 100- CounterValue
| summarize Used_Percent_Memory = max(CounterValue) by Computer, ObjectName
| where Used_Percent_Memory < 90 and Used_Percent_Memory > 70



This query shows me percent memory being used over 70% for specific server



But I would like to add a extra line in this query, where it will show me the memory percent for 5 days for this relevant server



I found this but I am not sure where to exactly added within this query.

let start_time=startofday(datetime("2018-03-01"));
let end_time=now();

  • Arslan11



    Perf
    | where TimeGenerated > startofday(ago(5d)) // from midnight, just use ago(5d) for 5days before now
    | where ObjectName == "Memory" and CounterName == "% Committed Bytes In Use"
    //and Computer == "VM-WVD-REL86-5.networkhg.org.uk"
    | extend Used_Percent_Memory = 100- CounterValue
    | summarize Used_Percent_Memory = max(CounterValue) by Computer, ObjectName
    | where Used_Percent_Memory < 90 and Used_Percent_Memory > 70



    Computer ObjectName Used_Percent_Memory
    Computer1 Memory 77.8518753051758
    Computer2 Memory 83.6081695556641





    You could also use startofweek()


    Perf
    | where TimeGenerated > startofweek(now())
    | where ObjectName == "Memory" and CounterName == "% Committed Bytes In Use"
    //and Computer == "VM-WVD-REL86-5.networkhg.org.uk"
    | extend Used_Percent_Memory = 100- CounterValue
    | summarize Used_Percent_Memory = max(CounterValue), min(TimeGenerated) by Computer, ObjectName
    | where Used_Percent_Memory < 90 and Used_Percent_Memory > 70



    Computer ObjectName Used_Percent_Memory min_TimeGenerated
    Computer1 Memory 77.8518753051758 2020-04-27T09:00:52.997Z
    Computer2 Memory 83.6081695556641 2020-04-26T00:00:03.257Z

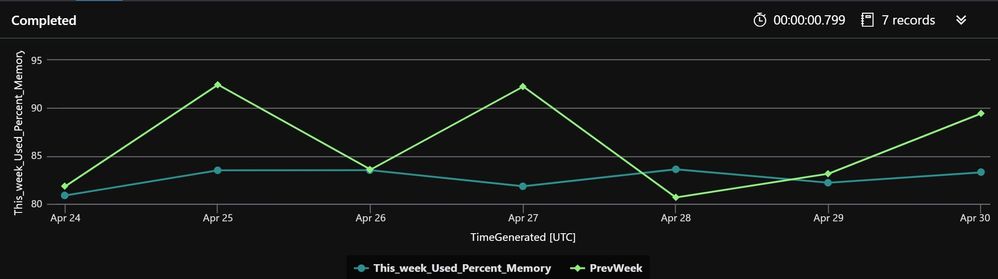

    You can also compare weeks, example

    Perf
    | where TimeGenerated > startofday(ago(14d))
    | where Computer startswith "retail"
    | where ObjectName == "Memory" and CounterName == "% Committed Bytes In Use"
    | extend Used_Percent_Memory = 100- CounterValue
    | summarize This_week_Used_Percent_Memory = max(CounterValue) by bin(TimeGenerated, 1d), Computer, ObjectName
    | order by TimeGenerated asc
    | extend PrevWeek=prev(This_week_Used_Percent_Memory, 7)
    | where TimeGenerated > ago(7d)
    | project TimeGenerated, This_week_Used_Percent_Memory , PrevWeek
    | render timechart











    • Arslan11's avatar
      Arslan11
      Brass Contributor

      CliveWatson  Thanks , I tired your query but it didn't answer my question, I have  pasted the query.



      | where TimeGenerated > startofday(ago(1d))
      | where ObjectName == "Memory" and CounterName == "% Committed Bytes In Use" and Computer == "VM-WVD-REL86-5.networkhg.org.uk"
      | extend Used_Percent_Memory = 100- CounterValue
      | summarize Used_Percent_Memory = max(CounterValue), min(TimeGenerated) by Computer, ObjectName
      | where Used_Percent_Memory < 90 and Used_Percent_Memory > 70


      what I really want , I want my ""VM-WVD-REL86-5.networkhg.org.uk" server to show me the results of memory usage for 5 days.



      I have attached the picture to this post, table is showing value for 1 day but I want it to show value for the 5 days. for instance , I want the query to show the memory usage for Monday, Tuesday, Wednesday, Thursday and Friday for the server ""VM-WVD-REL86-5.networkhg.org.uk". I hope , you will work this out


      • CliveWatson's avatar
        CliveWatson
        Icon for Microsoft rankMicrosoft

        Arslan11



        I see now, so change to this:



        Perf
        | where TimeGenerated > startofday(ago(5d))
        | where ObjectName == "Memory" and CounterName == "% Committed Bytes In Use"
        | where Computer startswith "retail"
        | extend Used_Percent_Memory = 100- CounterValue
        | summarize Used_Percent_Memory = max(CounterValue)by bin(TimeGenerated,1d) , Computer, ObjectName
        | where Used_Percent_Memory < 90 and Used_Percent_Memory > 70



        We take 5 days of data, then use a BIN in the summarise line to group the results per day


        | where TimeGenerated > startofday(ago(5d))

        and



        | summarize Used_Percent_Memory = max(CounterValue)by bin(TimeGenerated,1d) , Computer, ObjectName

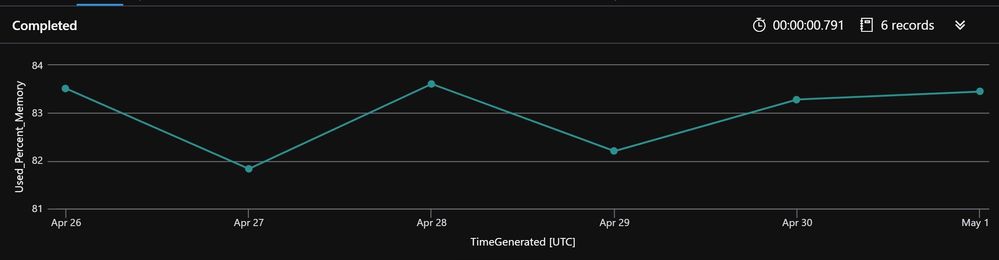

        TimeGenerated Computer ObjectName Used_Percent_Memory
        2020-05-01T00:00:00Z retail Memory 83.4487609863281
        2020-04-28T00:00:00Z retail Memory 83.6081695556641
        2020-04-30T00:00:00Z retail Memory 83.2831649780273
        2020-04-26T00:00:00Z retail Memory 83.5125961303711
        2020-04-29T00:00:00Z retail Memory 82.2031326293945
        2020-04-27T00:00:00Z retail Memory 81.8324279785156



        e.g.
