How to rename axes in Azure Log Analytics Timechart Query

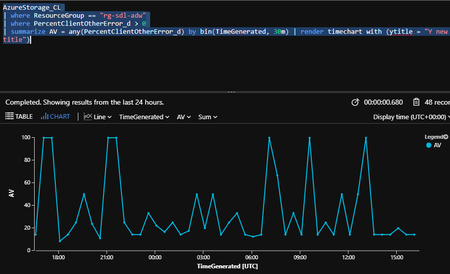

I have the following query that I want to change the name of the axes. I tried the optional attributes of render, but it doesn't seem to recognize any of them. What am I missing? AzureStorage_CL ...

azure monitor

Query Language

Stanislav_Zhelyazkov

MVP

Nov 02, 2018

Hi,

If I understand correctly you want to change the name of TimeGenerated below. That is just a column and you can do something like:

AzureStorage_CL
| where ResourceGroup == "rg-sdl-adw"
| where PercentClientOtherError_d > 0
| summarize AV = any(PercentClientOtherError_d) by bin(TimeGenerated, 30m)
| project-rename NewName = TimeGenerated
 | render timechart

Let me know if this works for you.
