How to query all NIC details

Hello, I am looking for KQL query to get the list of something as attached for NIC, can someone please help me. Regards Deb

azure monitor

deb0093

Copper Contributor

Jul 28, 2021

CliveWatson

I am looking for something :

NAME

VIRTUAL NETWORK

PRIMARY PRIVATE IP

ATTACHED TO

RESOURCE GROUP

LOCATION

SUBSCRIPTION

Subnet

NetWork Security Group

CliveWatson

Former Employee

Jul 28, 2021

deb0093

More like this example? I hope this helps you as an example (sorry but I cant answer every request I get, or fully deliver a full script, but I hope this is enough to get you started). You will need to work out what to put in the "attached to" column as I didn't know what that mapped to.


Resources
| where type =~ 'microsoft.compute/virtualmachines'
| extend nics=array_length(properties.networkProfile.networkInterfaces)
| mv-expand nic=properties.networkProfile.networkInterfaces
| where nics == 1 or nic.properties.primary =~ 'true' or isempty(nic)
| project vmId = id, vmName = name, vmSize=tostring(properties.hardwareProfile.vmSize), nicId = tostring(nic.id)
| join kind=leftouter (
Resources
  | where type =~ 'microsoft.network/networkinterfaces'
  | extend ipConfigsCount=array_length(properties.ipConfigurations)
  | mv-expand ipconfig=properties.ipConfigurations
  | where ipConfigsCount == 1 or ipconfig.properties.primary =~ 'true'
  | project nicId = id, publicIpId = tostring(ipconfig.properties.publicIPAddress.id) , name, location, subscriptionId, subnetId = tostring(ipconfig.properties.subnet.id), resourceGroup
| parse kind=regex subnetId with '/virtualNetworks/' virtualNetwork '/subnets/' subnet ) on nicId
| join (
resources
| where type =~ 'microsoft.network/networkinterfaces'
| mv-expand properties.networkSecurityGroup
| extend nsg_ = tostring(properties_networkSecurityGroup.id)
| parse kind=regex nsg_ with '/networkSecurityGroups/' nsgName
| summarize make_set(nsgName) by name
) on name
| project-away name1, vmSize, vmId
| project Name=vmName, virtualNetwork, publicIpId, attachedto="I dont know!", resourceGroup, location, Subscription=subscriptionId, subnet, NSG=set_nsgName

deb0093
Copper Contributor
Jul 29, 2021
Thanks CliveWatson
Where to include
Resources
| join (ResourceContainers | where type=='microsoft.resources/subscriptions' | project SubName=name, subscriptionId) on subscriptionId
As above to get the subscription names in KQL query you have mentioned.

And my attached to list out are all the list of resources under that subscription.

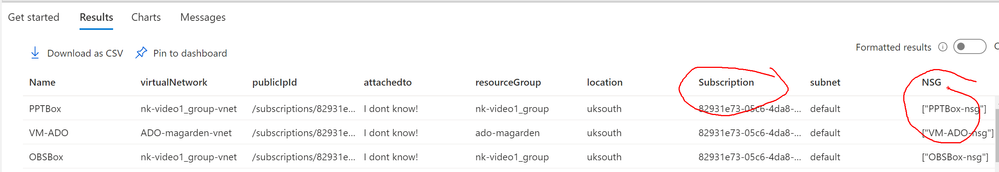

NSG Value I am getting as attached, seems to be null, is it because I have nothing as attached to?
- CliveWatson
  Former Employee
  Jul 29, 2021
  deb0093 Yes, it looks like you don't have an NSG attached. The query above already displays the subscriptionID, so why do you want it from another type?

  You can check NSG associated to NICs with this code section

  resources | where type =~ 'microsoft.network/networkinterfaces' | mv-expand properties.networkSecurityGroup | extend nsg_ = tostring(properties_networkSecurityGroup.id) | parse kind=regex nsg_ with '/networkSecurityGroups/' nsgName | where isnotempty(nsg_) | project nsg_, nsgName
  - deb0093
    Copper Contributor
    Aug 02, 2021
    CliveWatson

    Thanks, My requirement is to get the data as Subscription Names, and How to get the details of all attached to components?
