Getting memory consumption per process in a VM

Hi! Is there a way to get memory consumption per process exported to log analytics workspace? Probably the easiest way would be to log on to the VM but sometimes this is not possible and instead of just seeing we are out of memory would be nice to see what is actually eating up the memory.

I believe Rahul pointed to me, that I would need to enable process level perf counters from my workspace, to collect this data but i'm not 100% sure on how 🙂

azure monitor
vm insights

4 Replies

  • loadedlouie27's avatar
    loadedlouie27
    Brass Contributor
    Jun 30, 2020

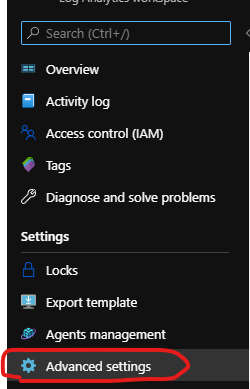

    Juval Hi to enable performance counters, events from event viewer etcs... you need to go to log analytics workspace that you are using, and enable what you need in advance settings.

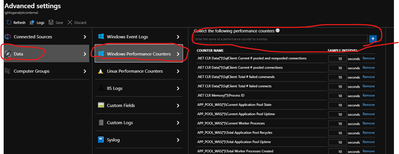

    Aftear this you have to select what you need :





    Hope this helps, you can also use this  :



    https://docs.microsoft.com/pt-pt/azure/azure-monitor/platform/data-sources-performance-counters



    Hope it helps it took me a while to understand what was needed.

    🙂


    Just a side note keep tracking of what you enable, because log analytics is payed by ingestion...

    You can take a look at your ingestion and cost, in the "usage and Cost" on the log analytics workspace.



    Hope it helps.

    Best Regards.







    • Juval's avatar
      Juval
      Brass Contributor
      Jun 30, 2020

      loadedlouie27


      Hi thanks for the pics and guidance! I appreciate all the help i can get so thank you! Yeah need to be careful i guess so in that sense it would be nice if i could just enable on a problematic VM and not all of the VMs.

      • loadedlouie27's avatar
        loadedlouie27
        Brass Contributor
        Jun 30, 2020

        Juval You can actually...

        it took me a while to understand, but basically

        when you add this counter :

        Processor(*)\% Processor Time



        Your collecting for all the VM's, but if you putt it like this:

        Processor(YOURVMNAME)\% Processor Time



        It will only collect the VM you specified.


        Don't ask me multiple VM's how-to, because I don't know but I'm guessing one line for each VM.



        🙂 hope it helps.

        Hit That Like 😄 loool
