Access storage account (SMB file share) via private endpoint in a Hub-Spoke setup
Hello community,
I am struggeling with this issue since days now.

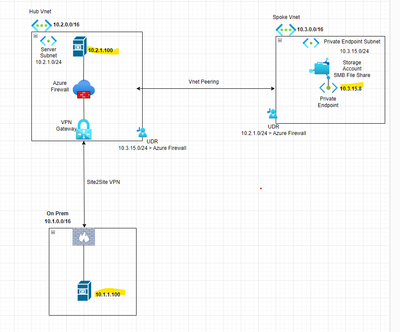

I need to access a SMB share (=private endpoint in spoke Vnet) from a VM (Zscaler App Connector)
in the Hub Vnet.
The traffic flow is going throgh the Azure firewall (UDRs in place) and i can see the traffic
10.2.1.100 > 10.3.15.8:445 as allowed.
The connection from On Prem 10.1.1.00 > 10.3.15.8:445 is working fine.
Only from the Server Subnet in the Hub Vnet i can not access the SMB share.
telnet 10.3.15.8 445 from 10.2.1.100 is not successful
Interestingly a tcp dump on 10.2.1.100 shows that i get RESET packets after a couple of SYNs from 10.13.15.8
Any ideas are highly appreciated.
Thanks
Stephan
11 Replies
- hello, thanks for reaching out and sharing your setup...
I'm trying to reproduce it. However, can you share your vnet peering configuration?- I successfully configured my environment using the same setup—all on Azure, no physical on-premises infrastructure.
I would recommend you check your peering configuration, and you will also need to manually add the hub vnet to the private DNS zone (virtual network link)
Hi Kidd_lp,
yes, I am using Azure Files.
I have set it up like described in the guides and DNS is working properly.

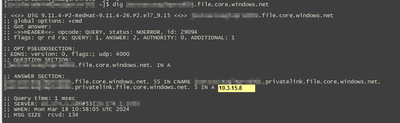

I am getting back the private IP address:The most irritating thing is, that it´s working from OnPrem perfectly but not from
the Hub Vnet.
From my point of view:
DNS is ok
Routing is ok
Firewalling is ok
Is there anything more i forgot?
Thanks
Stephan
Please check the connectivity with IP Flow Verify in Network Watcher or please go through the given link
https://learn.microsoft.com/en-us/azure/private-link/troubleshoot-private-endpoint-connectivity
Thanks for your reply.
The IP flow only seems to be relevant for NSGs
I don´t use NSGs in this case.

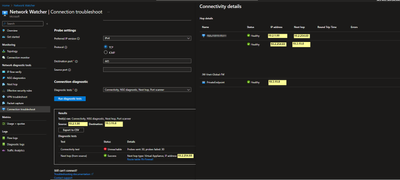

A Connection troubleshoot tells this:
I have really no idea why port tcp/445 ist not reachable from a VM in the Hub Vnet, when it´s allowed on the Azure firewall.
I can see that clearly in the firewall logs.
Please check at VM--> Nic--> Effective Routes
Let me know did you find the above in your Effective Routes.
