Trouble retrieving Authorization Code using Oauth2 in Azure devops

I'm trying use OAuth2 autentication method as microsoft learn expose in this url https://learn.microsoft.com/en-us/azure/devops/integrate/get-started/authentication/azure-devops-oauth?view=azure-devops
I attach a postman collection with params of registered app.

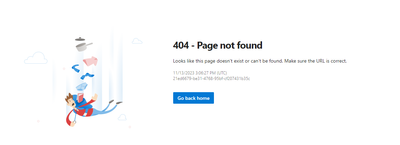

I notice that response of token endpoint https://app.vssps.visualstudio.com/oauth2/token I need get authorization code from endpoint https://app.vssps.visualstudio.com/oauth2/authorize ,when I send the POST request login page appear, write MFA code and then when it suppossed to get the code a 404 alert screen shown below.

These are registered app parameters

Attach client_id (application id on page) as client_id header, scope vso.build_execute,state foo and response_type Assertion as documentation mentioned, on oauth protocol official page of o headers labels differ of documentation, as example grant_type  must be authorization_code not urn:ietf:params:oauth:grant-type:jwt-bearer (request accept this type) if I change it get the next response:

{"Error":"unsupported_grant_type","ErrorDescription":"grant_type must be the ietf jwt-bearer type, refresh_token, or client_credentials"}



Why https://app.vssps.visualstudio.com/oauth2/token does not support authorization-code grant type when protocol says it is mandatory??
https://www.oauth.com/oauth2-servers/access-tokens/authorization-code-request/
Anyway main trouble is about retrieve authorization code from https://app.vssps.visualstudio.com/oauth2/authorize?client_id=a7f5fffb-9645-4e14-8b16-7fb1cf37017d&response_type=Assertion&state=foo&scope=vso.build_execute



Attach postman collection on this post





{
	"info": {
		"_postman_id": "0c50a913-7913-4ad0-b180-dc89638dd530",
		"name": "AZURE",
		"schema": "https://schema.getpostman.com/json/collection/v2.1.0/collection.json",
		"_exporter_id": "21601577"
	},
	"item": [
		{
			"name": "RUN PIPELINE USING OAUTH",
			"protocolProfileBehavior": {
				"disableBodyPruning": true
			},
			"request": {
				"auth": {
					"type": "oauth2",
					"oauth2": [
						{
							"key": "client_authentication",
							"value": "header",
							"type": "string"
						},
						{
							"key": "useBrowser",
							"value": true,
							"type": "boolean"
						},
						{
							"key": "authRequestParams",
							"value": [
								{
									"key": "response_type",
									"value": "Assertion",
									"enabled": true,
									"send_as": "request_url"
								},
								{
									"key": "state",
									"value": "state",
									"enabled": true,
									"send_as": "request_url"
								},
								{
									"key": "scope",
									"value": "vso.build_execute",
									"enabled": true,
									"send_as": "request_url"
								},
								{
									"key": "client_id",
									"value": "A7F5FFFB-9645-4E14-8B16-7FB1CF37017D",
									"enabled": true,
									"send_as": "request_url"
								},
								{
									"key": "redirect_url",
									"value": "https://dev.azure.com/jose-carlosnavarro/TESTING/_apis/pipelines/1/runs?api-version=7.1-preview.1",
									"enabled": false,
									"send_as": "request_url"
								},
								{
									"key": "client_secret",
									"value": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Im9PdmN6NU1fN3AtSGpJS2xGWHo5M3VfVjBabyJ9.eyJjaWQiOiJhN2Y1ZmZmYi05NjQ1LTRlMTQtOGIxNi03ZmIxY2YzNzAxN2QiLCJjc2kiOiIwODlhMWIxMy0xYzk4LTRlNjAtYTAwZi02NjI5ZTAwM2UyYmUiLCJuYW1laWQiOiI0YmVlYTYxMS04YWJlLTRhMTctOGRhMC1hMmJkNTQwOTVhNDYiLCJpc3MiOiJhcHAudnN0b2tlbi52aXN1YWxzdHVkaW8uY29tIiwiYXVkIjoiYXBwLnZzdG9rZW4udmlzdWFsc3R1ZGlvLmNvbSIsIm5iZiI6MTY5OTM2MjY0MSwiZXhwIjoxODU3MjE1NDQxfQ.1hZ3_j1B4maKfz_Hrwuds95P41uWR96GimYN-PEYFAM40LqeEtNop2PhQqTf6nDL8CZfeITGmqipsYYfL98jk61z_9jcGBkHLWu-6VpKNwPd8c7uqEIHHQeQvOocRijHtQnlHGLETSy5IzRs6csDWnvrjpZNAU4TrALecWVMiocHZF6wqYsyReRzvPNpynoSFQQoOlrPdDVqRjsL05nmnE2BIwlDPuKWK9kuzFBGuaAQ0fiykA57SWpcpyyPxVbMhBqEo-NvHPTqh2heQbSvsuBuVKzeLjNVuaFpcyb-R6TweGzS5dU1cHcRWnqWRxcPLPr1EpeEkRseOtg9q1EWjw",
									"enabled": true,
									"send_as": "request_url"
								}
							],
							"type": "any"
						},
						{
							"key": "tokenRequestParams",
							"value": [
								{
									"key": "client_assertion_type",
									"value": "urn:ietf:params:oauth:client-assertion-type:jwt-bearer",
									"enabled": true,
									"send_as": "request_header"
								},
								{
									"key": "client_secret",
									"value": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Im9PdmN6NU1fN3AtSGpJS2xGWHo5M3VfVjBabyJ9.eyJjaWQiOiJhN2Y1ZmZmYi05NjQ1LTRlMTQtOGIxNi03ZmIxY2YzNzAxN2QiLCJjc2kiOiIwODlhMWIxMy0xYzk4LTRlNjAtYTAwZi02NjI5ZTAwM2UyYmUiLCJuYW1laWQiOiI0YmVlYTYxMS04YWJlLTRhMTctOGRhMC1hMmJkNTQwOTVhNDYiLCJpc3MiOiJhcHAudnN0b2tlbi52aXN1YWxzdHVkaW8uY29tIiwiYXVkIjoiYXBwLnZzdG9rZW4udmlzdWFsc3R1ZGlvLmNvbSIsIm5iZiI6MTY5OTM2MjY0MSwiZXhwIjoxODU3MjE1NDQxfQ.1hZ3_j1B4maKfz_Hrwuds95P41uWR96GimYN-PEYFAM40LqeEtNop2PhQqTf6nDL8CZfeITGmqipsYYfL98jk61z_9jcGBkHLWu-6VpKNwPd8c7uqEIHHQeQvOocRijHtQnlHGLETSy5IzRs6csDWnvrjpZNAU4TrALecWVMiocHZF6wqYsyReRzvPNpynoSFQQoOlrPdDVqRjsL05nmnE2BIwlDPuKWK9kuzFBGuaAQ0fiykA57SWpcpyyPxVbMhBqEo-NvHPTqh2heQbSvsuBuVKzeLjNVuaFpcyb-R6TweGzS5dU1cHcRWnqWRxcPLPr1EpeEkRseOtg9q1EWjw",
									"enabled": true,
									"send_as": "request_header"
								},
								{
									"key": "grant_type",
									"value": "client_credentials",
									"enabled": true,
									"send_as": "request_header"
								},
								{
									"key": "assertion",
									"value": "code",
									"enabled": false,
									"send_as": "request_header"
								},
								{
									"key": "client_id",
									"value": "a7f5fffb-9645-4e14-8b16-7fb1cf37017d",
									"enabled": true,
									"send_as": "request_body"
								},
								{
									"key": "client_assertion",
									"value": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Im9PdmN6NU1fN3AtSGpJS2xGWHo5M3VfVjBabyJ9.eyJjaWQiOiJhN2Y1ZmZmYi05NjQ1LTRlMTQtOGIxNi03ZmIxY2YzNzAxN2QiLCJjc2kiOiIwODlhMWIxMy0xYzk4LTRlNjAtYTAwZi02NjI5ZTAwM2UyYmUiLCJuYW1laWQiOiI0YmVlYTYxMS04YWJlLTRhMTctOGRhMC1hMmJkNTQwOTVhNDYiLCJpc3MiOiJhcHAudnN0b2tlbi52aXN1YWxzdHVkaW8uY29tIiwiYXVkIjoiYXBwLnZzdG9rZW4udmlzdWFsc3R1ZGlvLmNvbSIsIm5iZiI6MTY5OTM2MjY0MSwiZXhwIjoxODU3MjE1NDQxfQ.1hZ3_j1B4maKfz_Hrwuds95P41uWR96GimYN-PEYFAM40LqeEtNop2PhQqTf6nDL8CZfeITGmqipsYYfL98jk61z_9jcGBkHLWu-6VpKNwPd8c7uqEIHHQeQvOocRijHtQnlHGLETSy5IzRs6csDWnvrjpZNAU4TrALecWVMiocHZF6wqYsyReRzvPNpynoSFQQoOlrPdDVqRjsL05nmnE2BIwlDPuKWK9kuzFBGuaAQ0fiykA57SWpcpyyPxVbMhBqEo-NvHPTqh2heQbSvsuBuVKzeLjNVuaFpcyb-R6TweGzS5dU1cHcRWnqWRxcPLPr1EpeEkRseOtg9q1EWjw",
									"enabled": true,
									"send_as": "request_body"
								}
							],
							"type": "any"
						},
						{
							"key": "tokenName",
							"value": "code",
							"type": "string"
						},
						{
							"key": "grant_type",
							"value": "authorization_code",
							"type": "string"
						},
						{
							"key": "clientSecret",
							"value": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Im9PdmN6NU1fN3AtSGpJS2xGWHo5M3VfVjBabyJ9.eyJjaWQiOiJhN2Y1ZmZmYi05NjQ1LTRlMTQtOGIxNi03ZmIxY2YzNzAxN2QiLCJjc2kiOiIwODlhMWIxMy0xYzk4LTRlNjAtYTAwZi02NjI5ZTAwM2UyYmUiLCJuYW1laWQiOiI0YmVlYTYxMS04YWJlLTRhMTctOGRhMC1hMmJkNTQwOTVhNDYiLCJpc3MiOiJhcHAudnN0b2tlbi52aXN1YWxzdHVkaW8uY29tIiwiYXVkIjoiYXBwLnZzdG9rZW4udmlzdWFsc3R1ZGlvLmNvbSIsIm5iZiI6MTY5OTM2MjY0MSwiZXhwIjoxODU3MjE1NDQxfQ.1hZ3_j1B4maKfz_Hrwuds95P41uWR96GimYN-PEYFAM40LqeEtNop2PhQqTf6nDL8CZfeITGmqipsYYfL98jk61z_9jcGBkHLWu-6VpKNwPd8c7uqEIHHQeQvOocRijHtQnlHGLETSy5IzRs6csDWnvrjpZNAU4TrALecWVMiocHZF6wqYsyReRzvPNpynoSFQQoOlrPdDVqRjsL05nmnE2BIwlDPuKWK9kuzFBGuaAQ0fiykA57SWpcpyyPxVbMhBqEo-NvHPTqh2heQbSvsuBuVKzeLjNVuaFpcyb-R6TweGzS5dU1cHcRWnqWRxcPLPr1EpeEkRseOtg9q1EWjw",
							"type": "string"
						},
						{
							"key": "clientId",
							"value": "a7f5fffb-9645-4e14-8b16-7fb1cf37017d",
							"type": "string"
						},
						{
							"key": "addTokenTo",
							"value": "header",
							"type": "string"
						},
						{
							"key": "authUrl",
							"value": "https://app.vssps.visualstudio.com/oauth2/authorize",
							"type": "string"
						},
						{
							"key": "accessTokenUrl",
							"value": "https://app.vssps.visualstudio.com/oauth2/token",
							"type": "string"
						},
						{
							"key": "state",
							"value": "user1",
							"type": "string"
						},
						{
							"key": "scope",
							"value": "vso.build_execute",
							"type": "string"
						}
					]
				},
				"method": "GET",
				"header": [
					{
						"key": "Authorization",
						"value": "Bearer {{token}}",
						"type": "text"
					}
				],
				"body": {
					"mode": "urlencoded",
					"urlencoded": []
				},
				"url": {
					"raw": "https://dev.azure.com/jose-carlosnavarro/TESTING/_apis/pipelines/1/runs?api-version=7.1-preview.1",
					"protocol": "https",
					"host": [
						"dev",
						"azure",
						"com"
					],
					"path": [
						"jose-carlosnavarro",
						"TESTING",
						"_apis",
						"pipelines",
						"1",
						"runs"
					],
					"query": [
						{
							"key": "api-version",
							"value": "7.1-preview.1"
						}
					]
				}
			},
			"response": []
		},
		{
			"name": "TOKEN ADO",
			"protocolProfileBehavior": {
				"disabledSystemHeaders": {}
			},
			"request": {
				"auth": {
					"type": "noauth"
				},
				"method": "POST",
				"header": [
					{
						"key": "assertion",
						"value": "572247",
						"type": "text",
						"disabled": true
					},
					{
						"key": "client_id",
						"value": "a7f5fffb-9645-4e14-8b16-7fb1cf37017d",
						"type": "text",
						"disabled": true
					},
					{
						"key": "client_secret",
						"value": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIng1dCI6Im9PdmN6NU1fN3AtSGpJS2xGWHo5M3VfVjBabyJ9.eyJjaWQiOiJhN2Y1ZmZmYi05NjQ1LTRlMTQtOGIxNi03ZmIxY2YzNzAxN2QiLCJjc2kiOiIwODlhMWIxMy0xYzk4LTRlNjAtYTAwZi02NjI5ZTAwM2UyYmUiLCJuYW1laWQiOiI0YmVlYTYxMS04YWJlLTRhMTctOGRhMC1hMmJkNTQwOTVhNDYiLCJpc3MiOiJhcHAudnN0b2tlbi52aXN1YWxzdHVkaW8uY29tIiwiYXVkIjoiYXBwLnZzdG9rZW4udmlzdWFsc3R1ZGlvLmNvbSIsIm5iZiI6MTY5OTM2MjY0MSwiZXhwIjoxODU3MjE1NDQxfQ.1hZ3_j1B4maKfz_Hrwuds95P41uWR96GimYN-PEYFAM40LqeEtNop2PhQqTf6nDL8CZfeITGmqipsYYfL98jk61z_9jcGBkHLWu-6VpKNwPd8c7uqEIHHQeQvOocRijHtQnlHGLETSy5IzRs6csDWnvrjpZNAU4TrALecWVMiocHZF6wqYsyReRzvPNpynoSFQQoOlrPdDVqRjsL05nmnE2BIwlDPuKWK9kuzFBGuaAQ0fiykA57SWpcpyyPxVbMhBqEo-NvHPTqh2heQbSvsuBuVKzeLjNVuaFpcyb-R6TweGzS5dU1cHcRWnqWRxcPLPr1EpeEkRseOtg9q1EWjw",
						"type": "text",
						"disabled": true
					},
					{
						"key": "grant_type",
						"value": "ietf jwt-bearer",
						"type": "text",
						"disabled": true
					}
				],
				"body": {
					"mode": "urlencoded",
					"urlencoded": [
						{
							"key": "grant_type",
							"value": "code",
							"description": "GRANT TYPE DEFINIDO",
							"type": "text"
						},
						{
							"key": "client_id",
							"value": "a7f5fffb-9645-4e14-8b16-7fb1cf37017d",
							"type": "text"
						},
						{
							"key": "client_assertion",
							"value": "Ing1dCI6Im9PdmN6NU1fN3AtSGpJS2xGWHo5M3VfVjBabyJ9.eyJjaWQiOiJhN2Y1ZmZmYi05NjQ1LTRlMTQtOGIxNi03ZmIxY2YzNzAxN2QiLCJjc2kiOiIwODlhMWIxMy0xYzk4LTRlNjAtYTAwZi02NjI5ZTAwM2UyYmUiLCJuYW1laWQiOiI0YmVlYTYxMS04YWJlLTRhMTctOGRhMC1hMmJkNTQwOTVhNDYiLCJpc3MiOiJhcHAudnN0b2tlbi52aXN1YWxzdHVkaW8uY29tIiwiYXVkIjoiYXBwLnZzdG9rZW4udmlzdWFsc3R1ZGlvLmNvbSIsIm5iZiI6MTY5OTM2MjY0MSwiZXhwIjoxODU3MjE1NDQxfQ.1hZ3_j1B4maKfz_Hrwuds95P41uWR96GimYN-PEYFAM40LqeEtNop2PhQqTf6nDL8CZfeITGmqipsYYfL98jk61z_9jcGBkHLWu-6VpKNwPd8c7uqEIHHQeQvOocRijHtQnlHGLETSy5IzRs6csDWnvrjpZNAU4TrALecWVMiocHZF6wqYsyReRzvPNpynoSFQQoOlrPdDVqRjsL05nmnE2BIwlDPuKWK9kuzFBGuaAQ0fiykA57SWpcpyyPxVbMhBqEo-NvHPTqh2heQbSvsuBuVKzeLjNVuaFpcyb-R6TweGzS5dU1cHcRWnqWRxcPLPr1EpeEkRseOtg9q1EWjw",
							"description": "CLIENT SECRET GENERADO AL REGISTRAR LA PALICACION",
							"type": "text"
						},
						{
							"key": "assertion",
							"value": "NV1Ojxy7sz0UTNemw-UFh3efViRpWOZqEVwTBz9YPiPGemcM",
							"description": "CODIGO QUE DEVUELVE EL REDIRECT URI DE AUTHORIZE ENDPOINT",
							"type": "text"
						},
						{
							"key": "client_assertion_type",
							"value": "urn:ietf:params:oauth:client-assertion-type:jwt-bearer",
							"type": "text"
						},
						{
							"key": "client_secret",
							"value": "Ing1dCI6Im9PdmN6NU1fN3AtSGpJS2xGWHo5M3VfVjBabyJ9.eyJjaWQiOiJhN2Y1ZmZmYi05NjQ1LTRlMTQtOGIxNi03ZmIxY2YzNzAxN2QiLCJjc2kiOiIwODlhMWIxMy0xYzk4LTRlNjAtYTAwZi02NjI5ZTAwM2UyYmUiLCJuYW1laWQiOiI0YmVlYTYxMS04YWJlLTRhMTctOGRhMC1hMmJkNTQwOTVhNDYiLCJpc3MiOiJhcHAudnN0b2tlbi52aXN1YWxzdHVkaW8uY29tIiwiYXVkIjoiYXBwLnZzdG9rZW4udmlzdWFsc3R1ZGlvLmNvbSIsIm5iZiI6MTY5OTM2MjY0MSwiZXhwIjoxODU3MjE1NDQxfQ.1hZ3_j1B4maKfz_Hrwuds95P41uWR96GimYN-PEYFAM40LqeEtNop2PhQqTf6nDL8CZfeITGmqipsYYfL98jk61z_9jcGBkHLWu-6VpKNwPd8c7uqEIHHQeQvOocRijHtQnlHGLETSy5IzRs6csDWnvrjpZNAU4TrALecWVMiocHZF6wqYsyReRzvPNpynoSFQQoOlrPdDVqRjsL05nmnE2BIwlDPuKWK9kuzFBGuaAQ0fiykA57SWpcpyyPxVbMhBqEo-NvHPTqh2heQbSvsuBuVKzeLjNVuaFpcyb-R6TweGzS5dU1cHcRWnqWRxcPLPr1EpeEkRseOtg9q1EWjw",
							"type": "text",
							"disabled": true
						},
						{
							"key": "code",
							"value": "238227",
							"type": "text",
							"disabled": true
						}
					]
				},
				"url": {
					"raw": "https://app.vssps.visualstudio.com/oauth2/token",
					"protocol": "https",
					"host": [
						"app",
						"vssps",
						"visualstudio",
						"com"
					],
					"path": [
						"oauth2",
						"token"
					]
				}
			},
			"response": []
		},
		{
			"name": "AUTHORIZE",
			"event": [
				{
					"listen": "test",
					"script": {
						"exec": [
							""
						],
						"type": "text/javascript"
					}
				}
			],
			"request": {
				"method": "POST",
				"header": [],
				"url": {
					"raw": "https://app.vssps.visualstudio.com/oauth2/authorize?client_id=a7f5fffb-9645-4e14-8b16-7fb1cf37017d&response_type=Assertion&state=user1&scope=vso.build_execute",
					"protocol": "https",
					"host": [
						"app",
						"vssps",
						"visualstudio",
						"com"
					],
					"path": [
						"oauth2",
						"authorize"
					],
					"query": [
						{
							"key": "client_id",
							"value": "a7f5fffb-9645-4e14-8b16-7fb1cf37017d"
						},
						{
							"key": "response_type",
							"value": "Assertion"
						},
						{
							"key": "state",
							"value": "user1"
						},
						{
							"key": "scope",
							"value": "vso.build_execute"
						},
						{
							"key": "redirect_uri",
							"value": "https://app.vssps.visualstudio.com/oauth2/authorize",
							"disabled": true
						}
					]
				}
			},
			"response": []
		}
	]
}




I thank you very much for your help
Best Regards
