Problem access internet from my VM : error invalid 0.0.0.0/0 to internet / route table

Hi,
I installed a forti firewall on Azure to make a VPN with my 03 sophos UTM9.

The VPN connection was made well.

Whereas, I had a problem with my VMs connected to the Vnet of this firewall and which do not connect to the internet.


Attached are the screenshots:

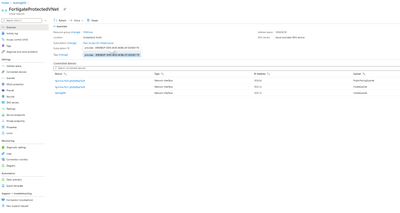

1- Vnet config

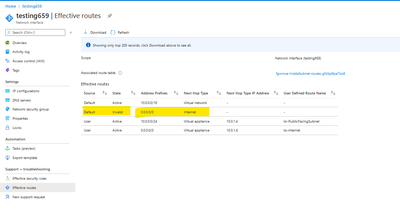

2- Effective routes  (network interface of the VM Testing659)


Invalid  0.0.0.0/0



3- Route Tables :

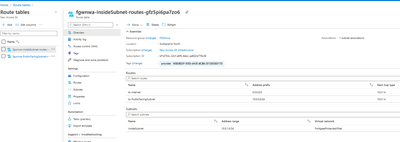

for inside Subnet routes

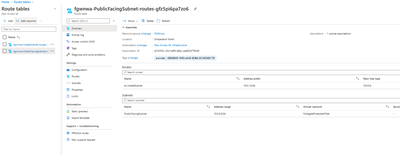

and for publicfacing subnet

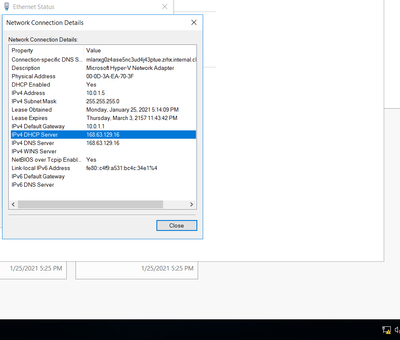

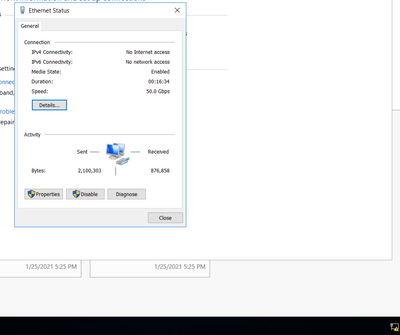

4- VM parmater of internet








has anyone encountered this problem please?
your help please

  • hamma91



    Hi



    This error is normal because you have created an UDR to forward the traffic to the NVA

    So the traffic is no longer going directly to the internet

    You need to verify that  :

    Local Subnets and Remote subnets are present in both firewalls

    Ipv4 policies From Internet _ To your Subnet

                         From your Subnet __ To Internet

  • ibnmbodji's avatar
    ibnmbodji
    Steel Contributor

    hamma91



    Hi



    This error is normal because you have created an UDR to forward the traffic to the NVA

    So the traffic is no longer going directly to the internet

    You need to verify that  :

    Local Subnets and Remote subnets are present in both firewalls

    Ipv4 policies From Internet _ To your Subnet

                         From your Subnet __ To Internet

    • hamma91's avatar
      hamma91
      Brass Contributor

      ibnmbodji



      Thanks bro

      Am I adding a new subnet?



      Will this VM be accessible by the VPN network with the Forti?
