How to get Board detail (name or id) for board column in case of shared area path between 2 boards ?
I am having 2 kanban team boards under a project in ADO. I have a story item which is having shared area path between these 2 team boards.
In order to retrieve item I am using API :
https://dev.azure.com/tasktop-sync-demo/Test Board Column/_apis/wit/workItems/5792498
On both boards my work item is on 2 different columns i.e. Column1 on Board1 and Column2 on Board2, Here in response I am getting these 2 columns with some generatedId keys "WEF_34545787865766_Kanban.Column"
{
"WEF_785DDB2D72A74EBCB0E642E4A45F12EC_Kanban.Column": "Column1", "WEF_785DDB2D72A74EBCB0E642E4A45F12EC_Kanban.Column.Done": false, "WEF_C2ECE6B228114F51A87D025B7DDB85CB_Kanban.Column": "Column2", "WEF_C2ECE6B228114F51A87D025B7DDB85CB_Kanban.Column.Done": false
}
My question is I want to map these generatedId with boards from which these Board columns are coming from for example if "WEF_785DDB2D72A74EBCB0E642E4A45F12EC_Kanban.Column" is coming for some BoardA then how can we get to know details such as Boardname about that corresponding board ?
bizdevaccts we have to do it in multiple steps.
For example, work item here exist in two boards ("ProjectA Team" and in "MultiTeamDemo") , in same column Active. (it can be in different columns as well similar to yours)

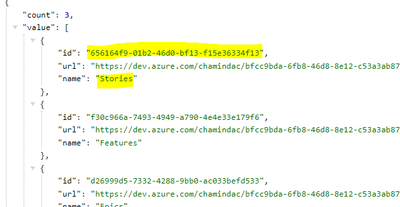

https://dev.azure.com/chamindac/MultiTeamDemo/_apis/wit/workItems/2115Now when list borads for team "MultiTeamDemo" with https://dev.azure.com/chamindac/MultiTeamDemo/_apis/work/boards
I can get the board ids. Then I get the board id of my stories board for team "MultiTeamDemo"

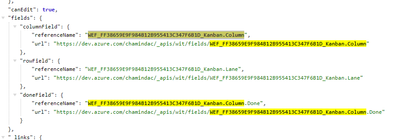

Then getting that board information with https://dev.azure.com/chamindac/MultiTeamDemo/_apis/work/boards/656164f9-01b2-46d0-bf13-f15e36334f13 (or you can use url for stories board returned by https://dev.azure.com/chamindac/MultiTeamDemo/_apis/work/boards) gives the refernece name WEF_FF38659E9F984B12B955413C347F6B1D_Kanban.Column

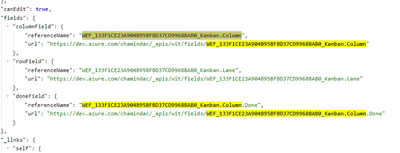

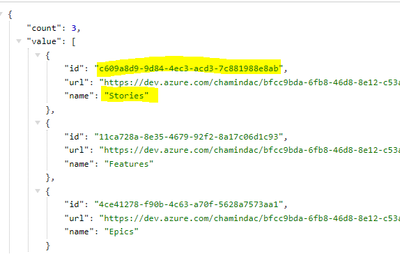

same way for "ProjectA Team" team using https://dev.azure.com/chamindac/MultiTeamDemo/ProjectA%20Team/_apis/work/boards can obtain the boad idsthe board has the reference name WEF_133F1CE23A904B95BFBD37CD9968BAB0_Kanban.Column in fieds
https://dev.azure.com/chamindac/MultiTeamDemo/ProjectA%20Team/_apis/work/boards/c609a8d9-9d84-4ec3-acd3-7c881988e8ab (or you can use url for stories board returned by https://dev.azure.com/chamindac/MultiTeamDemo/ProjectA%20Team/_apis/work/boards)
So it is not straight forward. What you have to do is- List all boards for your teams in the ADO project (including the boads of the team project (root team)), and filter for stories boards and obtain ids of those boards.
- Then query each board with id and obtain the fields.columnField.referenceName, so you can have list (table) of board IDs and its column reference.
This will give you a map between column reference name and the board id.
